  1. DSPs in Wireless Communication Systems Vishwas Sundaramurthy {vishwas@rice.edu} Electrical and Computer Engineering Department, Rice University, Houston,TX.

  2. Organization • What are DSPs? • Comparison with other processors • DSPs in Wireless communications • Prototyping using DSPs • use of DSP boards • Fixed point analysis • We use DSPs for …

  3. What are DSPs? • Digital Signal Processors • Optimized for signal processing • Work on a stream of data from the external world • “Real-Time” operation • Power efficient • Low cost

  4. Why DSPs? • Digital signal processors Vs. Analog components • No variation in behavior with external factors • Easy duplication of specifications • Flexibility in setting parameters

  5. MAC - Multiply Accumulate X + DSPs Vs. general purpose processors • Harvard Architecture • Von Neumann Architecture Processor Core Processor Core Address Buses Address Bus Data Bus Data Buses Memory - B Memory - A Memory • Expensive • Faster clock speeds • Single cycle multiply

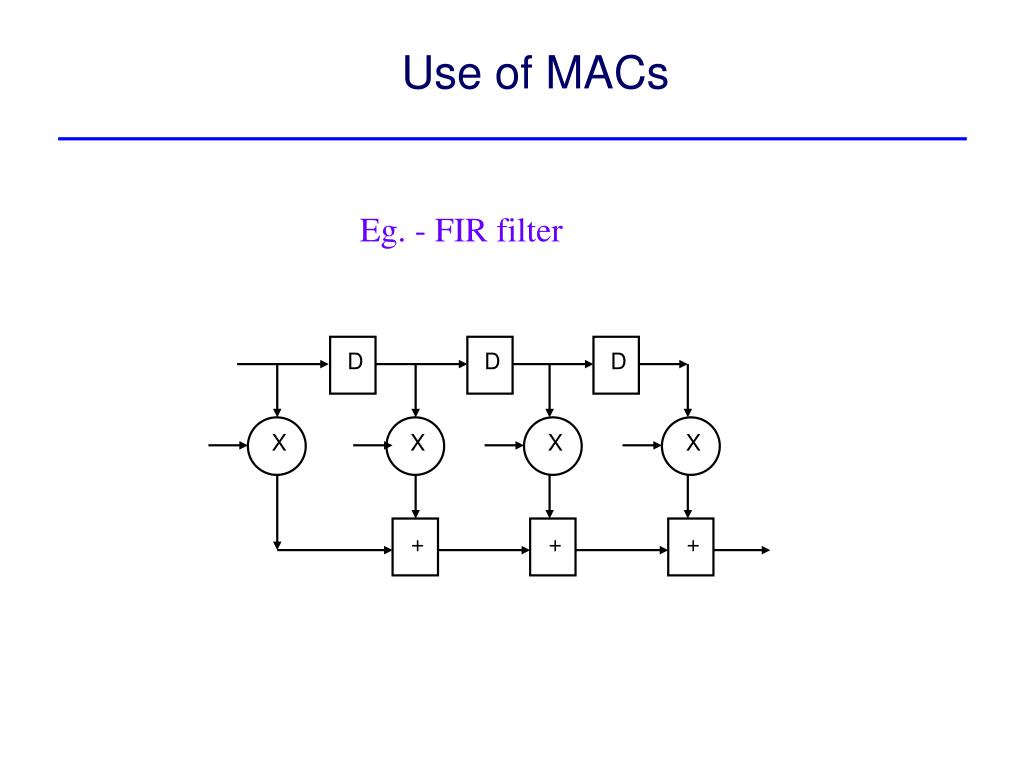

  6. D D D X X X X + + + Use of MACs Eg. - FIR filter

  7. Program “flow” • Data flow • Real time Section - A Function - B DSP Data In Data Out Section - C • Simpler Programming • High level languages • Flexibility to programmer • Coding in “C” • Optimization in assembly • Cool! • Hot! DSPs Vs. GPPs • Fixed point versions

  8. Application Areas in Wireless Communication Systems • Digital cellular phones • Cellular base stations • Wireless data applications • Wireless local loops • Cordless phones • Pagers • GPS systems

  9. DSP A Cellular Handset RECEIVER Detection A to D Channel Decoding Switch Demodulation Source decoding RF Amplification & De/Modulation Speaker Mic. Source Coding Modulation Channel Coding Spreading D to A TRANSMITTER RF section A/D conv. Baseband section

  10. DSPs DSPs A Cellular Base-station TRANSMITTER (RF) K users CHANNEL CODING MODULATION SOURCE CODING SPREADING Noise SWITCHING DETECTOR DECODER A/D DEMODULATION (RF) CHANNEL ESTIMATOR MULTIUSER RECEIVER

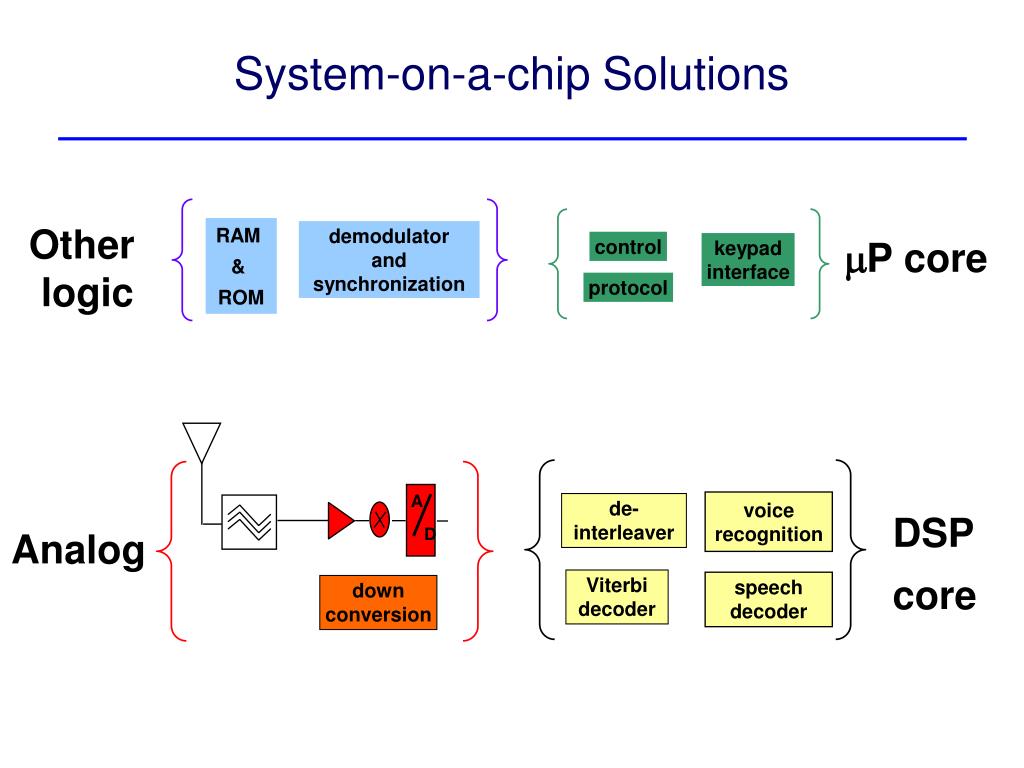

  11. System-on-a-chip Solutions Other logic RAM & ROM demodulator and synchronization mP core control keypad interface protocol A voice recognition de- interleaver DSP core Analog D Viterbi decoder speech decoder down conversion

  12. Algorithm development: high-level evaluation to DSP implementation DSP Algorithm to be implemented Algorithm Implemented using C - CODE Algorithm Implemented as a MATLAB program Algorithm implemented using a block diagram tool (SIMULINK) MATLAB Compiler C-code generator C - CODE C - CODE DSP CODE GENERATION TOOLS C - CODE C - Compiler Assembler ASM-CODE MACHINE LANGUAGE Linker DSP EXECUTABLE DOWNLOADED TO DSP DSP DEBUGGER Watch registers and memory

  13. Design flow for ASIC implementation COSSAP/SPW based analysis Fixed point analysis of blocks VHDL DSP function library VHDL description and simulation : Eg. Mentor Graphics' ModelSim VLSI design tools: area estimate : Eg. Synopsis' Design Compiler

  14. Example: Adaptive Filtering Algorithms • Interference cancellation in the synchronous downlink by channel equalization r(t) Chip- matched filter x(i+F) x(i+1) x(i) x(i-1) x(i-F) Discretize ... ... AN-1 AN-2 A1 A1* AN-2* AN-1*  Training Sequence z(i) Compare Update Coefficients

  15. Griffith's Chip Estimator Received downlink signal model: r : received signal H: channel and pulse shaping filter response u : signal elements n : noise Griffith's chip estimator Correlator Channel impulse response Estimate for u(i) (filter output): Adaptive filter coefficients with Filter coefficient (without preamble)

  16. x ... k -1 -1 -1 Z Z Z ... w w w e e e k 0k k 1k k Lk + + y k S LMS-filter VHDL Model Filter Output: Filter coefficients update: Wk: filter weight vector m: gain constant, ek = dk - yk: the error, Xk : the input sample vector dk : the desired response.

  17. Reference system • Downlink simulations in COSSAP Add Pilot Interleaving Channel Encoding Bit Source Base station transmitter (spreading and scrambling) 3-path Raleigh fading channel Interfering users AWGN Chip-matched filter Griffith's chip estimator De-spreading De-interleaving Decoding Channel estimate Statistics

  18. Fixed-point Analysis • COSSAP based simulation analysis • Fixed-point version of of the Adaptive filter only Cossap block diagram Griffith's Algorithm (integer) Floating-point to integer integer to Floating-point

  19. MAC Fixed-point Scaling W_I, W_q (^214) Fil_i, Fil_q (^222 ) (^216 ) (^224 ) W(+)_i, W(+)_q (^242 ) Downscale (v 228) Downscale (v 26) X X_i, X_q (^28 ) Step-Size (^ 218) ALU-1 Filter update ALU-2 Coefficient Update

  20. Fixed-point Scaling Observed signal range: • chip matched filter output : –50 to +50 • channel coefficients: -0.5 to 0.5 16 bits 9 bits 9 bits 17 bits

  21. Signal widths

  22. VLIW Architecture 1600 MIPS Peak 256 KB SRAM 8 MB DRAM PCI Interface TI TMS320C6201 Development System

  23. TI TMS320C6X architecture

  24. Wideband W-CDMA Simulation Testbed What we do with DSPs... • Develop an integrated software testbed • Unified framework to evaluate new algorithms for coding, synchronization, detection, etc. • Hardware/Software Co-Design Simulink, Matlab, “C” • Simulation Acceleration

  25. CDMA Wireless Link User’s data bits K users SOURCE CODING CHANNEL CODING SPREADING MODULATION TRANSMITTER Noise Detected bits of K users DETECTOR DECODER DEMODULATION CHANNEL ESTIMATOR RECEIVER

  26. CDMA Wireless System Testbed Simulink Version Multiuser Detection Chip matched filter AWGN Channel Error Rate Calculation Chip MF Wireless Channel User_Data Multiuser Detector Decorrelating Error Counter Detector Channel Estimation Channel Estimation User Data Max. Likelihood Channel Est. Show Stats Update Parameters Parameters Statistics

  27. C - Code Matlab Code Block Diagram Libraries Algorithms Simulink Workstation RTW generated C - Code DSP Code Generation Tools DSP hardware Prototyping Methodology Display and Analysis of Data With RTW support for DSP hardware

  28. Current Infrastructure • 400MHz Pentium PC host • Two TI TMS320C6201 DSP Development Boards (EVMs) • Optimizing “C” compiler and code generation tools • MS Visual Studio development environment

  29. Future Environment • PCI TIM (TI C40 Module) carrier • C62/C67 DSP TIMs • Xilinx Virtex FPGA module

  30. Summary • What are DSPs? + Special features • Issues in algorithm development on DSP boards • Prototyping • Fixed Point Analysis • DSPs in Wireless communications • DSPs in the wireless testbed project
