  1. Ashley Wright High Performance Computing and Research Support (QUT) OptiPortal Configuration Considerations

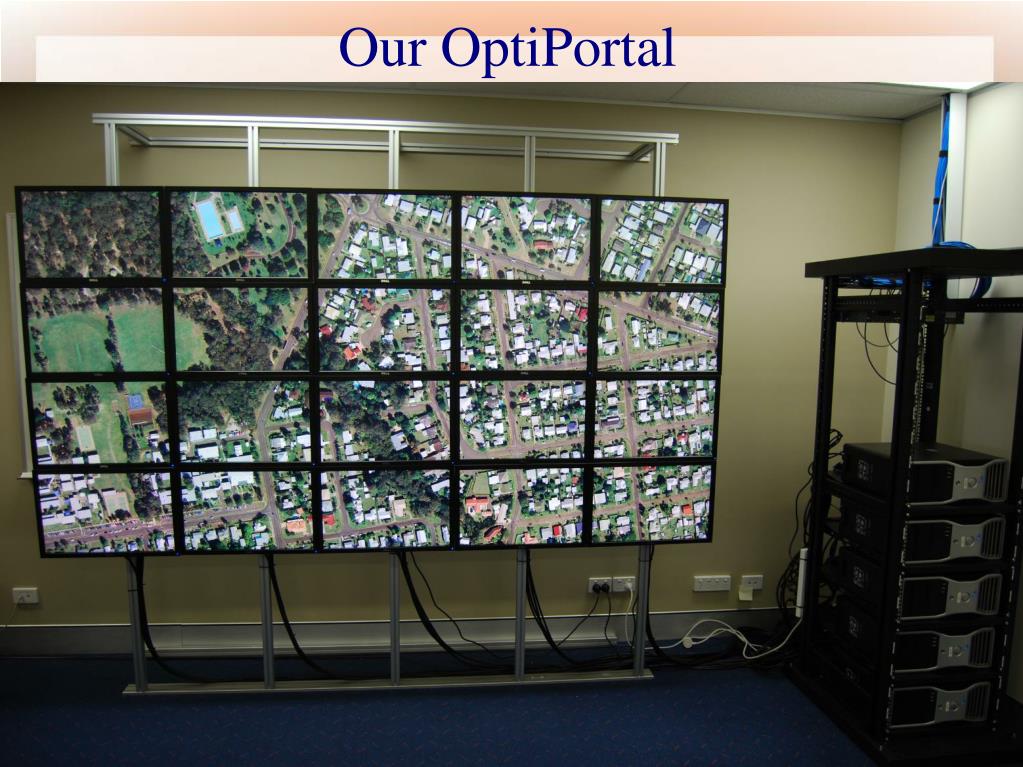

  2. Our OptiPortal

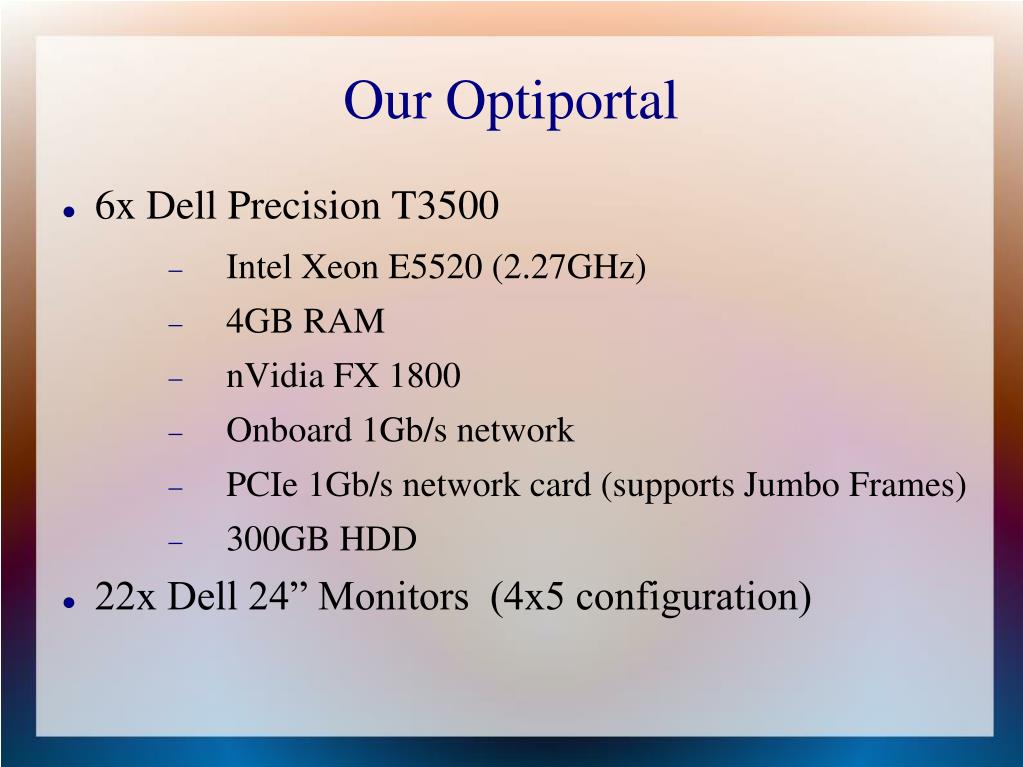

  3. Our Optiportal • 6x Dell Precision T3500 • Intel Xeon E5520 (2.27GHz) • 4GB RAM • nVidia FX 1800 • Onboard 1Gb/s network • PCIe 1Gb/s network card (supports Jumbo Frames) • 300GB HDD • 22x Dell 24” Monitors (4x5 configuration)

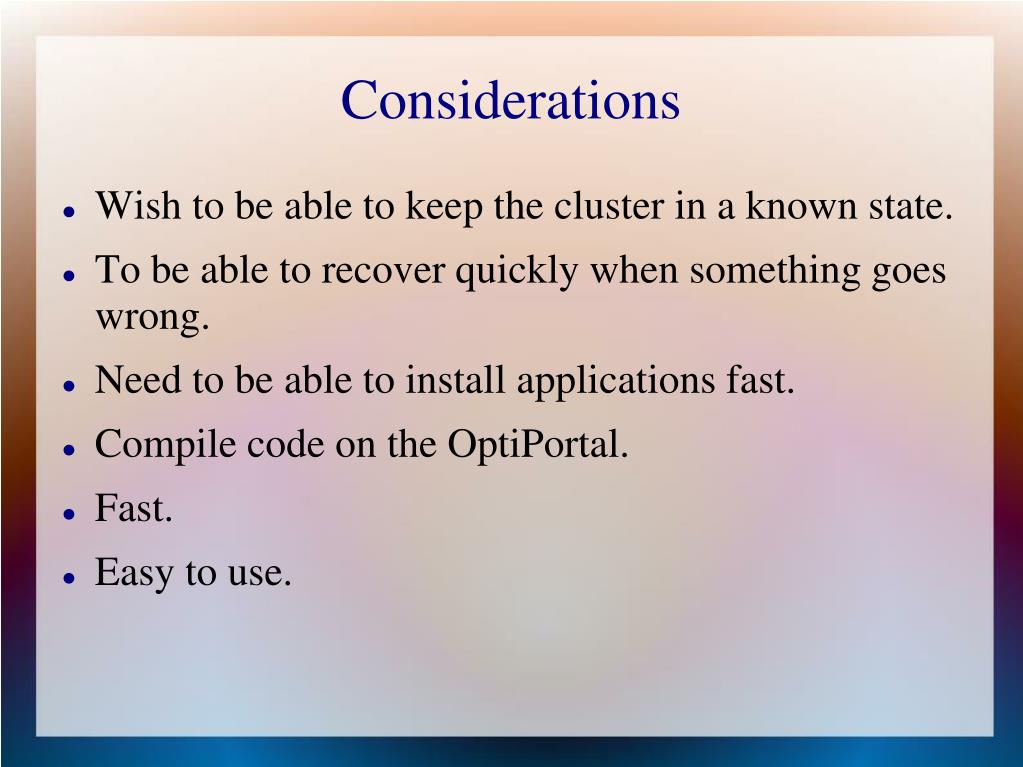

  4. Considerations • Wish to be able to keep the cluster in a known state. • To be able to recover quickly when something goes wrong. • Need to be able to install applications fast. • Compile code on the OptiPortal. • Fast. • Easy to use.

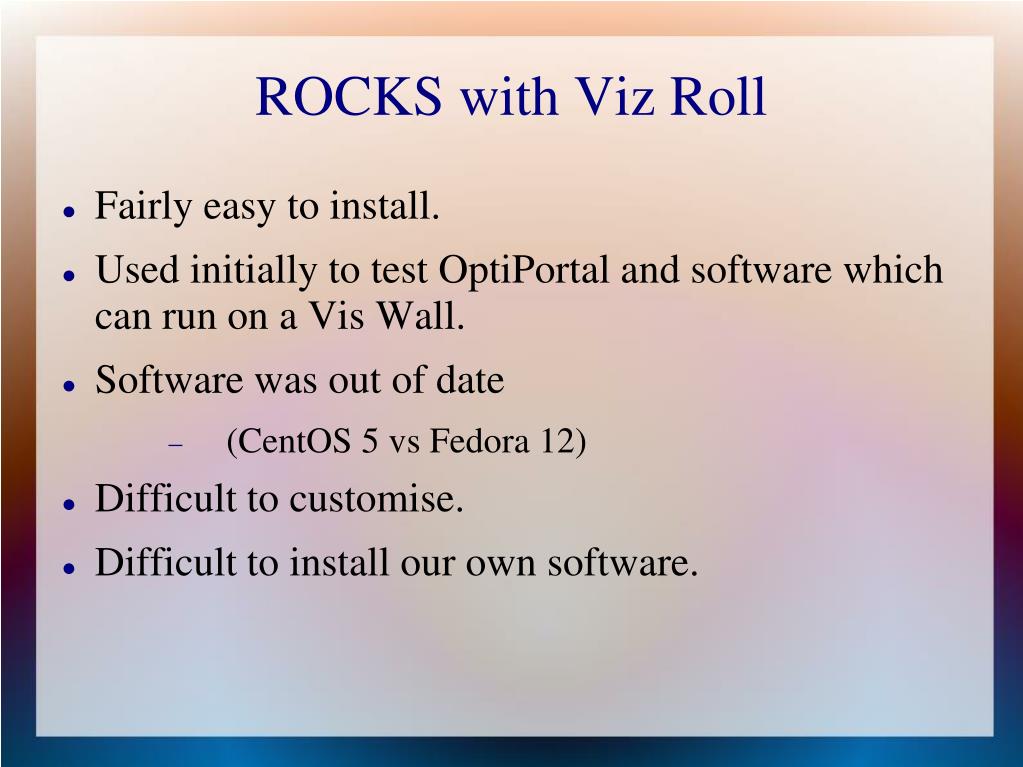

  5. ROCKS with Viz Roll • Fairly easy to install. • Used initially to test OptiPortal and software which can run on a Vis Wall. • Software was out of date • (CentOS 5 vs Fedora 12) • Difficult to customise. • Difficult to install our own software.

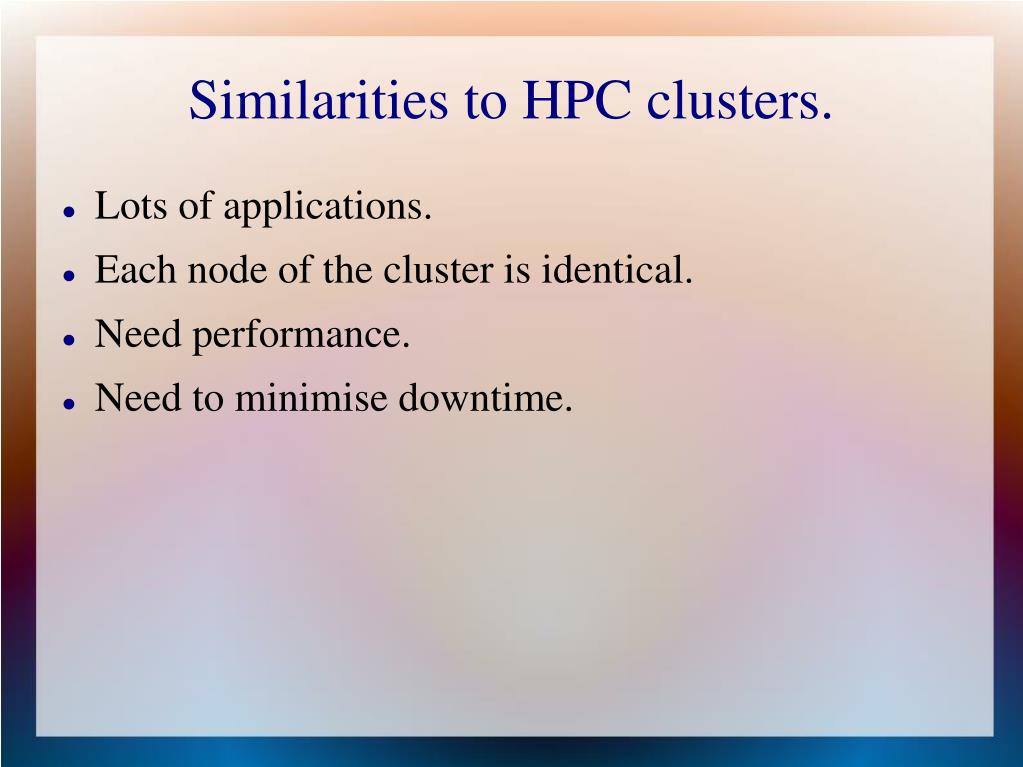

  6. Similarities to HPC clusters. • Lots of applications. • Each node of the cluster is identical. • Need performance. • Need to minimise downtime.

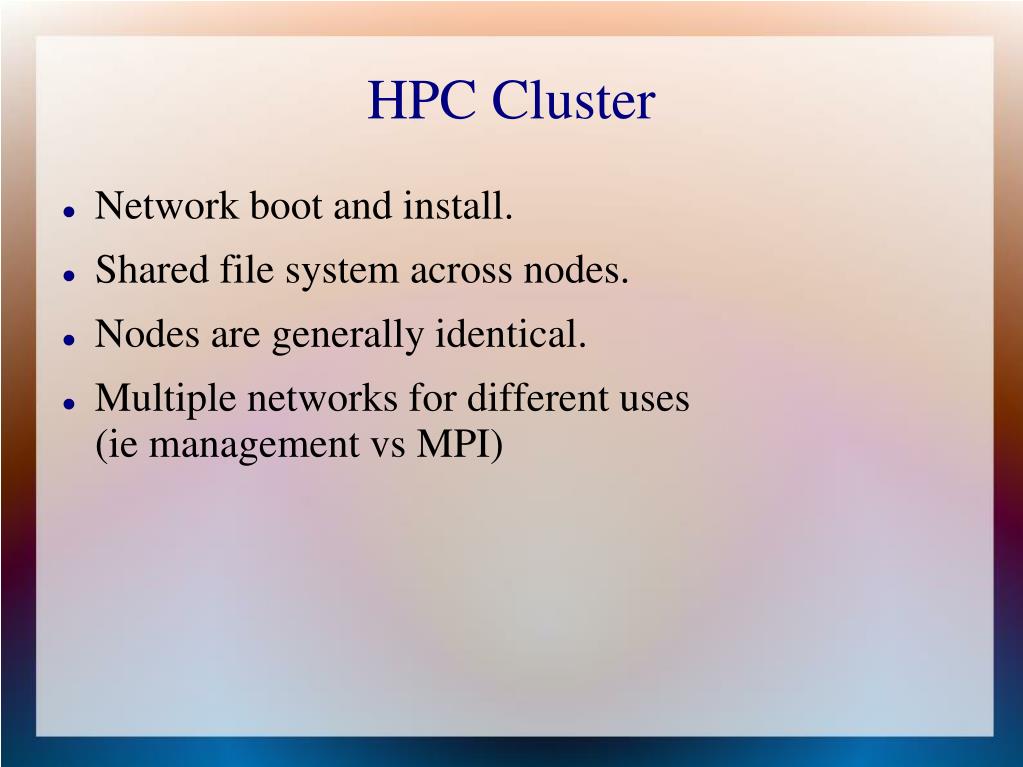

  7. HPC Cluster • Network boot and install. • Shared file system across nodes. • Nodes are generally identical. • Multiple networks for different uses(ie management vs MPI)

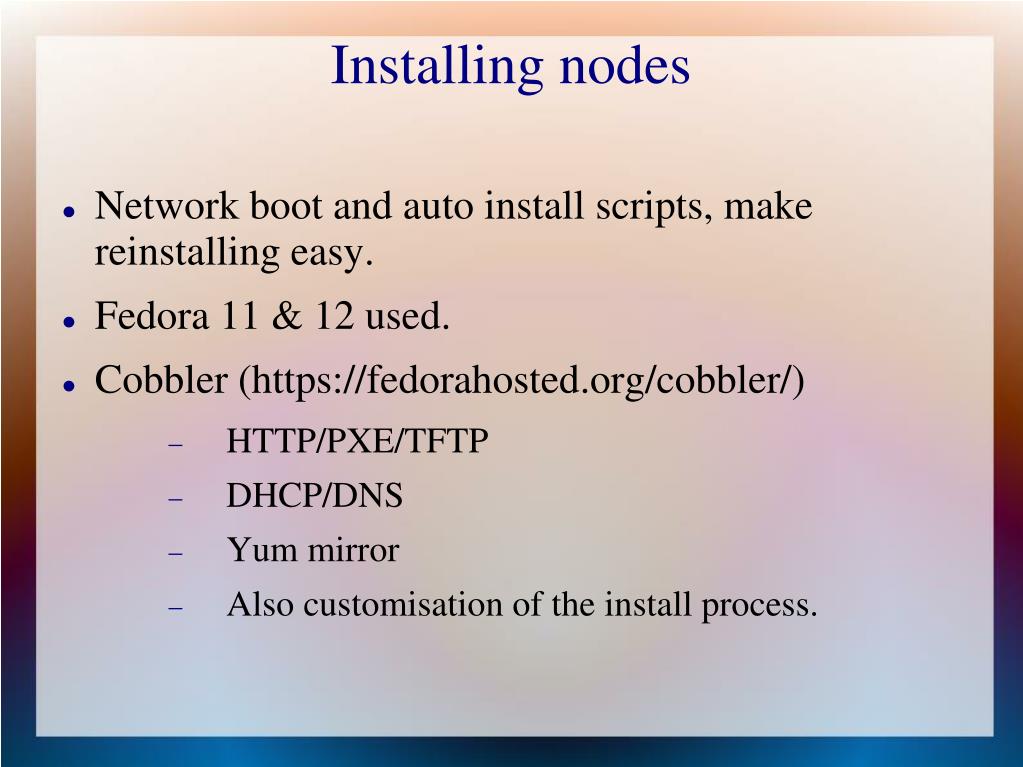

  8. Installing nodes • Network boot and auto install scripts, make reinstalling easy. • Fedora 11 & 12 used. • Cobbler (https://fedorahosted.org/cobbler/) • HTTP/PXE/TFTP • DHCP/DNS • Yum mirror • Also customisation of the install process.

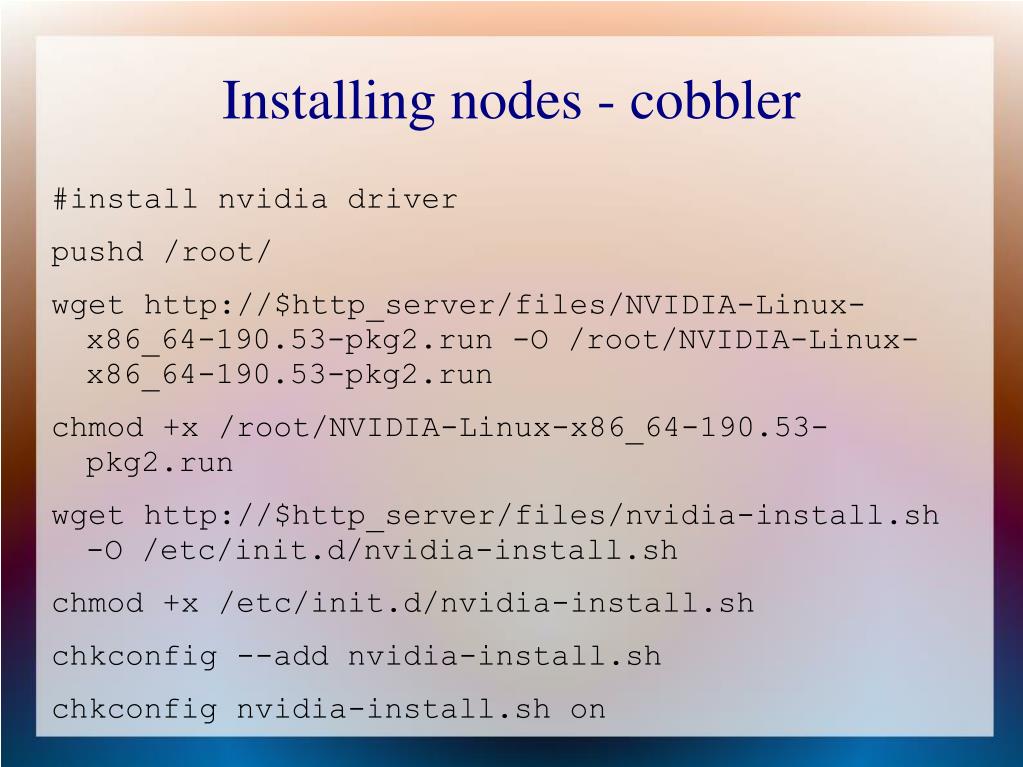

  9. Installing nodes - cobbler • #install nvidia driver • pushd /root/ • wget http://$http_server/files/NVIDIA-Linux-x86_64-190.53-pkg2.run -O /root/NVIDIA-Linux-x86_64-190.53-pkg2.run • chmod +x /root/NVIDIA-Linux-x86_64-190.53-pkg2.run • wget http://$http_server/files/nvidia-install.sh -O /etc/init.d/nvidia-install.sh • chmod +x /etc/init.d/nvidia-install.sh • chkconfig --add nvidia-install.sh • chkconfig nvidia-install.sh on

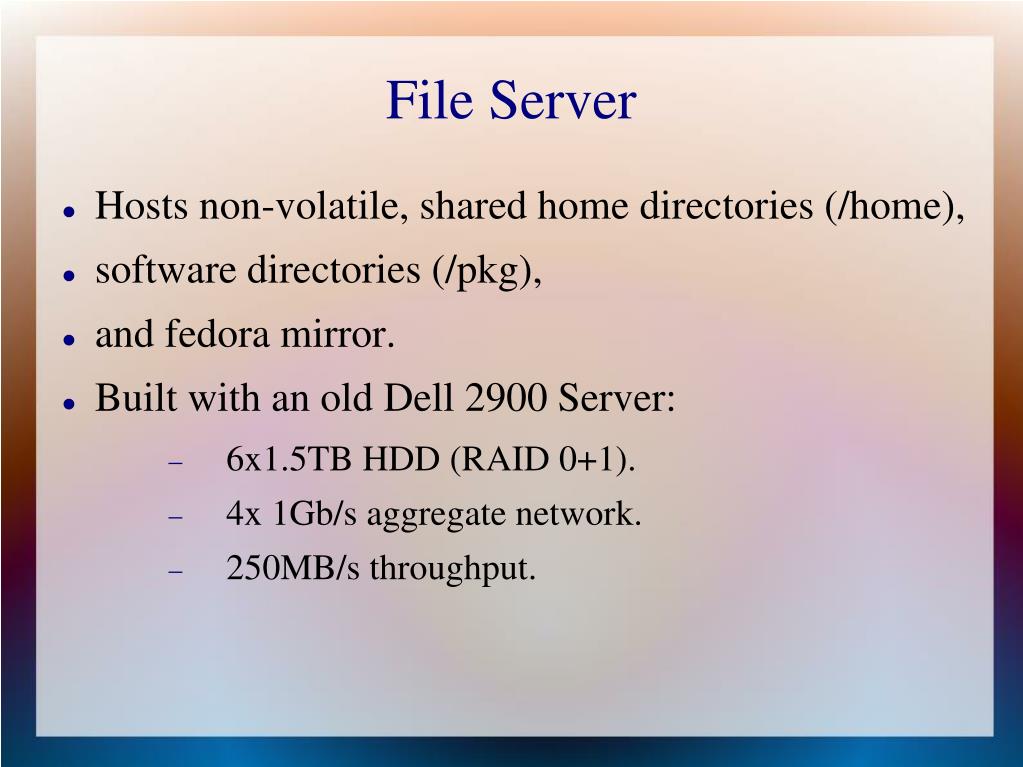

  10. File Server • Hosts non-volatile, shared home directories (/home), • software directories (/pkg), • and fedora mirror. • Built with an old Dell 2900 Server: • 6x1.5TB HDD (RAID 0+1). • 4x 1Gb/s aggregate network. • 250MB/s throughput.

  11. Keeping nodes in 'sync' • When you change something on one node you want it the same on the other nodes. • Having a shared home and application directory makes this easy. • Puppet to manage files in /etc (http://www.puppetlabs.com/) • Automated configuration management. • Makes sure files and services are in a known state. If they are not puppet fixes them. • Updates every 30mins (default).

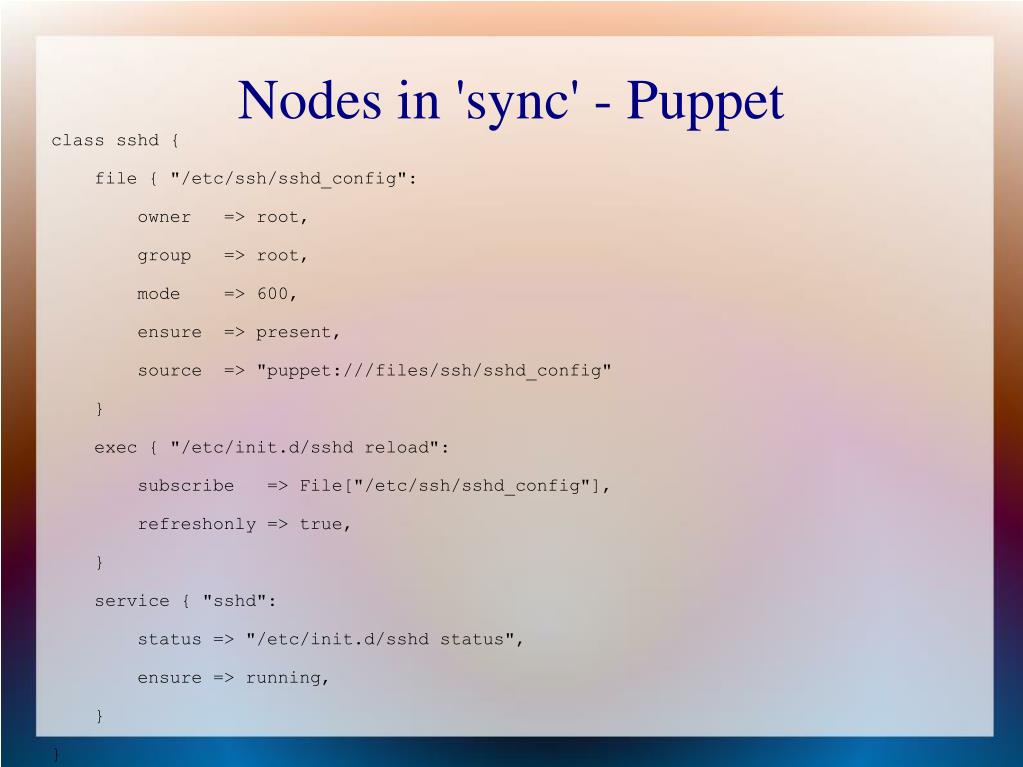

  12. Nodes in 'sync' - Puppet • class sshd { • file { "/etc/ssh/sshd_config": • owner => root, • group => root, • mode => 600, • ensure => present, • source => "puppet:///files/ssh/sshd_config" • } • exec { "/etc/init.d/sshd reload": • subscribe => File["/etc/ssh/sshd_config"], • refreshonly => true, • } • service { "sshd": • status => "/etc/init.d/sshd status", • ensure => running, • } • }

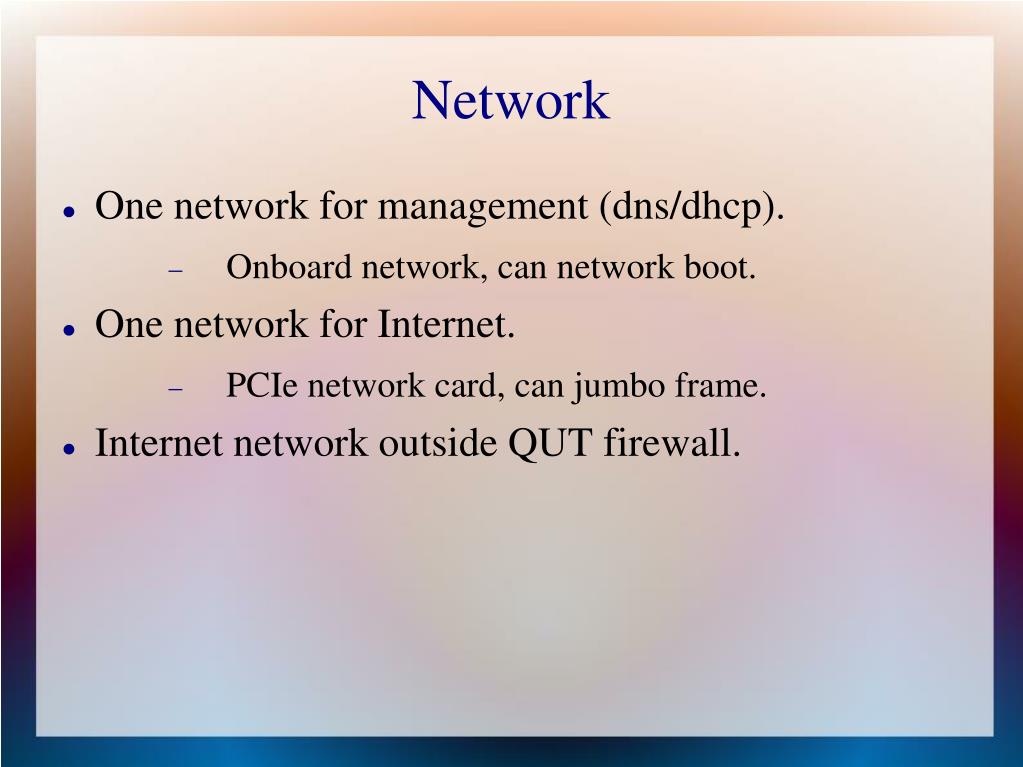

  13. Network • One network for management (dns/dhcp). • Onboard network, can network boot. • One network for Internet. • PCIe network card, can jumbo frame. • Internet network outside QUT firewall.

  14. Performance • Aim to render 10-25 frames per sec. • 9600x4800 pixels = 175MB/frame. • Bottlenecks everywhere, mostly I/O (bus, disk and network). • 1x PCIe (Gen 2) = 500MB/s • 1Gb/s network = 120MB/s • 1.5TB hard disk = 150MB/s (maximum)

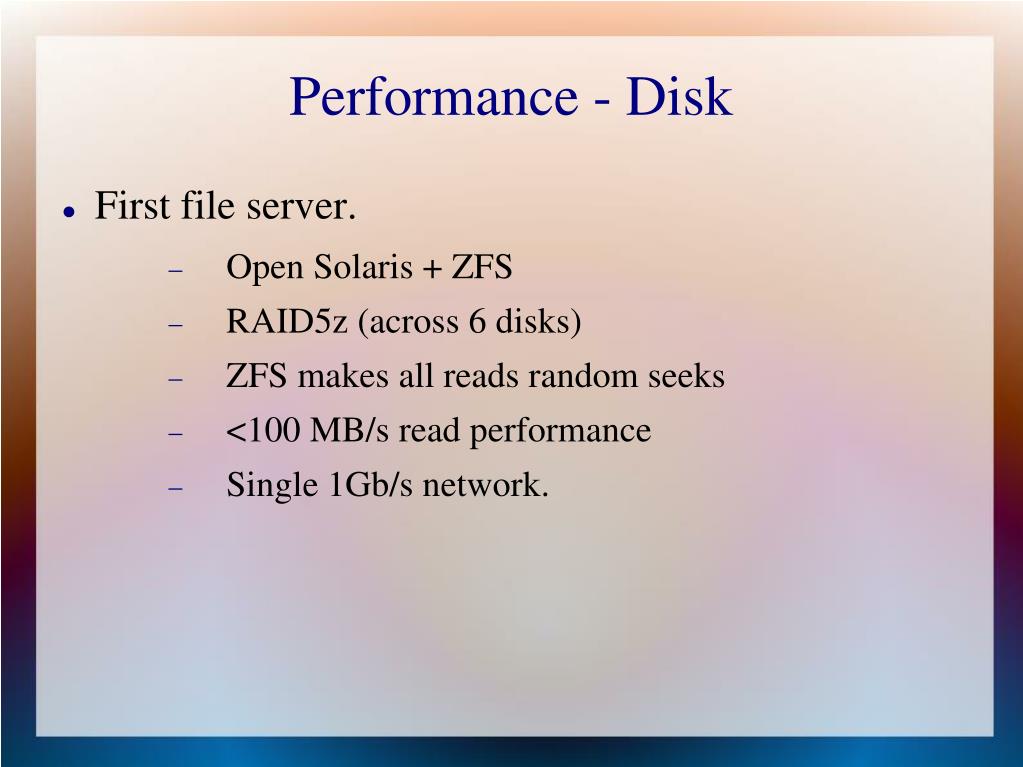

  15. Performance - Disk • First file server. • Open Solaris + ZFS • RAID5z (across 6 disks) • ZFS makes all reads random seeks • <100 MB/s read performance • Single 1Gb/s network.

  16. Performance - Disk • Second Server • Fedora 12. • SW RAID 0 (3 pairs) across HW RAID 1 (2 disks). • Reads mostly sequential. • 250 MB/s read performance. • 4x 1Gb/s network.

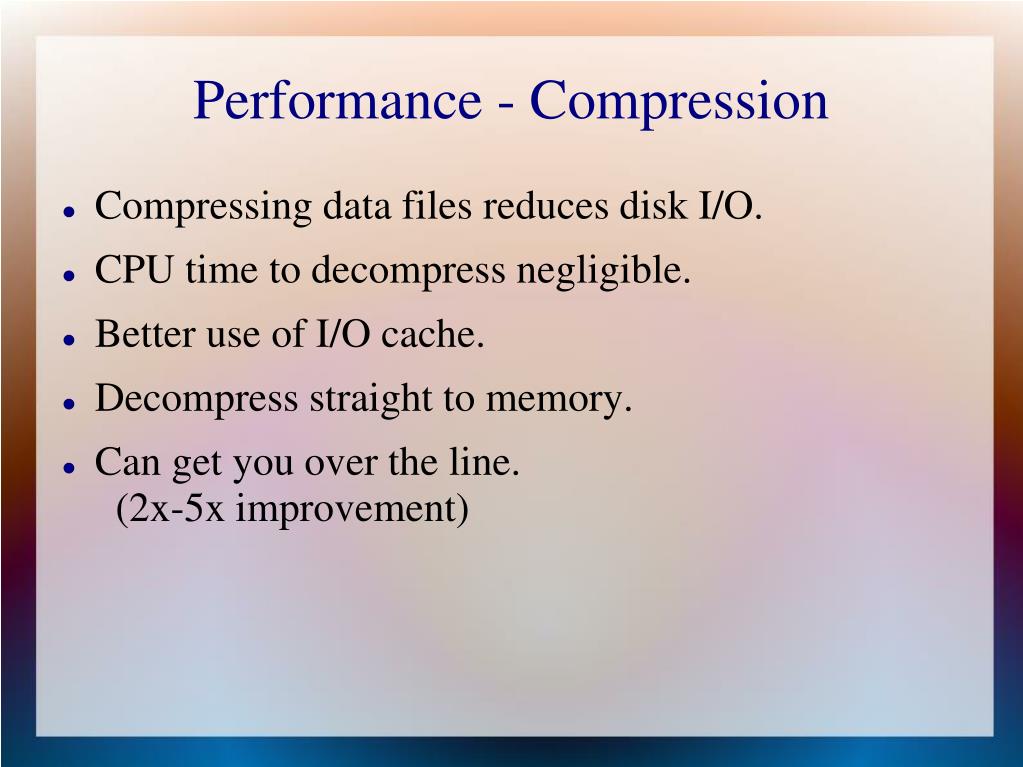

  17. Performance - Compression • Compressing data files reduces disk I/O. • CPU time to decompress negligible. • Better use of I/O cache. • Decompress straight to memory. • Can get you over the line. (2x-5x improvement)

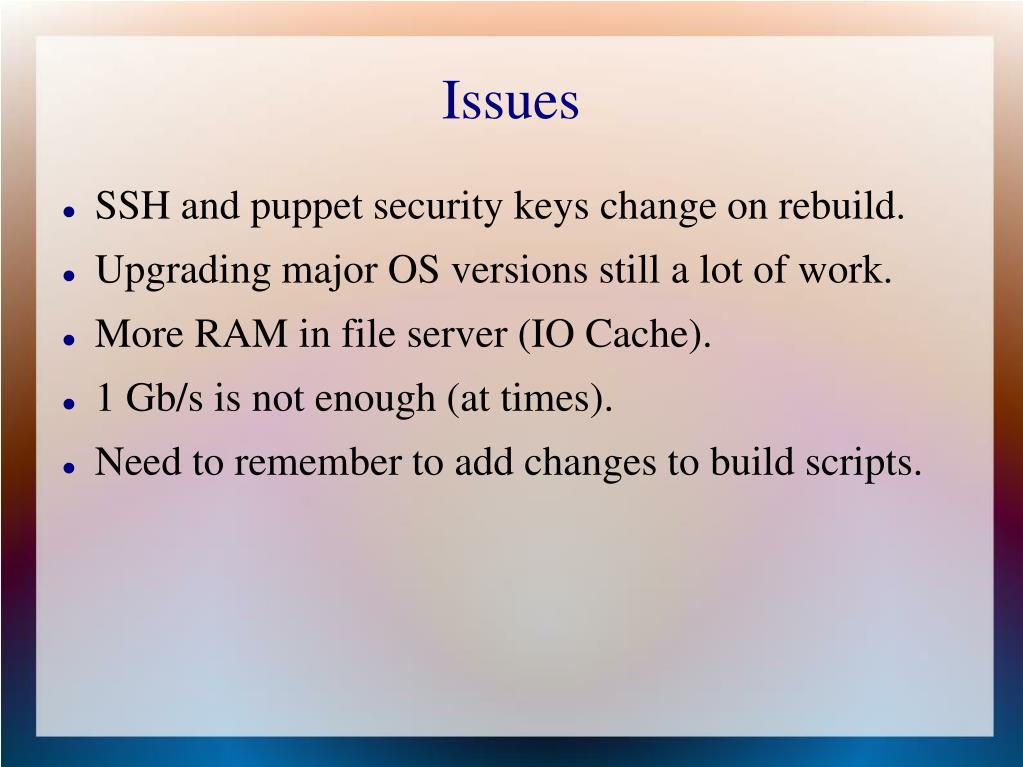

  18. Issues • SSH and puppet security keys change on rebuild. • Upgrading major OS versions still a lot of work. • More RAM in file server (IO Cache). • 1 Gb/s is not enough (at times). • Need to remember to add changes to build scripts.

  19. Issues - Multiple Networks • Some software does not like multiple networks. • Looks up hostname and will only use that IP address. • Should be able to overwrite in a config file.

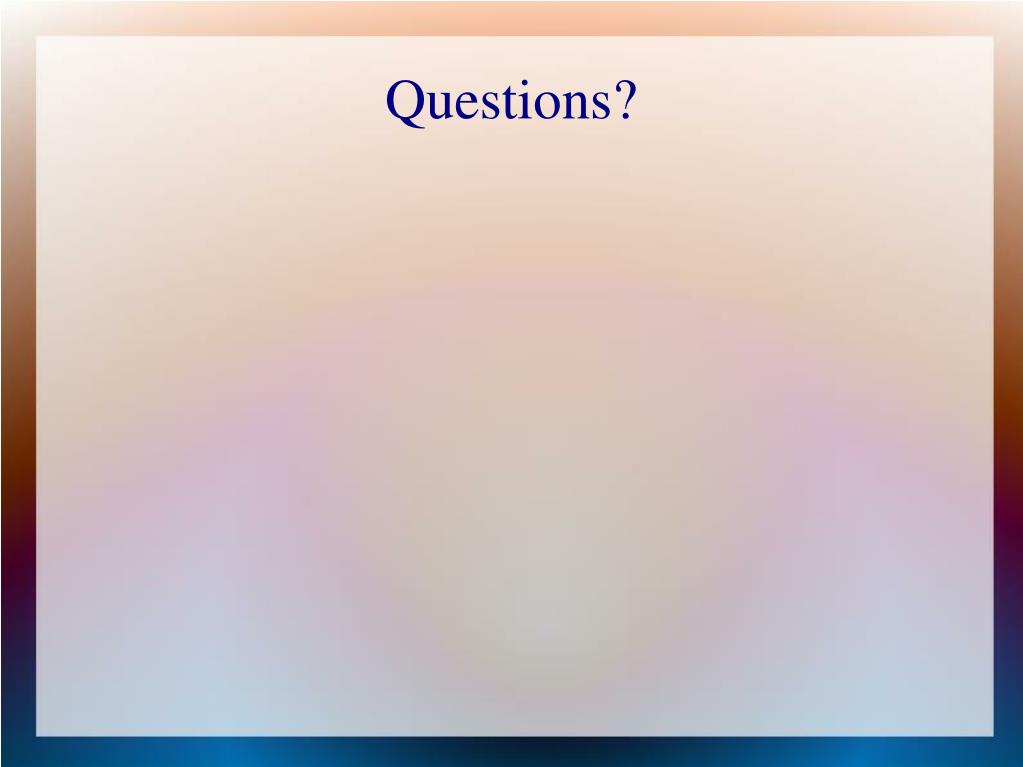

  20. Questions?
