  1. A presentation of Intrusion Technology for the ADI EDP Learning ProgramJune 2007

  2. Potter/AmsecoThe Symbol of Protection • Quality and service are not an afterthought, it is our only thought. • You will always receive prompt reliable service from our dedicated team of professionals • Your customer’s safety is our world

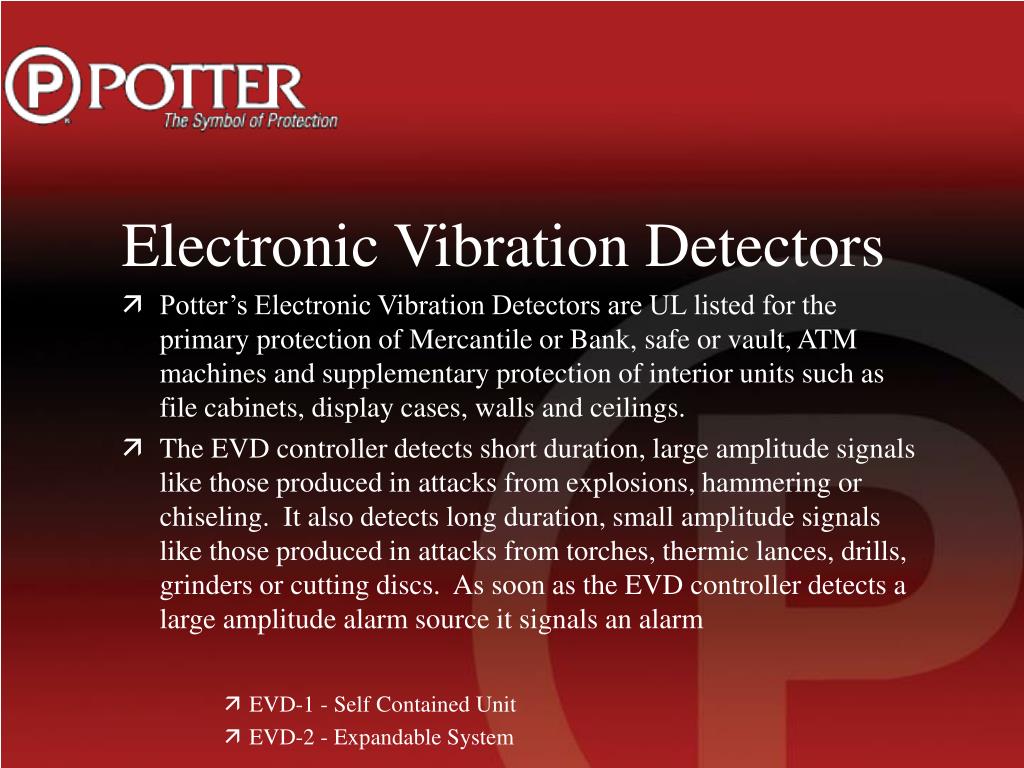

  3. Electronic Vibration Detectors • Potter’s Electronic Vibration Detectors are UL listed for the primary protection of Mercantile or Bank, safe or vault, ATM machines and supplementary protection of interior units such as file cabinets, display cases, walls and ceilings. • The EVD controller detects short duration, large amplitude signals like those produced in attacks from explosions, hammering or chiseling. It also detects long duration, small amplitude signals like those produced in attacks from torches, thermic lances, drills, grinders or cutting discs. As soon as the EVD controller detects a large amplitude alarm source it signals an alarm • EVD-1 - Self Contained Unit • EVD-2 - Expandable System

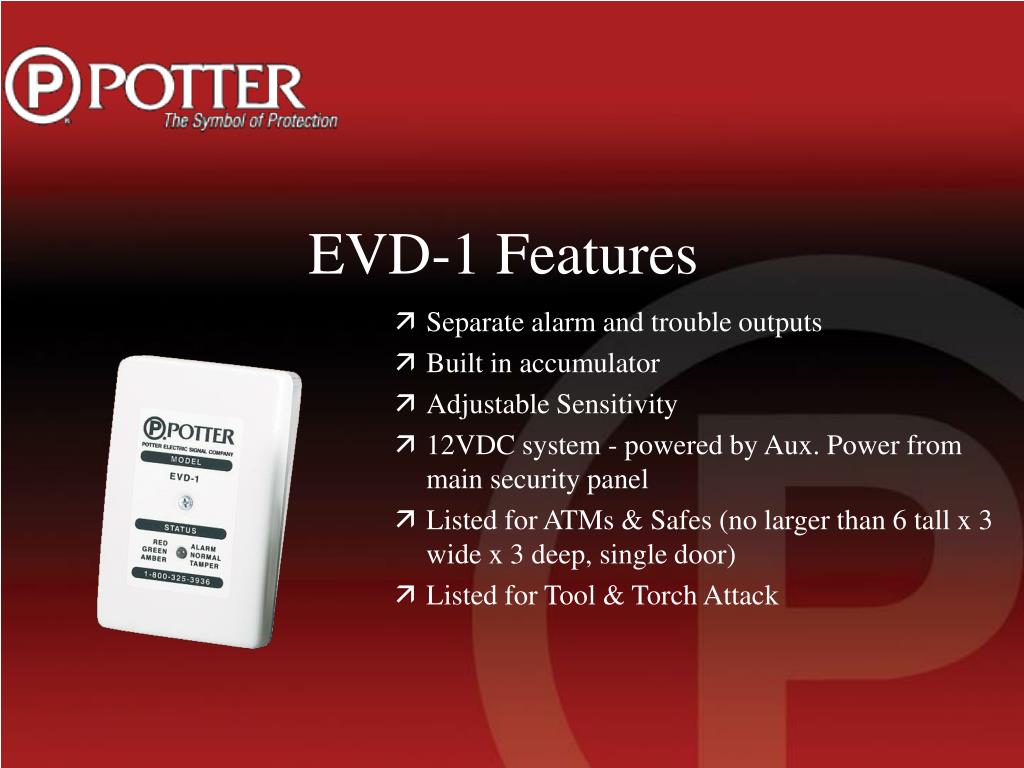

  4. EVD-1 Features • Separate alarm and trouble outputs • Built in accumulator • Adjustable Sensitivity • 12VDC system - powered by Aux. Power from main security panel • Listed for ATMs & Safes (no larger than 6 tall x 3 wide x 3 deep, single door) • Listed for Tool & Torch Attack

  5. EVD-1 Installation Notes • The ideal location for the EVD-1 is the side of the safe with the hinges, near the front of the safe, and centered from top to bottom • The EVD-1 must be used with an appropriate UL listed control panel • The EVD-1 is for small applications up to 96 linear inches for a steel safe with only one door, and 110 linear inches for a composite safe with only one door. • The EVD-1 cannot be used on safes with 2 doors. • For systems requiring a UL Certificate, Potter’s B cable must be used to connect the EVD-1 to the Alarm panel.

  6. EVD-2 Features • Consists of 1-EVD-M (Master Control/Pickup) & 1-EVD-R (Remote Pickup) • Up to 15 EVD-R’s can be connected to 1 EVD-M • Separate alarm and trouble outputs • Separate terminals for connecting safe door contacts • Built in accumulator • 12VDC system - Powered by Aux. Power from main security panel • Listed for Steel and Concrete • Listed for Safes and Vaults • Listed for Tool & Torch Attack

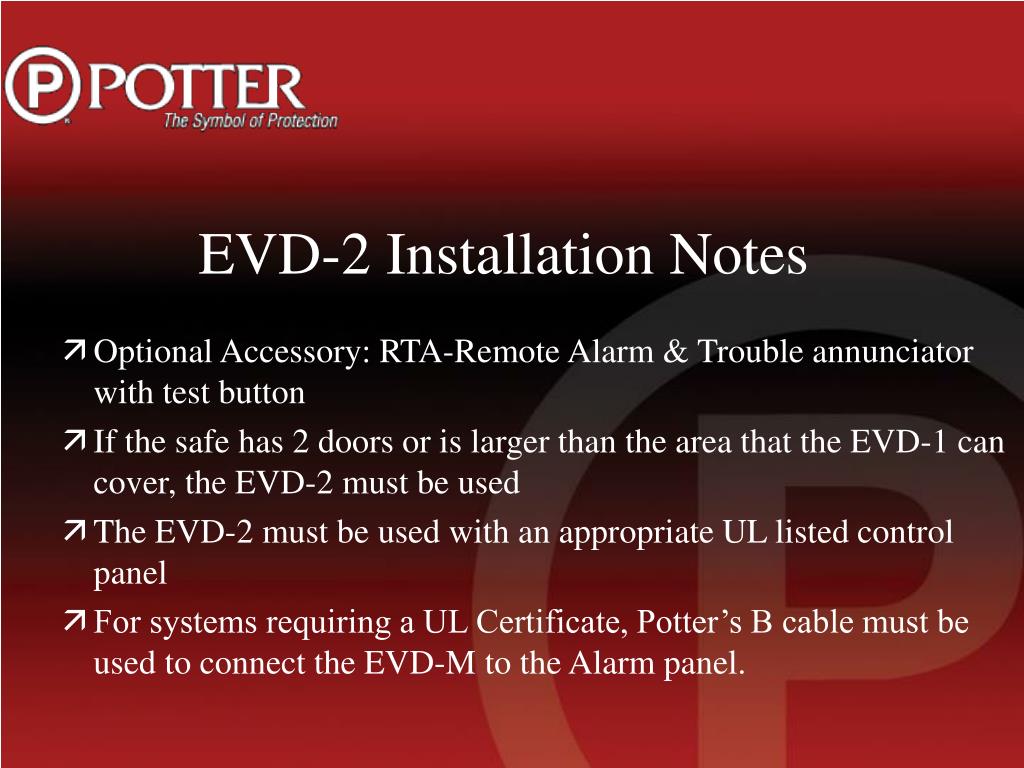

  7. EVD-2 Installation Notes • Optional Accessory: RTA-Remote Alarm & Trouble annunciator with test button • If the safe has 2 doors or is larger than the area that the EVD-1 can cover, the EVD-2 must be used • The EVD-2 must be used with an appropriate UL listed control panel • For systems requiring a UL Certificate, Potter’s B cable must be used to connect the EVD-M to the Alarm panel.

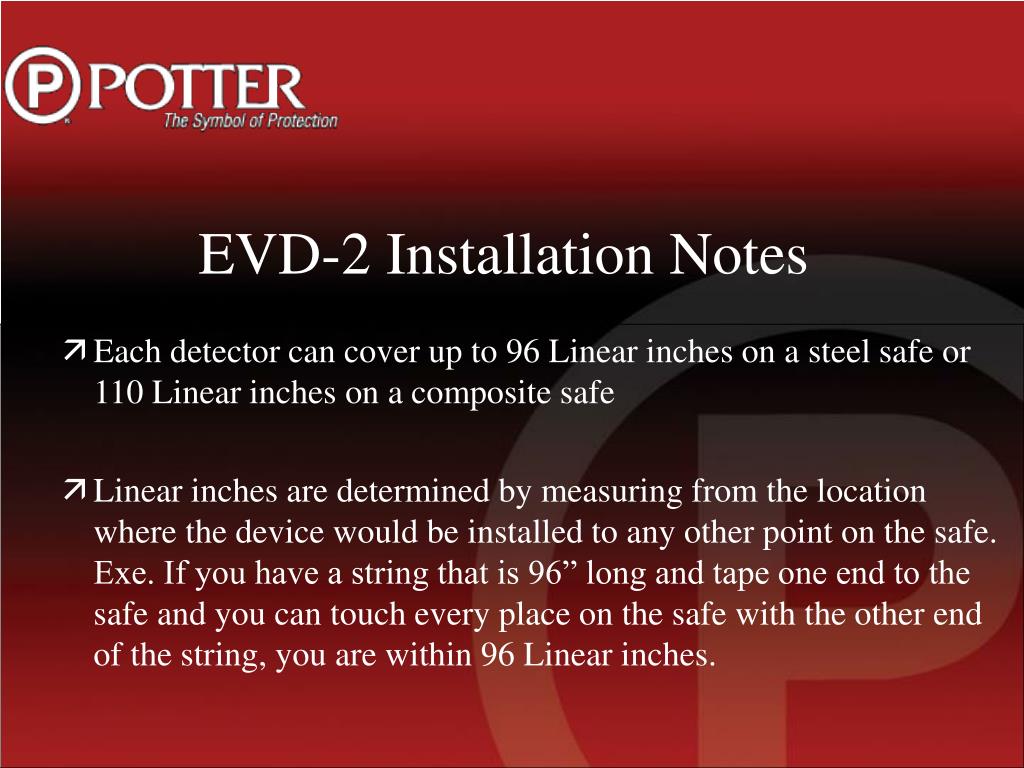

  8. EVD-2 Installation Notes • Each detector can cover up to 96 Linear inches on a steel safe or 110 Linear inches on a composite safe • Linear inches are determined by measuring from the location where the device would be installed to any other point on the safe. Exe. If you have a string that is 96” long and tape one end to the safe and you can touch every place on the safe with the other end of the string, you are within 96 Linear inches.

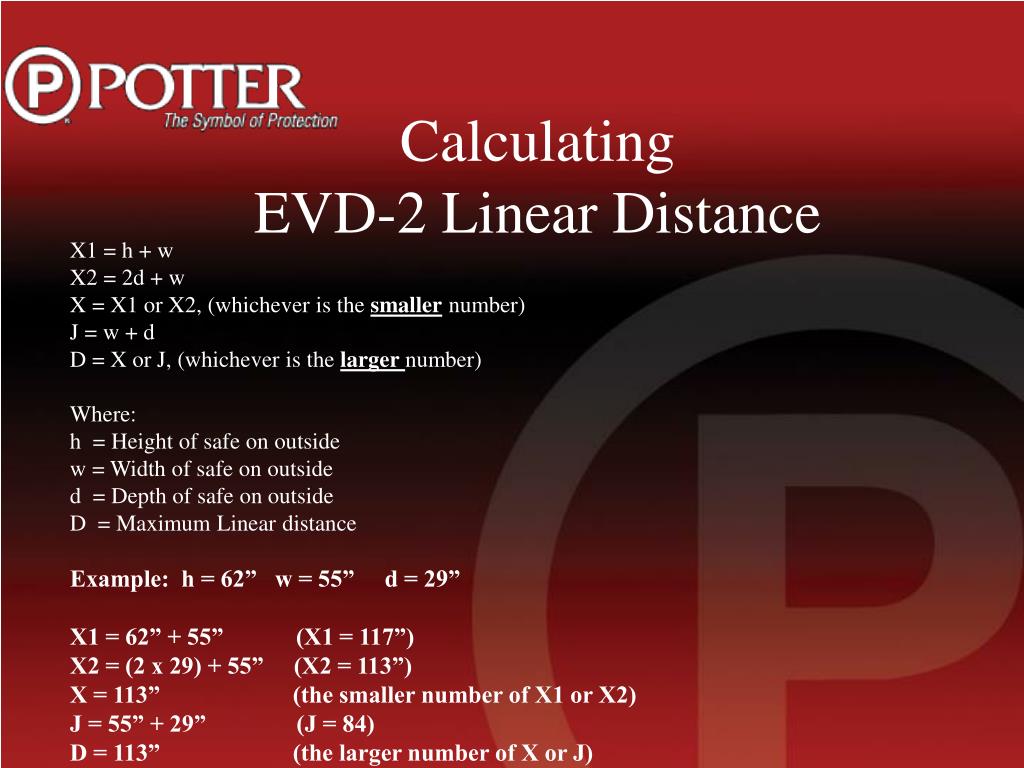

  9. Calculating EVD-2 Linear Distance X1 = h + w X2 = 2d + w X = X1 or X2, (whichever is thesmaller number) J = w + d D = X or J, (whichever is the larger number) Where: h = Height of safe on outside w = Width of safe on outside d = Depth of safe on outside D = Maximum Linear distance Example: h = 62” w = 55” d = 29” X1 = 62” + 55” (X1 = 117”) X2 = (2 x 29) + 55” (X2 = 113”) X = 113” (the smaller number of X1 or X2) J = 55” + 29” (J = 84) D = 113” (the larger number of X or J)

  10. HSC-1 Features • UL Listed Safe Door Contact • Tamper Resistant • Triple Biased Magnet • Weather Resistant, suitable for outdoor High Security installs • Pre-wired w/ 8’ cable • Wires Directly into EVD Systems • EVD-1C - Consists of EVD-1 & (1) HSC-1 • EVD-2C - Consists of EVD-2 & (1) HSC-1

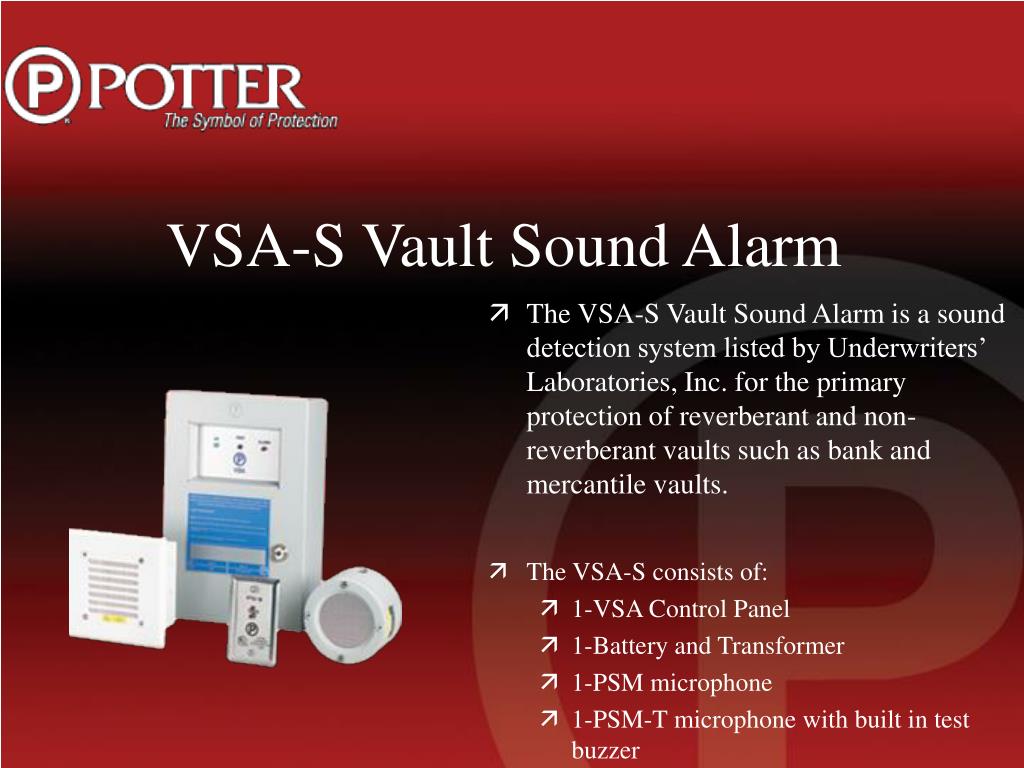

  11. VSA-S Vault Sound Alarm • The VSA-S Vault Sound Alarm is a sound detection system listed by Underwriters’ Laboratories, Inc. for the primary protection of reverberant and non-reverberant vaults such as bank and mercantile vaults. • The VSA-S consists of: • 1-VSA Control Panel • 1-Battery and Transformer • 1-PSM microphone • 1-PSM-T microphone with built in test buzzer

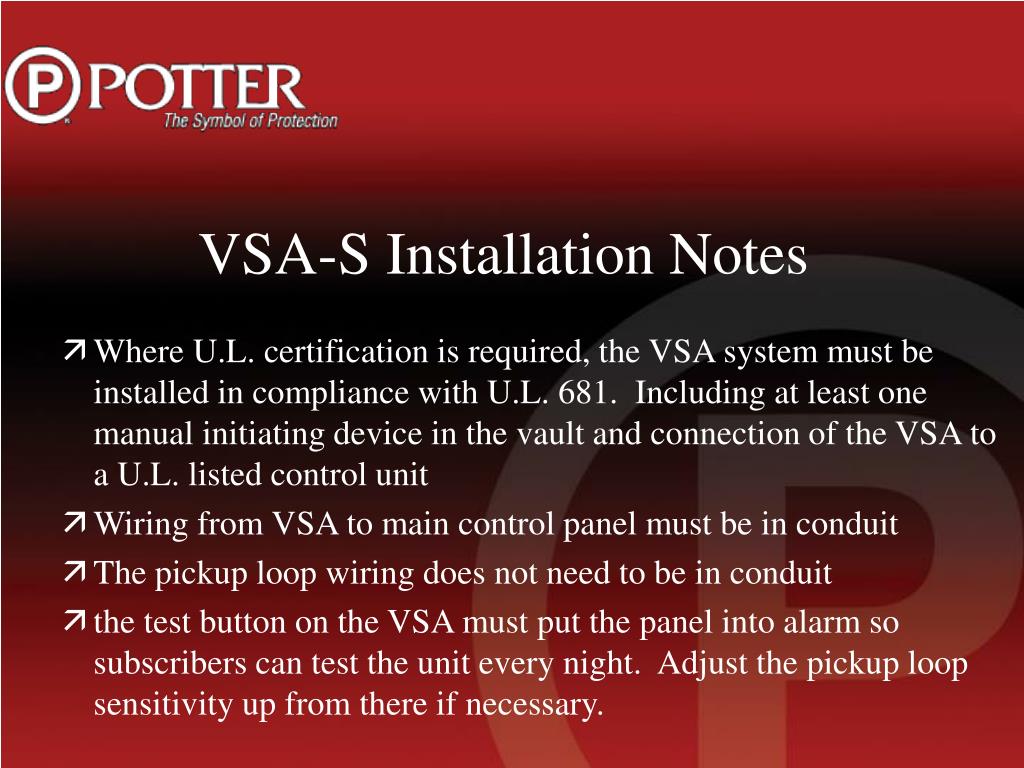

  12. VSA-S Installation Notes • Where U.L. certification is required, the VSA system must be installed in compliance with U.L. 681. Including at least one manual initiating device in the vault and connection of the VSA to a U.L. listed control unit • Wiring from VSA to main control panel must be in conduit • The pickup loop wiring does not need to be in conduit • the test button on the VSA must put the panel into alarm so subscribers can test the unit every night. Adjust the pickup loop sensitivity up from there if necessary.

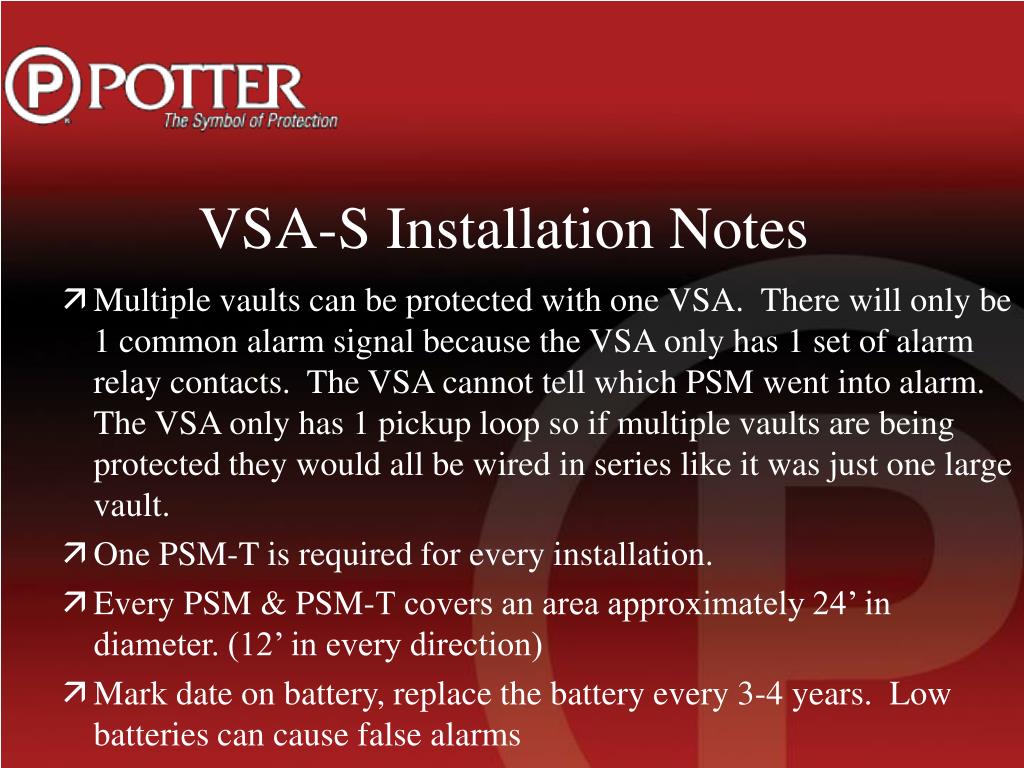

  13. VSA-S Installation Notes • Multiple vaults can be protected with one VSA. There will only be 1 common alarm signal because the VSA only has 1 set of alarm relay contacts. The VSA cannot tell which PSM went into alarm. The VSA only has 1 pickup loop so if multiple vaults are being protected they would all be wired in series like it was just one large vault. • One PSM-T is required for every installation. • Every PSM & PSM-T covers an area approximately 24’ in diameter. (12’ in every direction) • Mark date on battery, replace the battery every 3-4 years. Low batteries can cause false alarms

  14. VSD-208 Voice Siren Driver • Designed to be used for Fire and Burglar applications. The VSD-208 is versatile and easy to install, compatible with most control panels, and can be mounted with the provided double sided tape. • The VSD-208 can instantly produce verbal fire and burglary announcements. A 5 dip-switch combination enables the choice of 32 different mode selections. • One of 8 distinctive siren/sounds operate independently or in conjunction with the voice warning

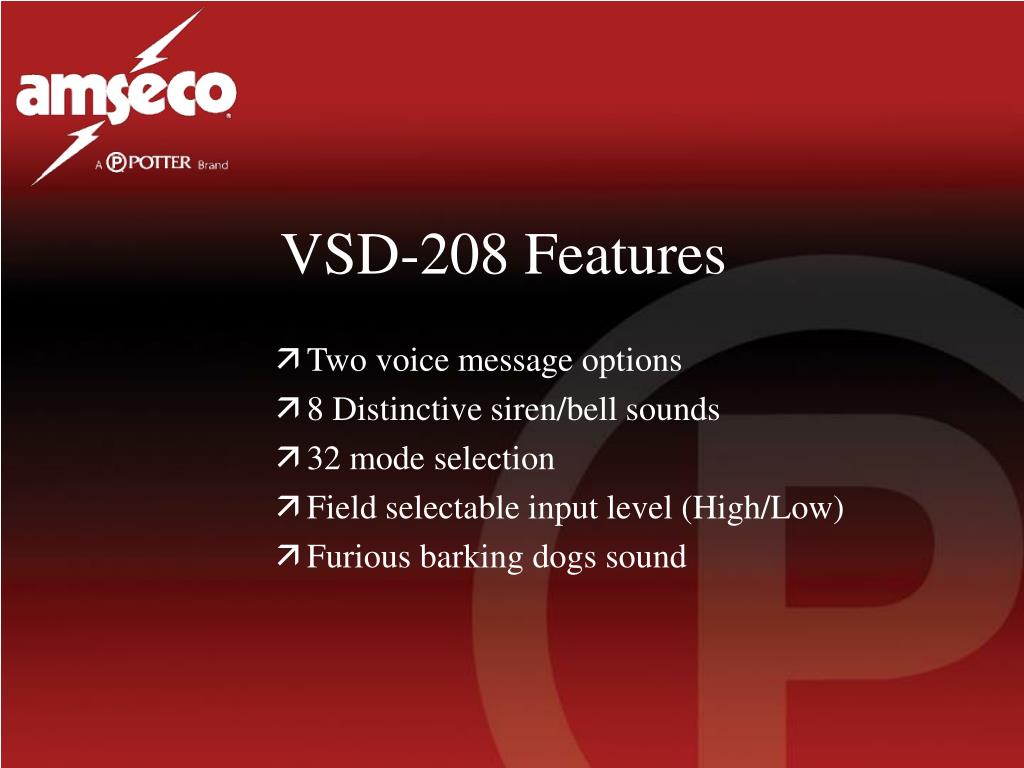

  15. VSD-208 Features • Two voice message options • 8 Distinctive siren/bell sounds • 32 mode selection • Field selectable input level (High/Low) • Furious barking dogs sound

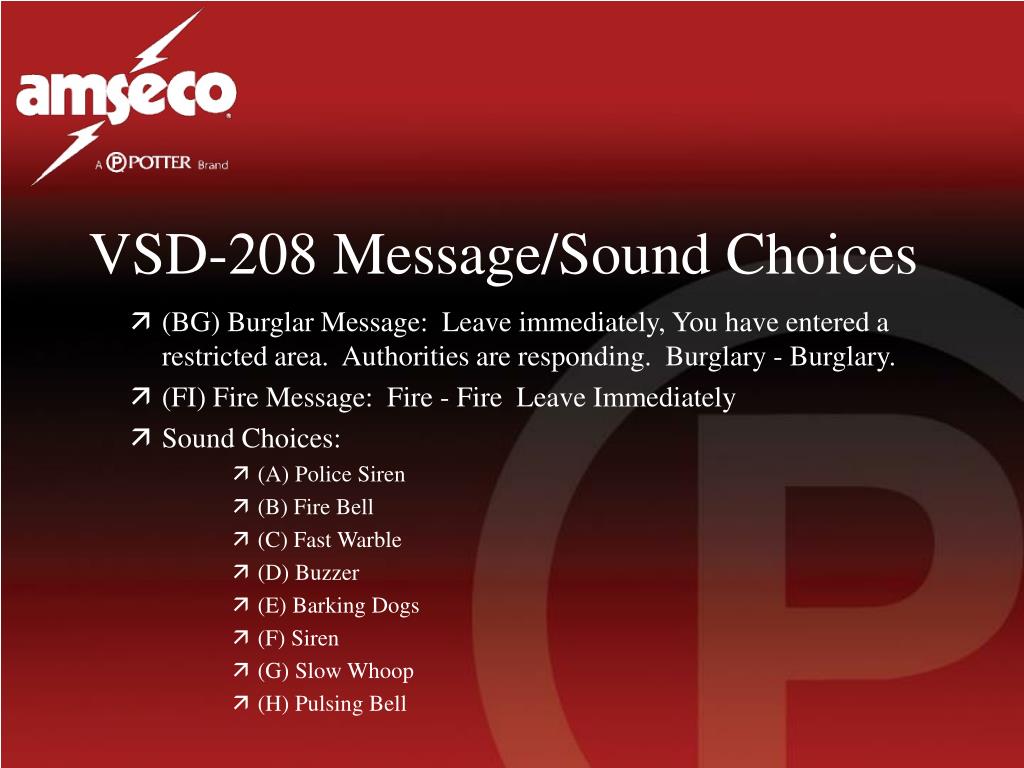

  16. VSD-208 Message/Sound Choices • (BG) Burglar Message: Leave immediately, You have entered a restricted area. Authorities are responding. Burglary - Burglary. • (FI) Fire Message: Fire - Fire Leave Immediately • Sound Choices: • (A) Police Siren • (B) Fire Bell • (C) Fast Warble • (D) Buzzer • (E) Barking Dogs • (F) Siren • (G) Slow Whoop • (H) Pulsing Bell

  17. VSD-208 Installation Notes • Ensure the security panel supplies adequate power for the siren driver, speakers, and all functions of the panel. The VSD-208 requires 1.2 amps. Most burglar panels only provide 500 to 750 mA • Most alarm panels operate off a positive trigger. DSC control panels operate off a negative trigger. • For the VSD-208 to work with DSC control panels, disconnect jumper 1 of the VSD-208 and connect the alarm input to the negative terminal of the DSC Control Panel.

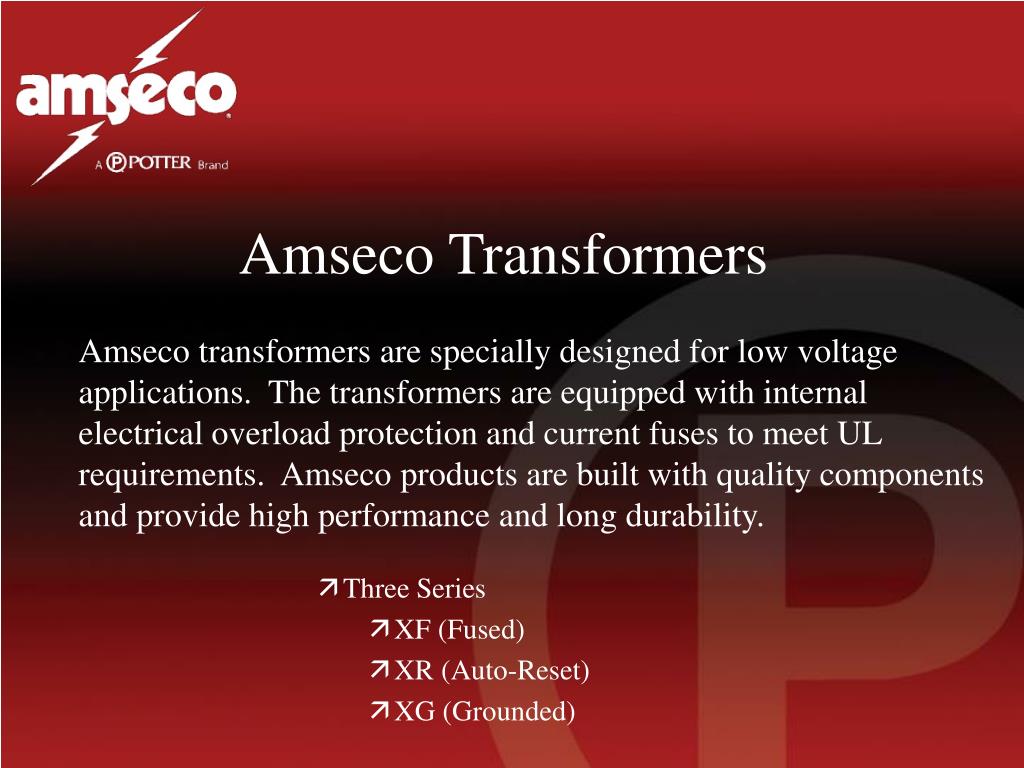

  18. Amseco Transformers Amseco transformers are specially designed for low voltage applications. The transformers are equipped with internal electrical overload protection and current fuses to meet UL requirements. Amseco products are built with quality components and provide high performance and long durability. • Three Series • XF (Fused) • XR (Auto-Reset) • XG (Grounded)

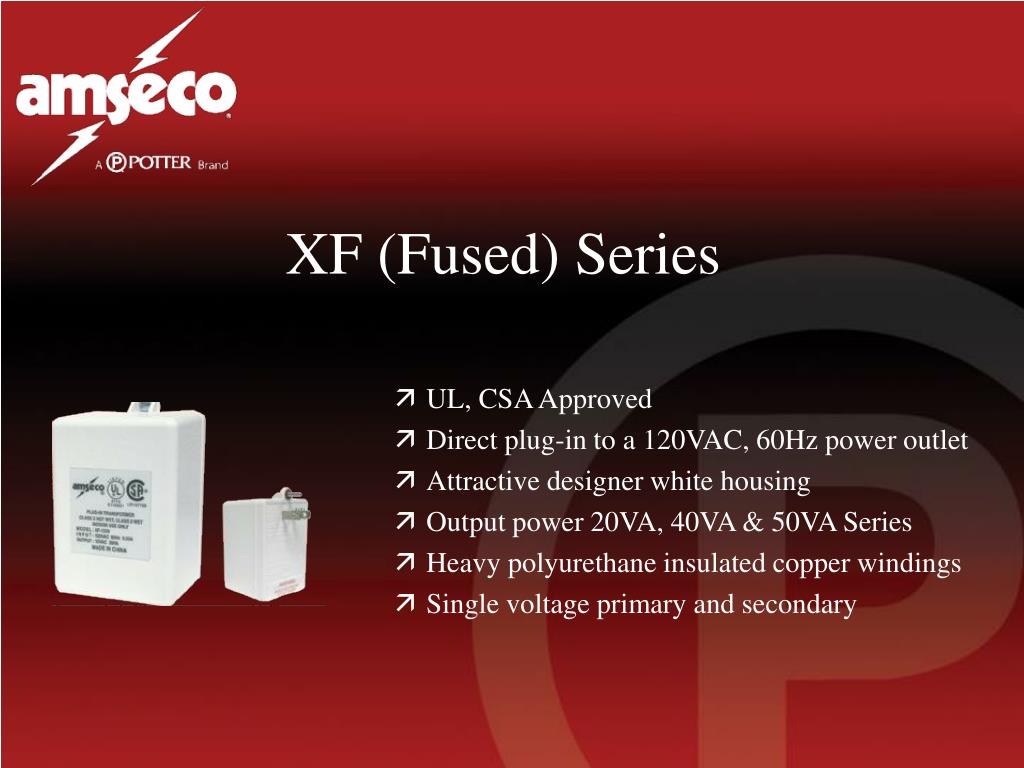

  19. XF (Fused) Series • UL, CSA Approved • Direct plug-in to a 120VAC, 60Hz power outlet • Attractive designer white housing • Output power 20VA, 40VA & 50VA Series • Heavy polyurethane insulated copper windings • Single voltage primary and secondary

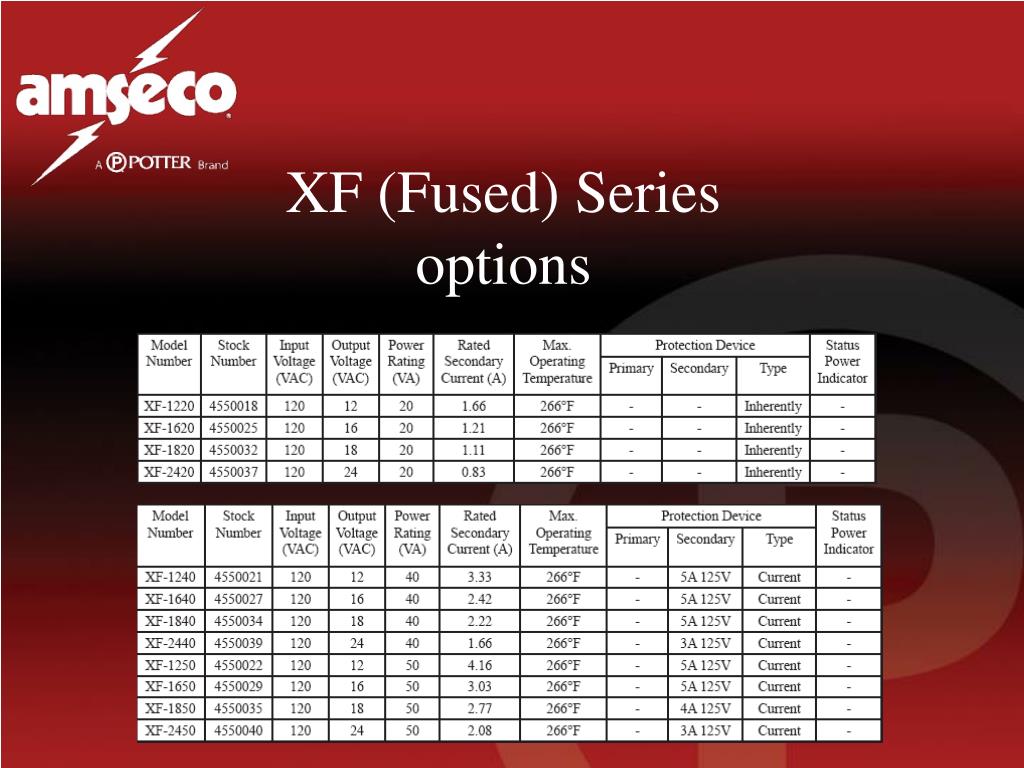

  20. XF (Fused) Seriesoptions

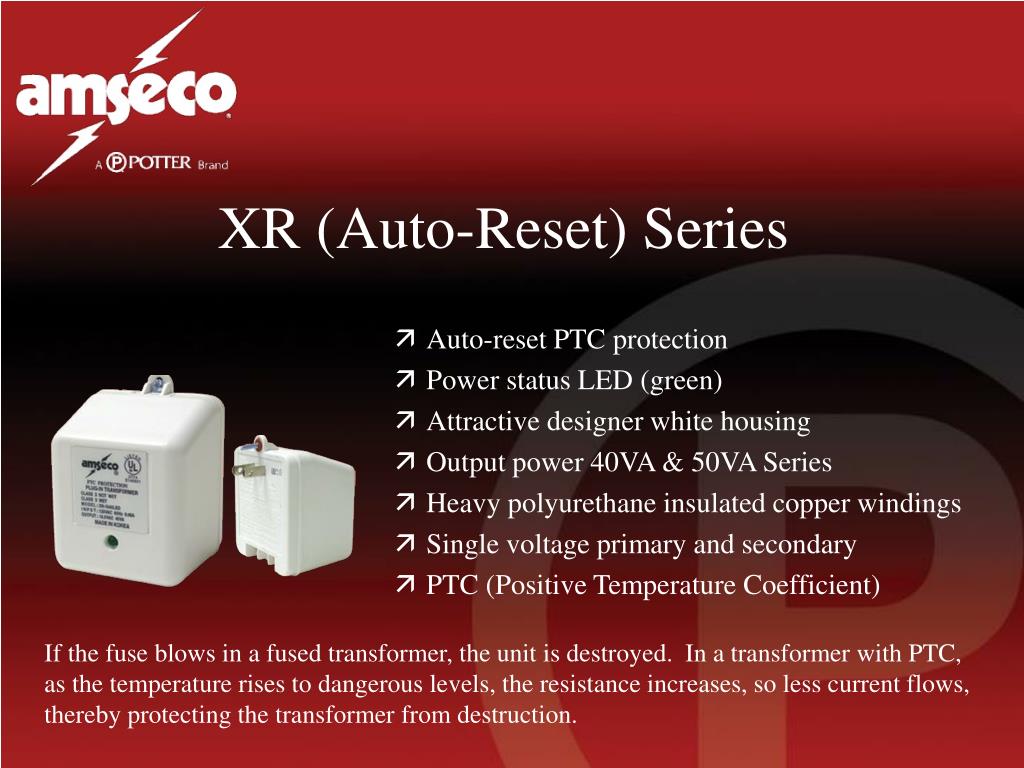

  21. XR (Auto-Reset) Series • Auto-reset PTC protection • Power status LED (green) • Attractive designer white housing • Output power 40VA & 50VA Series • Heavy polyurethane insulated copper windings • Single voltage primary and secondary • PTC (Positive Temperature Coefficient) If the fuse blows in a fused transformer, the unit is destroyed. In a transformer with PTC, as the temperature rises to dangerous levels, the resistance increases, so less current flows, thereby protecting the transformer from destruction.

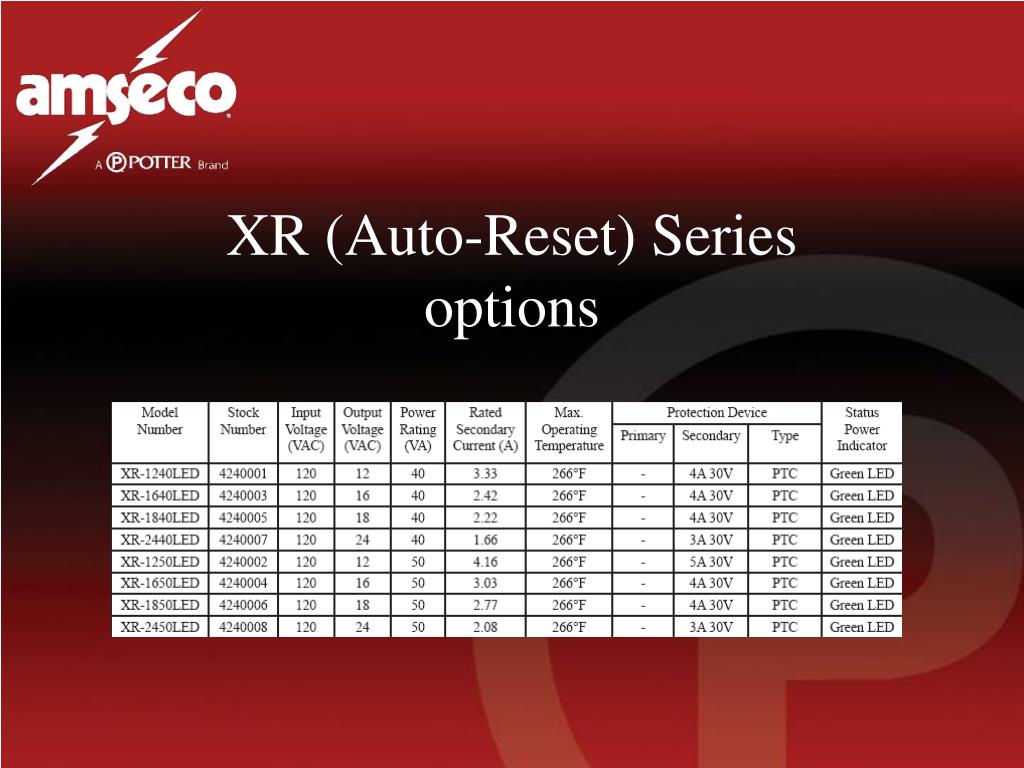

  22. XR (Auto-Reset) Seriesoptions

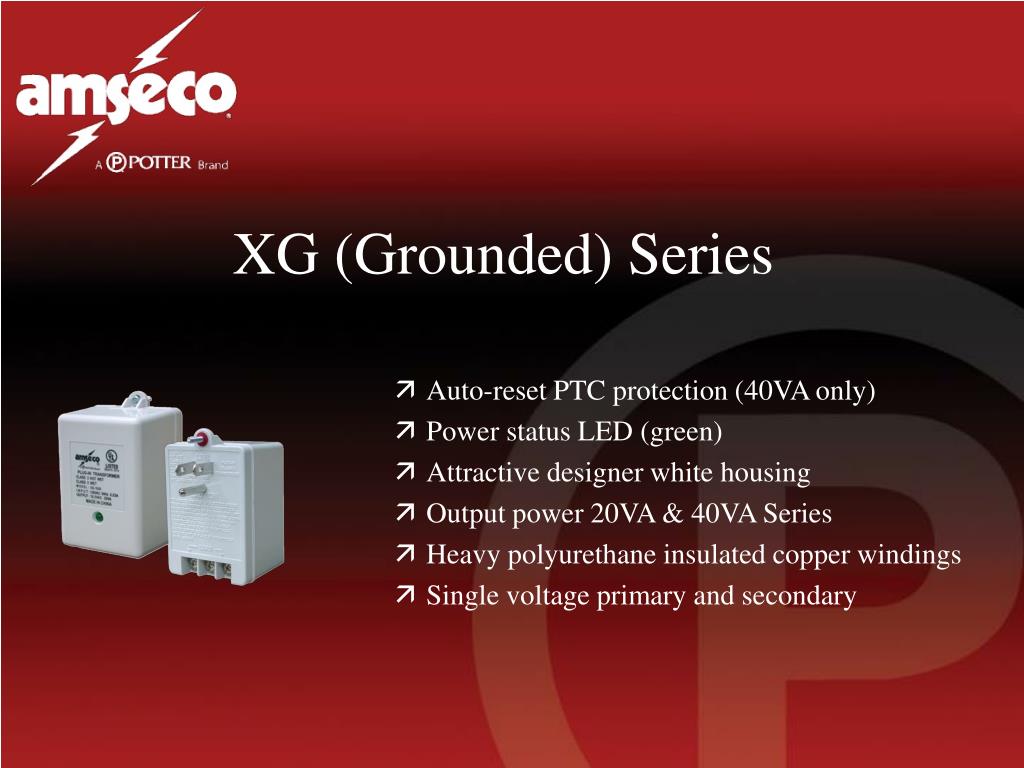

  23. XG (Grounded) Series • Auto-reset PTC protection (40VA only) • Power status LED (green) • Attractive designer white housing • Output power 20VA & 40VA Series • Heavy polyurethane insulated copper windings • Single voltage primary and secondary

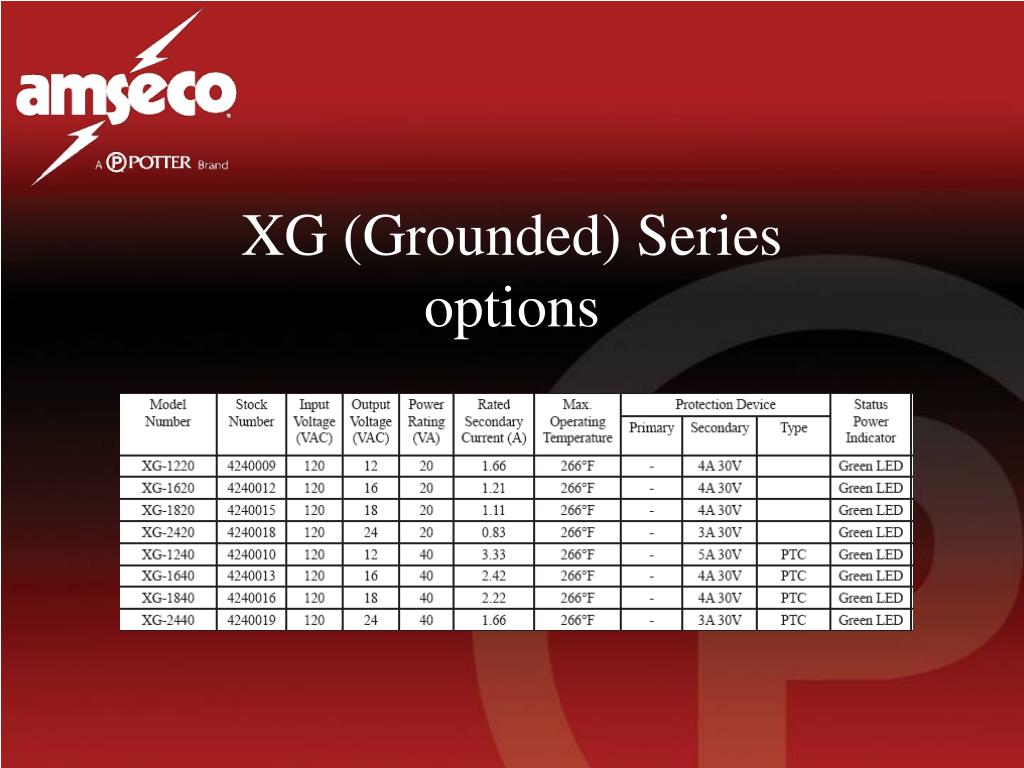

  24. XG (Grounded) Seriesoptions

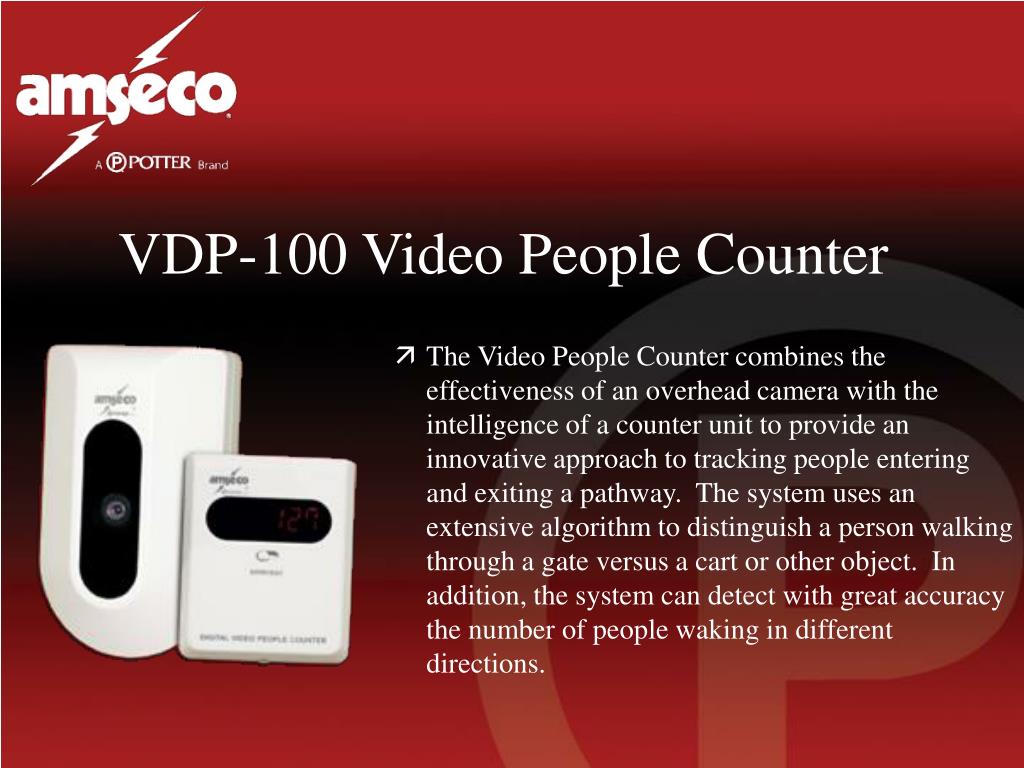

  25. VDP-100 Video People Counter • The Video People Counter combines the effectiveness of an overhead camera with the intelligence of a counter unit to provide an innovative approach to tracking people entering and exiting a pathway. The system uses an extensive algorithm to distinguish a person walking through a gate versus a cart or other object. In addition, the system can detect with great accuracy the number of people waking in different directions.

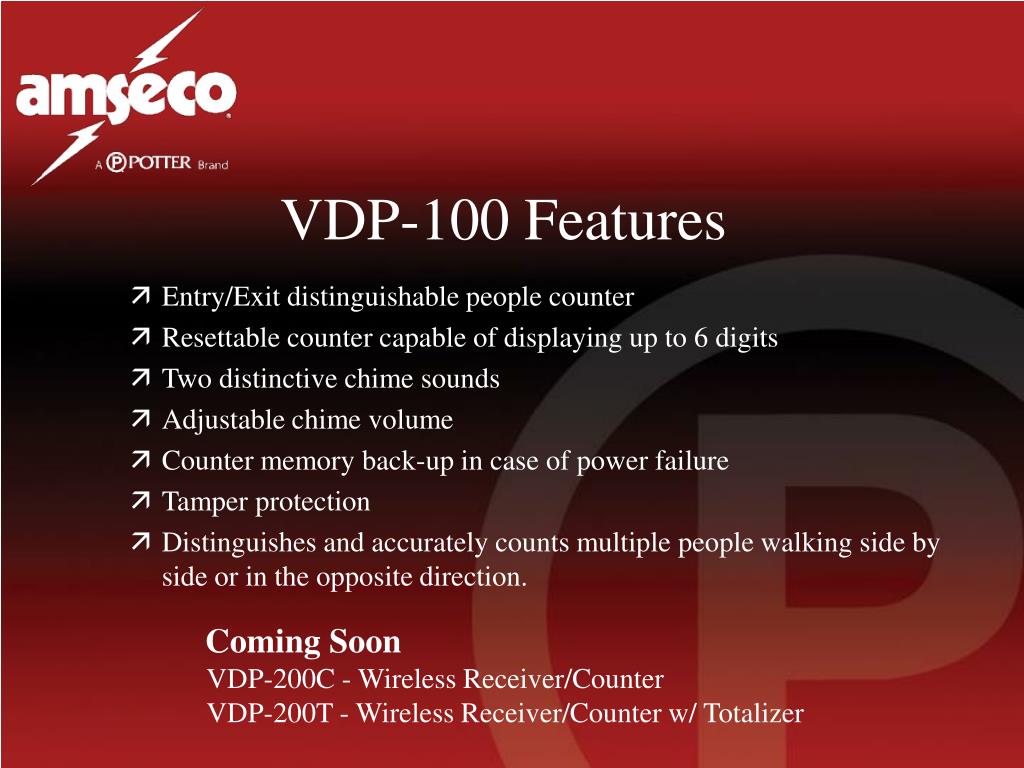

  26. VDP-100 Features • Entry/Exit distinguishable people counter • Resettable counter capable of displaying up to 6 digits • Two distinctive chime sounds • Adjustable chime volume • Counter memory back-up in case of power failure • Tamper protection • Distinguishes and accurately counts multiple people walking side by side or in the opposite direction. Coming Soon VDP-200C - Wireless Receiver/Counter VDP-200T - Wireless Receiver/Counter w/ Totalizer

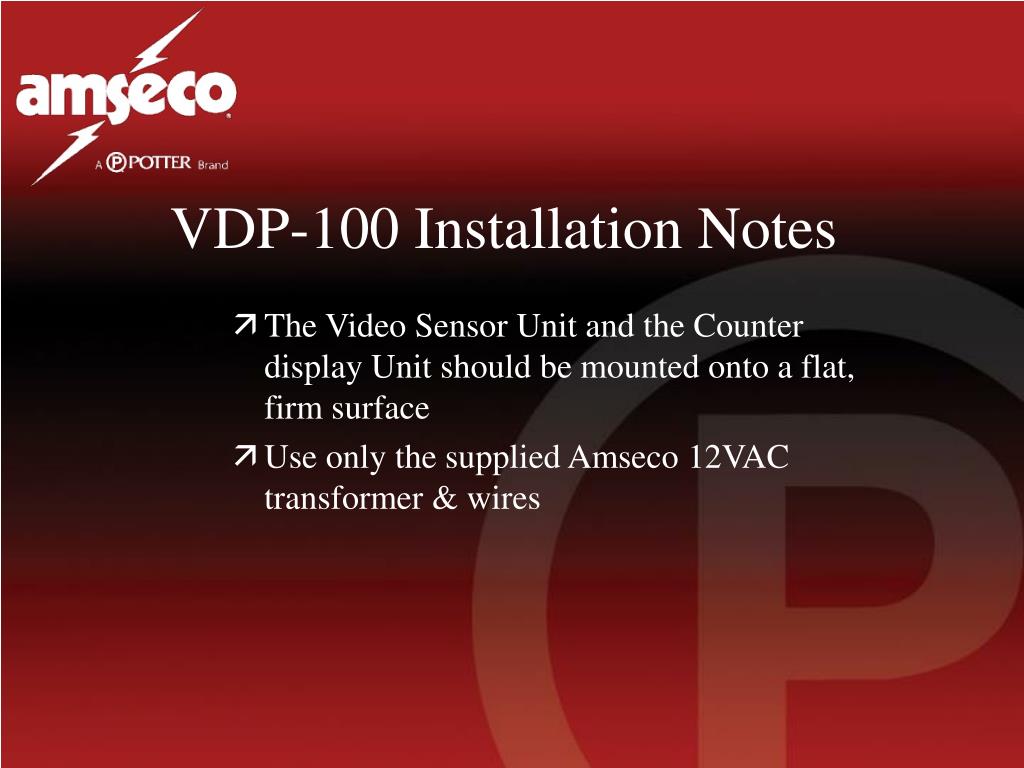

  27. VDP-100 Installation Notes • The Video Sensor Unit and the Counter display Unit should be mounted onto a flat, firm surface • Use only the supplied Amseco 12VAC transformer & wires

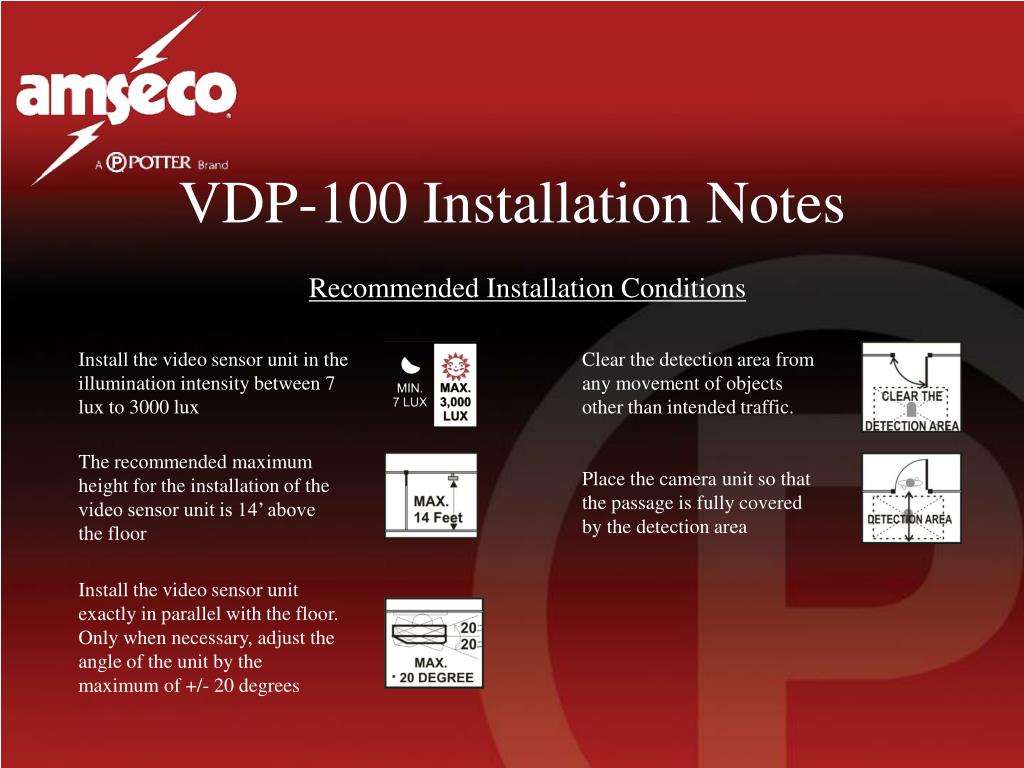

  28. VDP-100 Installation Notes Recommended Installation Conditions Install the video sensor unit in the illumination intensity between 7 lux to 3000 lux Clear the detection area from any movement of objects other than intended traffic. The recommended maximum height for the installation of the video sensor unit is 14’ above the floor Place the camera unit so that the passage is fully covered by the detection area Install the video sensor unit exactly in parallel with the floor. Only when necessary, adjust the angle of the unit by the maximum of +/- 20 degrees

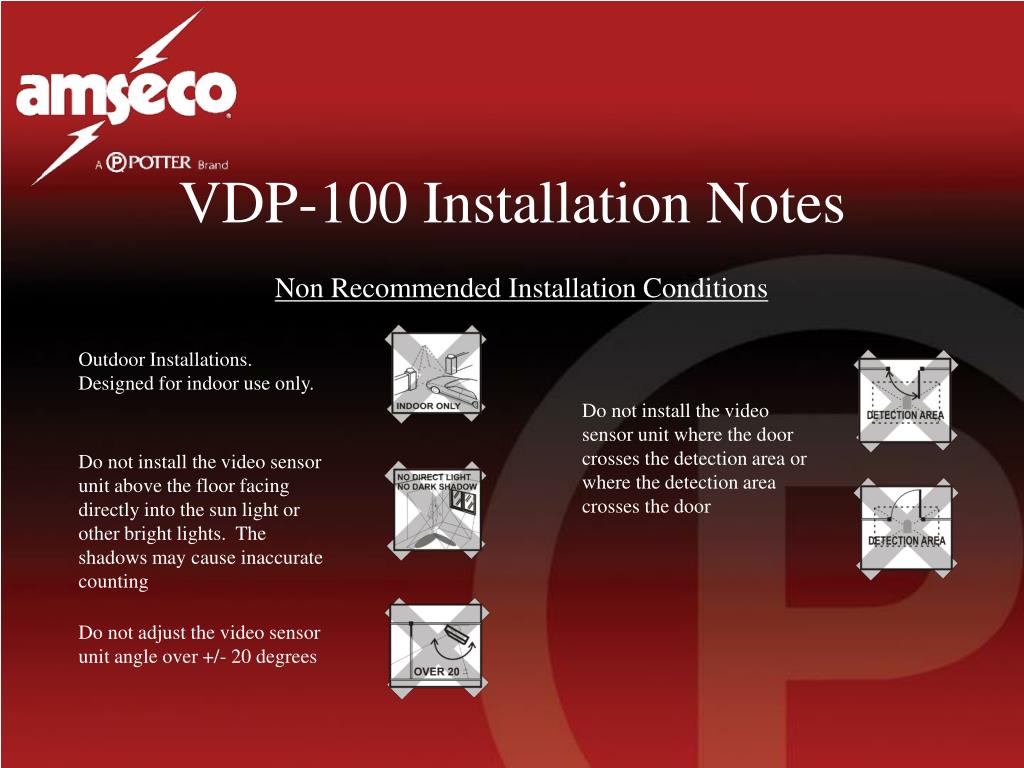

  29. VDP-100 Installation Notes Non Recommended Installation Conditions Outdoor Installations. Designed for indoor use only. Do not install the video sensor unit where the door crosses the detection area or where the detection area crosses the door Do not install the video sensor unit above the floor facing directly into the sun light or other bright lights. The shadows may cause inaccurate counting Do not adjust the video sensor unit angle over +/- 20 degrees

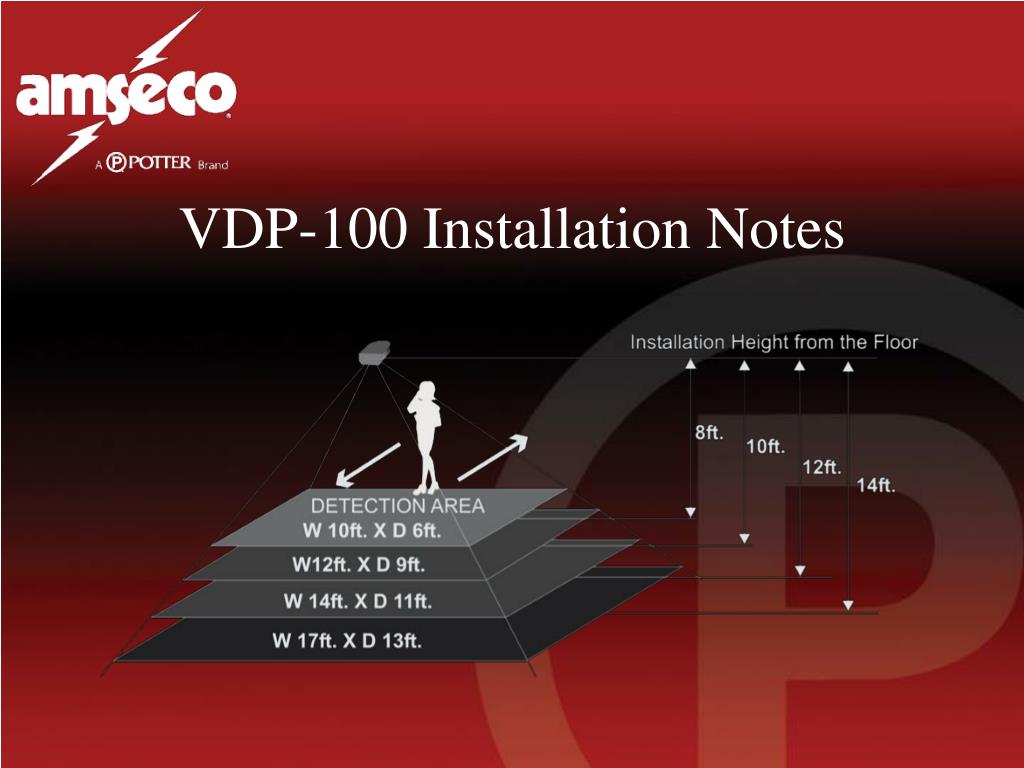

  30. VDP-100 Installation Notes
