  1. OpenGL: Introduction Inspired by slides from Mitch Parry and from David Luebke 3D Modeling, Graphics, and Animation Prof. Jarek Rossignac College of Computing Georgia Institute of Technology Jarek Rossignac, CoC, GT, ©Copyright 2003

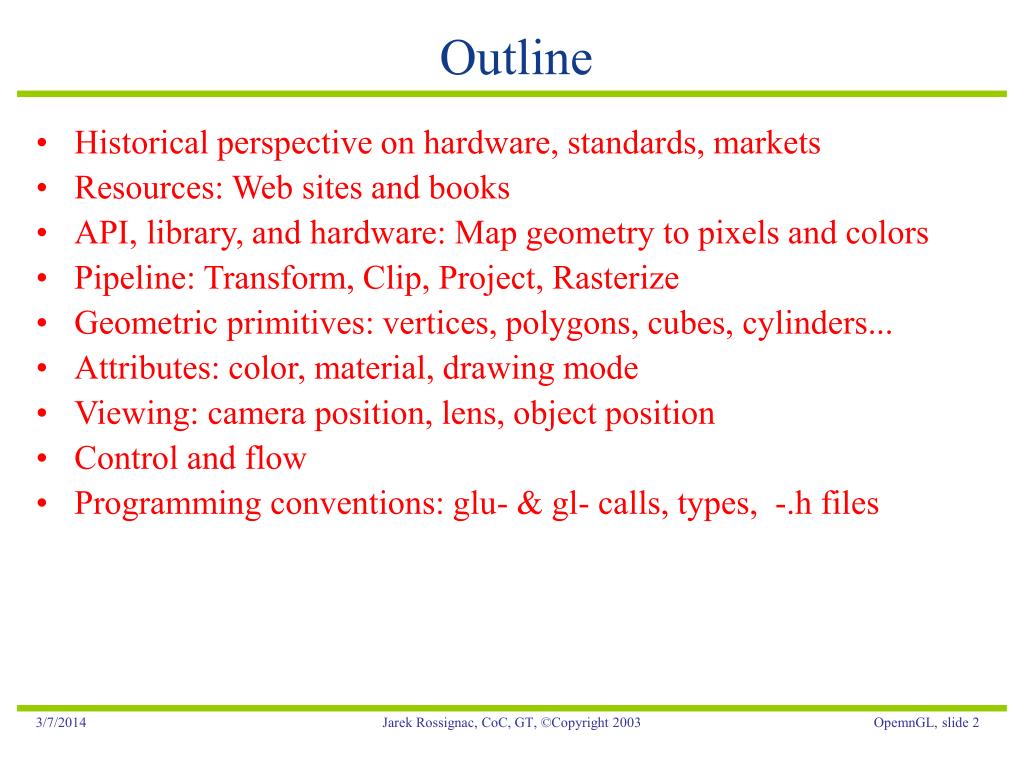

  2. Outline • Historical perspective on hardware, standards, markets • Resources: Web sites and books • API, library, and hardware: Map geometry to pixels and colors • Pipeline: Transform, Clip, Project, Rasterize • Geometric primitives: vertices, polygons, cubes, cylinders... • Attributes: color, material, drawing mode • Viewing: camera position, lens, object position • Control and flow • Programming conventions: glu- & gl- calls, types, -.h files Jarek Rossignac, CoC, GT, ©Copyright 2003

  3. History of the 3D graphics industry • 1960s: • Line drawings, hidden lines, parametric surfaces (B-splines…) • Automated drafting & machining for car, airplane, and ships manufacturers • 1970’s: • Mainframes, Vector tubes (HP…) • Software: Solids, (CSG), Ray Tracing, Z-buffer for hidden lines • 1980s: • Graphics workstations ($50K-$1M): Frame buffers, rasterizers , GL, Phigs • VR: CAVEs and head-mounted displays • CAD/CAM & GIS: CATIA, SDRC, PTC • Sun, HP, IBM, SGI, E&S, DEC • 1990s: • PCs ($2K): Graphics boards, OpenGL, Java3D • CAD+Videogames+Animations: AutoCAD, SolidWorks…, Alias-Wavefront • Intel, many board vendors • 2000s: • Laptops, PDAs, Cell Phones: Parallel graphic chips • Everything will be graphics, 3D, animated, interactive • Nvidia, Sony, Nokia Jarek Rossignac, CoC, GT, ©Copyright 2003

  4. Resources for OpenGL • OpenGL Primer by E. Angel • OpenGL user’s guide and programming manual • Lots of online documentation and examples http://www.gvu.gatech.edu/~jarek/courses/4451 http://www.cc.gatech.edu/classes/AY2003/cs4451b_fall/ http://www.cc.gatech.edu/classes/AY2003/cs4451b_fall/p1examples.htm Jarek Rossignac, CoC, GT, ©Copyright 2003

  5. OpenGL • Open Standard (controlled by multi-company board) • Used as common API for portable applications • Maps geometry to libraries that exploit graphics hardware • Function: • Take 3D geometry, attributes, user actions • Produce images/animations • OpenGL Pipeline: • States (colors, rendering modes, view parameters, local frame) • Geometry (vertices, connectivity) flows in and gets: • Transformed and clipped to the viewing frustum • Colored and textured • Projected and painted on the pixels of the window (frame buffer) • Hidden parts removed by hardware (z-buffer stores depth to visible surface) Jarek Rossignac, CoC, GT, ©Copyright 2003

  6. Utilities and programming conventions • OpenGL • GLUT Jarek Rossignac, CoC, GT, ©Copyright 2003

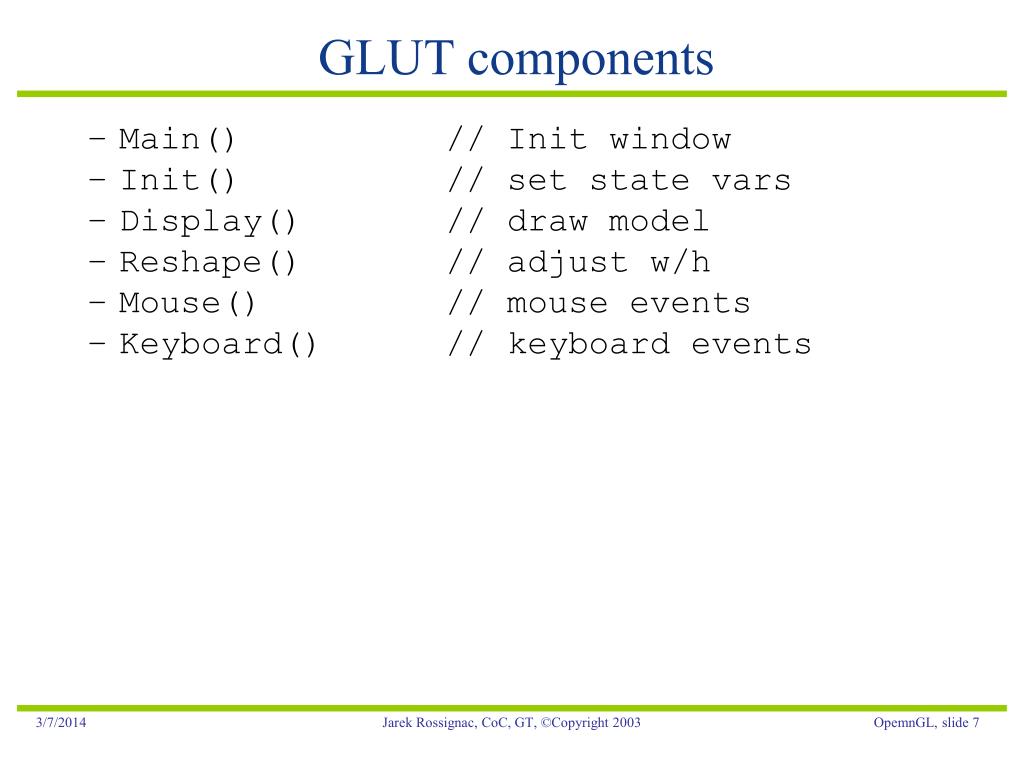

  7. GLUT components • Main() // Init window • Init() // set state vars • Display() // draw model • Reshape() // adjust w/h • Mouse() // mouse events • Keyboard() // keyboard events Jarek Rossignac, CoC, GT, ©Copyright 2003

  8. GLUT: Main int Main(int argc, char** argv) glutInit(); glutInitDisplayMode (GLUT_SINGLE | GLUT_RGB); glutInitWindowSize (Vx_max-Vx_min, Vy_max-Vy_min); glutInitWindowPosition (100, 100); glutCreateWindow (argv[0]); init (); glutDisplayFunc(display); glutReshapeFunc(reshape); glutMouseFunc(mouse); glutKeyboardFunc(keyboard); glutMainLoop(); return 0; Jarek Rossignac, CoC, GT, ©Copyright 2003

  9. GLUT: Init void init(void) { glClearColor (0.0, 0.0, 0.0, 0.0); glEnable(…); } Jarek Rossignac, CoC, GT, ©Copyright 2003

  10. GLUT: Display void display(void) { glClear (GL_COLOR_BUFFER_BIT); glColor3f(1.0,1.0,1.0); glBegin(GL_LINES); glVertex2d(100.0, 100.0); glVertex2d(400.0, 100.0); … glEnd(); glFlush (); } Jarek Rossignac, CoC, GT, ©Copyright 2003

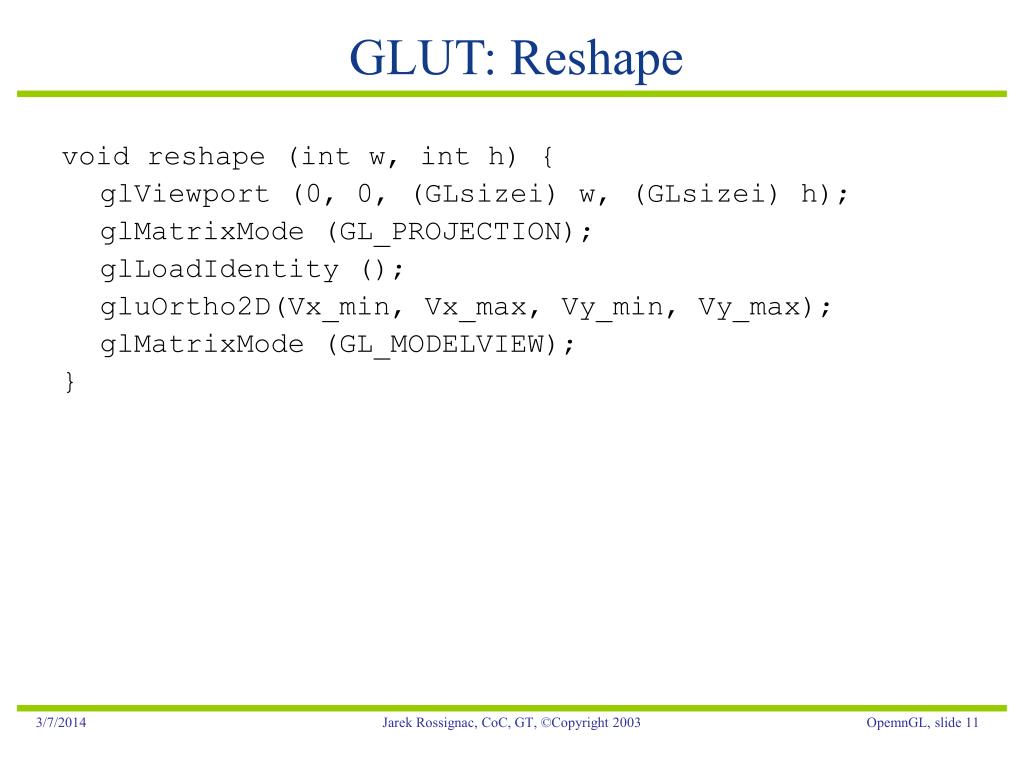

  11. GLUT: Reshape void reshape (int w, int h) { glViewport (0, 0, (GLsizei) w, (GLsizei) h); glMatrixMode (GL_PROJECTION); glLoadIdentity (); gluOrtho2D(Vx_min, Vx_max, Vy_min, Vy_max); glMatrixMode (GL_MODELVIEW); } Jarek Rossignac, CoC, GT, ©Copyright 2003

  12. GLUT: Mouse void mouse(int button, int state, int x, int y) { switch (button) { case GLUT_LEFT_BUTTON: if (state == GLUT_DOWN) { printf("left mouse click\n"); } break; default: break; } } Jarek Rossignac, CoC, GT, ©Copyright 2003

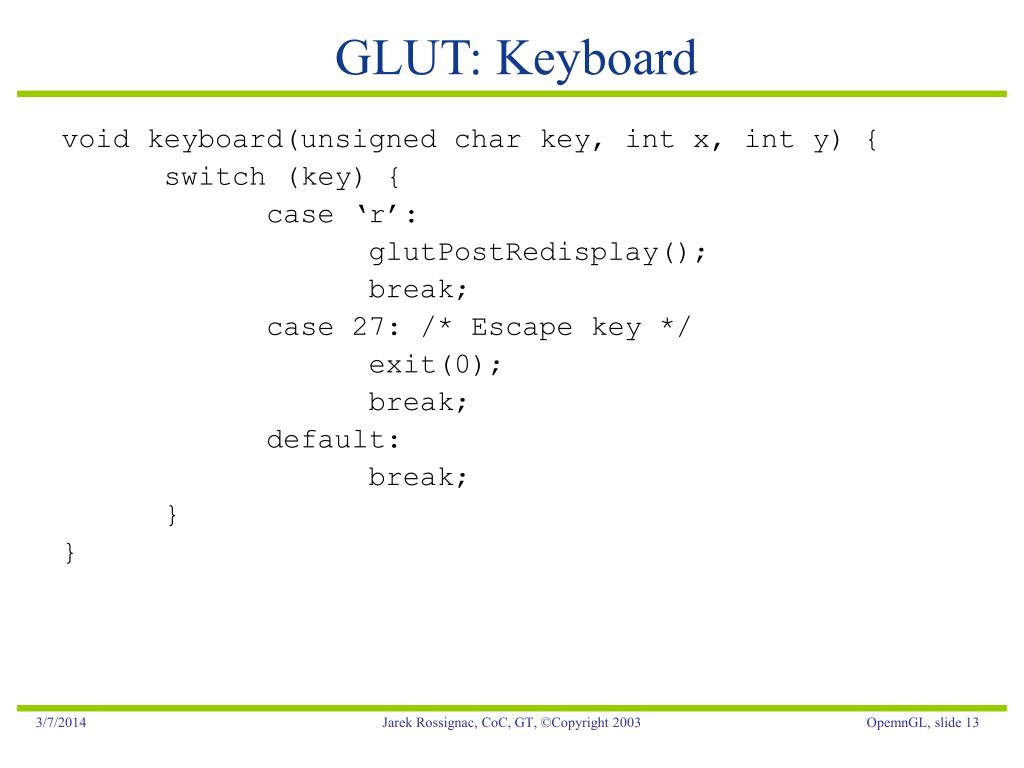

  13. GLUT: Keyboard void keyboard(unsigned char key, int x, int y) { switch (key) { case ‘r’: glutPostRedisplay(); break; case 27: /* Escape key */ exit(0); break; default: break; } } Jarek Rossignac, CoC, GT, ©Copyright 2003

  14. OpenGL: Conventions • Functions in OpenGL start with gl • Functions starting with glu are utility functions (i.e., gluLookAt()) • Functions starting with glx are for interfacing with the X Windows system • Function names indicate argument type/# • Functions ending with f take Floats • Functions ending with i take Ints, functions that end with v take an array, with b take byte, etc. • Ex: glColor3f() takes 3 floats, but glColor4fv()takes an array of 4 floats Jarek Rossignac, CoC, GT, ©Copyright 2003

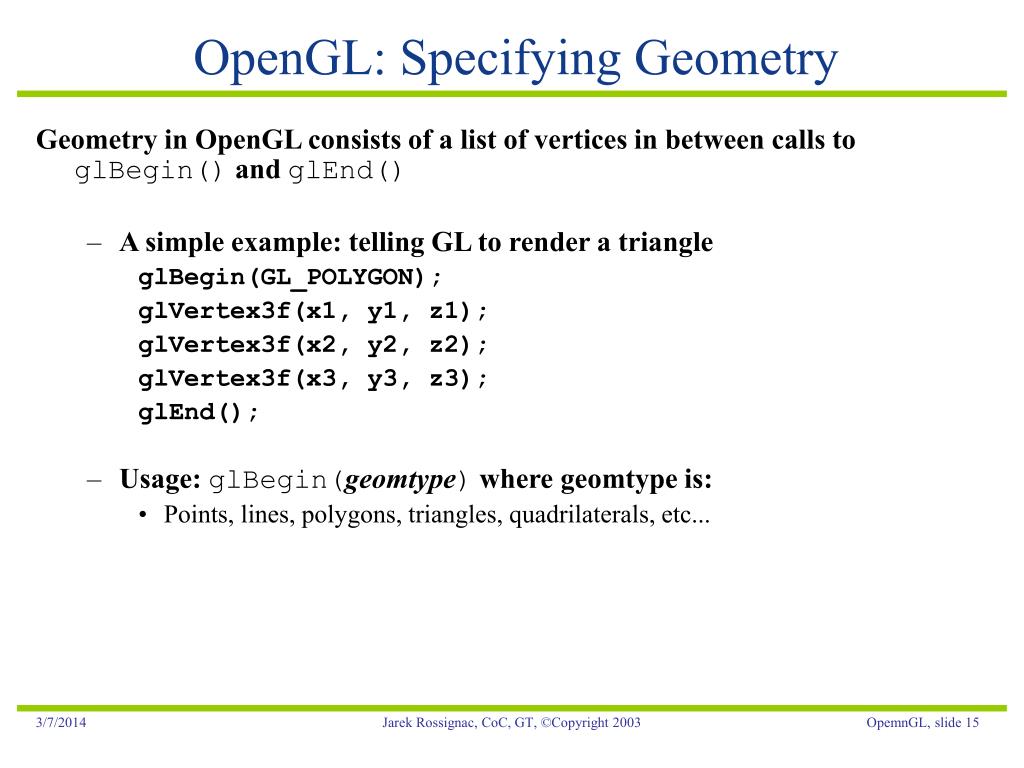

  15. OpenGL: Specifying Geometry Geometry in OpenGL consists of a list of vertices in between calls to glBegin() and glEnd() • A simple example: telling GL to render a triangle glBegin(GL_POLYGON); glVertex3f(x1, y1, z1); glVertex3f(x2, y2, z2); glVertex3f(x3, y3, z3); glEnd(); • Usage: glBegin(geomtype) where geomtype is: • Points, lines, polygons, triangles, quadrilaterals, etc... Jarek Rossignac, CoC, GT, ©Copyright 2003

  16. OpenGL: More Examples • Example: GL supports quadrilaterals: glBegin(GL_QUADS); glVertex3f(-1, 1, 0); glVertex3f(-1, -1, 0); glVertex3f(1, -1, 0); glVertex3f(1, 1, 0); glEnd(); • This type of operation is called immediate-mode rendering; • each command happens immediately • Although you may not see the result if you use double buffering • Things get drawn into the back buffer • Then buffers are swapped Jarek Rossignac, CoC, GT, ©Copyright 2003

  17. OpenGL: Front/Back Rendering • Each polygon has two sides, front and back • OpenGL can render the two differently • The ordering of vertices in the list determines which is the front side: • When looking at the front side, the vertices go counterclockwise • This is basically the right-hand rule • Note that this still holds after perspective projection Jarek Rossignac, CoC, GT, ©Copyright 2003

  18. OpenGL: Drawing Triangles • You can draw multiple triangles between glBegin(GL_TRIANGLES) and glEnd(): float v1[3], v2[3], v3[3], v4[3]; ... glBegin(GL_TRIANGLES); glVertex3fv(v1); glVertex3fv(v2); glVertex3fv(v3); glVertex3fv(v1); glVertex3fv(v3); glVertex3fv(v4); glEnd(); The same vertex is used (transformed, colored) many time (6 on average) Jarek Rossignac, CoC, GT, ©Copyright 2003

  19. v2 v4 v0 v5 v1 v3 OpenGL: Triangle Strips • An OpenGL triangle strip primitive reduces this redundancy by sharing vertices: glBegin(GL_TRIANGLE_STRIP); glVertex3fv(v0); glVertex3fv(v1); glVertex3fv(v2); glVertex3fv(v3); glVertex3fv(v4); glVertex3fv(v5); glEnd(); • triangle 0 is v0, v1, v2 • triangle 1 is v2, v1, v3 (why not v1, v2, v3?) • triangle 2 is v2, v3, v4 • triangle 3 is v4, v3, v5 (again, not v3, v4, v5) Jarek Rossignac, CoC, GT, ©Copyright 2003

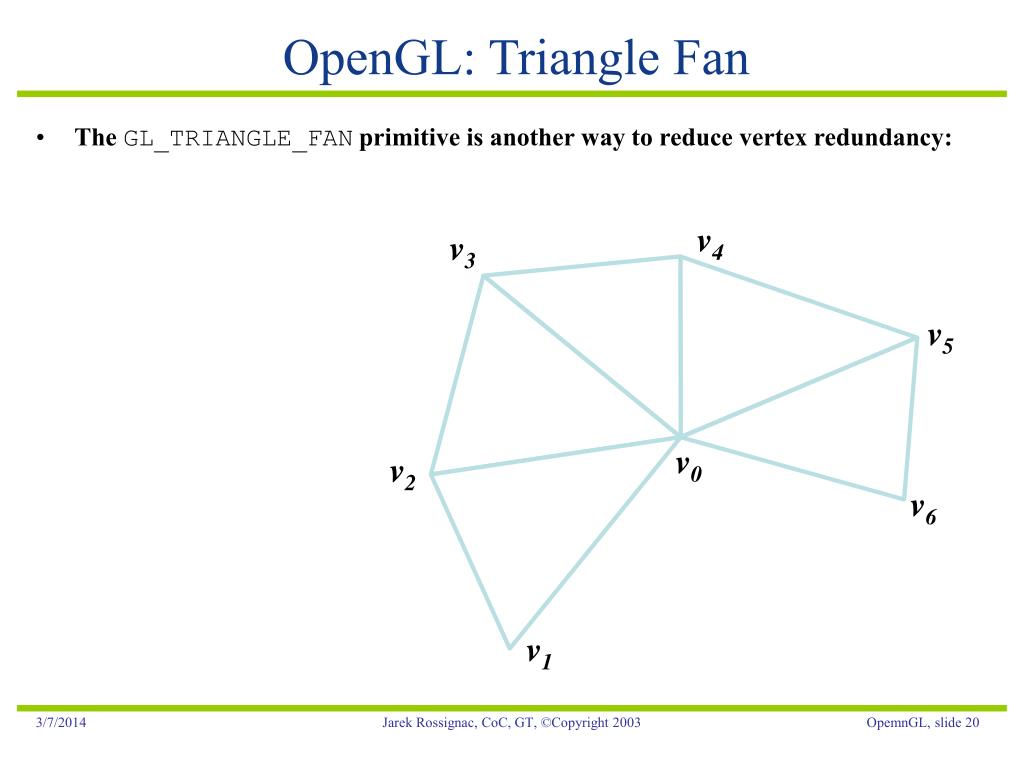

  20. v4 v3 v5 v0 v2 v6 v1 OpenGL: Triangle Fan • The GL_TRIANGLE_FAN primitive is another way to reduce vertex redundancy: Jarek Rossignac, CoC, GT, ©Copyright 2003

  21. OpenGL: Drawing Other Primitives • You can draw other primitives using: • GL_POINTS • GL_LINES • GL_LINE_STRIP • GL_LINE_LOOP • GL_QUADS • … Jarek Rossignac, CoC, GT, ©Copyright 2003

  22. OpenGL: Specifying Color • Can specify other properties such as color • To produce a single aqua-colored triangle: glColor3f(0.1, 0.5, 1.0); glVertex3fv(v0); glVertex3fv(v1); glVertex3fv(v2); • To produce a smoothly Gouraud-shaded triangle: glColor3f(1, 0, 0); glVertex3fv(v0); glColor3f(0, 1, 0); glVertex3fv(v1); glColor3f(0, 0, 1); glVertex3fv(v2); • In OpenGL, colors can also have a fourth component  (transparency) • Generally want  = 1.0 (opaque); Jarek Rossignac, CoC, GT, ©Copyright 2003

  23. OpenGL: Modeling Transforms • Some OpenGL commands generate transformation matrices: glTranslatef(Tx, Ty, Tz); glRotatef(angleDegrees, Ax, Ay, Az); glScalef(Sx, Sy, Sz); • Example of rotations around x, y, and z axes glRotatef(xangle,1,0,0); glRotatef(yangle,0,1,0); glRotatef(zangle,0,0,1); Jarek Rossignac, CoC, GT, ©Copyright 2003

  24. OpenGL: Modeling Transforms • Example: glMatrixMode(GL_MODELVIEW); glLoadIdentity(); glTranslatef(…); glRotatef(…); • Result: the modelview matrix is set to: I • T • R == T • R which then is used to transform all subsequent vertices Jarek Rossignac, CoC, GT, ©Copyright 2003

  25. OpenGL: Viewing Transforms • Ex: gluLookAt() computes a lookat matrix : gluLookAt(eyeX, eyeY, eyeZ, centerX, centerY, centerZ, upX, upY, upZ); Use it after loading the identity. Jarek Rossignac, CoC, GT, ©Copyright 2003

  26. OpenGL: Projection • The projection matrix is generally used for the perspective projection matrix • gluOrtho2D() creates a matrix for projecting 2D coordinates onto the screen without perspective, gluOrtho2D(double left, double right, double bottom, double top); Jarek Rossignac, CoC, GT, ©Copyright 2003

  27. Selecting a Polygon w/Mouse • Use gluUnProject() to find world coordinates for mouse click on near and far clipping planes (pnear and pfar). • Intersect every triangle in the scene with the line that passes through pnear and pfar. Jarek Rossignac, CoC, GT, ©Copyright 2003

  28. Example 1 (Brooks van Horn) • #include <glut.h> • #include <GL/gl.h> • #include <GL/glu.h> • #include <stdlib.h> • void mouse( int, int, int, int ); • void display( void ); • void reshape( int, int ); • void keyboard( unsigned char, int, int ); • void Idle( void ); • void InitializeVariables( void ); // forwarding functions • int xdim, ydim; // screen dimensions • struct vPoint { inline float & operator [] ( int index ) { return element[ index ]; } float element[ 3 ]; }; • const float X_STEP = 0.005; const float Y_STEP = 0.020; const float Z_STEP = 0.025; • bool flag; // flag to tell us if there is anything to draw yet • vPoint rotation; // current rotation Jarek Rossignac, CoC, GT, ©Copyright 2003

  29. Example 1 of a main int main( int argc, char *argv[] ) {InitializeVariables(); // My function that zeroes variables and such stuff. xdim = ( argc > 1 ) ? atoi( argv[ 1 ] ) : 500; ydim = ( argc > 2 ) ? atoi( argv[ 2 ] ) : 500; glutInit( &argc, argv ); /* Initialization function */ glutInitDisplayMode( GLUT_DOUBLE | GLUT_RGB ); // double buffer and GRB modes glutInitWindowSize( xdim, ydim ); // Set the screen size glutCreateWindow( "This is the title of the window."); glClearColor( 0.0, 0.0, 0.0, 0.0 ); // clear color and alpha at each pixel glShadeModel( GL_FLAT ); // set shading mode to flat (constant color for each polygon) glutDisplayFunc( display ); // tells OpenGL what to call when it needs to redraw glutReshapeFunc( reshape ); // tells OpenGL what to call when window is reshaped glutMouseFunc( mouse ); // tells OpenGL what to call when a mouse button is pressed glutKeyboardFunc( keyboard ); // tells OpenGL what to call upon keyboard events glutIdleFunc( Idle ); // Says what to call when nothings is happening glutMainLoop(); // important call to include after the above 3 return 0; } Jarek Rossignac, CoC, GT, ©Copyright 2003

  30. Example 1 of a display function void display( void ) {glClear( GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT ); if ( flag ) { glutSwapBuffers(); return ; } glPushMatrix(); // push matrix on stack glColor3f( 1.0, 1.0, 1.0 ); // specify a color by giving R-G-B values from 0 to 1. glTranslatef( 0.0, 0.0, -3.0 ); // move the dots so that we can see them glRotatef(rotation[0],1,0,0); glRotatef(rotation[1],0,1,0); glRotatef(rotation[2],0,0,1); glBegin( GL_POINTS ); for ( int i = 0; i < MAX_DOTS; i++ ) glVertex3f(dots[i][0],dots[i][1],dots[i][2]); glEnd(); glPopMatrix(); glutSwapBuffers();} // This says: "DRAW WHAT YOU'VE GOT!" Jarek Rossignac, CoC, GT, ©Copyright 2003

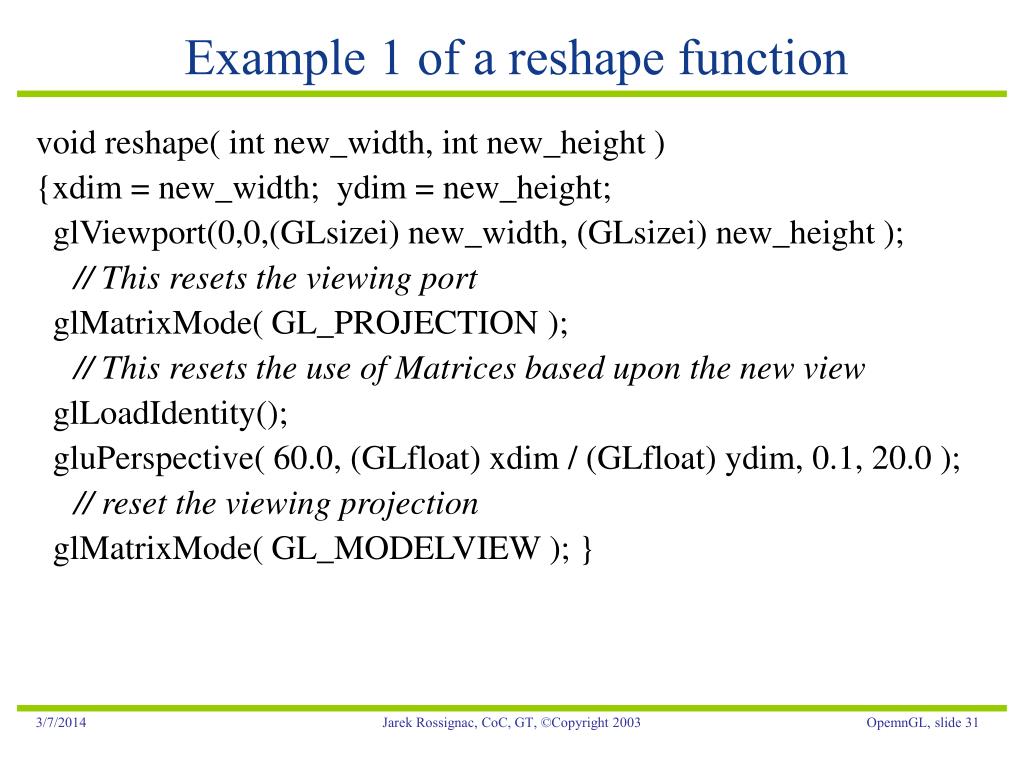

  31. Example 1 of a reshape function void reshape( int new_width, int new_height ) {xdim = new_width; ydim = new_height; glViewport(0,0,(GLsizei) new_width, (GLsizei) new_height ); // This resets the viewing port glMatrixMode( GL_PROJECTION ); // This resets the use of Matrices based upon the new view glLoadIdentity(); gluPerspective( 60.0, (GLfloat) xdim / (GLfloat) ydim, 0.1, 20.0 ); // reset the viewing projection glMatrixMode( GL_MODELVIEW ); } Jarek Rossignac, CoC, GT, ©Copyright 2003

  32. Example 1 of a mouse function void mouse( int button, int state, int x, int y ) { /* button: GLUT_LEFT_BUTTON or GLUT_MIDDLE_BUTTON or GLUT_RIGHT_BUTTON, state: (pressed GLUT_DOWN or not GLUT_UP) (x, y): position of mouse */ if ( state == GLUT_UP ) return ; // do nothing when buttons up // otherwise generate dots for (int i = 0; i<MAX_DOTS; i++) for (int j = 0; j<3; j++) dots[i][j] = (float) rand() / (float) RAND_MAX; glutPostRedisplay(); } // will invoke display again so that a new thing is put on the screen Jarek Rossignac, CoC, GT, ©Copyright 2003

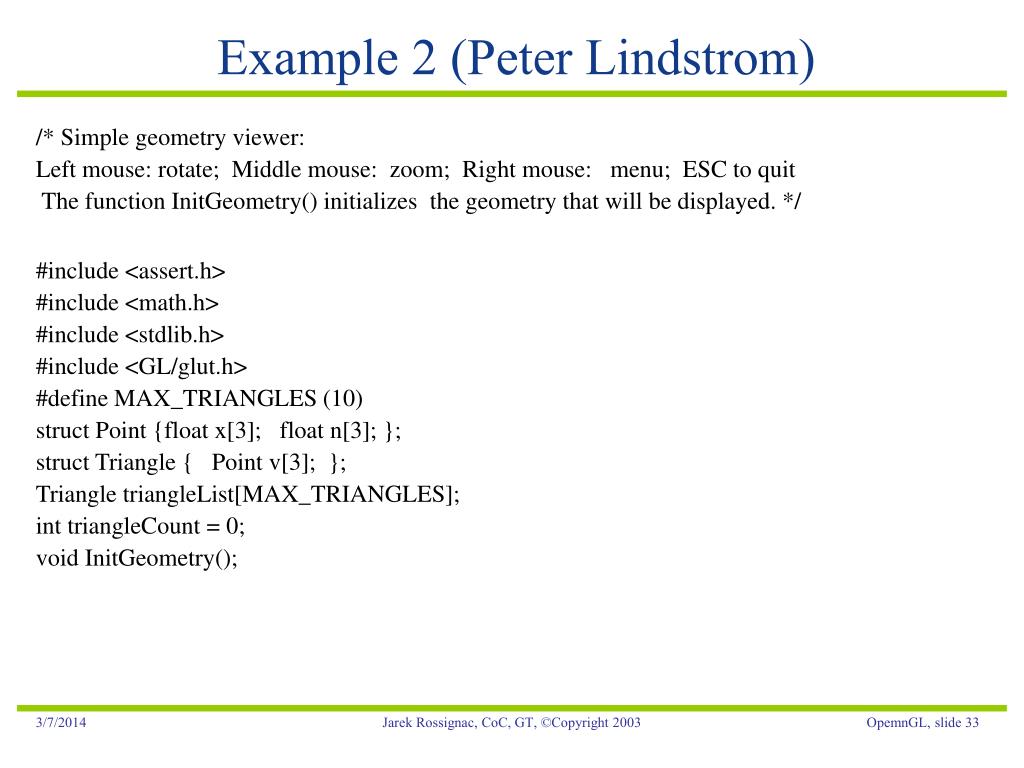

  33. Example 2 (Peter Lindstrom) /* Simple geometry viewer:  Left mouse: rotate;  Middle mouse:  zoom;  Right mouse:   menu;  ESC to quit  The function InitGeometry() initializes  the geometry that will be displayed. */ #include <assert.h> #include <math.h> #include <stdlib.h> #include <GL/glut.h> #define MAX_TRIANGLES (10) struct Point {float x[3];   float n[3]; }; struct Triangle {   Point v[3];  }; Triangle triangleList[MAX_TRIANGLES]; int triangleCount = 0; void InitGeometry(); Jarek Rossignac, CoC, GT, ©Copyright 2003

  34. Example 2 Initialization /* Viewer state */ float sphi=90.0, stheta=45.0; float sdepth = 10; float zNear=1.0, zFar=100.0; float aspect = 5.0/4.0; float xcam = 0, ycam = 0; long xsize, ysize; int downX, downY; bool leftButton = false, middleButton = false; int i,j; GLfloat light0Position[] = { 0, 1, 0, 1.0}; int displayMenu, mainMenu; enum {WIREFRAME, HIDDENLINE, FLATSHADED, SMOOTHSHADED}; int displayMode = WIREFRAME; void MyIdleFunc(void) { glutPostRedisplay();} /* things to do while idle */ void RunIdleFunc(void) {   glutIdleFunc(MyIdleFunc); } void PauseIdleFunc(void) {   glutIdleFunc(NULL); } Jarek Rossignac, CoC, GT, ©Copyright 2003

  35. Example 2 Flat shading of triangles void DrawFlatShaded(void) {   int i;   glEnable(GL_POLYGON_OFFSET_FILL);   glColor3f(0.8f, 0.2f, 0.8f);   glBegin ( GL_TRIANGLES ) ;   for ( i = 0; i < triangleCount; ++i ) {     glVertex3fv( triangleList[i].v[0].x );     glVertex3fv( triangleList[i].v[1].x );     glVertex3fv( triangleList[i].v[2].x );   }   glEnd ( ) ;   glDisable(GL_POLYGON_OFFSET_FILL);} Jarek Rossignac, CoC, GT, ©Copyright 2003

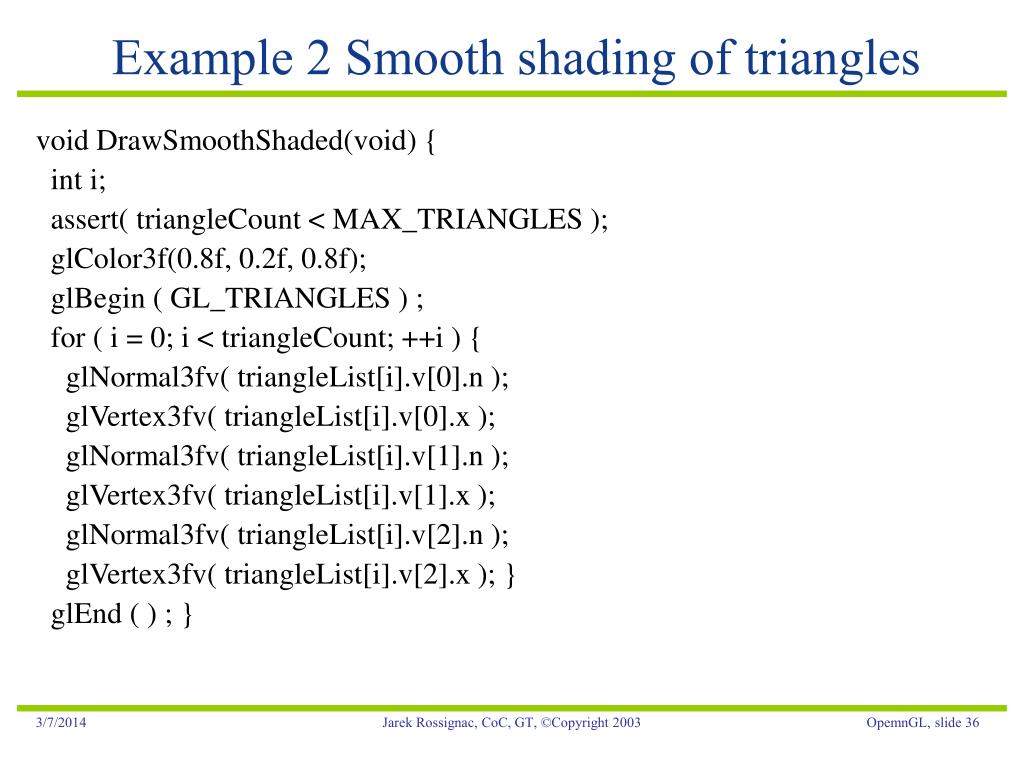

  36. Example 2 Smooth shading of triangles void DrawSmoothShaded(void) {   int i;   assert( triangleCount < MAX_TRIANGLES );   glColor3f(0.8f, 0.2f, 0.8f);   glBegin ( GL_TRIANGLES ) ;   for ( i = 0; i < triangleCount; ++i ) {     glNormal3fv( triangleList[i].v[0].n );     glVertex3fv( triangleList[i].v[0].x );     glNormal3fv( triangleList[i].v[1].n );     glVertex3fv( triangleList[i].v[1].x );     glNormal3fv( triangleList[i].v[2].n );     glVertex3fv( triangleList[i].v[2].x ); }   glEnd ( ) ; } Jarek Rossignac, CoC, GT, ©Copyright 2003

  37. Example 2 Drawing edges of triangles void DrawWireframe(void) {   int i;   glColor3f(1.0, 1.0, 1.0);   for ( i = 0; i < triangleCount; ++i ) {     glBegin(GL_LINE_STRIP);     glVertex3fv( triangleList[i].v[0].x );     glVertex3fv( triangleList[i].v[1].x );     glVertex3fv( triangleList[i].v[2].x );     glVertex3fv( triangleList[i].v[0].x );     glEnd();   } } Jarek Rossignac, CoC, GT, ©Copyright 2003

  38. Example 2 Hidden lines void DrawHiddenLine(void) {   glEnable(GL_POLYGON_OFFSET_FILL);   glColor3f(0,0,0);   glBegin ( GL_TRIANGLES ) ;   for ( i = 0; i < triangleCount; ++i ) {     glVertex3fv( triangleList[i].v[0].x );     glVertex3fv( triangleList[i].v[1].x );     glVertex3fv( triangleList[i].v[2].x );   }   glEnd ( ) ;   glDisable(GL_POLYGON_OFFSET_FILL);   glColor3f(1.0,1.0,1.0);   glPolygonMode(GL_FRONT_AND_BACK, GL_LINE);   glBegin ( GL_TRIANGLES ) ;   for ( i = 0; i < triangleCount; ++i ) {     glVertex3fv( triangleList[i].v[0].x );     glVertex3fv( triangleList[i].v[1].x );     glVertex3fv( triangleList[i].v[2].x );   }   glEnd ( ) ;   glPolygonMode(GL_FRONT_AND_BACK, GL_FILL); } Jarek Rossignac, CoC, GT, ©Copyright 2003

  39. Example 2 Reshape void ReshapeCallback(int width, int height) {   xsize = width;   ysize = height;   aspect = (float)xsize/(float)ysize;   glViewport(0, 0, xsize, ysize);   glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);   glutPostRedisplay();} Jarek Rossignac, CoC, GT, ©Copyright 2003

  40. Example 2 Menu void SetDisplayMenu(int value) {   displayMode = value;   switch(value) {     case WIREFRAME: glShadeModel(GL_FLAT); glDisable(GL_LIGHTING); break;     case HIDDENLINE: glShadeModel(GL_FLAT); glDisable(GL_LIGHTING); break;     case FLATSHADED: glShadeModel(GL_FLAT); glEnable(GL_LIGHTING); break;     case SMOOTHSHADED: glShadeModel(GL_SMOOTH); (GL_LIGHTING); break; }   glutPostRedisplay();} void SetMainMenu(int value) {switch(value) {case 99: exit(0); break;}} Jarek Rossignac, CoC, GT, ©Copyright 2003

  41. Example 2 Display Callback void DisplayCallback(void) {   glMatrixMode(GL_PROJECTION);   glLoadIdentity();   gluPerspective(64.0, aspect, zNear, zFar);   glMatrixMode(GL_MODELVIEW);   glLoadIdentity();   glTranslatef(0.0,0.0,-sdepth);   glRotatef(-stheta, 1.0, 0.0, 0.0);   glRotatef(sphi, 0.0, 0.0, 1.0);   switch (displayMode) {     case WIREFRAME: DrawWireframe();     break;     case HIDDENLINE: DrawHiddenLine();     break;     case FLATSHADED: DrawFlatShaded();     break;     case SMOOTHSHADED: DrawSmoothShaded();     break;   }   glutSwapBuffers();   glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT); } Jarek Rossignac, CoC, GT, ©Copyright 2003

  42. Example 2 Keyboard and mouse void KeyboardCallback(unsigned char ch, int x, int y) {   switch (ch) {case 27: exit(0);break; } glutPostRedisplay(); } void MouseCallback(int button, int state, int x, int y) {   downX = x; downY = y;   leftButton = ((button == GLUT_LEFT_BUTTON) && (state == GLUT_DOWN));   middleButton = ((button == GLUT_MIDDLE_BUTTON) &&  (state == GLUT_DOWN));   glutPostRedisplay();} void MotionCallback(int x, int y) {   if (leftButton){sphi+=(float)(x-downX)/4.0;stheta+=(float)(downY-y)/4.0;} // rotate   if (middleButton){sdepth += (float)(downY - y) / 10.0;  } // scale   downX = x;   downY = y;   glutPostRedisplay();} Jarek Rossignac, CoC, GT, ©Copyright 2003

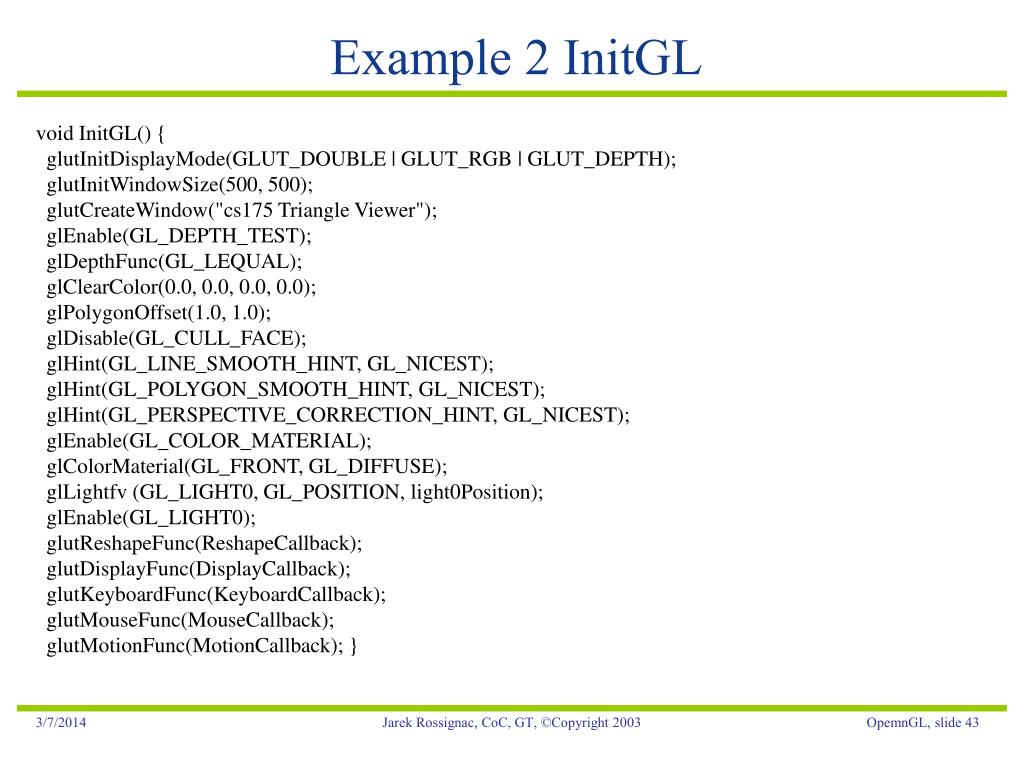

  43. Example 2 InitGL void InitGL() {   glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGB | GLUT_DEPTH);   glutInitWindowSize(500, 500);   glutCreateWindow("cs175 Triangle Viewer");   glEnable(GL_DEPTH_TEST);   glDepthFunc(GL_LEQUAL);   glClearColor(0.0, 0.0, 0.0, 0.0);   glPolygonOffset(1.0, 1.0);   glDisable(GL_CULL_FACE);   glHint(GL_LINE_SMOOTH_HINT, GL_NICEST);   glHint(GL_POLYGON_SMOOTH_HINT, GL_NICEST);   glHint(GL_PERSPECTIVE_CORRECTION_HINT, GL_NICEST);   glEnable(GL_COLOR_MATERIAL);   glColorMaterial(GL_FRONT, GL_DIFFUSE);   glLightfv (GL_LIGHT0, GL_POSITION, light0Position);   glEnable(GL_LIGHT0);   glutReshapeFunc(ReshapeCallback);   glutDisplayFunc(DisplayCallback);   glutKeyboardFunc(KeyboardCallback);   glutMouseFunc(MouseCallback);   glutMotionFunc(MotionCallback); } Jarek Rossignac, CoC, GT, ©Copyright 2003

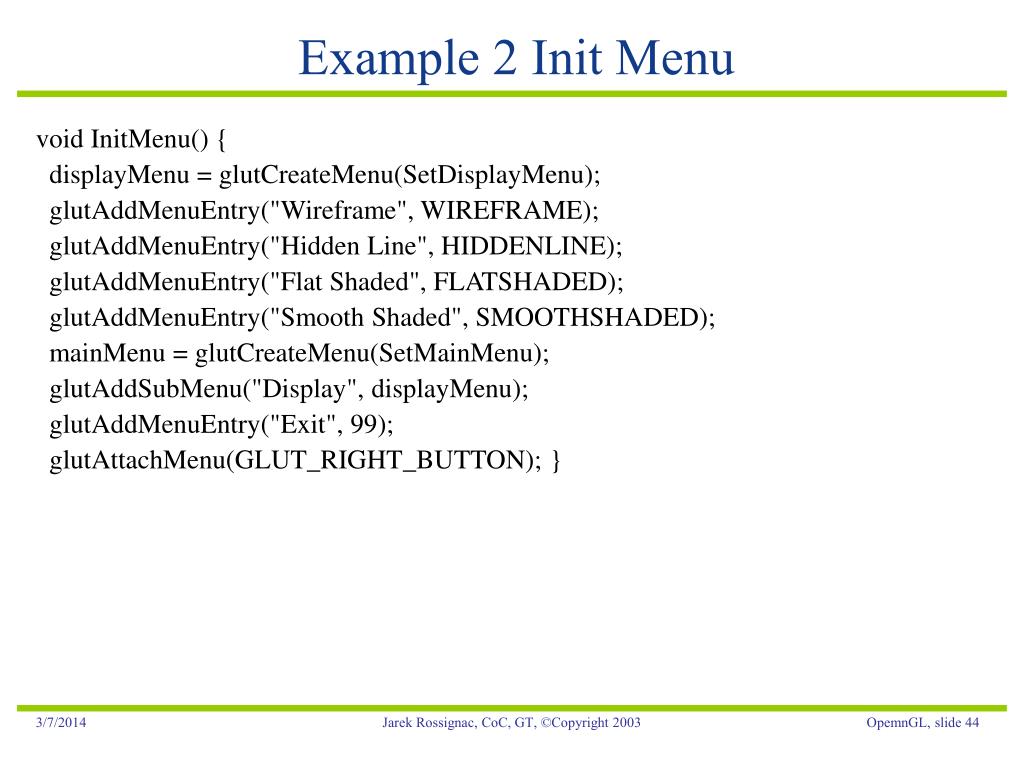

  44. Example 2 Init Menu void InitMenu() {   displayMenu = glutCreateMenu(SetDisplayMenu);   glutAddMenuEntry("Wireframe", WIREFRAME);   glutAddMenuEntry("Hidden Line", HIDDENLINE);   glutAddMenuEntry("Flat Shaded", FLATSHADED);   glutAddMenuEntry("Smooth Shaded", SMOOTHSHADED);   mainMenu = glutCreateMenu(SetMainMenu);   glutAddSubMenu("Display", displayMenu);   glutAddMenuEntry("Exit", 99);   glutAttachMenu(GLUT_RIGHT_BUTTON); } Jarek Rossignac, CoC, GT, ©Copyright 2003

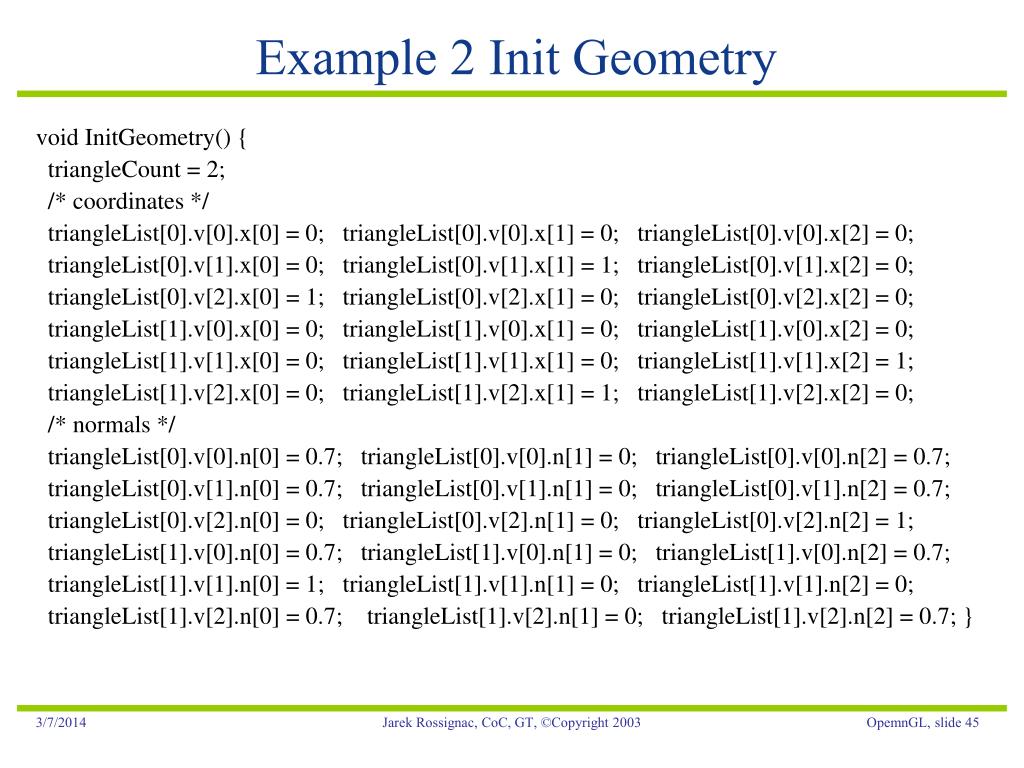

  45. Example 2 Init Geometry void InitGeometry() {   triangleCount = 2;   /* coordinates */   triangleList[0].v[0].x[0] = 0;   triangleList[0].v[0].x[1] = 0;   triangleList[0].v[0].x[2] = 0;   triangleList[0].v[1].x[0] = 0;   triangleList[0].v[1].x[1] = 1;   triangleList[0].v[1].x[2] = 0;   triangleList[0].v[2].x[0] = 1;   triangleList[0].v[2].x[1] = 0;   triangleList[0].v[2].x[2] = 0;   triangleList[1].v[0].x[0] = 0;   triangleList[1].v[0].x[1] = 0;   triangleList[1].v[0].x[2] = 0;   triangleList[1].v[1].x[0] = 0;   triangleList[1].v[1].x[1] = 0;   triangleList[1].v[1].x[2] = 1;   triangleList[1].v[2].x[0] = 0;   triangleList[1].v[2].x[1] = 1;   triangleList[1].v[2].x[2] = 0;   /* normals */   triangleList[0].v[0].n[0] = 0.7;   triangleList[0].v[0].n[1] = 0;   triangleList[0].v[0].n[2] = 0.7;   triangleList[0].v[1].n[0] = 0.7;   triangleList[0].v[1].n[1] = 0;   triangleList[0].v[1].n[2] = 0.7;   triangleList[0].v[2].n[0] = 0;   triangleList[0].v[2].n[1] = 0;   triangleList[0].v[2].n[2] = 1;   triangleList[1].v[0].n[0] = 0.7;   triangleList[1].v[0].n[1] = 0;   triangleList[1].v[0].n[2] = 0.7;   triangleList[1].v[1].n[0] = 1;   triangleList[1].v[1].n[1] = 0;   triangleList[1].v[1].n[2] = 0;   triangleList[1].v[2].n[0] = 0.7;    triangleList[1].v[2].n[1] = 0;   triangleList[1].v[2].n[2] = 0.7; } Jarek Rossignac, CoC, GT, ©Copyright 2003

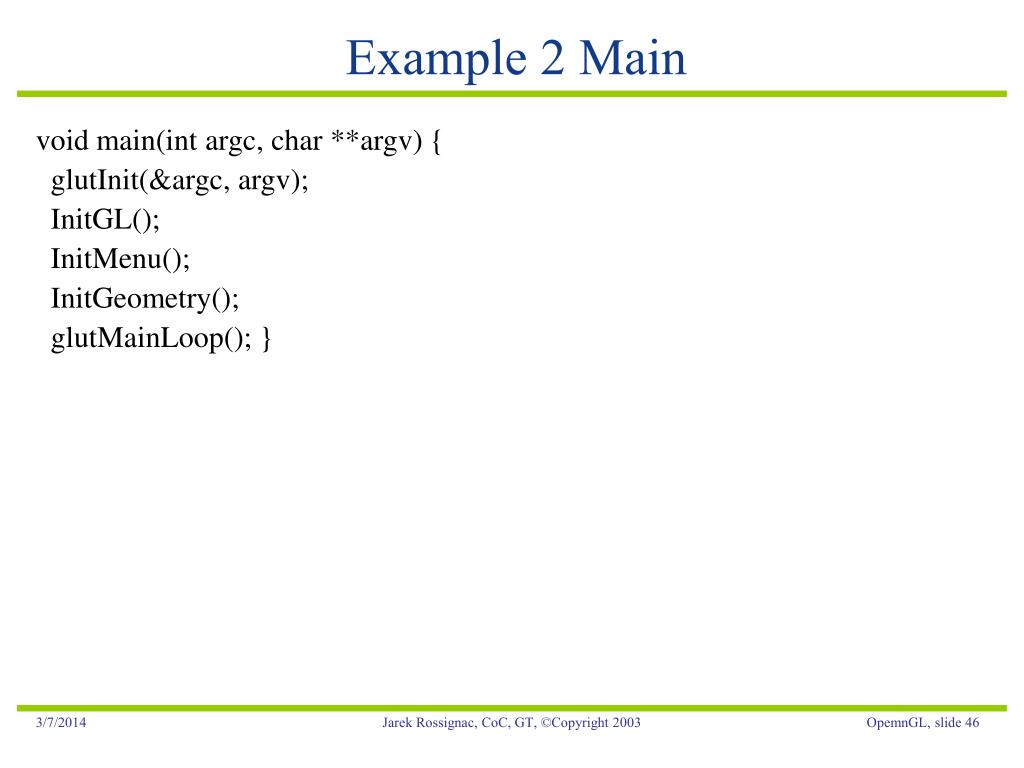

  46. Example 2 Main void main(int argc, char **argv) {   glutInit(&argc, argv);   InitGL();   InitMenu();   InitGeometry();   glutMainLoop(); } Jarek Rossignac, CoC, GT, ©Copyright 2003

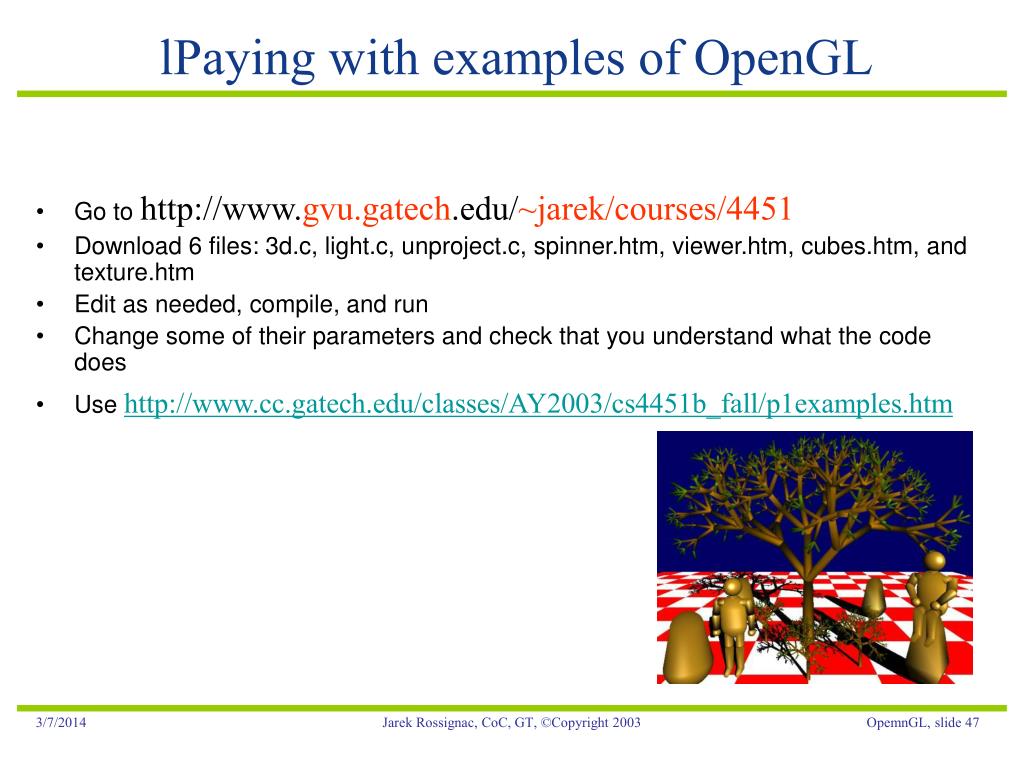

  47. lPaying with examples of OpenGL • Go to http://www.gvu.gatech.edu/~jarek/courses/4451 • Download 6 files: 3d.c, light.c, unproject.c, spinner.htm, viewer.htm, cubes.htm, and texture.htm • Edit as needed, compile, and run • Change some of their parameters and check that you understand what the code does • Use http://www.cc.gatech.edu/classes/AY2003/cs4451b_fall/p1examples.htm Jarek Rossignac, CoC, GT, ©Copyright 2003

  48. Practice questions • When did commercial graphics workstation become available? • How are the visible surfaces selected by the graphics hardware? • What is OpenGL? • OpenGL code fragment that draws a line in 2D from point (a,b) to point (b,c). • When would you call gluOrtho2D and what are the parameters. Jarek Rossignac, CoC, GT, ©Copyright 2003
