Status of Embedded Linux

Embedded Linux Update June, 2010. Status of Embedded Linux. Tim Bird CELF Architecture Group Chair. Outline. Kernel Versions Technology Areas Embedded Distributions Resources. Linux Kernel Versions. Kernel Versions. Linux v2.6.30 – 10 June 2009 Linux v2.6.31 – 9 Sep 2009

jana
Télécharger la présentation

Status of Embedded Linux

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Embedded Linux Update June, 2010 Status of Embedded Linux Tim Bird CELF Architecture Group Chair

  2. Outline • Kernel Versions • Technology Areas • Embedded Distributions • Resources

  3. Linux Kernel Versions

  4. Kernel Versions • Linux v2.6.30 – 10 June 2009 • Linux v2.6.31 – 9 Sep 2009 • Linux v2.6.32 – 2 Dec 2009 • Linux v2.6.33 – 24 Feb 2010 • Linux v2.6.34 – 16 May 2010 • 5 kernels in 11 months • Linux v2.6.35 merge window just closed • 2.6.35-rc1 – 30 May 2010

  5. Linux v2.6.34 • LogFS • Asynchronous Suspend/Resume • Memory threshold notifications for cgroups

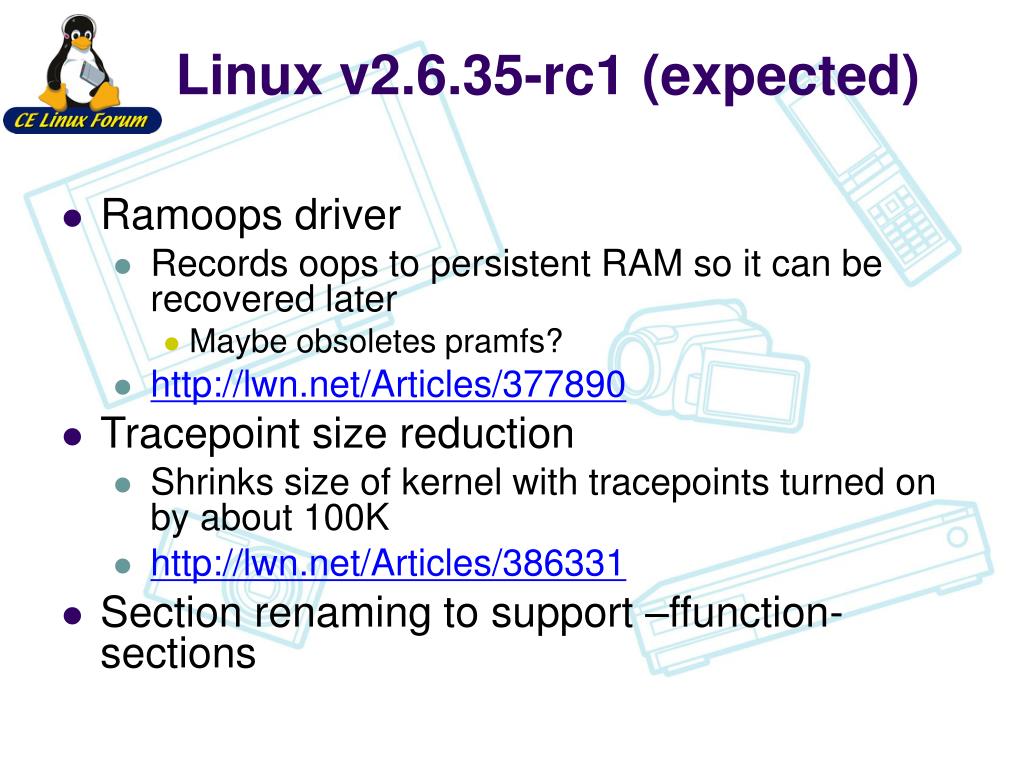

  6. Linux v2.6.35-rc1 (expected) • Ramoops driver • Records oops to persistent RAM so it can be recovered later • Maybe obsoletes pramfs? • http://lwn.net/Articles/377890 • Tracepoint size reduction • Shrinks size of kernel with tracepoints turned on by about 100K • http://lwn.net/Articles/386331 • Section renaming to support –ffunction-sections

  7. Patches to watch • Speed up symbol resolution during module loading • Sorts symbol table and avoid linear lookup cost per symbol when loading a module • Developer, Alan Jenkins, reports saving 20% of time on coldboot • Depends on modules being loaded • Did not make it into 2.6.33 • Alan said he’ll try to mainline it again

  8. Patches to watch (cont.)‏ • Suspend blockers • Android opportunistic suspend patches (successor to wake locks) • More on this later

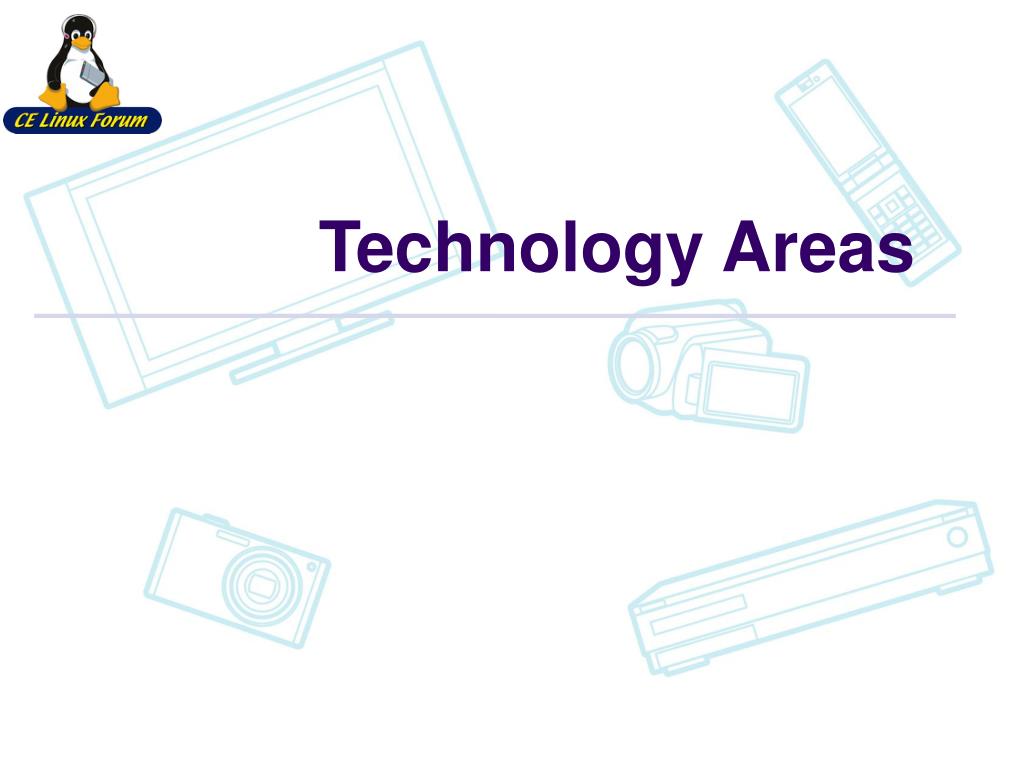

  9. Technology Areas

  10. Technology Areas • File Systems • Power Management • Real-time • System Size • Tracing

  11. File Systems • SquashFS • Patches for LZMA support were submitted to kernel mailing list in late 2009, but they missed the merge window • See http://lkml.org/lkmlk/2009/12/10/456 • Linus wants lzma library access refactored • LGE (Chan Jeong) recently submitted patches for LZO support • Phillip said he'd mainline them • See http://old.nabble.com/-PATCH-1-2--Squashfs:-add-LZO-decompression-support-to28591383.html

  12. File systems (cont.) • UBIFS • Toshiba has reported on performance of this • LGE says they are using UBIFS in product, in part because it boots faster than YAFFS2 • CELF has contracted with Free Electrons to measure UBIFS mount times and find problem areas

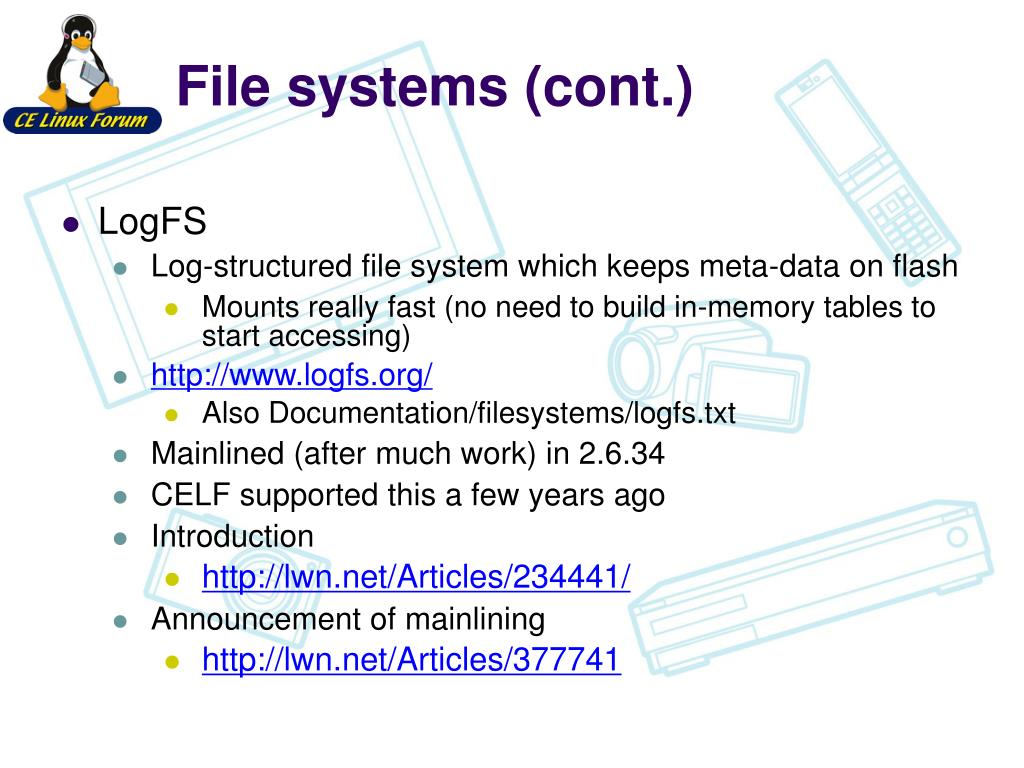

  13. File systems (cont.) • LogFS • Log-structured file system which keeps meta-data on flash • Mounts really fast (no need to build in-memory tables to start accessing) • http://www.logfs.org/ • Also Documentation/filesystems/logfs.txt • Mainlined (after much work) in 2.6.34 • CELF supported this a few years ago • Introduction • http://lwn.net/Articles/234441/ • Announcement of mainlining • http://lwn.net/Articles/377741

  14. File systems (cont.) • LogFS is new, and it really needs testing • Please try it out and report back!

  15. Power Management • Suspend Blockers submission by Google • Successor to wake locks • Lots of discussion – no resolution yet • See http://lwn.net/Articles/388131 • and http://lwn.net/Articles/389407 • And especially http://lwn.net/Articles/390392 • Last thing I saw were counter-proposals to utilize PM QOS system to push some “suspend blocker” functionality outside of kernel • See http://lkml.org/lkml/2010/5/29/77 for Alan Stern's proposal • See http://lkml.org/lkml/2010/5/30/83 for Mark Gross' proposal

  16. Real-time • Work continues on improving RT performance on embedded platforms • General work lately consists of removing Big Kernel Lock • CELF considered funding this, but it looks like it will happen without a funded project • See http://lwn.net/Articles/380174/ • Frank Rowand has good information about using RT-preempt • See Frank’s presentation from ELC 2010: • http://elinux.org/images/b/be/Real_time_linux_failure.pdf • More info coming to eLinux wiki soon!

  17. System Size / Memory • Compression • LZO kernel image compression • It was merged in 2.6.33 • Ramzswap – (aka compcache) • made the 2.6.33 merge window • See http://lwn.net/Articles/334649

  18. System Size / Memory (cont.) • Memory threshhold notifications in cgroups: • Can use cgroups to get notifications of memory problems on a per-app or app-group basis • Merged in 2.6.34 • http://git.kernel.org/?p=linux/kernel/git/torvalds/linux-2.6.git;a=commitdiff;h=2e72b6347c9459e6cff5634ddc815485bae6985f • See Documentation/cgroups/memory.txt

  19. System Size / Memory (cont.) • New allocator “SLEB” was proposed • SLEB was rejected • Linus says he won't take a new allocator until another one is removed • http://lwn.net/Articles/389402/ • New plan is to incrementally improve SLAB, if possible, while trying to avoid regressions • http://thread.gmane.org/gmane.linux.kernel.mm/48515

  20. Tracing • Ftrace • Proposal to merge ftrace and perf ring-buffer code • Ingo not very enthusiastic • Lots of code may move from ftrace to perf • http://lwn.net/Articles/388978/ • Trace-cmd and kernelshark • New command line and GUI tools • See presentations from ELC and Collab summit • Perf • Support for data interpretation on a different machine • “perf archive” • CELF project to create a trace format data standard

  21. Embedded Distributions

  22. Android • Android 2.1 SDK (Eclair) released (28 Oct 2009)‏ • Number of devices still increasing • Non-phones starting to appear (tablets and TVs) • Google TV / Sony Internet TV • Android patches removed from mainline kernel (2.6.33) • Greg Kroah-Hartman talked about this at ELC • http://elinux.org/images/c/ca/Gregkh-android-presentation-kernel.pdf • Google and kernel developers had private meeting at Collaboration Summit, and hashed out some issues

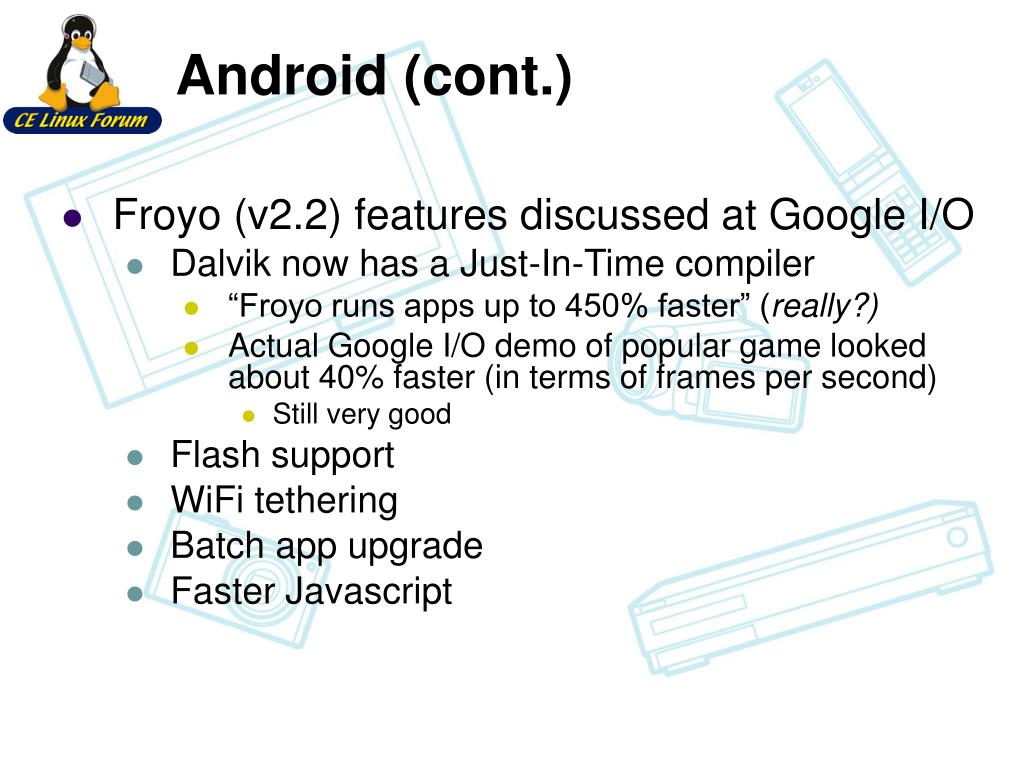

  23. Android (cont.) • Froyo (v2.2) features discussed at Google I/O • Dalvik now has a Just-In-Time compiler • “Froyo runs apps up to 450% faster” (really?) • Actual Google I/O demo of popular game looked about 40% faster (in terms of frames per second) • Still very good • Flash support • WiFi tethering • Batch app upgrade • Faster Javascript

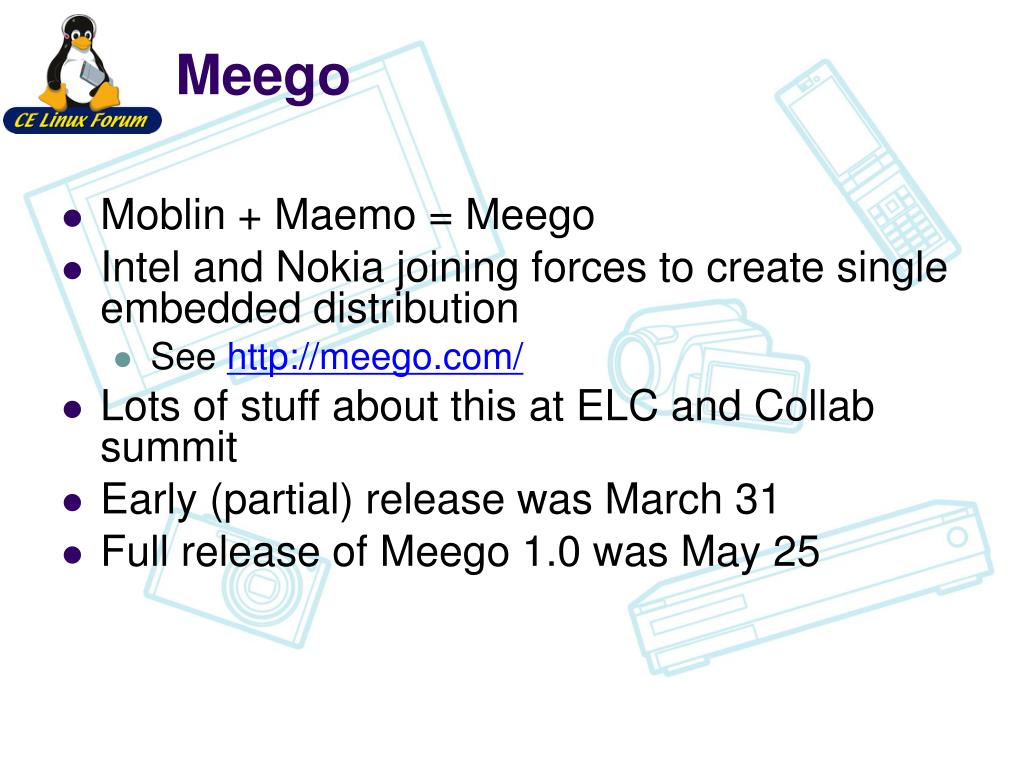

  24. Meego • Moblin + Maemo = Meego • Intel and Nokia joining forces to create single embedded distribution • See http://meego.com/ • Lots of stuff about this at ELC and Collab summit • Early (partial) release was March 31 • Full release of Meego 1.0 was May 25

  25. Ubuntu • Ubuntu netbook • Now working towards targeting ARM • Some rumors of them support Android apps • Canonical is working to support appliances • Have new “Unity” netbook interface • “Ubuntu Light” targeted at instant-on

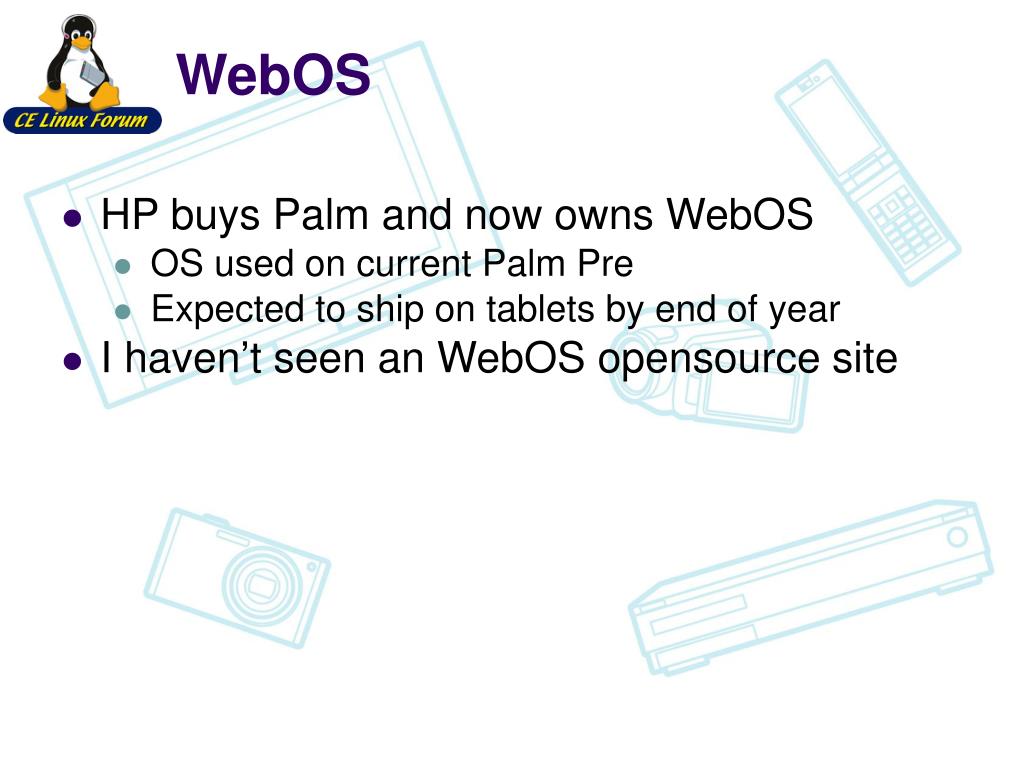

  26. WebOS • HP buys Palm and now owns WebOS • OS used on current Palm Pre • Expected to ship on tablets by end of year • I haven’t seen an WebOS opensource site

  27. New Consortium • Linaro • http://www.linaro.org/ • Focused on technologies and improvements of Linux for ARM platforms • Seems like “CELF for ARM” • It’s not entirely clear exactly what they are going to do

  28. Resources • LWN.net • http://www.lwn.net/ • If you are not a subscriber, please do so • This is an invaluable community resource that needs your support • Prices just went up a bit ($7 per month vs. $5 per month for professional subscription) • eLinux wiki • http://elinux.org/ • Linux-embedded mailing list • http://vger.kernel.org/vger-lists.html#linux-embedded

  29. Thanks!
