  1. Investigating Serial Attached SCSI (SAS) over TCP (tSAS) UCCS Master’s Project Deepti Reddy

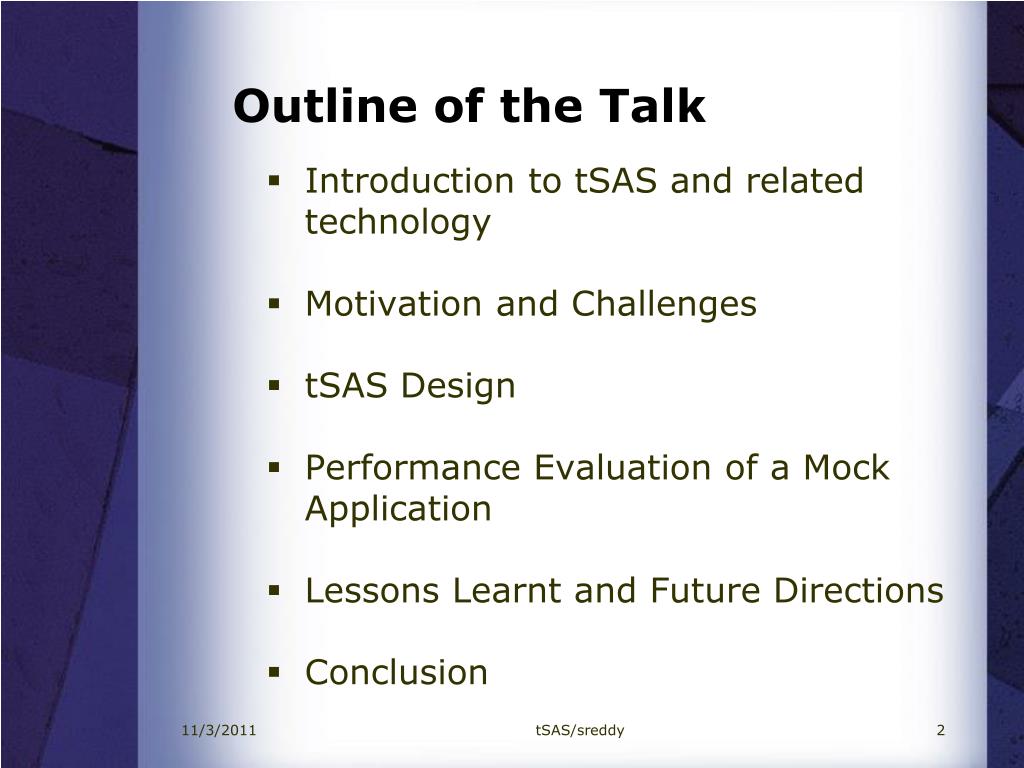

  2. Outline of the Talk • Introduction to tSAS and related technology • Motivation and Challenges • tSAS Design • Performance Evaluation of a Mock Application • Lessons Learnt and Future Directions • Conclusion tSAS/sreddy

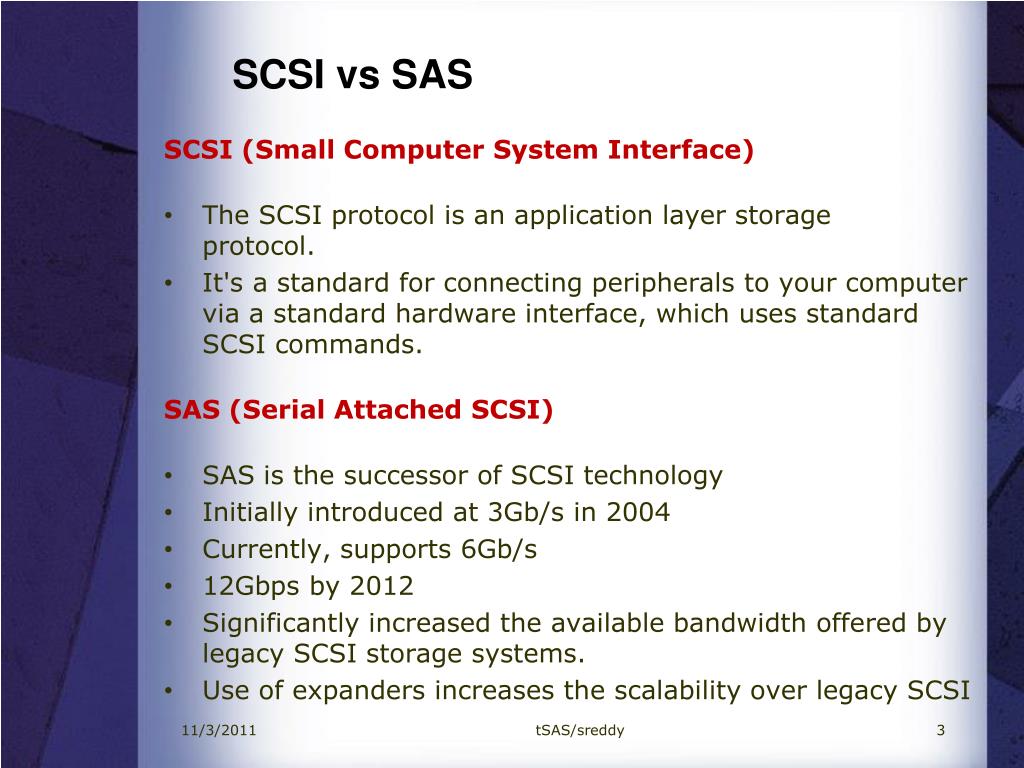

  3. SCSI vs SAS SCSI (Small Computer System Interface) • The SCSI protocol is an application layer storage protocol.   • It's a standard for connecting peripherals to your computer via a standard hardware interface, which uses standard SCSI commands. SAS (Serial Attached SCSI) • SAS is the successor of SCSI technology • Initially introduced at 3Gb/s in 2004 • Currently, supports 6Gb/s • 12Gbps by 2012 • Significantly increased the available bandwidth offered by legacy SCSI storage systems. • Use of expanders increases the scalability over legacy SCSI tSAS/sreddy

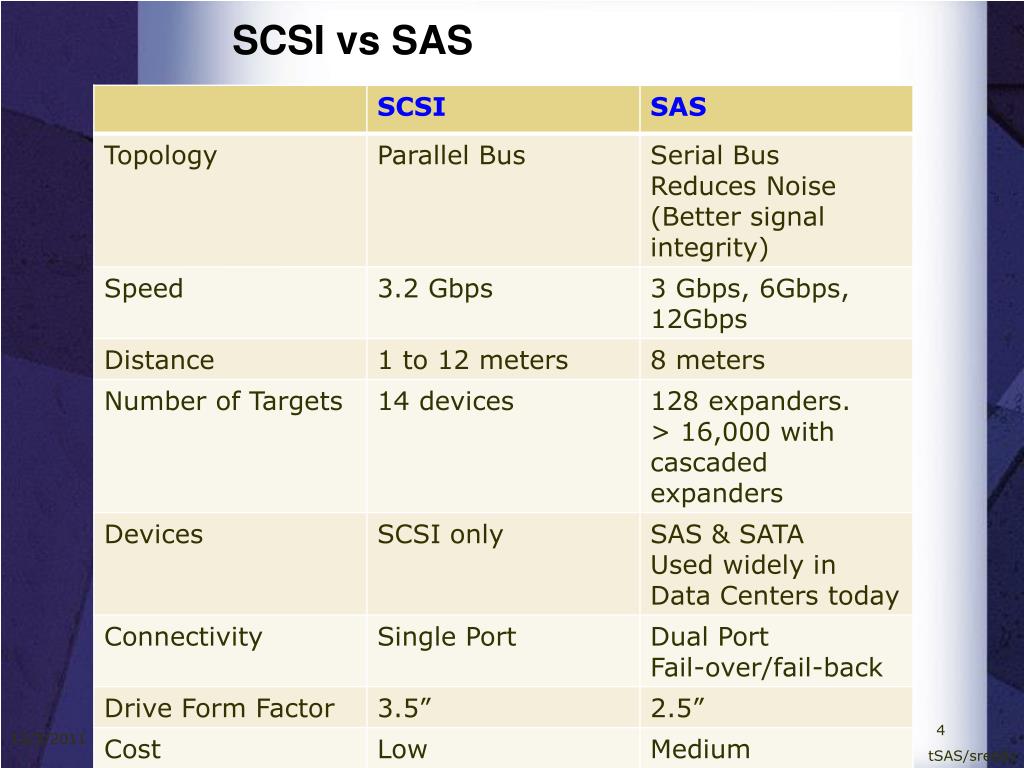

  4. SCSI vs SAS tSAS/sreddy

  5. iSCSI iSCSI protocol describes a means of transporting of the SCSI packets over TCP/IP • The iSCSI specification is revised and updated by the Internet Engineering task Force (IEFT). • Work by S. Aiken, D. Grunwald, A. Pleszkun and J. Willeke shows the performance of a commercial iSCSI software implementation compared quite favorably with fibrechannel [7] tSAS/sreddy iSCSI protocol layering model

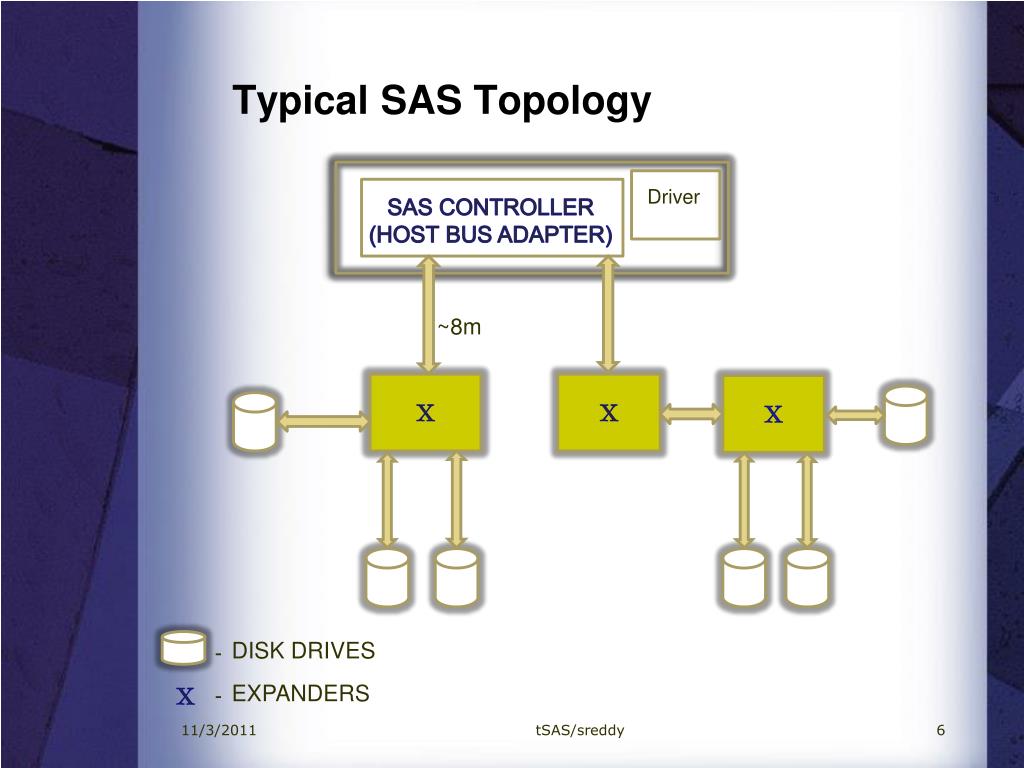

  6. Typical SAS Topology Driver SAS CONTROLLER (HOST BUS ADAPTER) ~8m X X X - DISK DRIVES - EXPANDERS X tSAS/sreddy

  7. Motivation & Challenges • Overcome the distance and scalability limitations of traditional Serial Attached SCSI (SAS) by using tSAS. • Like iSCSI, tSAS takes advantage of existing internet infrastructure, internet management facilities as well as addresses distance limitations • Provide research results for future industry specification for tSAS and iSCSI. tSAS/sreddy

  8. Related Work • Michael Ko’s patent at IBM Research-Almaden on Serial Attached SCSI over Ethernet proposes a very similar solution to the tSAS solution provided in this project. • iSCSI specification (SCSI over TCP) itself is similar to a tSAS solution (SAS over TCP). The iSCSI solution can be heavily leveraged for a tSAS solution. • The Fibre Channel over TCP/IP specification also can be leveraged to design and implement a tSAS solution. tSAS/sreddy

  9. tSAS Topology SCSI Driver tSAS HBA SCSI Driver tSAS CONTROLLER/HBA X - TCP link - DISK DRIVES - SAS link X - EXPANDERS tSAS/sreddy

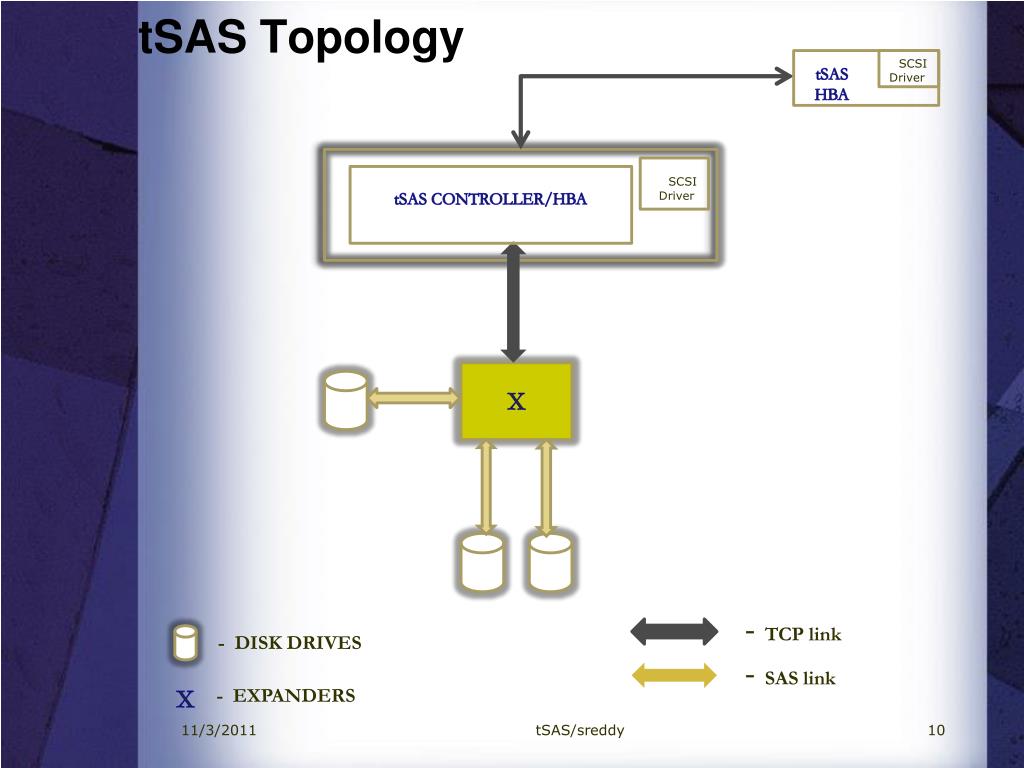

  10. tSAS Topology SCSI Driver tSAS HBA SCSI Driver tSAS CONTROLLER/HBA X - TCP link - DISK DRIVES - SAS link X - EXPANDERS tSAS/sreddy

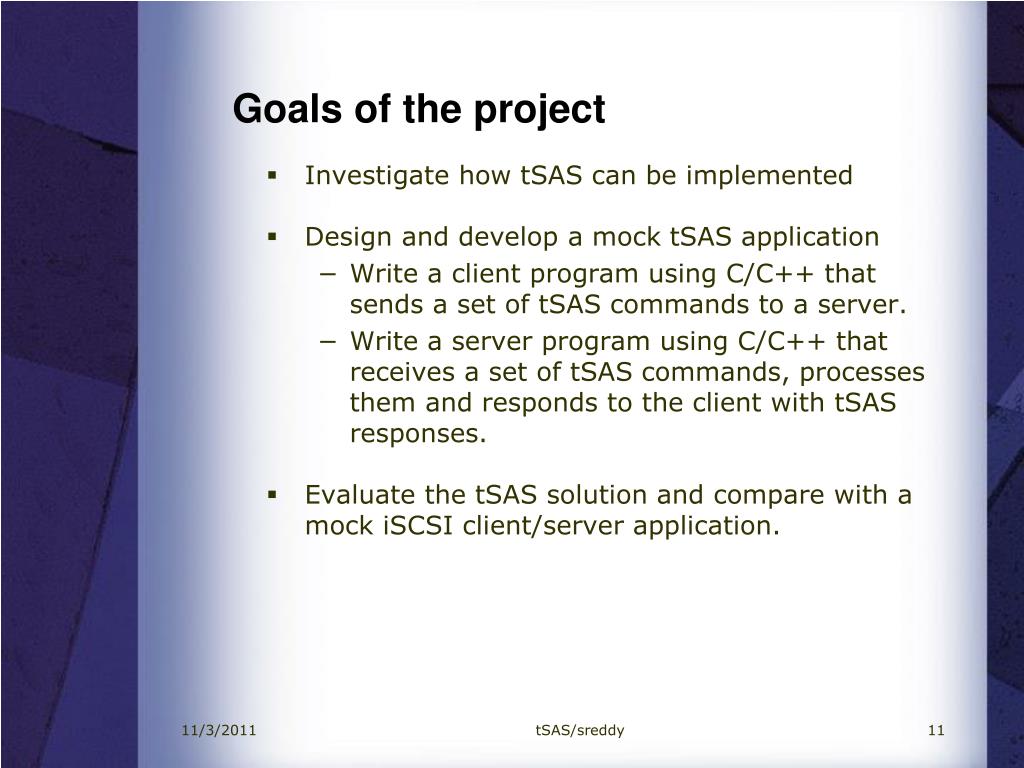

  11. Goals of the project • Investigate how tSAS can be implemented • Design and develop a mock tSAS application • Write a client program using C/C++ that sends a set of tSAS commands to a server. • Write a server program using C/C++ that receives a set of tSAS commands, processes them and responds to the client with tSAS responses. • Evaluate the tSAS solution and compare with a mock iSCSI client/server application. tSAS/sreddy

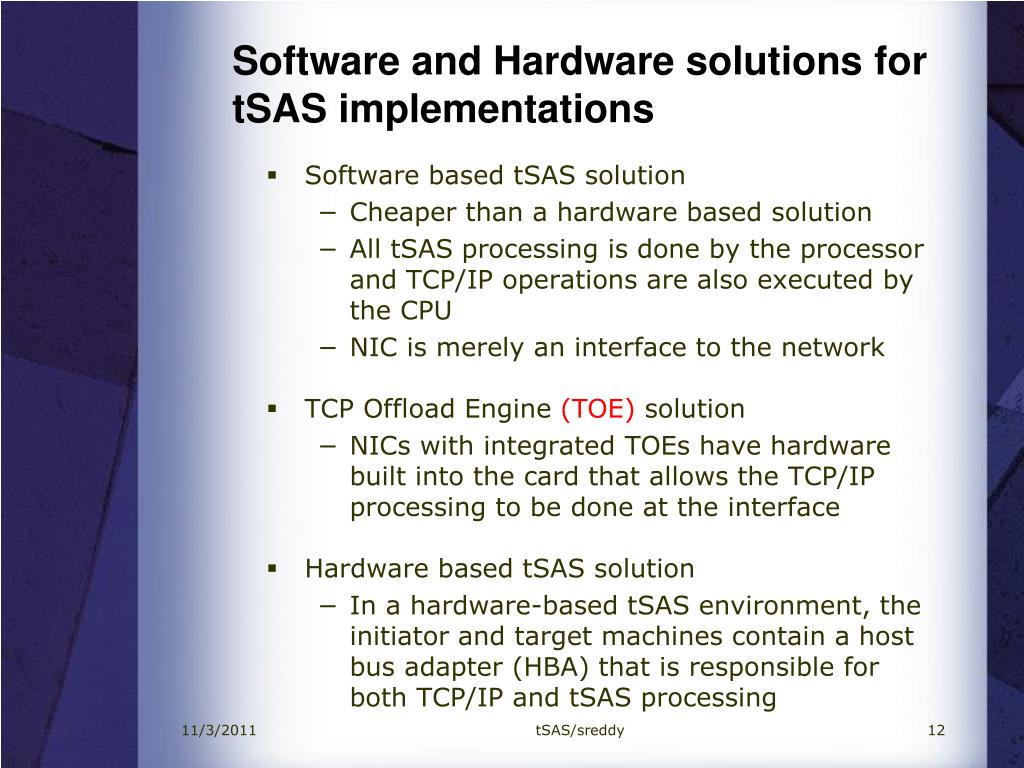

  12. Software and Hardware solutions for tSAS implementations • Software based tSAS solution • Cheaper than a hardware based solution • All tSAS processing is done by the processor and TCP/IP operations are also executed by the CPU • NIC is merely an interface to the network • TCP Offload Engine (TOE) solution • NICs with integrated TOEs have hardware built into the card that allows the TCP/IP processing to be done at the interface • Hardware based tSAS solution • In a hardware-based tSAS environment, the initiator and target machines contain a host bus adapter (HBA) that is responsible for both TCP/IP and tSAS processing tSAS/sreddy

  13. tSAS Approach • The tSAS Request is initially sent by the tSAS Initiator to the tSAS Target over TCP. • The tSAS Target strips off the TCP header and sends the SAS frames using the SAS Initiator block on the tSAS Target to the SAS expander/drive. • The SAS expander/drive sends SAS frames to the tSAS Target. • Finally, the tSAS Target embeds the SAS frames received from the expander/drive over TCP and sends it to the tSAS Initiator. tSAS/sreddy

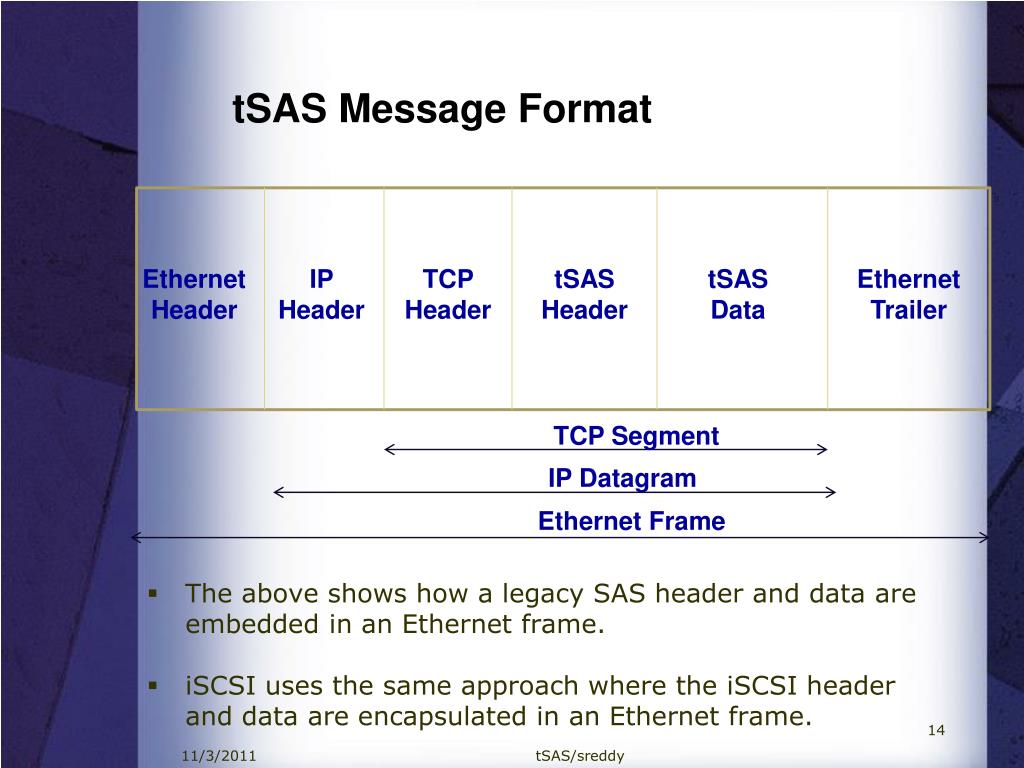

  14. tSAS Message Format • The above shows how a legacy SAS header and data are embedded in an Ethernet frame. • iSCSI uses the same approach where the iSCSI header and data are encapsulated in an Ethernet frame. tSAS Data TCP Header Ethernet Header IP Header tSAS Header Ethernet Trailer TCP Segment IP Datagram Ethernet Frame tSAS/sreddy

  15. tSAS Approach SAS Expander tSAS Target tSAS Initiator tSAS Request • The above diagram shows a typical tSAS (SSP Write ) Request & Response sequence diagram. • iSCSI uses a similar approach where the back-end between the iSCSI target and SCSI drives uses the legacy SCSI protocol. Open Address Frame Open Accept SAS/SSP Request Frame XferRdy Frame tSASXferRdy Frame . . Data Frame . . Data Frame Data Frame Data Frame SSP Response Frame tSAS Response Frame tSAS/sreddy

  16. tSAS Approach • Primitives • Primitives are special 8b/10b encoded characters that are used as frame delimiters, for out of band signaling, control sequencing in SAS • Most primitives can be conveniently ignored on the tSAS side except a few such as Broadcast primitives used to initiate discovery • SAS primitive can be encapsulated in an Ethernet frame • Discovery • Discovery in tSAS will be similar to SAS and will be accomplished by sending Serial management protocol (SMP) commands over TCP to the initiators and expanders downstream to learn the topology. tSAS/sreddy

  17. tSAS Approach SAS Primitives tSAS/sreddy

  18. tSAS Approach SMP Initiator on Expander SMP Target on Expander tSAS Client SMP Request Open Address Frame Open Accept SMP Request SMP Response Close SMP Response SMP Request & Response Sequence Diagram tSAS/sreddy

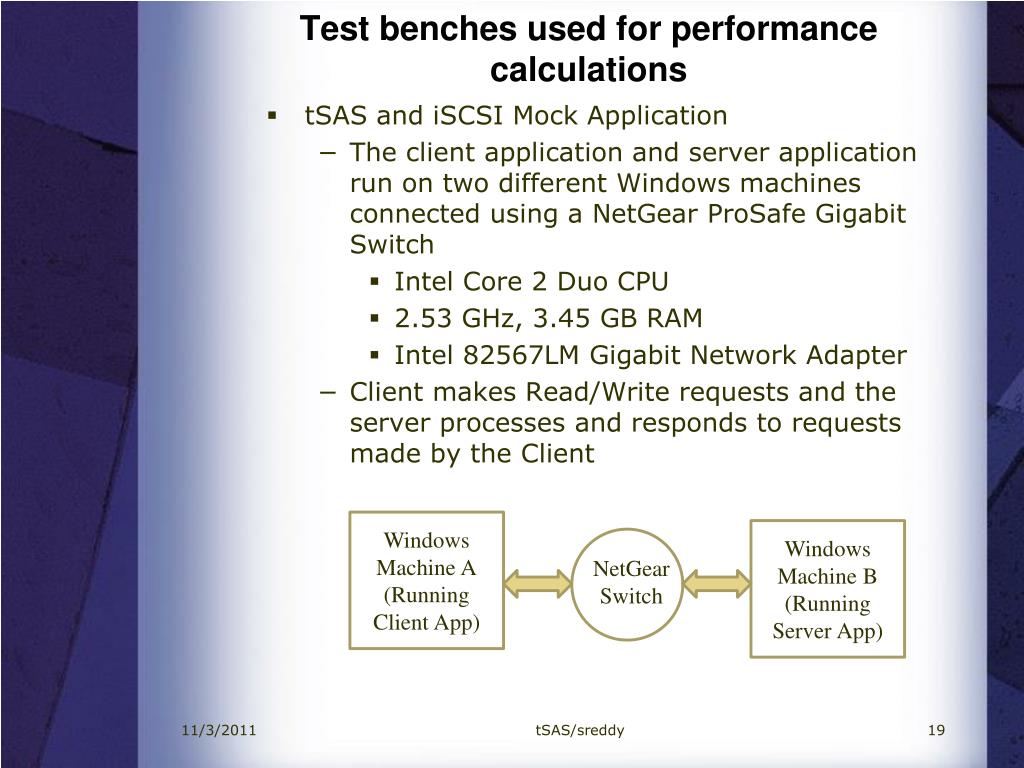

  19. Test benches used for performance calculations • tSAS and iSCSI Mock Application • The client application and server application run on two different Windows machines connected using a NetGearProSafe Gigabit Switch • Intel Core 2 Duo CPU • 2.53 GHz, 3.45 GB RAM • Intel 82567LM Gigabit Network Adapter • Client makes Read/Write requests and the server processes and responds to requests made by the Client Windows Machine A (Running Client App) Windows Machine B (Running Server App) NetGear Switch tSAS/sreddy

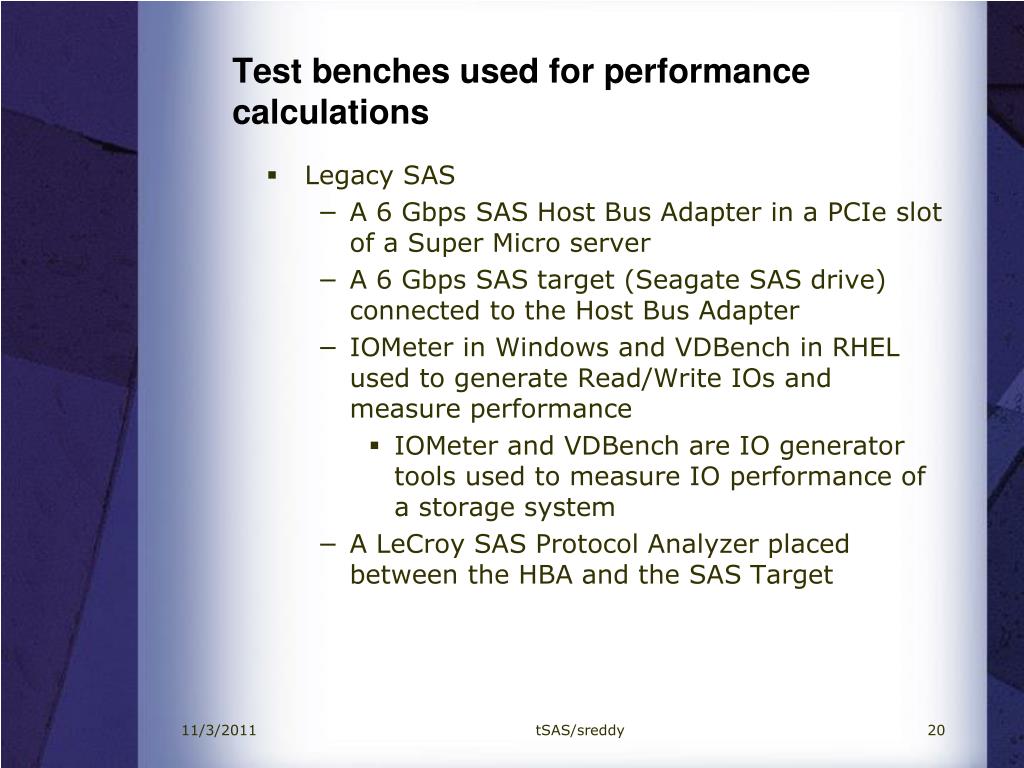

  20. Test benches used for performance calculations • Legacy SAS • A 6 Gbps SAS Host Bus Adapter in a PCIe slot of a Super Micro server • A 6 Gbps SAS target (Seagate SAS drive) connected to the Host Bus Adapter • IOMeter in Windows and VDBench in RHEL used to generate Read/Write IOs and measure performance • IOMeter and VDBench are IO generator tools used to measure IO performance of a storage system • A LeCroy SAS Protocol Analyzer placed between the HBA and the SAS Target tSAS/sreddy

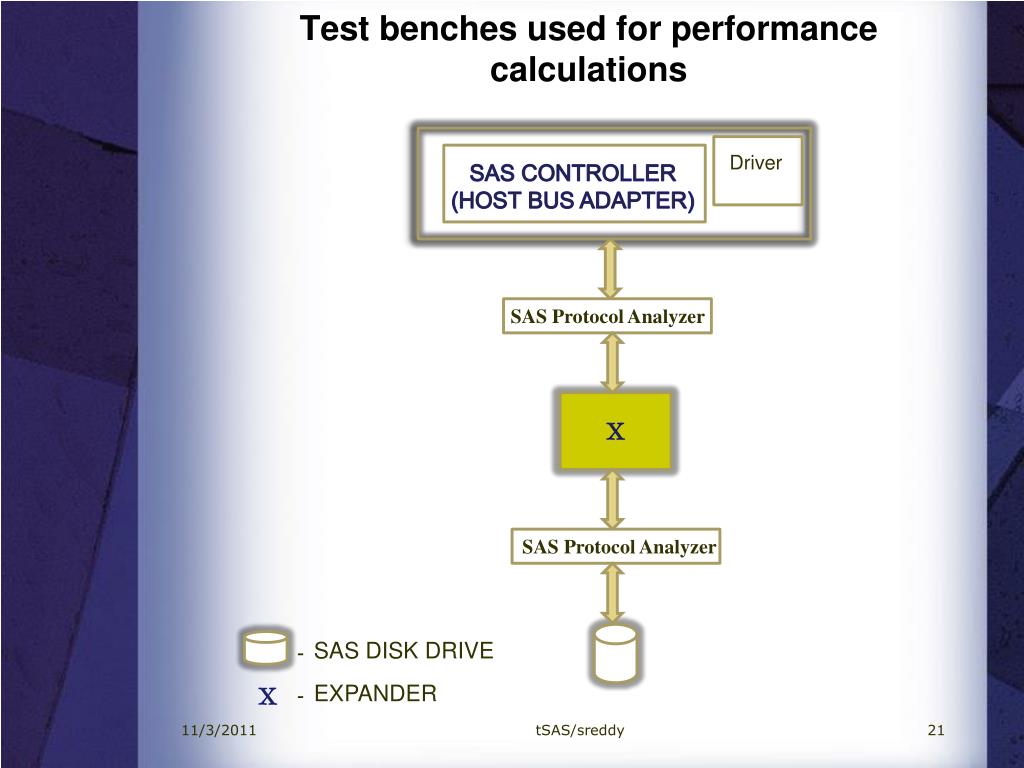

  21. Test benches used for performance calculations Driver SAS CONTROLLER (HOST BUS ADAPTER) SAS Protocol Analyzer X SAS Protocol Analyzer - SAS DISK DRIVE - EXPANDER X tSAS/sreddy

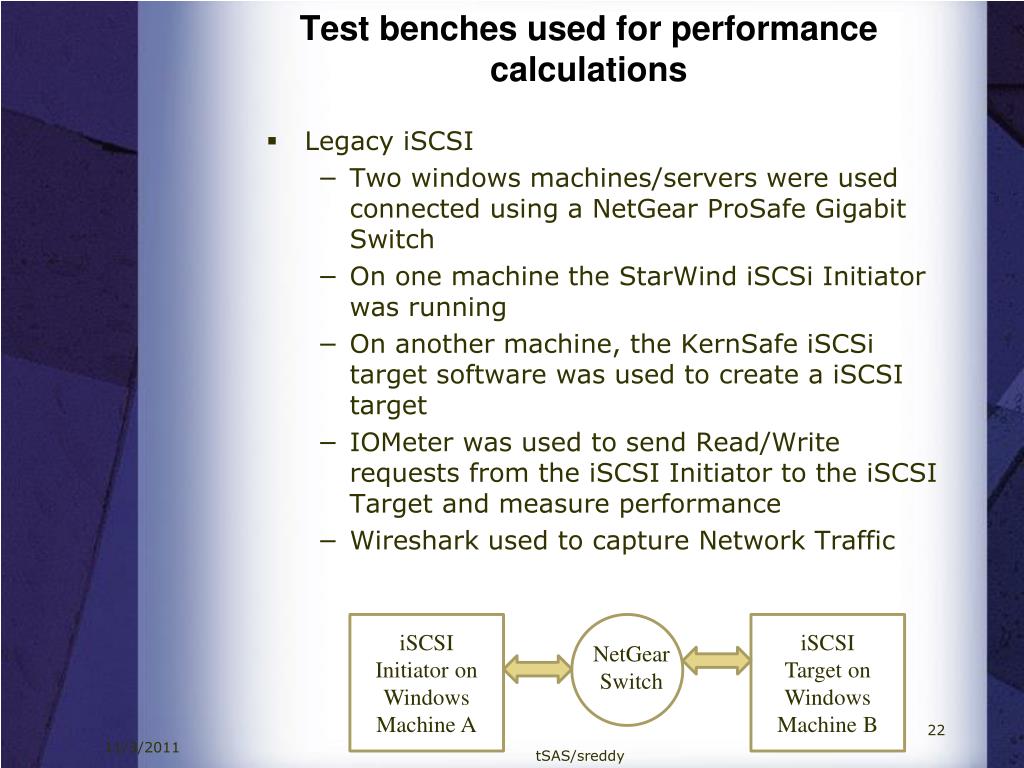

  22. Test benches used for performance calculations • Legacy iSCSI • Two windows machines/servers were used connected using a NetGearProSafe Gigabit Switch • On one machine the StarWindiSCSi Initiator was running • On another machine, the KernSafeiSCSi target software was used to create a iSCSI target • IOMeter was used to send Read/Write requests from the iSCSI Initiator to the iSCSI Target and measure performance • Wireshark used to capture Network Traffic iSCSI Initiator on Windows Machine A iSCSI Target on Windows Machine B NetGear Switch tSAS/sreddy

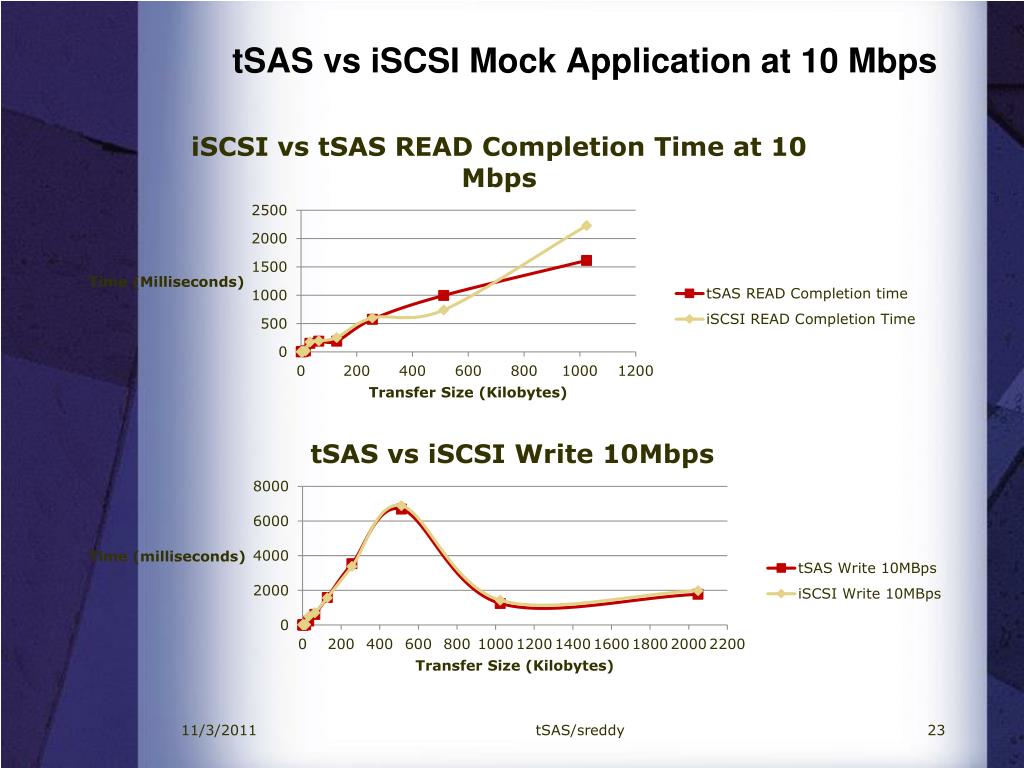

  23. tSASvsiSCSI Mock Application at 10 Mbps tSAS/sreddy

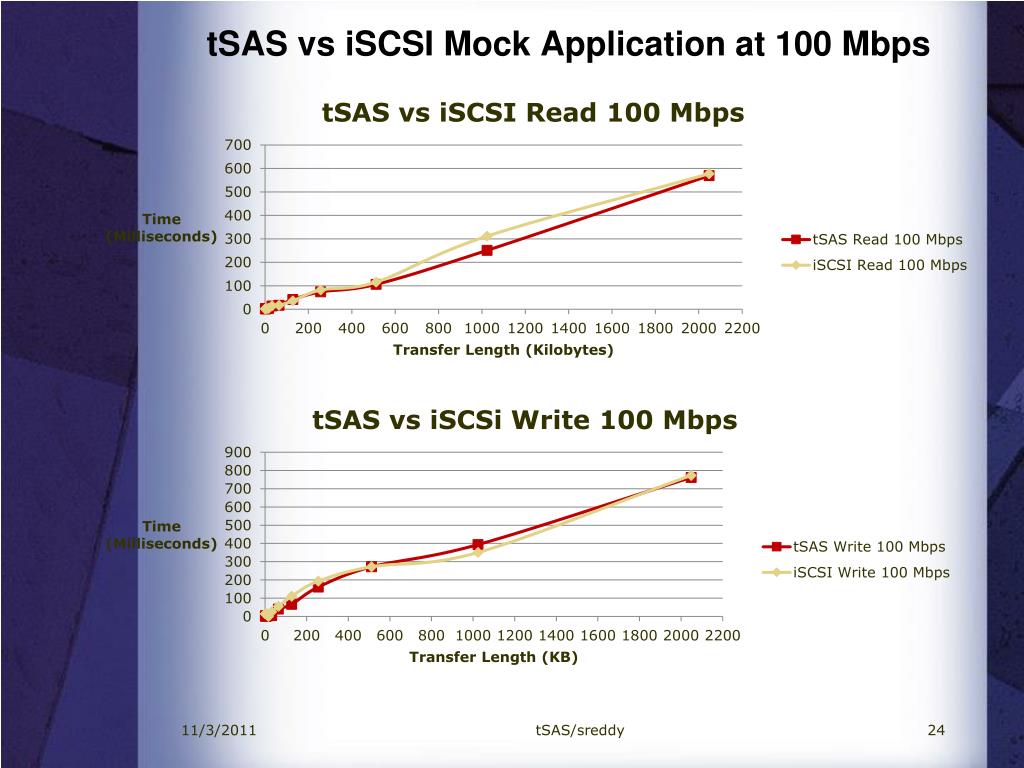

  24. tSASvsiSCSI Mock Application at 100 Mbps tSAS/sreddy

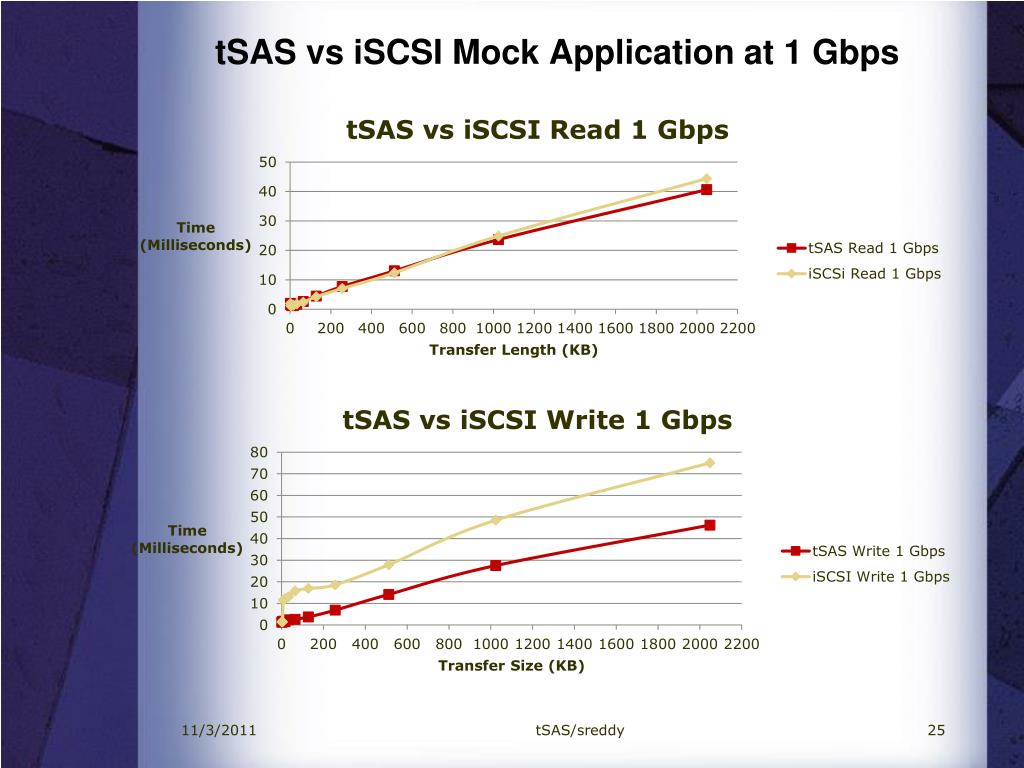

  25. tSASvsiSCSI Mock Application at 1 Gbps tSAS/sreddy

  26. tSAS 512K Read at 10 Mbps, 100 Mbps and 1 Gbps tSAS/sreddy

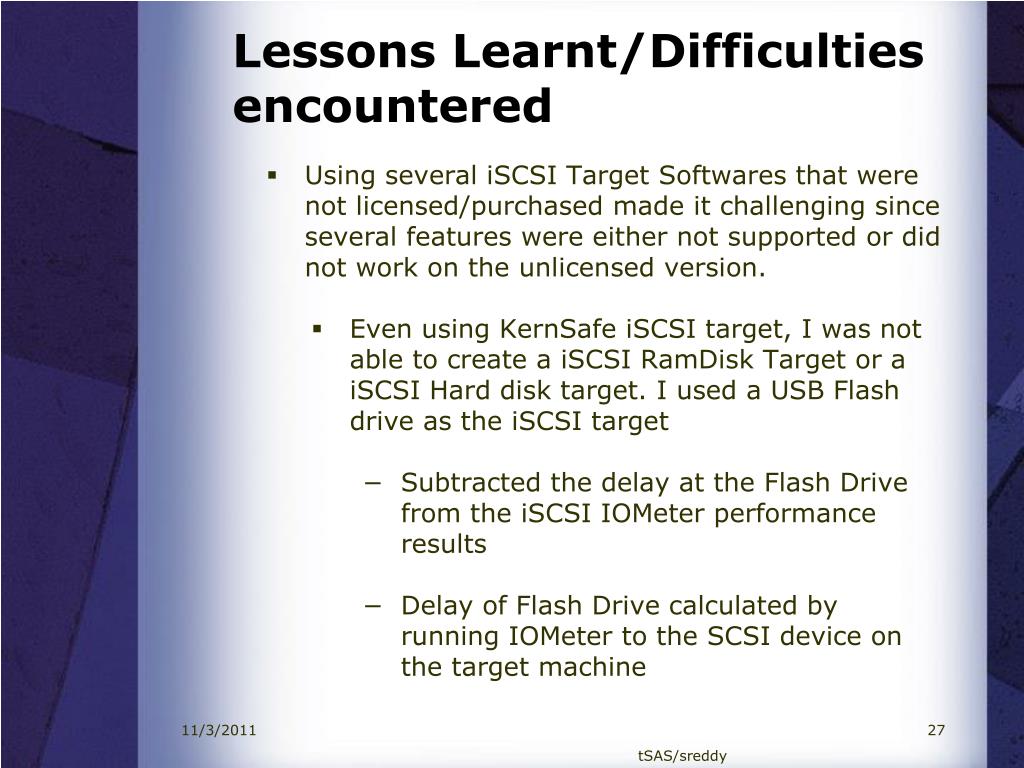

  27. Lessons Learnt/Difficulties encountered • Using several iSCSI Target Softwares that were not licensed/purchased made it challenging since several features were either not supported or did not work on the unlicensed version. • Even using KernSafeiSCSI target, I was not able to create a iSCSIRamDisk Target or a iSCSI Hard disk target. I used a USB Flash drive as the iSCSI target • Subtracted the delay at the Flash Drive from the iSCSIIOMeter performance results • Delay of Flash Drive calculated by running IOMeter to the SCSI device on the target machine tSAS/sreddy

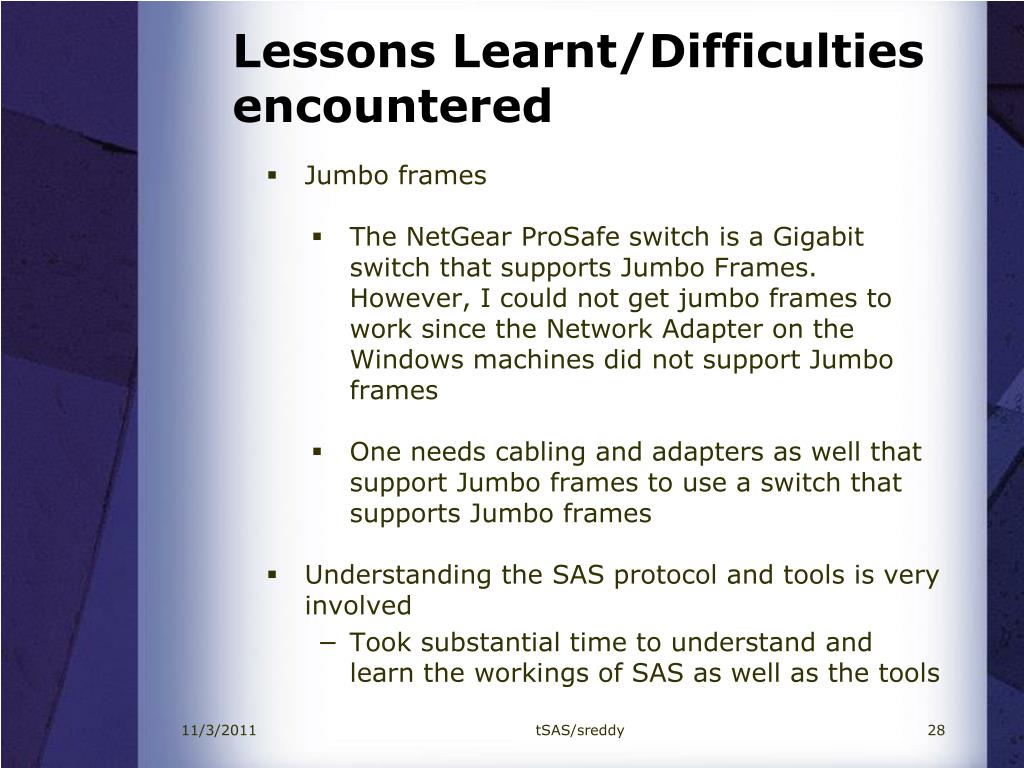

  28. Lessons Learnt/Difficulties encountered • Jumbo frames • The NetGearProSafe switch is a Gigabit switch that supports Jumbo Frames. However, I could not get jumbo frames to work since the Network Adapter on the Windows machines did not support Jumbo frames • One needs cabling and adapters as well that support Jumbo frames to use a switch that supports Jumbo frames • Understanding the SAS protocol and tools is very involved • Took substantial time to understand and learn the workings of SAS as well as the tools tSAS/sreddy

  29. Future Work • More data points • The tSAS mock application can be run using a faster switch with connection rates greater than 1 Gbps to get more data points (40G/100G Ethernet) • Piggybacking • Response frames are piggybacked with the last DATA frame or a DATA frame is piggy backed with a request frame. This would increase performance • Jumbo frames • Can be used to increase the amount of DATA that is passed from the initiator and target per Ethernet packet improving the performance results. • The Storage Associations can be motivated with similar work to fuel the conception of a tSAS specification • tSAS code can be implemented in a SAS HBA and performance can be measured using this direct implementation tSAS/sreddy

  30. Conclusion • tSAS is a viable solution • tSAS will be faster than a similar iSCSI implementation • Overhead in tSAS smaller than in iSCSI • Request, Response and Transfer Ready frames in tSAS smaller than Request, Response and Ready to Transfer frames in iSCSI • Back-end of tSAS will be legacy SAS • tSAS more visibly faster at larger transfer sizes than iSCSI • tSAS more reliable at smaller transfer sizes at 10 Mbps, 100 Mbps and 1 Gbps due to higher TCP retransmission rate at larger sizes • tSAS hardware solution would be the fastest vs a software solution • tSAS would perform better at smaller transfer sizes • tSAS will overcome the distance limitation of legacy SAS tSAS/sreddy

  31. References • [1] T10/1760-D Information Technology – Serial Attached SCSI – 2 (SAS-2), • T10, 18 April 2009, • Available from http://www.t10.org/drafts.htm#SCSI3_SAS • [2] Harry Mason, Serial attached SCSI Establishes its Position in the Enterprise, LSI Corporation, available from http://www.scsita.org/aboutscsi/sas/6GbpsSAS.pdf • [3] J Satran, K Meth, C. Sapuntzakis, M. Chadalapka, E. Zeidner, • RFC 3720 Internet Small Computer Systems Interface (iSCSI) Specification • IETF, April 2004, • available from http://www.ietf.org/rfc/rfc3720.txt • [4] Cai, Y.; Fang, L.; Ratemo, R.; Liu, J.; Gross, K.; Kozma, M.; • A test case for 3Gbps serial attached SCSI (SAS) • Test Conference, 2005. Proceedings. ITC 2005. IEEE International, February • 2006, • available from http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=1584027 tSAS/sreddy

  32. References [6] Kalmath Meth, Julian Satran, Design of the iSCSI Protocol,Mass Storage Systems and Technologies, 2003. (MSST 2003). Proceedings. 20th IEEE/11th NASA Goddard Conference on Mass Storage Systems and Technologies, April 2003, available from http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=1194848&tag=1 [7] Stephen Aiken, Dirk Grunwald, Andrew R. Pleszkun, Jesse Willeke, A Performance Analysis of the iSCSI Protocol 20th IEEE/11th NASA Goddard Conference on Mass Storage Systems and Technologies, 2003, available from http://www.storageconference.org/2003/papers/20-Aikens-Performance.pdf [8] M. Rajagopal, E. Rodriguez, R. Weber, RFC 3821 Fibre Channel over TCP/IP (FCIP) standard, IETF, July 2004, available from http://tools.ietf.org/html/rfc3821 [9] BLiBigang, ShuJiwu, ZhengWeimin, SCSI Target Simulator Based on FC and IP Protocols in TH-MSNS* Department of Computer Science and Technology, Tsinghua University, Beijing China, 2005 tSAS/sreddy

  33. References [10] S. Chaitanya, K. Butler, A. Sivasubramaniam, P. McDaniel, M. Vilayannur, Design, Implementation and Evaluation of Security in iSCSI-based Network Storage Systems, StorageSS '06 Proceedings of the second ACM workshop on Storage security and survivability, October 2006, available from http://portal.acm.org/citation.cfm?id=1179564 [11] 1Gbps and 10Gbps Ethernet Server Scalability, NetApp, available fromhttp://partners.netapp.com/go/techontap/matl/downloads/redhat- neterion_10g.pdf [12] Michael A. Ko, LAYERING SERIAL ATTACHED SMALL COMPUTER SYSTEM INTERFACE (SAS) vOVER ETHERNET, United States Patent Application 20080228897, 09/18/2008 available from http://www.faqs.org/patents/app/20080228897 [13] SCSI Primary Commands - 4 (SPC-4), Revision 31, T10, 2011/06/13, available from http://www.t10.org/members/w_spc4.htm [14] Broadcom iSCSI HBA FAQ available from http://www.broadcom.com/collateral/faq/iSCSI-FAQ100-R.pdf tSAS/sreddy
