  1. Foundations of Physical Science Workshop: Variations in the Heating and Cooling of Earth

  2. Key Question • What causes the seasons?

  3. Two part Investigation • First ,we will measure how variations in DISTANCE effect light intensity • Then, we will measure the light intensity at different PLACES on the globe

  4. Light Intensity and Solar Energy • Greater tilt angle spreads the light out over more area • More direct light = more energy/area = greater intensity • Areas with greater intensity will heat more

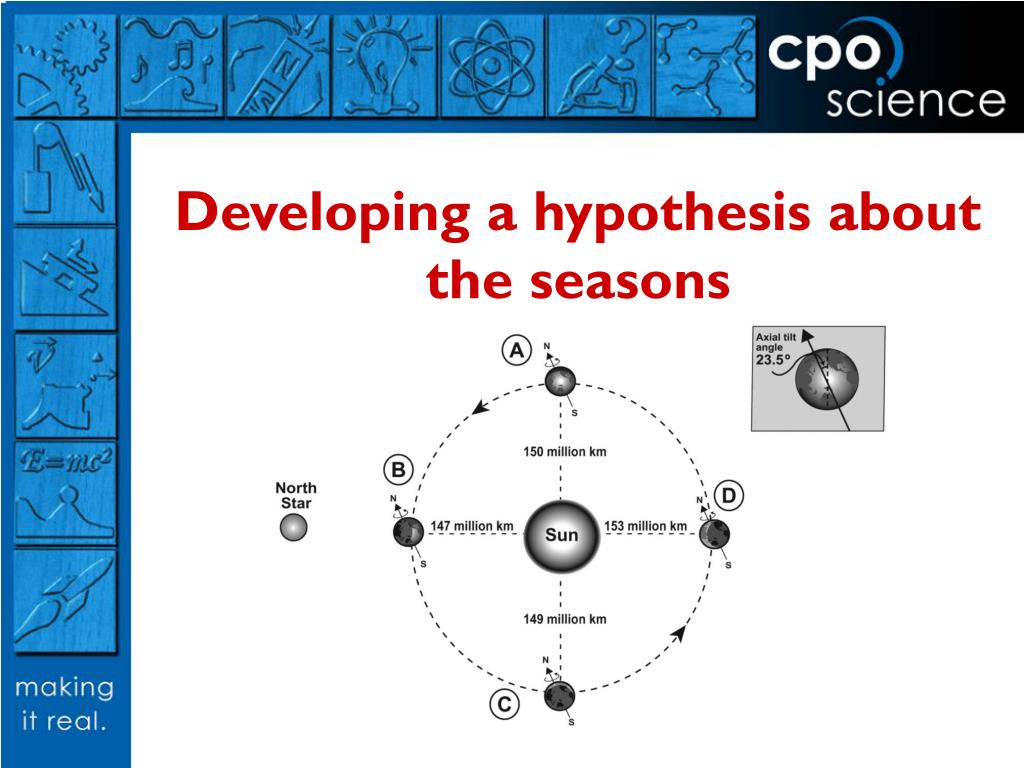

  5. Developing a hypothesis about the seasons

  6. Setting up your model of Earth’s orbit around the sun • The light represents the sun • Measure the light intensity with the solar cell and multimeter • Compare values

  7. Measuring Light Intensity based on Distance • Four distances • A – 150 cm • B – 147 cm • C – 149 cm • D – 153 cm

  8. Results

  9. Results

  10. How does Earth’s tilt affect the sun’s intensity?

  11. How does Earth’s tilt affect the sun’s intensity?

  12. Findings • What role does axial tilt play in the intensity of light on Earth? • At which position (A-D) and latitude does Earth receive the most light? The least light? • Which factor, distance or axial tilt, plays the most significant role in casing the seasons? • Was your hypothesis supported by your results?

  13. Where is Summer in the Northern Hemisphere? (and why) • From position D to A is summer for the Northern Hemisphere • That is the segment of Earth’s orbit where the Northern Hemisphere is pointing at the sun and getting the most direct, and therefore most intense light
