Java Bean Definition

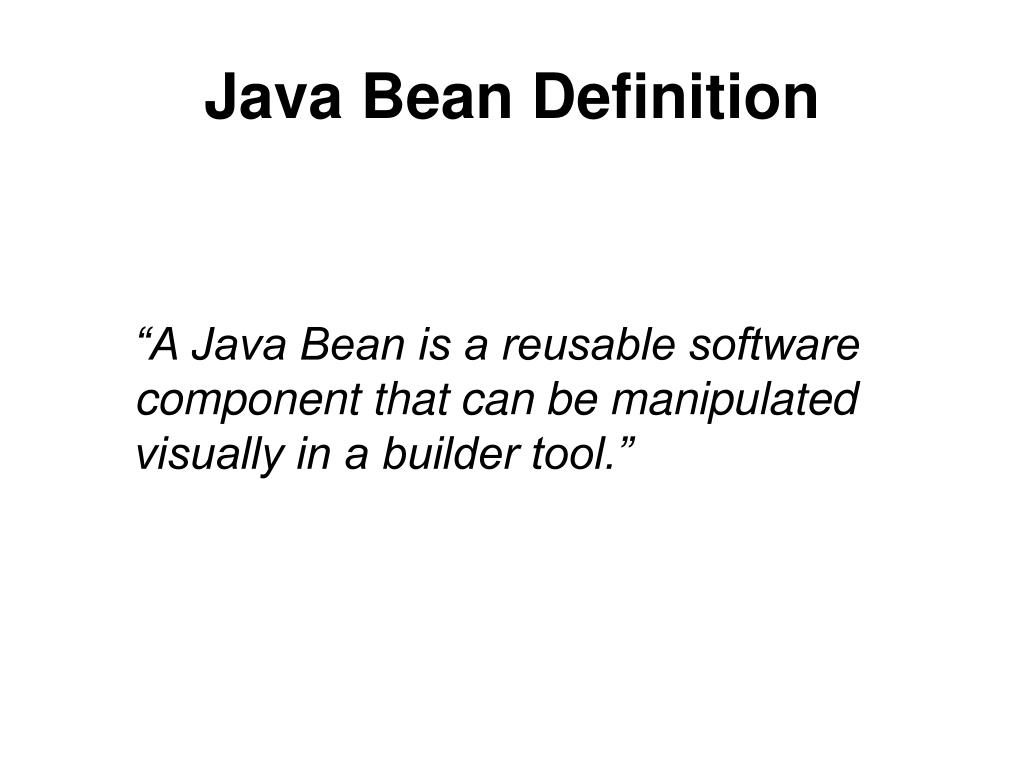

1. Java Bean Definition “A Java Bean is a reusable software component that can be manipulated visually in a builder tool.”

2. JavaBean • Properties • Similar to instance variables. • Methods • Same as normal Java methods. • Every property should have accessor (get) and mutator (set) • method. • Events • Similar to Swing/AWT event handling.

3. Features of a Java Bean • Support for “introspection” so that a builder tool can analyze how a bean works. • Support for “customization” to allow the customisation of the appearance and behaviour of a bean. • Support for “events” as a simple communication metaphor than can be used to connect up beans. • Support for “properties”, both for customization and for programmatic use. • Support for “persistence”, so that a bean can save and restore its customized state.

4. Why use JavaBeans? • Component Granularity • Portability • Simplicity • Uniform, high-quality API that will enable developers to write programs that will perform consistently everywhere.

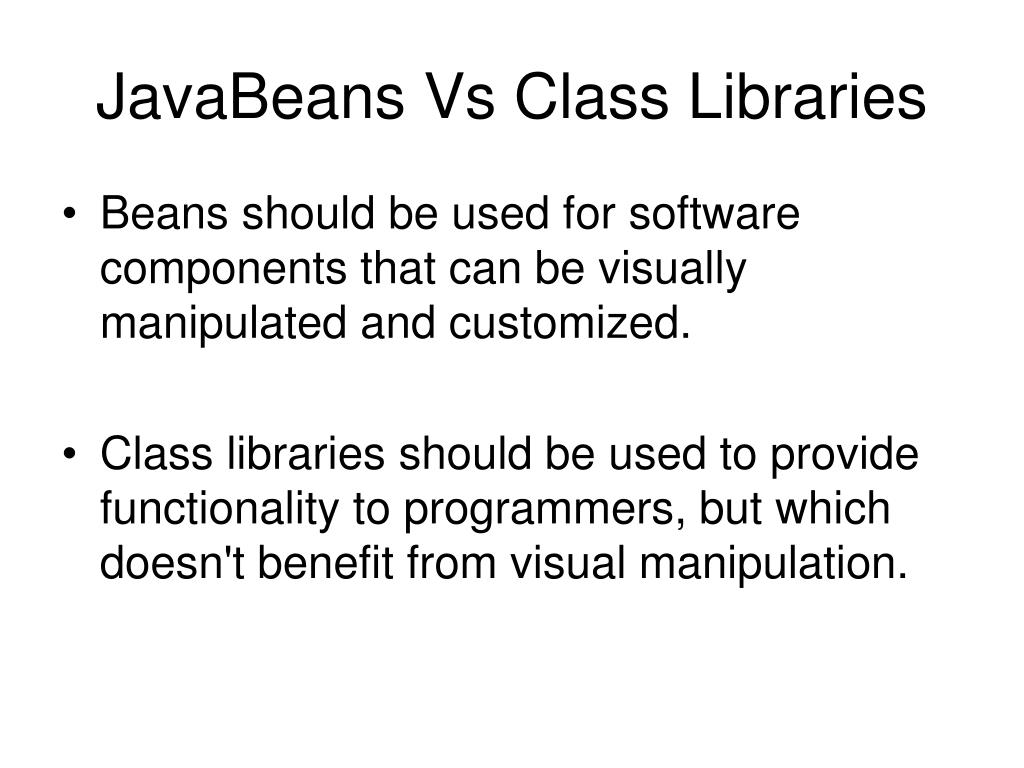

5. JavaBeans Vs Class Libraries • Beans should be used for software components that can be visually manipulated and customized. • Class libraries should be used to provide functionality to programmers, but which doesn't benefit from visual manipulation.

6. Java Beans Concepts • A component is a self-contained reusable software unit • Components expose their features (public methods and events) to builder tools • A builder tool maintains Beans in a palette or toolbox. • You can select a bean from the toolbox, drop it in a form, and modify its appearance and behavior. • Also, you can define its interaction with other beans • ALL this without a line of code.

7. Java Bean Characteristics • a public class with 0-argument constructor • it has properties with access methods • it has events • it can be customized • its state can be saved • it can be analyzed by a builder tool

8. Key Concepts • A builder tool discover a bean’s features by a process known as introspection. • Adhering to specific rules (design pattern) when–naming Bean features. • Providing property, method, and event information–with a related Bean Information class. • Properties (bean’s appearance and behavior characteristics) can be changed at design-time.

9. Key Concepts…. • Properties can be customized at design-time. • Customization can be done: • using property editor • using bean customizers • Events are used when beans want to intercommunicate • Persistence: for saving and restoring the state • Bean’s methods are regular Java methods. • Beans will also be running in a multi-threaded environment

10. Security Issues • JavaBeans are subject to the standard Java security model • The security model has neither been extended nor relaxed. • If a bean runs as an untrusted applet then it will be subject to applet security • If a bean runs as a stand-alone application then it will be treated as a normal Java application.

11. Beans Development Kit (BDK) • To start the BeanBox: • run.bat (Windows) • run.sh (Unix)

12. BDK • Tool Box contains the beans available • Bean Box window is the form where you visually wire beans together. • Properties sheet: • displays the properties for the Bean currently selected within the BeanBoxwindow.

13. MyFirstBean import java.awt.*; import java.io.Serializable; public class FirstBean extends Canvas implementsSerializable { public FirstBean() { setSize(50,30); setBackground(Color.blue); } }

14. First Bean • Compile: javac FirstBean.java • Create a manifest file: • manifest.txt (jar file metadata) • Name: FirstBean.Class • Java-Bean: True • Create a jar file: • jar cfm FirstBean.jar mani.txt FirstBean.class

15. Properties • Bean’s appearance and behavior • changeable at design time. • They are private values • Can be accessed through getter and setter methods getter and setter methods must follow some rules -- design patterns (documenting experience)

16. Design Patterns for properties • Property is a subset of a bean’s state • Simple properties • Has a single value • Public T getN(); • Public void setN(T arg); • Public boolean isN(); ( isdotted) • Indexed properties • Consists of multiple values • Public T getN(index); • Public void setN(int index, T value); • Public T[ ] getN(); • Public void setN(T values[ ]);

17. Introspection • Process of analyzing a bean to determine its capabilities • Allows an application builder tool to present information about a software component to the designer • Simple naming conventions • A class that explicitly supplies this information

18. Properties • A builder tool can: • discover a bean’s properties • determine the properties’ read/write attribute • locate an appropriate “property editor” for each type • display the properties (in a sheet) • alter the properties at design-time

19. Types of Properties • Simple • Index: multiple-value Properties • Bound: provide event notification when value changes • Constrained: how proposed changes can be okayed or vetoed by other object

20. Simple Properties • When a builder tool introspect your bean it discovers two methods: • public Color getColor() • public void setColor(Color c) • The builder tool knows that a property named “Color” exists -- of type Color. • It tries to locate a property editor for that type to display the properties in a sheet.

21. Simple Properties…. • Adding a Color property • Create and initialize a private instance variable • private Color color = Color.blue; • Write public getter & setter methods public Color getColor() {return color; } public void setColor(Color c) { color = c;–repaint(); }

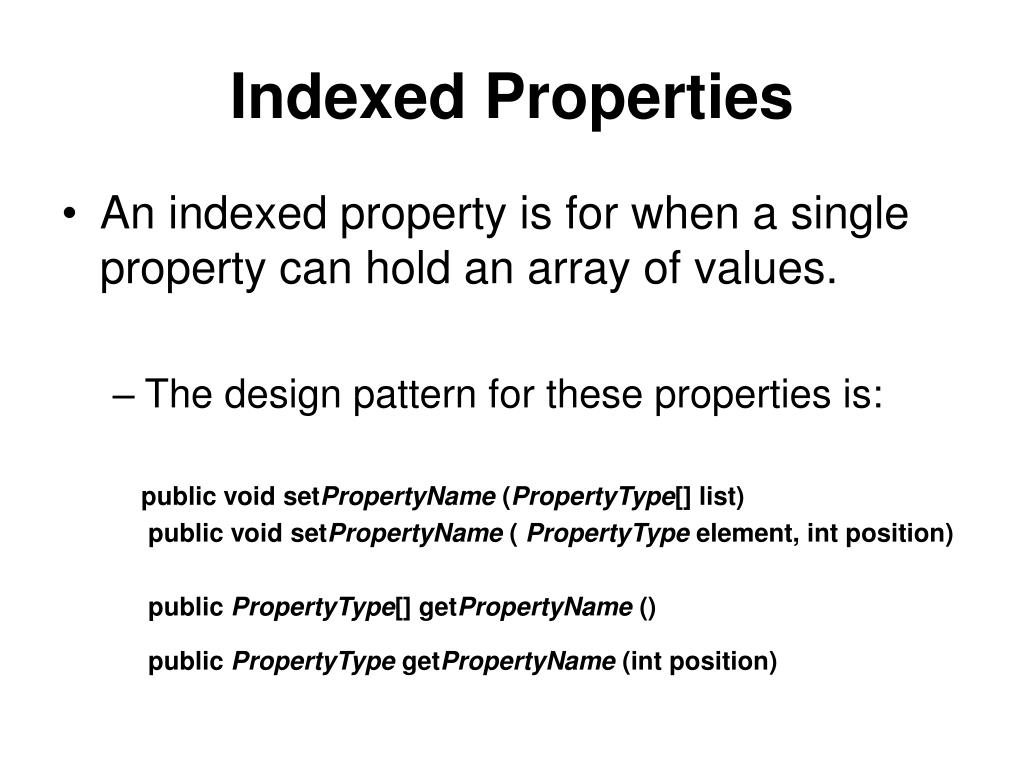

22. Indexed Properties • An indexed property is for when a single property can hold an array of values. • The design pattern for these properties is: public void setPropertyName (PropertyType[] list) public void setPropertyName ( PropertyType element, int position) public PropertyType[] getPropertyName () public PropertyType getPropertyName (int position)

23. For instance, if you were to complete the item indexed property for the AWT List component, it might look something like this: public class ListBean extends List { public String[] getItem () { return getItems (); } public synchronized void setItem (String item[]) { removeAll(); for (int i=0;i<item.length;i++) addItem (item[i]); } public void setItem (String item, int position) { replaceItem (item, position) } } The String getItem (int position) routine already exists for List

24. Bound Properties • Provide event notification when value changes • In order for the notification to happen, you need to maintain a watch list for PropertyChangeEvents via the PropertyChangeSupport class. • First, you have to create a list of listeners to maintain: private PropertyChangeSupport changes = new PropertyChangeSupport (this); And then, you have to maintain the list: public void addPropertyChangeListener (PropertyChangeListener p) { changes.addPropertyChangeListener (p); } public void removePropertyChangeListener ( PropertyChangeListener p) { changes.removePropertyChangeListener (p); }

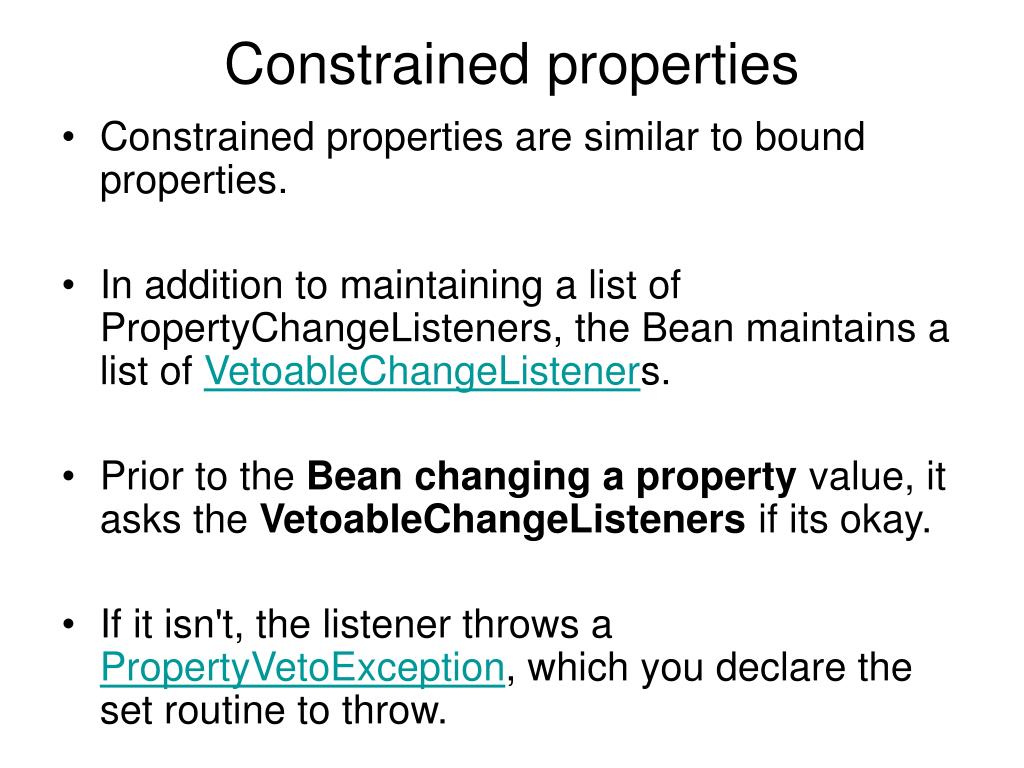

25. Constrained properties • Constrained properties are similar to bound properties. • In addition to maintaining a list of PropertyChangeListeners, the Bean maintains a list of VetoableChangeListeners. • Prior to the Bean changing a property value, it asks the VetoableChangeListeners if its okay. • If it isn't, the listener throws a PropertyVetoException, which you declare the set routine to throw.

26. Adding… private VetoableChangeSupport vetoes = new VetoableChangeSupport (this); public void addVetoableChangeListener ( VetoableChangeListener v) { vetoes.addVetoableChangeListener (v); } public void removeVetoableChangeListener ( VetoableChangeListener v) { vetoes.removeVetoableChangeListener (v); }
