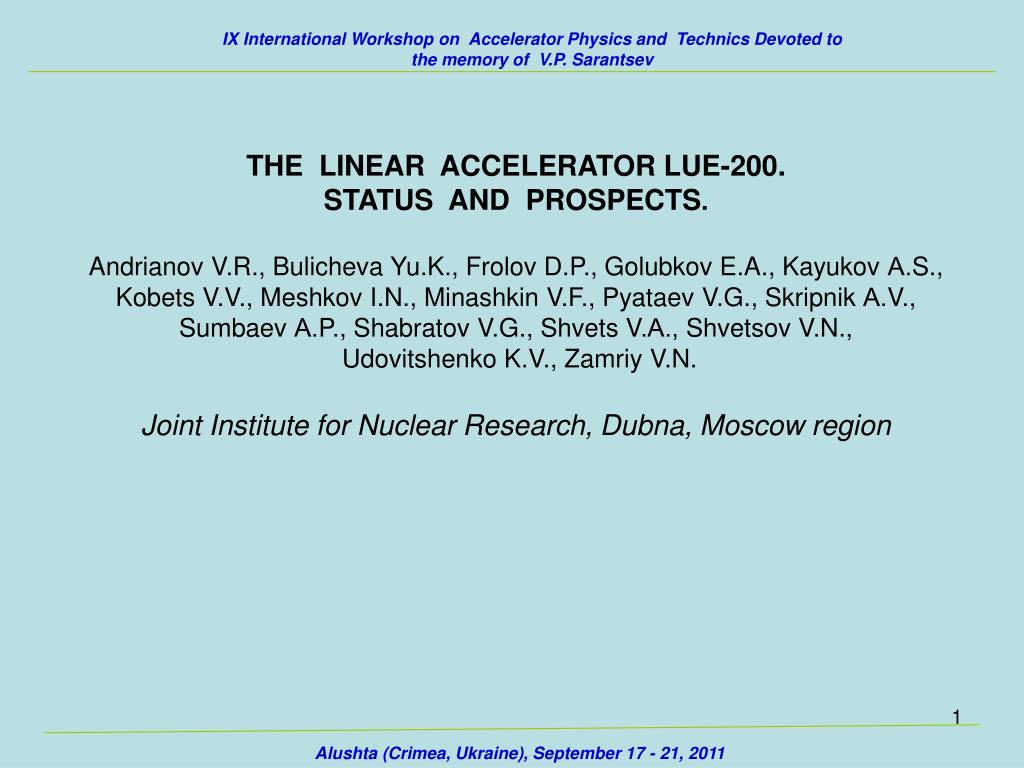

  1. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 THE LINEAR ACCELERATORLUE-200. STATUS AND PROSPECTS. Andrianov V.R., Bulicheva Yu.K., Frolov D.P., Golubkov E.A., Kayukov А.S., KobetsV.V., MeshkovI.N., MinashkinV.F., PyataevV.G., Skripnik А.V., Sumbaev А.P., ShabratovV.G., ShvetsV.А., ShvetsovV.N., Udovitshenko K.V., ZamriyV.N. Joint Institute for Nuclear Research, Dubna, Moscow region

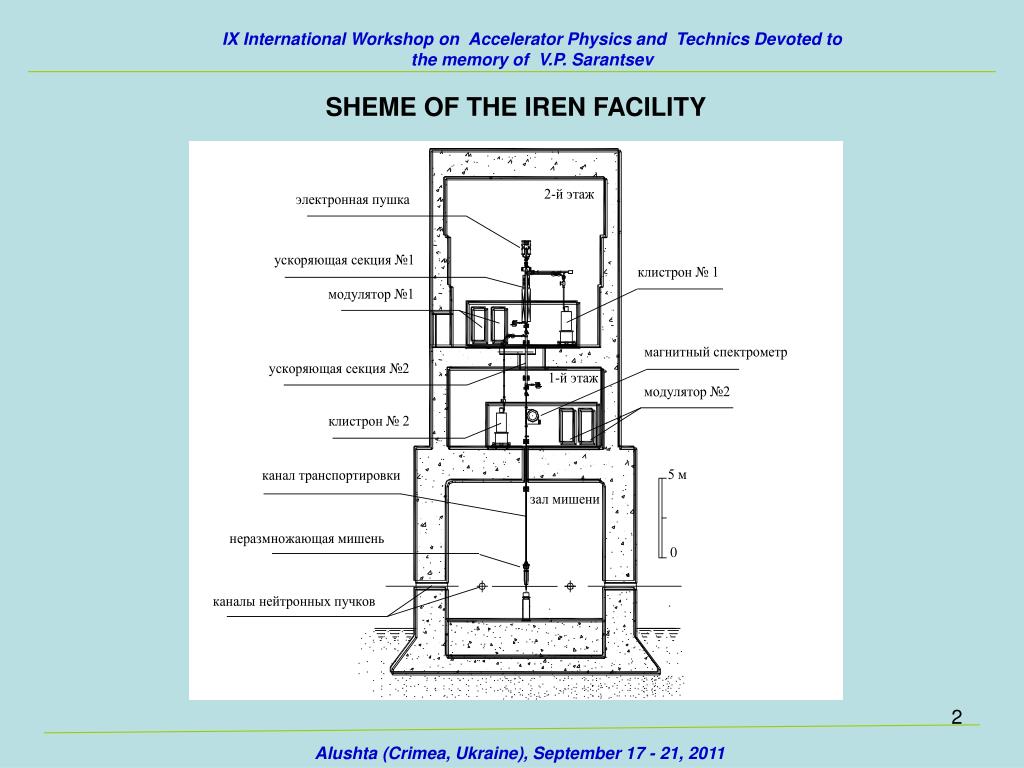

  2. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 SHEME OF THE IREN FACILITY

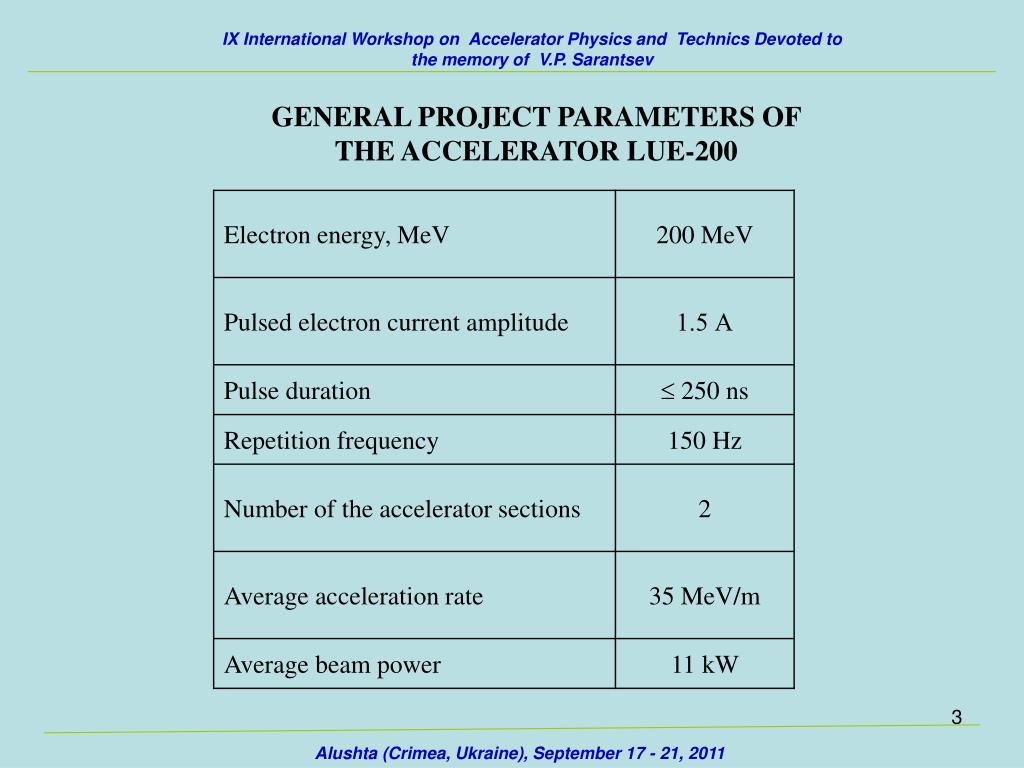

  3. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 GENERAL PROJECT PARAMETERS OF THE ACCELERATOR LUE-200

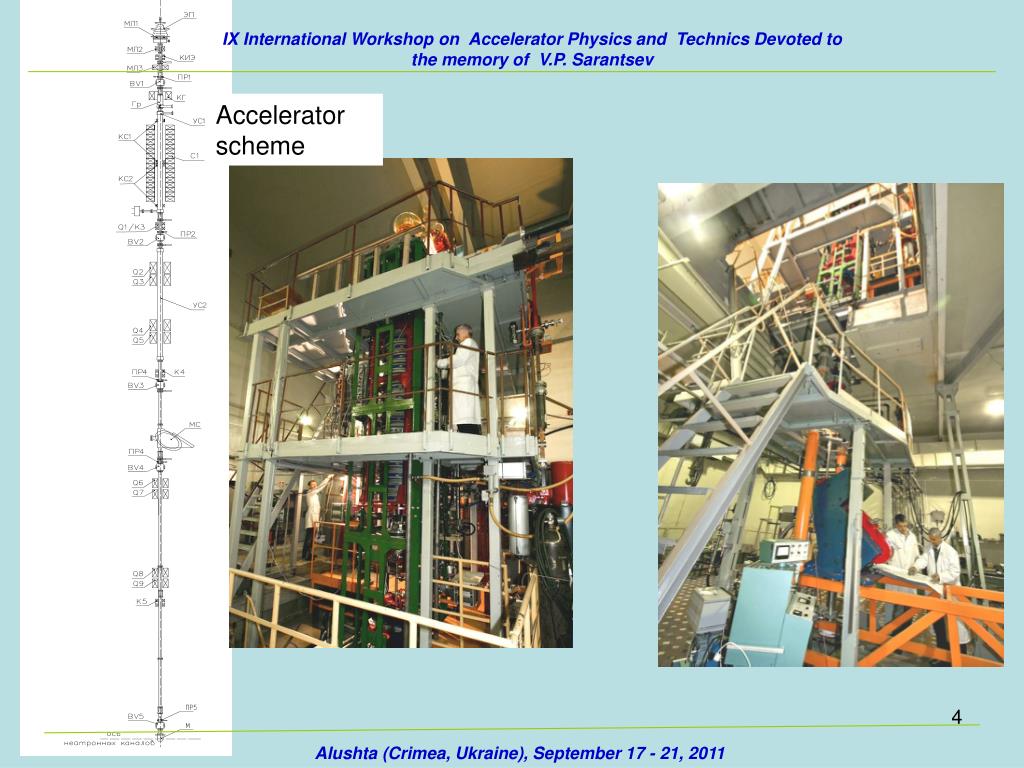

  4. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Accelerator scheme

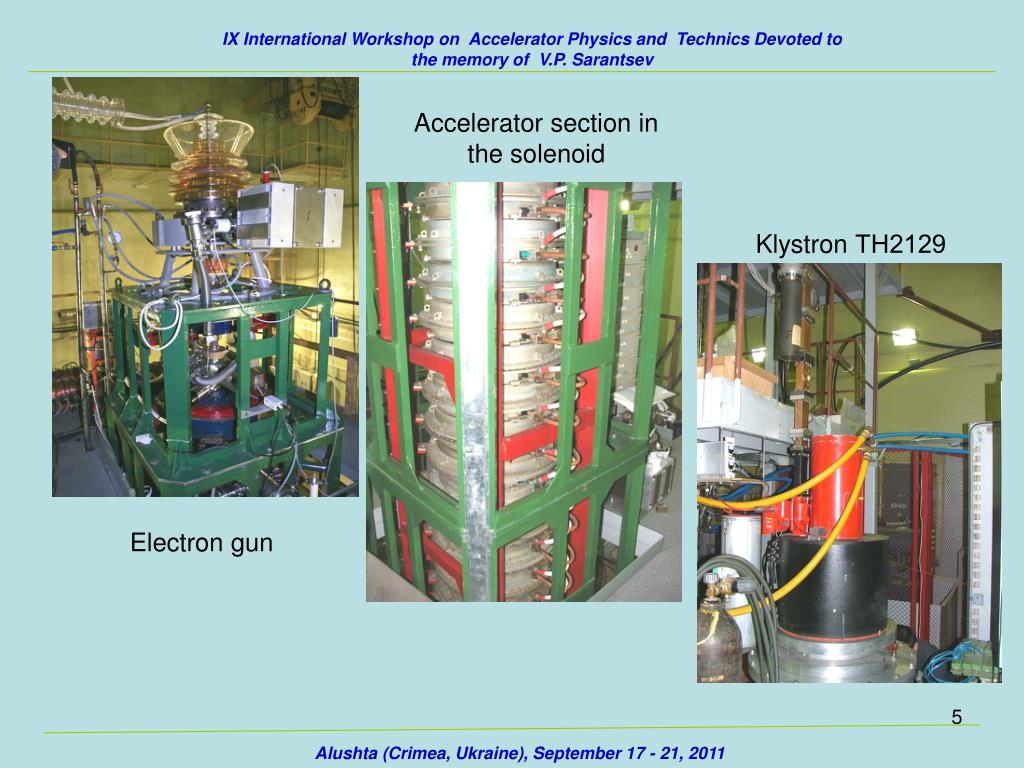

  5. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Accelerator section in the solenoid Klystron ТН2129 Electron gun

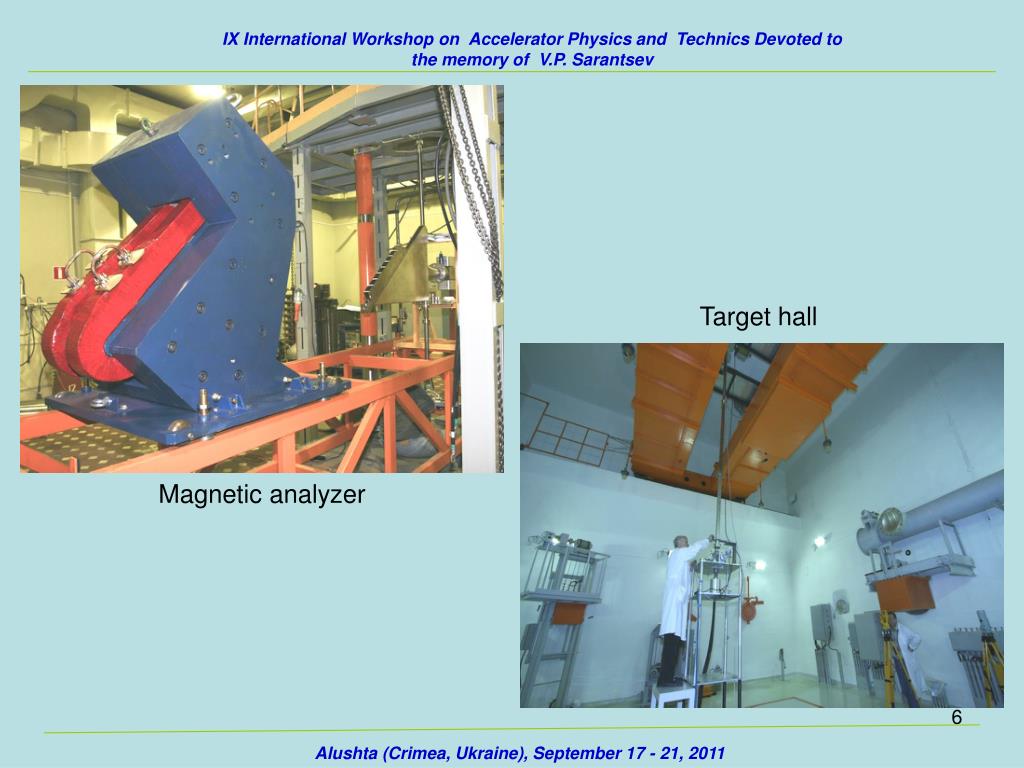

  6. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Target hall Magnetic analyzer

  7. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev RF power vs time when SLED system is activated Alushta (Crimea, Ukraine), September 17 - 21, 2011 RF system of the LUE-200 accelerator SLED (SLAC Energy Doubler)

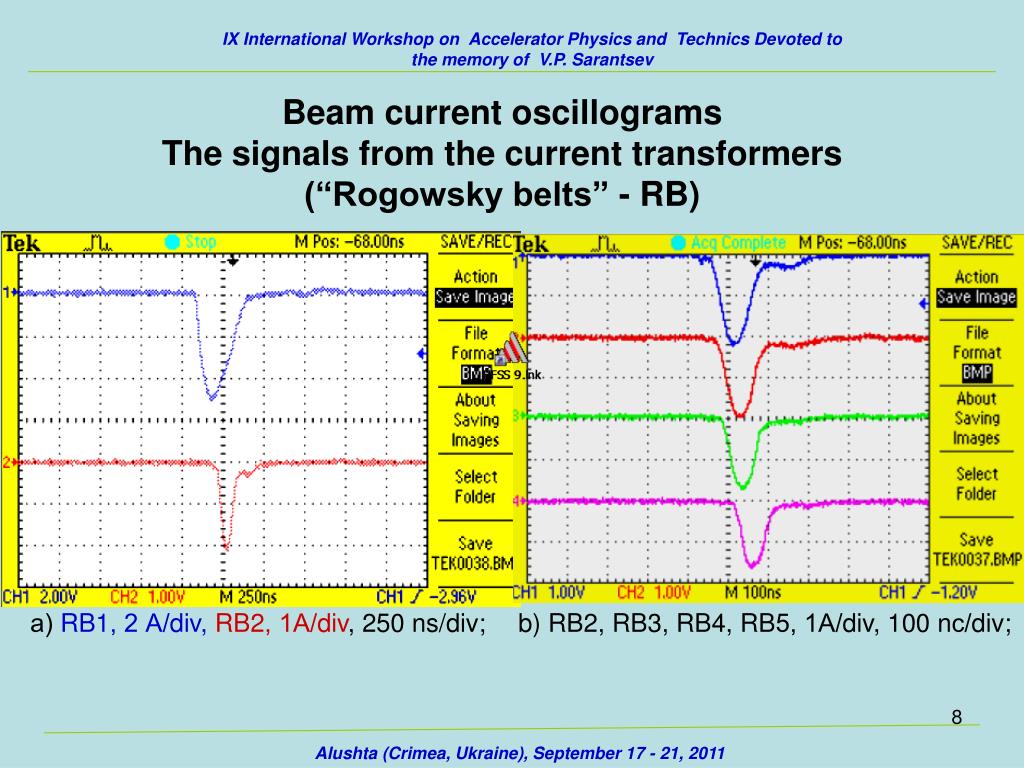

  8. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Beam current oscillograms The signals from the current transformers (“Rogowsky belts” - RB) а) RB1, 2 А/div,RB2, 1А/div, 250 ns/div; b) RB2, RB3, RB4, RB5, 1А/div, 100 nс/div;

  9. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Electron energy spectra measured with magnetic analyzer b) SLED is OFF Ie = 1.5 A b) SLED is ON Ie = 1 A c) SLED is ON Ie = 2.2 A

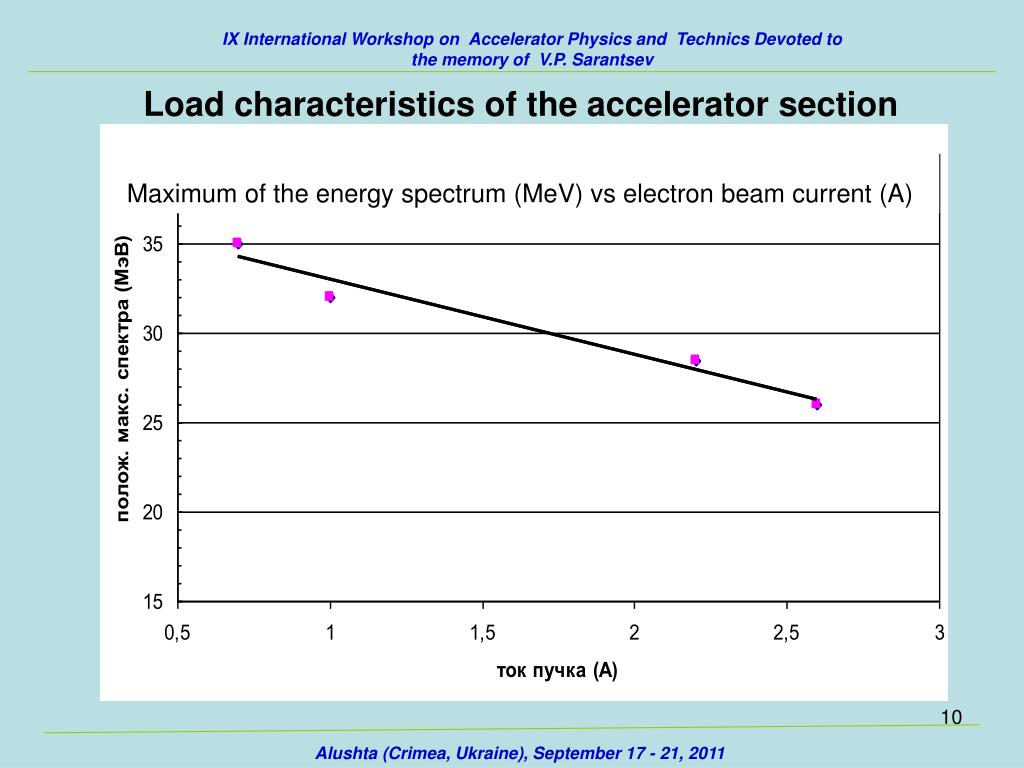

  10. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Load characteristics of the accelerator section Maximum of the energy spectrum (MeV) vs electron beam current (A)

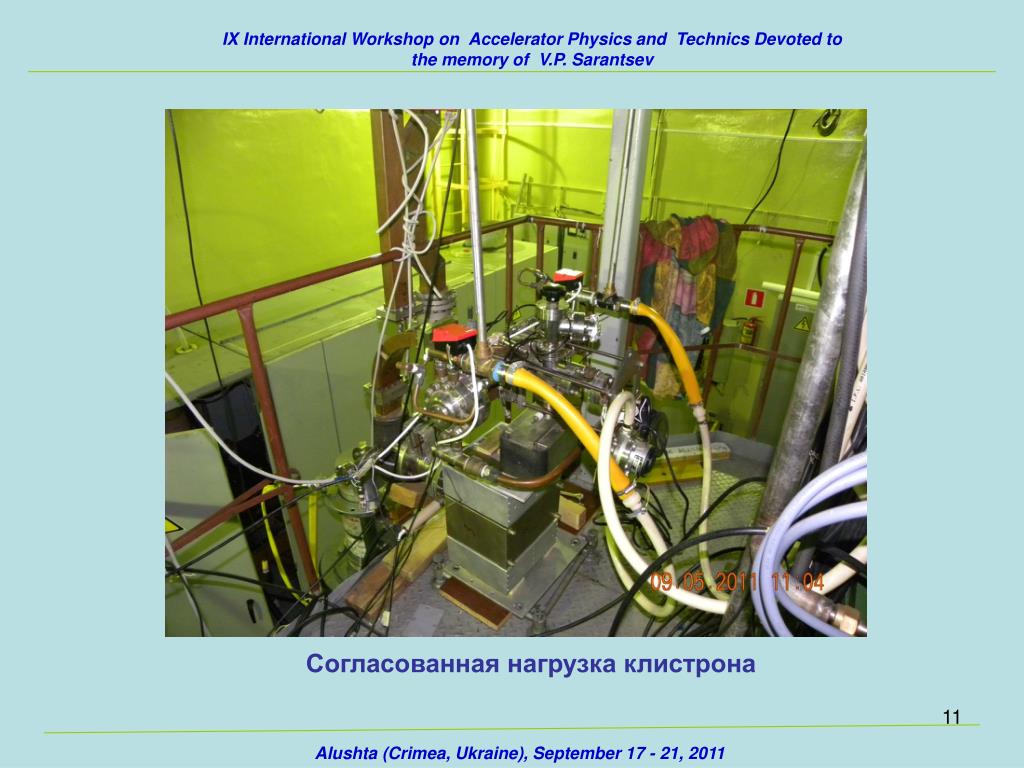

  11. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Согласованная нагрузка клистрона

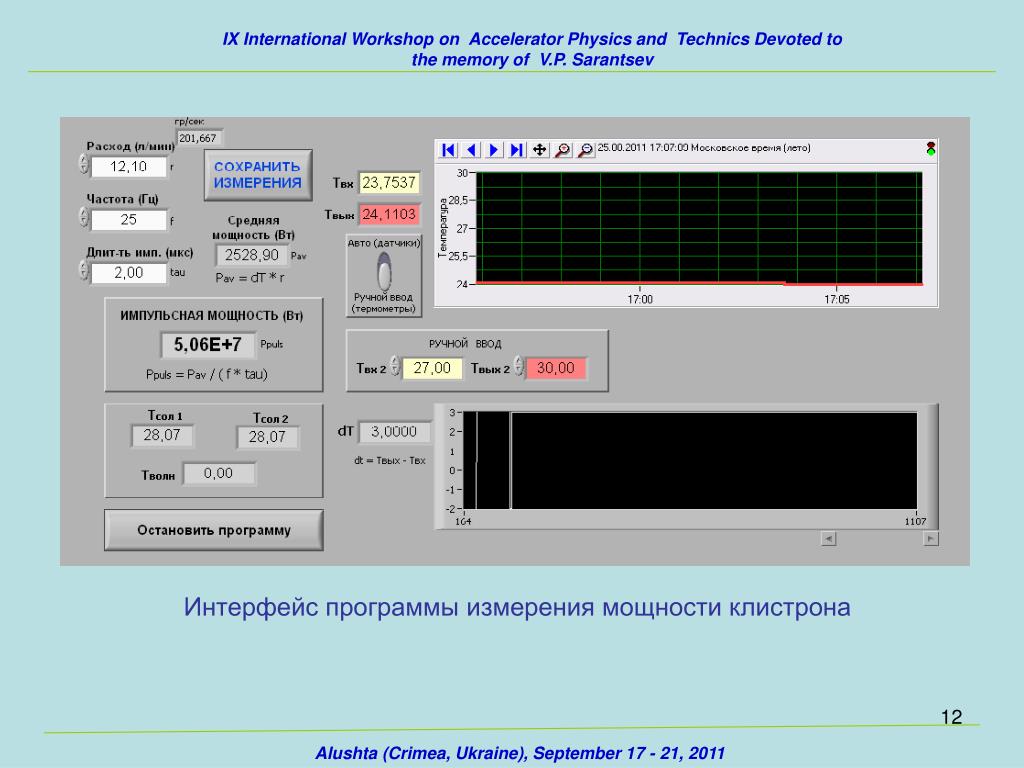

  12. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Интерфейс программы измерения мощности клистрона

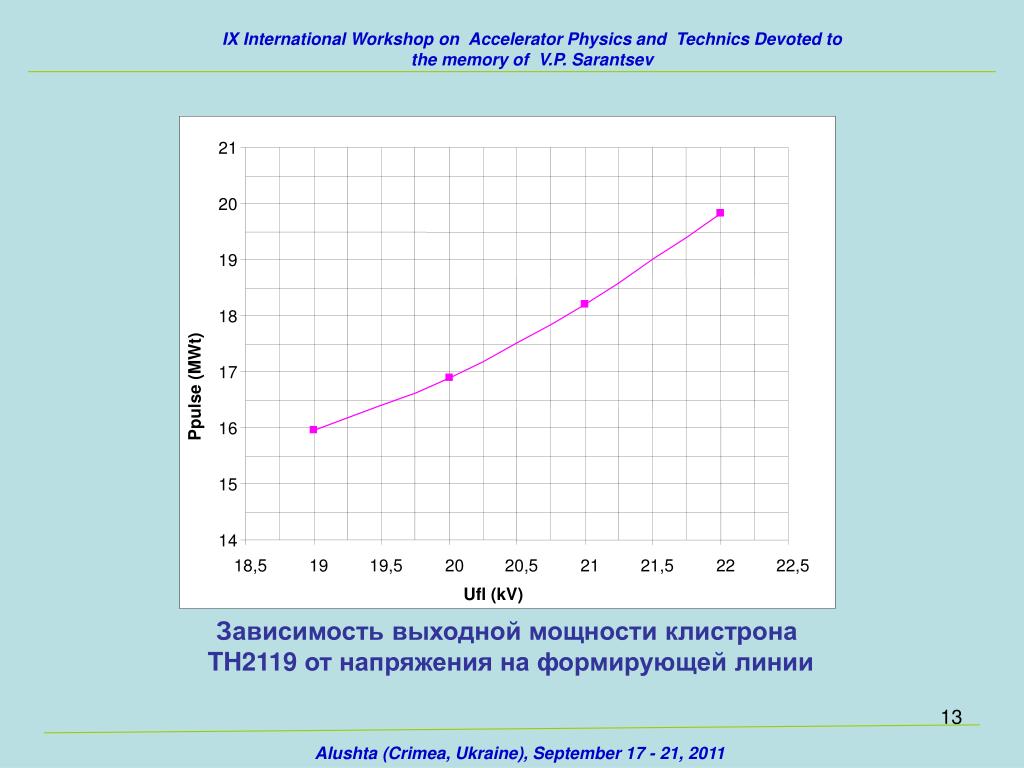

  13. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev 21 20 19 18 17 Ppulse (MWt) 16 15 14 18,5 19 19,5 20 20,5 21 21,5 22 22,5 Ufl (kV) Alushta (Crimea, Ukraine), September 17 - 21, 2011 Зависимость выходной мощности клистрона TH2119 от напряжения на формирующей линии

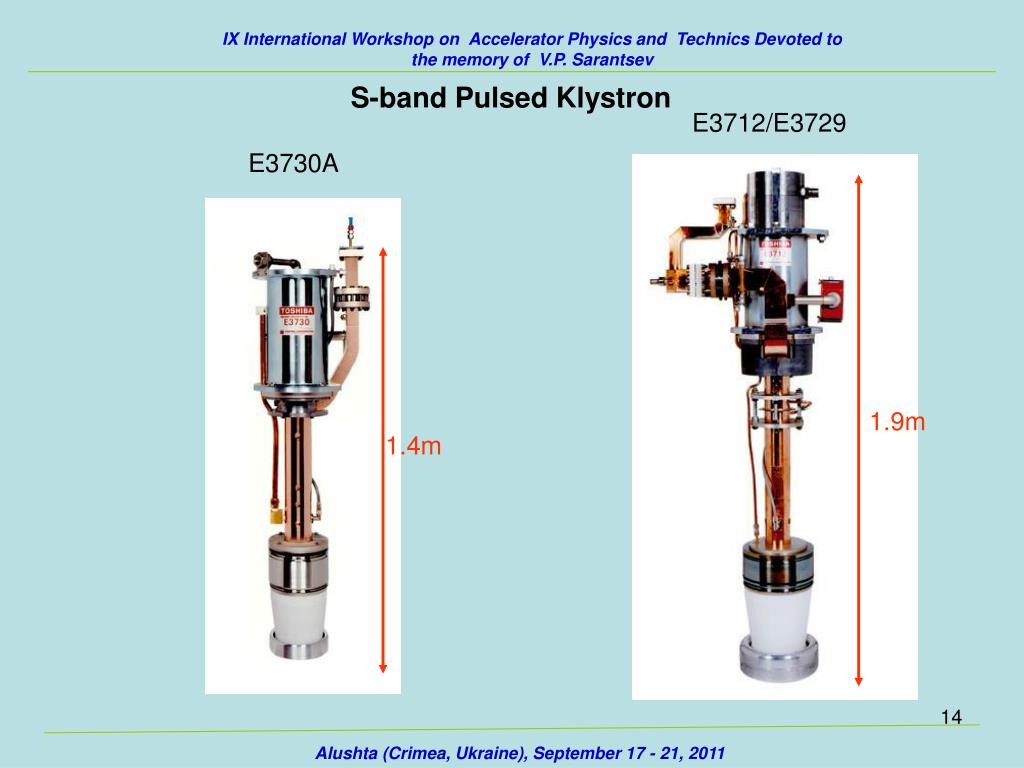

  14. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 S-band Pulsed Klystron E3712/E3729 E3730A 1.9m 1.4m

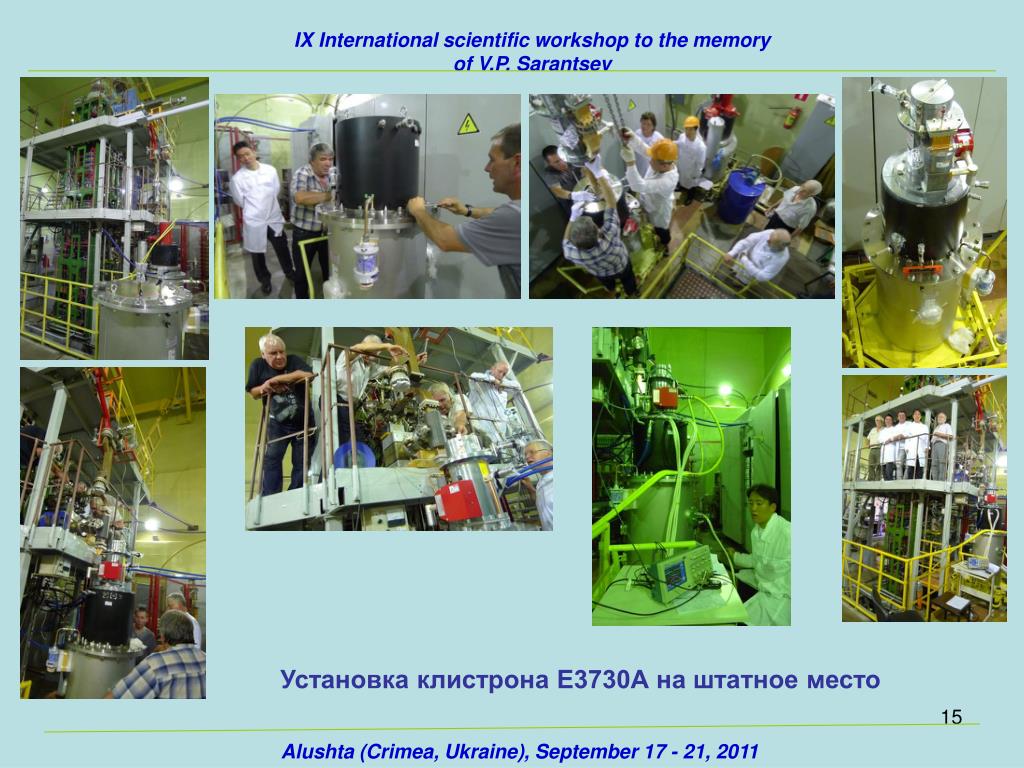

  15. IX International scientificworkshopto the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Установка клистрона Е3730А на штатное место

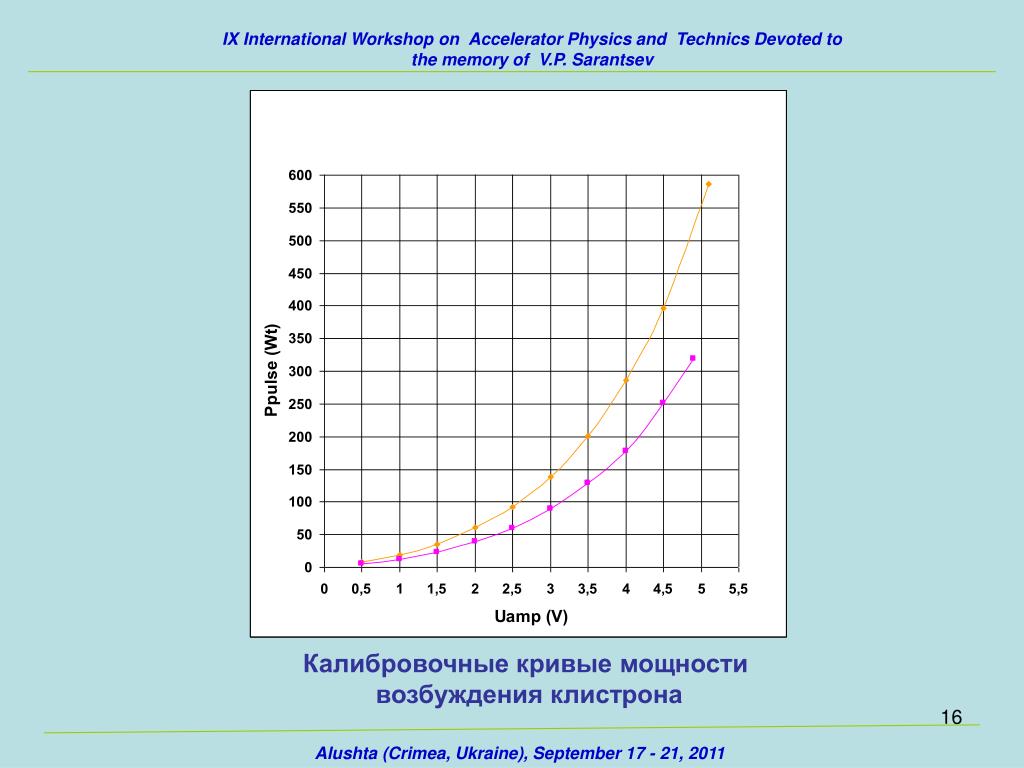

  16. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Калибровочные кривые мощности возбуждения клистрона

  17. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev 60 50 40 P pulse (MW) 30 20 10 0 13 15 17 19 21 23 25 27 29 U fl (kV) Alushta (Crimea, Ukraine), September 17 - 21, 2011 Зависимости выходной мощности клистрона Е3730А От напряжения на клистроне От тока клистрона От напряжения на формирующей линии

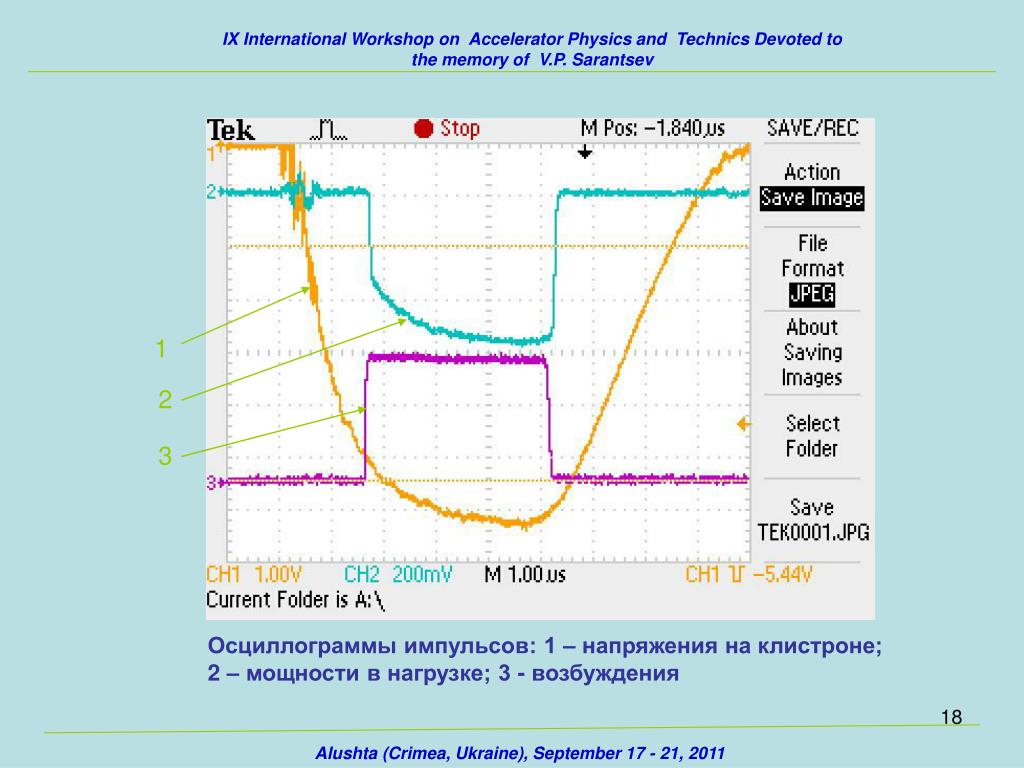

  18. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 1 2 3 Осциллограммы импульсов: 1 – напряжения на клистроне; 2 – мощности в нагрузке; 3 - возбуждения

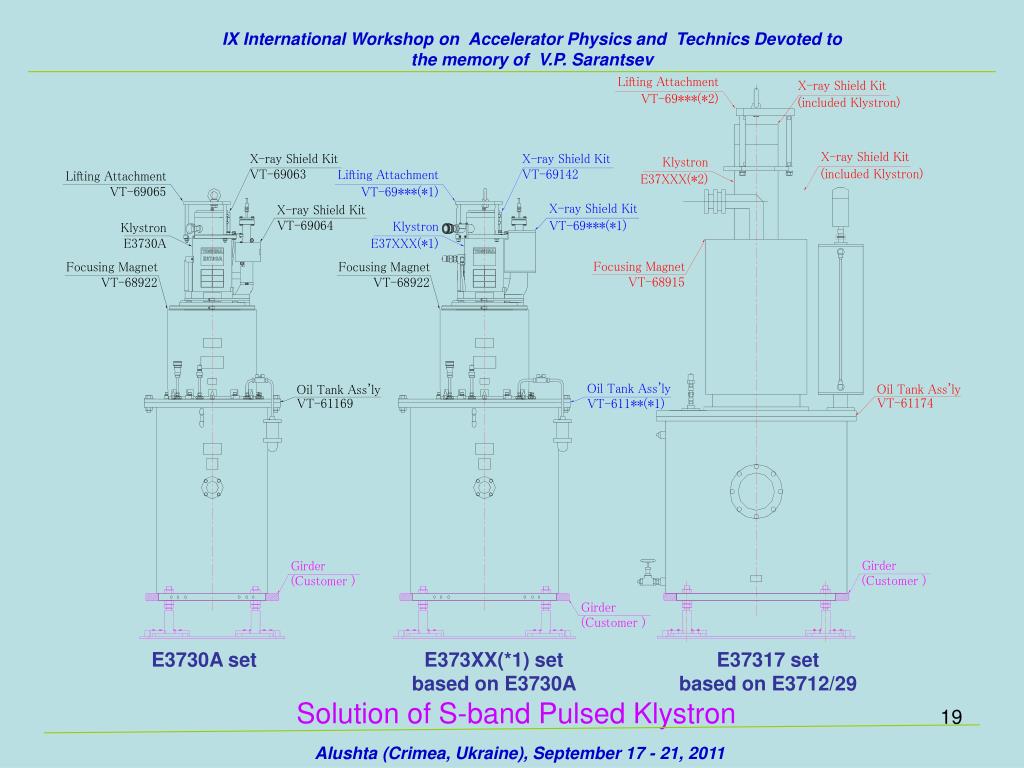

  19. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 E3730A set E373XX(*1) set based on E3730A E37317 set based on E3712/29 Solution of S-band Pulsed Klystron

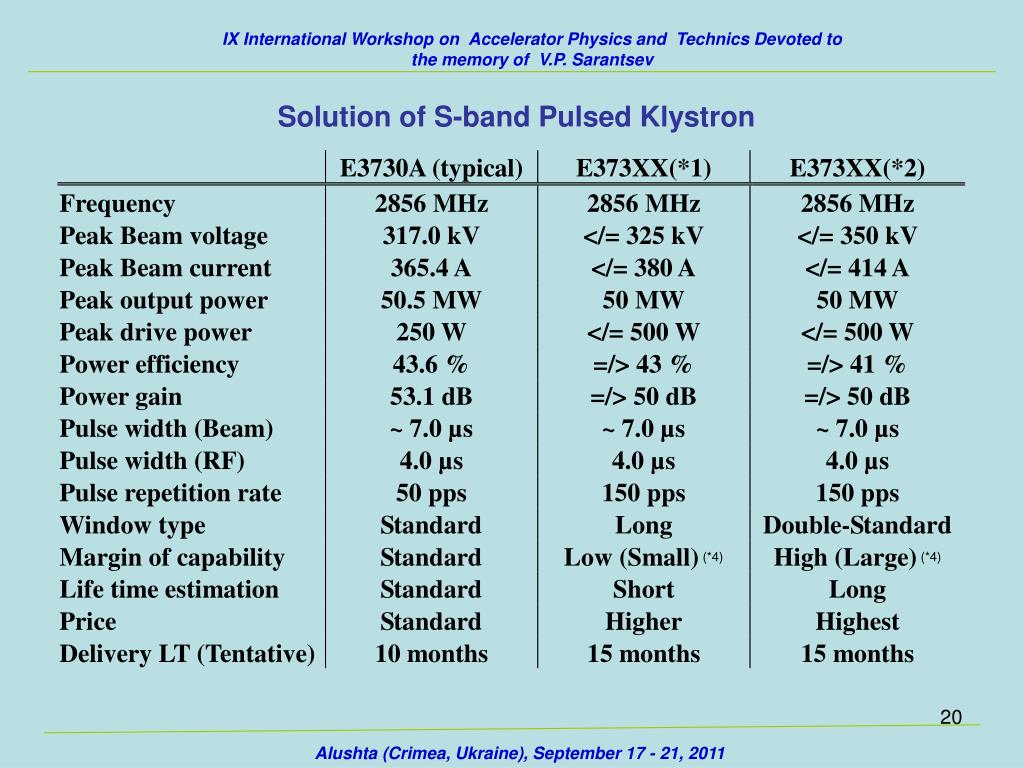

  20. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Solution of S-band Pulsed Klystron

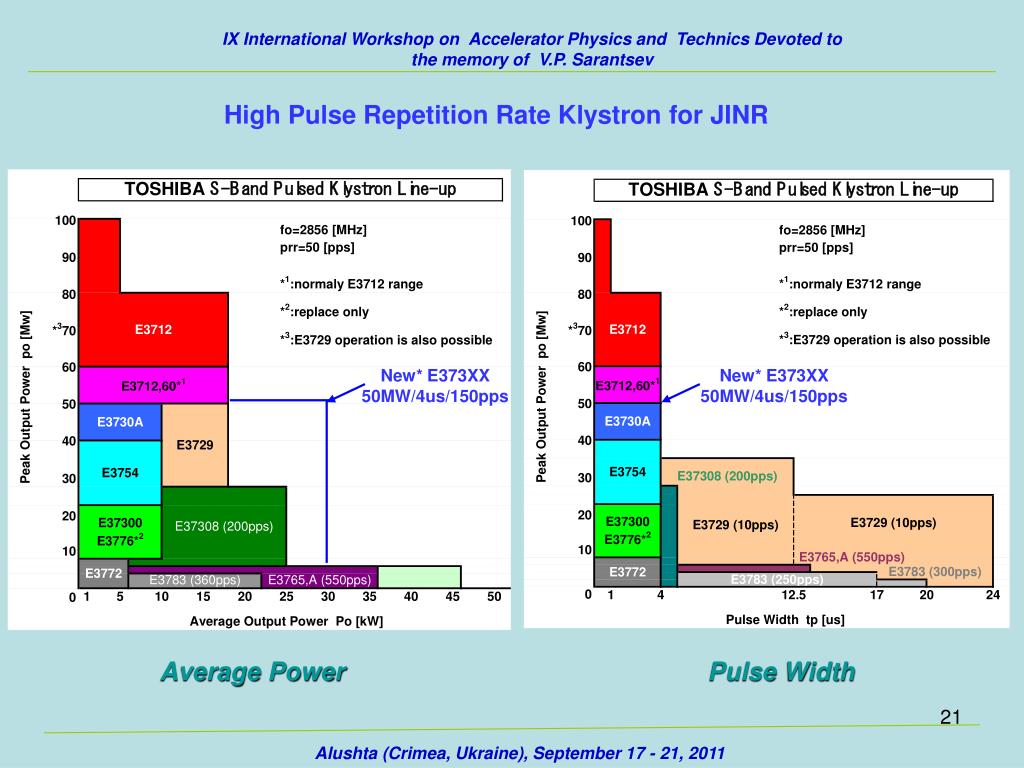

  21. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 High Pulse Repetition Rate Klystron for JINR New* E373XX 50MW/4us/150pps New* E373XX 50MW/4us/150pps Average Power Pulse Width

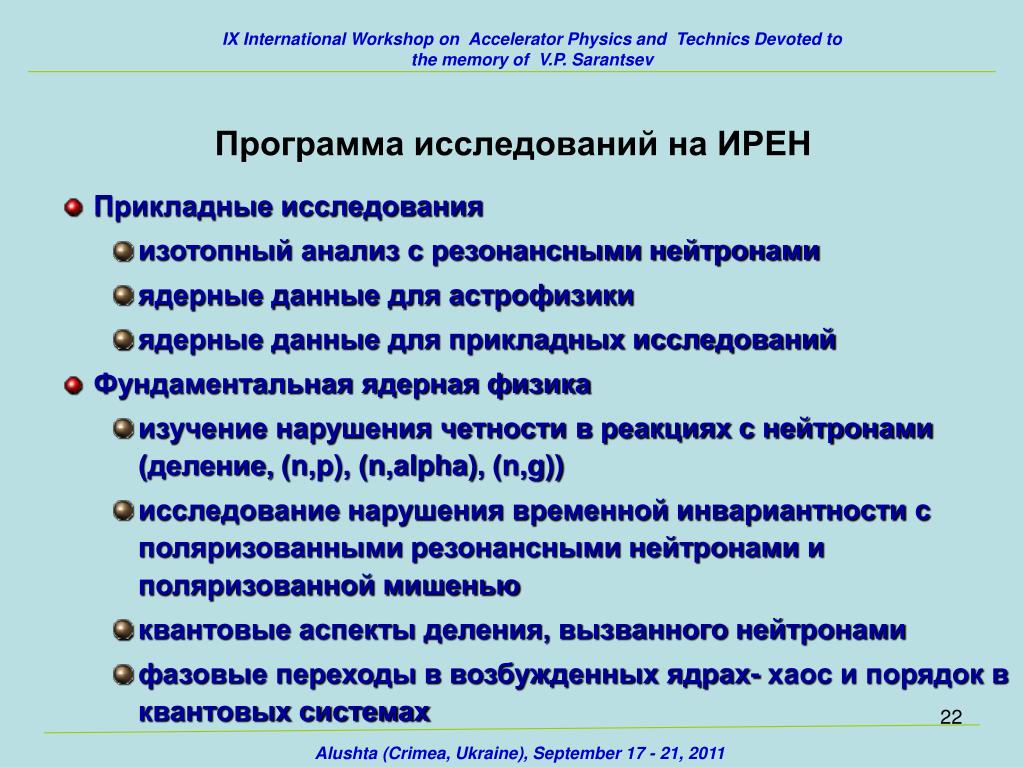

  22. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Программа исследований на ИРЕН • Прикладные исследования • изотопный анализ с резонансными нейтронами • ядерные данные для астрофизики • ядерные данные для прикладных исследований • Фундаментальная ядерная физика • изучение нарушения четности в реакциях с нейтронами (деление, (n,p), (n,alpha), (n,g)) • исследование нарушения временной инвариантности с поляризованными резонансными нейтронами и поляризованной мишенью • квантовые аспекты деления, вызванного нейтронами • фазовые переходы в возбужденных ядрах- хаос и порядок в квантовых системах

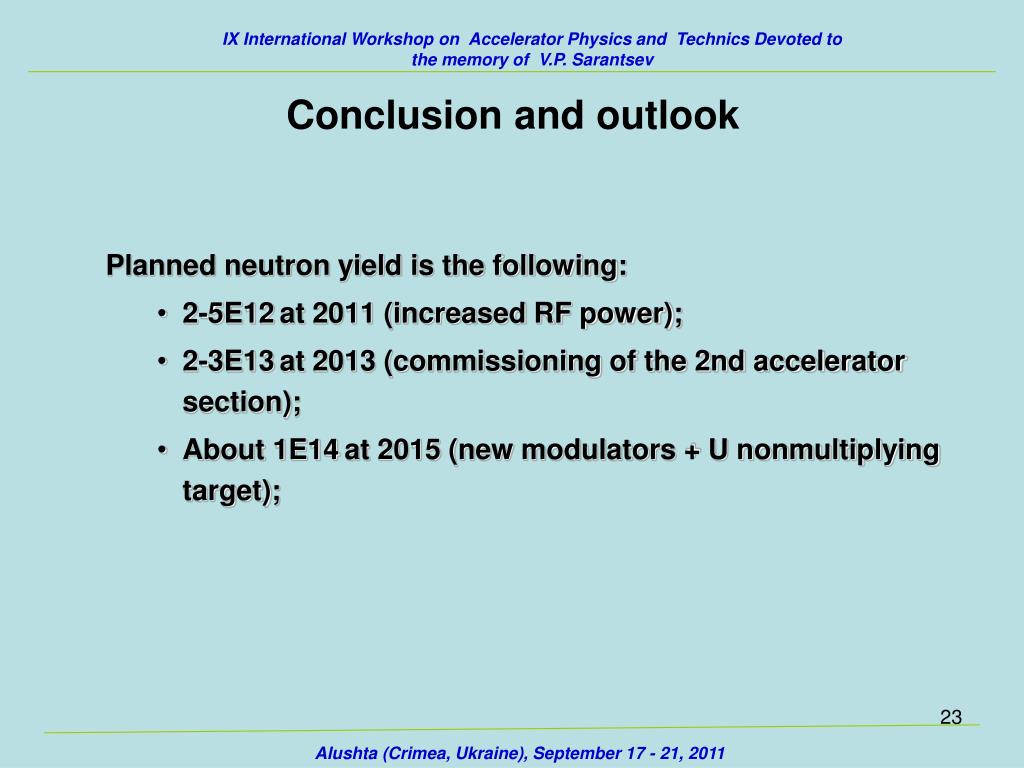

  23. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Conclusion and outlook Planned neutron yield is the following: • 2-5E12at 2011 (increased RF power); • 2-3E13at 2013 (commissioning of the 2nd accelerator section); • About 1E14at 2015 (new modulators + U nonmultiplying target);

  24. IX International Workshop on Accelerator Physics and Technics Devoted to the memory of V.P. Sarantsev Alushta (Crimea, Ukraine), September 17 - 21, 2011 Thank you for your attention
