  1. Temporal Planning and Resource Allocation Stefanie Chiou, Rob Kochman, and Gary Look

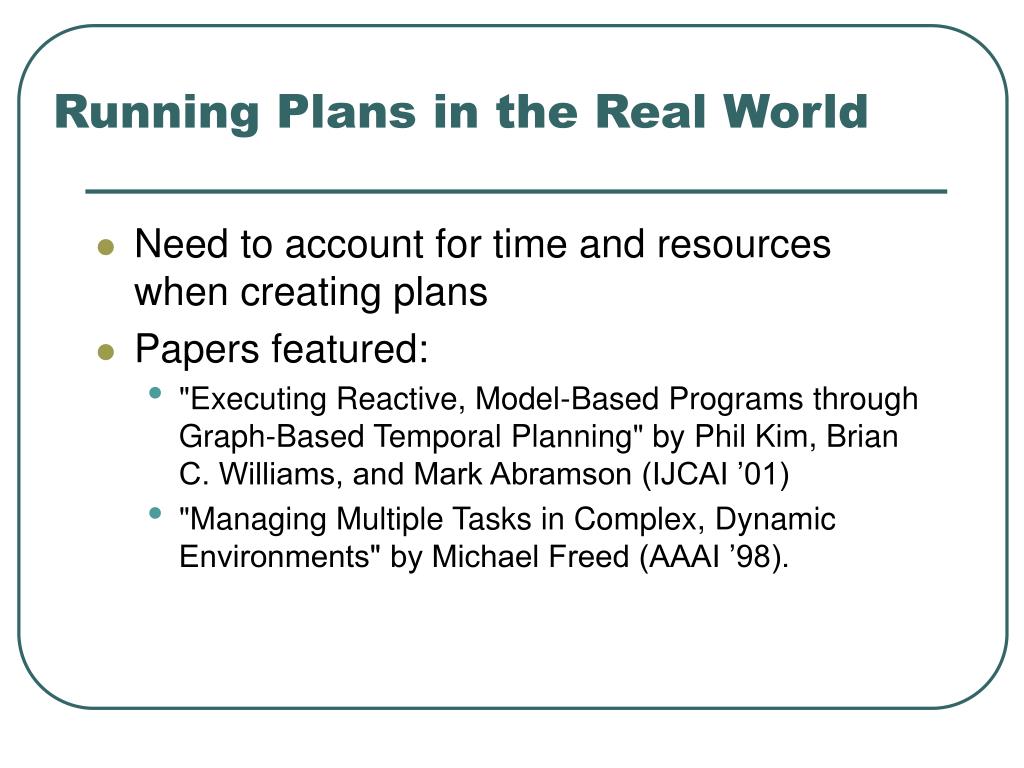

  2. Running Plans in the Real World • Need to account for time and resources when creating plans • Papers featured: • "Executing Reactive, Model-Based Programs through Graph-Based Temporal Planning" by Phil Kim, Brian C. Williams, and Mark Abramson (IJCAI ’01) • "Managing Multiple Tasks in Complex, Dynamic Environments" by Michael Freed (AAAI ’98).

  3. Paper • Executing Reactive, Model-based Programs through Graph-based Temporal Planning by Phil Kim, Brian Williams, and Mark Abramson

  4. Familiar Examples Mars Climate Orbiter: 12/11/98 Mars Polar Lander: 1/3/99

  5. Motivation • Embedded programming is hard • Easier to reason about state when programming

  6. Overview/Contributions • RMPL provides a new programming paradigm for programming robust systems of cooperative autonomous agents • TPN -> synthesis of temporal, causal link, and HTN planning • A “holy grail” for autonomous agents • Planner that implements these ideas

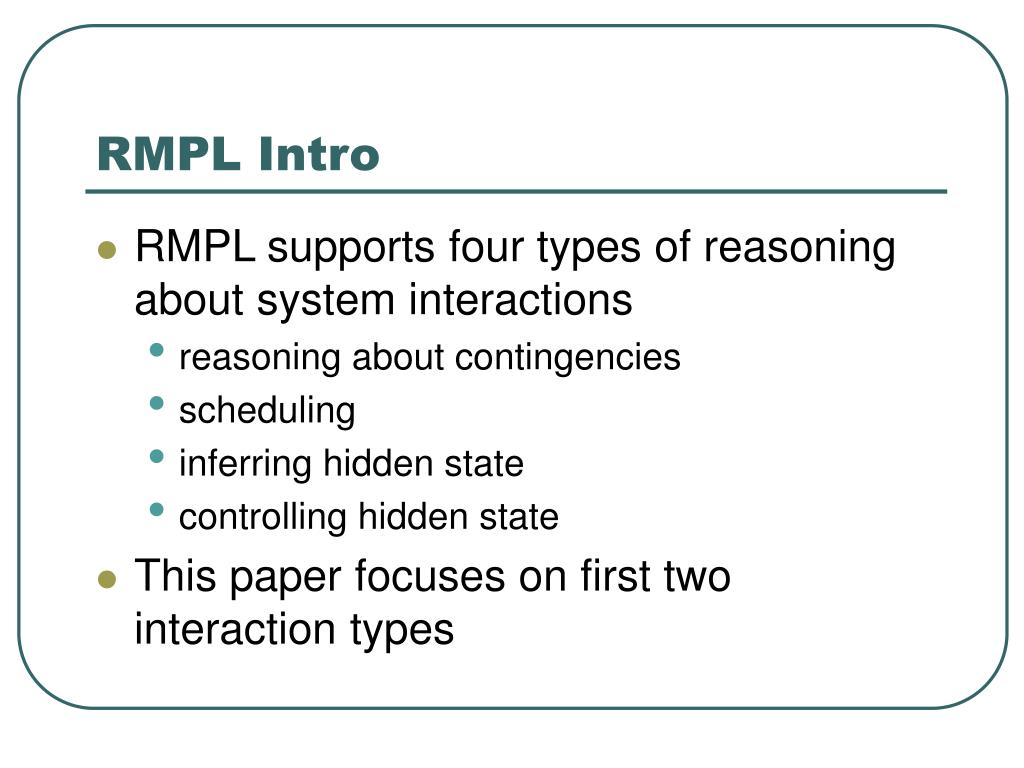

  7. RMPL Intro • RMPL supports four types of reasoning about system interactions • reasoning about contingencies • scheduling • inferring hidden state • controlling hidden state • This paper focuses on first two interaction types

  8. (Model-based) Embedded Programs Embedded Program Model-basedEmbedded Program Obs Cntrl S Plant S Plant • Embedded programs interact withplant sensors/actuators: • Read sensors • Set actuators • Model-based programs interact with plant state: • Read state • Write state setState getState Programmer must map between state and sensors/actuators. Model-based executive maps between sensors, actuators to states.

  9. Model-based Embedded Program Breakdown Model-basedEmbedded Program setState getState Model-based executive maps between sensors, actuators to states. Model-based Executive Sensor data Actuator commands S Plant

  10. Example: The model-based program sets engine = thrusting, and the deductive controller . . . Deduces that thrust is off, andthe engine is healthy Plans actions to open six valves Deduces that a valve failed - stuck closed Determines that valves on the backup enginewill achieve thrust, andplans needed actions. Oxidizer tank Fuel tank

  11. Time and Contingency Constructs in RMPL • if c thennext A • do A maintaining C • A,B (concurrency) • A;B (serialization) • A[l,u] (temporal bounds) • Choose{A,B} (choose)

  12. Path 2 A Path 1 B Choosing a route from A to B RMPL Code Example Group-Enroute()[l,u] = { choose { do { Group-Fly-Path(PATH1) [l*90%,u*90%]; } maintaining PATH1_OK, do { Group-Fly-Path(PATH2) [l*90%,u*90%]; } maintaining PATH2_OK }; { Group-Transmit(FAC,ARRIVED_TAI)[0,2], do { Group-Wait(TAI_HOLD1,TAI_HOLD2)[0,u*10%] } watching PROCEED_OK } }

  13. RMPL’s Representation of Time and Contingencies • Important to find a plan quickly • Idea: use a plan graph • Generalization of Simple Temporal Network (STN) • TPN defined (STN + conditionals + choices)

  14. STN example Start End

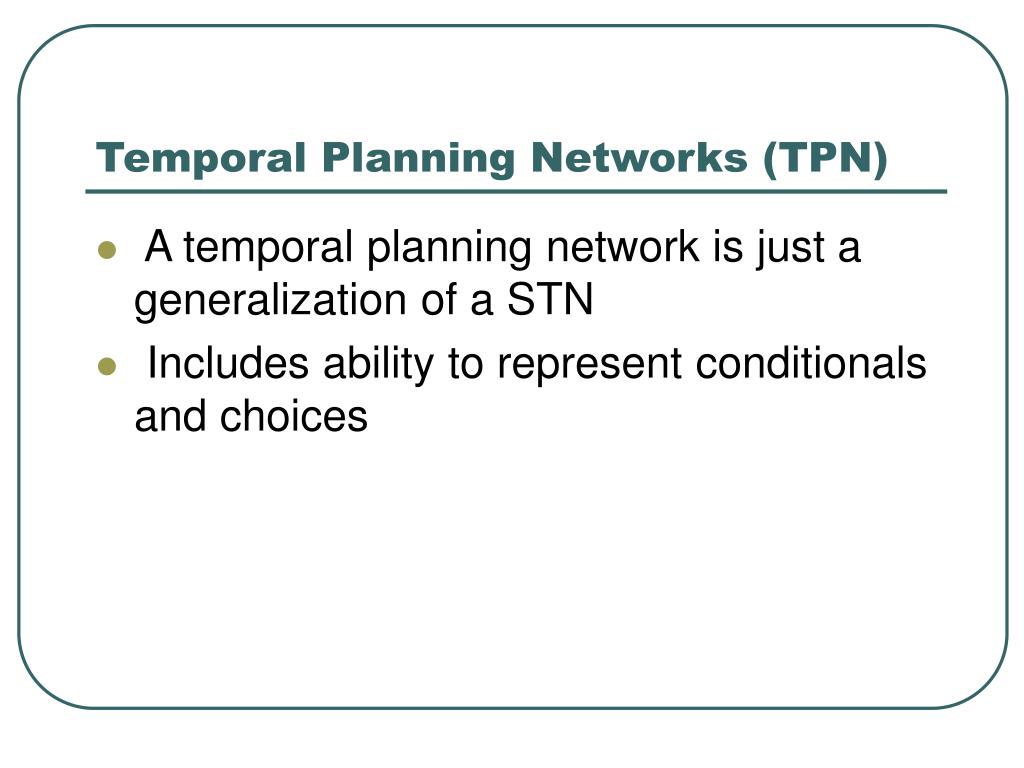

  15. Temporal Planning Networks (TPN) • A temporal planning network is just a generalization of a STN • Includes ability to represent conditionals and choices

  16. Ask(Proceed=Ok) TPN Example

  17. RMPL -> TPN conversion • A [l,u]: invoke activity A between l and u time units

  18. RMPL -> TPN conversion • c [l,u]: Assert that condition c is true now until [l ,u]

  19. RMPL -> TPN conversion • Ifc thennextA [l,u]: Execute A for [l ,u], if condition c is currently satisfied

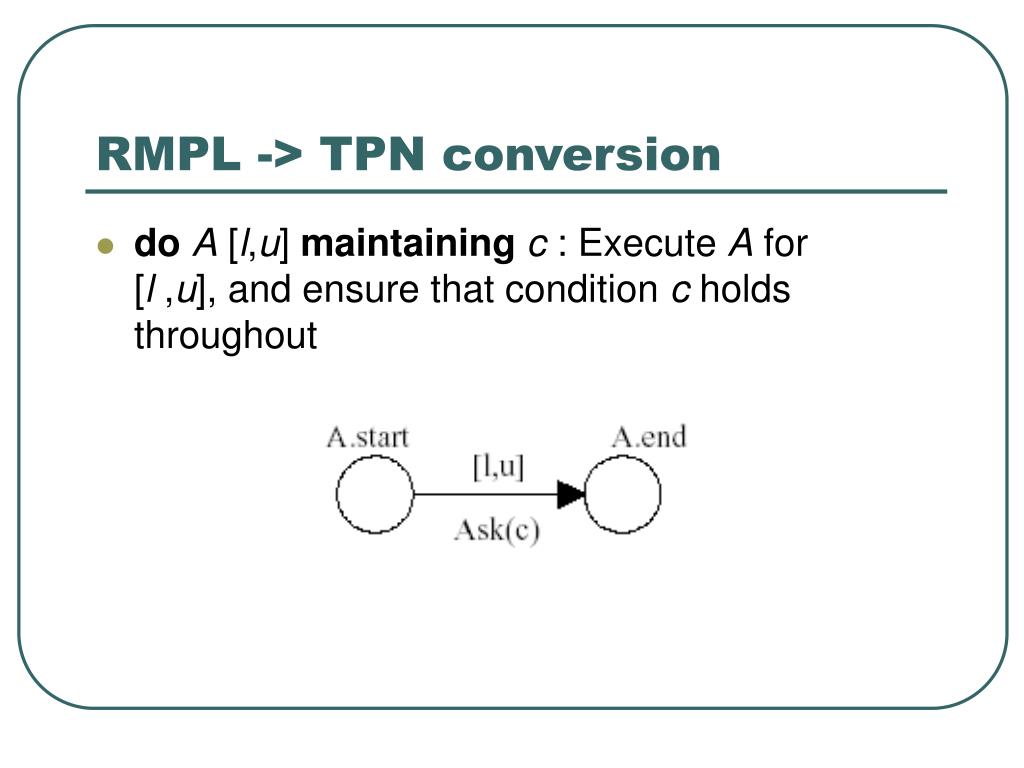

  20. RMPL -> TPN conversion • doA [l,u] maintaining c : Execute A for [l ,u], and ensure that condition c holds throughout

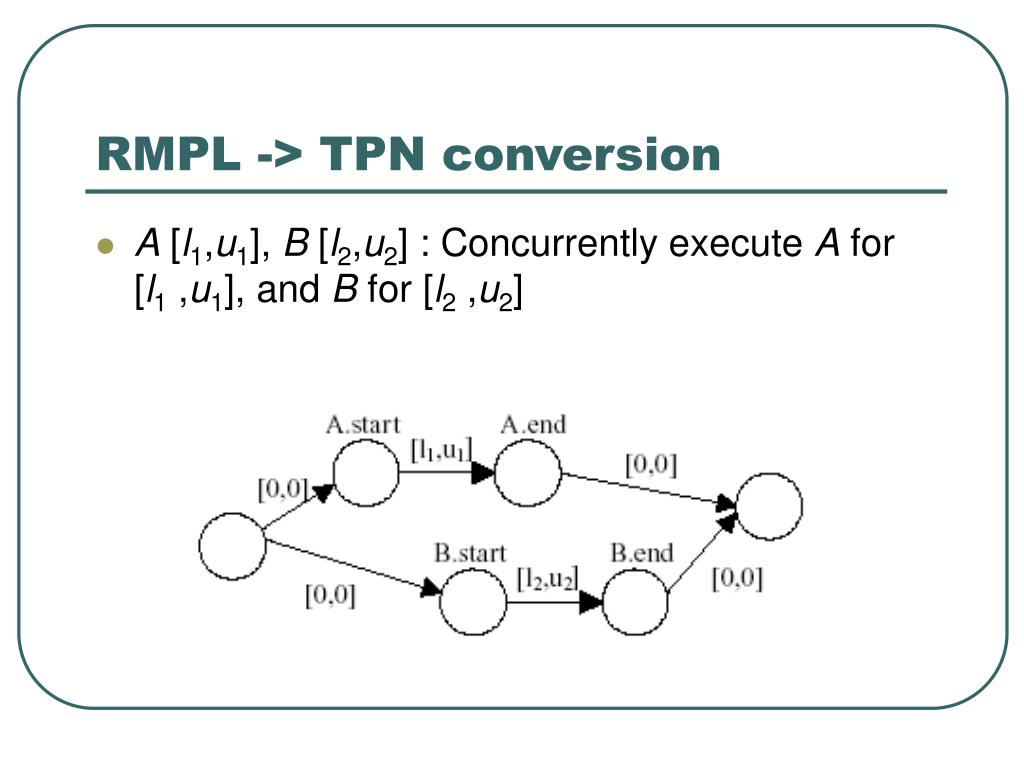

  21. RMPL -> TPN conversion • A [l1,u1], B [l2,u2] : Concurrently execute A for [l1,u1], and B for [l2,u2]

  22. RMPL -> TPN conversion • A [l1,u1]; B [l2,u2] : Execute A for [l1,u1], and then B for [l2,u2]

  23. RMPL -> TPN conversion • choose {A [l1,u1]; B [l2,u2]} : Reduces to A [l1,u1] or B [l2,u2] non-deterministically

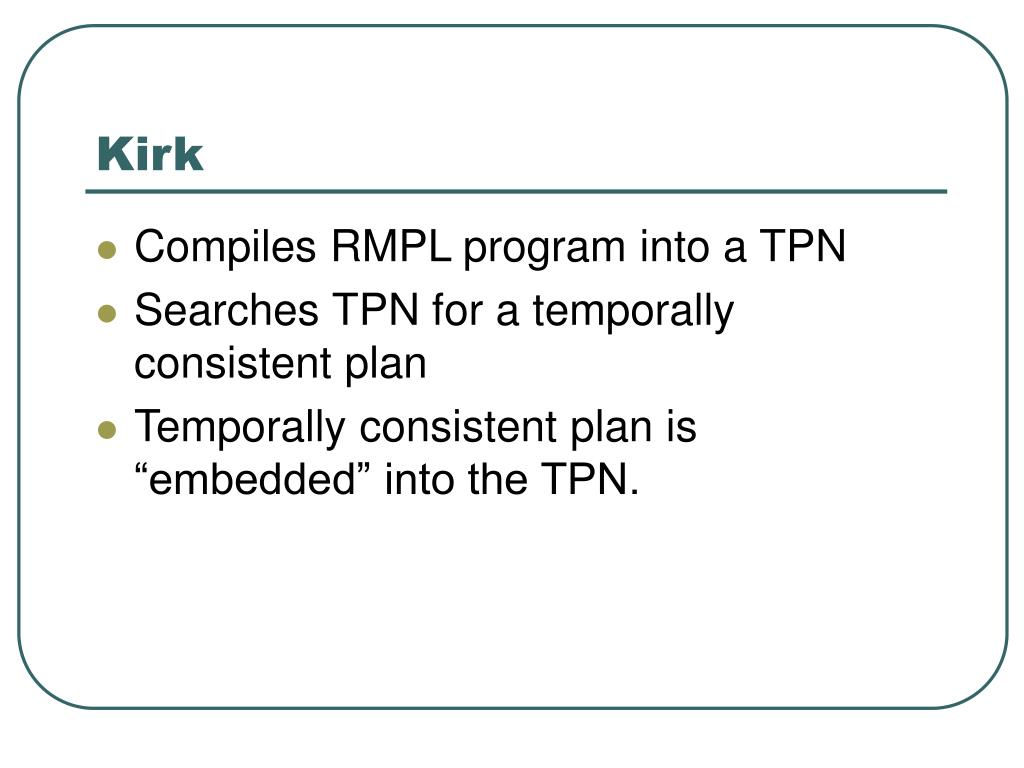

  24. Kirk • Compiles RMPL program into a TPN • Searches TPN for a temporally consistent plan • Temporally consistent plan is “embedded” into the TPN.

  25. Kirk Phase1 • Select plan from TPN • Essentially a graph traversal • Check plan for temporal consistency Start

  26. Selecting the Plan Start Start

  27. Checking for Temporal Consistency • Convert TPN to a distance graph • Run Bellman-Ford to check for negative cycles (if any found, inconsistent)

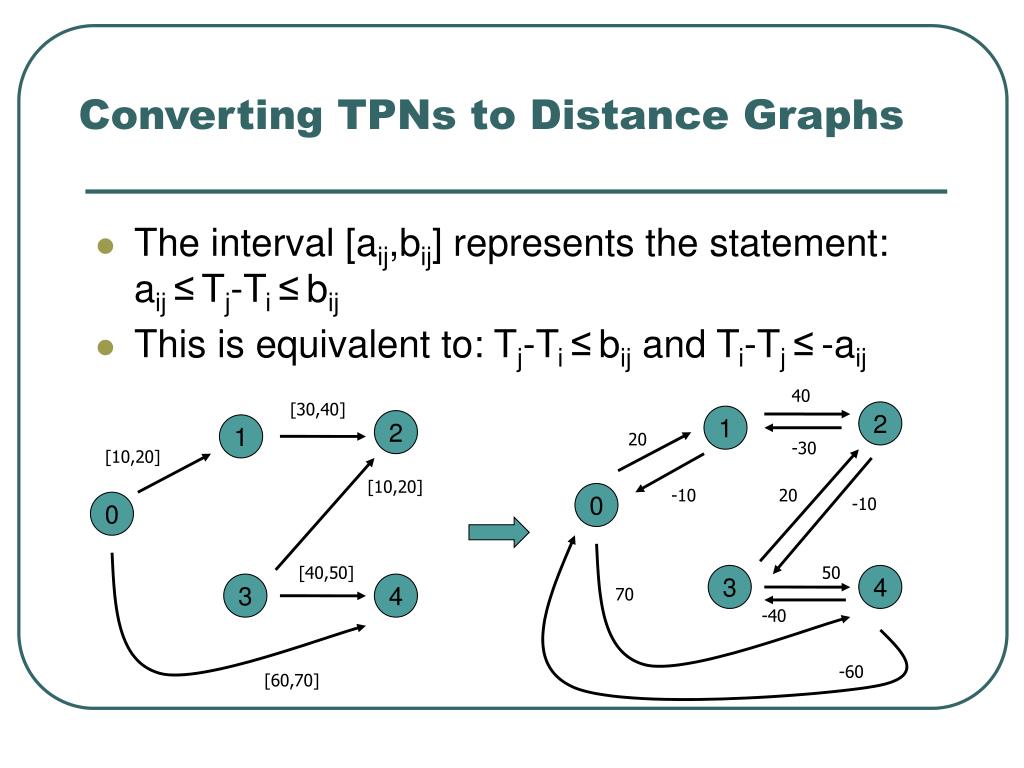

  28. [30,40] 40 2 1 2 1 [10,20] 20 -30 [10,20] 0 -10 20 0 -10 [40,50] 3 4 50 3 4 70 -40 [60,70] -60 Converting TPNs to Distance Graphs • The interval [aij,bij] represents the statement: aij ≤Tj-Ti ≤bij • This is equivalent to: Tj-Ti ≤bij and Ti-Tj ≤-aij

  29. Checking for Temporal Consistency • Convert TPN to a distance graph • Run Bellman-Ford algorithm to check for negative cycles:

  30. Bellman-Ford Algorithm initializeCosts(G, s) for i=1 to |V(G)|-1 for each edge (u,v) in E(G) updateCost(u, v, w) for each edge (u, v) in E(G) if cost(v) > cost(u) + w(u. v) return false return true

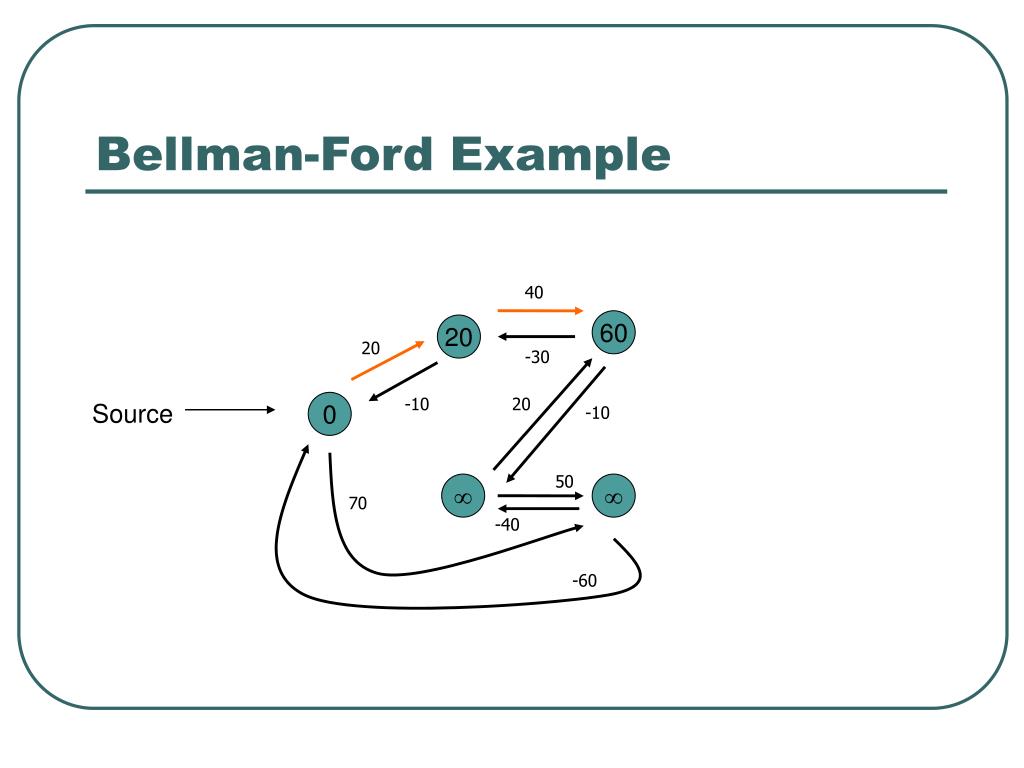

  31. 40   20 -30 -10 20 0 -10 50   70 -40 -60 Bellman-Ford Example Source

  32. 40  20 20 -30 -10 20 0 -10 50   70 -40 -60 Bellman-Ford Example Source

  33. 40 60 20 20 -30 -10 20 0 -10 50   70 -40 -60 Bellman-Ford Example Source

  34. 40 60 20 20 -30 -10 20 0 -10 50 50  70 -40 -60 Bellman-Ford Example Source

  35. 40 60 20 20 -30 -10 20 0 -10 50 50 100 70 -40 -60 Bellman-Ford Example Source

  36. 40 60 20 20 -30 -10 20 0 -10 50 50 70 70 -40 -60 Bellman-Ford Example Source

  37. 40 60 20 20 -30 -10 20 0 -10 50 30 70 70 -40 -60 Bellman-Ford Example Source

  38. 40 50 20 20 -30 -10 20 0 -10 50 30 70 70 -40 -60 Bellman-Ford Example Source

  39. Kirk Phase 2 • Resolve threats and open conditions • Analogous to threats and open conditions in causal link planning • Identify intervals of inconsistent constraints using Floyd-Warshall • Order intervals to resolve threats • Close open conditions by making sure open conditions satisfied by some action in the plan

  40. Why This Paper? • It’s useful for our term project

  41. Vision • "Managing Multiple Tasks in Complex, Dynamic Environments" by Michael Freed (AAAI ’98). • Achieve goals in “task environments” • Complex • Time-pressured • Uncertain • Co-existing/Interacting

  42. APEX Goal: ATC • Goal: simulate human air traffic controllers • Largely routine activity • Complexity due to many simple tasks • Interruptions necessary

  43. APEX Goal: ATC

  44. APEX Goal: ATC

  45. APEX Goal: ATC

  46. Resource Conflicts • Separate tasks make incompatible demands • What to do? • Determine relative priority of tasks • Assign control to winner • Deal with the loser

  47. Conflict Resolution Strategies • Shed • Eliminate low importance tasks • When (Demand > Availability) • Delay/Interrupt • Introduces complications • Circumvent • Select methods that use different resources

  48. APEX Architecture: Two Parts • Resource Architecture • Set of resources • Cognitive • Perceptual • Motor • Action Selection Component Action Selection Component commands events Resource Architecture perception actuators World

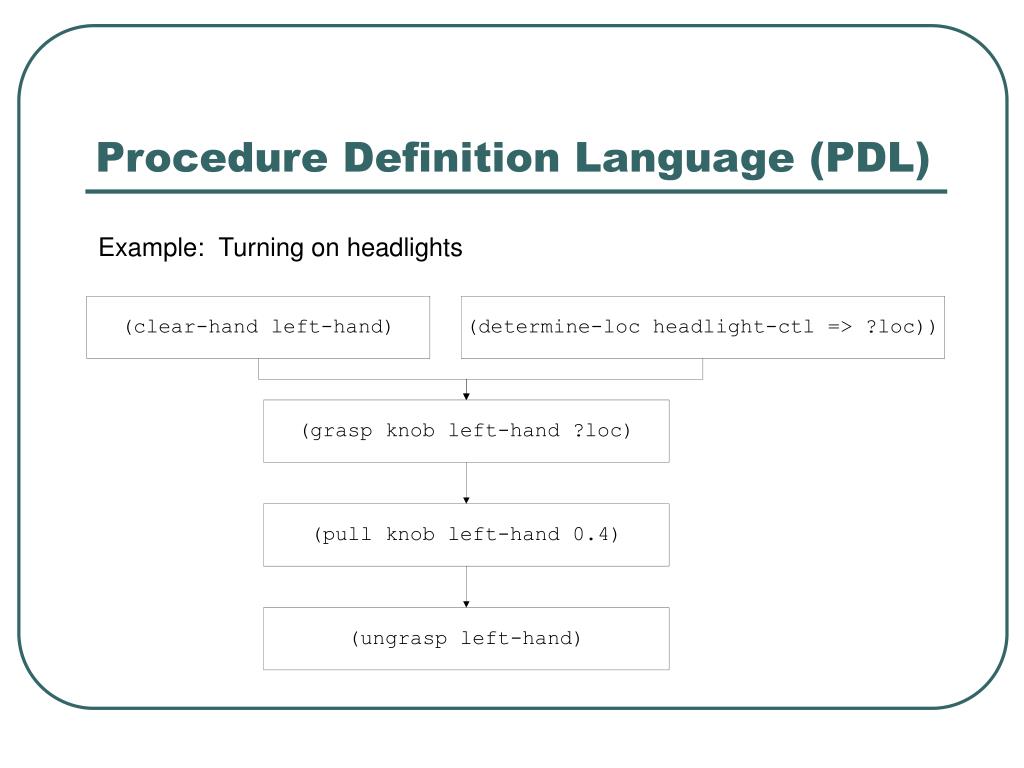

  49. Procedure Definition Language (PDL) Example: Turning on headlights

  50. Procedure Definition Language (PDL) (procedure (index (turn-on-headlights) (step s1 (clear-hand left-hand)) (step s2 (determine-loc headlight-ctl => ?loc)) (step s3 (grasp knob left-hand ?loc) (waitfor ?s1 ?s2)) (step s4 (pull knob left-hand 0.4) (waitfor ?s3)) (step s5 (ungrasp left-hand) (waitfor ?s4)) (step s6 (terminate) (waitfor ?s5))) Example: Turning on headlights
