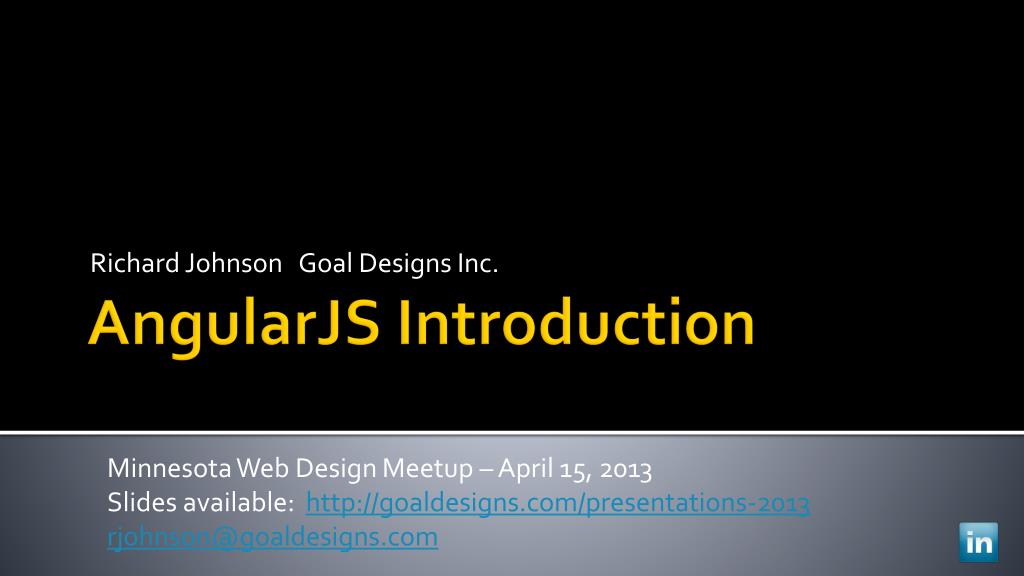

Richard Johnson Goal Designs Inc. AngularJS Introduction Minnesota Web Design Meetup – April 15, 2013 Slides available: http://goaldesigns.com/presentations-2013 rjohnson@goaldesigns.com
Early Web • Web designed for documents • Server creates pages / browser displays • Data input sent to and processed by the server • Updated pages created on the server and resent
First Example - PHP <!doctype html> <html> <head> </head> <body> <form method="post" action="hello.php"> <label>Name:</label> <input type="text" id="yourName”> <input type="submit" value="Say Hello" /> <hr> <?php echo "<h1>Hello ".$HTTP_POST_VARS["yourName"]."!</h1>"; ?> </form> </body> </html>
Web Evolution - AJAX • Interactive client-side web • Collect input from user • Update display • Communicate with server • Client-side processing enabled by • JavaScript • DOM manipulation • HTTP server messaging
First Example - jQuery <!doctype html> <html> <head> <script src="http://code.jquery.com/jquery-1.9.1.min.js"></script> <script type="text/javascript"> $(function() { $("#yourName").keyup(function () { $("#helloName").text("Hello " + this.value + "!"); }); }); </script> </head> <body> <div> <label>Name:</label> <input type="text" id="yourName"> <hr> <h1 id="helloName"></h1> </div> </body> </html>
jQuery • Simplifies event binding and DOM manipulation • Common API across multiple browsers • Supports plug-in modules to extend functionality • Requires writing JavaScript code to wire
Today’s Web – Can we do better? • Follow good programming practices • Separate: data / display / processing • Simplify connecting data to display • Let us focus on the technologies of the web • HTML • CSS • JavaScript
First Example - AngularJS <!doctype html> <html ng-app> <head> <script src="https://ajax.googleapis.com/ajax/libs/ ⬋ angularjs/1.0.6/angular.min.js"></script> </head> <body> <div> <label>Name:</label> <input type="text" ng-model="yourName"> <hr> <h1>Hello {{yourName}}!</h1> </div> </body> </html>
Imperative vs. Declarative • Compare jQuery imperative wiring • to AngularJS declarative relationships <input type="text" id="yourName"> <h1 id="helloName"></h1> <script type="text/javascript”> $(function() { $("#yourName").keyup(function () { $("#helloName").text("Hello " + this.value + "!"); }); }); </script> <input type="text" ng-model="yourName"> <h1>Hello {{yourName}}!</h1>
Abstractions • jQuery abstracts browser functionality • e.g. DOM traversal, event binding • AngularJS abstracts relationships (and more) • Note: AngularJS, and all web apps, are built on browser functionality
The DOM abstraction • HTML is a declarative document language • Browser translates HTML into a Document Object Model (DOM) • DOM is the browser’s in-memory document representation • JavaScript can manipulate the DOM
AngularJS “compiles” HTML • Browsers send a document (i.e. DOM) ready event • AngularJS can intercede and rewrite the DOM • The rewrite is driven by markup in the DOM
Model-View-Controller (MVC) • Software architectural pattern • Separates display from data • Originated with Smalltalk programmers • From work at Xerox PARC in the late 70’s • Models represent knowledge • Views provide a (visual) representation of attached model data • Controllers connect to and control views and models
MVC and Variations • Different variations of the pattern • Model-View-ViewModel (MVVM) • Model-View-Presenter (MVP) • Variations differ on… • … connectivity • … cardinality • … directionality
Model-View-Whatever “MVC vs MVVM vs MVP. What a controversial topic that many developers can spend hours and hours debating and arguing about.For several years AngularJS was closer to MVC (or rather one of its client-side variants), but over time and thanks to many refactorings and api improvements, it's now closer to MVVM – the $scope object could be considered the ViewModel that is being decorated by a function that we call a Controller. … I hereby declare AngularJS to be MVW framework - Model-View-Whatever. …” Igor Minar – Google AngularJS Development Team
Alternative MV* Frameworks • Backbone.js • Ember.js • Knockout • Others • Summary from 2012 Throne of JS conference
Library vs. Framework • Library (Backbone and Knockout) • passive functionality • invoked by the application • Framework (Ember) • provides application architecture • handles common requirements • invokes application code • AngularJS is closer to a framework
One (biased?) data point • *I ported my Backbone application to angular. The Code size went down from 5k lines of code to guess what? 750 lines. Not just that.. The code is much cleaner.. Earlier, there was a huge technical debt attached to this implementation in backbone.. Each time I had to sit with it. It took me quite a while to understand all the hooks and how the individual models and classes and views interacted together.. ..Now its a breeze.. * • http://stackoverflow.com/a/10264263
My AngularJS Discovery • Working with AJAX in mid-2011 • XML for data • XSLT to map XML data to HTML • Considered changing to JSON • Found a link to AngularJS(alpha)
Getting started • AngularJS website: angularjs.org • Examples are live • Phonecat tutorial is worthwhile • My “goto” sources: • Developer guide • API reference
What Makes an AngularJS App? • Load AngularJS <script src="https://ajax.googleapis.com/ajax/libs/ angularjs/1.0.6/angular.min.js"></script> • Bootstrap <html ng-app> • Declare relationships ng-model="yourName” {{yourName}}
Scope • One created with each controller • Prototypically inherits from parent • AngularJS has a root scope • Can create isolated scopes (e.g. in directive)
2-way Data Binding • Automatic propagation of data changes • Model is single source of truth • Digest cycle
Controller • Contains the code behind the view • Try to keep lightweight
Our early AngularJS example • Added to a WordPress site • Custom theme • Page templates with shortcodes • Built summer 2012 (just as AngularJS 1.0 shipped) • Created order form and product location pages Note – it’s a live site (and good wine ) • Too much code in the controller - modularize
Forms • Provides declarative form validation • Input fields declared as: required, email • Form has flags for: $valid, $dirty • Usable as a standalone validation library
Using Directives • Directives enhance HTML • Custom element name or attribute (also class and comment) • AngularJS provides over 50 • form – element directive • ng-repeat – attribute directive (it’s amazing!)
Filters • Declarative way to • format displayed data • filter and sort data arrays
Services • Software architectural components • Services provide data and compute • Exist across views • Depend on other services • AngularJS has 20+ • $http – service to communicate with servers
Server Communication $http({method: ‘GET’, url: fetchUrl}) .success(function(data, status) { // process the data here }) .error(function(data, status) { // error handling }); • $http service • Input config object • Returns promise • Communication is asynchronous
Promises • Promises represent result of an action • Particularly used with asynchronous actions • They are either resolved or rejected
Dependency Injection (DI) • DI is a software architectural pattern • Separation of concerns • Service creation independent from usage • Good for • Modular code • Allows AngularJS to wire in correct order • Supports substitution (for patching and testing)
DI and JavaScript Minification • Services identified by parameter name • Minification obfuscates the name • Pass names as strings in array angular.module('GoaleryServices') .factory('StatusManager', [ 'CloudLogin', '$q', function (cloudLogin, $q) { …
AngularJS is pure JavaScript • Prototype-based scripting language • Dynamic, weakly typed, first-class functions • Great JavaScript book: • Crockford (2008) JavaScript: The Good Parts – O’Reilly
Testing AngularJS Apps • JavaScript doesn’t have a compiler • Must execute code to test • Testability was a fundamental objective of AngularJS • MiškoHevery (AngularJS creator) • Previously created JsTestDriver
AngularJS supports testing • Unit testing support • JsTestDriver • Jasmine • DI allows substituting mocks for hard to test code • Server communication • Logging • Angular Scenario Runner – E2E testing • Simulates user interations
Building Web Apps • Single web page • Loads the base HTML and included sources once • App changes views dynamically • Server is called upon when needed • Prefer using asynchronous server calls • Data changes • Fetch more data
Templates • Declarative view specification • HTML augmented with: • Directives, Markup, Filter, Form Controls • Loaded either • with a simple single web page • dynamically into a view as partials
URL Routing • Define the mapping from URL to view • Can also bind controller • Define URL parameters $routeProvider.when('/Book/:bookId', { templateUrl: 'book.html', controller: BookCntl }); $routeProvider.when('/Book/:bookId/ch/:chapterId', { templateUrl: 'chapter.html', controller: ChapterCntl });
Deep Linking • AngularJS navigation updates the browser address bar • Uses the HTML5 history API – fallback to hash-bang (#!) URL • Users can link to pages in you app • Server must recognize the link pattern and serve the application
Creating Directives • Directives package reusable HTML • Naming nuance: “myDir” becomes “my-dir” • Conceptual compile and link phases • Can specify: scope, binding, restrictions, etc • Supports transclusion • Consider creating a custom DSL
Modules • Packaging of JavaScript code • Modules declare dependencies • AngularJS instantiates in correct order • Provides separation of namespaces
AngularJS • Open source – MIT License • Built by Google and community • 1.0 released June 2012 • 1.0.6 current (April 2013) • http://angularjs.org/
Versions • AngularJS 1.0.X are considered stable production releases • Contains bug fixes and documentation updates • AngularJS 1.1.X is unstable development • Next stable feature release will be 1.2.X • Available on the Google CDN • https://ajax.googleapis.com/ajax/libs/angularjs/1.0.6/angular.js • Both full source and minified (angular.min.js)
jQuery integration • AngularJS includes a jQuery “lite” • Provides the minimal features directly used • Including jQuery will be used instead • Note – jQuery must be included before AngularJS
Browser support • Chrome • Internet Explorer 9+ (others see next slide) • Firefox • Safari • Opera • mobile browsers (Android, Chrome Mobile, iOS Safari)
Internet Explorer 8 and earlier • IE 8 is officially supported and tested • Declare custom element tags • Routing uses #! mode (IE9 also has no HTML 5 history) • A few other XML namespace declarations • See http://docs.angularjs.org/guide/ie • IE 6 & 7 support is possible “in theory” • Google doesn’t test these versions • < 1% of U.S. browsers (March 2013)
