Layout Considerations of Non-Isolated Switching Mode Power Supply

1. Layout Considerations of Non-Isolated Switching Mode Power Supply Presented by Henry Zhang Power Business Unit Linear Technology Corp. Oct. 2003

2. 1. General Discussion

3. Plan of the Power Supply Layout • In the system, power supply should be close to • its load devices. • Cooling fan should be close to the supply to limit • its component thermal stress. • Select the right number of layers and copper thickness • The large size passive components (inductors, bulk • capacitors) should not block air flow to power MOSFETs • Power supply designer should always works closely with • PCB designer on the critical layout design

4. Desired Layer #1 – Power Component Layer #2 – GND Layer #3 – Small Signal Layer #4 – Small signal / controller • Place ground or DC voltage layer between power layer and small signal layer 4-Layer PCB – Layer Placement Undesired Layer #1 – Power Component Layer #2 – Small Signal Layer #3 – GND Layer #4 – Small signal / controller Power Signal GND PCB capacitance High current loop Pulsating current loop

5. 6-Layer PCB - Layer Placement Undesired Desired Layer #1 – Power Component Layer #1 – Power Component Layer #2 – Small signal Layer #2 – GND plane Layer #3 – GND plane Layer #3 – Small Signal Layer #4 – DC Voltage or GND plane Layer #4 – Small Signal Layer #5 – Small signal Layer #5 – DC Voltage or GND plane Layer #6 – Power Component / Controller Layer #6 – Power Component / Controller • DC power and ground planes function as AC reference planes. • As a general rule, the reference planes of a multi-layer PCB design should not be segmented.

6. Desired Undesired Reference Layer Reference Layer current current PWM IC MOSFET Coupled AC current return path Small Signal Traces on Reference Layer • If the small signal traces have to be routed on the reference layer, use short traces with proper direction:

7. Example: 1 Oz copper (1.4 mil thick), 0.5 inch wide (500mils), 2 inches long (2000mils), at 70 oC with 20A current: Rcopper = 2.3 m, Vcopper=46mV, Ploss=0.92W High current application - Recommend 2 oz or higher for external power layers Copper Thickness and PCB Resistance Copper resistivity (/cm): T – Copper temperature in oC Resistance of copper:

8. 2. DC/DC Converter Power Stage Layout

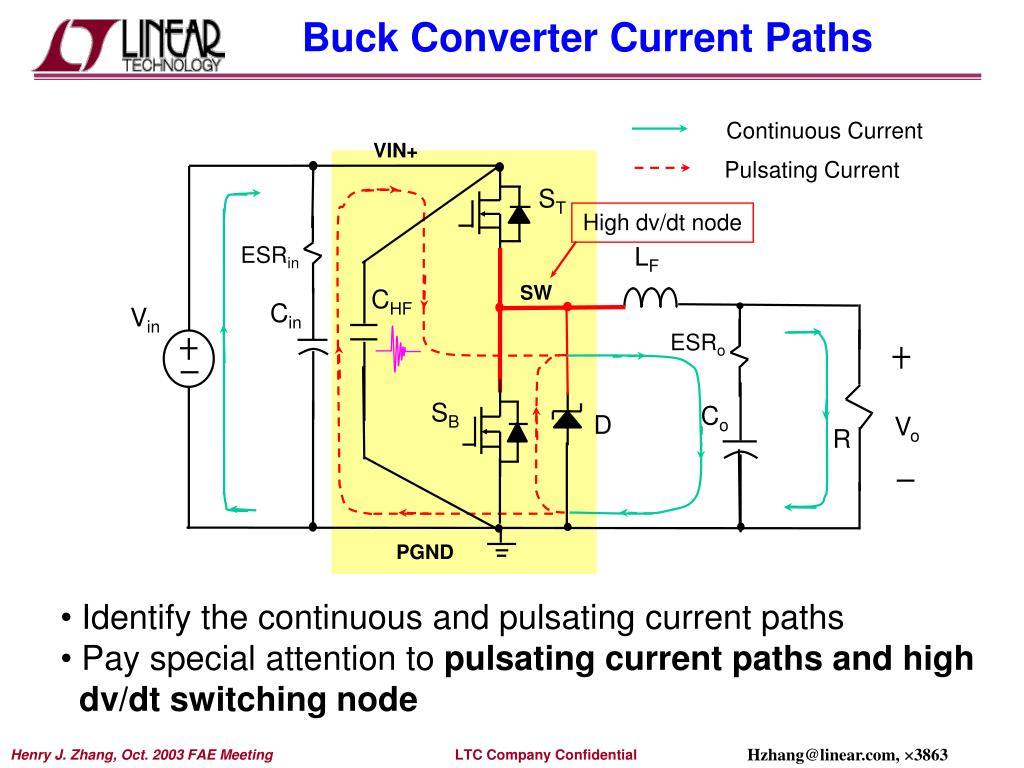

9. VIN+ ST High dv/dt node ESRin LF SW CHF Cin Vin ESRo SB Co D Vo R PGND Buck Converter Current Paths Continuous Current Pulsating Current • Identify the continuous and pulsating current paths • Pay special attention to pulsating current paths and high • dv/dt switching node

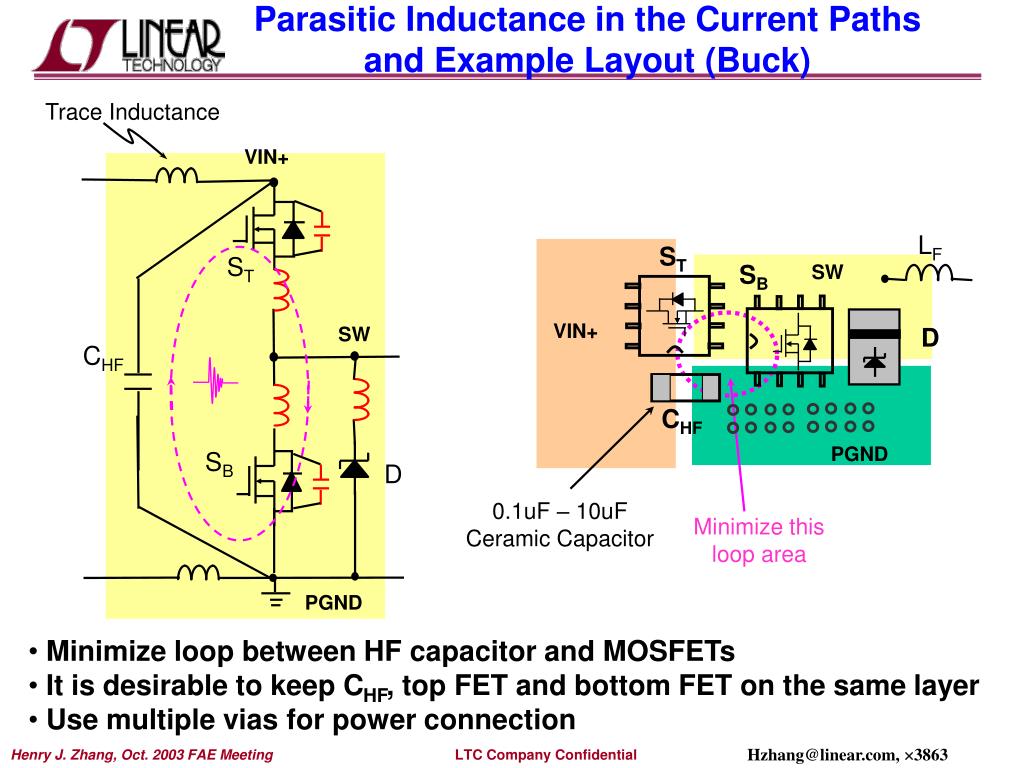

10. Trace Inductance VIN+ LF ST ST SB SW VIN+ D SW CHF CHF PGND SB D 0.1uF – 10uF Ceramic Capacitor Minimize this loop area PGND Parasitic Inductance in the Current Pathsand Example Layout (Buck) • Minimize loop between HF capacitor and MOSFETs • It is desirable to keep CHF, top FET and bottom FET on the same layer • Use multiple vias for power connection

11. Boost Converter Current Paths Continue Current High dv/dt node Pulsating Current LF D SW Vo+ Vo VIN CHF CIN Co SB Load PGND • Minimize the critical pulsating current loop on the output side

12. LF LF D SB SW SW D CHF Vo+ SB CHF PGND 0.1uF – 10uF Ceramic Capacitor Minimize this loop area PGND (b) (a) Output Noise Decoupling Capacitor (Boost) • Minimize the critical pulsating current loop on the output side

13. 12V-to-2.5V/30A LTC3729 Supply Layout Example VIN+ (12V) VO+ (2.5V) LF1 QT CIN SW1 LTC3729 Co QB GND GND Co SW2 VIN+ VO+ (2.5V) (a)

14. Noise Problem @ Heavy Load Io = 0A Io >= 13.3 A vSW1 iLF1 vSW2 (c) (b)

15. Add 1uF/16V/X7R Io = 30 A Input Ceramic Capacitors Make a Difference (a) Io = 0A vSW1 iLF1 vSW2 (b) (c)

16. Desired - + R/C/D/L C - + C R/C/D/L FET Connected Via • Use wide / short copper trace for power components • Use multiple vias for inter-layer connections • Avoid improper use of “thermal relief” • Minimize resistance and inductance Land Patterns of Power Components Undesired Connected Via

17. 3.3V/40A LTC3729 Layout Design Example High Current Trace

18. Air Flow Vo D GND L2 Vo Vin QB1 QB1 CHF1 Rsen2 Cout SW1 QT1 Rsen1 L1 Cout CIN D GND Cout Cout GND GND QB1 QB1 CIN CHF1 VIN L2 SW1 Rsen2 QT1 QT2 Rsen1 SW2 Cout CHF2 QB2 QB2 L1 GND D Internal GND Layer Internal GND Layer Examples of a 2-Phase DC/DC Power Stage

19. Separation of Input Paths Among Supplies Desired Undesired RPCB1 RPCB DC/DC #1 Cin Cin RPCB2 DC/DC #1 DC/DC #2 PGND PGND PGND DC/DC #2 PGND

20. 3. Layout of the Controller and MOSFET Drivers

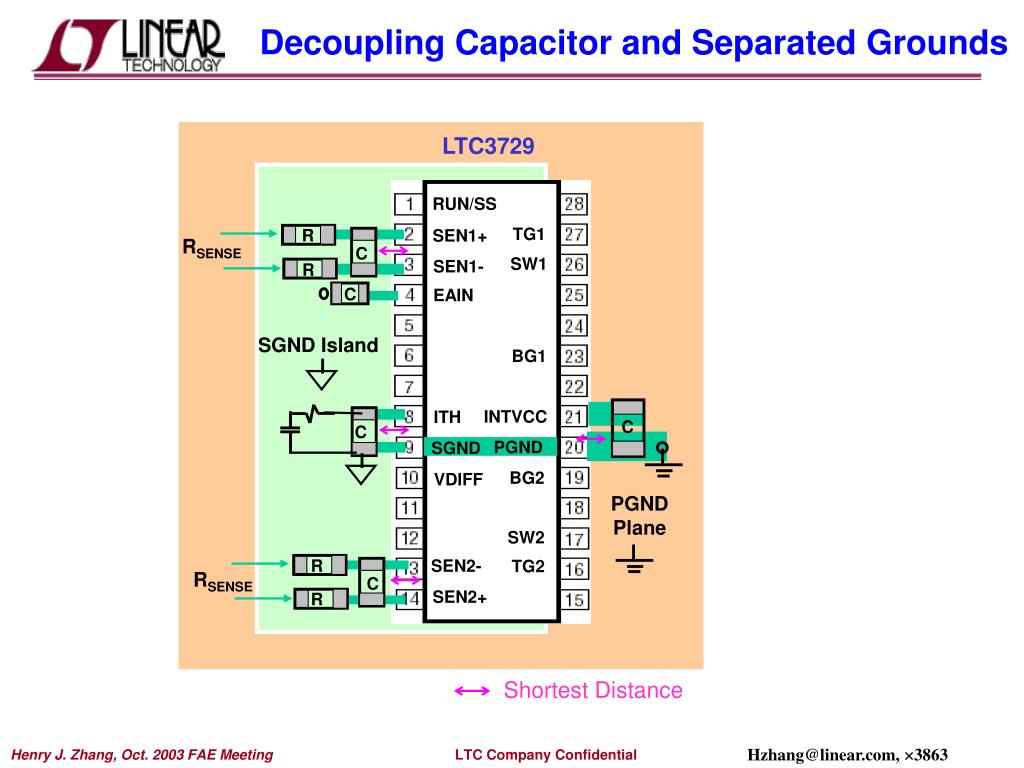

21. Decoupling Capacitor and Separated Grounds LTC3729 RUN/SS TG1 R SEN1+ RSENSE C SW1 SEN1- R C EAIN SGND Island BG1 INTVCC ITH C C PGND SGND BG2 VDIFF PGND Plane SW2 R SEN2- TG2 RSENSE C SEN2+ R Shortest Distance

22. Signal Ground and Power Ground • Components connected to following pins use SGND: - EAIN, RUN/SS, ITH, UVADJ, PHAMD, PLLIN, PLLFTR, FCB, CLKOUT • Components connected to following pins use PGND: - BOOST, +5V, PGND • The SGND and PGND can be tied together underneath the IC.

23. Example LTC3731 PGND SGND SGND INTVCC C PGND PGND Vias Vias QFN Package Controller Layout • Exposed SGND pad must be soldered to PCB • Use multiple vias to connect SGND pad to both SGND and PGND layers • PGND pin also connects to SGND pad underneath the IC

24. Gate Driver Traces LTC3729 Route together QT BOOST1 TG1 SW1 INTVCC BG1 QB C PGND Automatically coupled AC ground return current PGND Plane

25. IC Signal Trace Width Following are the trace width values we use in Polyphase demo board: 20 mils – TG, BG, SW 25 mils - +5V, Vcc, PGND 15 mils – Current sensing, feedback, ITH, etc. 10 mils – Short traces that directly connected to IC pads

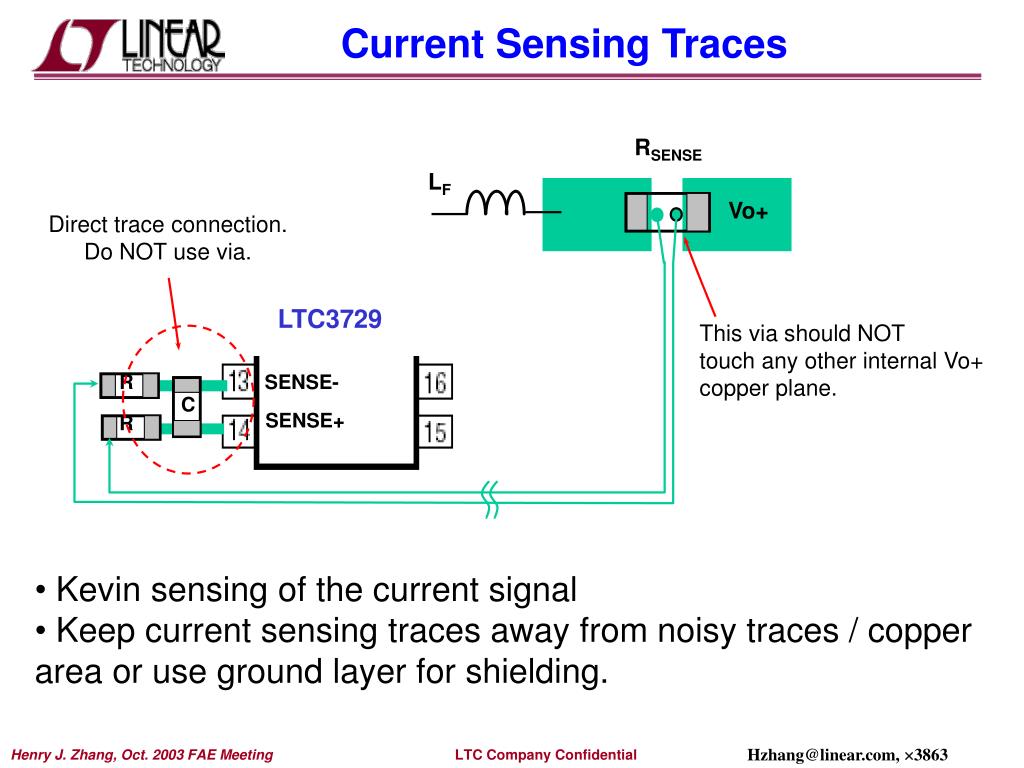

26. Current Sensing Traces RSENSE LF Vo+ Direct trace connection. Do NOT use via. LTC3729 This via should NOT touch any other internal Vo+ copper plane. R SENSE- C SENSE+ R • Kevin sensing of the current signal • Keep current sensing traces away from noisy traces / copper area or use ground layer for shielding.

27. Sensitive Traces and Noisy Traces • Most sensitive traces: • Current sensing (SENSE+/-), EAIN, ITH, SGND • Sense+ / - traces for each channel should be routed together • With minimum trace spacing. The filter capacitor should be as close to • IC pins as possible. The filter resistor should be close to filter capacitor. • Keep sensitive traces away from noisy traces. • Sensitive traces: Vos+/-, DIFFOUT, PLLFTR, CLKOUT • CLKOUT is a sensitive trace but it is also a noisy trace. So keep it away from • other small signal sensitive traces. • Most noisy traces: SW, TG, BOOST, BG • Keep them away from sensitive traces. • Avoid overlapping between large SW copper area and sensitive traces in two • neighborhood layers. • - For each channel, route the SW and TG trace together with minimum space.

28. Summary - Layout Checklist • Plan of the layout: • Location of the supply / load / bulk capacitors • # of layers / layer placement / copper thickness • Power stage layout: • Power component placement • Power component land patterns • Identify pulsating current paths • Decouple capacitor close to MOSFET • Short / wide copper trace and multiple vias for high current • Controller circuit layout: • Decoupling capacitors close to pins • Separate signal / power grounds • Current sensing • De-couple sensitive and noisy traces • Gate driver traces • Select proper trace width
