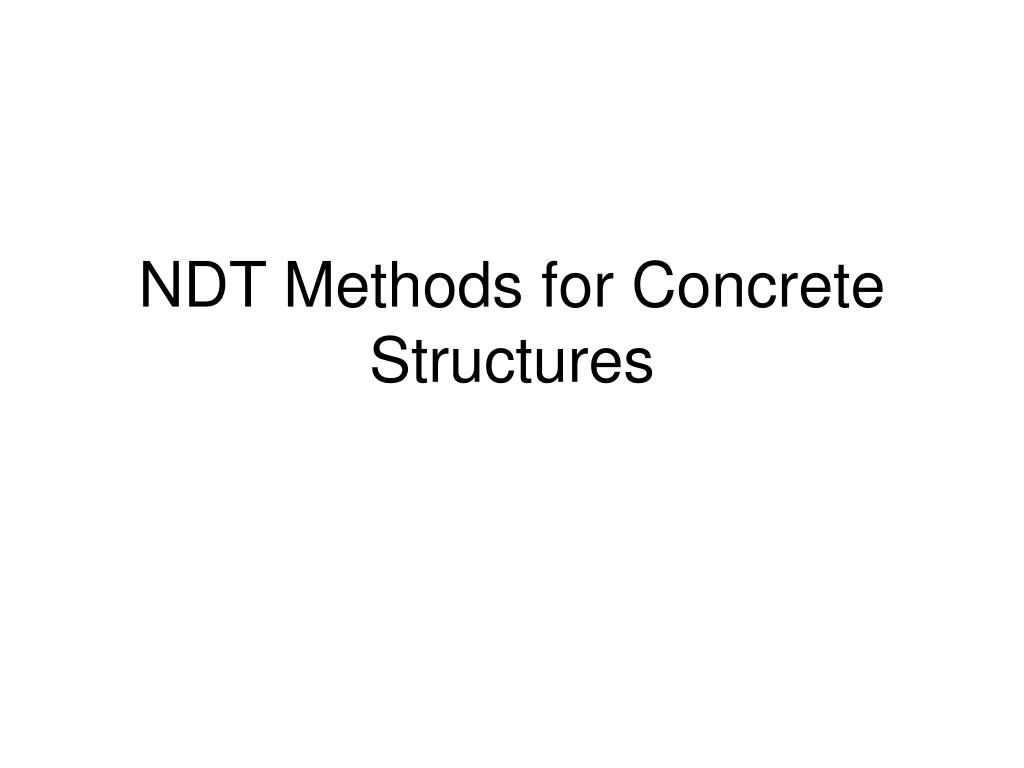

  1. NDT Methods for Concrete Structures

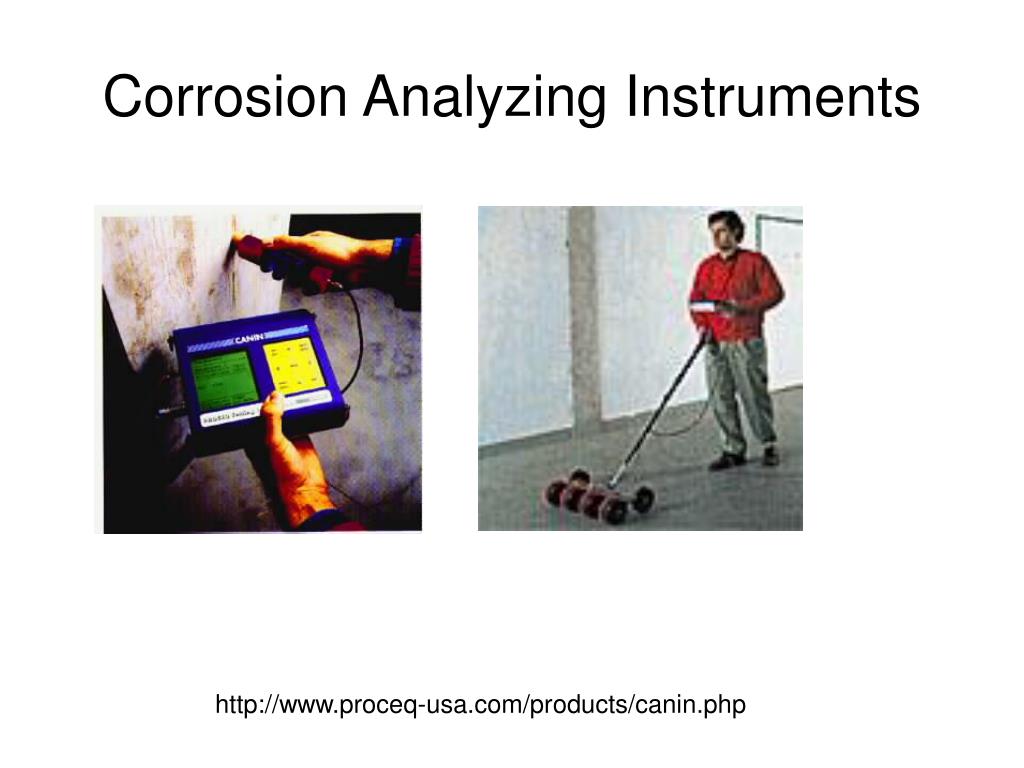

  2. Corrosion Analyzing Instruments http://www.proceq-usa.com/products/canin.php

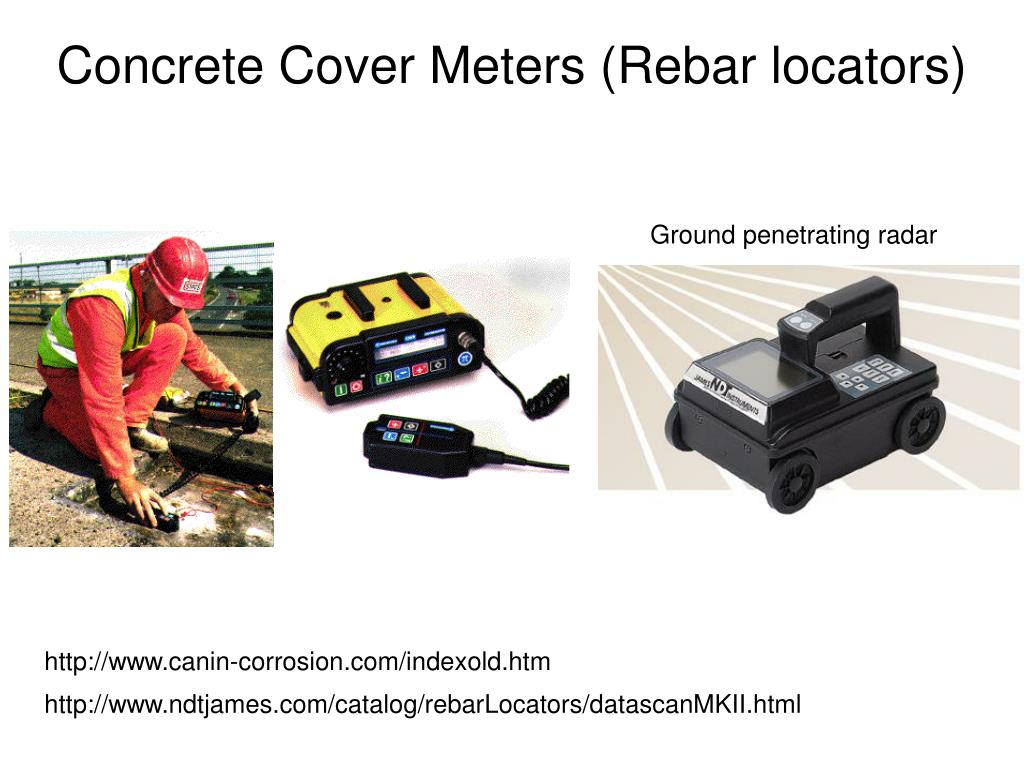

  3. Concrete Cover Meters (Rebar locators) Ground penetrating radar http://www.canin-corrosion.com/indexold.htm http://www.ndtjames.com/catalog/rebarLocators/datascanMKII.html

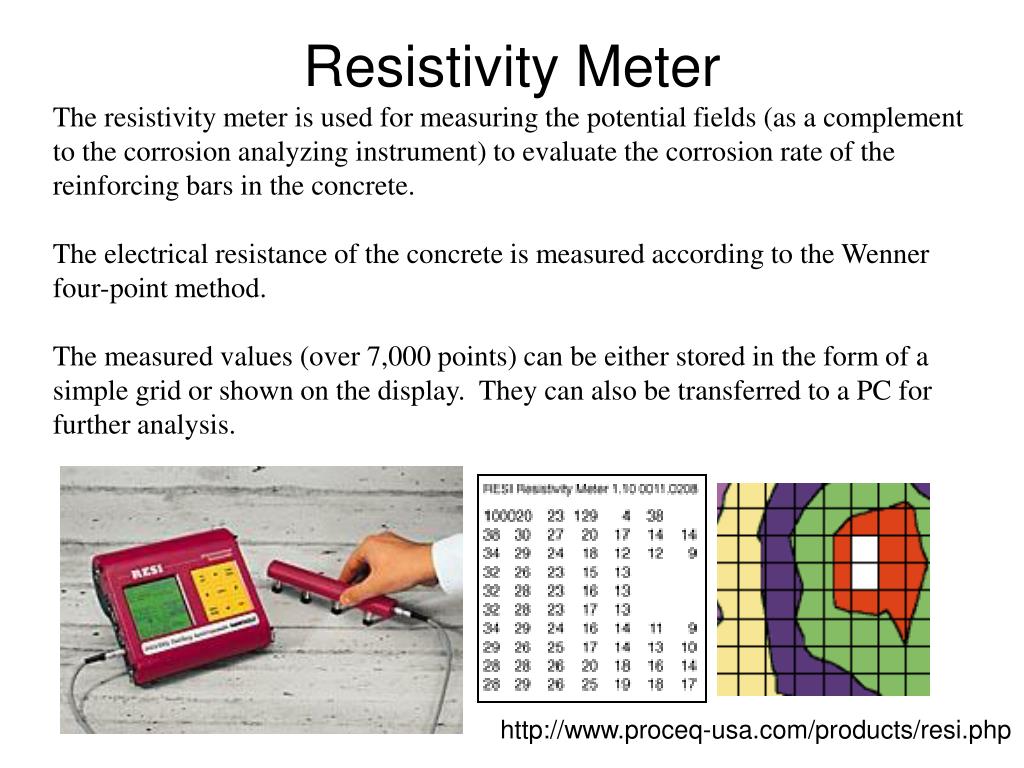

  4. Resistivity Meter http://www.proceq-usa.com/products/resi.php

  5. Ultrasonic testing instruments http://www.procequsa.com/products/tico.php

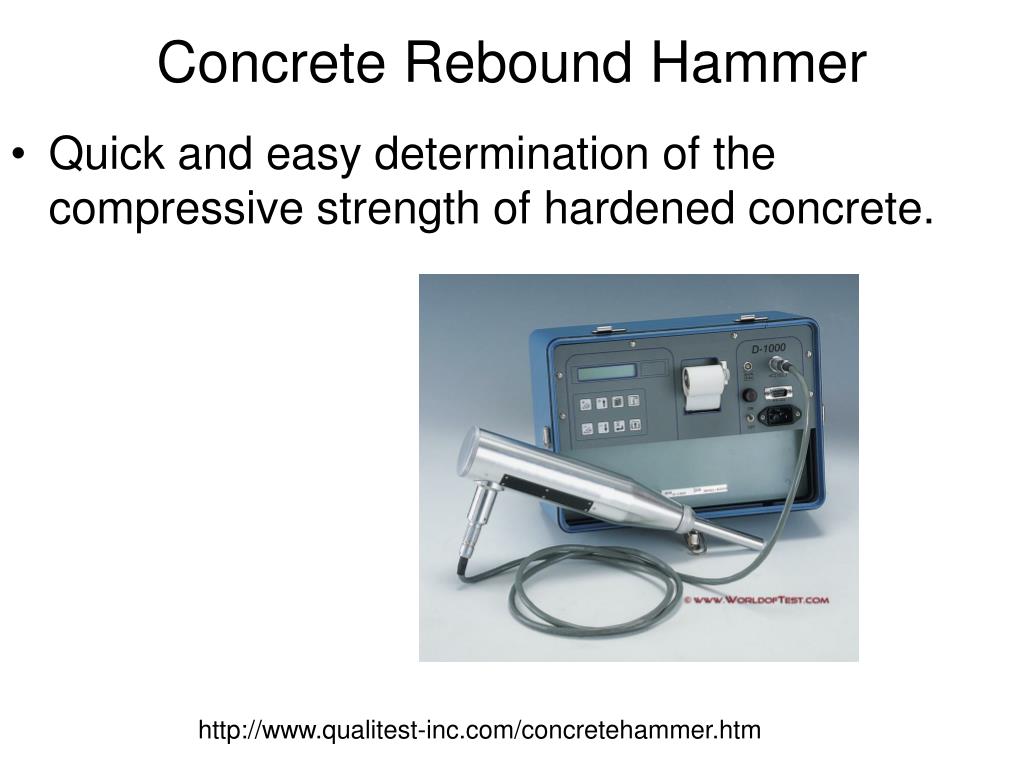

  6. Concrete Rebound Hammer • Quick and easy determination of the compressive strength of hardened concrete. http://www.qualitest-inc.com/concretehammer.htm

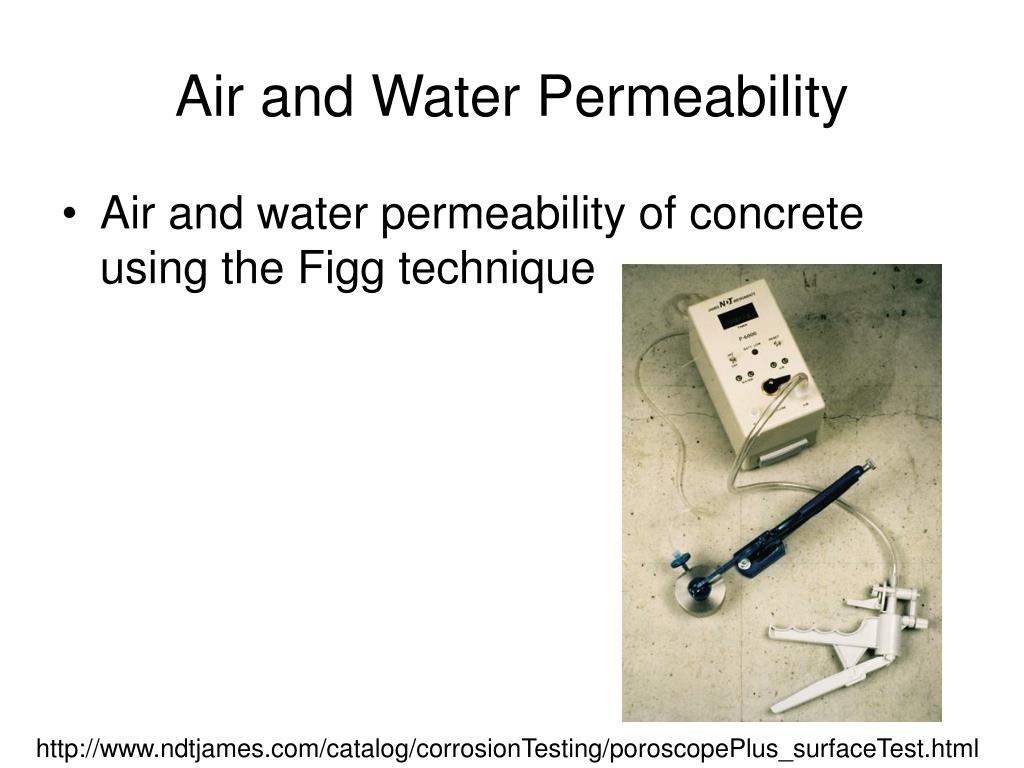

  7. Air and Water Permeability • Air and water permeability of concrete using the Figg technique http://www.ndtjames.com/catalog/corrosionTesting/poroscopePlus_surfaceTest.html

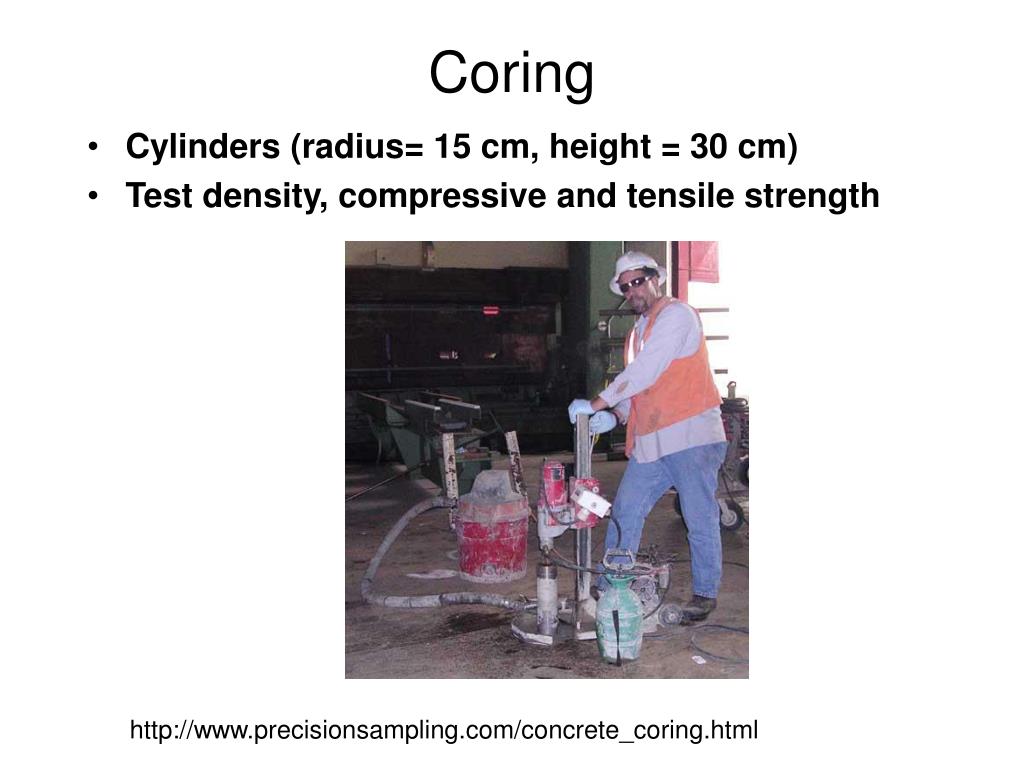

  8. Coring • Cylinders (radius= 15 cm, height = 30 cm) • Test density, compressive and tensile strength http://www.precisionsampling.com/concrete_coring.html

  9. Pull-off Test In-Situ Adhesion Testing of Concrete Surface Repairs http://www.proceq-usa.com/products/pulloffdyna.php http://www.qub.ac.uk/civeng/research/Intro/research_areas/in_situ/repair.html
