  1. GENERICITY New Metadata Concepts Applied to SAS Macro Programming Wolf-Dieter Batz: New Metadata Concepts

  2. Preface What it is and what it is not This paper presents part of my experiences using SAS Macro technology over years with great pleasure and, occasionally, with some success, at least for customer satisfaction. Starting with an example from an earlier presentation the question is raised, how the positive correlation between program flexibility and number of parameters can be extinguished. By introducing the term “Reporting Specific Data Structures” one idea is described that allows to make use from metadata already present in the runtime environment. This paper is NOT about Programming using the SAS Macro Facility. Wolf-Dieter Batz: New Metadata Concepts

  3. Generic Programming %MACROcr_tbl_4_fct; %GLOBAL fctsrctblotb; %LOCAL i_frq n_frq l_frq i_ctl n_ctl l_ctl; %IF %SCAN(&FCT.,1,'_') eq PRR %THEN %DO; /* start PRR main loop */ %LET n_frq = %SCAN(&FCT.,2,'_'); %LET n_ctl = %SCAN(&FCT.,3,'_'); procsqlnoprint; select name into :p_key from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumeq1 ; select name , name into :l_frq separated by ' ' , :l2frq separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumgt1 and varnum le %EVAL(&N_FRQ. + 1) ; insert into header values("PRR values calculated for &L2FRQ."); select name , name into :l_ctl separated by ' , ' , :l2ctl separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumgt %EVAL(&N_FRQ. + 1) and varnum le %EVAL(&N_FRQ. + &N_CTL. + 1) ; insert into footer values("Stratification performed by: &L2CTL."); insert into footer select compbl(put(count(*),8.)||" lines processed from %UPCASE(&DB_USR.).&TBL.") from &SRC..&TBL. ; insert into footer select compbl("Frequency tables based on "||put(count(distinct &P_KEY.),8.)||" distinct values from field &P_KEY.") from &SRC..&TBL. ; create table &SRC..c_frq as select distinct %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; , %END; %SCAN(&L_FRQ.,&I_FRQ.,' ') %END; from &SRC..&TBL. where %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; and %END; %SCAN(&L_FRQ.,&I_FRQ.,' ') is not null %END; ; %LET n_c_frq = &SQLOBS.; insert into footer values("&N_C_FRQ. combinations from &L2FRQ. processed"); quit; data _null_; set &SRC..c_frq; %DO i_frq = 1 %TO &N_FRQ.; call symput("%SCAN(&L_FRQ.,&I_FRQ.,' ')"||'_'||trim(left(put(_N_,4.))),trim(left(%SCAN(&L_FRQ.,&I_FRQ.,' ')))); %END; run; %DO i_c_frq = 1 %TO &N_C_FRQ.; /* start FREQ loop */ procsql; create view WORK.tbl as select distinct &P_KEY. , %DO i_frq = 1 %TO &N_FRQ.; %LET %SCAN(&L_FRQ.,&I_FRQ.,' ') = %QUOTE(&&%SCAN(&L_FRQ.,&I_FRQ.,' ')_&I_C_FRQ.); case when sum( %SCAN(&L_FRQ.,&I_FRQ.,' ') = "&&%SCAN(&L_FRQ.,&I_FRQ.,' ')" ) > 0 then -1 else 0 end as %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk , %END; &L_CTL. from &SRC..&TBL. group by &P_KEY. ; quit; procfreqnoprint data = WORK.tbl; tables &L2CTL. %DO i_frq = 1 %TO &N_FRQ.; %STR(*) %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / cmh1 ; output out = WORK.cmh(keep = _mhrrc1_ l_mhrrc1 u_mhrrc1) cmh1; run; procfreqnoprint data = WORK.tbl; tables %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; %STR(*) %END; %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / cmh1 ; output out = WORK.cmc(keep = l_mhrrc1 u_mhrrc1) cmh1; run; procfreqnoprint data = WORK.tbl; tables %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; %STR(*) %END; %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / sparse out = WORK.cnt(keep = count) ; run; proc transpose data = WORK.cnt out = WORK.trp; run; data WORK.res; merge WORK.trpWORK.cmhWORK.cmc(rename=(l_mhrrc1=l_mhrrcx u_mhrrc1=u_mhrrcx)); run; procsqlnoprint; create table WORK.out as select %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; , %END; "&&%SCAN(&L_FRQ.,&I_FRQ.,' ')" as %SCAN(&L_FRQ.,&I_FRQ.,' ') %END; , col1 as a label = "cell A" , col3 as b label = "cell B" , col2 as c label = "cell C" , col4 as d label = "cell D" , (a/c)*((c+d)/(a+b)) as cmh_crude label = "PRR crude" , l_mhrrcx as cmhlcrude label = "PRR crude lower CL" , u_mhrrcx as cmhucrude label = "PRR crude upper CL" , _mhrrc1_ as cmh_strat label = "PRR stratified" , l_mhrrc1 as cmhlstrat label = "PRR stratified lower CL" , u_mhrrc1 as cmhustrat label = "PRR stratified upper CL" from WORK.res ; %IF &I_C_FRQ. = 1 %THEN %DO; drop table &SRC..&TBL.%SCAN(&FCT.,1,_); %END; create table &SRC..&TBL.%SCAN(&FCT.,1,_) as %IF &I_C_FRQ. > 1 %THEN %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) union %END; select * from out ; quit; %END; /* end FREQ loop */ procsql; create table &SRC..&TBL.%SCAN(&FCT.,1,_) as %IF %SUBSTR(&RST.,2,1) ne C %THEN %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) as tbl %IF %SUBSTR(&RST.,1,1) ne R %THEN %DO; right %END; join &SRC..&TBL. as fct on %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; and %END; fct.%SCAN(&L_FRQ.,&I_FRQ.,' ') = tbl.%SCAN(&L_FRQ.,&I_FRQ.,' ') %END; %END; %ELSE %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) %END; ; quit; %LET otb = &TBL.; %LET tbl = &TBL.%SCAN(&FCT.,1,_); %END; /* end PRR main loop */ %MEND cr_tbl_4_fct; Concept + Metadata Wolf-Dieter Batz: New Metadata Concepts

  4. Never forget “A problem well stated is a problem half solved“ Charles Kettering (1876-1958) Founder of the General Motors Research Corporation Wolf-Dieter Batz: New Metadata Concepts

  5. Np = f(F) Number of Parameters Flexibility Wolf-Dieter Batz: New Metadata Concepts

  6. Intro • When producing reports • You might end up with • One appropriately sized program per report • One somehow macroized program per report type • One Macro System for reporting domains Wolf-Dieter Batz: New Metadata Concepts

  7. Start For example: Wolf-Dieter Batz: New Metadata Concepts

  8. This Quest Wolf-Dieter Batz: New Metadata Concepts

  9. Macro System generated by a single macro system Wolf-Dieter Batz: New Metadata Concepts

  10. System Architecture User Modules Generate datasets carrying subtables controlled by user-supplied parms Core Modules Perform input transformation, calculations and output transformation Info Modules Provide information about datasets and variables for correct processing Service Modules Provide frequently requested tasks in a standard format with limited parameter set Wolf-Dieter Batz: New Metadata Concepts

  11. Program Controlling Required already a few parameters Wolf-Dieter Batz: New Metadata Concepts

  12. full parameter set – user modules %TWO_BOBO() – Build super row (=block) from boolean selections nested in boolean selection dsn input dataset name row, row2 categorial variable name, 2=list of nested_var#true_value rev Y/N (output decodes of &ROW in reverse order) use, use2 select decode from &ROW, 2=decode from &ROW used as nesting context weight Y/N (multiply percentages for &ROW and &ROW2) col categorial variable name used for columns total T/I/B/O/N/TC/IC/BC/OC/NC head, head2 Y/N (block header, 2=nested variable) indent, indinc n (number of indent columns and increment for nested variable) num n (sequence number of output) stat Y/N (column with statistics names) space 1/2/3 (blank line before or after output and between nesting levels) struct, struct2 name of reference dataset used for full decode structure, 2=nested variable condense var#value (non-distinct variable and true value for &ROW) misslin2 Y/N (force missing line for nested variable) Wolf-Dieter Batz: New Metadata Concepts

  13. user parameters - common DSN: Name of input dataset or view. This may be any valid SAS dataset name (one-level or two-level) not accompanied by dataset options or other SAS syntax components. COL: Name of variable used to construct columns. The variable is checked for number of levels and an appropriate number of columns are generated. ROW: Name of variable to construct rows, superrows, and subtables. Modules capable of processing more than one variable accept a list here. HEAD: Optionally specify “N” to suppress output of the header line for the row variable generated from their label. In categorial processing the header is an additional 1st line whereas in continuous processing the header text is written left-hand to the 1st stats line output. Default is “Y”. STAT: Optionally select “Y” to generate an output column which contains the names of statistics generated. Default is “N”. INDENT: Optionally select a positive integer to indent the rows generated as one block. Default is “0”. SPACE: Optionally select spacing mode for one-level subtables: 0=no blank lines; 1=1st output line is blank; 2=last output line is blank. Default is “2”. For two-level subtables: 2=insert additional blank line between upper and lower level output; 3=only last output line is a blank line. Default is “3”. NUM: Assigns a unique number to the output generated. Only one digit is allowed here. Wolf-Dieter Batz: New Metadata Concepts

  14. Not amused • This appears quite complicated • Isn’t there another way • To have limited source code • With a high level of flexibility • And not to drown in parameter flood • Let’s have a closer look… Wolf-Dieter Batz: New Metadata Concepts

  15. Talk to me • When running macro programs • You may influence results on several levels • Parameter passing (“feed”) • Controlling (“feed and prevent”) • Communication (“feed, prevent and search”) Wolf-Dieter Batz: New Metadata Concepts

  16. Search • Make your Macro a curious Communicator • Implement a search mechanism that • makes it follow a set of rules • provides or • generates knowledge on metadata in reach • is fault-tolerant Wolf-Dieter Batz: New Metadata Concepts

  17. Search • Of course, this should be a Macro because you want to • do it once • do it generic • use it forever Wolf-Dieter Batz: New Metadata Concepts

  18. Metadata • Metadata are all around • Simple variable lists: “-NUMERIC-” • Libref “dictionary”: tables, columns, etc. • User defined repositories of any kind Wolf-Dieter Batz: New Metadata Concepts

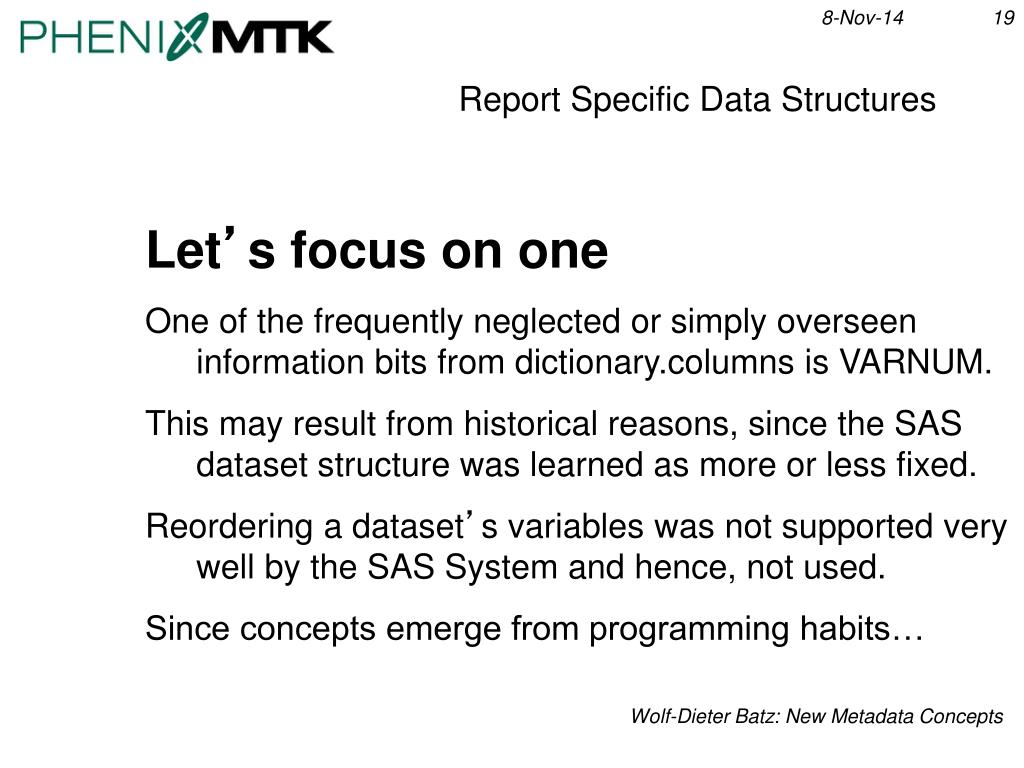

  19. Report Specific Data Structures Let’s focus on one One of the frequently neglected or simply overseen information bits from dictionary.columns is VARNUM. This may result from historical reasons, since the SAS dataset structure was learned as more or less fixed. Reordering a dataset’s variables was not supported very well by the SAS System and hence, not used. Since concepts emerge from programming habits… Wolf-Dieter Batz: New Metadata Concepts

  20. Report Specific Data Structures SQL Views Today, since 1990, it is very easy to reorder the “virtual physical” sequence of variables in a dataset. The SAS System treats the properties of an SQL view equally to those of an old-fashioned somewhat “clumsy” SAS Dataset. This is good News! Wolf-Dieter Batz: New Metadata Concepts

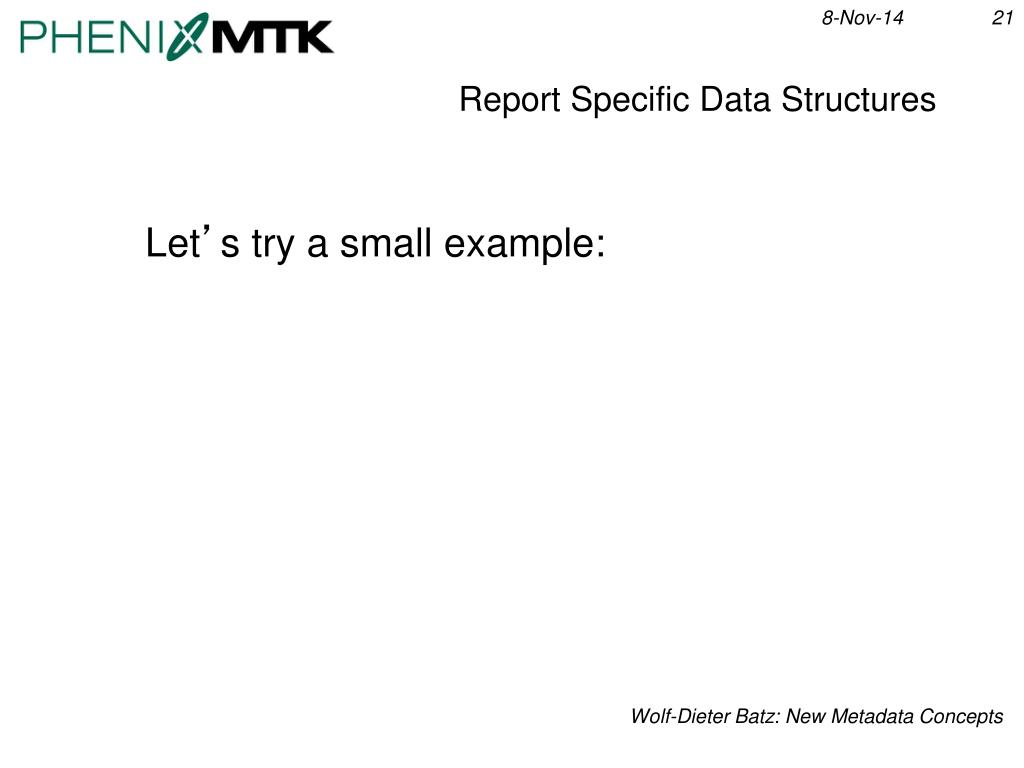

  21. Report Specific Data Structures Let’s try a small example: Wolf-Dieter Batz: New Metadata Concepts

  22. data testdsn;labela=Variable A in SAS Datasetb=Variable B in SAS Dataset;a=22; b=190;run;procsql;create view testsql asselect b as a label="Variable B from SAS Dataset" , a as b label="Variable A from SAS Dataset" from testdsn;select memname , name , label , varnum from dictionary.columns where memname like 'TEST___';quit; Report Specific Data Structures Wolf-Dieter Batz: New Metadata Concepts

  23. Report Specific Data Structures Wolf-Dieter Batz: New Metadata Concepts

  24. Report Specific Data Structures • Access Layer • Obviously, utilizing the select clause in an SQL view adds a high amount of information to the data structure. This is not surprising, in case you • are a physicist • can count from zero to 1023 using ten fingers Wolf-Dieter Batz: New Metadata Concepts

  25. Information Gain by Ordering Source: http://courses.geoplanet.ca/ice3m/image/binary_hand_1-7.gif Wolf-Dieter Batz: New Metadata Concepts

  26. Report Specific Data Structures Now let’s have a look a real life: Wolf-Dieter Batz: New Metadata Concepts

  27. Report Specific Data Structures Wolf-Dieter Batz: New Metadata Concepts

  28. Report Specific Data Structures Wolf-Dieter Batz: New Metadata Concepts

  29. Resulting Output Wolf-Dieter Batz: New Metadata Concepts

  30. Howto %MACROcr_tbl_4_fct; %GLOBAL fctsrctblotb; %LOCAL i_frq n_frq l_frq i_ctl n_ctl l_ctl; %IF %SCAN(&FCT.,1,'_') eq PRR %THEN %DO; /* start PRR main loop */ %LET n_frq = %SCAN(&FCT.,2,'_'); %LET n_ctl = %SCAN(&FCT.,3,'_'); procsqlnoprint; select name into :p_key from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumeq1 ; select name , name into :l_frq separated by ' ' , :l2frq separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumgt1 and varnum le %EVAL(&N_FRQ. + 1) ; insert into header values("PRR values calculated for &L2FRQ."); select name , name into :l_ctl separated by ' , ' , :l2ctl separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumgt %EVAL(&N_FRQ. + 1) and varnum le %EVAL(&N_FRQ. + &N_CTL. + 1) ; insert into footer values("Stratification performed by: &L2CTL."); insert into footer select compbl(put(count(*),8.)||" lines processed from %UPCASE(&DB_USR.).&TBL.") from &SRC..&TBL. ; insert into footer select compbl("Frequency tables based on "||put(count(distinct &P_KEY.),8.)||" distinct values from field &P_KEY.") from &SRC..&TBL. ; create table &SRC..c_frq as select distinct %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; , %END; %SCAN(&L_FRQ.,&I_FRQ.,' ') %END; from &SRC..&TBL. where %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; and %END; %SCAN(&L_FRQ.,&I_FRQ.,' ') is not null %END; ; %LET n_c_frq = &SQLOBS.; insert into footer values("&N_C_FRQ. combinations from &L2FRQ. processed"); quit; data _null_; set &SRC..c_frq; %DO i_frq = 1 %TO &N_FRQ.; call symput("%SCAN(&L_FRQ.,&I_FRQ.,' ')"||'_'||trim(left(put(_N_,4.))),trim(left(%SCAN(&L_FRQ.,&I_FRQ.,' ')))); %END; run; %DO i_c_frq = 1 %TO &N_C_FRQ.; /* start FREQ loop */ procsql; create view WORK.tbl as select distinct &P_KEY. , %DO i_frq = 1 %TO &N_FRQ.; %LET %SCAN(&L_FRQ.,&I_FRQ.,' ') = %QUOTE(&&%SCAN(&L_FRQ.,&I_FRQ.,' ')_&I_C_FRQ.); case when sum( %SCAN(&L_FRQ.,&I_FRQ.,' ') = "&&%SCAN(&L_FRQ.,&I_FRQ.,' ')" ) > 0 then -1 else 0 end as %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk , %END; &L_CTL. from &SRC..&TBL. group by &P_KEY. ; quit; procfreqnoprint data = WORK.tbl; tables &L2CTL. %DO i_frq = 1 %TO &N_FRQ.; %STR(*) %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / cmh1 ; output out = WORK.cmh(keep = _mhrrc1_ l_mhrrc1 u_mhrrc1) cmh1; run; procfreqnoprint data = WORK.tbl; tables %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; %STR(*) %END; %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / cmh1 ; output out = WORK.cmc(keep = l_mhrrc1 u_mhrrc1) cmh1; run; procfreqnoprint data = WORK.tbl; tables %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; %STR(*) %END; %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / sparse out = WORK.cnt(keep = count) ; run; proc transpose data = WORK.cnt out = WORK.trp; run; data WORK.res; merge WORK.trpWORK.cmhWORK.cmc(rename=(l_mhrrc1=l_mhrrcx u_mhrrc1=u_mhrrcx)); run; procsqlnoprint; create table WORK.out as select %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; , %END; "&&%SCAN(&L_FRQ.,&I_FRQ.,' ')" as %SCAN(&L_FRQ.,&I_FRQ.,' ') %END; , col1 as a label = "cell A" , col3 as b label = "cell B" , col2 as c label = "cell C" , col4 as d label = "cell D" , (a/c)*((c+d)/(a+b)) as cmh_crude label = "PRR crude" , l_mhrrcx as cmhlcrude label = "PRR crude lower CL" , u_mhrrcx as cmhucrude label = "PRR crude upper CL" , _mhrrc1_ as cmh_strat label = "PRR stratified" , l_mhrrc1 as cmhlstrat label = "PRR stratified lower CL" , u_mhrrc1 as cmhustrat label = "PRR stratified upper CL" from WORK.res ; %IF &I_C_FRQ. = 1 %THEN %DO; drop table &SRC..&TBL.%SCAN(&FCT.,1,_); %END; create table &SRC..&TBL.%SCAN(&FCT.,1,_) as %IF &I_C_FRQ. > 1 %THEN %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) union %END; select * from out ; quit; %END; /* end FREQ loop */ procsql; create table &SRC..&TBL.%SCAN(&FCT.,1,_) as %IF %SUBSTR(&RST.,2,1) ne C %THEN %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) as tbl %IF %SUBSTR(&RST.,1,1) ne R %THEN %DO; right %END; join &SRC..&TBL. as fct on %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; and %END; fct.%SCAN(&L_FRQ.,&I_FRQ.,' ') = tbl.%SCAN(&L_FRQ.,&I_FRQ.,' ') %END; %END; %ELSE %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) %END; ; quit; %LET otb = &TBL.; %LET tbl = &TBL.%SCAN(&FCT.,1,_); %END; /* end PRR main loop */ %MEND cr_tbl_4_fct; %LET n_frq = %SCAN(&FCT.,2,'_'); %LET n_ctl = %SCAN(&FCT.,3,'_'); Wolf-Dieter Batz: New Metadata Concepts

  31. Howto %MACROcr_tbl_4_fct; %GLOBAL fctsrctblotb; %LOCAL i_frq n_frq l_frq i_ctl n_ctl l_ctl; %IF %SCAN(&FCT.,1,'_') eq PRR %THEN %DO; /* start PRR main loop */ %LET n_frq = %SCAN(&FCT.,2,'_'); %LET n_ctl = %SCAN(&FCT.,3,'_'); procsqlnoprint; select name into :p_key from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumeq1 ; select name , name into :l_frq separated by ' ' , :l2frq separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumgt1 and varnum le %EVAL(&N_FRQ. + 1) ; insert into header values("PRR values calculated for &L2FRQ."); select name , name into :l_ctl separated by ' , ' , :l2ctl separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumgt %EVAL(&N_FRQ. + 1) and varnum le %EVAL(&N_FRQ. + &N_CTL. + 1) ; insert into footer values("Stratification performed by: &L2CTL."); insert into footer select compbl(put(count(*),8.)||" lines processed from %UPCASE(&DB_USR.).&TBL.") from &SRC..&TBL. ; insert into footer select compbl("Frequency tables based on "||put(count(distinct &P_KEY.),8.)||" distinct values from field &P_KEY.") from &SRC..&TBL. ; create table &SRC..c_frq as select distinct %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; , %END; %SCAN(&L_FRQ.,&I_FRQ.,' ') %END; from &SRC..&TBL. where %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; and %END; %SCAN(&L_FRQ.,&I_FRQ.,' ') is not null %END; ; %LET n_c_frq = &SQLOBS.; insert into footer values("&N_C_FRQ. combinations from &L2FRQ. processed"); quit; data _null_; set &SRC..c_frq; %DO i_frq = 1 %TO &N_FRQ.; call symput("%SCAN(&L_FRQ.,&I_FRQ.,' ')"||'_'||trim(left(put(_N_,4.))),trim(left(%SCAN(&L_FRQ.,&I_FRQ.,' ')))); %END; run; %DO i_c_frq = 1 %TO &N_C_FRQ.; /* start FREQ loop */ procsql; create view WORK.tbl as select distinct &P_KEY. , %DO i_frq = 1 %TO &N_FRQ.; %LET %SCAN(&L_FRQ.,&I_FRQ.,' ') = %QUOTE(&&%SCAN(&L_FRQ.,&I_FRQ.,' ')_&I_C_FRQ.); case when sum( %SCAN(&L_FRQ.,&I_FRQ.,' ') = "&&%SCAN(&L_FRQ.,&I_FRQ.,' ')" ) > 0 then -1 else 0 end as %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk , %END; &L_CTL. from &SRC..&TBL. group by &P_KEY. ; quit; procfreqnoprint data = WORK.tbl; tables &L2CTL. %DO i_frq = 1 %TO &N_FRQ.; %STR(*) %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / cmh1 ; output out = WORK.cmh(keep = _mhrrc1_ l_mhrrc1 u_mhrrc1) cmh1; run; procfreqnoprint data = WORK.tbl; tables %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; %STR(*) %END; %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / cmh1 ; output out = WORK.cmc(keep = l_mhrrc1 u_mhrrc1) cmh1; run; procfreqnoprint data = WORK.tbl; tables %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; %STR(*) %END; %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / sparse out = WORK.cnt(keep = count) ; run; proc transpose data = WORK.cnt out = WORK.trp; run; data WORK.res; merge WORK.trpWORK.cmhWORK.cmc(rename=(l_mhrrc1=l_mhrrcx u_mhrrc1=u_mhrrcx)); run; procsqlnoprint; create table WORK.out as select %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; , %END; "&&%SCAN(&L_FRQ.,&I_FRQ.,' ')" as %SCAN(&L_FRQ.,&I_FRQ.,' ') %END; , col1 as a label = "cell A" , col3 as b label = "cell B" , col2 as c label = "cell C" , col4 as d label = "cell D" , (a/c)*((c+d)/(a+b)) as cmh_crude label = "PRR crude" , l_mhrrcx as cmhlcrude label = "PRR crude lower CL" , u_mhrrcx as cmhucrude label = "PRR crude upper CL" , _mhrrc1_ as cmh_strat label = "PRR stratified" , l_mhrrc1 as cmhlstrat label = "PRR stratified lower CL" , u_mhrrc1 as cmhustrat label = "PRR stratified upper CL" from WORK.res ; %IF &I_C_FRQ. = 1 %THEN %DO; drop table &SRC..&TBL.%SCAN(&FCT.,1,_); %END; create table &SRC..&TBL.%SCAN(&FCT.,1,_) as %IF &I_C_FRQ. > 1 %THEN %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) union %END; select * from out ; quit; %END; /* end FREQ loop */ procsql; create table &SRC..&TBL.%SCAN(&FCT.,1,_) as %IF %SUBSTR(&RST.,2,1) ne C %THEN %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) as tbl %IF %SUBSTR(&RST.,1,1) ne R %THEN %DO; right %END; join &SRC..&TBL. as fct on %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; and %END; fct.%SCAN(&L_FRQ.,&I_FRQ.,' ') = tbl.%SCAN(&L_FRQ.,&I_FRQ.,' ') %END; %END; %ELSE %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) %END; ; quit; %LET otb = &TBL.; %LET tbl = &TBL.%SCAN(&FCT.,1,_); %END; /* end PRR main loop */ %MEND cr_tbl_4_fct; select name into :p_key from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnum eq 1 ; Wolf-Dieter Batz: New Metadata Concepts

  32. Howto %MACROcr_tbl_4_fct; %GLOBAL fctsrctblotb; %LOCAL i_frq n_frq l_frq i_ctl n_ctl l_ctl; %IF %SCAN(&FCT.,1,'_') eq PRR %THEN %DO; /* start PRR main loop */ %LET n_frq = %SCAN(&FCT.,2,'_'); %LET n_ctl = %SCAN(&FCT.,3,'_'); procsqlnoprint; select name into :p_key from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumeq1 ; select name , name into :l_frq separated by ' ' , :l2frq separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumgt1 and varnum le %EVAL(&N_FRQ. + 1) ; insert into header values("PRR values calculated for &L2FRQ."); select name , name into :l_ctl separated by ' , ' , :l2ctl separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumgt %EVAL(&N_FRQ. + 1) and varnum le %EVAL(&N_FRQ. + &N_CTL. + 1) ; insert into footer values("Stratification performed by: &L2CTL."); insert into footer select compbl(put(count(*),8.)||" lines processed from %UPCASE(&DB_USR.).&TBL.") from &SRC..&TBL. ; insert into footer select compbl("Frequency tables based on "||put(count(distinct &P_KEY.),8.)||" distinct values from field &P_KEY.") from &SRC..&TBL. ; create table &SRC..c_frq as select distinct %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; , %END; %SCAN(&L_FRQ.,&I_FRQ.,' ') %END; from &SRC..&TBL. where %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; and %END; %SCAN(&L_FRQ.,&I_FRQ.,' ') is not null %END; ; %LET n_c_frq = &SQLOBS.; insert into footer values("&N_C_FRQ. combinations from &L2FRQ. processed"); quit; data _null_; set &SRC..c_frq; %DO i_frq = 1 %TO &N_FRQ.; call symput("%SCAN(&L_FRQ.,&I_FRQ.,' ')"||'_'||trim(left(put(_N_,4.))),trim(left(%SCAN(&L_FRQ.,&I_FRQ.,' ')))); %END; run; %DO i_c_frq = 1 %TO &N_C_FRQ.; /* start FREQ loop */ procsql; create view WORK.tbl as select distinct &P_KEY. , %DO i_frq = 1 %TO &N_FRQ.; %LET %SCAN(&L_FRQ.,&I_FRQ.,' ') = %QUOTE(&&%SCAN(&L_FRQ.,&I_FRQ.,' ')_&I_C_FRQ.); case when sum( %SCAN(&L_FRQ.,&I_FRQ.,' ') = "&&%SCAN(&L_FRQ.,&I_FRQ.,' ')" ) > 0 then -1 else 0 end as %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk , %END; &L_CTL. from &SRC..&TBL. group by &P_KEY. ; quit; procfreqnoprint data = WORK.tbl; tables &L2CTL. %DO i_frq = 1 %TO &N_FRQ.; %STR(*) %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / cmh1 ; output out = WORK.cmh(keep = _mhrrc1_ l_mhrrc1 u_mhrrc1) cmh1; run; procfreqnoprint data = WORK.tbl; tables %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; %STR(*) %END; %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / cmh1 ; output out = WORK.cmc(keep = l_mhrrc1 u_mhrrc1) cmh1; run; procfreqnoprint data = WORK.tbl; tables %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; %STR(*) %END; %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / sparse out = WORK.cnt(keep = count) ; run; proc transpose data = WORK.cnt out = WORK.trp; run; data WORK.res; merge WORK.trpWORK.cmhWORK.cmc(rename=(l_mhrrc1=l_mhrrcx u_mhrrc1=u_mhrrcx)); run; procsqlnoprint; create table WORK.out as select %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; , %END; "&&%SCAN(&L_FRQ.,&I_FRQ.,' ')" as %SCAN(&L_FRQ.,&I_FRQ.,' ') %END; , col1 as a label = "cell A" , col3 as b label = "cell B" , col2 as c label = "cell C" , col4 as d label = "cell D" , (a/c)*((c+d)/(a+b)) as cmh_crude label = "PRR crude" , l_mhrrcx as cmhlcrude label = "PRR crude lower CL" , u_mhrrcx as cmhucrude label = "PRR crude upper CL" , _mhrrc1_ as cmh_strat label = "PRR stratified" , l_mhrrc1 as cmhlstrat label = "PRR stratified lower CL" , u_mhrrc1 as cmhustrat label = "PRR stratified upper CL" from WORK.res ; %IF &I_C_FRQ. = 1 %THEN %DO; drop table &SRC..&TBL.%SCAN(&FCT.,1,_); %END; create table &SRC..&TBL.%SCAN(&FCT.,1,_) as %IF &I_C_FRQ. > 1 %THEN %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) union %END; select * from out ; quit; %END; /* end FREQ loop */ procsql; create table &SRC..&TBL.%SCAN(&FCT.,1,_) as %IF %SUBSTR(&RST.,2,1) ne C %THEN %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) as tbl %IF %SUBSTR(&RST.,1,1) ne R %THEN %DO; right %END; join &SRC..&TBL. as fct on %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; and %END; fct.%SCAN(&L_FRQ.,&I_FRQ.,' ') = tbl.%SCAN(&L_FRQ.,&I_FRQ.,' ') %END; %END; %ELSE %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) %END; ; quit; %LET otb = &TBL.; %LET tbl = &TBL.%SCAN(&FCT.,1,_); %END; /* end PRR main loop */ %MEND cr_tbl_4_fct; select name , name into :l_frq separated by ' ' , :l2frq separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnum gt 1 and varnum le %EVAL(&N_FRQ. + 1) ; Wolf-Dieter Batz: New Metadata Concepts

  33. Howto %MACROcr_tbl_4_fct; %GLOBAL fctsrctblotb; %LOCAL i_frq n_frq l_frq i_ctl n_ctl l_ctl; %IF %SCAN(&FCT.,1,'_') eq PRR %THEN %DO; /* start PRR main loop */ %LET n_frq = %SCAN(&FCT.,2,'_'); %LET n_ctl = %SCAN(&FCT.,3,'_'); procsqlnoprint; select name into :p_key from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumeq1 ; select name , name into :l_frq separated by ' ' , :l2frq separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumgt1 and varnum le %EVAL(&N_FRQ. + 1) ; insert into header values("PRR values calculated for &L2FRQ."); select name , name into :l_ctl separated by ' , ' , :l2ctl separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnumgt %EVAL(&N_FRQ. + 1) and varnum le %EVAL(&N_FRQ. + &N_CTL. + 1) ; insert into footer values("Stratification performed by: &L2CTL."); insert into footer select compbl(put(count(*),8.)||" lines processed from %UPCASE(&DB_USR.).&TBL.") from &SRC..&TBL. ; insert into footer select compbl("Frequency tables based on "||put(count(distinct &P_KEY.),8.)||" distinct values from field &P_KEY.") from &SRC..&TBL. ; create table &SRC..c_frq as select distinct %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; , %END; %SCAN(&L_FRQ.,&I_FRQ.,' ') %END; from &SRC..&TBL. where %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; and %END; %SCAN(&L_FRQ.,&I_FRQ.,' ') is not null %END; ; %LET n_c_frq = &SQLOBS.; insert into footer values("&N_C_FRQ. combinations from &L2FRQ. processed"); quit; data _null_; set &SRC..c_frq; %DO i_frq = 1 %TO &N_FRQ.; call symput("%SCAN(&L_FRQ.,&I_FRQ.,' ')"||'_'||trim(left(put(_N_,4.))),trim(left(%SCAN(&L_FRQ.,&I_FRQ.,' ')))); %END; run; %DO i_c_frq = 1 %TO &N_C_FRQ.; /* start FREQ loop */ procsql; create view WORK.tbl as select distinct &P_KEY. , %DO i_frq = 1 %TO &N_FRQ.; %LET %SCAN(&L_FRQ.,&I_FRQ.,' ') = %QUOTE(&&%SCAN(&L_FRQ.,&I_FRQ.,' ')_&I_C_FRQ.); case when sum( %SCAN(&L_FRQ.,&I_FRQ.,' ') = "&&%SCAN(&L_FRQ.,&I_FRQ.,' ')" ) > 0 then -1 else 0 end as %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk , %END; &L_CTL. from &SRC..&TBL. group by &P_KEY. ; quit; procfreqnoprint data = WORK.tbl; tables &L2CTL. %DO i_frq = 1 %TO &N_FRQ.; %STR(*) %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / cmh1 ; output out = WORK.cmh(keep = _mhrrc1_ l_mhrrc1 u_mhrrc1) cmh1; run; procfreqnoprint data = WORK.tbl; tables %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; %STR(*) %END; %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / cmh1 ; output out = WORK.cmc(keep = l_mhrrc1 u_mhrrc1) cmh1; run; procfreqnoprint data = WORK.tbl; tables %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; %STR(*) %END; %SCAN(&L_FRQ.,&I_FRQ.,' ')_rnk %END; / sparse out = WORK.cnt(keep = count) ; run; proc transpose data = WORK.cnt out = WORK.trp; run; data WORK.res; merge WORK.trpWORK.cmhWORK.cmc(rename=(l_mhrrc1=l_mhrrcx u_mhrrc1=u_mhrrcx)); run; procsqlnoprint; create table WORK.out as select %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; , %END; "&&%SCAN(&L_FRQ.,&I_FRQ.,' ')" as %SCAN(&L_FRQ.,&I_FRQ.,' ') %END; , col1 as a label = "cell A" , col3 as b label = "cell B" , col2 as c label = "cell C" , col4 as d label = "cell D" , (a/c)*((c+d)/(a+b)) as cmh_crude label = "PRR crude" , l_mhrrcx as cmhlcrude label = "PRR crude lower CL" , u_mhrrcx as cmhucrude label = "PRR crude upper CL" , _mhrrc1_ as cmh_strat label = "PRR stratified" , l_mhrrc1 as cmhlstrat label = "PRR stratified lower CL" , u_mhrrc1 as cmhustrat label = "PRR stratified upper CL" from WORK.res ; %IF &I_C_FRQ. = 1 %THEN %DO; drop table &SRC..&TBL.%SCAN(&FCT.,1,_); %END; create table &SRC..&TBL.%SCAN(&FCT.,1,_) as %IF &I_C_FRQ. > 1 %THEN %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) union %END; select * from out ; quit; %END; /* end FREQ loop */ procsql; create table &SRC..&TBL.%SCAN(&FCT.,1,_) as %IF %SUBSTR(&RST.,2,1) ne C %THEN %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) as tbl %IF %SUBSTR(&RST.,1,1) ne R %THEN %DO; right %END; join &SRC..&TBL. as fct on %DO i_frq = 1 %TO &N_FRQ.; %IF &I_FRQ. gt1 %THEN %DO; and %END; fct.%SCAN(&L_FRQ.,&I_FRQ.,' ') = tbl.%SCAN(&L_FRQ.,&I_FRQ.,' ') %END; %END; %ELSE %DO; select * from &SRC..&TBL.%SCAN(&FCT.,1,_) %END; ; quit; %LET otb = &TBL.; %LET tbl = &TBL.%SCAN(&FCT.,1,_); %END; /* end PRR main loop */ %MEND cr_tbl_4_fct; select name , name into :l_ctl separated by ' , ' , :l2ctl separated by ' * ' from dictionary.columns where libname = %UPCASE("&SRC.") and memname = %UPCASE("&TBL.") and varnum gt %EVAL(&N_FRQ. + 1) and varnum le %EVAL(&N_FRQ. + &N_CTL. + 1) ; Wolf-Dieter Batz: New Metadata Concepts

  34. Questions welcome Wolf-Dieter Batz: New Metadata Concepts

  35. THANK YOU Wolf-Dieter Batz: New Metadata Concepts
