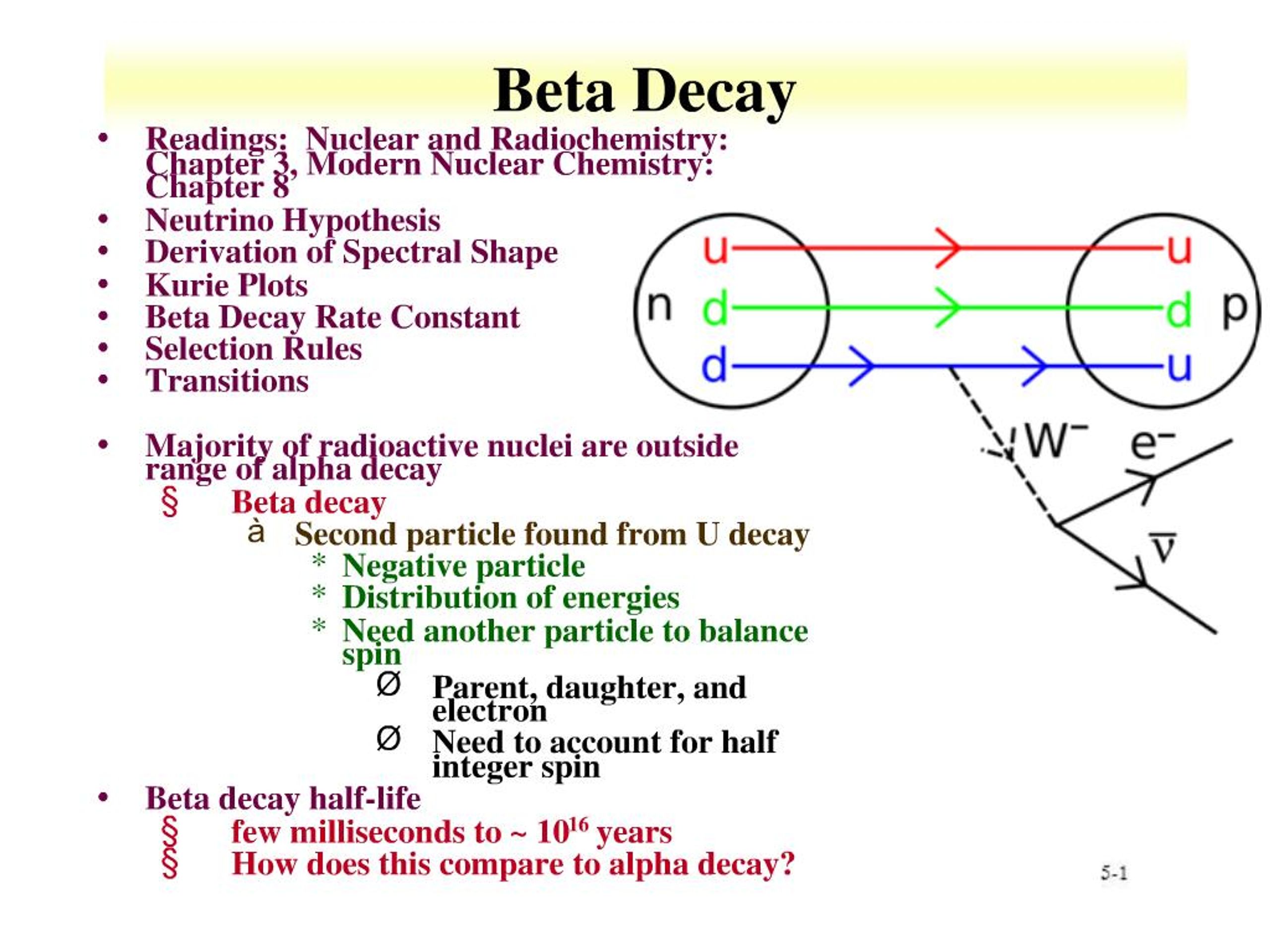

    1. Beta Decay Readings: Nuclear and Radiochemistry: Chapter 3, Modern Nuclear Chemistry: Chapter 8 Neutrino Hypothesis Derivation of Spectral Shape Kurie Plots Beta Decay Rate Constant Selection Rules Transitions Majority of radioactive nuclei are outside range of alpha decay Beta decay Second particle found from U decay Negative particle Distribution of energies Need another particle to balance spin Parent, daughter, and electron Need to account for half integer spin Beta decay half-life few milliseconds to ~ 1016 years How does this compare to alpha decay?

    2. ?-Decay Class includes any radioactive decay process in which A remains unchanged, but Z changes ?- decay, electron capture, ?+ decay energetic conditions for decay: ?- decay: MZ ? MZ+1 Electron capture: MZ?MZ-1, ?+ decay: MZ ? MZ-1+2me ?+ decay needs to exceed 1.02 MeV Below 1.02 MeV EC dominates ?+ increases with increasing energy Decay energies of ? -unstable nuclei rather systematically with distance from stability Predicted by mass parabolas Energy-lifetime relations are not nearly so simple as in alpha decay ? -decay half lives depend strongly on spin and parity changes as well as energy

    3. Beta Decay For odd A, one ?-stable nuclide; for even A, at most three ?-stable nuclides Information available from mass parabolas Odd-odd nuclei near the stability valley (e.g., 64Cu) can decay in both directions Form even-even nuclei Beta particle energy not discrete Continuous energy to maximum

    4. The Neutrino Solved problems associated with ?-decay Zero charge neutron -> proton + electron Small mass Electron goes up to Q value Anti-particle Account for creation of electron particle spin of and obeys Fermi statistics couple the total final angular momentum to initial spin of h, n?p+ + e- is not spin balanced, need another fermion

    5. Neutrino Carries away the appropriate amount of energy and momentum in each ? process to conserve these properties Nearly undetectable due to its small rest mass and magnetic moment observed by inverse ? processes Antineutrinos emitted in ?- decay; neutrinos emitted in ?+ decay indistinguishable properties, except in capture reactions created at the moment of emission n ? p + ?- + p ? n + ?+ + ? Spin of created particles are key in assigning decay Spin up and spin down

    6. Spin in Beta Decay Spins of created particles can be combined in two ways still couple to the initial spin spins of the created particles S?=1 in a parallel alignment S?= 0 in an anti-parallel alignment combine with S=1/2 of the neutron for resultant vector of 1/2 two possible relative alignments of the "created" spins Fermi (F) (S?=0) Gamow-Teller (GT) (S? =1) A source can produce a mixture of F and GT spins

    7. Spin in Beta Decay Decay of even-even nuclei with N=Z (mirror nuclei) neutron and protons are in the same orbitals 0+ to 0+ decay can only take place by a Fermi transition Heavy nuclei with protons and neutrons in very different orbitals GT is main mode, need to account for spin difference Complex nuclei rate of decay depends on overlap of the wave functions of ground state of parent and state of the daughter final state in daughter depends on the decay mode (spin and parity state) Half life information can be used to understand nuclear states Decay constant can be calculated if wave functions are known Observed rate indicates quantum mechanical overlap of initial and final state wave functions

    8. Energetics (Review) Beta decay electron can be combined with the positive ion to create a neutral atom release of very small binding energy use neutral atoms to calculate the Q value assuming that the mass of the antineutrino is very small Consider beta decay of 14C 14C?14N+ + - +antineutrino + energy Energy = mass 14C mass 14N Positron decay 2 extra electrons (daughter less Z, emission of positron) Electron Capture

    9. Q value calculation Find Q value for the Beta decay of 24Na 1 amu = 931.5 MeV M (24Na)-M(24Mg) 23.990962782-23.985041699 0.005921 amu 5.5154 MeV From mass excess -8.4181 - -13.9336 5.5155 MeV Q value for the EC of 22Na M (22Na)-M(22Ne) 21.994436425-21.991385113 0.003051 amu 2.842297 MeV From mass excess -5.1824 - -8.0247 2.8432 MeV Q?- are ~0.5 2 MeV, Q ?+ ~2-4 MeV and QEC ~ 0.2 2 MeV What about positron capture instead of EC?

    10. Positrons Postulated in 1931 Relativistic equations could be solved for electrons with positive energy states Require energies greater than electron mass Creation of positive hole with electron properties Pair production process involves creation of a positron-electron pair by a photon in nuclear field Nucleus carries off some momentum and energy Positron-electron annihilation Interaction of electron into a whole in sea of electrons of negative energy simultaneous emission of corresponding amount of energy in the form of radiation Responsible for short lifetime of positrons No positron capture decay Annihilation radiation energy carried off by two ? quanta of opposite momentum Annihilation conserves momentum Exploited in Positron Emission Tomography

    11. Weak Interaction: Model of Beta Decay Fermi's theory of beta decay based on electromagnetic theory for light emission Electromagnetic interaction characterized by electron charge Needs to be replaced for beta decay Fermi constant (g) Value determined by experiment 10-3 of the electromagnetic force constant Used to determine emitted electron momentum range per unit time P(pe) dpe;

    12. Weak Interaction P(pe)dpe probability electron with momentum pe+dpe ?e electron wave function ?n neutrino wave function ??e(0)?2 and ??n(0)?2 probability of finding electron and neutrino at nucleus Mif is matrix element characterizing the transition from the initial to the final nuclear state ?Mif?2 a measure of the amount of overlap between the wave functions of initial and final nuclear states dn/dEo is the density of final states with the electron in the specified momentum interval number of states of the final system per unit decay energy Fermi constant (g) governs other interactions in addition to beta decay m-meson decay, p-meson decay, neutrino-electron scattering Weak interactions

    13. Weak Interaction Integration over all electron momenta from zero to maximum possible to evaluate spectrum should provide transition probabilities or lifetimes Variations in number of electrons at a given energy Classically allowed transitions both have electron and neutrino emitted with zero orbital angular momentum Allowed have s orbital angular momentum Relatively high probabilities for location of electron and neutrino at nuclear for s wave compared to higher l p,d,f, etc. ???2 of allowed transitions ? ???2 of forbidden transitions Magnitudes of ???(0)? and ?Mif? are independent of division of energy between electron and neutrino

    14. Weak Interaction Spectrum shape determined entirely by ??e(0)? and dn/dEo dn/dEo density of final states with electron momentum Coulomb interaction between nucleus and emitted electron (??e(0)?) neglected Reasonable for low Z Density of final states determined from total energy W W is total (kinetic plus rest) electron energy Wo is maximum W value Dn/dEo goes to zero at W = 1 and W = Wo Yields characteristic bell shape beta spectra

    15. Coulomb Correction Agreement of experiment and modeling at low Z At higher Z need a correction factor to account for coulomb interaction Coulomb interaction between nucleus and the emitted electron decelerate electrons and accelerate positrons Electron spectra has more low-energy particles Positron spectra has fewer low-energy particles Treat as perturbation on electron wave function ?e(0) Called Fermi function Defined as ratio of ??e(0)?2Coul /??e(0)?2free perturbation on ?e(0) and spectrum multiplied by the Fermi function Z daughter nucleus v beta velocity + for electrons - for positron

    16. Kurie Plot Comparison of theory and experiment for momentum measurements Square root of number of beta particles within a certain range divided by Fermi function against beta-particle energy Linear relationship designates allowed transition

    17. Fermi Golden Rule Treat beta decay as transition that depends upon strength of coupling between the initial and final states Decay constant given by Fermi's Golden Rule matrix element couples initial and final states phase space factor which describes volume of phase space available for the outgoing leptons Electron is charged lepton electron, muon, and tau Neutral lepton is neutrino Small system perturbation Contained within M E is Q value Rate proportional to the strength of coupling between initial and final states factored by the density of final states available to system

    18. Comparative Half Lives Based on probability of electron energy emission coupled with spectrum and Coulomb correction fot1/2 comparative half life of a transition Assumes matrix element is independent of energy true for allowed transitions Yields ft (or fot1/2), comparative half-life may be thought of as half life corrected for differences in Z and W W is total kinetic energy fo can be determine when Fermi function is 1 (low Z) Rapid estimation connecting ft and energy

    19. Comparative half-lives Z is daughter and Eo is maximum energy in MeV (Q value) Log ft = log f + log t1/2 t1/2 in seconds

    20. Logft calculations 14 O to 14N positron decay Q=1.81 MeV T1/2 =70.6 s Log fb+ = 1.83, log t = 1.84 Log ft=3.67

    21. Log ft calculation 212Bi beta decay Q = 2.254 MeV T1/2 = 3600 seconds 64 % beta branch lb =1.22E-4 s-1 T1/2Beta =5625 seconds Log f=3.73; log t=3.75 Log ft=7.48

    22. Log ft data What drives the changes in the log ft values for 205Hg?

    24. Capture-to-positron ratio ( ) measures competition between electron capture and positron emission ratio increases with decreasing decay energy Can be evaluated with f values K/L ratio when energetically possible, capture of K(1s) electrons predominates over capture of electrons with higher principal quantum number at decay energies below binding energy of K electrons, EC is possible only from the L(2s+2p), M(3s,3p,3d), ... Near K-binding energy neutrino energy ratio differs appreciably from unity measurement of the L- to K -capture ratio permits an estimation of the decay energy Z of parent Useful Ratios

    25. Extranuclear Effects of EC If K-shell vacancy is filled by L electron, difference in binding energies emitted as x-ray or used in internal photoelectric process Auger electrons are additional extranuclear electrons from atomic shells emitted with kinetic energy equal to characteristic x-ray energy minus its own binding energy Fluorescence yield is fraction of vacancies in shell that is filled with accompanying x-ray emission important in measuring disintegration rates of EC nuclides radiations most frequently detected are x-rays

    26. Selection Rules Allowed transitions are ones in which the electron and neutrino carry away no orbital angular momentum largest transition probability for given energy release If the electron and neutrino do not carry off angular momentum, spins of initial and final nucleus differ by no more than h/2? and parities must be the same If electron and neutrino emitted with intrinsic spins antiparallel, nuclear spin change (?I )is zero singlet If electron and neutrino spins are parallel, ?I may be +1, 0, -1 triplet

    27. Selection Rules All transitions between states of ?I=0 or 1 with no change in parity have the allowed spectrum shape Not all these transitions have similar fot values transitions with low fot values are favored or superallowed found among ? emitters of low Z and between mirror nuclei (one contains n neutrons and n+1 protons, the other n+1 neutrons and n protons) Assumption of approximately equal ?Mif?2 values for all transitions with ?I=0, ?1 without parity change was erroneous

    28. Forbidden Transitions When the transition from initial to final nucleus cannot take place by emission of s-wave electron and neutrino orbital angular momenta other than zero l value associated with given transition deduced from indirect evidence ft values, spectrum shapes If l is odd, initial and final nucleus have opposite parities If l is even, parities must be the same Emission of electron and nucleus in singlet state requires ?I ? l Triple-state emission allows ?I ? l+1

    29. Transitions

    30. Other Beta Decay Double beta decay Very long half-life 130Te and 82Se as examples Can occur through beta stable isotope 76Ge to 76Se by double beta 76Ge to 76As Q= -73.2130- (-72.2895) Q= -0.9235 MeV Beta delayed decay Nuclei far from stability can populate unbound states and lead to direct nucleon emission First recognized during fission 1 % of neutrons delayed 87Br is produced in nuclear fission and decays to 87Kr decay populates some high energy states in Kr daughter 51 neutrons, neutron emission to form 86Kr

    31. Topic Review Fundamentals of beta decay Electron, positron, electron capture Neutrino Hypothesis What are the trends and data leading to neutrino hypothesis Derivation of Spectral Shape What influences shape Particles, potentials Kurie Plots Beta Decay Rate Constant Calculations Selection rules Log ft How do values compare and relate to spin and parity Other types of beta decay

    32. Homework questions For beta decay, what is the correlation between decay energy and half life? What is the basis for the theory of the neutrino emission in beta decay. In beta decay what are the two possible arrangements of spin? What is the basis for the difference in positron and electron emission spectra? What log ft value should we expect for the ?-decay to the 1- state of 144Pr? Why is there no ? decay to the 2+ level? Calculate and compare the logft values for EC, positron and electron decay for Sm isotopes.

    33. Pop Quiz Calculate the logft for the b- decay of 241Pu. What type of transition is this?
