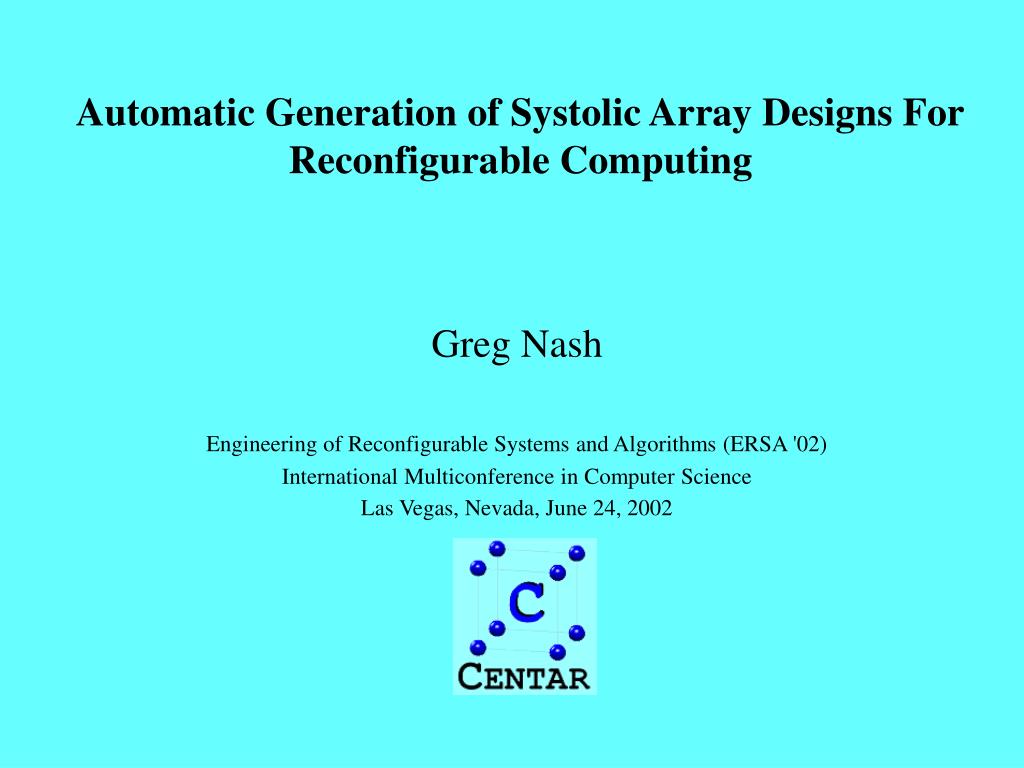

  1. Automatic Generation of Systolic Array Designs ForReconfigurableComputing Greg Nash Engineering of Reconfigurable Systems and Algorithms (ERSA '02) International Multiconference in Computer Science Las Vegas, Nevada, June 24, 2002

  2. FPGA-Based Systolic Computing: Rationale • A large number of parallel “systolic” algorithms exist that are well suited for use in real-time applications such as signal/image processing, communications, and adaptive processing • Reconfigurable FPGA hardware is the most cost-effective implementation strategy when “programmable” systolic computations are desired • But designing systolic arrays is a complex process for which there are no systematic designmethodologies or commercial systolic CAD tools • Centar’s Symbolic Parallel Algorithm Development Environment (SPADE) allows a designer to automatically explore the design space of different systolic array implementations so that system level tradeoffs can be efficiently analyzed

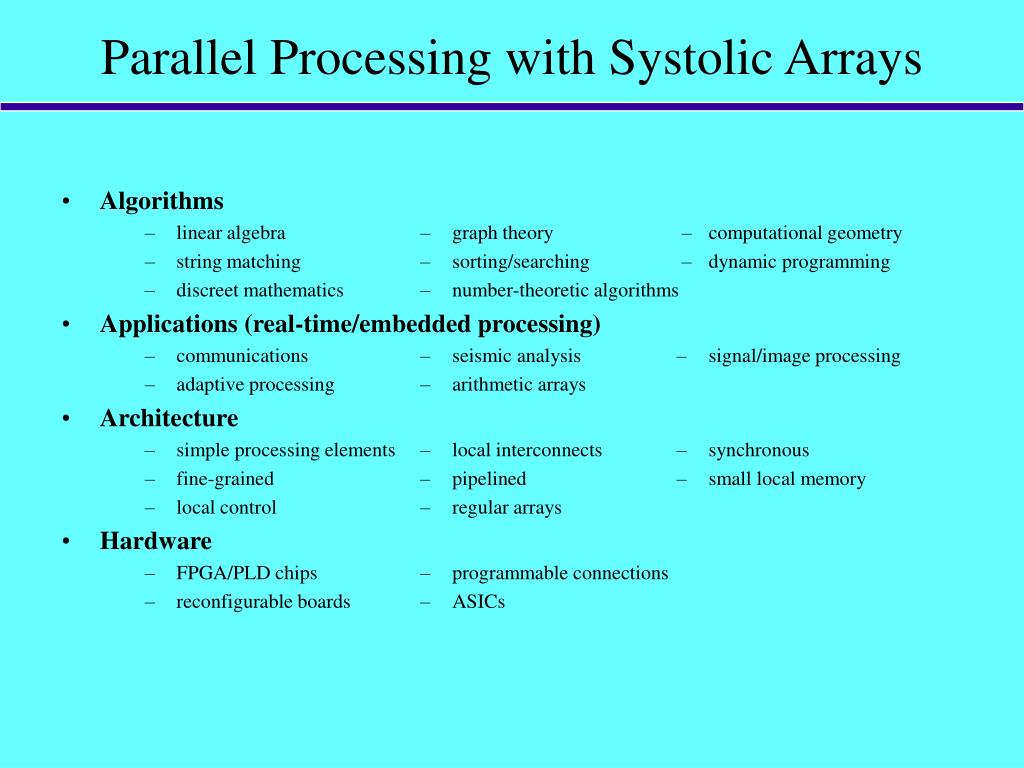

  3. Parallel Processing with Systolic Arrays • Algorithms – linear algebra – graph theory – computational geometry – string matching – sorting/searching – dynamic programming – discreet mathematics – number-theoretic algorithms • Applications (real-time/embedded processing) – communications – seismic analysis – signal/image processing – adaptive processing – arithmetic arrays • Architecture – simple processing elements – local interconnects – synchronous – fine-grained – pipelined – small local memory – local control – regular arrays • Hardware – FPGA/PLD chips – programmable connections – reconfigurable boards – ASICs

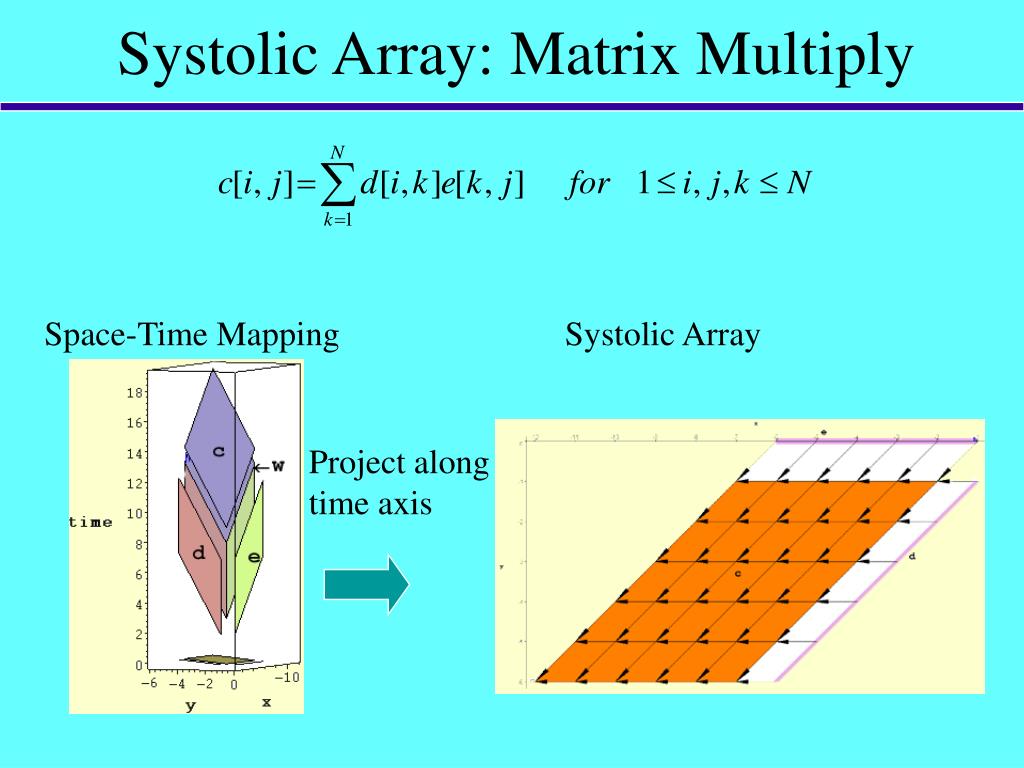

  4. Systolic Array: Matrix Multiply Space-Time Mapping Systolic Array Project along time axis

  5. CAD Tool Goals • Create parallel array designs with reduced requirements for mapping expertise/heuristics • Tool inputs derived directly from mathematical solutions • Heuristics applied only from within a high level language • User control of architectural features by addition of constraints, e.g., boundary vs internal I/O • Strong emphasis on visual feedback • Filtering of outptut; find delay-optimal solutions with • Minimum area • Maximum regularity • Minimum network bandwidth • Ease of use • Built-in simulator with practical architectural model • VHDL (prototype) translator to facilitate FPGA implementations

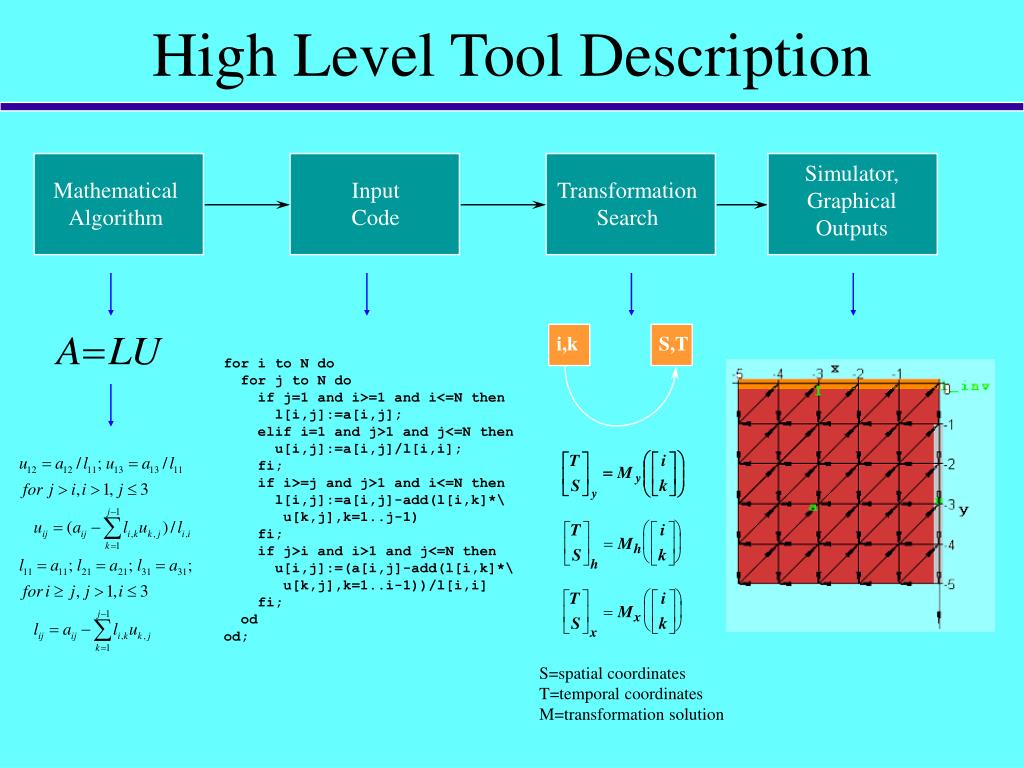

  6. High Level Tool Description i,k S,T Simulator, Graphical Outputs Mathematical Algorithm Input Code Transformation Search for i to N do for j to N do if j=1 and i>=1 and i<=N then l[i,j]:=a[i,j]; elif i=1 and j>1 and j<=N then u[i,j]:=a[i,j]/l[i,i]; fi; if i>=j and j>1 and i<=N then l[i,j]:=a[i,j]-add(l[i,k]*\ u[k,j],k=1..j-1) fi; if j>i and i>1 and j<=N then u[i,j]:=(a[i,j]-add(l[i,k]*\ u[k,j],k=1..i-1))/l[i,i] fi; od od; S=spatial coordinates T=temporal coordinates M=transformation solution

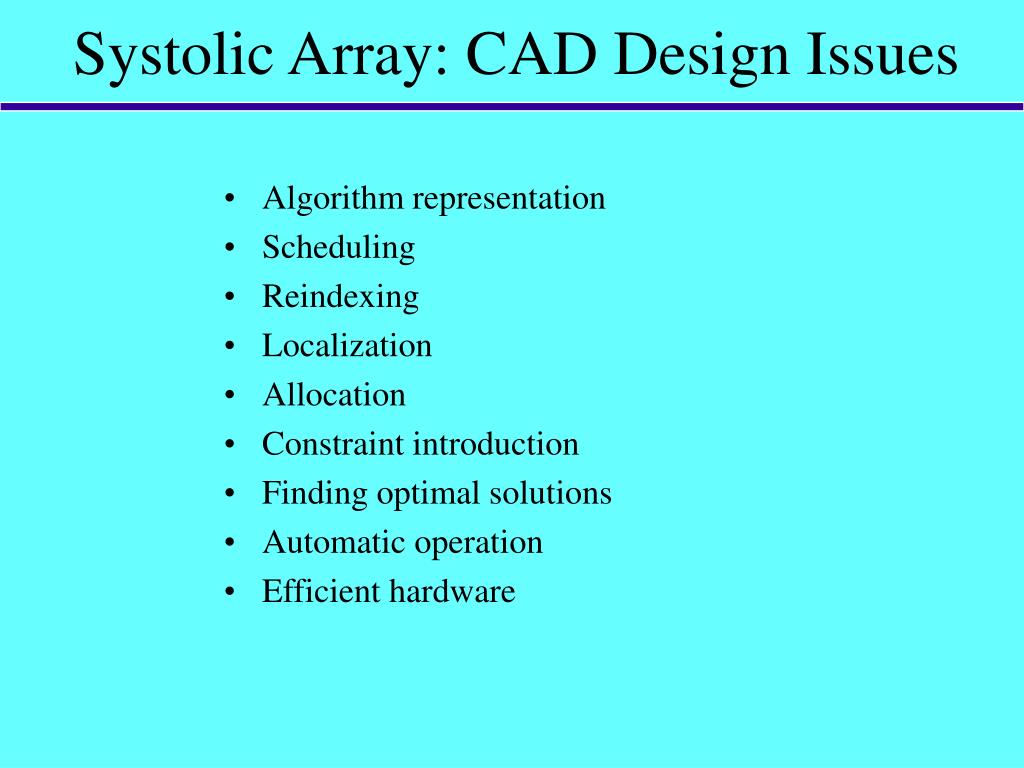

  7. Systolic Array: CAD Design Issues • Algorithm representation • Scheduling • Reindexing • Localization • Allocation • Constraint introduction • Finding optimal solutions • Automatic operation • Efficient hardware

  8. Symbolic Parallel Algorithm Development Environment (SPADE) • Based on DESCARTES (Baltus and Allen, MIT) • Finds optimal minimum latency solutions by “exhaustive” search of all possible solutions • Schedules vector elements have limited range • Spatial relationships between variables described by unimodular matrices • Architectural constraints introduced at abstract level to reduce search space • SPADE vs DESCARTES • Uses more familiar input language (Maple™) • Symbolic computations in Maple • Structured computations in Fortran • Different search formalism • Added constraints • Built in simulator

  9. Algorithm Domain • Multiple statements of the general form • Where Ax,By/ax,by are integer matrices/vectors, S is the dimension of the algorithm space and the dependencies include commutative and associative operators: min, max, ,  • Many “systolic” and fined grained parallel algorithm examples fall in this category • Algorithms and solutions based on use of affine transforms • Affine transforms are most general that preserve regularity • Above form can always be systematically transformed to regular arrays with local interconnections

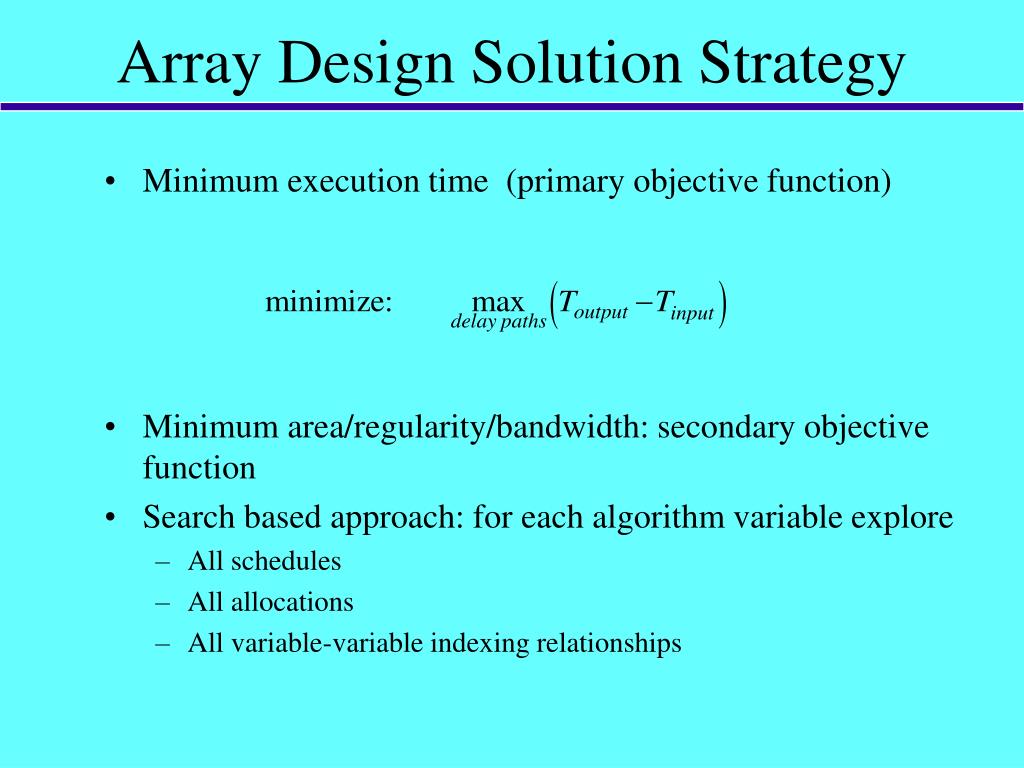

  10. Array Design Solution Strategy • Minimum execution time (primary objective function) • Minimum area/regularity/bandwidth: secondary objective function • Search based approach: for each algorithm variable explore • All schedules • All allocations • All variable-variable indexing relationships

  11. Solution Search • Find affine transformations, T, that map algorithm indices to space-time indices • If find • T consists of a time component / (vector/scalar) and spatial component S/s (matrix/vector): • SPADE treats , , S and s as “search variables” • Matrix S is considered as a single variable and is based on unimodular matrices to force dense mappings and limit the number of possible values • The elements of vectors ,s are considered separately as search values • Search variables only have a small number of possible values • Search contains breadth-first and depth-first components

  12. Solution Constraints • Space of possible solutions grows exponentially with number of search variables and possible values • Impose abstract architectural constraints to make search process feasible, e.g., • Causality between dependences, e.g., if variable c depends on a, require • I/O at boundary for variable a imposes “time align” constraint • Where na is the normal to the plane of a and ut is a unit time vector

  13. Simulator • Architectural model intended to facilitate transition to hardware • Assumes local FSM’s control data movement and arithmetic • Moderate amount of local state data • Data transfers • Eight nearest neighbor paths • Simultaneous transfers of data • I/O through edge stacks or data pre-loaded in array • Basic array activity sequence • Data transfer • Intermediate calculations (running sums) • Result calculations • Visual instrumentation of user selected data and data movement

  14. 2-D Mapping Example • Algorithm (includes fan-in, fan-out, and single I/O variable) • Mathematical expression: • Maple code: • Converted by parser to Mathematical equivalent: • Solutions (N=6) - (a) toptimal = 3N - 4; I/O at array edge - (b) toptimal = 2N - 2; No I/O restrictions for i from 2 to N do a[i]=add(a[j]+b[i],j=1..i-1); od; Time Time a q a q b b Space Space (a) Single optimal solution (b) 1 of 2 optimal solutions

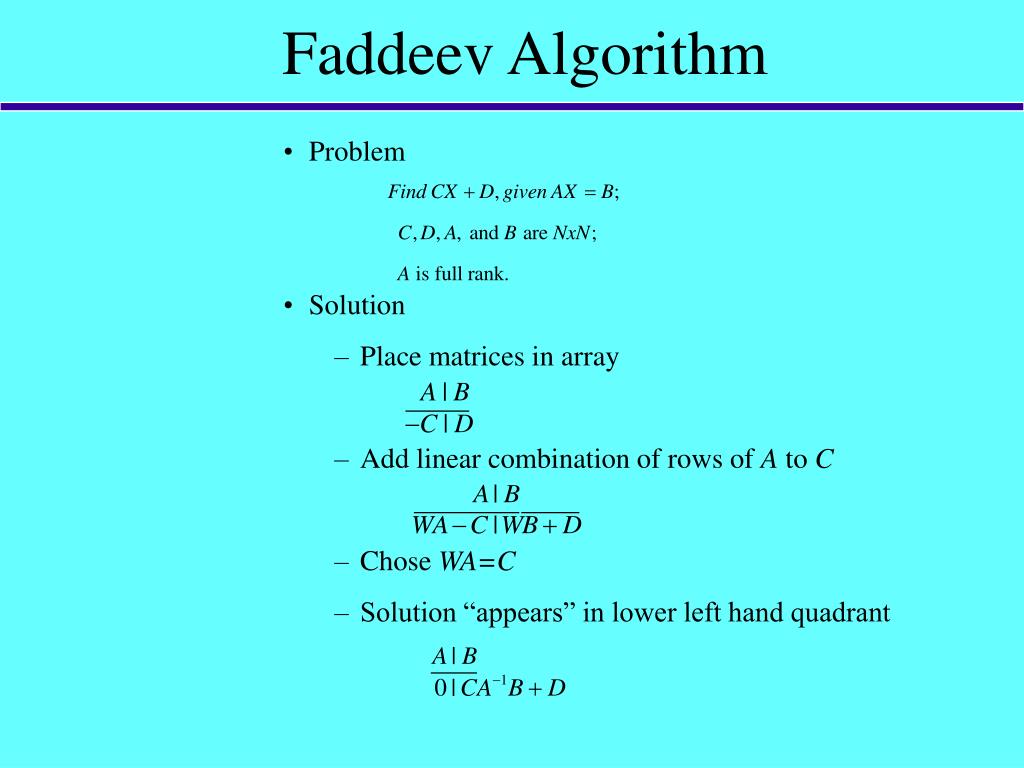

  15. Faddeev Algorithm • Problem • Solution • Place matrices in array • Add linear combination of rows of A to C • Chose WA=C • Solution “appears” in lower left hand quadrant

  16. Design Example: Linear Algebra Mathematical Solution Input Code for j to 2*N do for i to 2*N do if i=1 and j>=1 and j<=N then u[i,j] := a[i,j] fi; if i=1 and j>=1 and j<=N then b[i,j] := a[i,j+N] fi; if j>=i and i>1 and j<=N then u[i,j]:=a[i,j]-add(l[i,k]*u[k,j],k=1..i-1) fi; if j>=1 and i>=1 and j<=N and i<=N then b[i,j]:=a[i,j+N]-add(l[i,k]*b[k,j],k=1..i-1) fi; if j>=1 and i>=1 and j<=N and i<=N then d[i,j] := a[i+N,j+N]-add(l[i+N,k]*b[k,j],k=1..N) fi; if j=1 and i>=1 and i<=2*N then l[i,j]:=a[i,j]/u[j,j]; fi; if i>=j and j>1 and i<=2*N and j<=N then l[i,j]:=(a[i,j]-add(l[i,k]*u[k,j],k=1..j-1))/u[j,j] fi; od od; With substitutions

  17. Design Example Solutions MathematicalTransformations Comments • Two optimal solutions found • Mimimum area, secondary objective function • Latency 5N-2 • Area: ½ N(3N+1) • linear array of dividers required Space-time View, N=6 (One of Two Solutions) Systolic Array

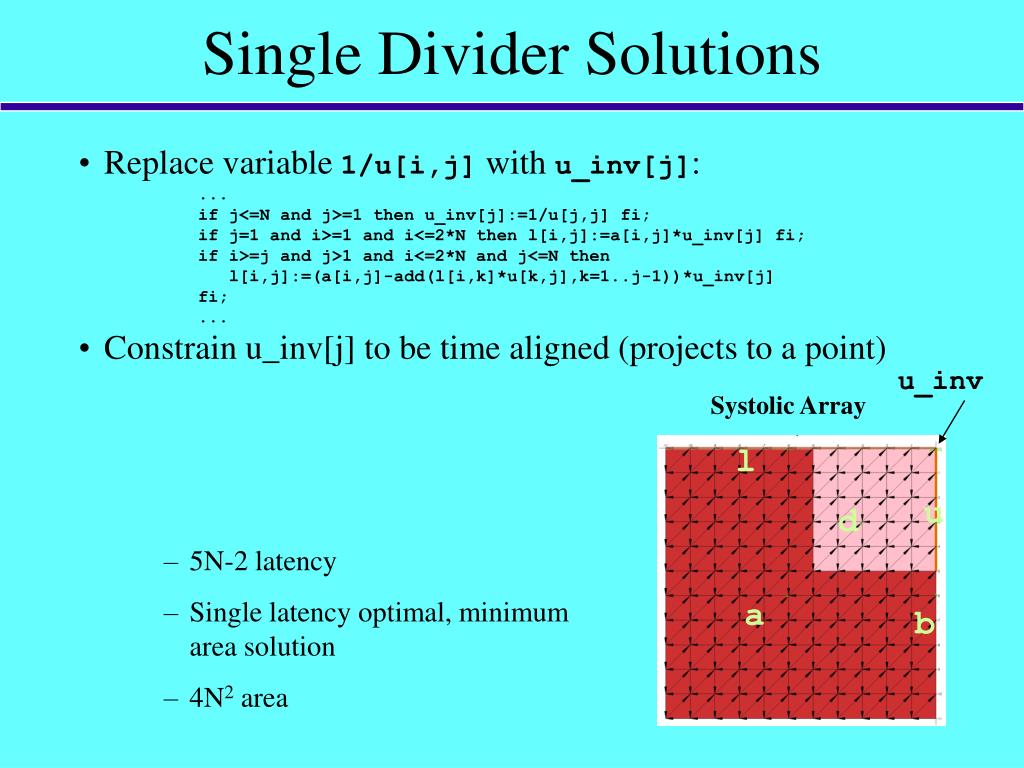

  18. Single Divider Solutions • Replace variable 1/u[i,j] with u_inv[j]: • Constrain u_inv[j] to be time aligned (projects to a point) ... if j<=N and j>=1 then u_inv[j]:=1/u[j,j] fi; if j=1 and i>=1 and i<=2*N then l[i,j]:=a[i,j]*u_inv[j] fi; if i>=j and j>1 and i<=2*N and j<=N then l[i,j]:=(a[i,j]-add(l[i,k]*u[k,j],k=1..j-1))*u_inv[j] fi; ... u_inv Systolic Array l u d • 5N-2 latency • Single latency optimal, minimum area solution • 4N2 area a b

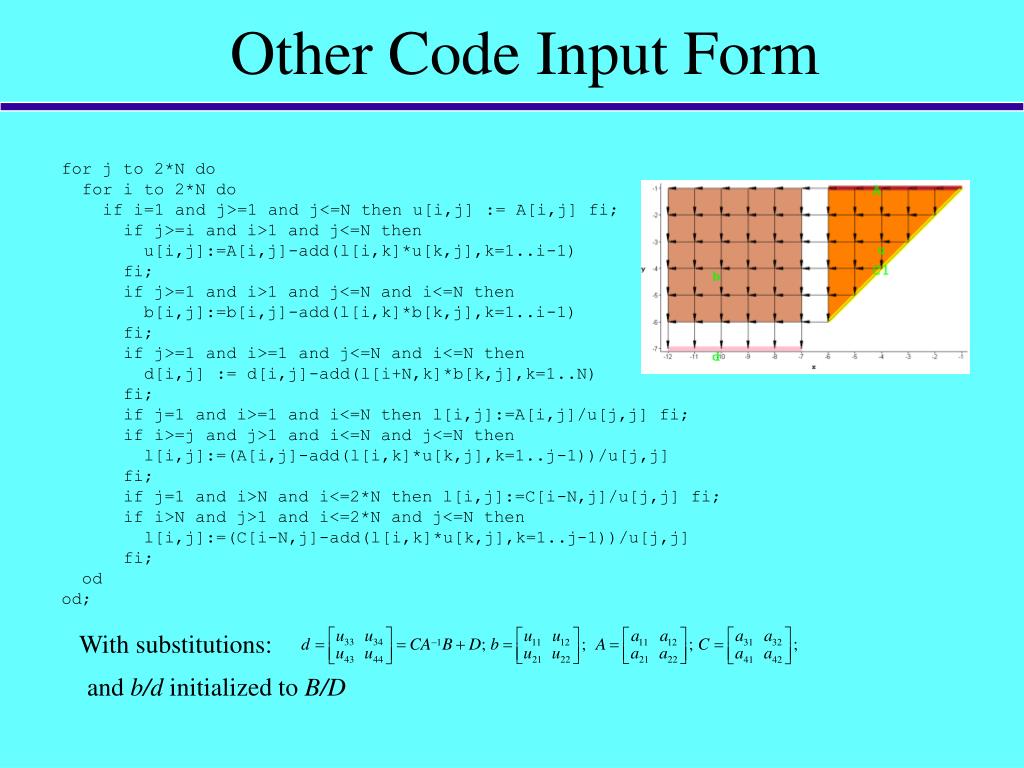

  19. Other Code Input Form for j to 2*N do for i to 2*N do if i=1 and j>=1 and j<=N then u[i,j] := A[i,j] fi; if j>=i and i>1 and j<=N then u[i,j]:=A[i,j]-add(l[i,k]*u[k,j],k=1..i-1) fi; if j>=1 and i>1 and j<=N and i<=N then b[i,j]:=b[i,j]-add(l[i,k]*b[k,j],k=1..i-1) fi; if j>=1 and i>=1 and j<=N and i<=N then d[i,j] := d[i,j]-add(l[i+N,k]*b[k,j],k=1..N) fi; if j=1 and i>=1 and i<=N then l[i,j]:=A[i,j]/u[j,j] fi; if i>=j and j>1 and i<=N and j<=N then l[i,j]:=(A[i,j]-add(l[i,k]*u[k,j],k=1..j-1))/u[j,j] fi; if j=1 and i>N and i<=2*N then l[i,j]:=C[i-N,j]/u[j,j] fi; if i>N and j>1 and i<=2*N and j<=N then l[i,j]:=(C[i-N,j]-add(l[i,k]*u[k,j],k=1..j-1))/u[j,j] fi; od od; With substitutions: and b/d initialized to B/D

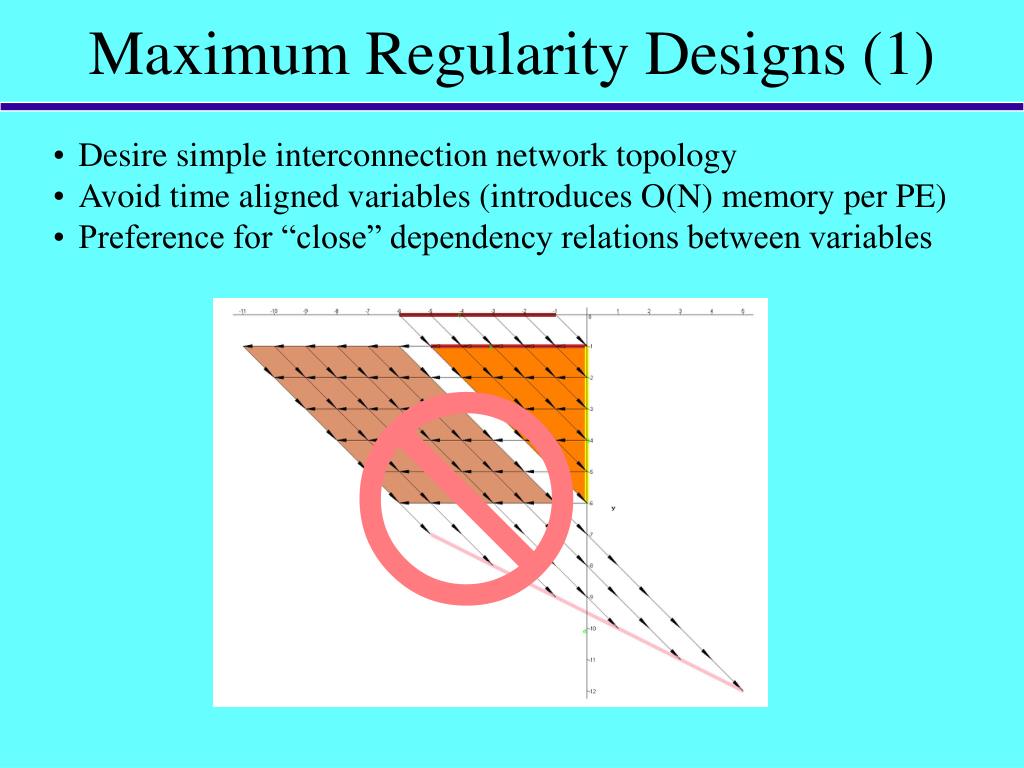

  20. Maximum Regularity Designs (1) • Desire simple interconnection network topology • Avoid time aligned variables (introduces O(N) memory per PE) • Preference for “close” dependency relations between variables 

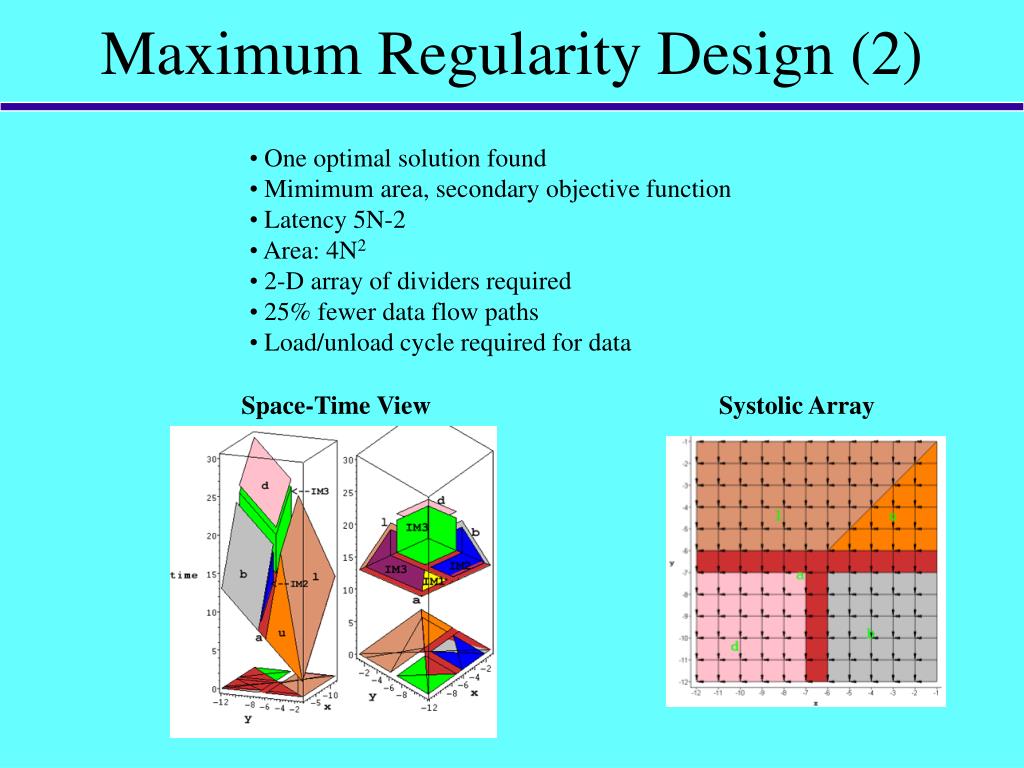

  21. Maximum Regularity Design (2) • One optimal solution found • Mimimum area, secondary objective function • Latency 5N-2 • Area: 4N2 • 2-D array of dividers required • 25% fewer data flow paths • Load/unload cycle required for data Space-Time View Systolic Array

  22. Design Example: 1D DFT Mathematical Algorithm SPADE Outputs Base-4 Transformation Direct Path from Mathematical Input To Array Design SPADE Input for j to N/4 do for k to N/4 do Y[j,k] := WM[j,k]*add(CM1[j,i]*X[i,k],i=1..b); od; for k to R do Z[k,j] := add(CM2[k,i]*Y[j,i],i=1..4*b); od od;  Patent Pending

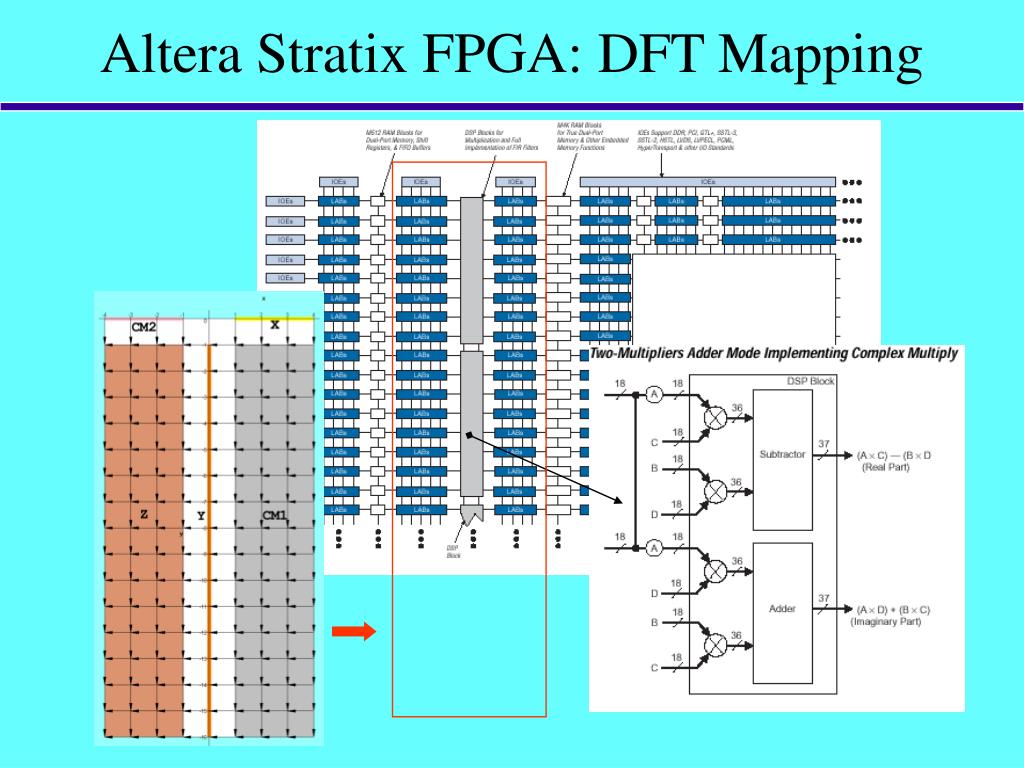

  23. Altera Stratix FPGA: DFT Mapping

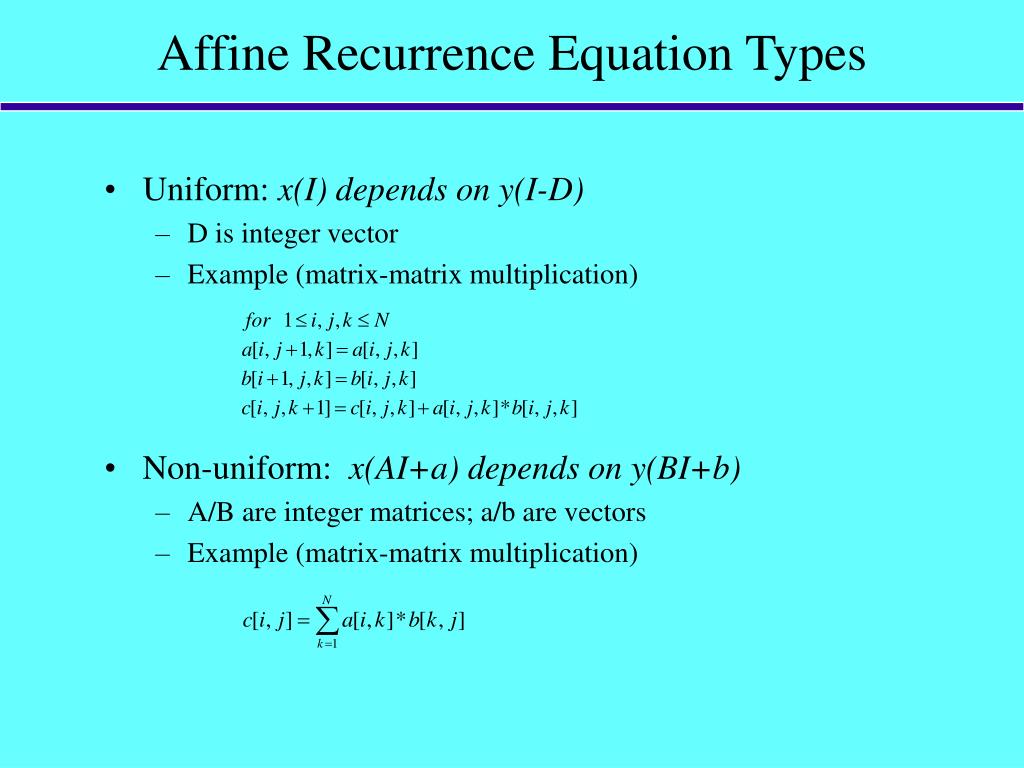

  24. Affine Recurrence Equation Types • Uniform: x(I) depends on y(I-D) • D is integer vector • Example (matrix-matrix multiplication) • Non-uniform: x(AI+a) depends on y(BI+b) • A/B are integer matrices; a/b are vectors • Example (matrix-matrix multiplication)

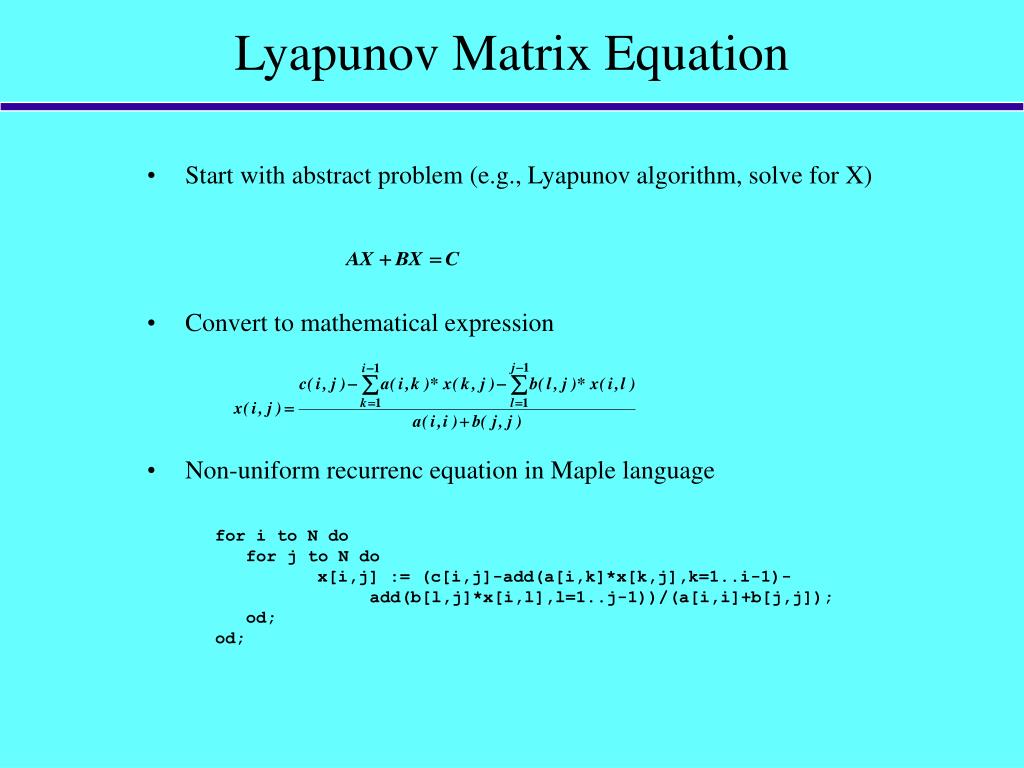

  25. Lyapunov Matrix Equation • Start with abstract problem (e.g., Lyapunov algorithm, solve for X) • Convert to mathematical expression • Non-uniform recurrenc equation in Maple language for i to N do for j to N do x[i,j] := (c[i,j]-add(a[i,k]*x[k,j],k=1..i-1)- add(b[l,j]*x[i,l],l=1..j-1))/(a[i,i]+b[j,j]); od; od;

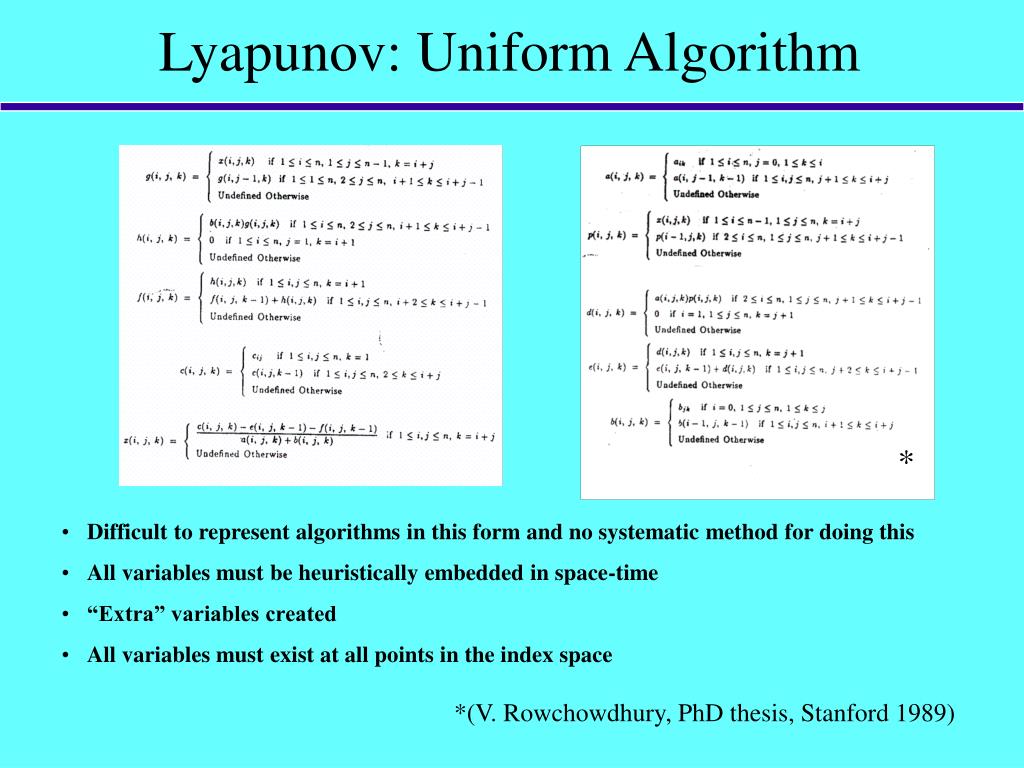

  26. Lyapunov: Uniform Algorithm * • Difficult to represent algorithms in this form and no systematic method for doing this • All variables must be heuristically embedded in space-time • “Extra” variables created • All variables must exist at all points in the index space *(V. Rowchowdhury, PhD thesis, Stanford 1989)

  27. More Information • “Constraint Directed CAD Tool For Automatic Latency-Optimal Implementation of 1-D and 2-D Fourier Transforms” (SPIE ITCom 2002, Boston, MA, July 29- August 2, 2002.) • Use of constraints to define array designs • 2-D FFT example • Hardware Efficient Base-4 Systolic Architecture for Computing the Discrete Fourier Transform (2002 IEEE Workshop on Signal Processing Systems, San Diego CA, October 16-18) • Details of 1D DFT design • Mapping to FPGAs • www.centar.net (above papers and extended viewgraphs)
