MTech Dissertation. Dynamic Adaption of DCF and PCF mode of IEEE 802.11 WLAN. Abhishek Goliya 01329012 Guided By: Prof. Sridhar Iyer Dr. Leena-Chandran Wadia. 15 th January 2003. Aim. To optimize overall performance of IEEE 802.11 MAC in WLAN

jemma
Télécharger la présentation

Dynamic Adaption of DCF and PCF mode of IEEE 802.11 WLAN

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. MTech Dissertation Dynamic Adaption of DCF and PCF mode of IEEE 802.11 WLAN Abhishek Goliya 01329012 Guided By: Prof. Sridhar Iyer Dr. Leena-Chandran Wadia 15th January 2003

  2. Aim • To optimize overall performance of IEEE 802.11 MAC in WLAN • Devise protocols that dynamically adapt DCF and PCF mode of 802.11 Wireless LAN

  3. Road Map • IEEE 802.11MAC • Problem Analysis • Suggested Protocols • DSP: Dynamic Switching Protocol • PRRS: Priority Round Robin Scheduling • CFP Adaption • Conclusion & Future Research

  4. DCFoperation

  5. PCF Mode

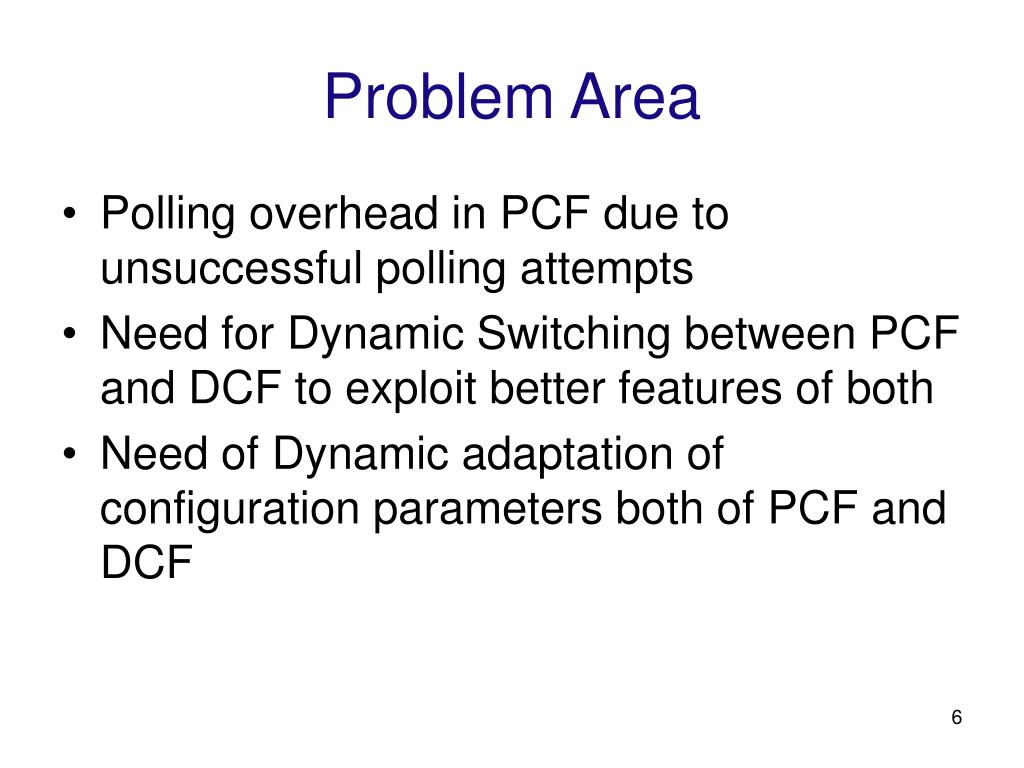

  6. Problem Area • Polling overhead in PCF due to unsuccessful polling attempts • Need for Dynamic Switching between PCF and DCF to exploit better features of both • Need of Dynamic adaptation of configuration parameters both of PCF and DCF

  7. Polling Overheads • When most stations have pending data, sequential polling provides ordered channel access and reduces collisions. • But when few stations have pending data polling mechanism become significant overhead. • Unnecessary delay for stations with data • Results in throughput degradation.

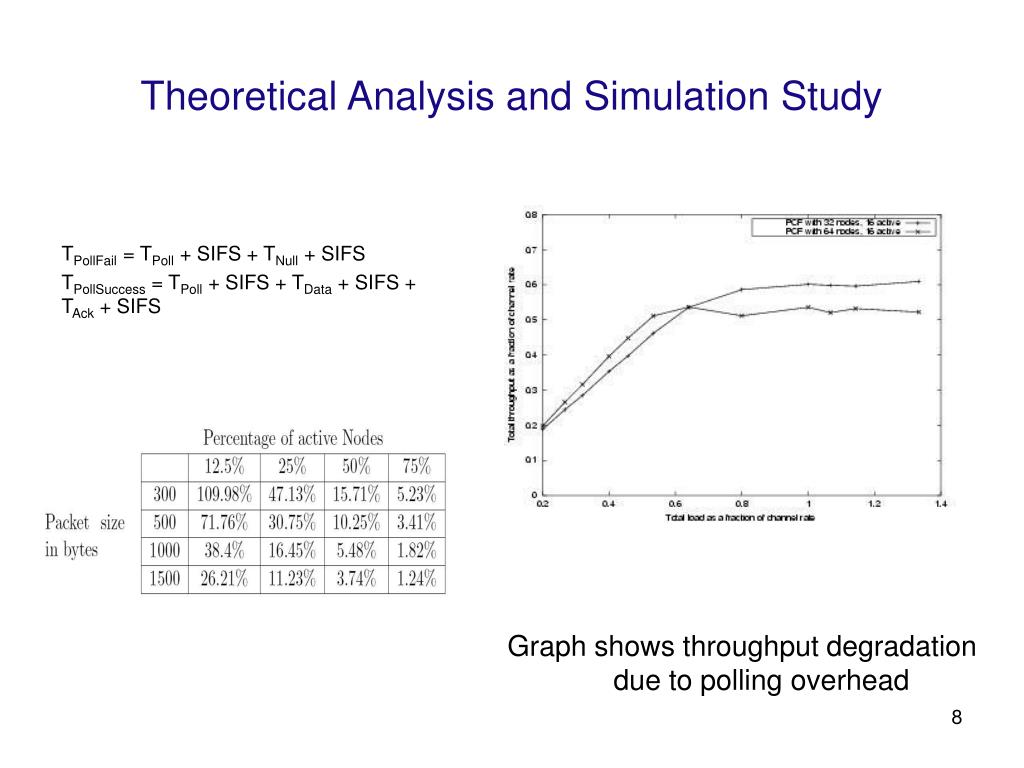

  8. Theoretical Analysis and Simulation Study TPollFail = TPoll + SIFS + TNull + SIFS TPollSuccess = TPoll + SIFS + TData + SIFS + TAck + SIFS Graph shows throughput degradation due to polling overhead

  9. Network Monitoring Layer • PRRS and DSP are based on monitoring layer at PC. • Eavesdrops packets to classify nodes as Active and Passive Active Node : Node having high probability to transmit, when polled Passive Node: Node having low probability to transmit, when polled

  10. Node List Management List Management in CFP List Management in CP

  11. Need of Dynamic Switching • DCF perform well till networks size is small • Suffers from throughput degradation at high load and in large-size networks • PCF results in larger delay in small-size networks due to polling overheads

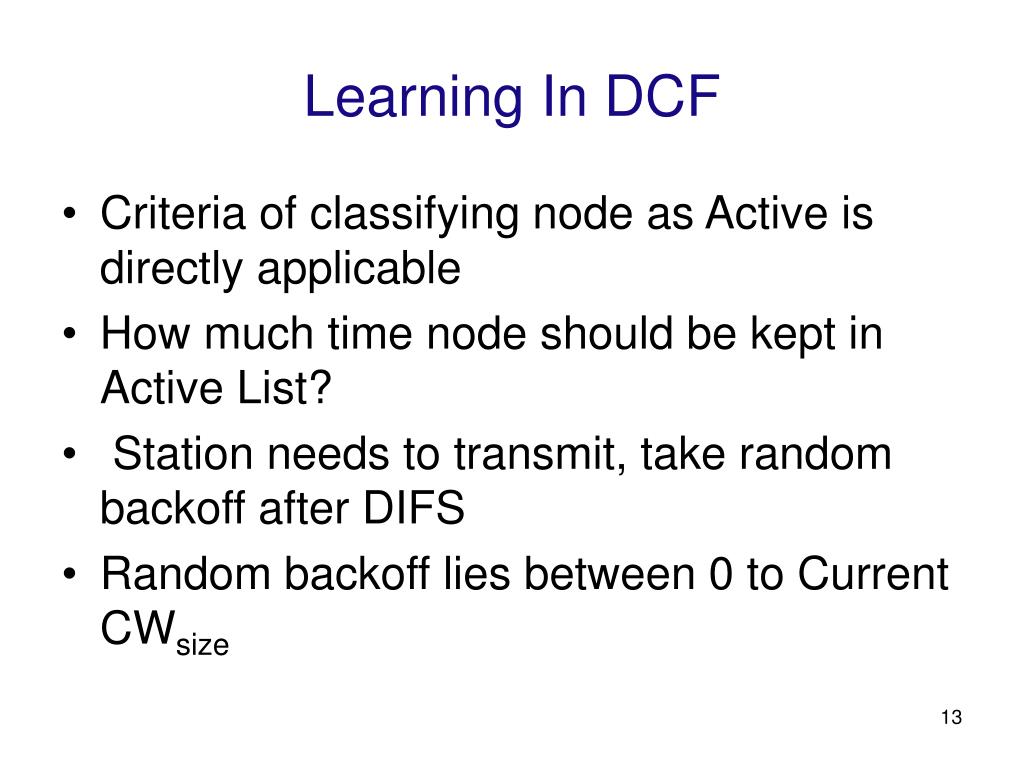

  12. Learning In DCF • Criteria of classifying node as Active is directly applicable • How much time node should be kept in Active List? • Station needs to transmit, take random backoff after DIFS • Random backoff lies between 0 to Current CWsize

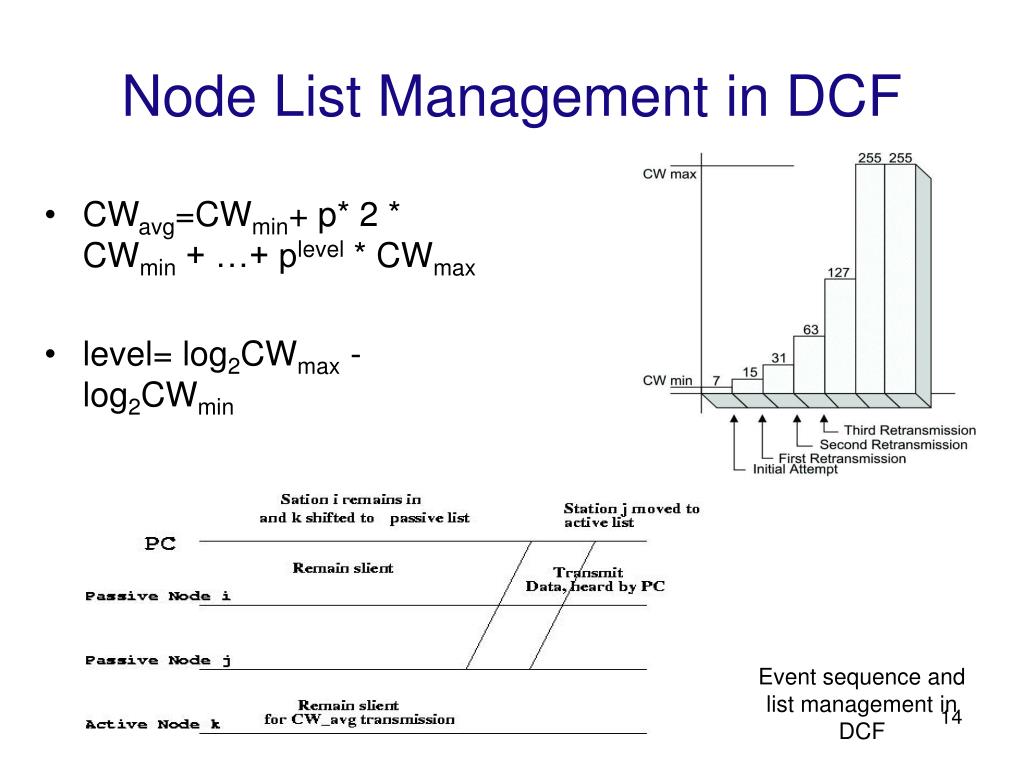

  13. Node List Management in DCF • CWavg=CWmin+ p* 2 * CWmin + …+ plevel * CWmax • level= log2CWmax -log2CWmin Event sequence and list management in DCF

  14. Switching Criteria (PCF to DCF) • Keep track of number of active and passive nodes in BSS • Switch on the basis of number of active nodes • Approximate traffic load by keeping track of CFP utilization No. of stations

  15. Switching Criteria (DCF to PCF) • Keeping track of number of active nodes • Network Utilization • Number of free slots after DIFS • RTS Failure • Fail to receive CTS in response to RTS • Number of Collision • Assuming center position for PC. It can hear collision and approximate contention in network

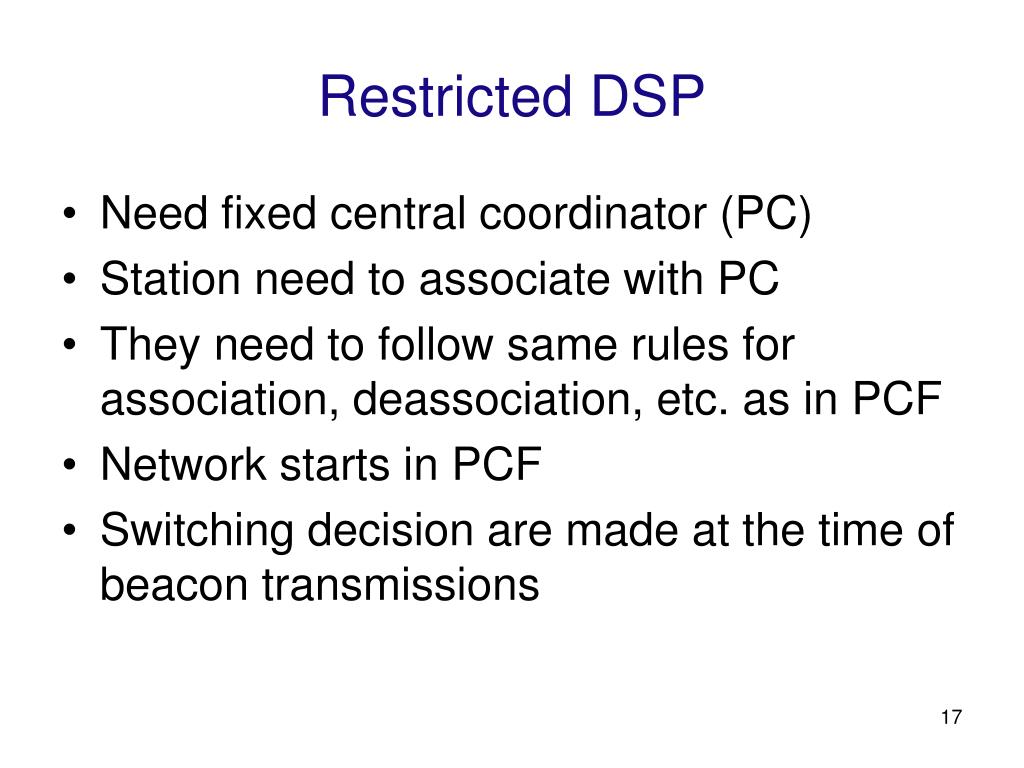

  16. Restricted DSP • Need fixed central coordinator (PC) • Station need to associate with PC • They need to follow same rules for association, deassociation, etc. as in PCF • Network starts in PCF • Switching decision are made at the time of beacon transmissions

  17. PCF to DCF switching • Exploits the virtual carrier sense mechanism • Transmit beacon, as it does normally, but with different CF parameter set • Set CFPmaxDuration, CFPremainingDur to zero and CFPcount to non zero • PC sets its local variable cfp to zero &mode to DCF CF parameter set

  18. DCF to PCF switching • Beacon generation is centralized in DCF and done by PC • PC waits for PIFS instead of DIFS for sending beacons • This prioritize PC for sending beacons • To transit into PCF mode, PC sets its CFPrate parameter to its normal value and mode to PCF • Beacons sent by it now has actual value of CFPmaxDuration, CFPremainingDuration and CFPcount

  19. Simulation Setup • Studies confined to single cell of radius 240m • We added support for sending Null data frame and broadcast packet in CFP, in existing PCF patch Throughput measured as total number of bits passed up from the MAC sublayer at each destination Laod measured as total number of bits offered to the MAC sublayer at each source Delay is measured as end to end delay at agent layer

  20. Simulation Result for PRRS 32 Nodes with 16 active 32 Nodes with 8 active 32 Nodes with 32 active 64 Nodes with 16 active

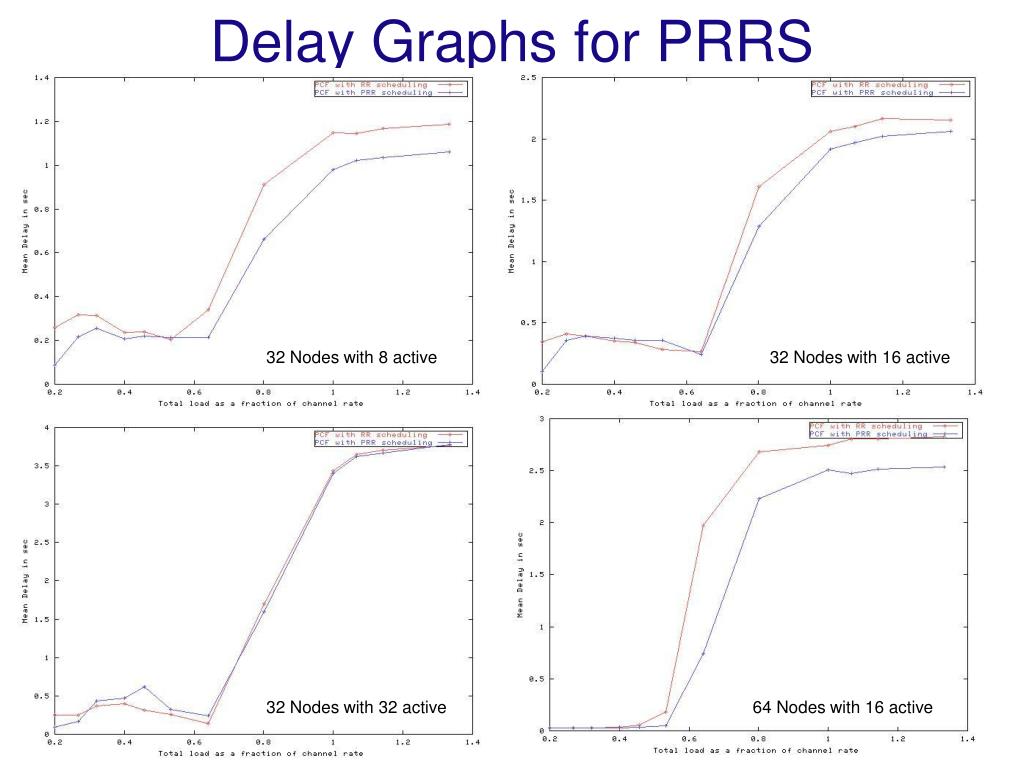

  21. Delay Graphs for PRRS 32 Nodes with 8 active 32 Nodes with 16 active 32 Nodes with 32 active 64 Nodes with 16 active

  22. Result Analysis • When 25% nodes are active, throughput increases by 10% with 32 nodes; and by 15% with 64 nodes • Mean packet delay reduces when few nodes are active • But it increases slightly when number of active node reaches total node. • If load is moderate and few nodes are active then PRRS gives better result

  23. Alternative proposals to reduce Delay further • Use Service Differentiation mechanism in CP • Prioritize nodes that have not been polled in CFP by using DCF priority schemes • Use Bi-Level Feedback scheduling • Multilevel Feedback Scheduling (MFS) • Number of levels needed depends upon network size • Issues regarding MFS are still open for further research

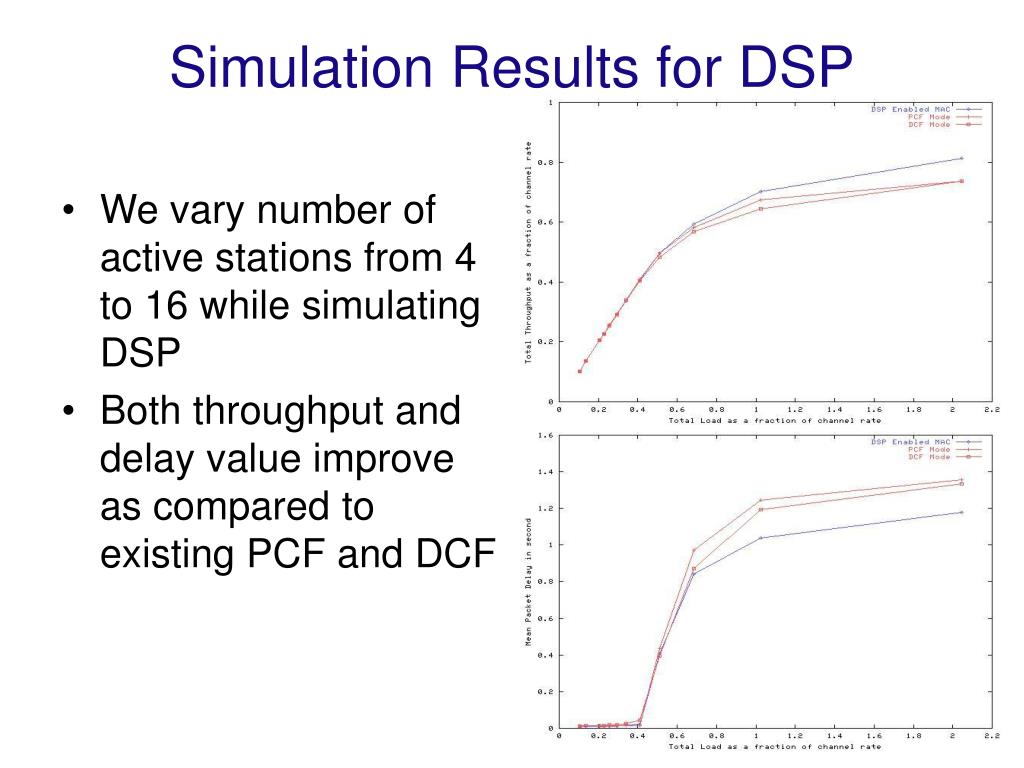

  24. Simulation Results for DSP • We vary number of active stations from 4 to 16 while simulating DSP • Both throughput and delay value improve as compared to existing PCF and DCF

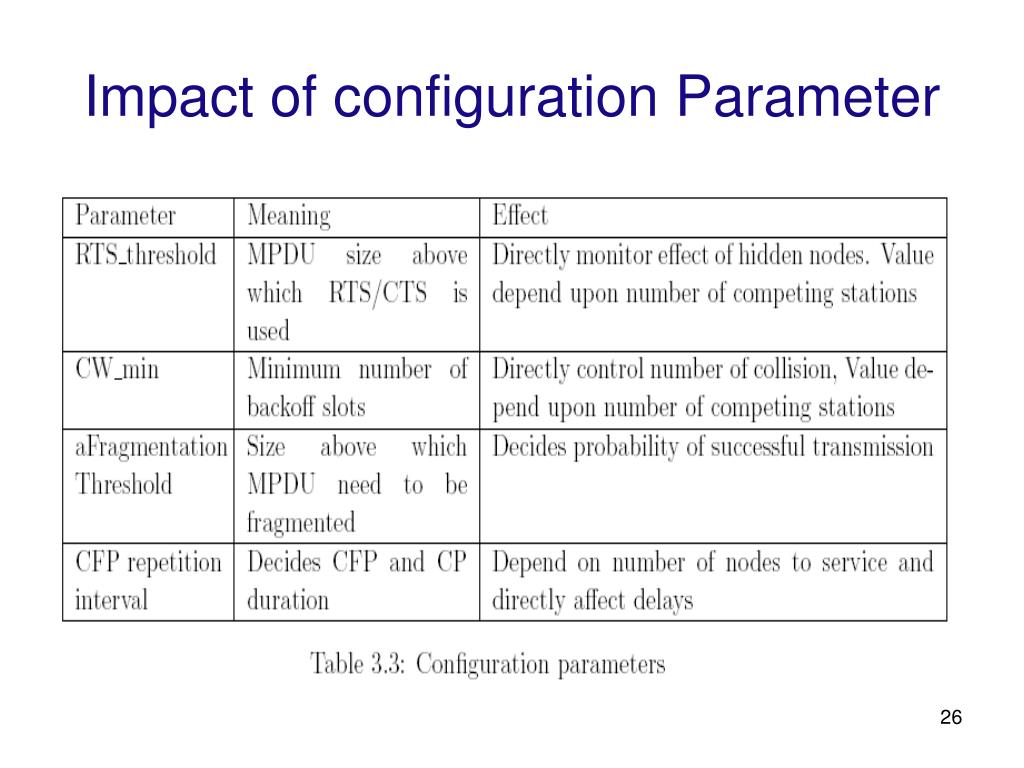

  25. Impact of configuration Parameter

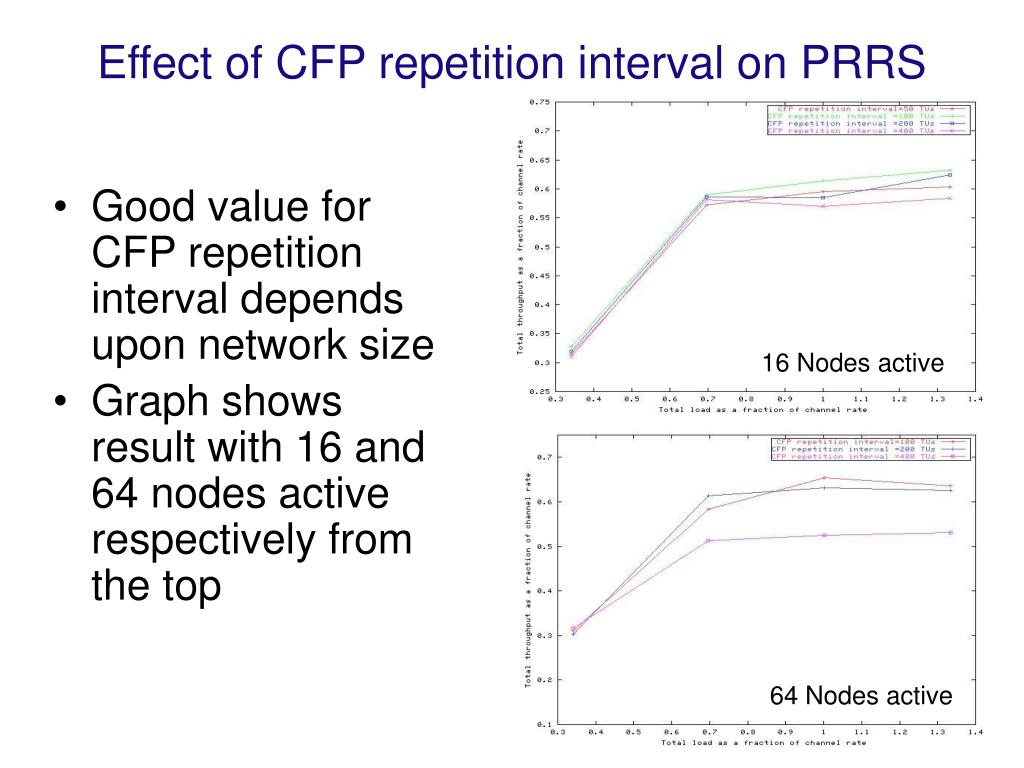

  26. Effect of CFP repetition interval on PRRS • Good value for CFP repetition interval depends upon network size • Graph shows result with 16 and 64 nodes active respectively from the top 16 Nodes active 64 Nodes active

  27. CFP Adaption Criteria • Approximate Load by CFP utilization • CFP utilization = Time spent from first poll to CFPend newCFPutili. = 0.8 * oldCFPutili. + 0.2*curCFPutili. • Linear update is addition or subtraction of beacon transmission interval • Exponential update halves the current rate • Ensuring minimum interval and keep it as multiple of beacon interval C is CFP repetition count

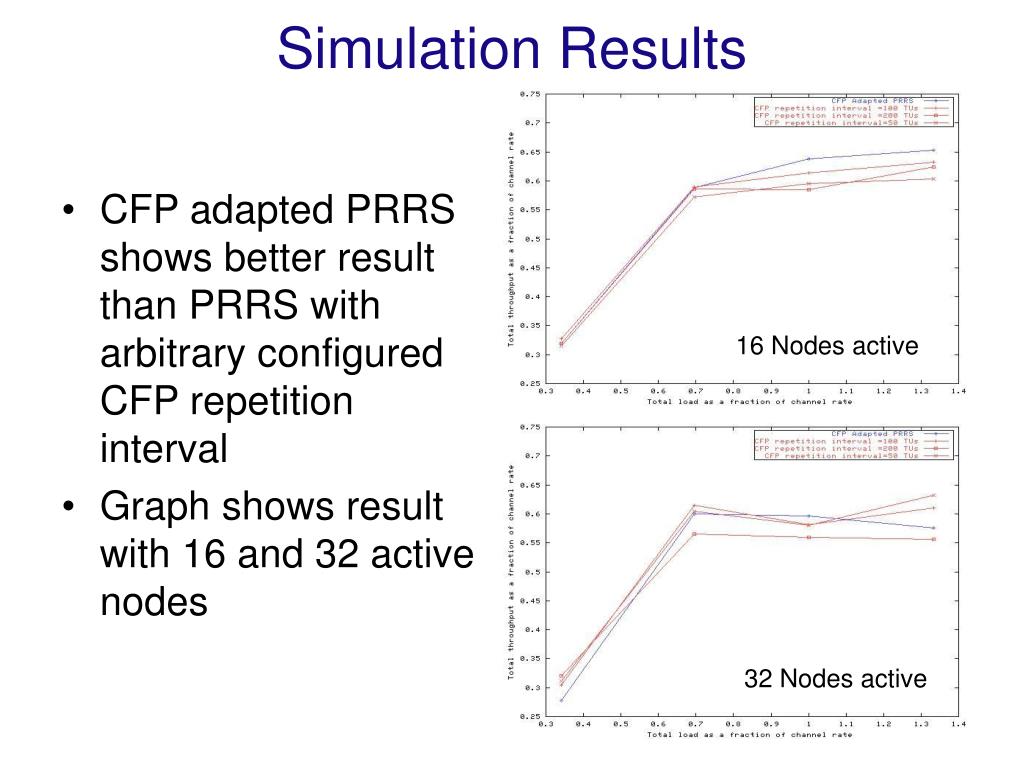

  28. Simulation Results • CFP adapted PRRS shows better result than PRRS with arbitrary configured CFP repetition interval • Graph shows result with 16 and 32 active nodes 16 Nodes active 32 Nodes active

  29. Conclusion • We suggested network monitoring based approach to dynamically adapt MAC in IEEE 802.11 • PRRS improves throughput and delay values by about 10-15% especially at moderate load and few stations have data • DSP improves network capacity and reduces delay under all load regime • We showed the need to dynamically adapt the configuration parameters of both PCF and DCF • Our protocol for CFP adaption successfully adapts CFP rate to suit current network load

  30. Future Work • PRRS suffers from larger delay in some scenario • Need to implement DCF priority schemes • Analyse the performance of Bi-level and multilevel feedback scheduling • Thorough experimentation and simulation study is required to define switching points for DSP • Idea of Distributed DSP is open for further research • Design algorithm to adapt other configuration parameters

  31. Thanks…
