  1. DPM - efficient storage in diverse environments M. Hellmich, O. Keeble, F. Furano, A. Manzi, A. Ayllon, I. Calvet, R. Rocha, M. Regala CHEP 2013 Amsterdam

  2. Experiment with storage • Scaling the Architecture • Raspberry Pi • Virtual Machines • Bare Metal Servers • Evaluate the outcomes • Performance per Watt, Dollar CHEP2013

  3. Storage CHEP2013

  4. This talk is a reaction Change in our software Change in computing services Change in available hardware CHEP2013

  5. Our software: DPM MD DB Disk Disk Disk Disk CHEP2013

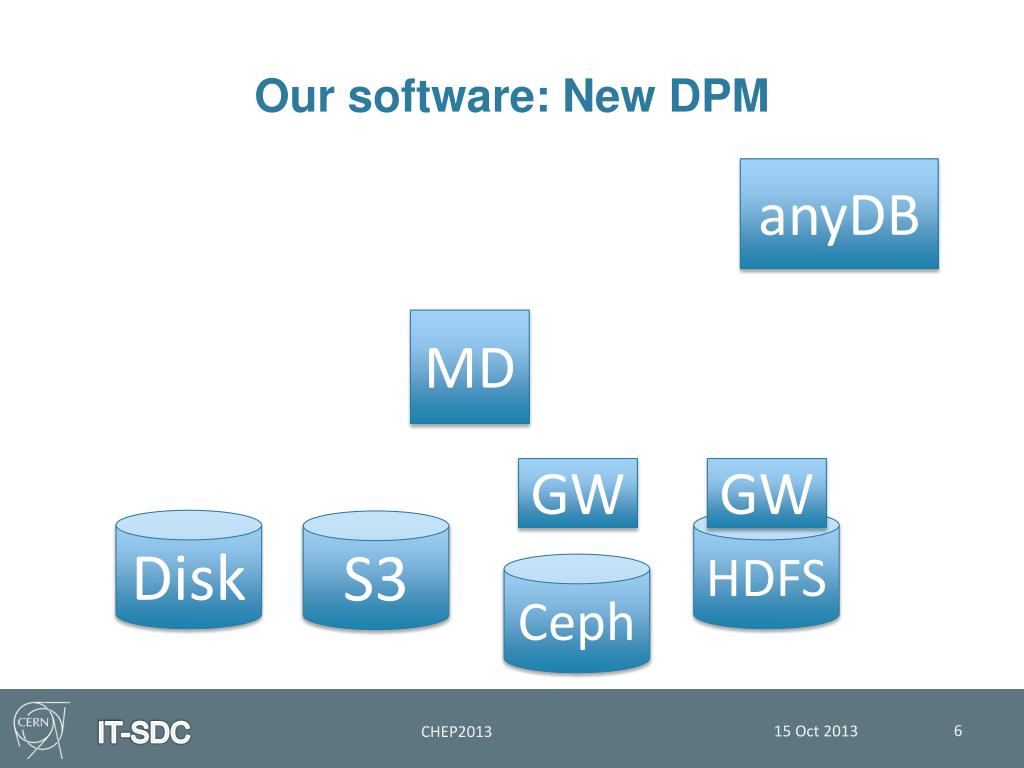

  6. Our software: New DPM anyDB MD GW GW Disk HDFS S3 Ceph CHEP2013

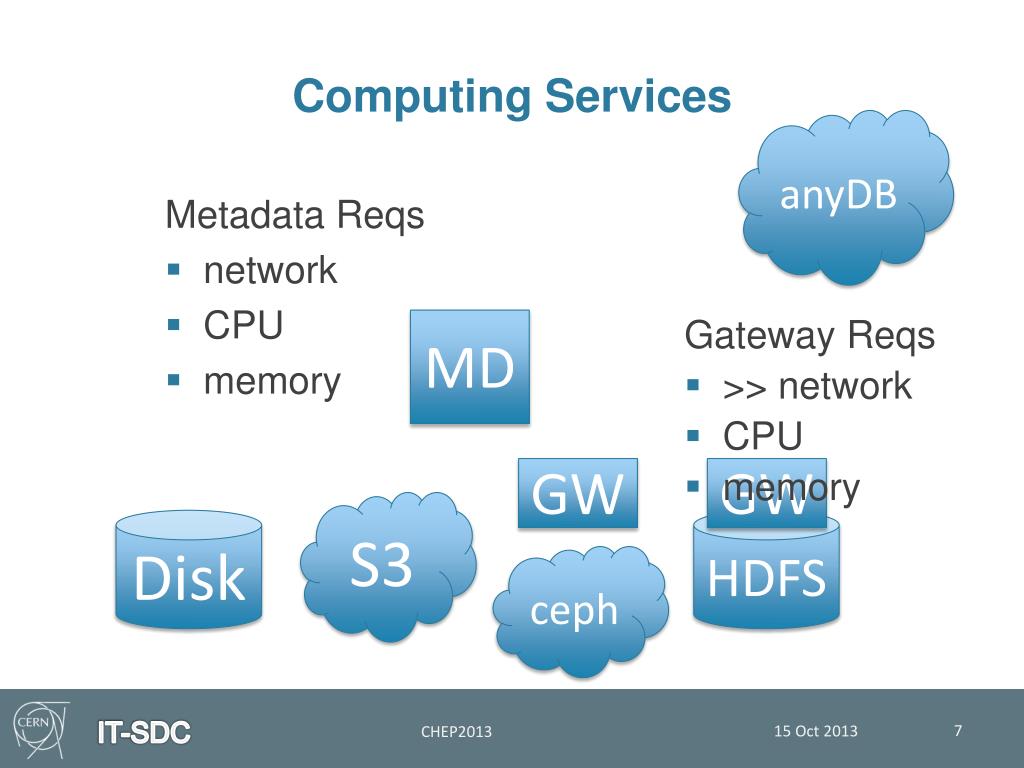

  7. Computing Services anyDB MD Gateway Reqs • >> network • CPU • memory GW GW S3 Disk HDFS ceph Metadata Reqs network CPU memory CHEP2013

  8. Available Hardware: ARM • Low power consumption • also when idle CHEP2013

  9. So we focused on Metadata anyDB MD MD MD GW S3 ceph CHEP2013

  10. The Metric • requests/sec served, pure and simple • Stat requests for files • Deputy for other calls • Tested over http CHEP2013

  11. The Setup t client t MD t t client DB MD client client MD client Disk CHEP2013

  12. Performance Comparison CHEP2013

  13. Scaling up with Memcached *VMs are OpenStack VMs CHEP2013

  14. Total Cost of Ownership TCO = Cost Machines + Cost Running Machines Cost Running Machines = Cost Maintenance + Cost Replacement + Cost Power + Cost External Components Cost SoftwareDev CHEP2013

  15. Performance per Watt CHEP2013 1price per kWh = 0.07 Euros 2idle 30 percent of the time

  16. Performance per Euro Note Rasp external equipment is much more expensive! 1 Buying Price + Power Costs or EC2 Pricing (reserved instance) 2 12VMs running on DELL PowerEdge M620 24 core 16GB RAM, price from website CHEP2013

  17. Working with a Raspberry • Smallest possible machine • But very good for testing • Runs EPEL software* CHEP2013

  18. Summary • Evaluation of a DPM metadata server • VMs do well • Especially with memcached • Raspberries work • Are even competitive • ARM may become very useful for storage CHEP2013

  19. Questions? Thank you very much CHEP2013
