  1. Outline Logic Verification Problem Verification Approaches Recursive Learning Approach Goal Understand verification problem Understand HANNIBAL algorithms Logic Verification 1

  2. Problem verify that two logic circuits are functionally equivalent both cover the same ON-set neither covers any of the OFF-set of the other can have different coverings of the DC-set Applications verify that logic optimization was correct both hand and automatic optimization verify that logic was implemented correctly technology mapping, circuit design, layout a a f y c y f c Logic Verification ? =

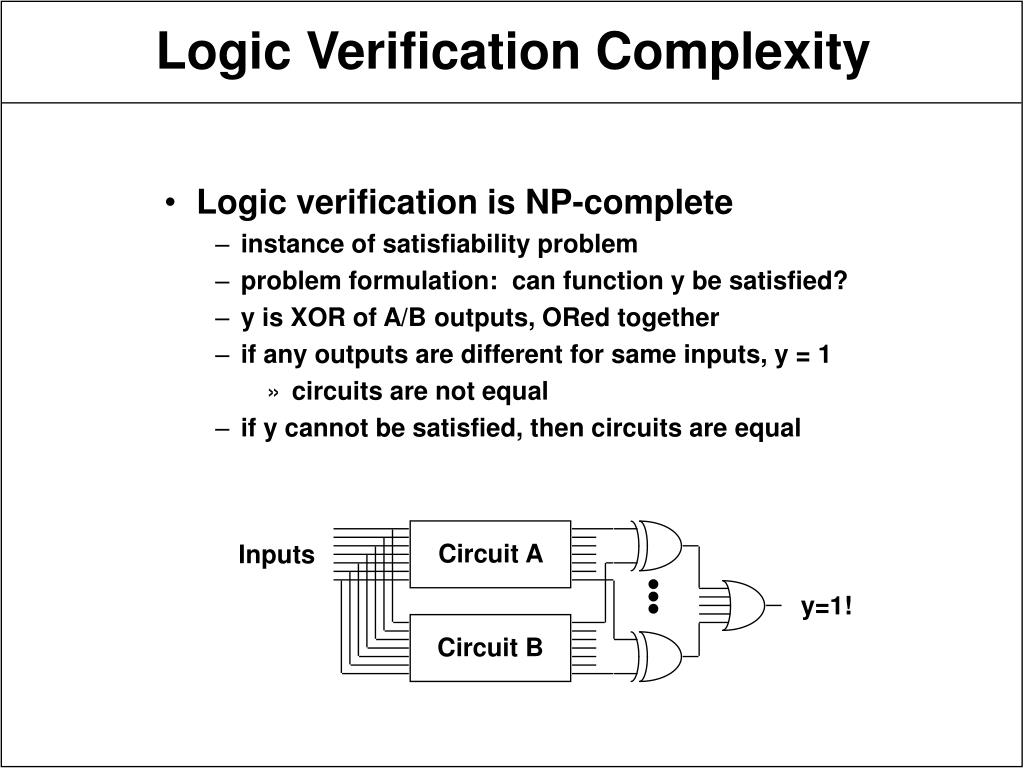

  3. Logic verification is NP-complete instance of satisfiability problem problem formulation: can function y be satisfied? y is XOR of A/B outputs, ORed together if any outputs are different for same inputs, y = 1 circuits are not equal if y cannot be satisfied, then circuits are equal Circuit A Inputs • • • y=1! Circuit B Logic Verification Complexity

  4. Logic Simulation zero-delay simulation of circuits A and B, compare outputs must simulate for all possible inputs exponential time current approach: validation - simulate many inputs probability that A and B are not equal is small small differences escape detection - Pentium bug Cube Covering cubes in B cover the cubes of A reduced against its ON-set cubes in B do not cover any of A OFF-set vice-versa use ESPRESSO cube covering check exponential time in worst case best suited for two-level logic Logic Verification Approaches

  5. Optimization optimize comparison circuit if A and B are same, circuit should optimize to constant 0 problem: optimization algorithms do not guarantee minimum circuit, could erroneously report difference Ordered Binary Decision Diagrams (OBDD) convert comparison circuit to canonical form canonical - unique representation for given function circuit will reduce to constant 0 if equivalent problem: intermediate OBDD could be exponential space Recursive Learning try to justify y = 1! use RL to learn indirect implications use implications to decompose into smaller subproblems problem: RL or subproblems could be exponential time Logic Verification Approaches

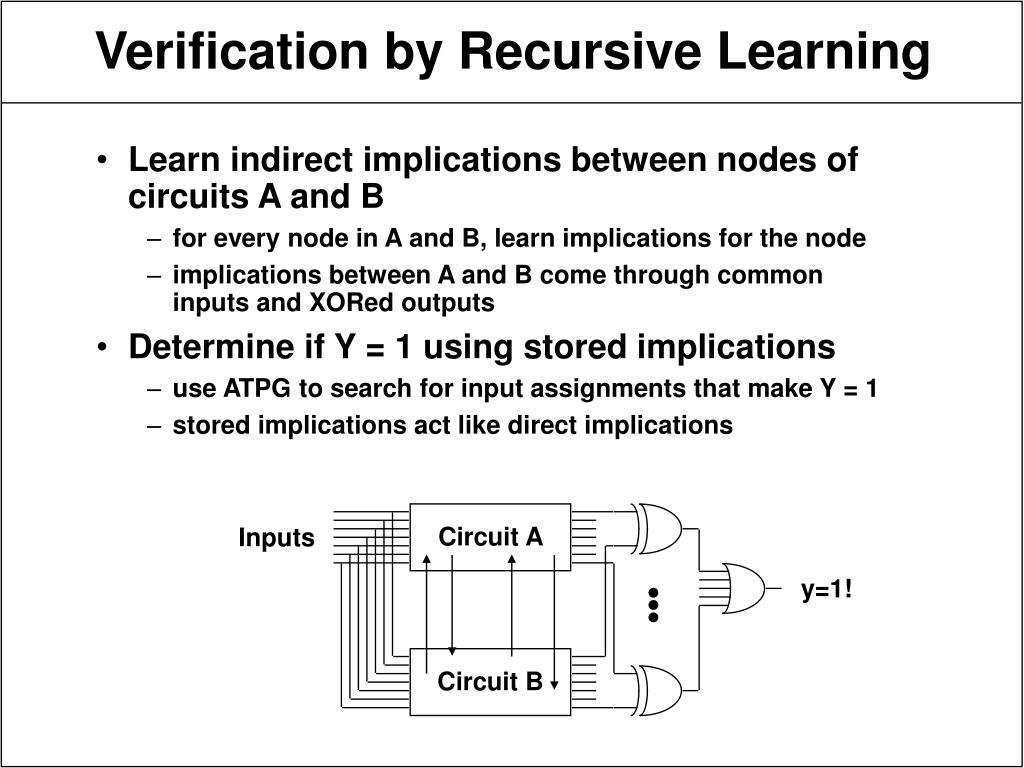

  6. Learn indirect implications between nodes of circuits A and B for every node in A and B, learn implications for the node implications between A and B come through common inputs and XORed outputs Determine if Y = 1 using stored implications use ATPG to search for input assignments that make Y = 1 stored implications act like direct implications Circuit A Inputs y=1! • • • Circuit B Verification by Recursive Learning

  7. HANNIBAL Algorithm rprep = 1 set rprep,max Construct circuit Connect input pairs together Connect output pairs by XORs OR together XORs • Identification of indirect implications (Phase 1) • (moving from inputs towards outputs) • for every logic gate G in both circuits with output signal g • assign g=W with W=0 for AND, NOR and W=1 for OR, NAND • make_all_implications(0, rprep) • for all learned signal values fi = Vi • store indirect implications g = W => fi = Vi at signal g rprep += 1 Base algorithm for verification (Phase 2): test generation Check satisfiability of Y using prestored indirect implications rprep < rprep,max aborted yes Y=1 is inconsistent Y=1 is justified no circuits are equivalent circuits are not equivalent disting. vector generated aborted

  8. Learn for S0, S2, S4, S0’, S4’ node S0: S0=1 => S2=1, S4=1 by direct implication case N0=0 => N0’=0, S0’=1, S4’=1, Y=0 case N1=0 => N1’=0, So’=1, S4’=1, Y=0 result: S0=1 => S0’=1, S4’=1, Y=0 Circuit A N0 C0 S0 S1 S4 N1 S2 S3 C1 C2 Circuit B C0’ N0’ Y S0’ N1’ C1’ S4’ C2’ N2’ Example

  9. Stored Indirect Implications S0 = 1 => S0’ = 1, S4’ = 1, Y = 0 S2 = 1 => S4’ = 1, Y = 0 S4 = 1 => S4’ = 1, Y = 0 S0’ = 1 => S0 = 1, S2 = 1, S4 = 1, Y = 0 S4’ = 1 => S2 = 1, S4 = 1, Y = 0 note implications for Y have been found Justification for Y = 1 S4 = 1 and S4’ = 0 Y = 0 by stored implication, inconsistent S4 = 0 and S4’ = 1 Y = 0 by stored implication, inconsistent conclusion: Y = 0, circuits are equivalent justification is trivial with stored Y implications Example

  10. ISCAS85 vs. nonredundant versions 3 sec for c432 to 79 minutes for c7552 rprep,max = 1 or 2 for all cases for phase 1 small runtime for rprep,max =1 cases rmax = 0 for phase 2 except rmax = 5 for c3540 satisfiability checking is usually trivial needed only direct and stored implications in all but c3540 stored implications for Y=0 or Y=1 Issues blanket rprep during phase 1 CPU time grows exponentially ATPG abort level vs. rprep how many assignments to try before quitting fast and stupid is sometimes faster Experience

  11. HANNIBAL failures when circuits A and B have large dissimilar regions requires high recursion level to work through cannot use level greater than 2 Decompose problem - Verifast static learning with recursion level 1 usually fast, often solves problem random simulation to identify probably-equivalent nodes verify each pair between A and B in rank order smaller problem => can use much higher recursion level up to 7 during second phase use equivalences found in earlier ranks handles more problems, much faster on hard cases Verifast - Improved HANNIBAL
