  1. MAGUIRE MCF CONCENTRATE FEEDER Metering and Blending Equipment

  2. Volumetric Feeder

  3. CONCENTRATE FEEDERS • MCF Concentrate Feeders • MLG “Little Guy” • MPF Powder Feeder • MRF Regrind Feeder • MSF Starve Feeder

  4. MCF Concentrate FeedersFEATURES & BENEFITS • Automatic Speed Control • Monitors screw return time to provide uniform dispensing and consistent color • Digital Thumbwheel Entry • Counter setting eliminates operator error • Removable Stainless Steel Hopper • Easily removed for color change or cleaning • “No Spill” Auger Tube Shutoff • Prevents pellets from spilling when hopper is removed • Self-engaging Motor Coupling • Low Profile Adapter Frame • Provides stable platform for existing material hopper

  5. MPA Peristaltic PumpFEATURES & BENEFITS • Positive Displacement Pump • No seals, check valves or clearances to allow internal leakage • Easily Cleaned and Maintained • Liquid is retained in flexible tube and never contacts pumping mechanism • One-Time-Only Calibration • Similar materials do not require calibration • Precision Metering of Viscous Liquids • Meters by compression and release of a flexible pumping tube • Absolute Accuracy and Easy Set-up • Digital counter entry provides exact and repeatable pump head rotation • Self Priming • Trapped air bubbles pass without loss of prime • 3 Year Warranty • Most comprehensive warranty in the industry

  6. MCF Concentrate FeedersFEATURES & BENEFITS • Transferable From Press to Press • Transferswithout tools • Wide Selection of Feed Rates • ½” and 1” augers are available with motors ranging from 18 to 130 RPM • Material Flow Baffle Chamber • Ensures uniform color distribution • Extrusion Following (optional) • Digital tachometer feedback ensures exact match to extruder output • THREE (3) YEAR WARRANTY

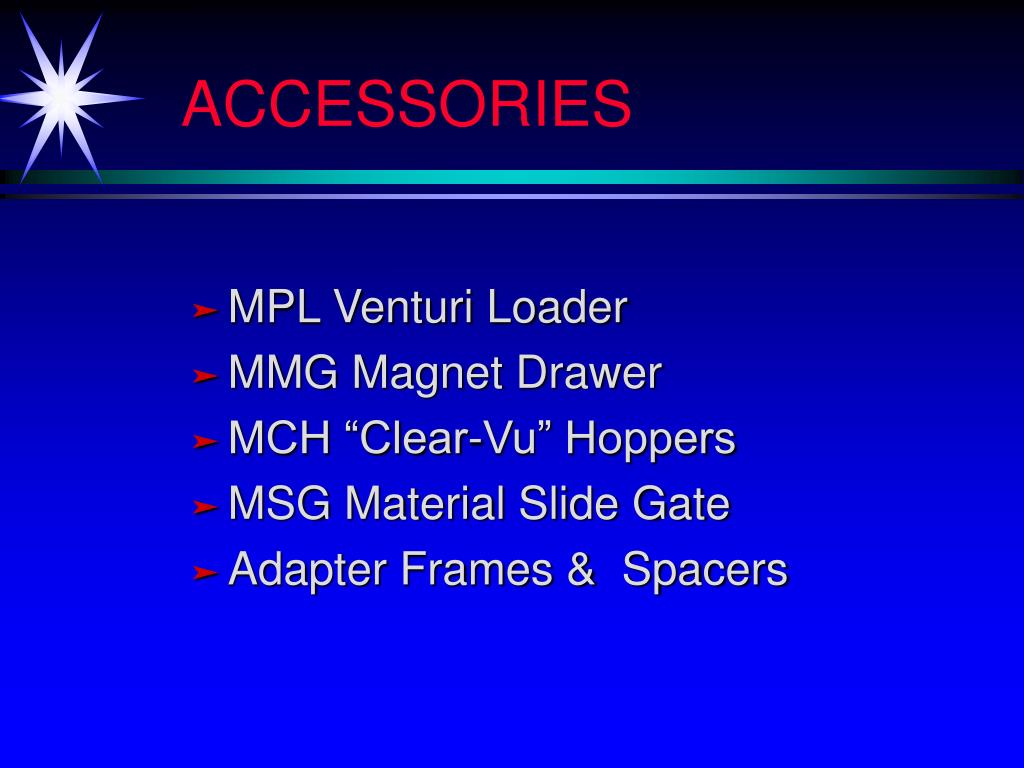

  7. ACCESSORIES • MPL Venturi Loader • MMG Magnet Drawer • MCH “Clear-Vu” Hoppers • MSG Material Slide Gate • Adapter Frames & Spacers

  8. AUTOMATIC SPEED CONTROLLER • Digital speed control for quality color control • Microprocessor monitors encoder for precise metering • Automatically adjusts motor speed to match metering rate to screw return time • Compensates for varying line voltage • Optional “Extrusion Following”

  9. DIRECT ENTRY CONTROLLER • Direct Entry of colorant percentage requirement • Microprocessor monitors encoder for precise metering • Automatically adjusts motor speed to match metering rate to screw return time • One-Time-Only calibration of additives • Password Protection • RS-232 & SPI communications protocol • Compensation for regrind • Fiber optic pickup for “Extrusion Following”
