  1. Cloud Does the ‘Cloud’ havea Silver Lining? Gareth Eason

  2. Summary • Should I care about cloud? • YES! • Will cloud solve all my compute and storage problems? Is it a magic silver bullet? • NO! • (sorry!)

  3. Audience Participation • Q. Who considers themselves • a Cloud User? • a Cloud Provider?

  4. Results Gareth, Could not afford the cloud-enabled audience voting pads this year, sorry! Maybe in 2010? John

  5. Can Cloud save me money? • Cloud service users: • with variable loads • requiring scaling up and back at short notice • want a service that’s already available as SaaS • YES! (maybe!) • Cloud service providers: • generally, NO! • unless you are selling spare capacity • virtualisation / economies of scale might contradict this

  6. But what is cloud?

  7. What is Cloud? Concept

  8. What is Cloud? set of properties

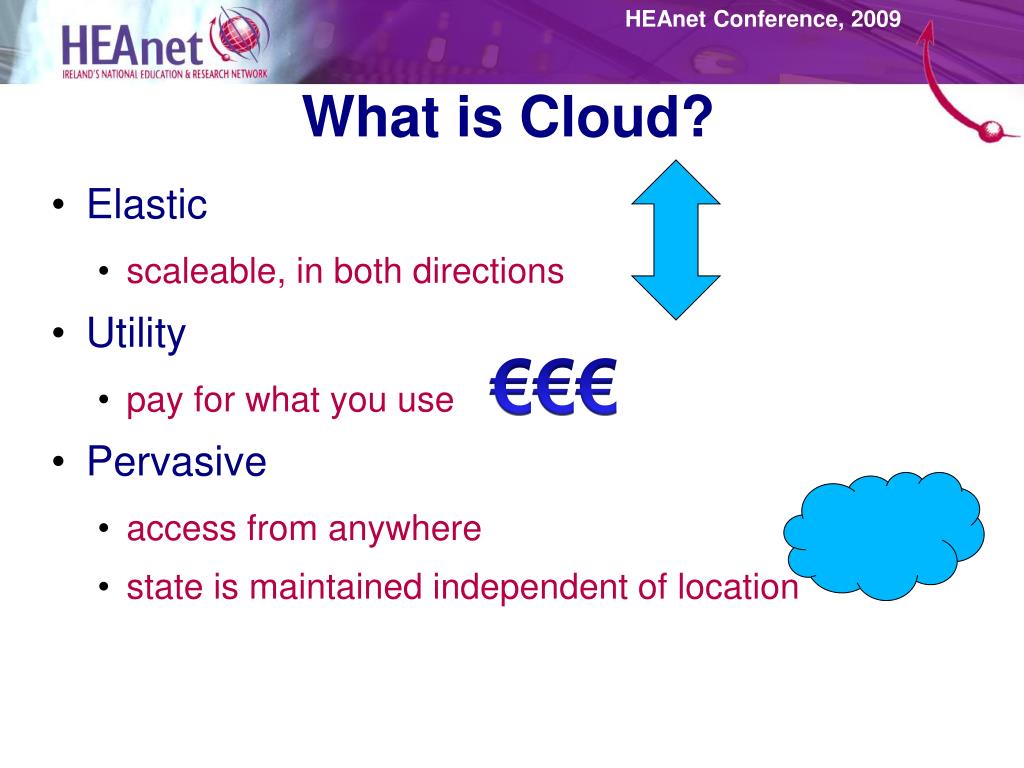

  9. What is Cloud? • Elastic • scaleable, in both directions • Utility • pay for what you use • Pervasive • access from anywhere • state is maintained independent of location €€€

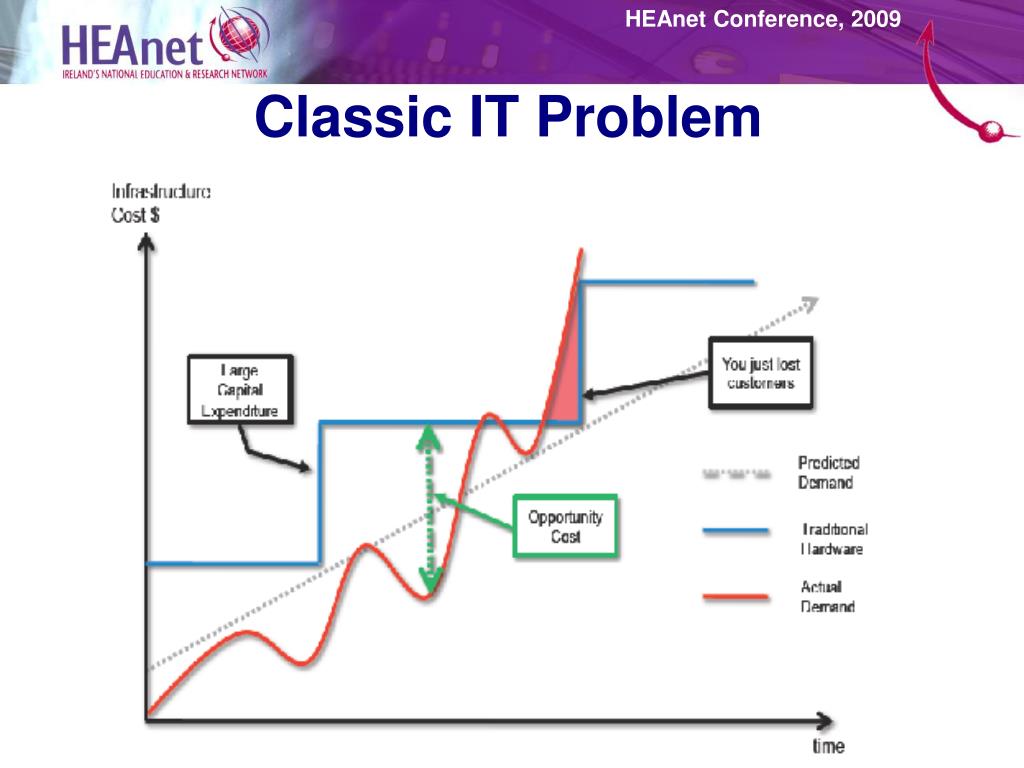

  10. Classic IT Problem

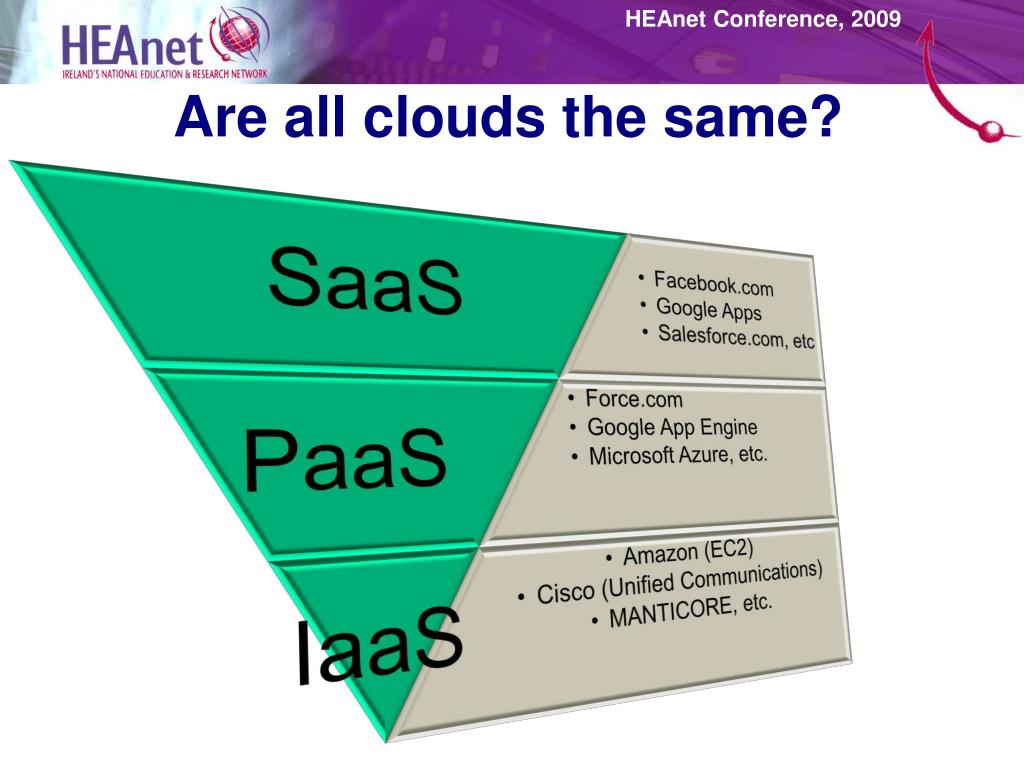

  11. Are all clouds the same?

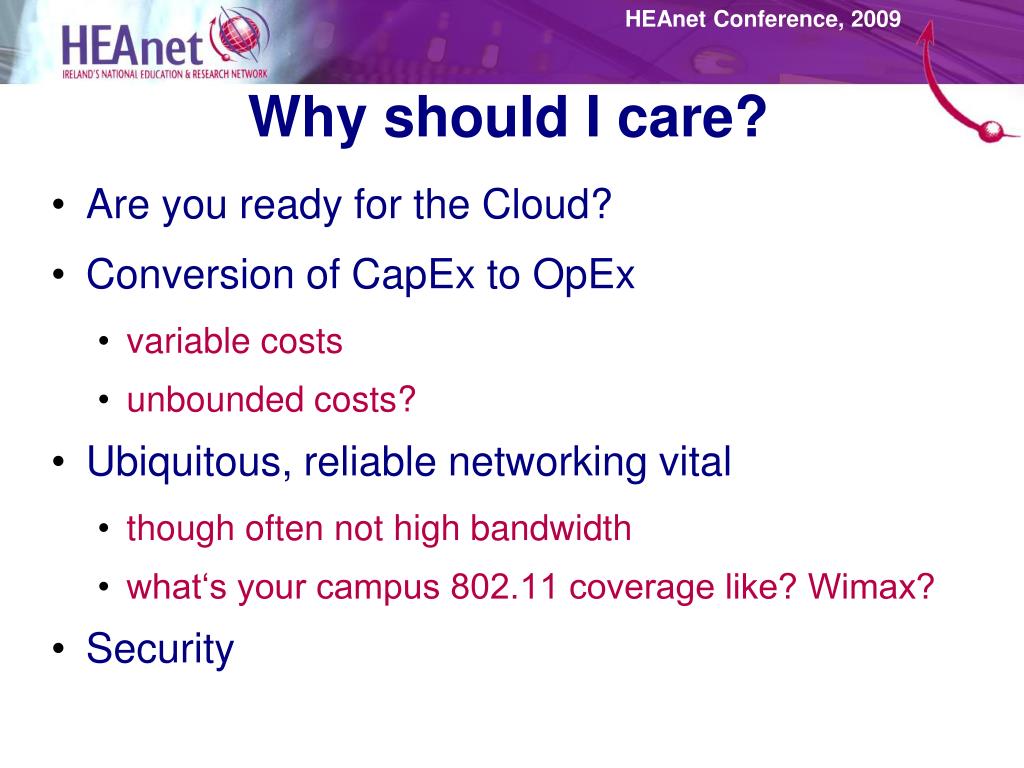

  12. Why should I care? • Are you ready for the Cloud? • Conversion of CapEx to OpEx • variable costs • unbounded costs? • Ubiquitous, reliable networking vital • though often not high bandwidth • what‘s your campus 802.11 coverage like? Wimax? • Security

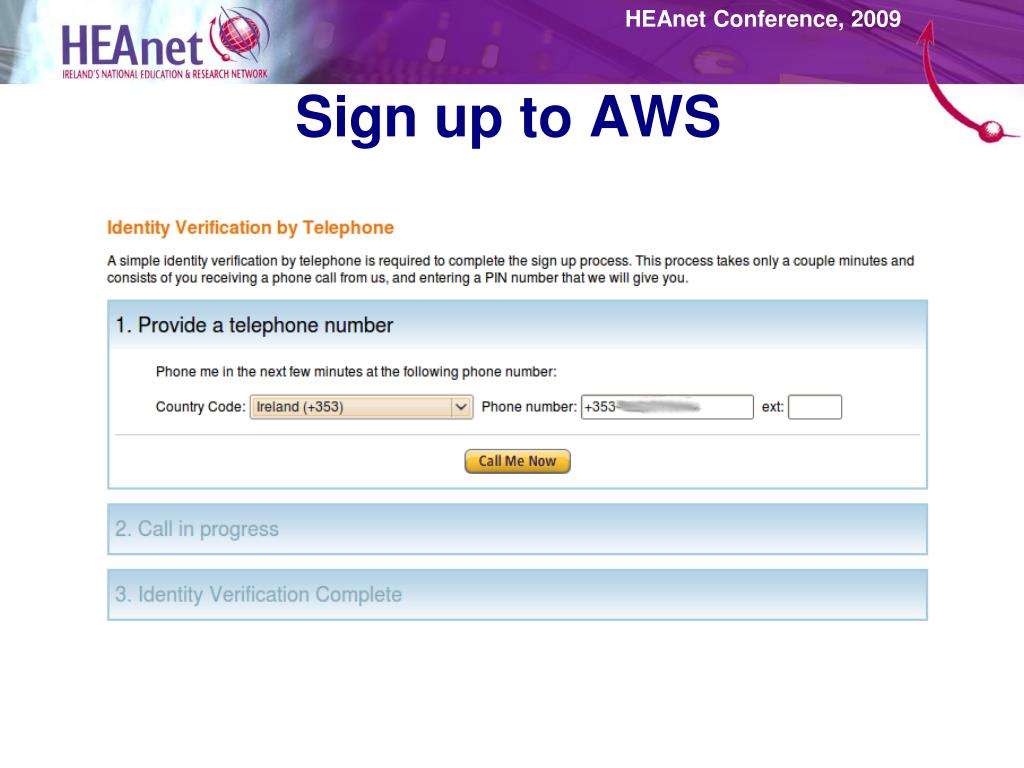

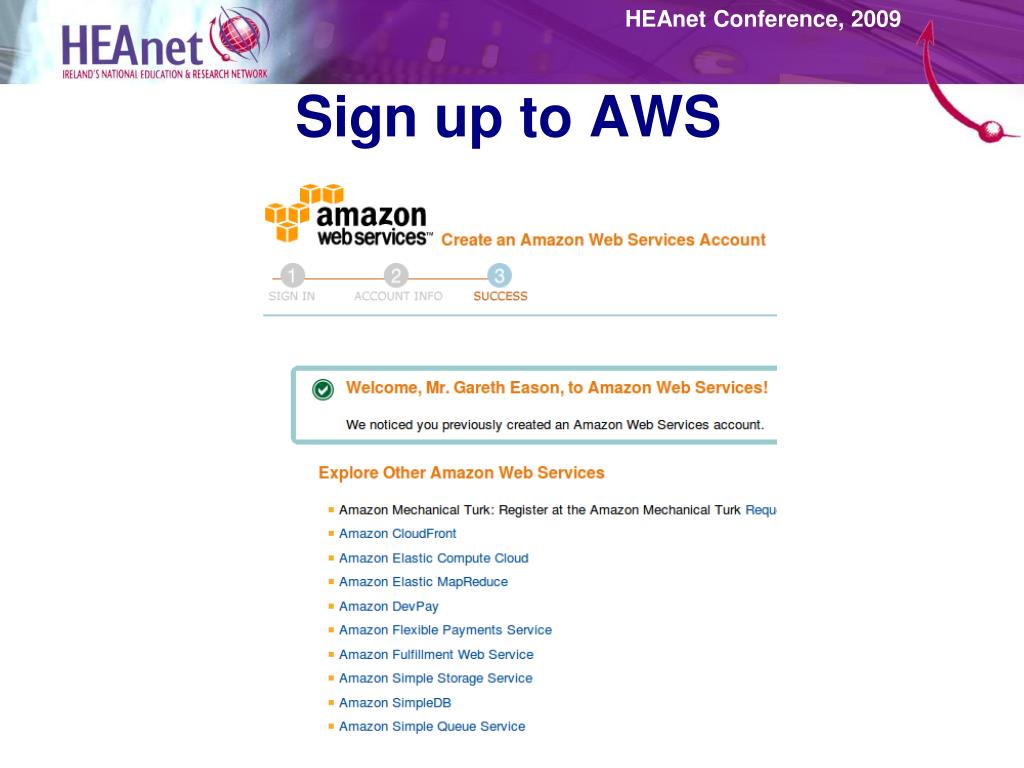

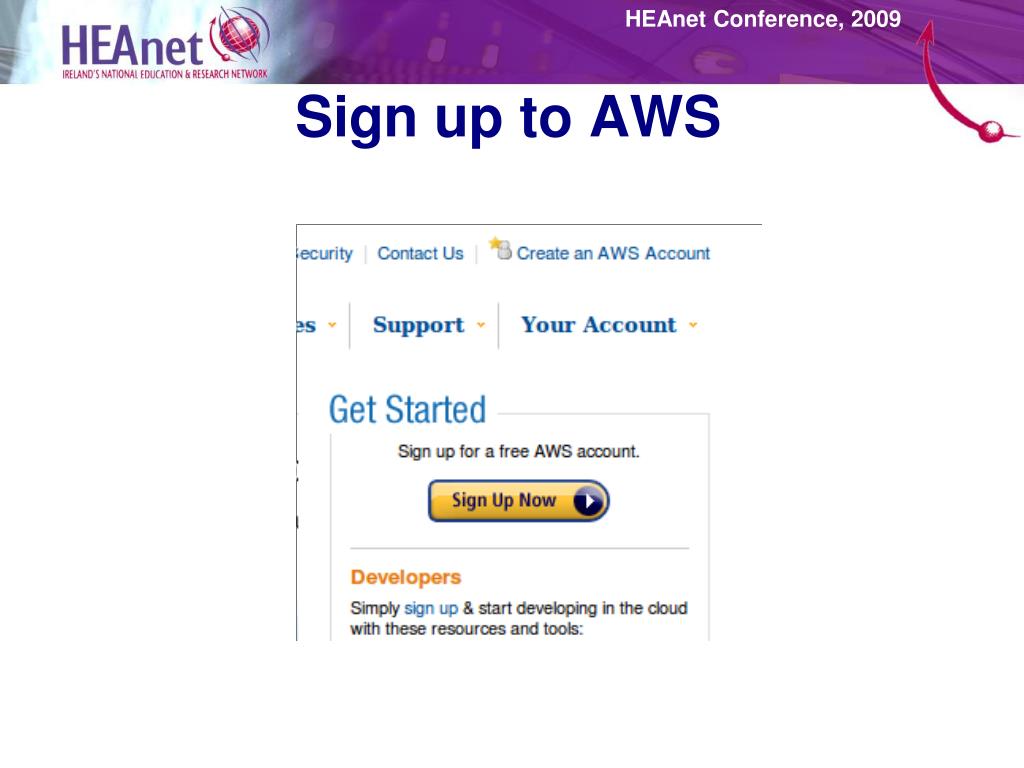

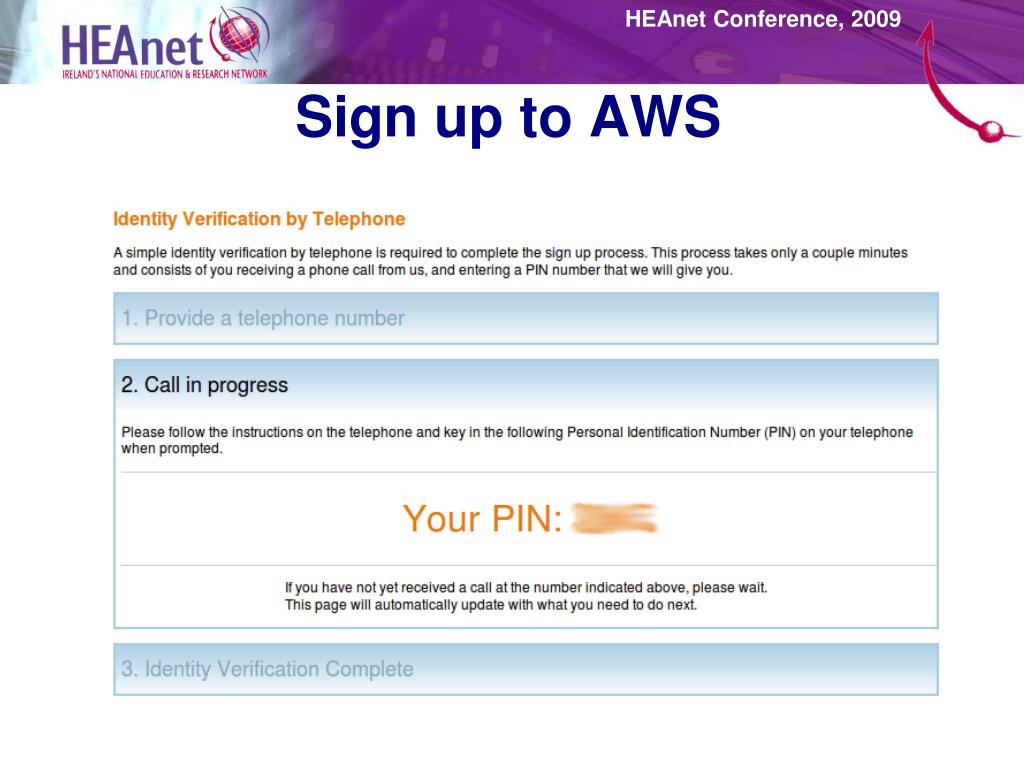

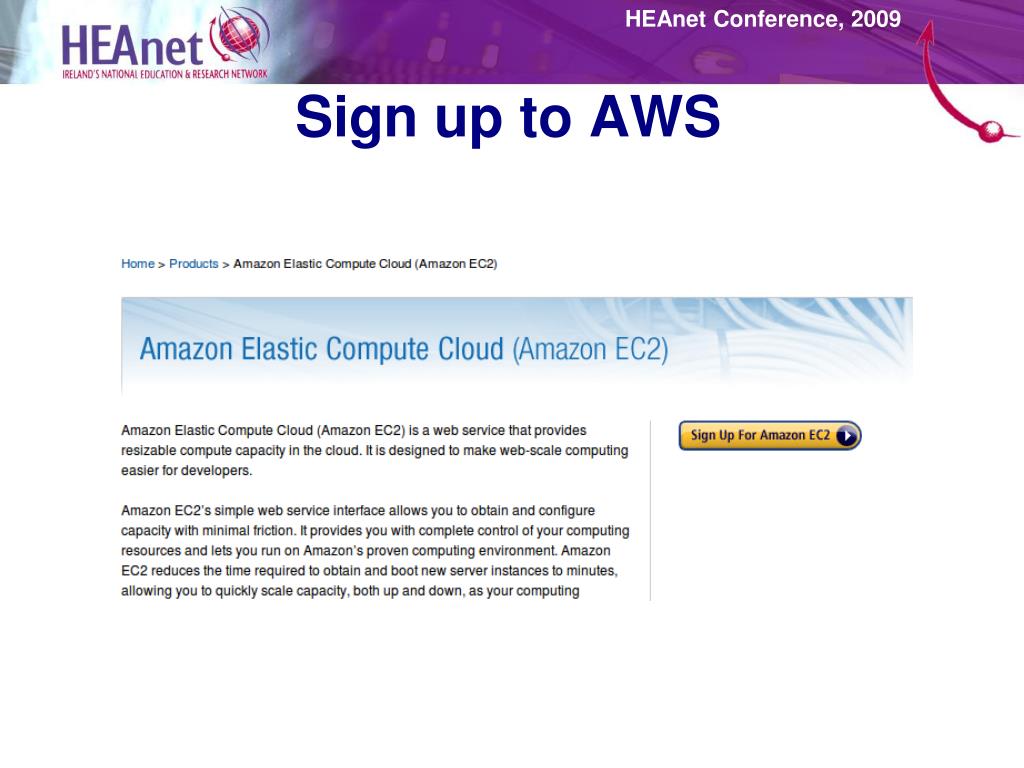

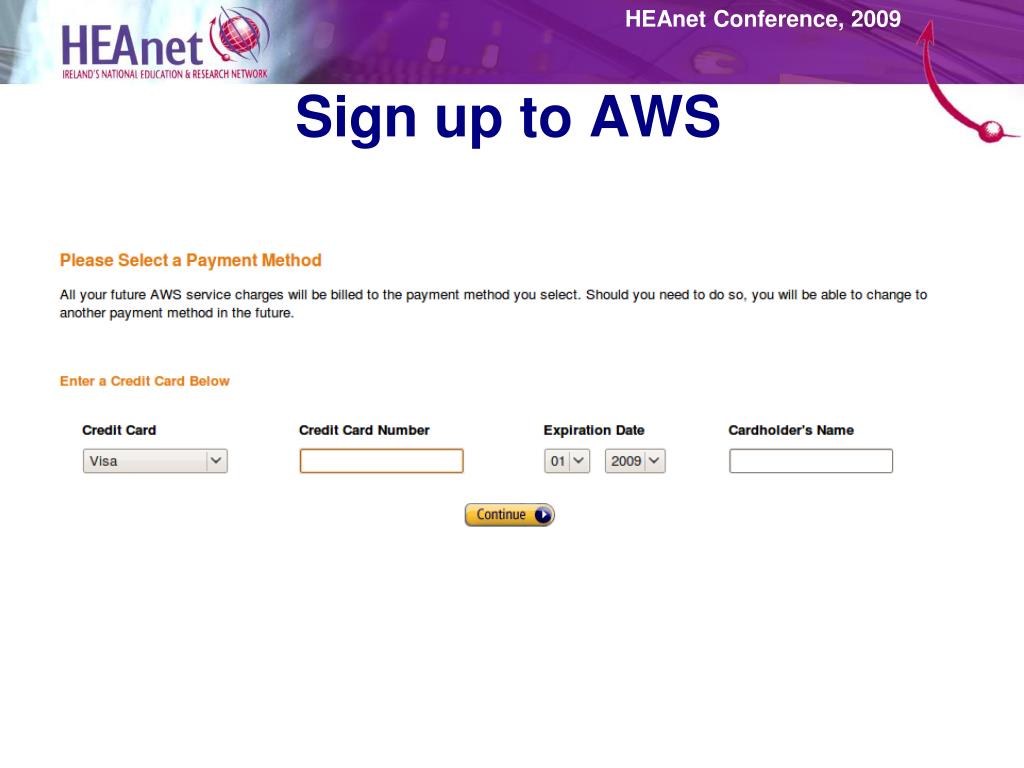

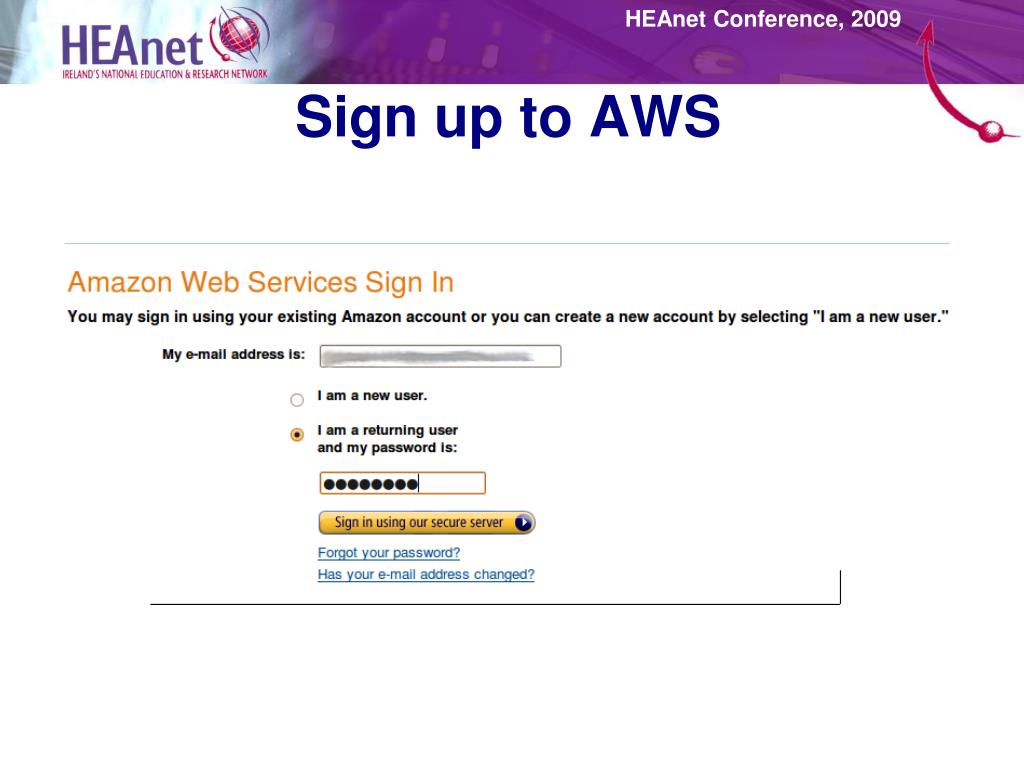

  13. Sign up to AWS

  14. Sign up to AWS

  15. Sign up to AWS

  16. Sign up to AWS

  17. Sign up to AWS

  18. Sign up to AWS

  19. Sign up to AWS

  20. Sign up to AWS

  21. Sign up to AWS

  22. Sign up to AWS

  23. Sign up to AWS

  24. Billing? • one X.509 cert later • Select one of >3,500 AMIs (Virtual machine images) • http://calculator.s3.amazonaws.com/calc5.html • Costs (OpEx): • 1 small machine month ≈ $72.00 ( $864 / year ) • without storage • without data transfer in and out

  25. Providers • Must suffer capital expense • but might ‘overflow’ on to another cloud • Must predict future trends • Provision of power/cooling/housing • Provision of compute/storage/network • Better become a cloud user too!

  26. Storage

  27. Storage

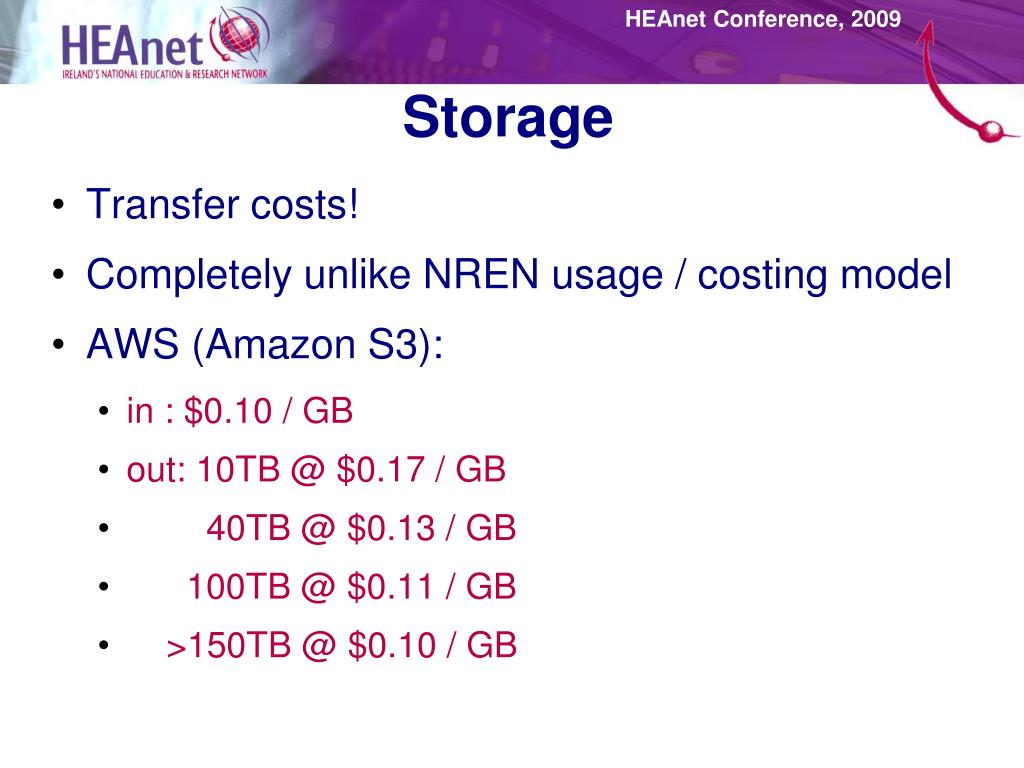

  28. Storage • Transfer costs! • Completely unlike NREN usage / costing model • AWS (Amazon S3): • in : $0.10 / GB • out: 10TB @ $0.17 / GB • 40TB @ $0.13 / GB • 100TB @ $0.11 / GB • >150TB @ $0.10 / GB

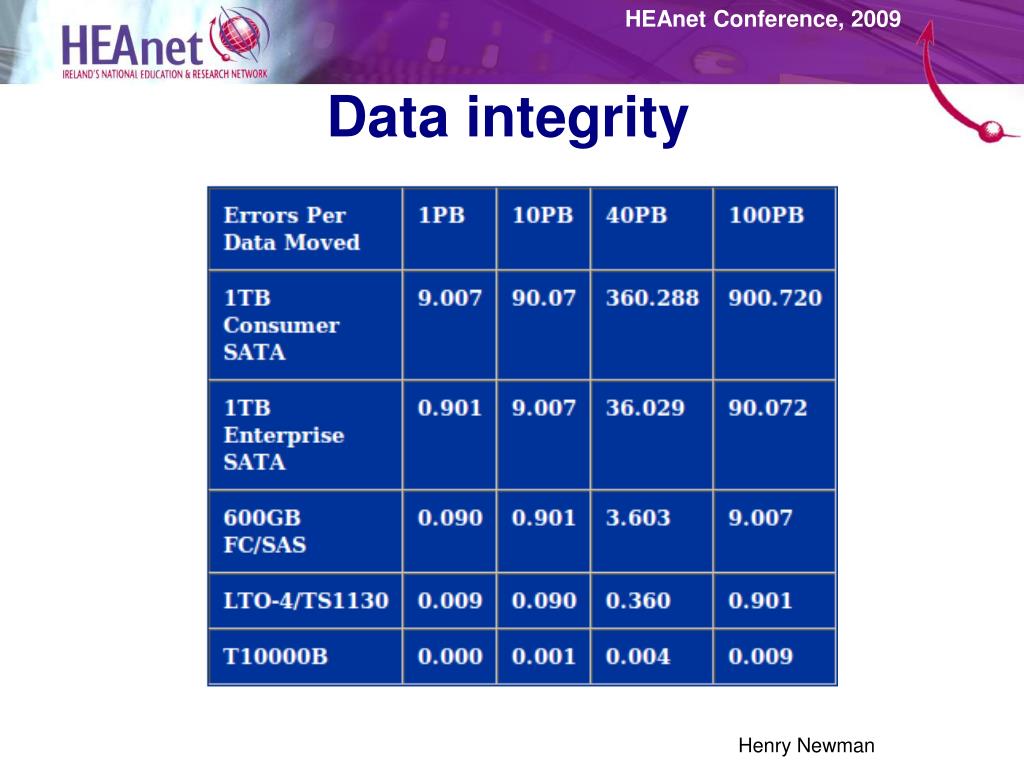

  29. Data integrity Henry Newman

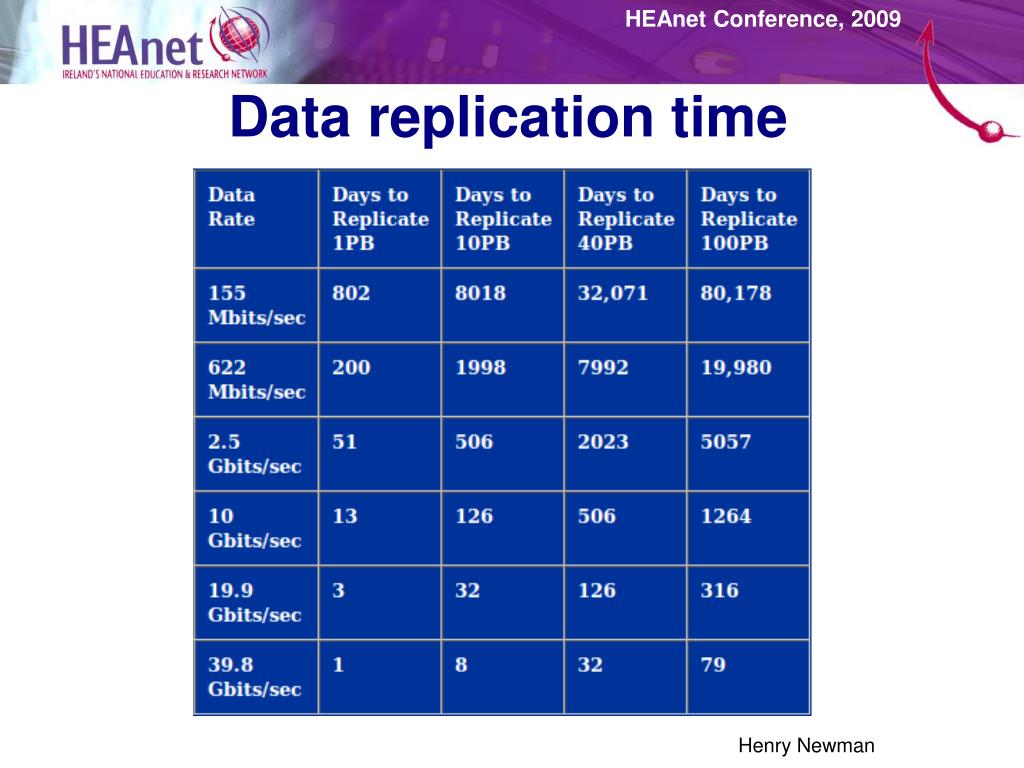

  30. Data replication time Henry Newman

  31. Risks • Hidden Costs? • data transfer • per transaction cost • Vendor Lock-in • feature compatibility between vendors • cost of transfer • Lack of competition / pricing control? • Software Licensing

  32. Risks • Data Privacy • Legislative controls? • Data Protection compliance • User security ( twitter.com ) • Data integrity • off-site backup • no guarantees! (T-mobile Sidekick / Danger ) • Network failure

  33. Risks

  34. Saving money • Users • CapEx -> OpEx • Utility pricing • Providers • Cloud centric platforms (Cisco UCS, etc.) • Virtualisation • Save money by becoming a cloud user too

  35. Quality? • Gartner 2008 survey, 333 UK & Irish businesses: • Low level of approval for SaaS • Overall satisfaction ‘lukewarm’ • High cost of service • Difficult to integrate

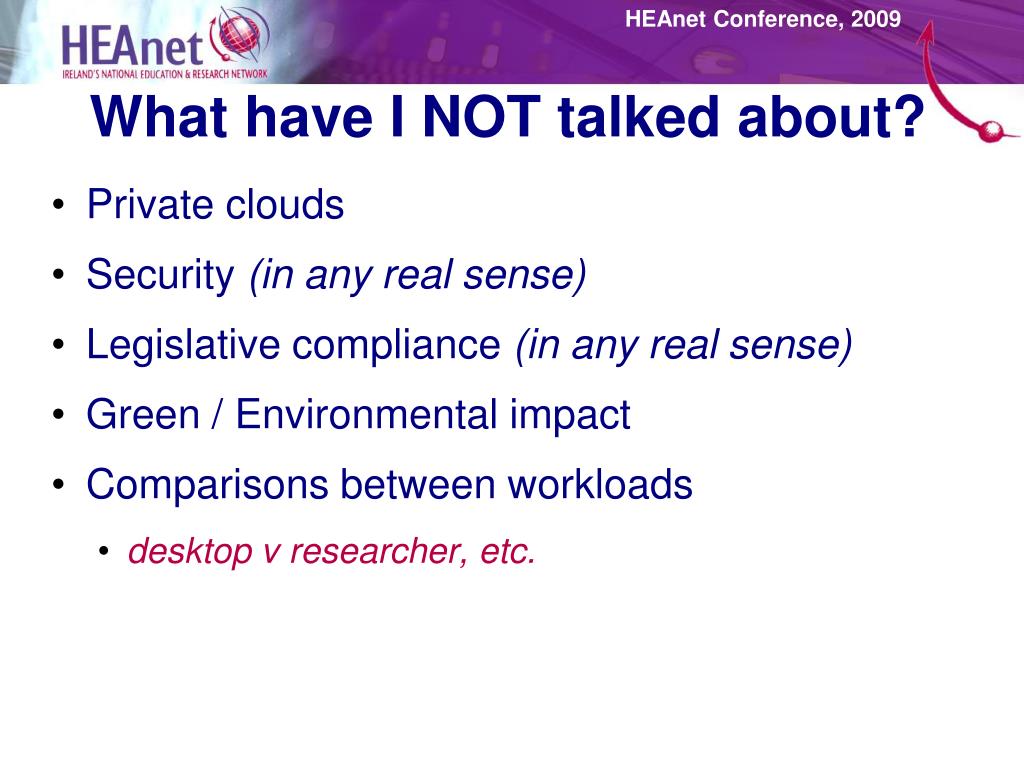

  36. What have I NOT talked about? • Private clouds • Security (in any real sense) • Legislative compliance (in any real sense) • Green / Environmental impact • Comparisons between workloads • desktop v researcher, etc.

  37. Next steps • Open Standards • OPaaS • SNIA cloud storage initiative • Networking • quality • cost model • availability • Software Licensing • Start virtualising

  38. HEAnet Cloud Strategy • Over to you! • do you have a cloud strategy? • how can we help? • HEAnet Cloud Strategy • inform us

  39. The Cloud • Case studies: • Paul Doyle (DIT) • Aidan McDonald (Cork IT) • Ruth Lynch (UCD) • The commercial / educational aspects of cloud: • Michael D. King (Vice President, IBM Global Education Industry) chocolategirl64
