  1. Medical Decision-Support SystemsProbabilistic Reasoning in Diagnostic Systems Yuval Shahar, M.D., Ph.D.

  2. Reasoning Under Uncertainty in Medicine • Uncertainty is inherent to medical reasoning • relation of diseases to clinical and laboratory findings is probabilistic • Patient data itself is often uncertain with respect to value and time • Patient preferences regarding outcomes vary • Cost of interventions and therapy can change

  3. Probability: A Quick Introduction • Probability function, range: [0, 1] • Prior probability of A, P(A): with no new information (e.g., no patient information) • Posterior probability of A: P(A) given certain information (e.g. laboratory tests) • Conditional probability: P(B|A) • Independence of A, B: P(B) = P(B|A) • Conditional independence of B,C, given A: P(B|A) = P(B|A & C) • (e.g., two symptoms, given a specific disease)

  4. Probabilistic Calculus • P(not(A)) = 1-P(A) • In general: • P(A & B) = P(A) * P(B|A) • If A, B are independent: • P(A & B) = P(A) * P(B) • If A, B are mutually exclusive: • P(A or B) = P(A) + P(B) • If A,B not mutually exclusive , but independent: • P(A or B) = 1-P(not(A) & not(B)) = 1-(1-P(A))(1-P(B))

  5. Test Characteristics

  6. Test Performace Measures • The gold standard test: the procedure that defines presence or absence of a disease (often, very costly) • The index test: The test whose performance is examined • True positive rate (TPR) = Sensitivity: • P(Test is positive|patient has disease) = P(T+|D+) • Ratio of number of diseased patients with positive tests to total number of patient: TP/(TP+FN) • True negative rate (TNR) = Specificity • P(Test is negative|patient has no disease) = P(T-|D-) • Ratio of number of nondiseased patients with negative tests to total number of patients: TN/(TN+FP)

  7. Test Predictive Values • Positive predictive value (PV+) = P(D|T+) = TP/(TP+FP) • Negative predictive value (PV-) = P(D-|T-) = TN/(TN+FN)

  8. Lab Tests: What is “Abnormal”?

  9. The Cut-off Value Trade off • Sensitivity and specificity depend on the cut off value between what we define as normal and abnormal • Assume high test values are abnormal; then, moving the cut-off value to a higher one increases FN results and decreases FP results (i.e. more specific) and vice versa • There is always a trade off in setting the cut-off point

  10. Receiver Operating Characteristic (ROC) Curves: Examples

  11. Receiver Operating Characteristic (ROC) Curves: Interpretation • ROC curves summarize the trade-off between the TPR (sensitivity) and the false positive rate (FPR) (1-specificity) for a particular test, as we vary the cut-off treshold • The greater the area under the ROC curve, the better (more sensitive, more specific)

  12. Bayes Theorem

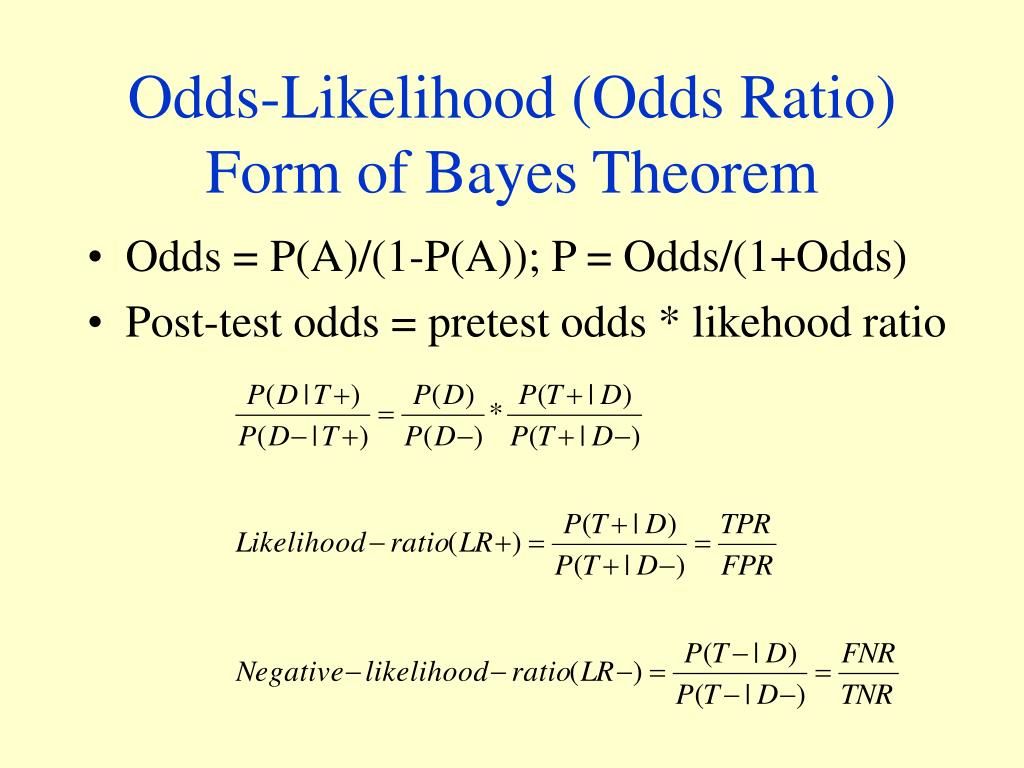

  13. Odds-Likelihood (Odds Ratio) Form of Bayes Theorem • Odds = P(A)/(1-P(A)); P = Odds/(1+Odds) • Post-test odds = pretest odds * likehood ratio

  14. Application of Bayes Theorem • Needs reliable pre-test probabilities • Needs reliable post-test likelihood ratios • Assumes one disease only (mutual exclusivity of diseases) • Can be used in sequence for several tests, but only if they are conditionally independent given the disease; then we use the post-test probability of Ti as the pre-test probability for Ti+1 (Simple, or Naïve, Bayes)

  15. Relation of Pre-Test and Post-Test Probabilities

  16. Example: Computing Predictive Values • Assume P(Down Syndrom): • (A) 0.1% (age 30) • (B) 2% (age 45) • Assume amniocentesis with Sensitivity of 99%, Specificity of 99% for Down Syndrom • PV+ = P(DS|Amnio+) • PV- = P(DS-|Amnio-) = 99.999%

  17. Predictive Values: Down Syndrom

  18. Example: de Dombal’s System (1972) • Domain: Acute abdominal pain (7 possible diagnoses) • Input: Signs and symptoms of patient • Output: Probability distribution of diagnoses • Method: Naïve Bayesian classification • Evaluation: an eight-center study involving 250 physicians and 16,737 patients • Results: • Diagnostic accuracy rose from 46 to 65% • The negative laparotomy rate fell by almost half • Perforation rate among patients with appendicitis fell by half • Mortality rate fell by 22% • Results using survey data consistently better than the clinicians’ opinions and even the results using human probability estimates!

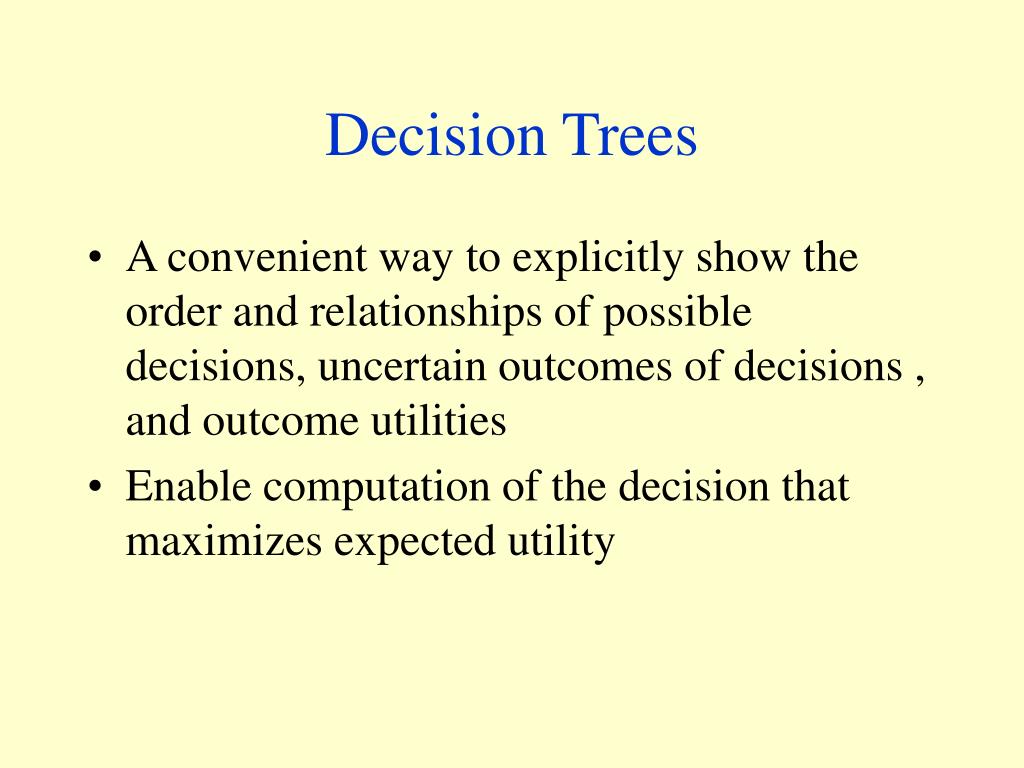

  19. Decision Trees • A convenient way to explicitly show the order and relationships of possible decisions, uncertain outcomes of decisions , and outcome utilities • Enable computation of the decision that maximizes expected utility

  20. Decision Trees Conventions Decision node Chance node Information link Influence link

  21. A Generic Decision Tree

  22. Decision Trees: an HIV Example Decision node Chance node

  23. Computation With Decision Trees • Decision trees are “folded back” to the top most (leftmost, or initial) decision • Computation is performed by averaging expected utility recursively over tree branches from right to left (bottom up), maximizing utility for every decision made and assuming that this is the expected utility for the subtree that follows the computed decision

  24. Influence Diagrams: Node Conventions Chance node Decision node Utility node

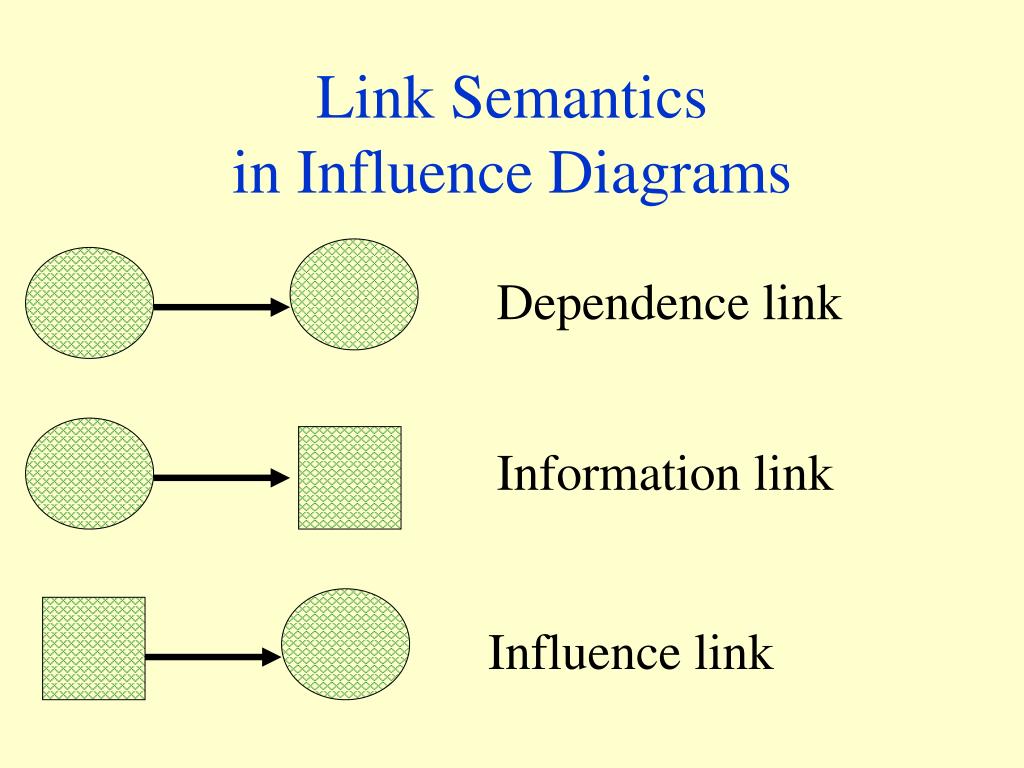

  25. Link Semanticsin Influence Diagrams Dependence link Information link Influence link

  26. Influence Diagrams: An HIV Example

  27. The Structure of Influence Diagram Links

  28. Belief Networks (Bayesian/Causal Probabilistic/Probabilistic Networks, etc) Influence diagrams without decision and utility nodes Disease Gender Sinusitis Fever Runny nose Headache

  29. Link Semantics in Belief Networks Dependence Independence B Conditional independence of B and C, given A A C

  30. Advantages of Influence Diagrams and Belief Networks • Excellent modeling tool that supports acquisition from domain experts • Intuitive semantics (e.g., information and influence links) • Explicit representation of dependencies • very concise representation of large decision models • “Anytime” algorithms available (using probability theory) to compute the distribution of values at any node given the values of any subset of the nodes (e.g., at any stage of information gathering) • Explicit support for value of information computations

  31. Disadvantages of Influence Diagrams and Belief Networks • Explicit representation of dependencies often requires acquisition of joint probability distributions (P(A|B,C)) • Computation in general intractable (NP hard) • Order of decisions and relations between decisions and available information might be obscured

  32. Value of Information (VI) • We often need to decide what would be the next best piece of information to gather (e.g., within a diagnostic process); that is, what is the best next question to ask (e.g., what would be the result of a urine culture?) • The Value of Information (VI) of feature f is the marginal expected utility of an optimal decision made knowing f, compared to making it without knowing f • The net value of information (NVI) of f = VI(f)-cost(f) • NVI is highly useful for a hypothetico-deductive diagnostic approach to decide what would be the next information item, if any, to investigate

  33. Examples of Successful Belief- Network Applications • In clinical medicine: • Pathological diagnosis at the level of a subspecialized medical expert (Pathfinder) • Endocrinological diagnosis (NESTOR) • In bioinformatics: • Recognition of meaningful sites and features in DNA sequences • Educated guess of tertiary structure of proteins

  34. The Pathfinder Project(Heckerman, Horvitz, Nathwani 1992) • Task and domain: Diagnosis of lymph node biopsy, an important medical problem • Large difference between expert and general pathologist opinions (almost 65%!) • Problems in the domain include • Misrecognition of features (information gathering) • Misintegration of evidence (information processing) • The Pathfinder project focused mainly on assistance in information processing • A Stanford/USC collaboration; eventually commercialized as Intellipath, marketed by the ACP, used as early as 1992 by at least 200 pathology sites

  35. Pathfinder Domain • More than 60 diseases • More than 130 findings, such as: • Microscopic • immunological • molecular biology • Laboratory • Clinical • Commercial product extended to at least 10 more medical domains

  36. Pathfinder I/O behavior • Input: set of <Feature, Instance> (<Fi, Ii>) pairs (e.g., <NECROSIS, ABSENT> • Instances are mutually exclusive values of each feature • Prior probability of each disease Dk is known • P(F1I1, F2I2…FtIt | Dk,x) is in acquired knowledge base • Output: P(Dk|F1I1, F2I2…FmIm,x) • x = background knowledge (context) • User can ask what is the next best (cost-effective) feature to investigate or enter • Probabilistic (decision-theoretic) hypothethico-deductive approach • Distribution of each Dk is updated dynamically

  37. Pathfinder Methodology:Probabilities and Utilities • Decision-theoretic computation • Bayesian approach: Probabilities represent beliefs of experts (data can update beliefs) • Utilities represented as a matrix of all diseases • A matrix entry pair < Dj Dk> encodes the (patient) utility of diagnosing Dk when patient really has Dk • Since no therapeutic recommendations are made, the model can use one representative patient (the expert), expressed in micromorts and willingness-to-pay to avoid risk of each outcome

  38. Pathfinder Computation • Normally we would use the general form of Bayes Theorem: • But that involves exponential number of probabilities to be acquired and represented

  39. Pathfinder 1: The Simple Bayes Version • Assuming conditional independence of features (Simple or Naïve Bayes): • Assuming mutual exclusivity and exhaustiveness of diseases the overall computation is tractable:

  40. Pathfinder 2: The Belief Network Version • Mutual exclusivity and exhaustiveness of diseases is reasonable in lymphnode pathology • Single disease per examined lymph node • Large, exhaustive knowledge base • Conditional independence is less reasonable and can lead to erroneous conclusions • The simple Bayes representation of Pathfinder 1 was therefore enhanced to a belief network in Pathfinder 2 which included explicit dependencies between different features, still taking advantage of any explicit global and conditional independencies

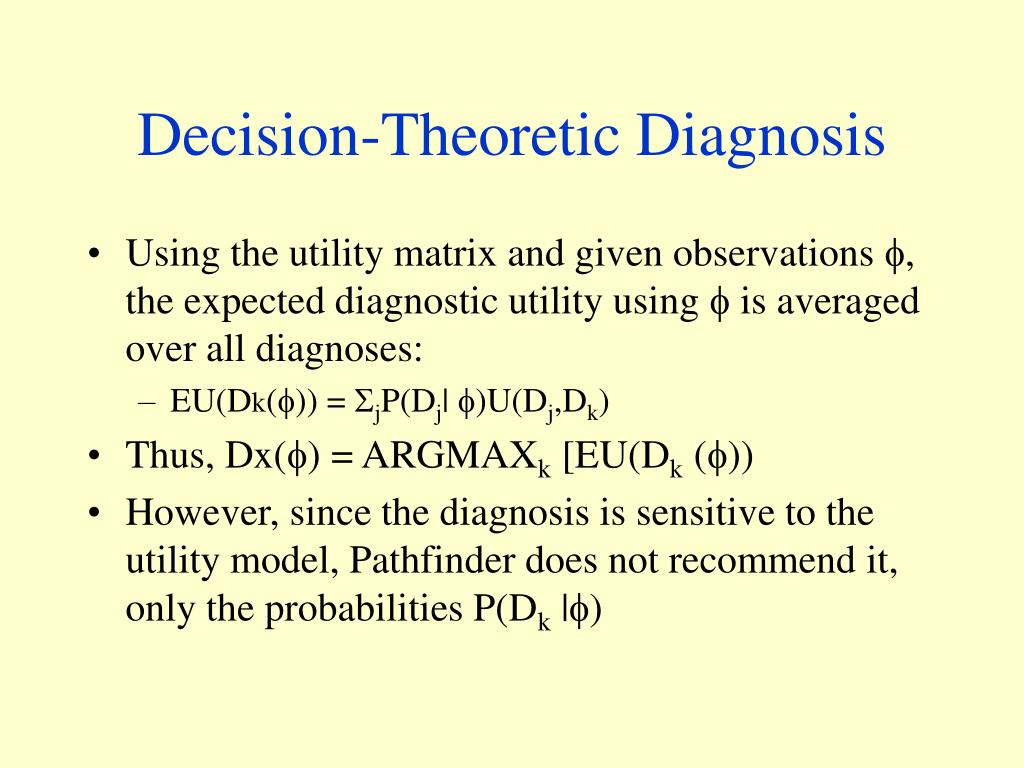

  41. Decision-Theoretic Diagnosis • Using the utility matrix and given observations f, the expected diagnostic utility using f is averaged over all diagnoses: • EU(Dk(f)) = SjP(Dj| f)U(Dj,Dk) • Thus, Dx(f) = ARGMAXk [EU(Dk (f)) • However, since the diagnosis is sensitive to the utility model, Pathfinder does not recommend it, only the probabilities P(Dk |f)

  42. Pathfinder: Gathering Information • Next best feature to observe is recommended using a myopic approximation, which considers only up to one single feature to be observed • The feature chosen maximizes EU given that a diagnosis would be made after observing it • Feature f is chosen that maximizes NVI(f) • Although myopic approximation could backfire, in practice it works well • especially when U(Dj,Dk) =is set to 0 if one of the diseases is malignant and the other benign, and set to 1 if they are both malignant or both benign

  43. Pathfinder 2: Knowledge Acquisition • To facilitate acquisition of multiple probabilities, a Similarity Network model was developed • Using similarity networks, an expert creates multiple small belief networks, representing 2 or more diseases that are difficult to distinguish • The local belief networks are then unified into a global belief network, preserving soundness • The graphical interface also allows partitioning of diseases into sets, relative to each set some feature is independent, thus further assisting in the construction

  44. Pathfinder 1 and 2: Evaluation • Pathfinder 1 was compared to Pathfinder 2 using 53 cases, a new user, and a thorough analysis of each case • Diagnostic accuracy of PF2 is greater than that of PF1 (gold standard: the main domain expert’s distribution and his assessment on a scale of 1 to 10) • Difference is due to better probabilistic representation (better acquisition and inference) • Cost of constructing PF2 rather than PF1 is justified by the improvements, (measure: the utility of the diagnosis) • PF2 is at least as good as the main domain expert, with respect to diagnostic accuracy
