Uploaded by
jensen
2 SLIDES
158 VUES
20LIKES
NSTX Coil Model
DESCRIPTION
NSTX Coil Model. Ring: 2”x8”. Cross supt: 3”x3”. Result. r: radius direction; theta: out-of-plane direction; z: center stack direction. 184KN in-plane force (30% reduction). 269KN in-plane force. Strange??.
Download
1 / 2
Télécharger la présentation
NSTX Coil Model
An Image/Link below is provided (as is) to download presentation
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.
E N D
Presentation Transcript

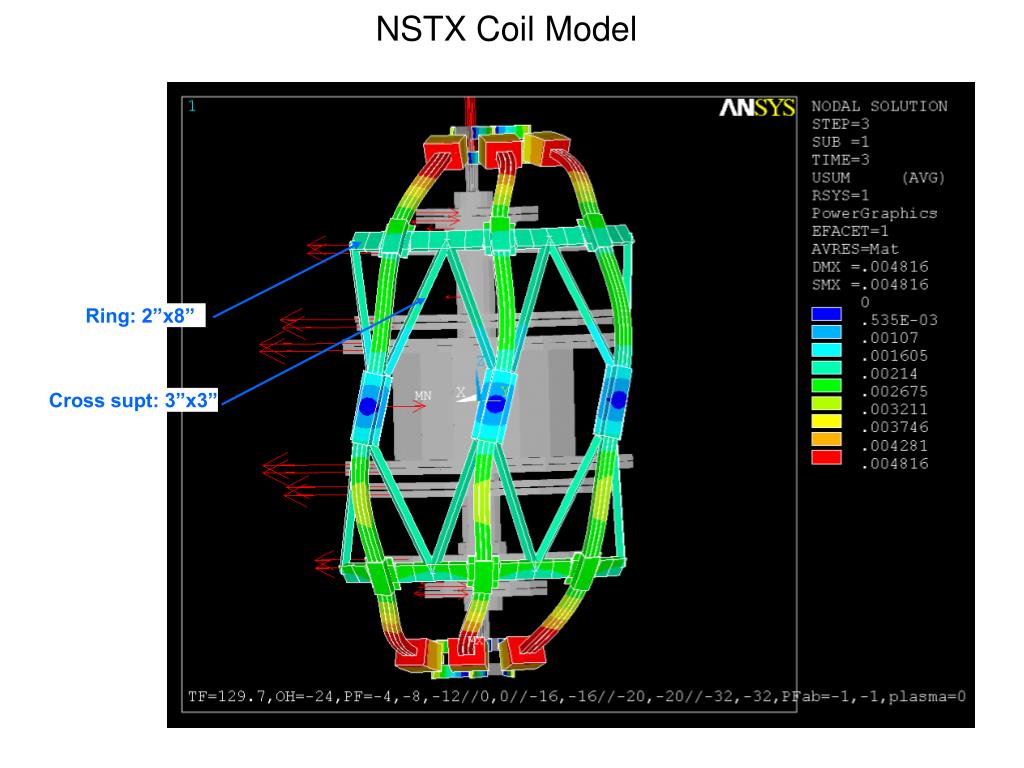

NSTX Coil Model Ring: 2”x8” Cross supt: 3”x3”

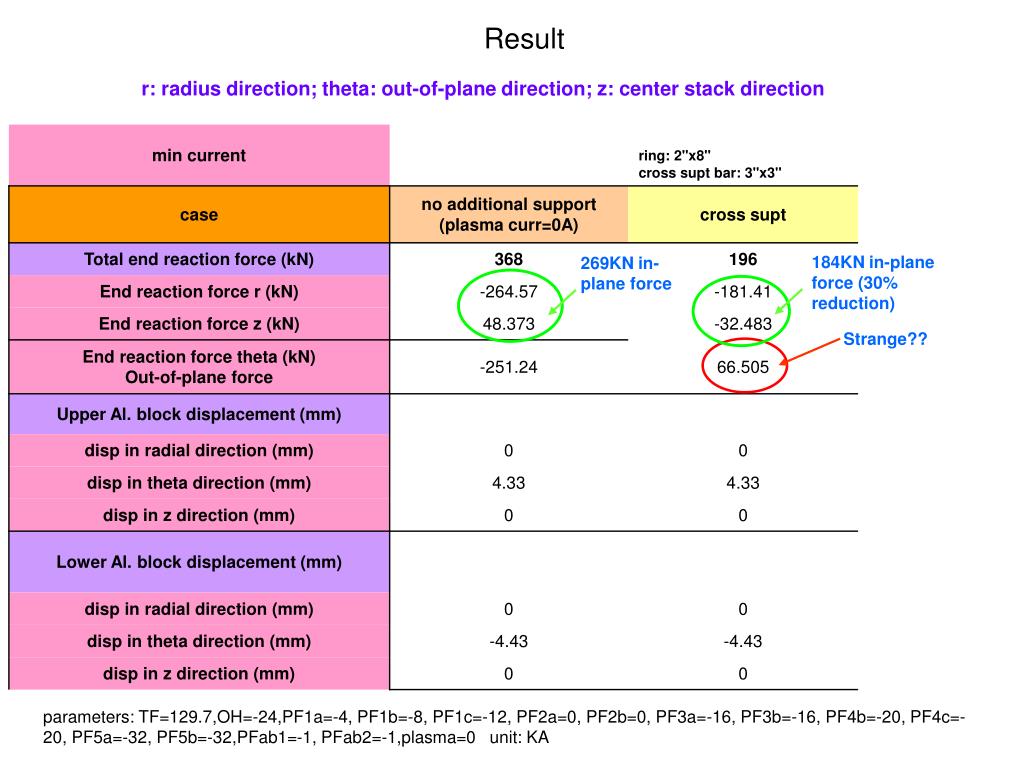

Result r: radius direction; theta: out-of-plane direction; z: center stack direction 184KN in-plane force (30% reduction) 269KN in-plane force Strange?? parameters: TF=129.7,OH=-24,PF1a=-4, PF1b=-8, PF1c=-12, PF2a=0, PF2b=0, PF3a=-16, PF3b=-16, PF4b=-20, PF4c=-20, PF5a=-32, PF5b=-32,PFab1=-1, PFab2=-1,plasma=0 unit: KA
More Related
