  1. SQL Server 2012 AllwaysOn Stephan Hurni Microsoft V-TSP Principal Consultant, Trivadis AG stephan.hurni@trivadis.com

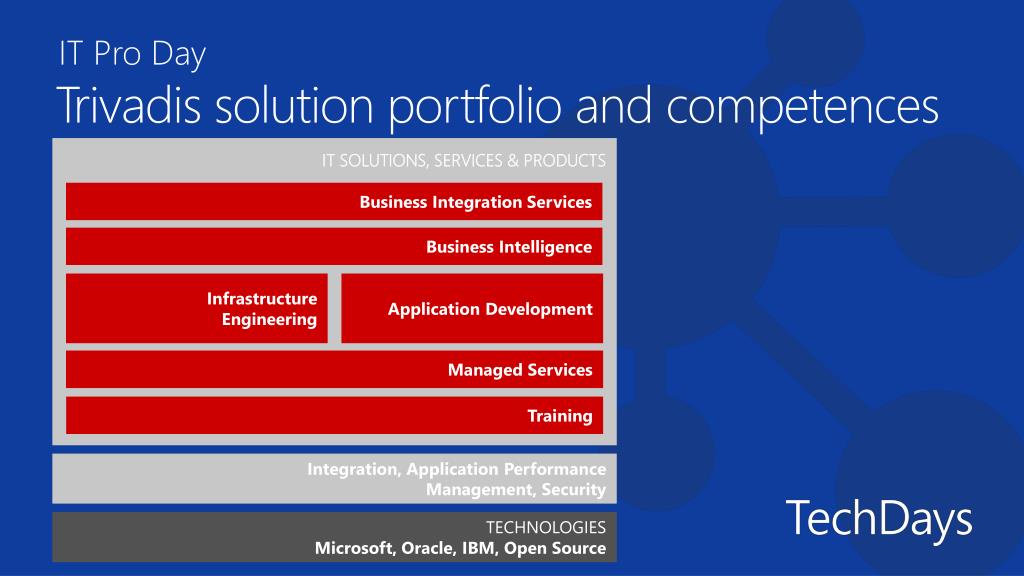

  2. Trivadissolutionportfolioandcompetences IT SOLUTIONS, SERVICES & PRODUCTS Business Integration Services Business Intelligence InfrastructureEngineering Application Development Managed Services Training Integration, Application Performance Management, Security TECHNOLOGIES Microsoft, Oracle, IBM, Open Source

  3. Trivadisfacts & figures • 11 Trivadis locationswithmorethan 600 employeesFinanciallyindependentandsustainably profitable • Key figures 2011 • Revenue CHF 104 / EUR 84 Mio. • Services formorethan 800 clients in over 1,900 projects • 200 Service Level Agreements • More than 4,000 trainingparticipants • Research anddevelopmentbudget: CHF 5.0 / EUR 4 Mio.

  4. HADRHA Enhancementsin SQL Server 2012

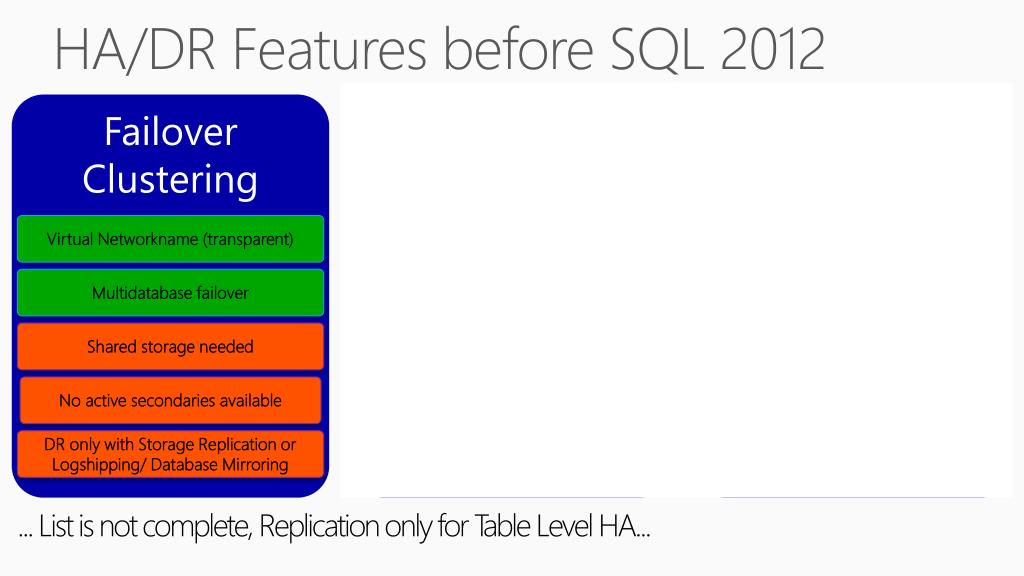

  5. HA/DR Features before SQL 2012 ... List is not complete, Replication only for Table Level HA...

  6. AlwaysOn Availability Groups AlwaysOn Availability Groups is a new feature that enhances and combines failover cluster, database mirroring and log shipping capabilities Efficient Integrated Flexible • Multi-database failover • Multiple secondaries • Total of 4 secondaries • 2 synchronous secondaries • 1 automatic failover pair • Synchronous and asynchronous data movement • Built in compression and encryption • Flexible failover policy • Automatic Page Repair • Active Secondary • Readable Secondary • Backup from Secondary • Automation using power-shell • Application failover using virtual name • Configuration Wizard • Dashboard • System Center Integration • Rich diagnostic infrastructure • File-stream replication • Replication publisher failover

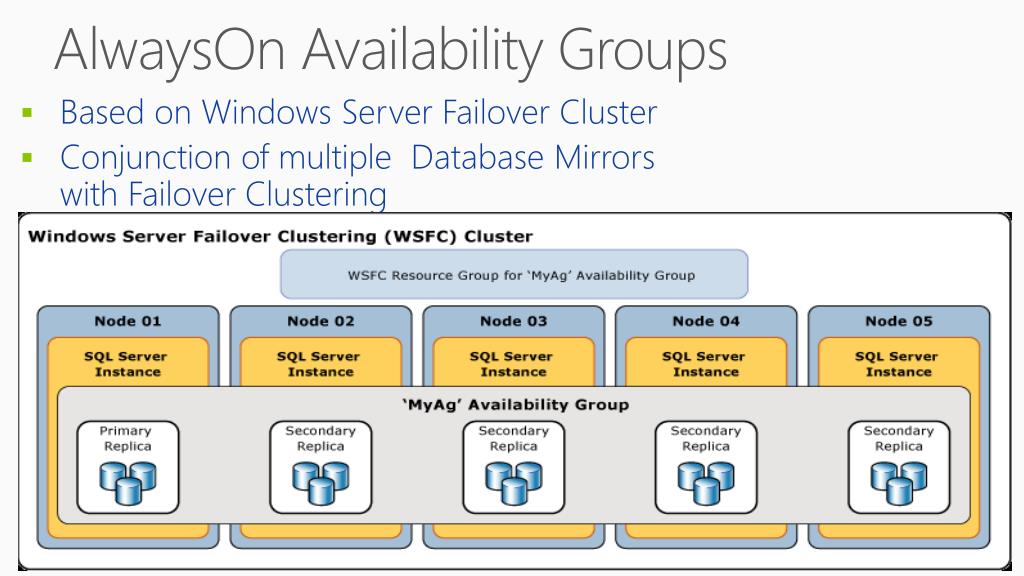

  7. AlwaysOn Availability Groups Based on Windows Server Failover Cluster Conjunctionofmultiple Database Mirrorswith Failover Clustering

  8. Availability Group Scenarios • Example • Primary in Calgary • Failover Partner in Vancouver • Sync DR in Toronto AG • Async Secondaryin London (Geo DR) AG AG AG AG • Async Secondaryin Montreal (Reporting) Asynchcronous Data Movement Synchronous Data Movement

  9. AlwaysOn | Topics Availability DatabasesDBs canbeaddedtoavailabilitygroupsasprimary AvailabilityReplicas| primary DBs canhaveupto 4 replicas Availability ModesAsynchronous-commitmodeSynchronous-commitmode (max. 2 secondaries) TypesofFailover ¦ plannedmanual, automatic Client Connections to VNN (virtualnetworkname)(grouplistenerwithunique DNS A-record + multiple C-Names) Automatic Page Repair

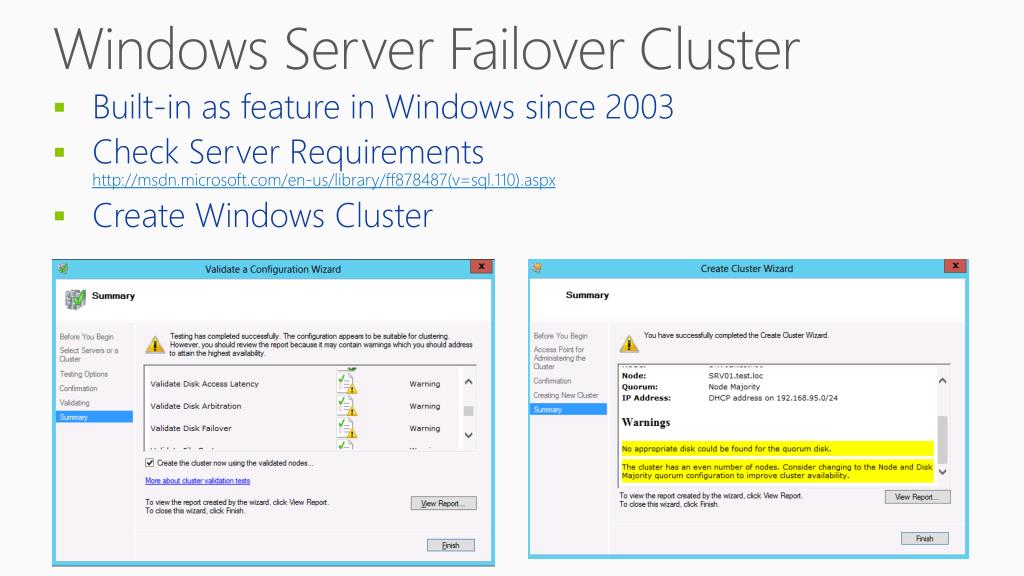

  10. Windows Server Failover Cluster Built-in asfeature in Windows since 2003 Check Server Requirementshttp://msdn.microsoft.com/en-us/library/ff878487(v=sql.110).aspx Create Windows Cluster

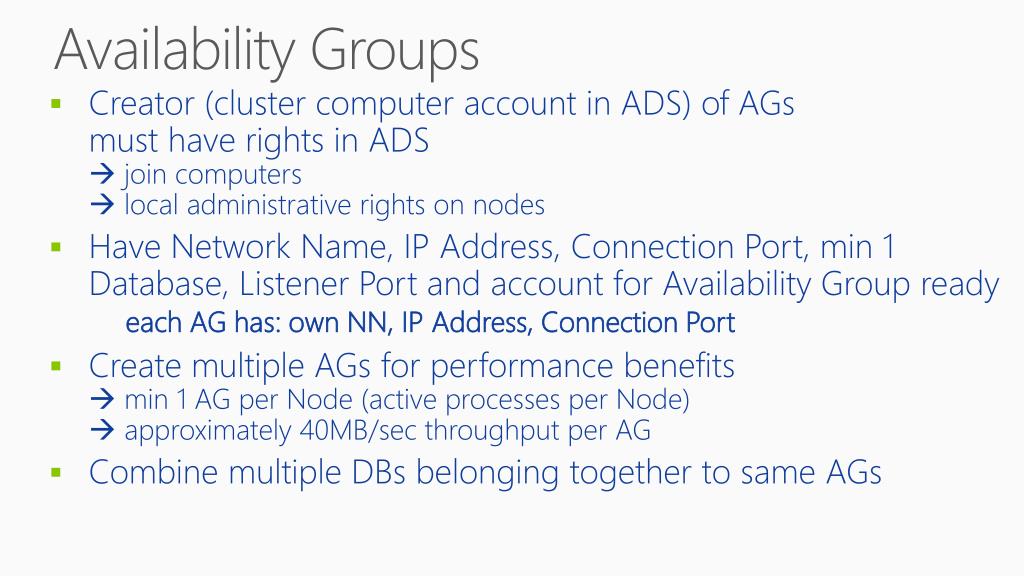

  11. Availability Groups Creator (clustercomputeraccount in ADS) of AGs must haverights in ADS  joincomputers local administrative rights on nodes Have Network Name, IP Address, Connection Port, min 1 Database, Listener Port andaccountforAvailability Group readyeach AG has: own NN, IP Address, Connection Port Create multiple AGs forperformancebenefits min 1 AG per Node (activeprocesses per Node) approximately 40MB/sec throughput per AG Combine multiple DBs belongingtogetherto same AGs

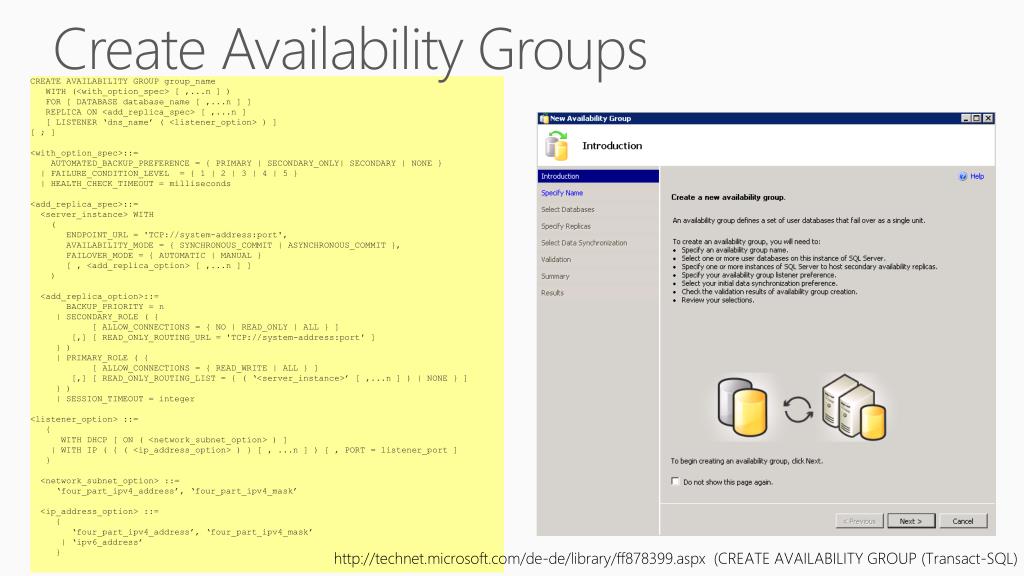

  12. Create Availability Groups CREATE AVAILABILITY GROUP group_name WITH (<with_option_spec> [ ,...n ] ) FOR [ DATABASE database_name [ ,...n ] ] REPLICA ON <add_replica_spec> [ ,...n ] [ LISTENER ‘dns_name’ ( <listener_option> ) ] [ ; ] <with_option_spec>::= AUTOMATED_BACKUP_PREFERENCE = { PRIMARY | SECONDARY_ONLY| SECONDARY | NONE } | FAILURE_CONDITION_LEVEL = { 1 | 2 | 3 | 4 | 5 } | HEALTH_CHECK_TIMEOUT = milliseconds <add_replica_spec>::= <server_instance> WITH ( ENDPOINT_URL = 'TCP://system-address:port', AVAILABILITY_MODE = { SYNCHRONOUS_COMMIT | ASYNCHRONOUS_COMMIT }, FAILOVER_MODE = { AUTOMATIC | MANUAL } [ , <add_replica_option> [ ,...n ] ] ) <add_replica_option>::= BACKUP_PRIORITY = n | SECONDARY_ROLE ( { [ ALLOW_CONNECTIONS = { NO | READ_ONLY | ALL } ] [,] [ READ_ONLY_ROUTING_URL = 'TCP://system-address:port' ] } ) | PRIMARY_ROLE ( { [ ALLOW_CONNECTIONS = { READ_WRITE | ALL } ] [,] [ READ_ONLY_ROUTING_LIST = { ( ‘<server_instance>’ [ ,...n ] ) | NONE } ] } ) | SESSION_TIMEOUT = integer <listener_option> ::= { WITH DHCP [ ON ( <network_subnet_option> ) ] | WITH IP ( { ( <ip_address_option> ) } [ , ...n ] ) [ , PORT = listener_port ] } <network_subnet_option> ::= ‘four_part_ipv4_address’, ‘four_part_ipv4_mask’ <ip_address_option> ::= { ‘four_part_ipv4_address’, ‘four_part_ipv4_mask’ | ‘ipv6_address’ } http://technet.microsoft.com/de-de/library/ff878399.aspx (CREATE AVAILABILITY GROUP (Transact-SQL)

  13. Flexible failover policy ALTER AVAILABILITY GROUP AV01 SET (FAILURE_CONDITION_LEVEL = 1) ALTER AVAILABILITY GROUP AG1 SET (HEALTH_CHECK_TIMEOUT = 60000)

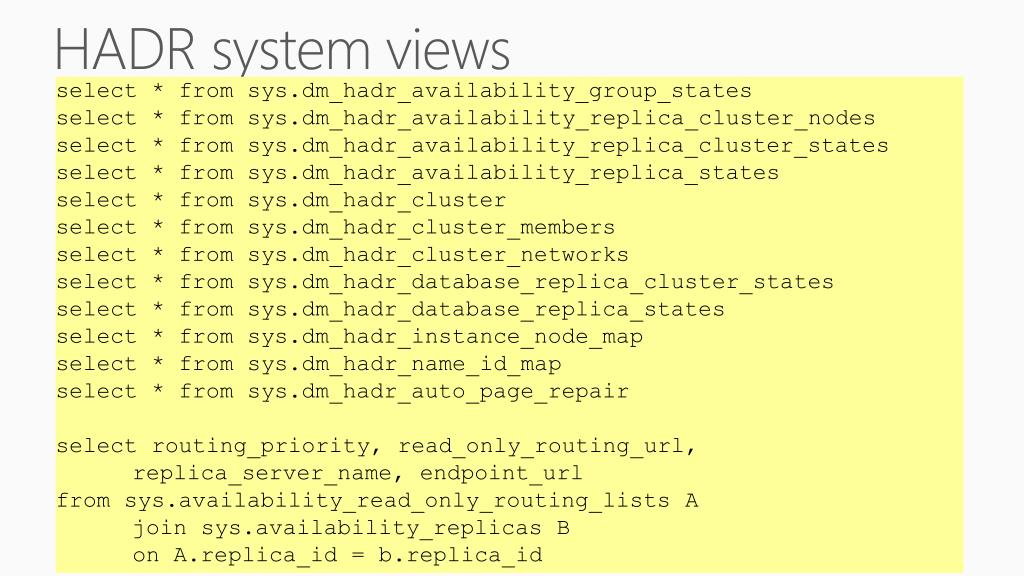

  14. HADR system views select * from sys.dm_hadr_availability_group_states select * from sys.dm_hadr_availability_replica_cluster_nodes select * from sys.dm_hadr_availability_replica_cluster_states select * from sys.dm_hadr_availability_replica_states select * from sys.dm_hadr_cluster select * from sys.dm_hadr_cluster_members select * from sys.dm_hadr_cluster_networks select * from sys.dm_hadr_database_replica_cluster_states select * from sys.dm_hadr_database_replica_states select * from sys.dm_hadr_instance_node_map select * from sys.dm_hadr_name_id_mapselect * from sys.dm_hadr_auto_page_repair select routing_priority, read_only_routing_url, replica_server_name, endpoint_url from sys.availability_read_only_routing_lists A join sys.availability_replicas B on A.replica_id = b.replica_id

  15. Demo Availability Groups AG’s

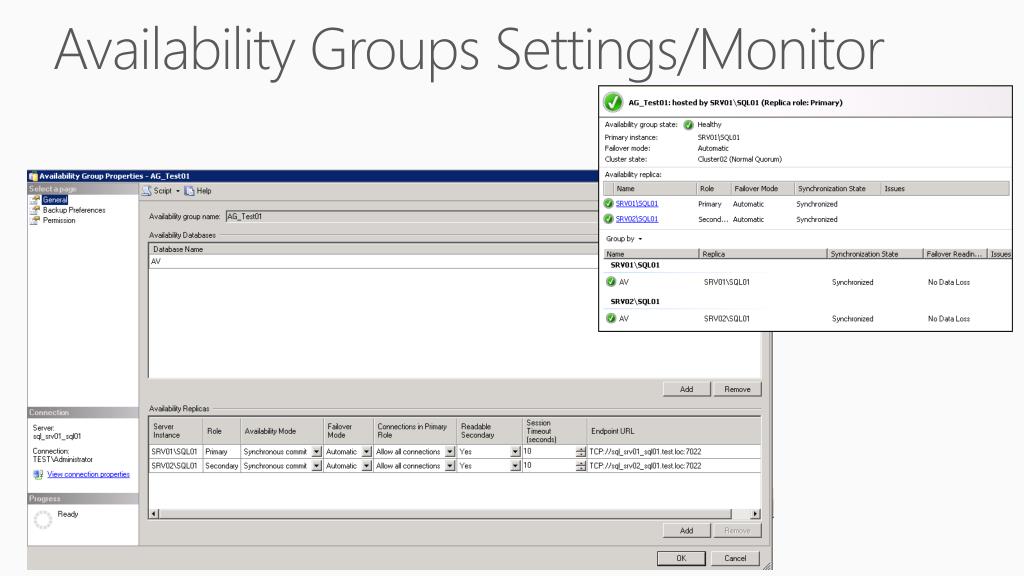

  16. Availability Groups Settings/Monitor

  17. Read_onlysecondaries Read_onlywith Database Mirroring? Read_onlywith HADR Availability GroupsSecondariesarereadable but not updateable Routing List SQLcmd with SSMS -E –S AV01 -K ReadOnly -d AV -Q [Query] DB context ApplicationIntent=ReadOnly

  18. Backup secondaries Save Network bandwithforredundant Full Backups copy_onlyforFull Backups Take careofbackuplocationforTXLog Backups TXlog-chain!!! HADR backupperferences selectsys.fn_hadr_backup_is_preferred_replica ('AV')

  19. Demo Read-onlysecondaries Backup secondaries read-only Backup

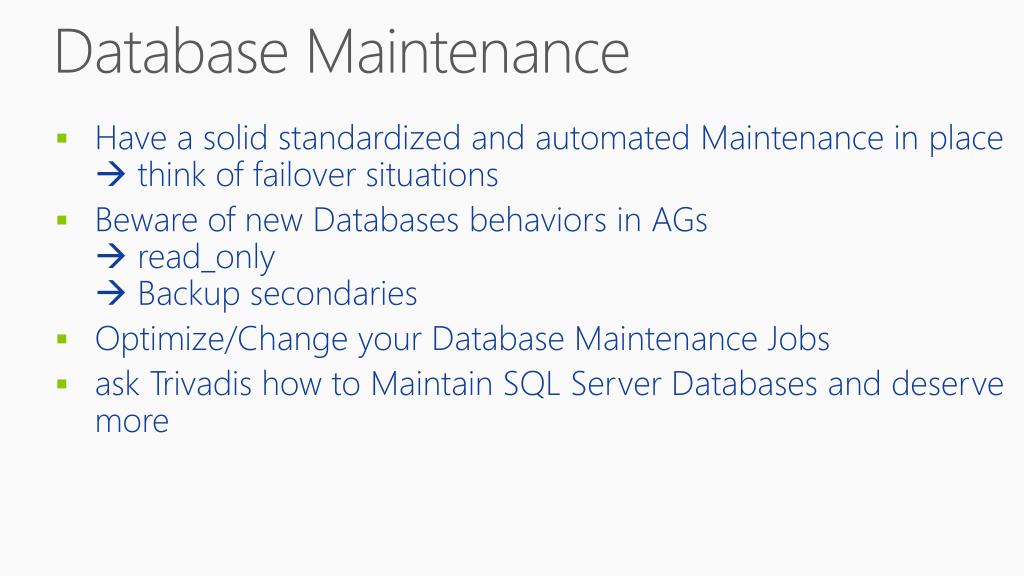

  20. Database Maintenance Have a solid standardizedandautomated Maintenance in place thinkoffailoversituations BewareofnewDatabases behaviors in AGs read_only Backup secondaries Optimize/Change your Database Maintenance Jobs ask Trivadis howtoMaintain SQL Server Databases anddeservemore

  21. Questions SQL Server 2012 HADR Thinking …
