  1. 3D Printing Creating “New Vegas”

  2. In Sketchup Pro, click the “Get Models” icon

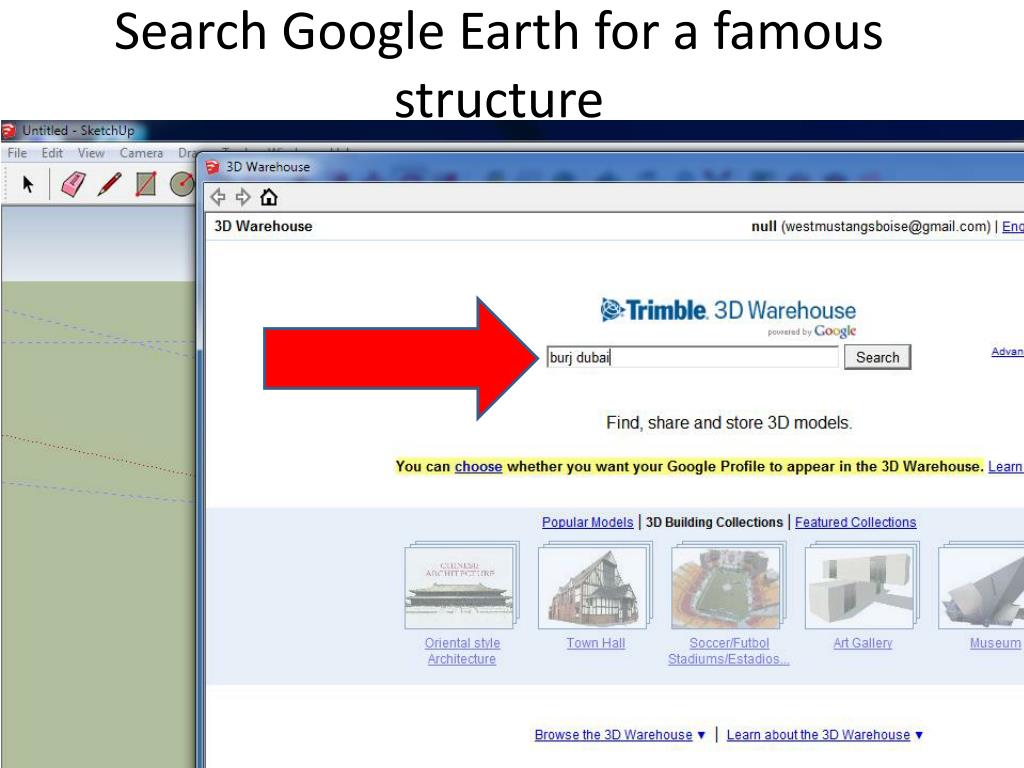

  3. Search Google Earth for a famous structure • From within Sketchup, click the “Find Model” icon.

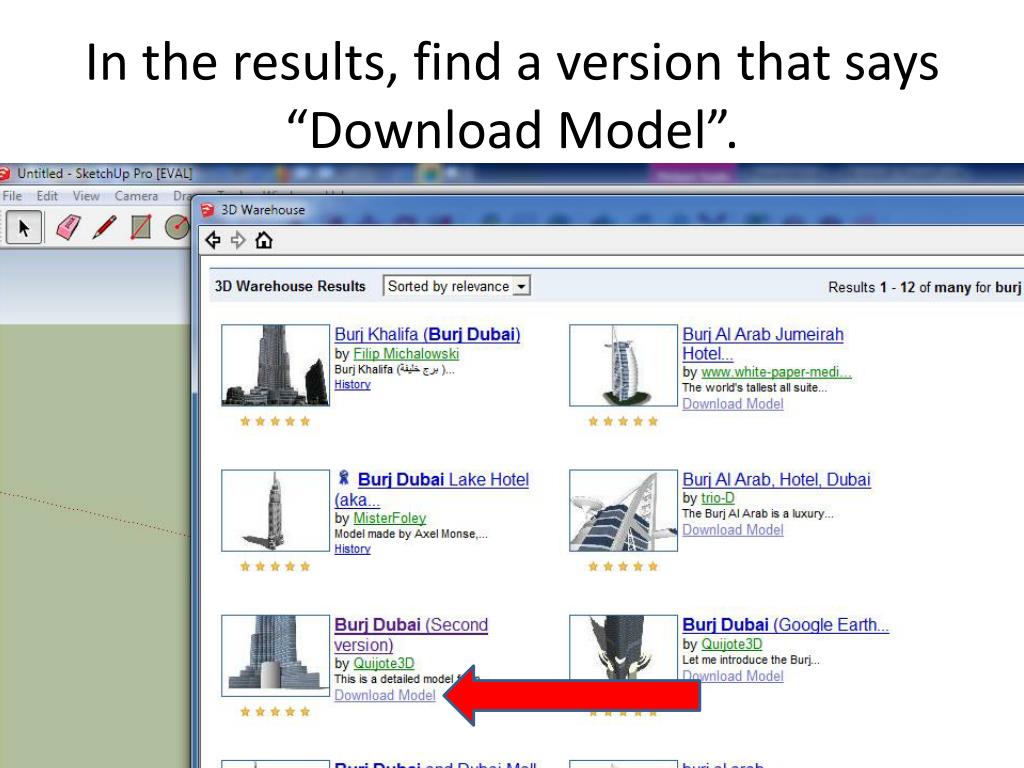

  4. In the results, find a version that says “Download Model”.

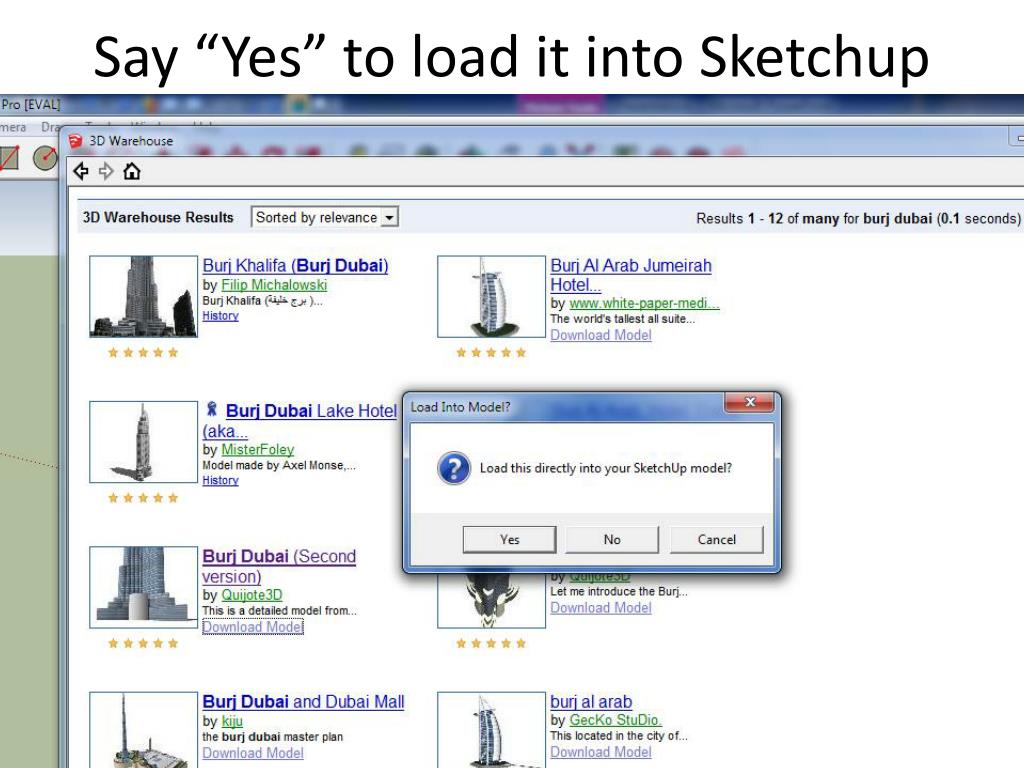

  5. Say “Yes” to load it into Sketchup

  6. The Burj Dubai in Sketchup

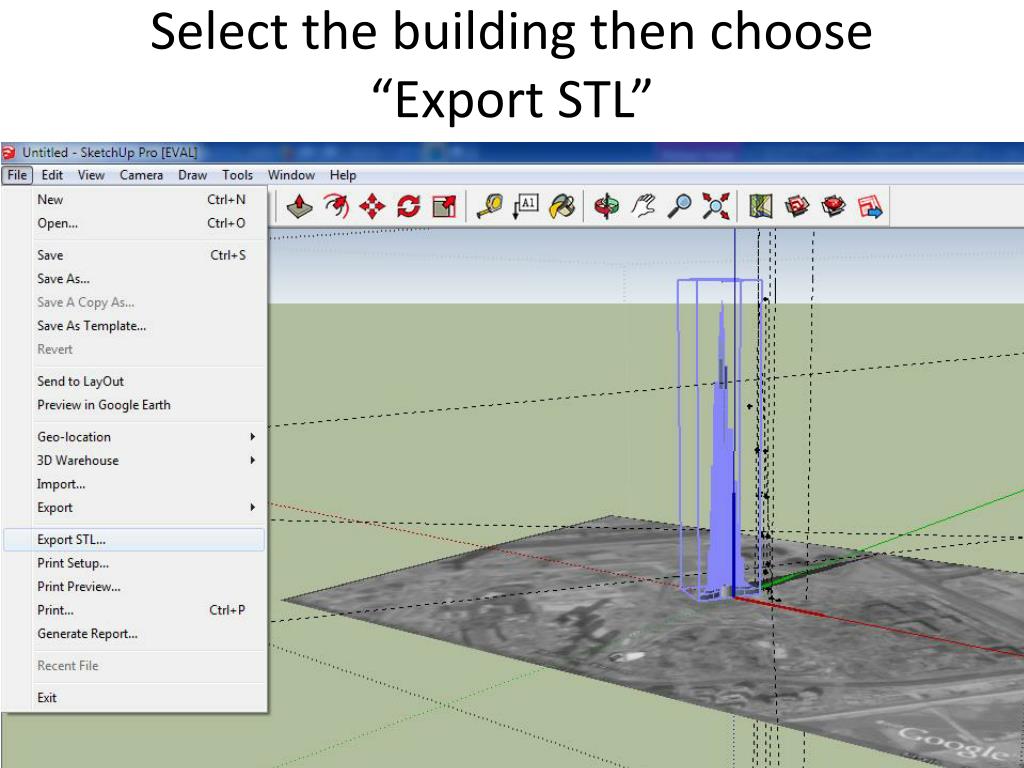

  7. Select the building then choose “Export STL”

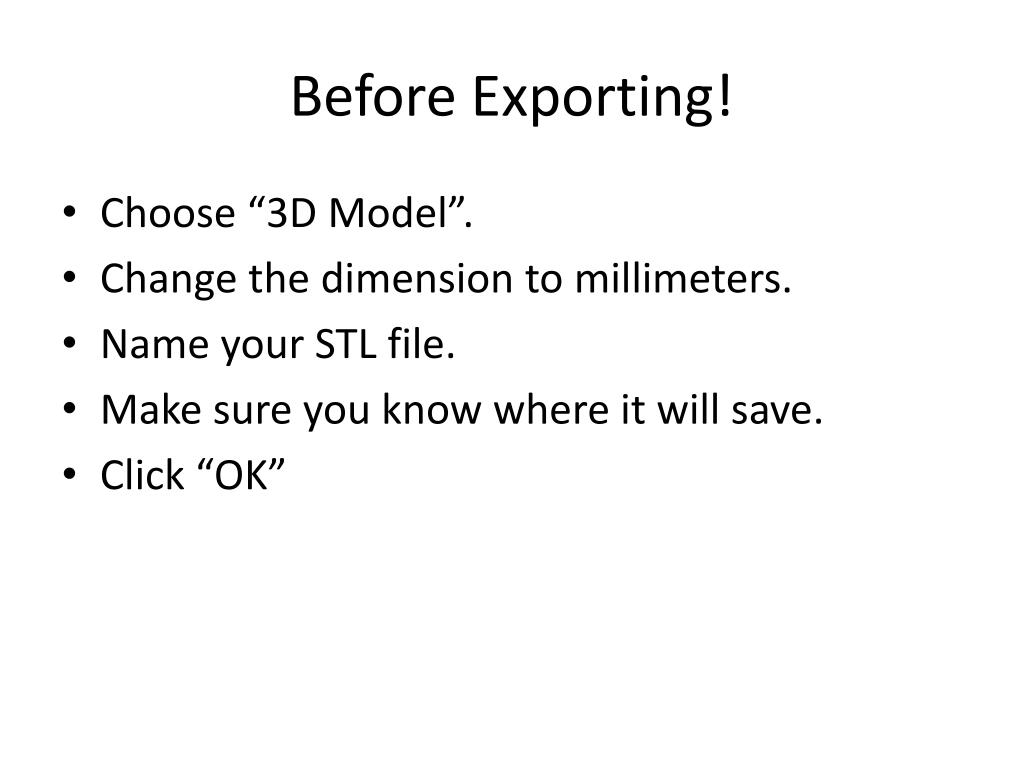

  8. Before Exporting! • Choose “3D Model”. • Change the dimension to millimeters. • Name your STL file. • Make sure you know where it will save. • Click “OK”

  9. Open MakerWare

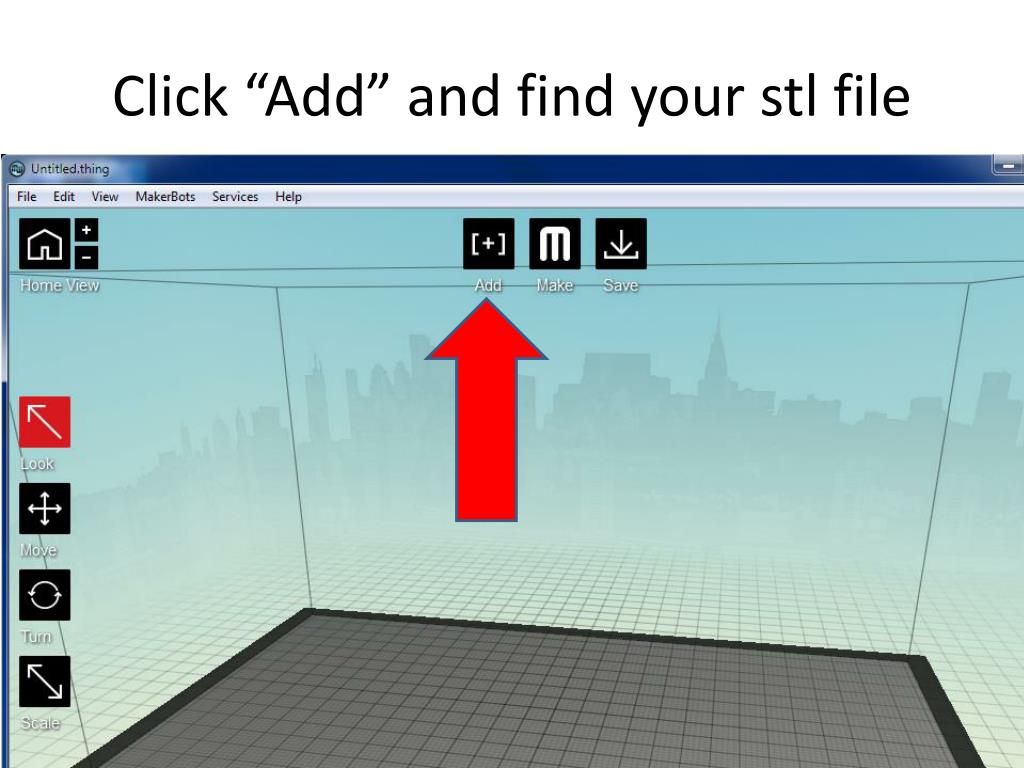

  10. Click “Add” and find your stl file

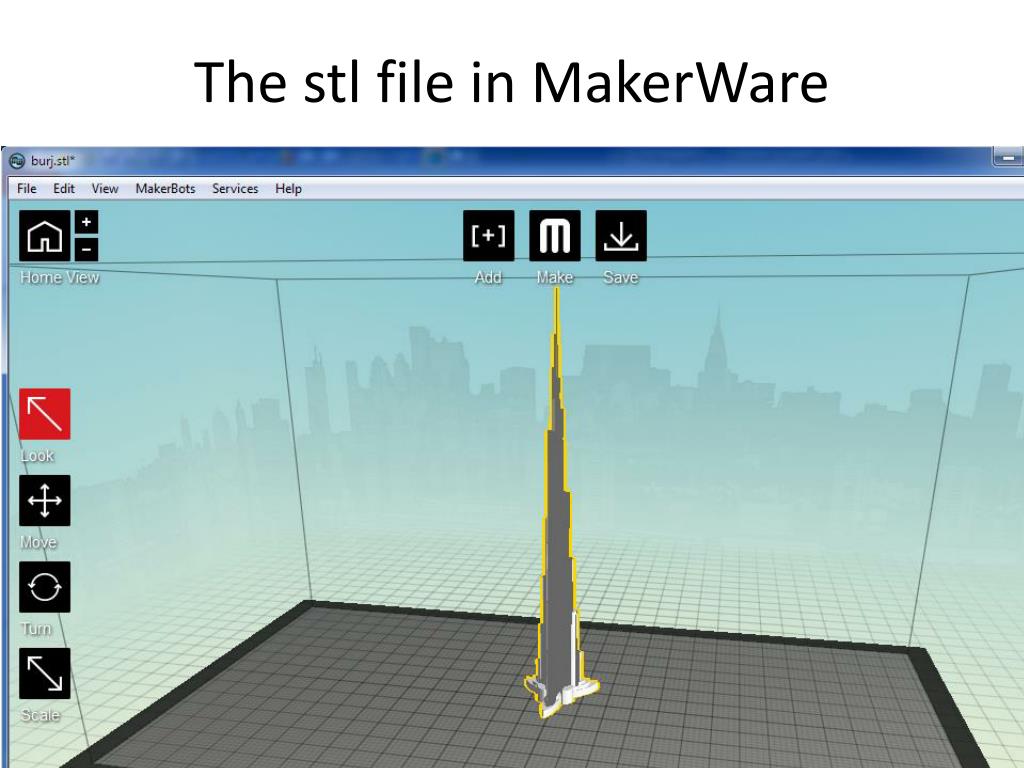

  11. The stl file in MakerWare

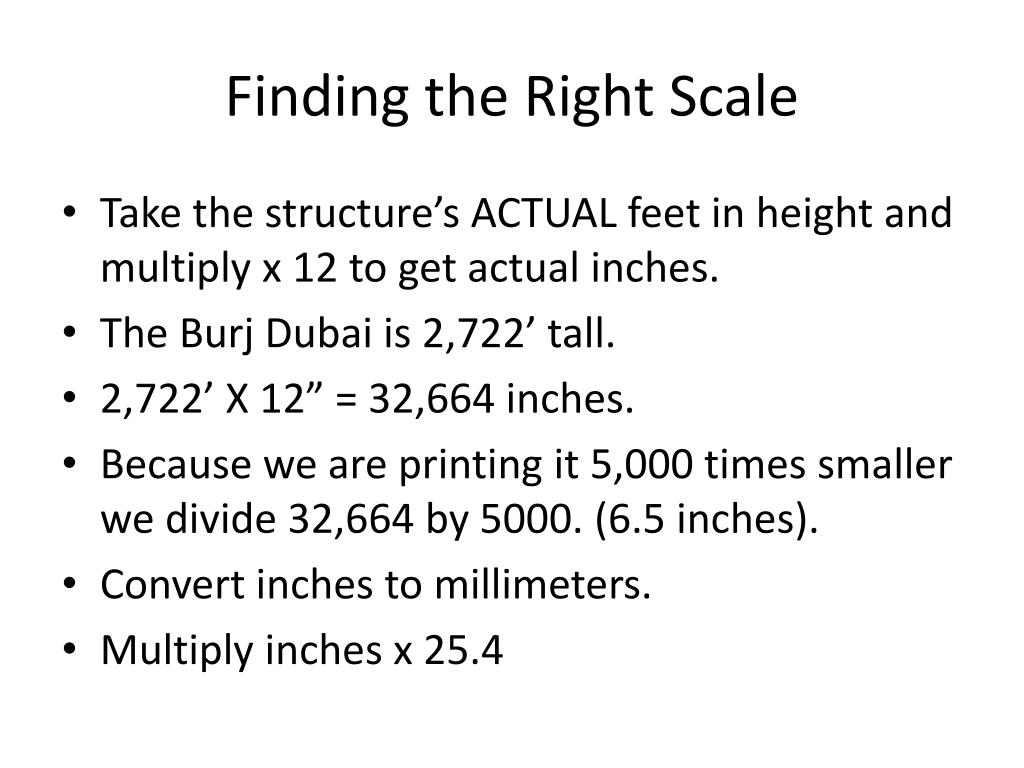

  12. Finding the Right Scale • Take the structure’s ACTUAL feet in height and multiply x 12 to get actual inches. • The Burj Dubai is 2,722’ tall. • 2,722’ X 12” = 32,664 inches. • Because we are printing it 5,000 times smaller we divide 32,664 by 5000. (6.5 inches). • Convert inches to millimeters. • Multiply inches x 25.4

  13. You can also use an online tool!

  14. Millimeters • The Burj Dubai, 5,000 times smaller than actual size is 165 millimeters tall. FACT! The Burj Dubai is the tallestbuilding in the world – by far!

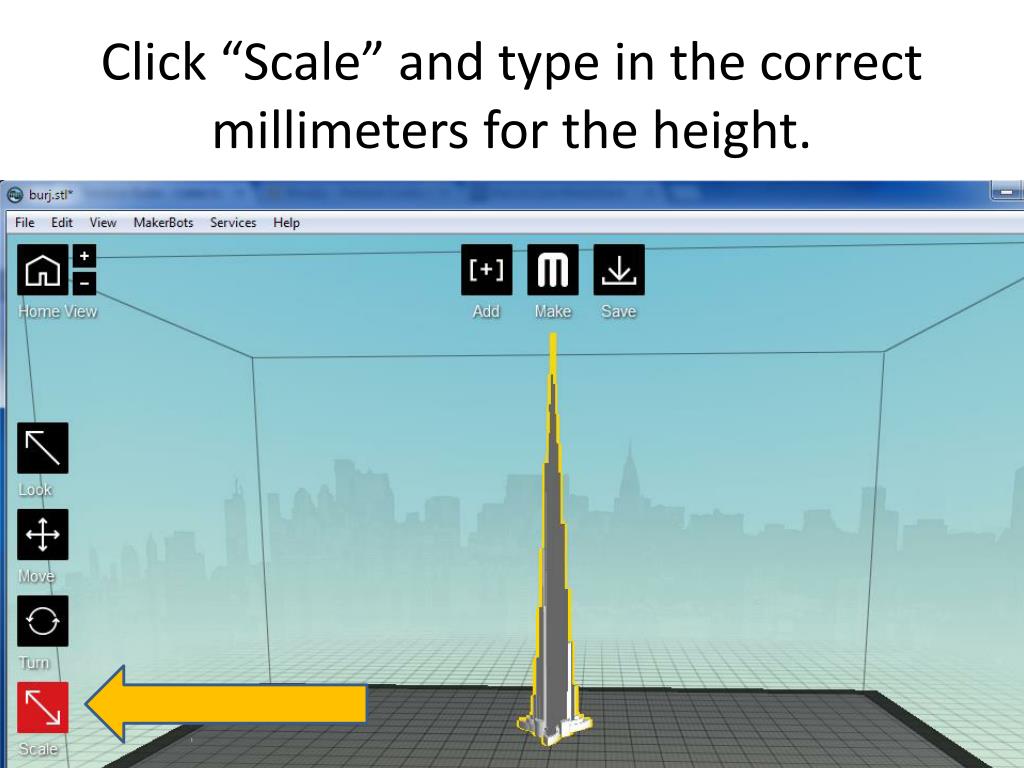

  15. Click “Scale” and type in the correct millimeters for the height.

  16. Click “M” for “Make”

  17. Present! • Research information about your famous structure. • Find, at least, the following: • Location (city and country) • Year built • Size (heightor length) and how it compares to other structures like it • What is it famous for • One other interesting fact, like total cost, etc. • Present your structure when it is your turn!

  18. Add Structure to the Class Cityscape(“New Vegas”!) Coming Soon!
