  1. PROMPT: Algorithm and Tool for Automated Ontology Merging and Alignment Natalya Fridman Noy and Mark A. Musen

  2. Motivation • Overview of PROMPT • Related Work • Knowledge Model • PROMPT Algorithm • Protégé-based PROMPT Tool • Evaluation • Discussion • Conclusions

  3. Motivation • A variety of ontologies exist in many domain areas, for the purpose of ontology reuses, merging or alignment is necessary • Merging: create a single coherent ontology that includes the information from all the sources • Alignment: make the sources consistent and coherent with one another but kept separately • Manually to merge or align is a laborious and tedious work (DARPA’s High performance Knowledge-Bases project) • Many steps in the process of merging or alignment is possible to be automated.

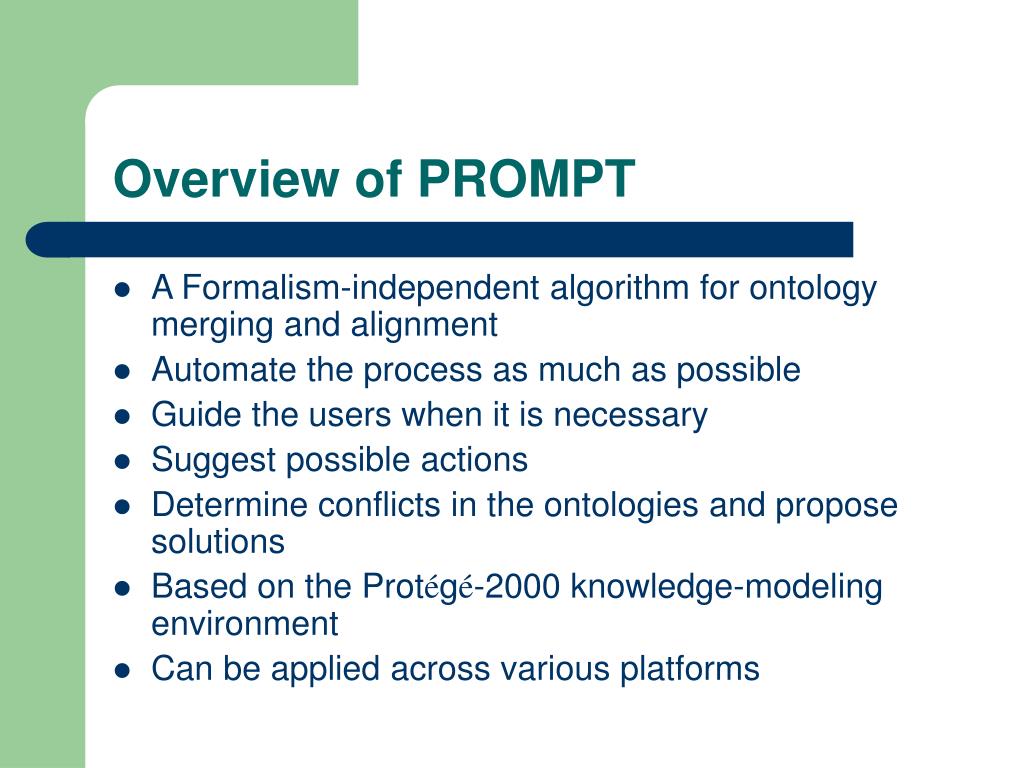

  4. Overview of PROMPT • A Formalism-independent algorithm for ontology merging and alignment • Automate the process as much as possible • Guide the users when it is necessary • Suggest possible actions • Determine conflicts in the ontologies and propose solutions • Based on the Protégé-2000 knowledge-modeling environment • Can be applied across various platforms

  5. Related Work • Ontology design • Object-oriented programming • Heterogeneous databases

  6. Related Work-Ontology Design and Integration • Chapulsky et al. 1997, Scalable Knowledge Composition project • Ontomorph • Chimaera based on Ontolingua ontology editor • Medical vocabularies

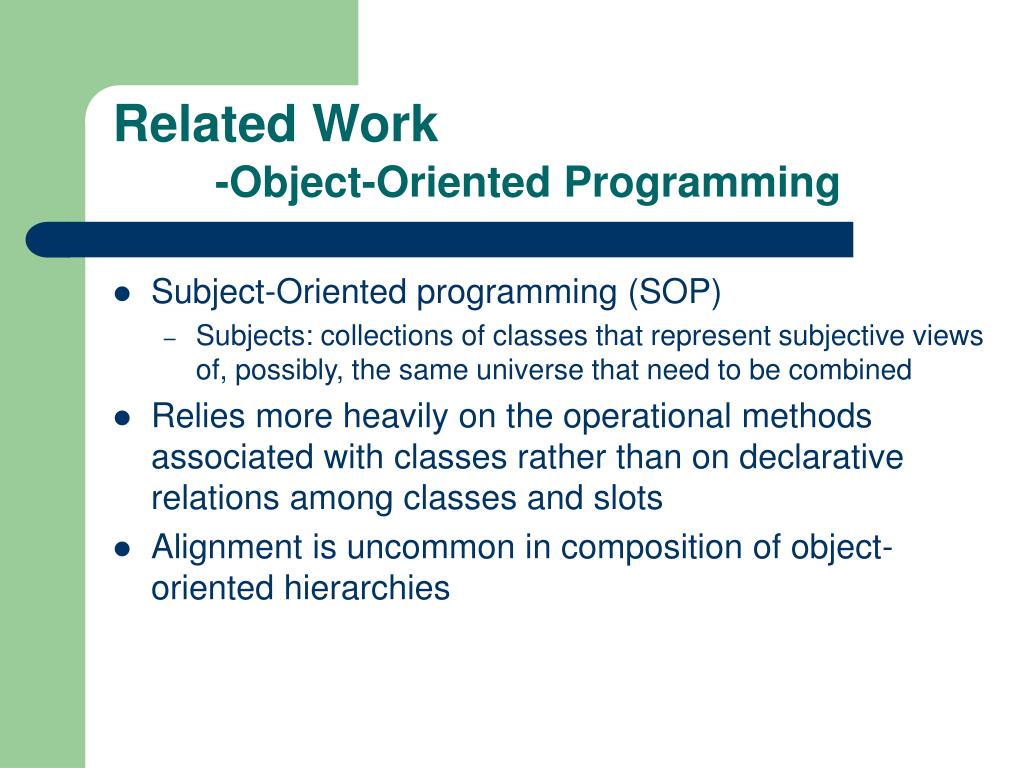

  7. Related Work-Object-Oriented Programming • Subject-Oriented programming (SOP) • Subjects: collections of classes that represent subjective views of, possibly, the same universe that need to be combined • Relies more heavily on the operational methods associated with classes rather than on declarative relations among classes and slots • Alignment is uncommon in composition of object-oriented hierarchies

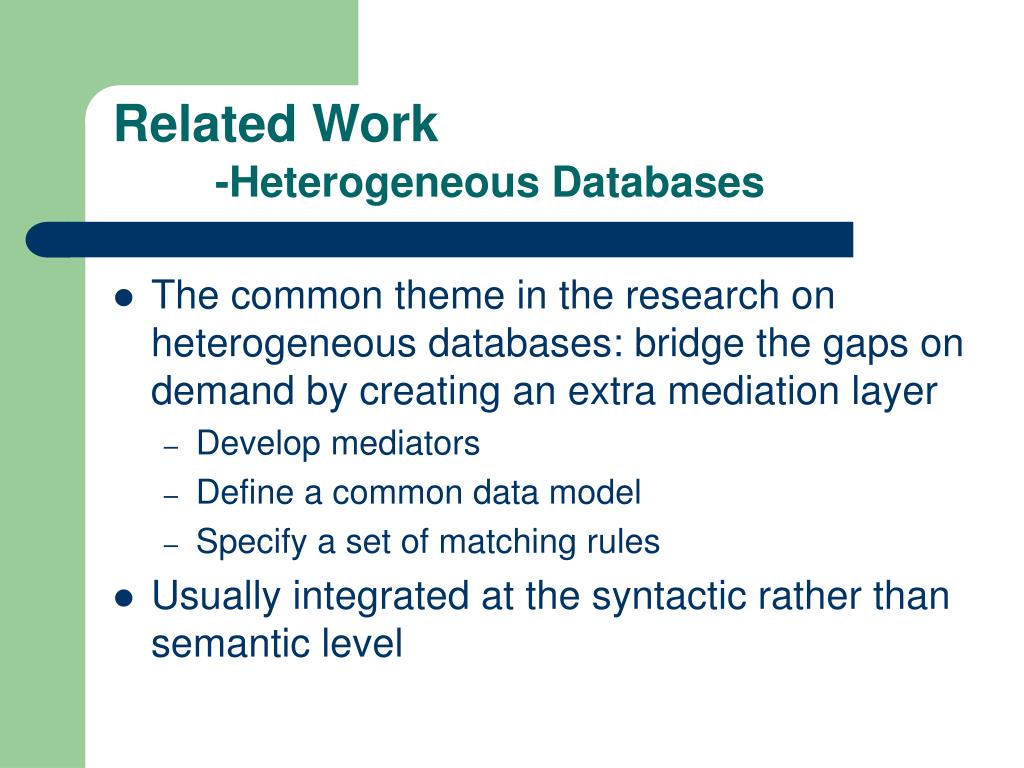

  8. Related Work-Heterogeneous Databases • The common theme in the research on heterogeneous databases: bridge the gaps on demand by creating an extra mediation layer • Develop mediators • Define a common data model • Specify a set of matching rules • Usually integrated at the syntactic rather than semantic level

  9. Knowledge Model • Classes • Slots • Facets • Instances

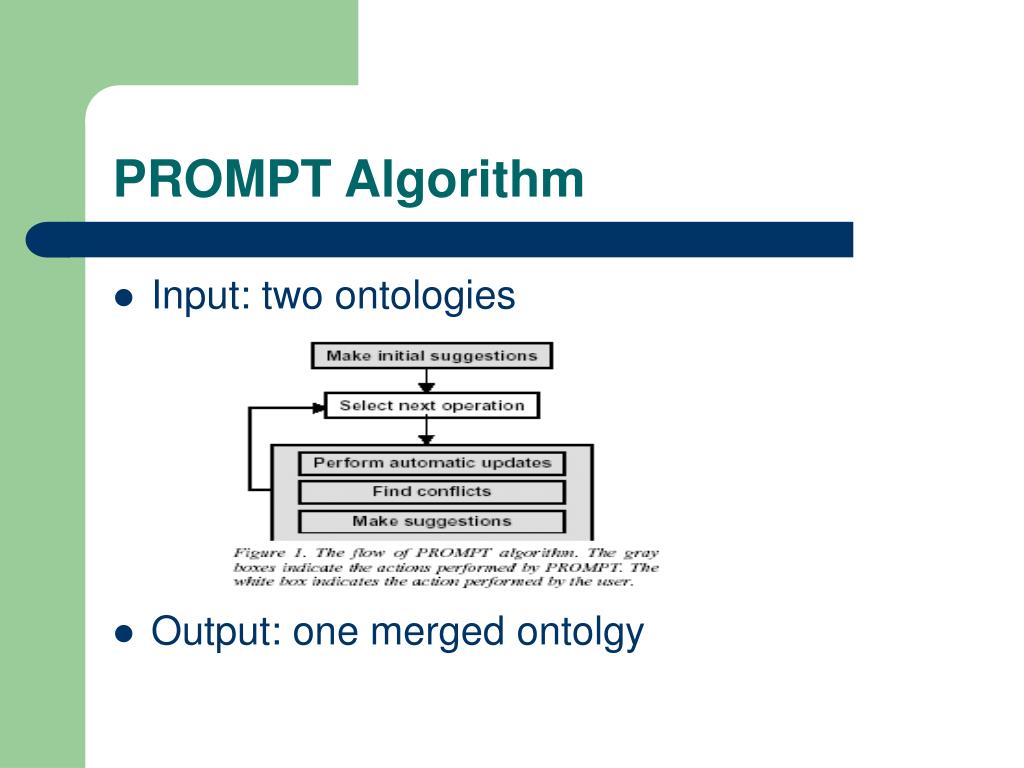

  10. PROMPT Algorithm • Input: two ontologies • Output: one merged ontolgy

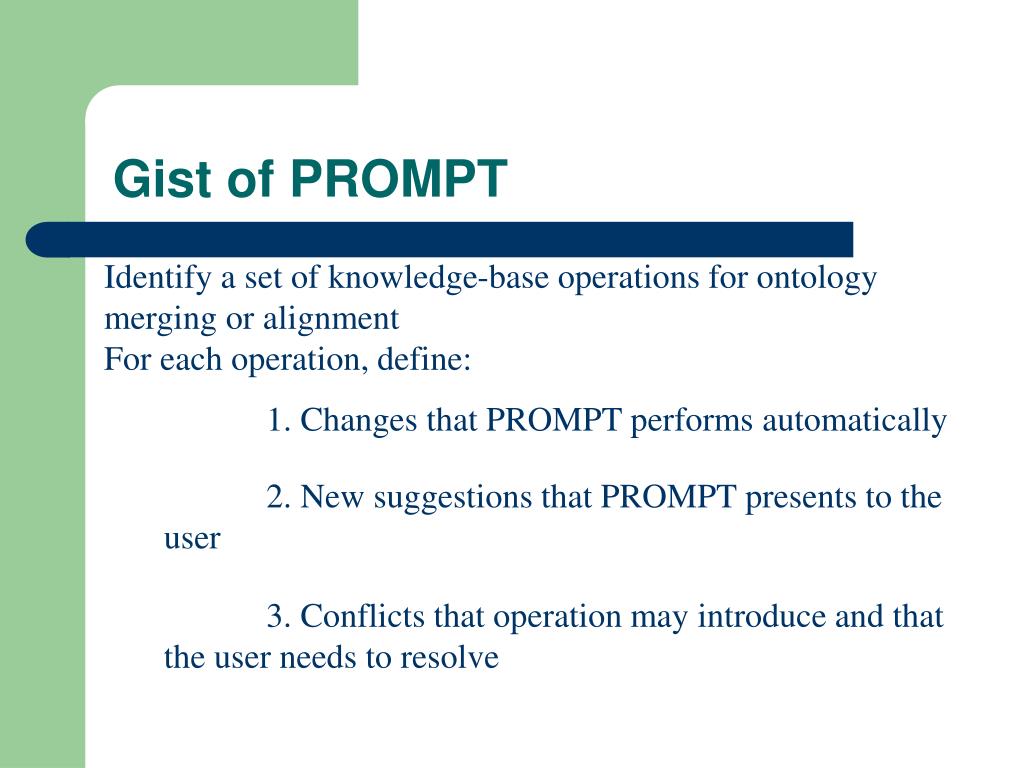

  11. Gist of PROMPT Identify a set of knowledge-base operations for ontology merging or alignment For each operation, define: 1. Changes that PROMPT performs automatically 2. New suggestions that PROMPT presents to the user 3. Conflicts that operation may introduce and that the user needs to resolve

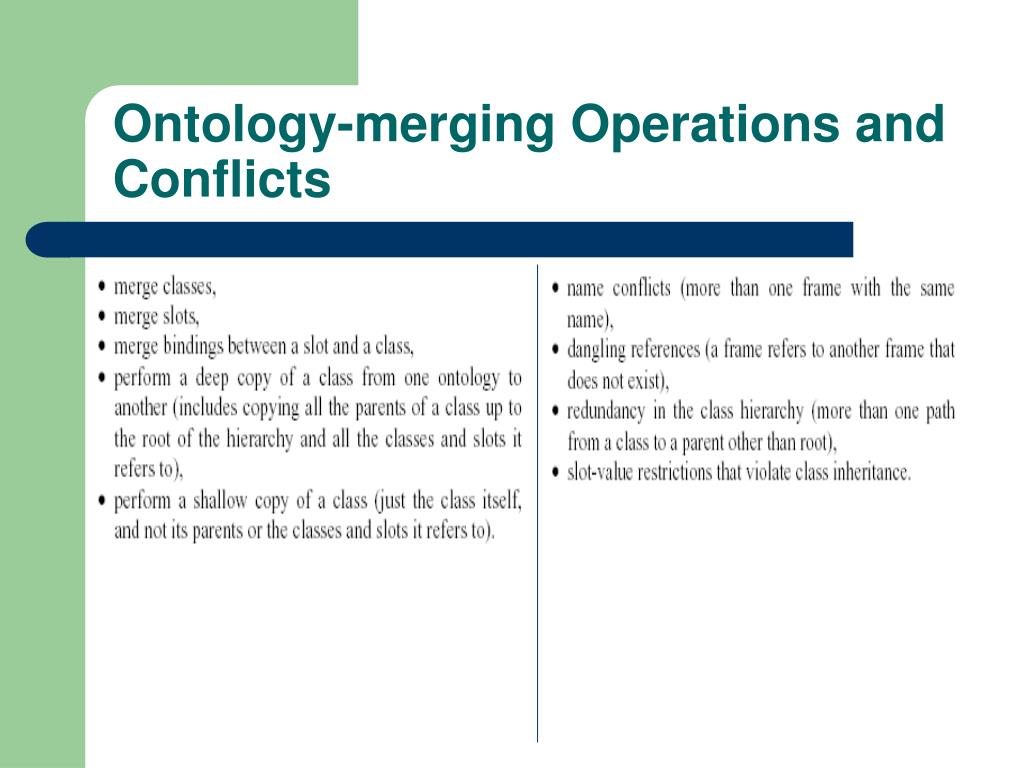

  12. Ontology-merging Operations and Conflicts

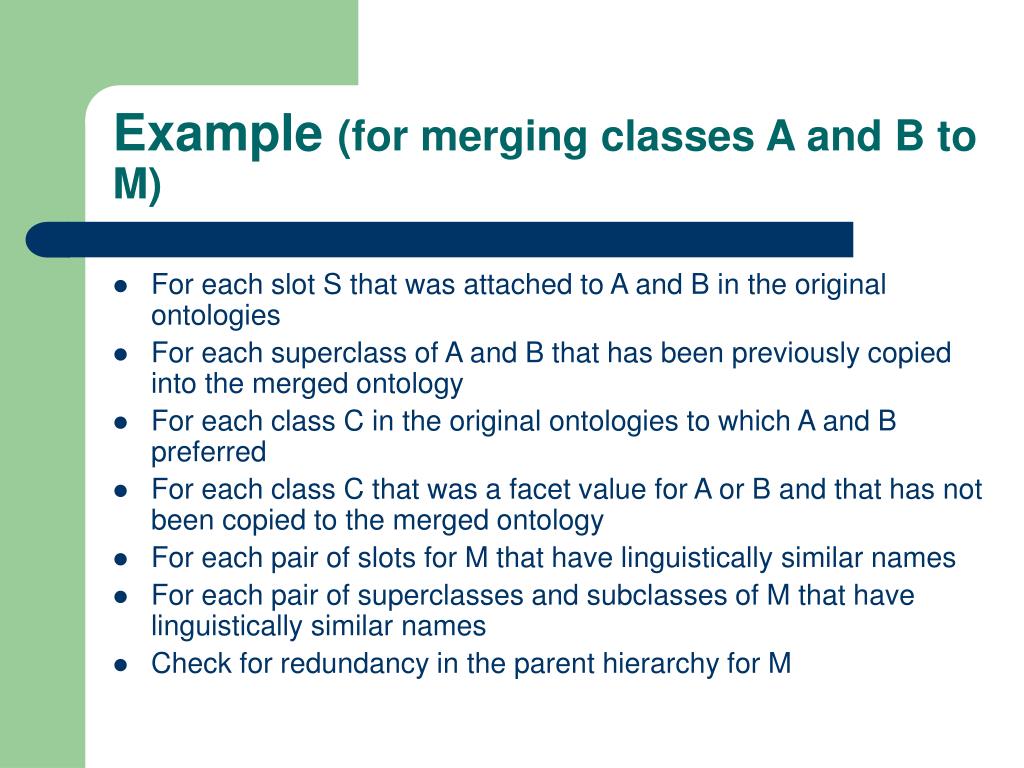

  13. Example (for merging classes A and B to M) • For each slot S that was attached to A and B in the original ontologies • For each superclass of A and B that has been previously copied into the merged ontology • For each class C in the original ontologies to which A and B preferred • For each class C that was a facet value for A or B and that has not been copied to the merged ontology • For each pair of slots for M that have linguistically similar names • For each pair of superclasses and subclasses of M that have linguistically similar names • Check for redundancy in the parent hierarchy for M

  14. Protégé-based PROMPT Tool • Setting the preferred ontology • Maintaining the user’s focus • Providing feedback to the user • Logging and reapplying the operations

  15. Evaluation Input: two ontologies :A and B contained totally of 134 class and Slot frames. A: the ontology for the unified problem-solving method Development language B: the ontology for the method description language • Using Protégé-2000 with PROMPT • Using generic Protégé-2000 • Using Chimaera

  16. Quality of PROMPT’S Suggestions

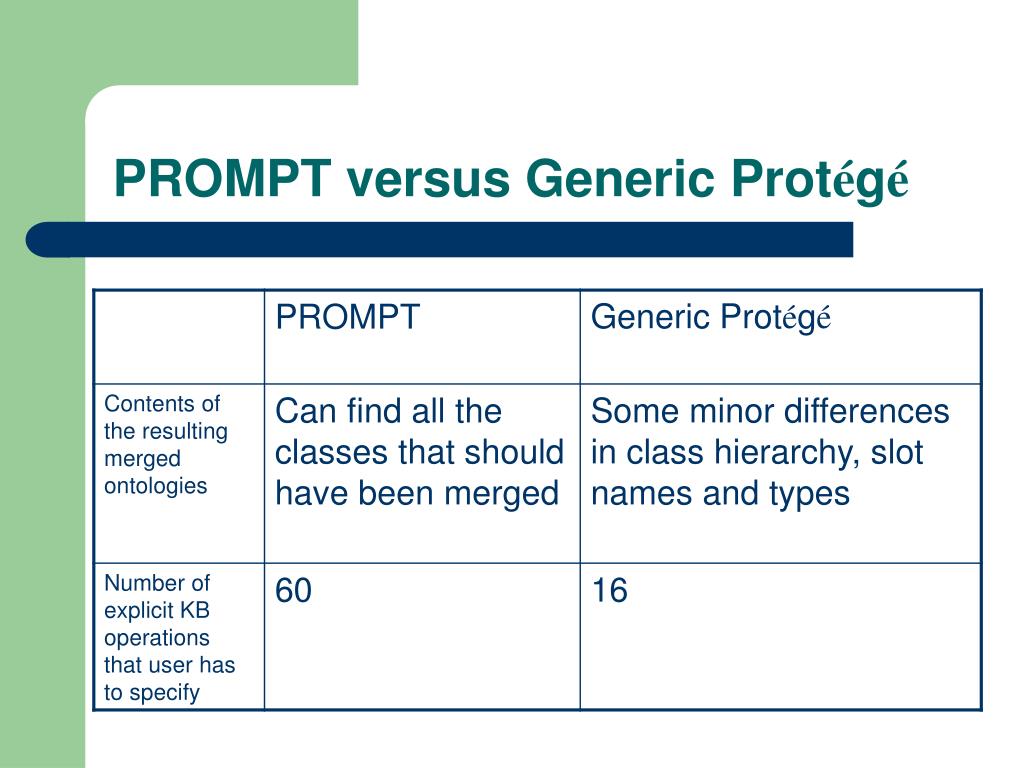

  17. PROMPT versus Generic Protégé

  18. PROMPT versus Chimaera Correct suggestions PROMT Chimaera 20%

  19. Discussion • The choice of source ontologies • Differences between PROMPT and Chimaera

  20. Conclusions • Be able to perform a large number of merging operations • The quality of result should be evaluated • The result for larger ontologies is unknown, needs more test • Users may be overwhelmed by too many specific suggestions

  21. Questions?
