  1. Security – XML Signature

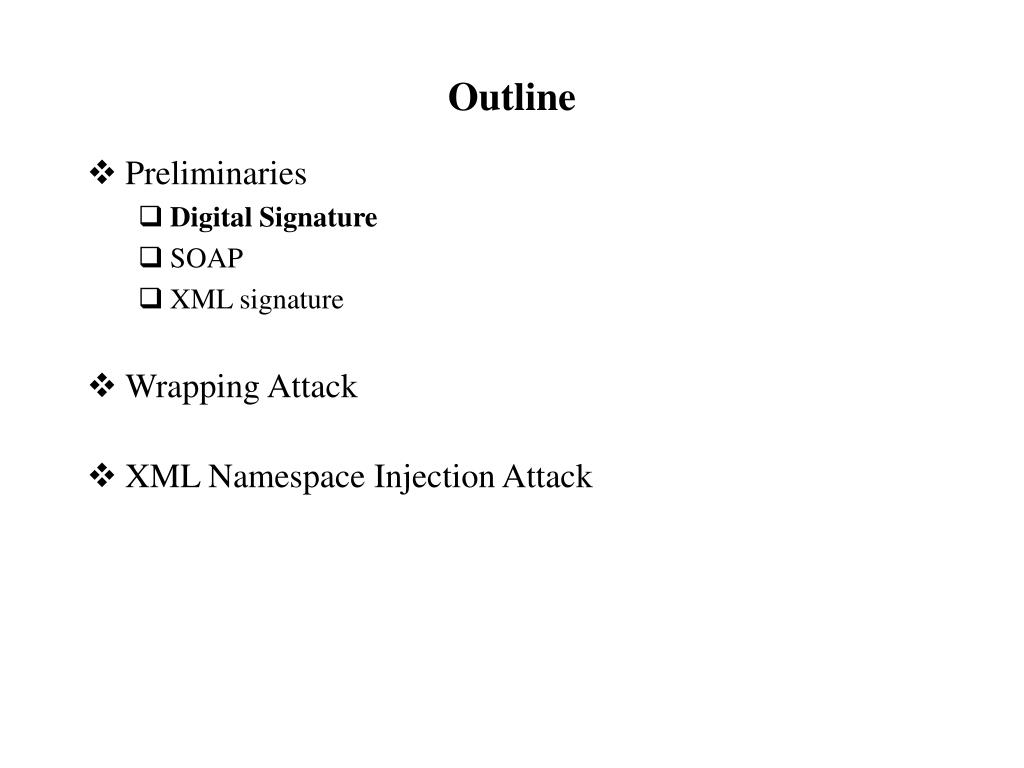

  2. Outline • Preliminaries • Digital Signature • SOAP • XML signature • Wrapping Attack • XML Namespace Injection Attack

  3. Digital Signature • The Usage of Digital Signature • Authentication • The private key is bounded to the user, a valid signature shows that the message was sent by that user • Integrity • If a message is digitally signed, any change in the message after signature will invalidate the signature

  4. Digital Signature Scheme • Definition • A digital signature scheme includes a triple of algorithms (G, , V) • Key generation algorithm G: produces pairs (P, S) where P is called a public key and S a private key. • Signing algorithm : given a private key S and a message m, produces as output string s which call the signature of m. • Verification algorithm V: given a public key P, a digital signature s, and a message m, returns 1 (digital signature is valid) or 0 (digital signature is invalid) to indicate whether or not the signature is valid. • Security • It is infeasible to forge a valid digital signature without knowing the private key • Details are omitted here …

  5. Digital Signature Scheme • Construction Primitives • Cryptographic Hash Function • Public Key Encryption Scheme

  6. Cryptographic Hash Functions • Definition • Deterministic procedure that takes an arbitrary block of data and returns a fixed-size bit string • Properties • Easy to compute the hash value for any given message • Infeasible to find a message that has a given hash • Infeasible to modify a message without changing its hash • Infeasible to find two different messages with the same hash. • Example – SHA-1 • Produces a 160-bit digest from a message with a maximum length of (264 − 1) bits

  7. Public Key Encryption Scheme • Definition (Not Rigorous) • A triple (G, E, D) algorithms satisfying the following conditions • Key generation algorithm G: produces a pair (e, d) where e is called the public key, and d is the corresponding private key. • Encryption algorithm E: takes as input public key e, string m called the plain text, and produces as output string c called the cipher text. • Decryption algorithm D: takes as inputs private key d, and a cipher text c, and produces as output a string m’ • Correctness • For every pair (e, d), for every m, D(E(m, e), d) = m. • Security • Complex and omitted here …

  8. Public Key Encryption Scheme • Example – RSA • Key generation algorithm G • Choose n = p·q where p and q are two large prime numbers • Select e such that gcd(e, (n)) = 1 where (n) = (p1)·(q1) • Compute d such that c·d  1 (mod (n)) by Chinese Remainder Theorem • (e, n) is the public key and (d, n) is the private key • Encryption algorithm E • For plain text m, E(m, (e, n)) = me mod n • Decryption algorithm D • For cipher text c, D(c, (d, n)) = cd mod n • Correctness • (me)d mod n = m mod n

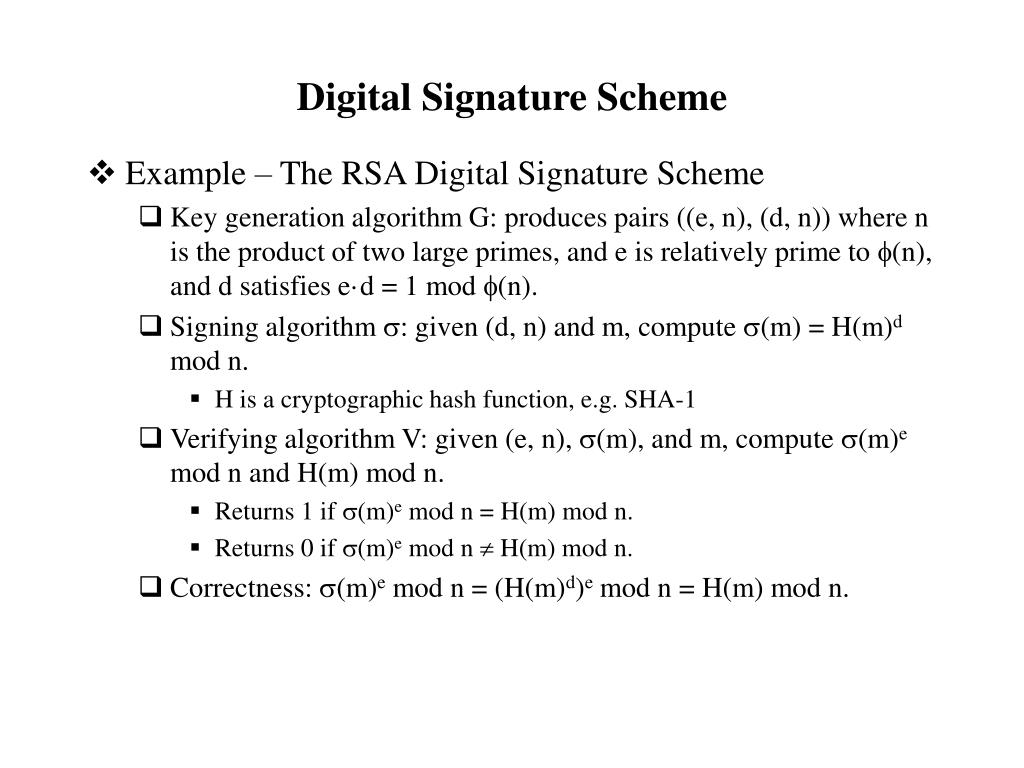

  9. Digital Signature Scheme • Example – The RSA Digital Signature Scheme • Key generation algorithm G: produces pairs ((e, n), (d, n)) where n is the product of two large primes, and e is relatively prime to (n), and d satisfies e·d = 1 mod (n). • Signing algorithm : given (d, n) and m, compute (m) = H(m)d mod n. • H is a cryptographic hash function, e.g. SHA-1 • Verifying algorithm V: given (e, n), (m), and m, compute (m)e mod n and H(m) mod n. • Returns 1 if (m)e mod n = H(m) mod n. • Returns 0 if (m)e mod n  H(m) mod n. • Correctness: (m)e mod n = (H(m)d)e mod n = H(m) mod n.

  10. Digital Signature Scheme • Implementation – Create Public Key Certificate • Public Key Certificate • Issued by certificate authority (CA) • Binding together a public key with an identity

  11. Public Key Certificate • Typical Contents • Serial Number: Used to uniquely identify the certificate. • Subject: The person, or entity identified. • Signature Algorithm: The algorithm used to create the signature. • Issuer: The entity that verified the information and issued the certificate. • Valid-From: The date the certificate is first valid from. • Valid-To: The expiration date. • Key-Usage: Purpose of the public key. • Public Key: The public key to encrypt a message to the named subject or to verify a signature from the named subject. • Thumbprint Algorithm: The algorithm used to hash the certificate. • Thumbprint: The hash itself to ensure that the certificate has not been tampered with.

  12. Outline • Preliminaries • Digital Signature • SOAP • XML signature • Wrapping Attack • XML Namespace Injection Attack

  13. SOAP • SOAP • Defines an XML syntax and processing rules facilitating the exchange of SOAP messages • Message flow from an originator to an ultimate receiver containing zero or more intermediary SOAP nodes

  14. SOAP Message • SOAP Message • Consists of soap:Envelop • soap:Envelop • Contains a soap:Header element (optional) • Contains a soap:Body element

  15. soap:Header Element • soap:Header Element • May contain a set of child elements • Describe message processing that the sender expects a recipient to perform • Each child element may contain an actor or role attribute • Indicates which receiving SOAP node is expected to perform the described processing • Intermediary SOAP nodes may add, remove and modify individual element children of the soap:Header element • Each child element may contain a soap:mustUnderstand attribute • Indicates whether a SOAP node should generate a fault if a message is received containing an element that is target at that node but for which no processing is defined

  16. Web Services Security • Web Services Security • Defines the syntax and processing rules associated with the wsse:Security element • wsse:Security Element • is a child of soap:Header element • May include XML Signature elements, SML Encryption element, Timestamps, and Security Tokens

  17. Example of SOAP Message soap:Envelope element soap:Body element soap:Header element wsse:Security element ds:Signature element

  18. Outline • Preliminaries • Digital Signature • SOAP • XML signature • Wrapping Attack • XML Namespace Injection Attack

  19. XML Namespaces • Namespace Binding • xmlns=“uri” • Make XML element names globally unique • Namespace Prefix • xmlns:prefix=“uri” • Binds the prefix to the given namespace uri for the whole subtree of this element

  20. XML Namespaces Example uri prefix

  21. XML Signature • XML Signature • Defines an XML syntax and processing rules for signing and verifying digital signatures over one or more data objects • Properties • Use a set of indirect references to each singed data object, allowing for the signing of several potentially noncontiguous and/or overlapping data objects • Advantage: signed XML elements along with the associated signature may be copied from one document into another while retaining the ability to verify the signature • Useful in scenarios where multiple actors process and potentially transform a document throughout a business process • Disadvantage: it can be exploited by an adversary allowing the undetected modification of documents

  22. XML Signature Data Structure

  23. XML Signature • Generating Steps • The resource is transformed (if necessary), and canonicalized • The digest value of the resulting data object is calculated and stored in DigestValue • The signature is calculated over the canonicalized SignedInfo and stored in SignatureValue • Validating Steps • First generate and verify the digest value • Then verify the signature value • Validation successes if and only if the digest value and the signature value are valid

  24. XML Signature – Canonicalization • Purpose • A set of operations performed on the XML contents prior to signature application or verification • For example: hide irrelevant character-level modifications of the XML document • Two Different Canonicalizations • Inclusive Canonicalization • Exclusive Canonicalization

  25. Property of Inclusive Canonicalization • Inclusive Canonicalization • Leaving all namespace declarations within the signed subtree in place • Including all namespace declarations that were specified outside the signed subtree but also cover the signed subtree be included in the signed subtree’s root element • Effect • Lead to severe interoperability issues • Every addition of namespace declarations e.g. at a SOAP Envelope element lead to invalidation of every XML signature within that message

  26. Property of Exclusive Canonicalization • Exclusive Canonicalization • “visibly utilized” namespace: the set of all namespaces that have at least one element or attribute from that namespace occurring within the signed contents • If a namespace is visibly utilized, its namespace declaration – regardless of its position within the signed subtree – is kept in place • If that namespace happened to be declared outside of the signed subtree, its declaration is moved to the first element that visibly utilizes it

  27. Inclusive and Exclusive Canonicalizations • Application Situations • WS-Security prefers the use of Exc-C14N • WS-I Basic Security Profile explicitly disallows the use of Inc-C14N • (Although Exc-C14N is more flexible, it has severe security risk, will see later)

  28. XML Signature - Referencing • ID-based referencing • “#x” implies that the element with an ID attribute of value x is targeted • Use “ ” to reference a document’s root element • XPath Tranforms • Evaluation of a potentially-complex expression against every node in the input set, which has proved costly in practice. • XPath Filter 2 Transform • Based on the set operations , , and \ • Does not provide any increased capability over the original XPath transform • Implemented more efficiently: requires evaluation of simple XPath expressions and then the execution of some basic set operations

  29. ID-based referencing Example

  30. XPath and XPath Filter 2 Transform Examples

  31. Outline • Preliminaries • Digital Signature • SOAP • XML signature • Wrapping Attack • XML Namespace Injection Attack

  32. Stock Quote Application • Stock Quote • Customers quote the prices of stocks • The service provider would charge consumers for the services • What’s more • The soap:Body element should be signed with XML Signature • The associated signature verification key should be provided by an certificate

  33. Example 1 Add a soap:Header element

  34. Wrapping Attack 1 – Simple Ancestry Context Indicate to the SOAP processing layer that the Wrapper element can be safely ignored

  35. Remedy Effort 1 • Refinement of the Policy • The element specified by /soap:Evelope/soap:Body must be signed using WSS with XML Signature • The associated signature verification key must be provided by a certificate issued by one of the set of trusted Certificate Authorities (CAs)

  36. Example 2 Unlike example 1, it is an optimal element context

  37. Wrapping Attack 2 – Optional Element Context The wsa:ReplyTo element has been wrapped so that the reply will sent to a incorrect location

  38. Remedy Effort 2 – Using XPath

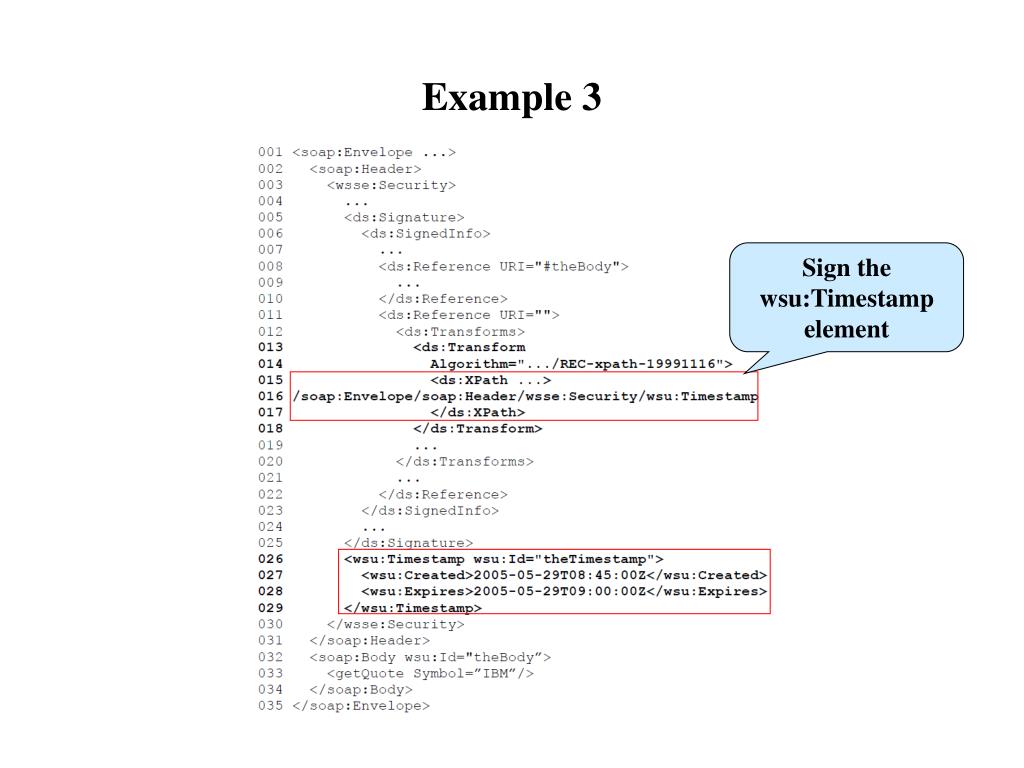

  39. Example 3 Sign the wsu:Timestamp element

  40. Wrapping Attack 3 – Sibling Value Context The timestamp has been wrapped and will not be verified by the SOAP processing layer

  41. Enforce the ultimateReceiver to verify timestamp Remedy Effort 3

  42. Wrapping Attack 4 Add a wsse:Security element Move to here There is no timestamp in this element removed

  43. Conclusions • Wrapping Attack • Shown how to protect against certain wrapping attacks by improving the security policy • Shown how to counterfeit new security policy by a new, more sophisticated wrapping attack

  44. Outline • Preliminaries • Digital Signature • SOAP • XML signature • Wrapping Attack • XML Namespace Injection Attack

  45. XML Namespace Injection Attack – Example

  46. Example – After Canonicalized

  47. Example – Namespace Injection Attack

  48. Attack Countermeasure 1 • InclusiveNamespace • The prefix used in the XPath expression can be included in the InclusiveNamespaces element of CanaonicalizationMethod within SignedInfo • Failed • Not implemented in open libraries for XML signature, e.g. Apache XML Security and Microsoft’s .Net Framework. • For some libraries, although it is possible to specify the InclusiveNamespaces, the specified prefixes will be ignored while canonicalizing the SignedInfo.

  49. Attack Countermeasure 2 • Sepcify the prefix/namespace Pairs • Failed • Cannot be applied to the existing XPath transform and XPath Filter 2 transform

  50. Attack Countermeasure 3 • Using Prefix-free XPath Expressions • Placing the namespace uri directly into the XPath expression itself • For example: the XPath expression /soap:Envelope/soap:Body with soap mapping to ns-soap can be expressed by • Succeed • Shortcomings • Induce a serious rise in complexity of the XPath expression and the threat of misconfigurations
