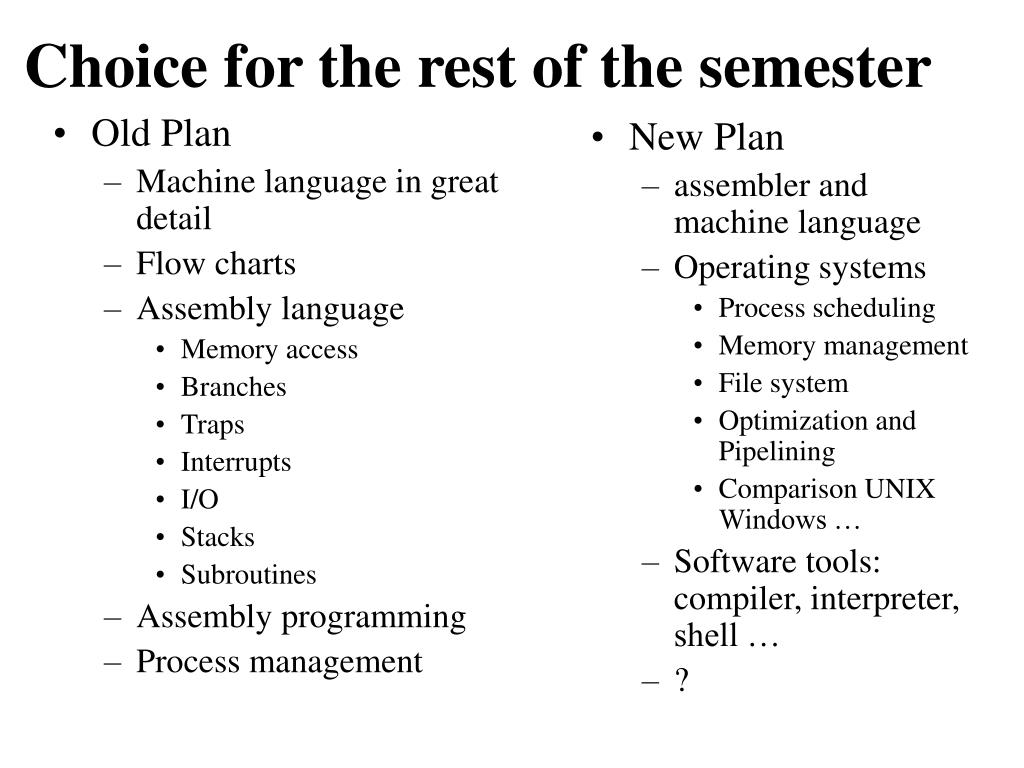

  1. Choice for the rest of the semester • Old Plan • Machine language in great detail • Flow charts • Assembly language • Memory access • Branches • Traps • Interrupts • I/O • Stacks • Subroutines • Assembly programming • Process management • New Plan • assembler and machine language • Operating systems • Process scheduling • Memory management • File system • Optimization and Pipelining • Comparison UNIX Windows … • Software tools: compiler, interpreter, shell … • ?

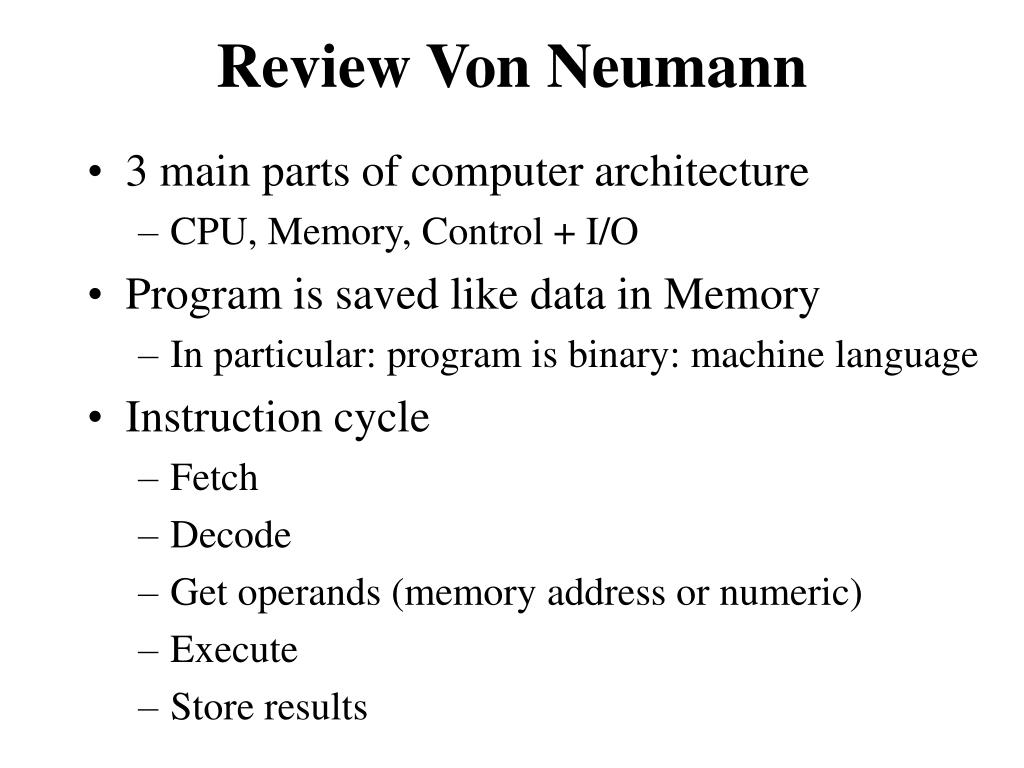

  2. Review Von Neumann • 3 main parts of computer architecture • CPU, Memory, Control + I/O • Program is saved like data in Memory • In particular: program is binary: machine language • Instruction cycle • Fetch • Decode • Get operands (memory address or numeric) • Execute • Store results

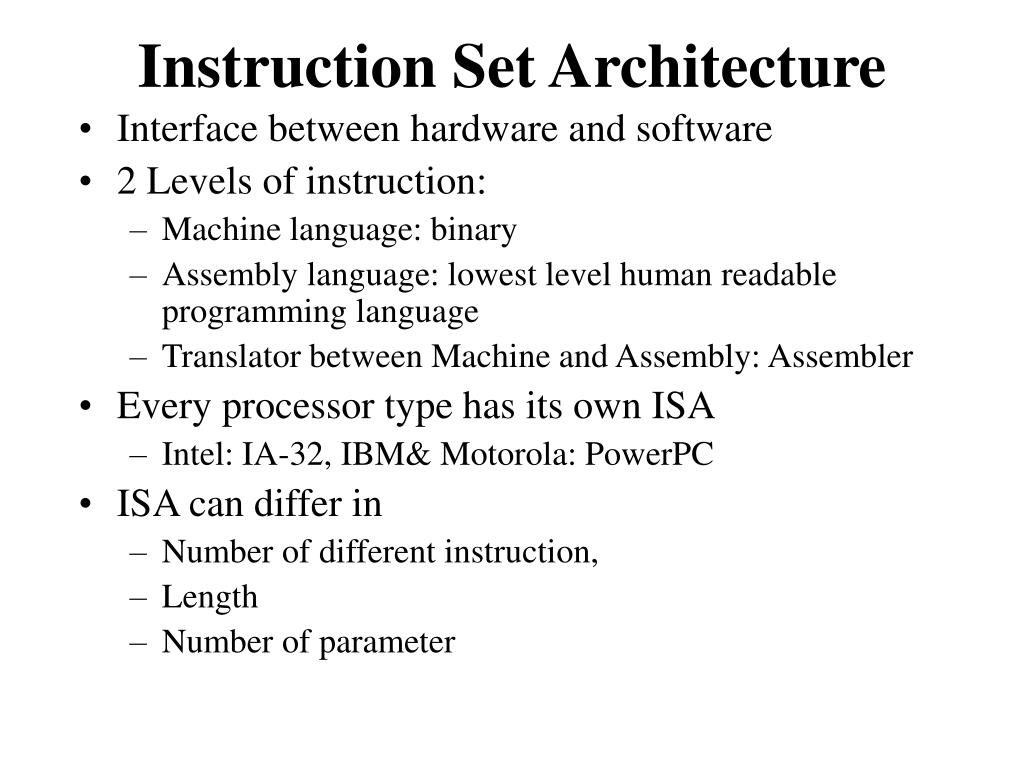

  3. Instruction Set Architecture • Interface between hardware and software • 2 Levels of instruction: • Machine language: binary • Assembly language: lowest level human readable programming language • Translator between Machine and Assembly: Assembler • Every processor type has its own ISA • Intel: IA-32, IBM& Motorola: PowerPC • ISA can differ in • Number of different instruction, • Length • Number of parameter

  4. ISA Design • ISA links the hardware and the machine language • Design decision in hardware are reflected in machine language • What operations do you support? • If DR can take 8 values (you have 8 temporal register) how many bits do you need to encode DR? • If Imm is 5 bit 2C, what is the range of possible summands for immediate addition? • If you have 20 commands, how big is the Opcode field?

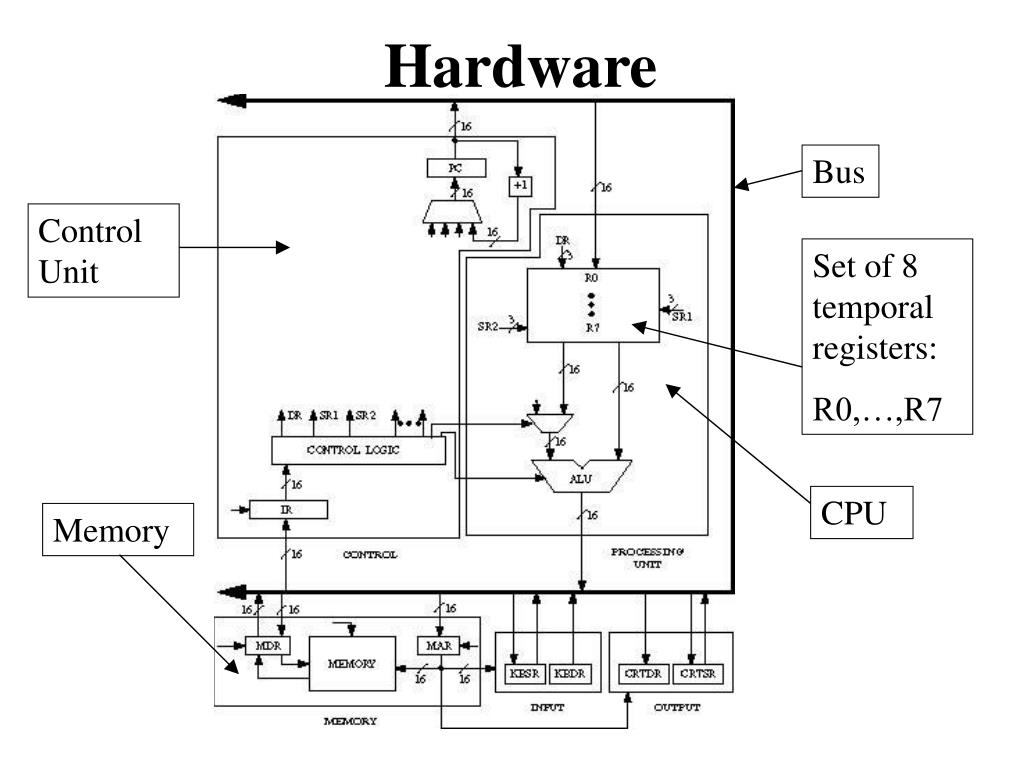

  5. Hardware Bus Control Unit Set of 8 temporal registers: R0,…,R7 CPU Memory

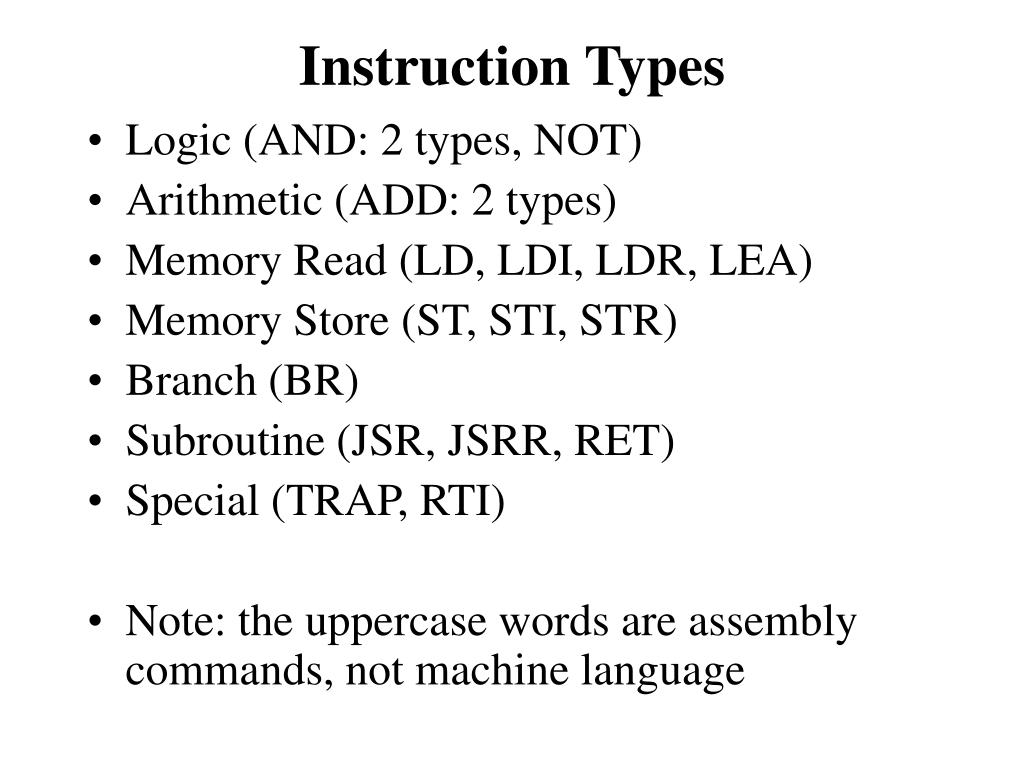

  6. Instruction Types • Logic (AND: 2 types, NOT) • Arithmetic (ADD: 2 types) • Memory Read (LD, LDI, LDR, LEA) • Memory Store (ST, STI, STR) • Branch (BR) • Subroutine (JSR, JSRR, RET) • Special (TRAP, RTI) • Note: the uppercase words are assembly commands, not machine language

  7. Machine Language Table 5.1 in Book on page 94

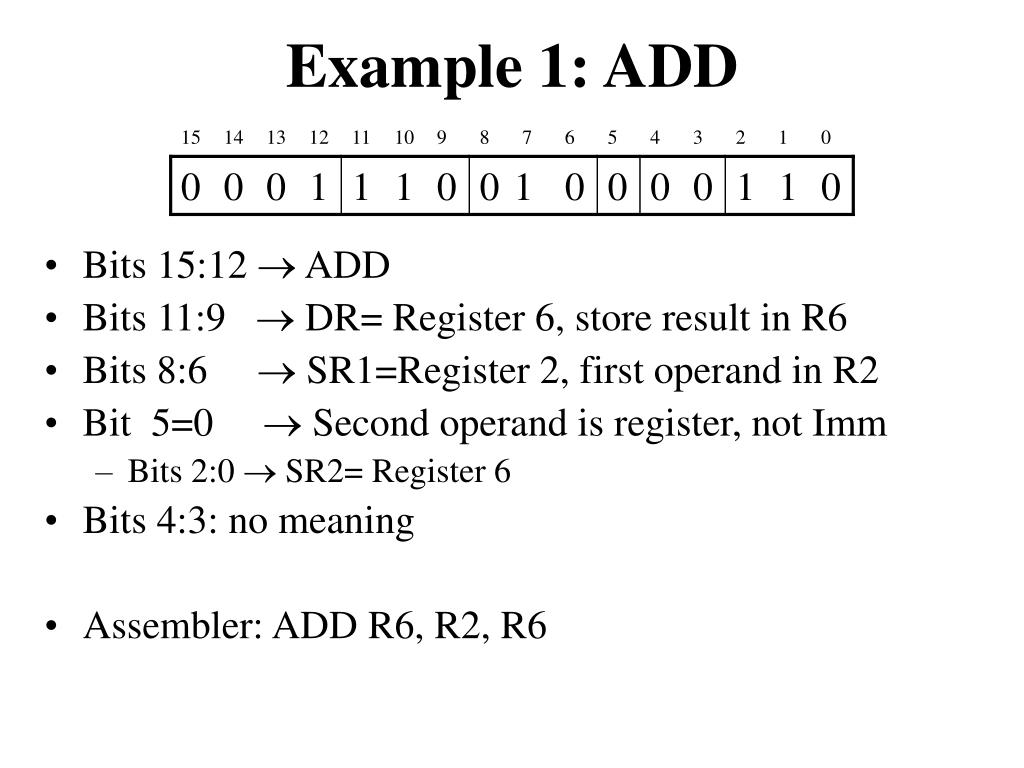

  8. Example 1: ADD • Bits 15:12  ADD • Bits 11:9  DR= Register 6, store result in R6 • Bits 8:6  SR1=Register 2, first operand in R2 • Bit 5=0  Second operand is register, not Imm • Bits 2:0  SR2= Register 6 • Bits 4:3: no meaning • Assembler: ADD R6, R2, R6

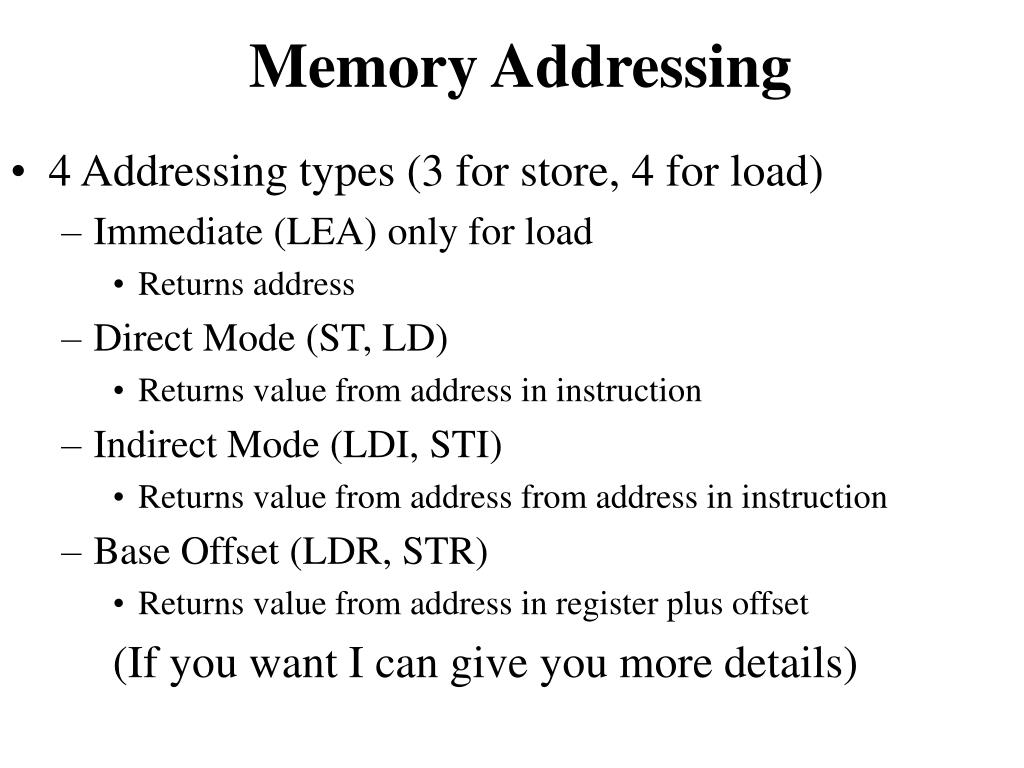

  9. Memory Addressing • 4 Addressing types (3 for store, 4 for load) • Immediate (LEA) only for load • Returns address • Direct Mode (ST, LD) • Returns value from address in instruction • Indirect Mode (LDI, STI) • Returns value from address from address in instruction • Base Offset (LDR, STR) • Returns value from address in register plus offset (If you want I can give you more details)

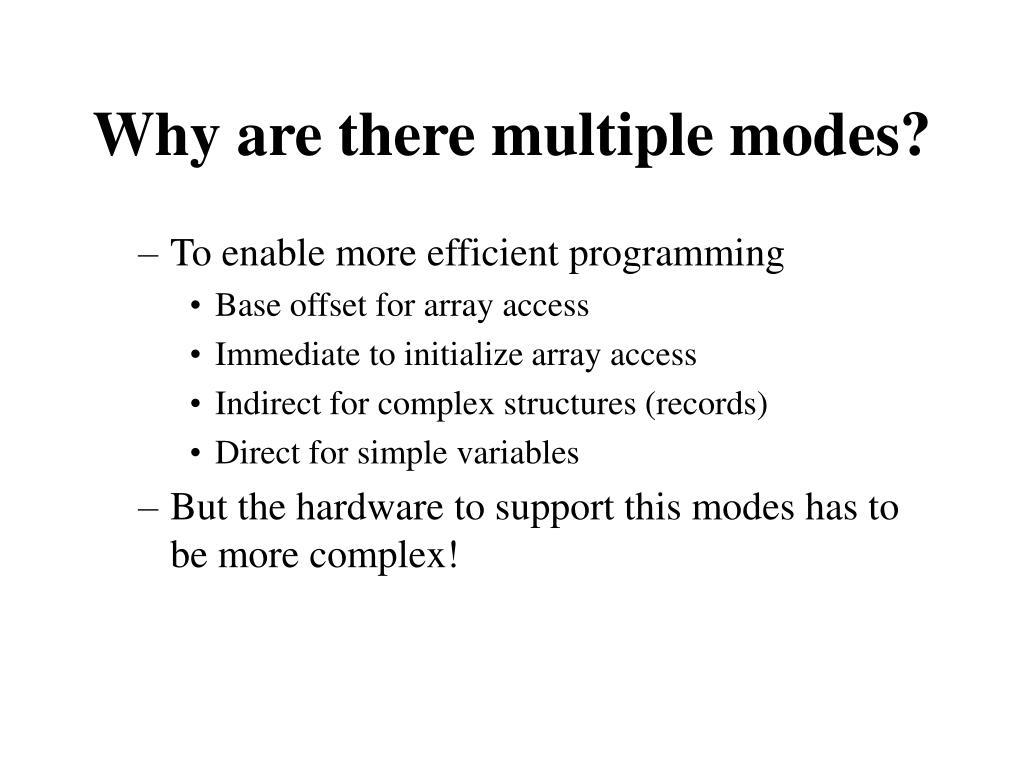

  10. Why are there multiple modes? • To enable more efficient programming • Base offset for array access • Immediate to initialize array access • Indirect for complex structures (records) • Direct for simple variables • But the hardware to support this modes has to be more complex!

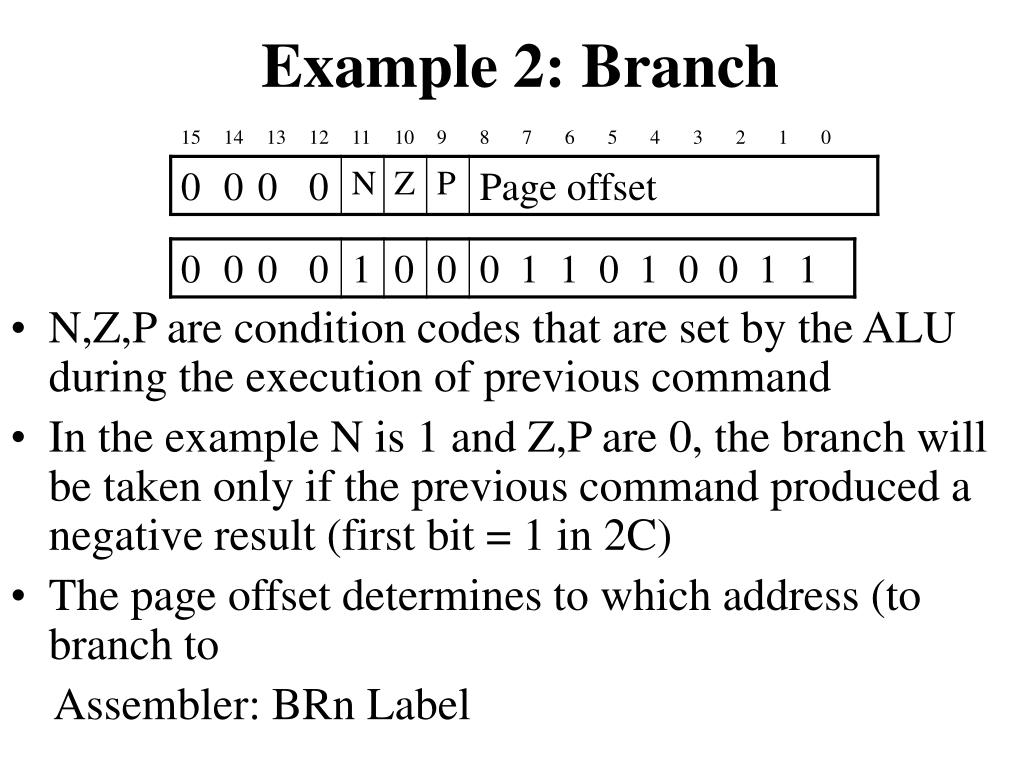

  11. Example 2: Branch • N,Z,P are condition codes that are set by the ALU during the execution of previous command • In the example N is 1 and Z,P are 0, the branch will be taken only if the previous command produced a negative result (first bit = 1 in 2C) • The page offset determines to which address (to branch to Assembler: BRn Label

  12. Assembler and Variables • Human don’t like to write binary programs • In both cases, memory and branching, we needed addresses, but where do they come from? • The assembler creates them • Assembler: software program that translates from assembly language to machine language (binary) and variables and labels into binary addresses

  13. Assembly program ; Comment starts with ; ; Program to multiply a number by the constant 6 ; .ORIG x3050 ; tells the assembler where in memory to start LD R1,SIX ; load the value of variable SIX into register 1 LD R2,NUMBER ; load value of variable NUMBER into register 2 AND R3,R3,#0 ; Clear R3. It will contain the product. AGAIN ADD R3,R3,R2 ; loop, add NUMBER to current result in R3 ADD R1,R1,#-1 ; decrement loop counter BRp AGAIN ; As long as R1 positive go back to AGAIN HALT ; Stop when done NUMBER .FILL x0004 ; reserve memory location for variables SIX .FILL x0006 ; reserve memory location for variables .END

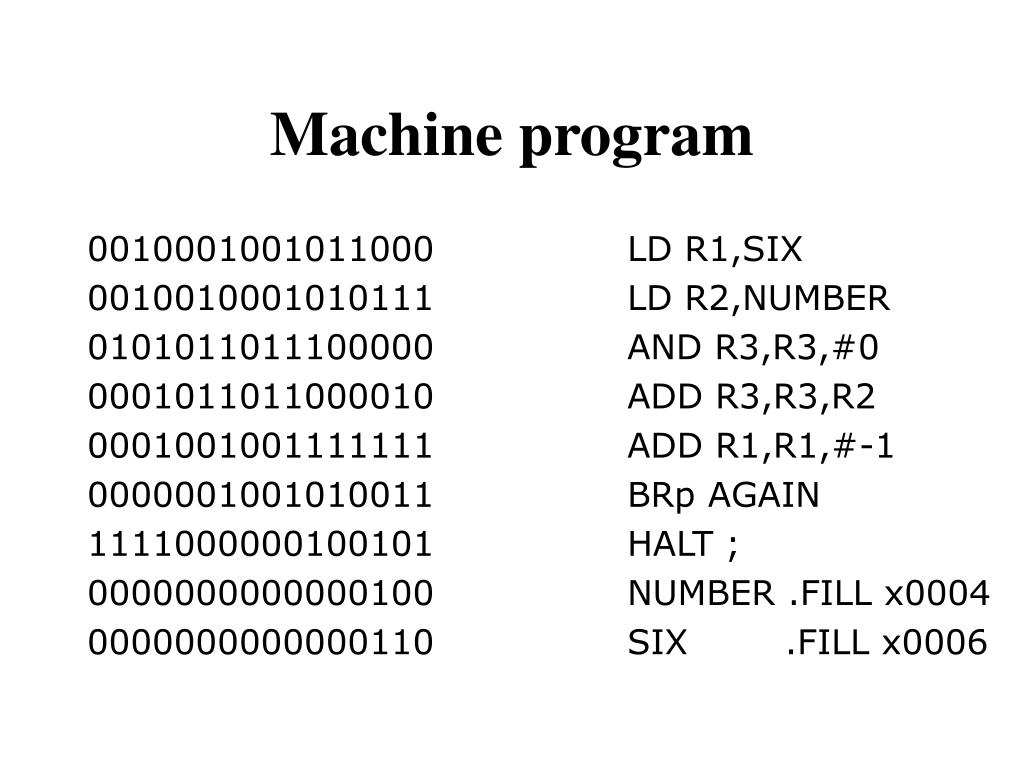

  14. Machine program 0010001001011000 0010010001010111 0101011011100000 0001011011000010 0001001001111111 0000001001010011 1111000000100101 0000000000000100 0000000000000110 LD R1,SIX LD R2,NUMBER AND R3,R3,#0 ADD R3,R3,R2 ADD R1,R1,#-1 BRp AGAIN HALT ; NUMBER .FILL x0004 SIX .FILL x0006

  15. Simulator Demonstration

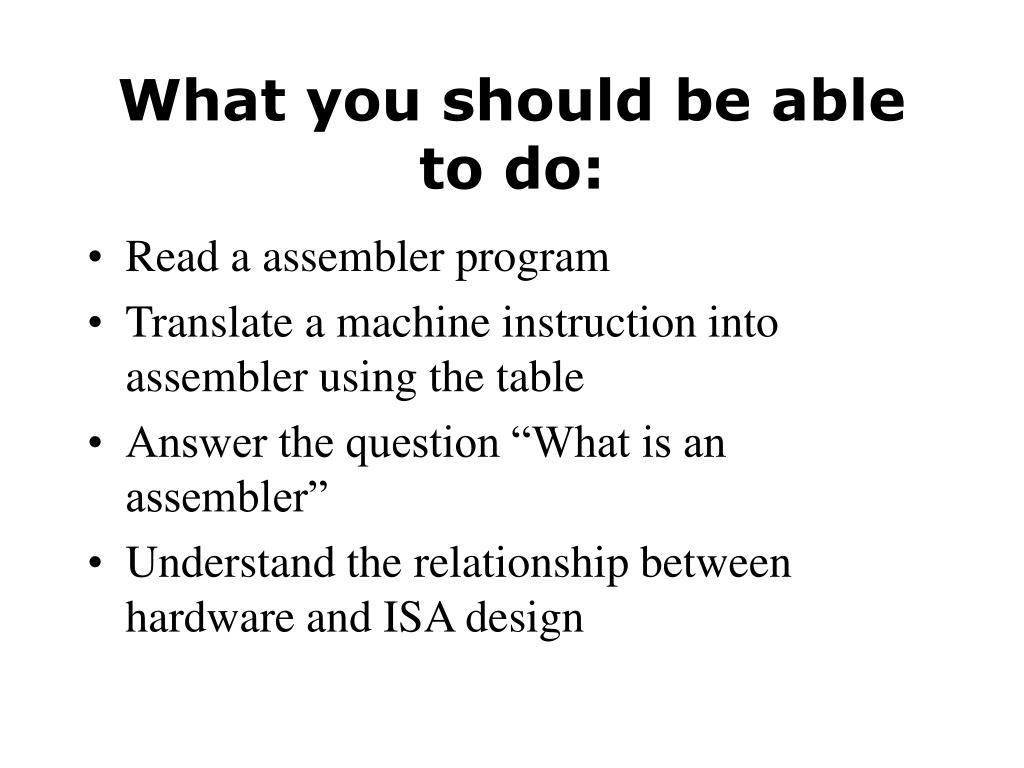

  16. What you should be able to do: • Read a assembler program • Translate a machine instruction into assembler using the table • Answer the question “What is an assembler” • Understand the relationship between hardware and ISA design
