  1. GIS Tutorial 1 Lecture 3 GIS outputs

  2. Outline • Map audiences • Map layouts • Map scales • Multiple maps and output pages • Reports and graphs • Map animation • Exporting maps • Other map outputs GIS TUTORIAL 1 - Basic Workbook

  3. Lecture 3 Map audiences GIS TUTORIAL 1 - Basic Workbook

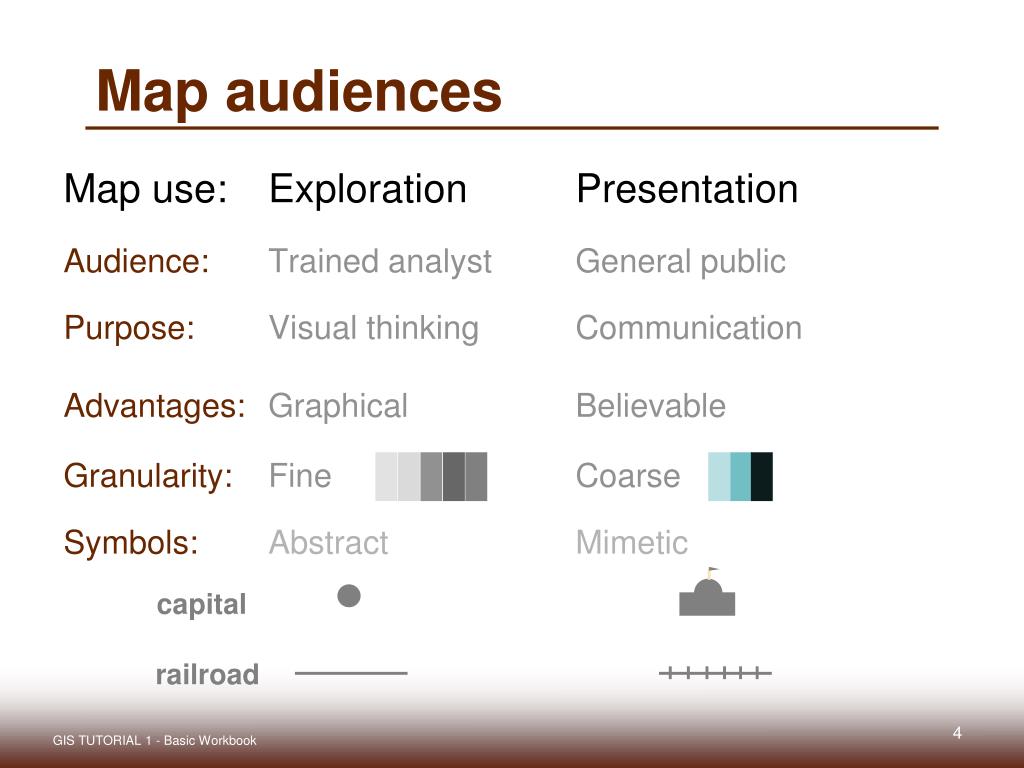

  4. Map audiences Map use: Exploration Presentation Audience:Trained analyst General public Purpose:Visual thinking Communication Advantages:Graphical Believable Granularity:Fine Coarse Symbols:AbstractMimetic capital railroad GIS TUTORIAL 1 - Basic Workbook

  5. Lecture 3 Map layouts GIS TUTORIAL 1 - Basic Workbook

  6. Map layout elements • Main map size and location • Map title and subtitle • what, where, and when • Legend • No need to label it Legend. Everyone will know what it is (this eliminates “chart junk”) • Data sources • Graphic scale GIS TUTORIAL 1 - Basic Workbook

  7. Layout- Preview of Print to Paper or to an Image File Layout ViewIcon GIS TUTORIAL 1 - Basic Workbook

  8. Map layout elements • North arrow • Rectangular boundary (neatline) • Other elements • Inset maps • Data tables • Charts • Additional text • Photographs GIS TUTORIAL 1 - Basic Workbook

  9. Layout example GIS TUTORIAL 1 - Basic Workbook

  10. Layout example GIS TUTORIAL 1 - Basic Workbook

  11. Fonts • Style • Simple and legible • Formal or informal • Number of fonts • Placement • Halos • Contrasts background GIS TUTORIAL 1 - Basic Workbook

  12. Bad layout GIS TUTORIAL 1 - Basic Workbook

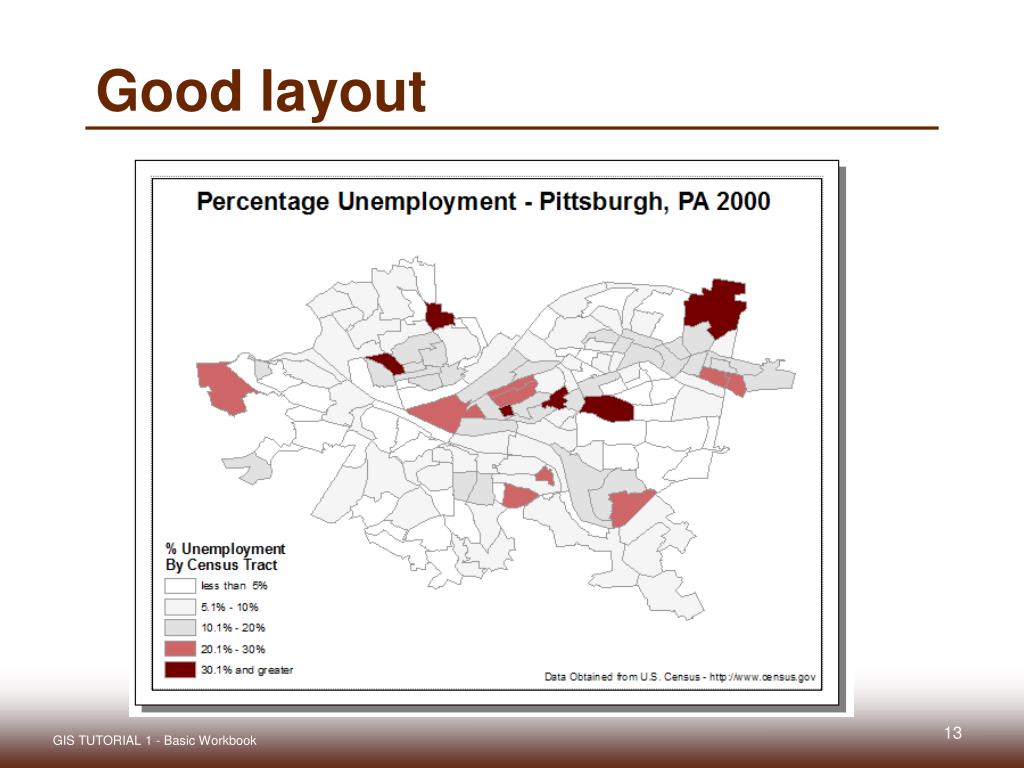

  13. Good layout GIS TUTORIAL 1 - Basic Workbook

  14. Lecture 3 Map scales GIS TUTORIAL 1 - Basic Workbook

  15. Map scales • Map scale ratios • Dimensionless • Used with any linear measurement unit, such as feet, meters, or miles • Example, 1:24,000 • Representative fraction • 1 inch on the map is 24,000 inches on the ground (or 2,000 feet) GIS TUTORIAL 1 - Basic Workbook

  16. Map scales • Graphic scale • Graphic representation of map scale • Places a line on the map with ground distances marked, such as 10 miles, 20 miles, etc. GIS TUTORIAL 1 - Basic Workbook

  17. Map scales • 1:5,000 is largescale 1:50,000,000 is smallscale GIS TUTORIAL 1 - Basic Workbook

  18. Scale 1:100,000 Scale GIS TUTORIAL 1 - Basic Workbook

  19. Scale 1:24,000 GIS TUTORIAL 1 - Basic Workbook

  20. Scale 1:10,000 GIS TUTORIAL 1 - Basic Workbook

  21. Scale 1:5,000 (large scale) GIS TUTORIAL 1 - Basic Workbook

  22. Commonly used map scales http://id.water.usgs.gov/reference/map_scales.html GIS TUTORIAL 1 - Basic Workbook

  23. Map units • Feet or meters is • the map unit for • most local • government GIS applications GIS TUTORIAL 1 - Basic Workbook

  24. Map units • Inch is the map unit • for most CAD • applications GIS TUTORIAL 1 - Basic Workbook

  25. Lecture 3 Multiple maps and output pages GIS TUTORIAL 1 - Basic Workbook

  26. Multiple maps • Separate data frames GIS TUTORIAL 1 - Basic Workbook

  27. Multiple maps • Separate layouts • Same size • Same scale • Subtitles (optional) • From Layout View: • -After the first map is completed, • Select Insert> Data Frame • Select File> Add Data> select • desired data layer (The • select layer opens into the • new data frame) • Move the data frame to an • open space • Click and Drag the lower right • corner (grab handle) to resize • the data frame GIS TUTORIAL 1 - Basic Workbook

  28. Data driven pages • Produces several maps from one layout • Customize, toolbars, Data Driven Pages GIS TUTORIAL 1 - Basic Workbook

  29. Data-driven pages • Layout text—data driven GIS TUTORIAL 1 - Basic Workbook

  30. Lecture 3 Reports and graphs GIS TUTORIAL 1 - Basic Workbook

  31. Create a report • Select records for a report GIS TUTORIAL 1 - Basic Workbook

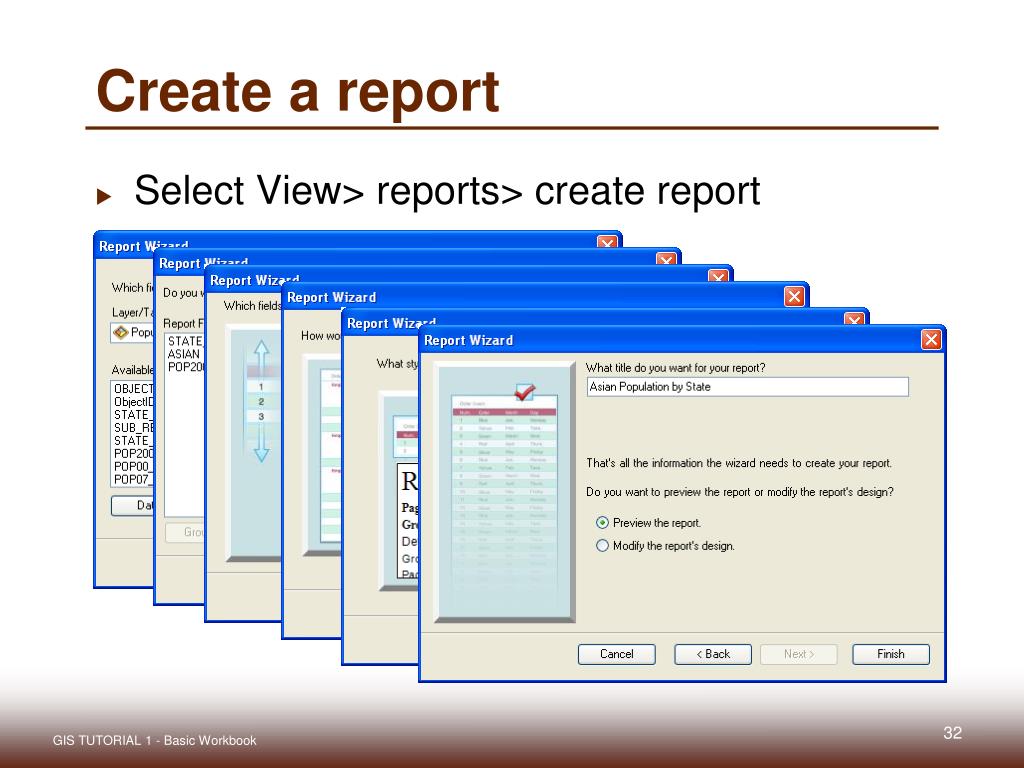

  32. Create a report • Select View> reports> create report GIS TUTORIAL 1 - Basic Workbook

  33. Report result GIS TUTORIAL 1 - Basic Workbook

  34. Modify reports GIS TUTORIAL 1 - Basic Workbook

  35. Add report to layout • To add report to layout: • -From layout view, click Insert> Object • In object dialog box, click the Create from File radio button, browse to report and double click • Click OK in the Insert Object window • The report is now on the layout, but needs to be resized and moved. GIS TUTORIAL 1 - Basic Workbook

  36. Create a graph • View, graphs, create • Create graph: click Tools> • Graphs> Create • Use Create Graph Wizard • to create the desired graph. • Right click the graph> click Add to Layout, and close the graph window • Resize and position the graph window. GIS TUTORIAL 1 - Basic Workbook

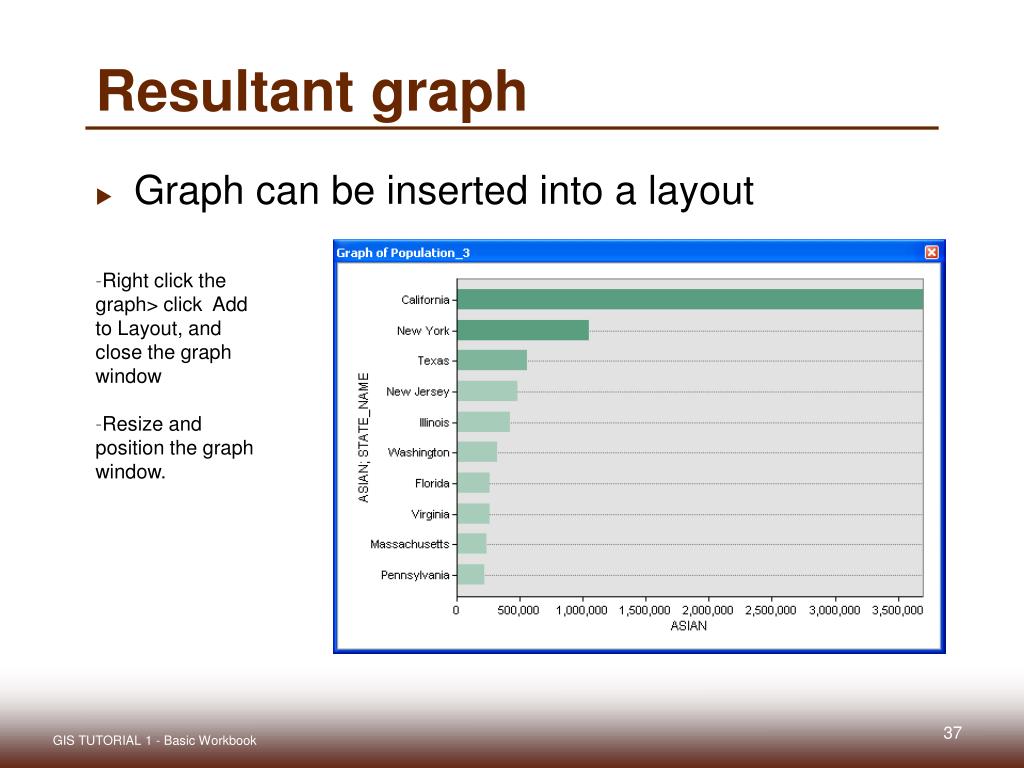

  37. Resultant graph • Graph can be inserted into a layout • Right click the graph> click Add to Layout, and close the graph window • Resize and position the graph window. GIS TUTORIAL 1 - Basic Workbook

  38. Create graph in Excel Copy and Paste object to layout Importing Charts -In Excel, click the boundary of graph to activate its frame -Right click the graph and click Copy -Close Excel -In ArcMap, Click View> Layout View -Click Edit> Paste - Relocate and resize the graph to fit the layout GIS TUTORIAL 1 - Basic Workbook

  39. Lecture 3 Map animation GIS TUTORIAL 1 - Basic Workbook

  40. Create animation • Crimes over time • Set time properties GIS TUTORIAL 1 - Basic Workbook

  41. Animation properties • Time slider window and options GIS TUTORIAL 1 - Basic Workbook

  42. Play animation GIS TUTORIAL 1 - Basic Workbook

  43. Lecture 3 Exporting maps GIS TUTORIAL 1 - Basic Workbook

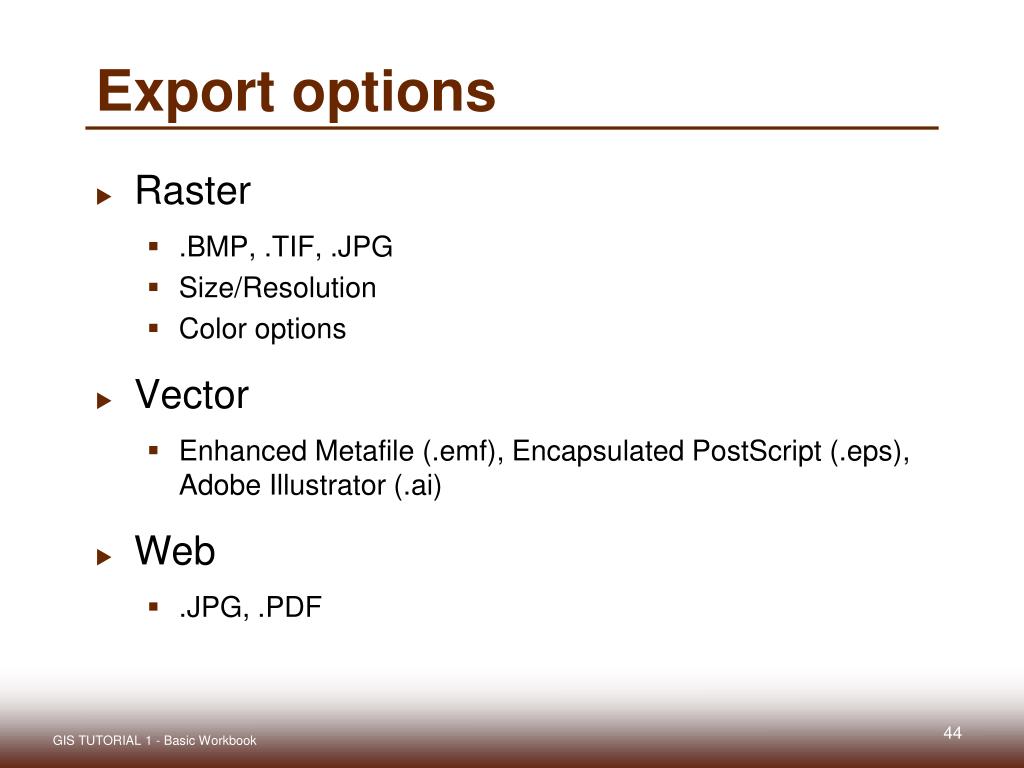

  44. Export options • Raster • .BMP, .TIF, .JPG • Size/Resolution • Color options • Vector • Enhanced Metafile (.emf), Encapsulated PostScript (.eps), Adobe Illustrator (.ai) • Web • .JPG, .PDF GIS TUTORIAL 1 - Basic Workbook

  45. Export map • Click data or layout view GIS TUTORIAL 1 - Basic Workbook

  46. Export map • File> Export Map • Export options GIS TUTORIAL 1 - Basic Workbook

  47. Image file GIS TUTORIAL 1 - Basic Workbook

  48. PDF document GIS TUTORIAL 1 - Basic Workbook

  49. Adobe Illustrator GIS TUTORIAL 1 - Basic Workbook

  50. Word or PowerPoint • Copy and paste individual map elements GIS TUTORIAL 1 - Basic Workbook
