  1. Bad News Bots E2 Project Design Review 2 - 2/7/2008 Ryan Bove Kara Collins Peter Courtney Kyle O’Reilly Benjamin Rowland

  2. Previous Week’s Action Items E2 • Sensors • Documented research on sensors (Kyle) • Microprocessor • Met with Mr. Brownell (Kara) • Complete at least one of Mr. Brownell’s • tutorials (Kara, Ryan) • Website • Added individual concept memos (Ben)

  3. Previous Week’s Action Items E2 • Prototype Field • CAD model of prototype field (Peter) • Concept sketches of peg system (Peter) • Certifications • One CNC certification (Peter) • Completion of online CNC tutorial by two • group members (Peter, Ryan) • Completed machine shop certification (Peter)

  4. Sensor and Motor SelectionE2 • Compiled information on sensors/motors *Sharp GP2D12 Infra-Red Range Sensor ($11.99) SFE HMC6352 Compass Module ($59.95) Inex Switch - Touch Sensor ($6.49) *R/C Servo, HS-311 ($16.95)

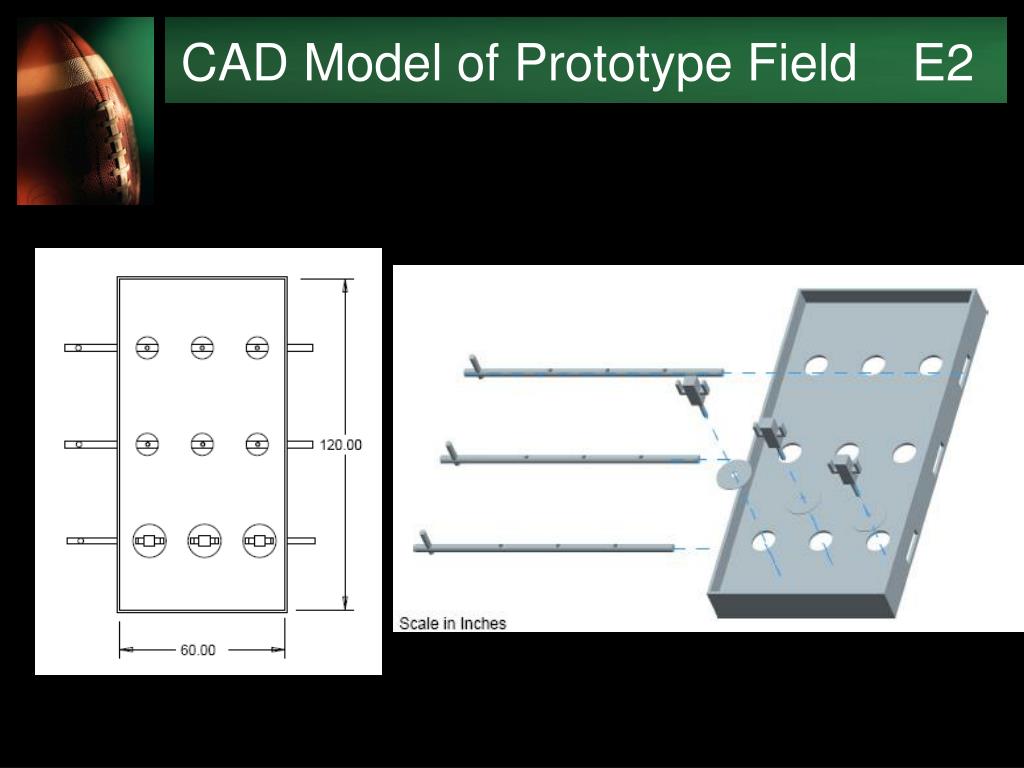

  5. CAD Model of Prototype FieldE2

  6. Current Status (Website) E2

  7. Current Status (Project) E2 • On Schedule (no immediate showstoppers) • Need to make decisions before trade studies • Should finish ordering or purchasing of motors/sensors/materials before Spring Break • Robot will move on wheels • 2 wheels, each powered by a servo motor • 1 guiding wheel • Prototype field is designed • Robot is still in design stage

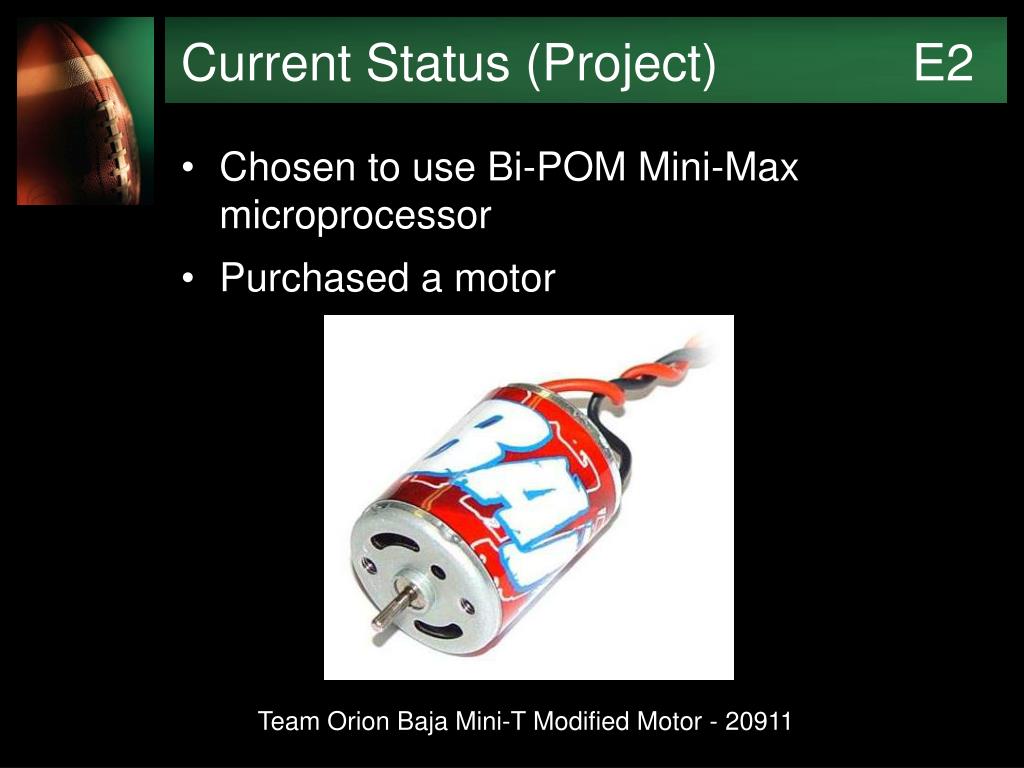

  8. Current Status (Project) E2 • Chosen to use Bi-POM Mini-Max microprocessor • Purchased a motor Team Orion Baja Mini-T Modified Motor - 20911

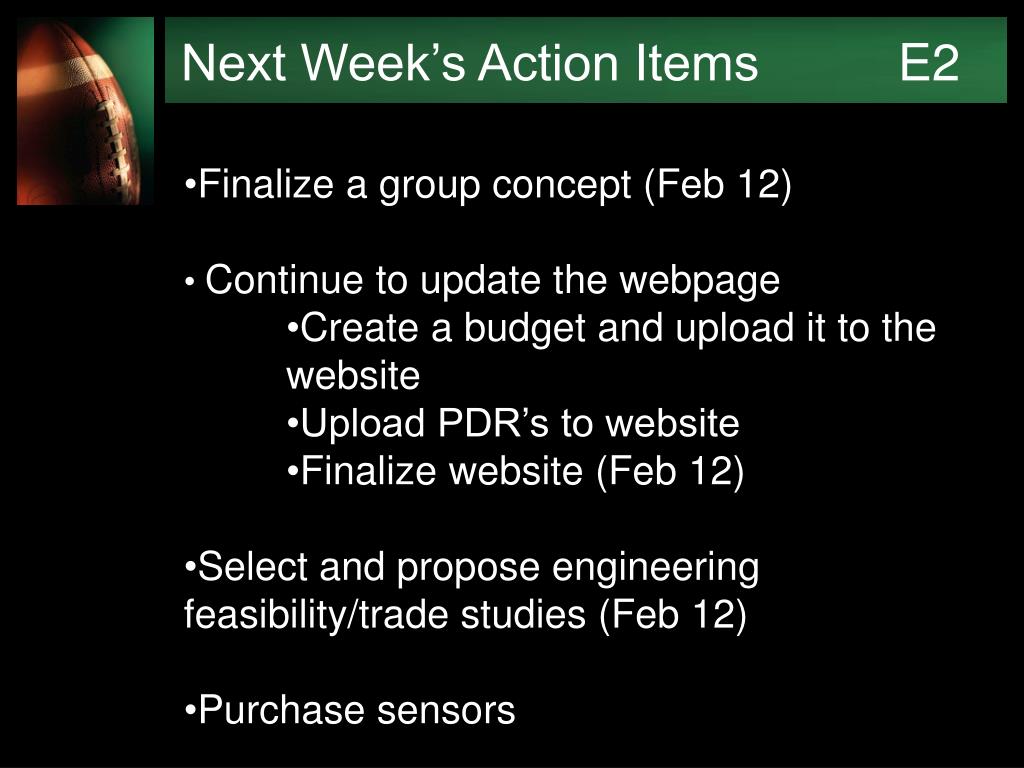

  9. Next Week’s Action Items E2 • Finalize a group concept (Feb 12) • Continue to update the webpage • Create a budget and upload it to the website • Upload PDR’s to website • Finalize website (Feb 12) • Select and propose engineering feasibility/trade studies (Feb 12) • Purchase sensors

  10. Bad News Bots E2 Questions/Comments
