  1. Core Pulmonary Concepts

  2. Lung volumes and capacities

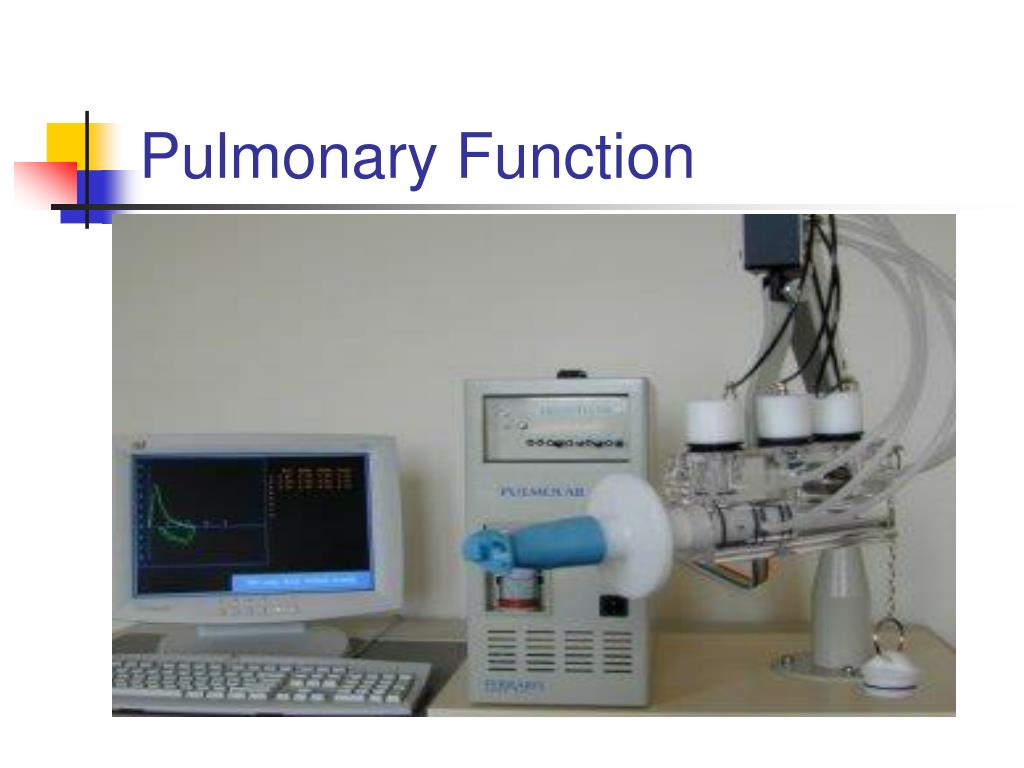

  3. Pulmonary Function

  4. Lung volumes • Tidal volume (Vt) • Inspiratory reserve volume (IRV) • Expiratory Reserve volume (ERV) • Residual volume (RV)

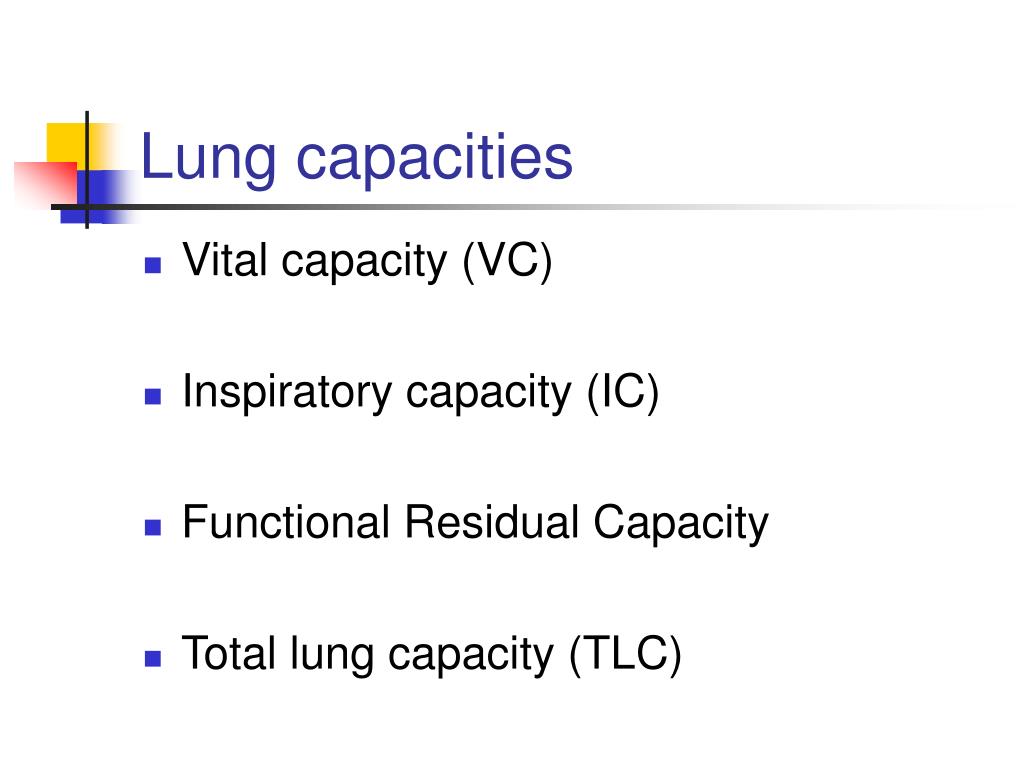

  5. Lung capacities • Vital capacity (VC) • Inspiratory capacity (IC) • Functional Residual Capacity • Total lung capacity (TLC)

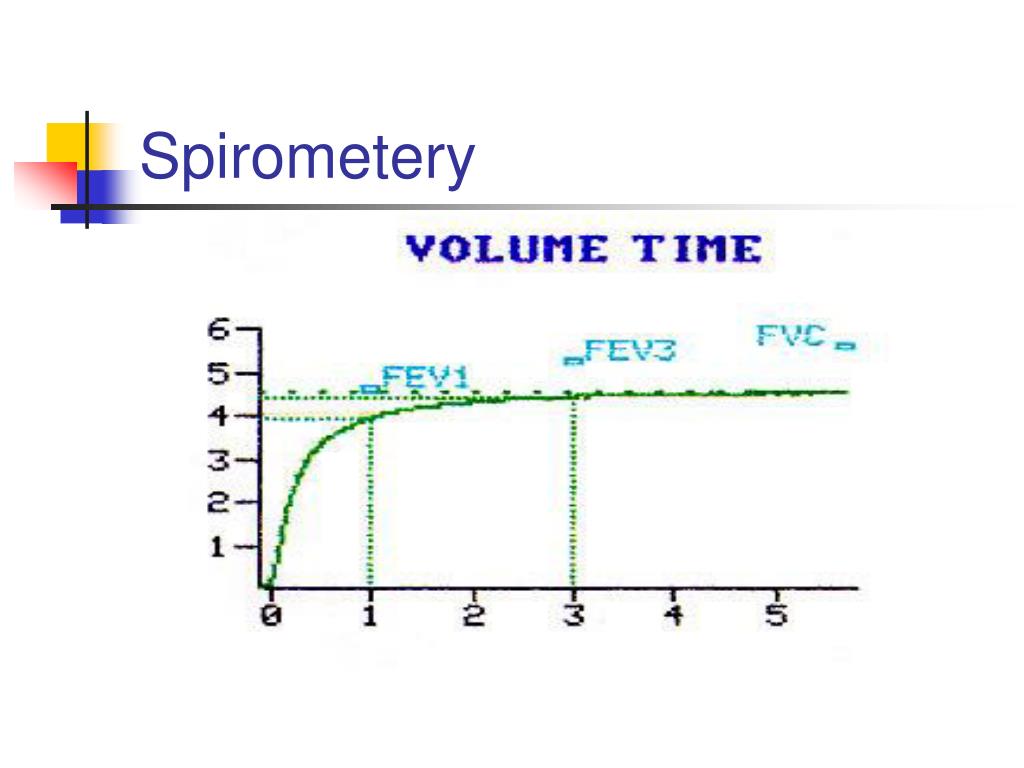

  6. Spirometery

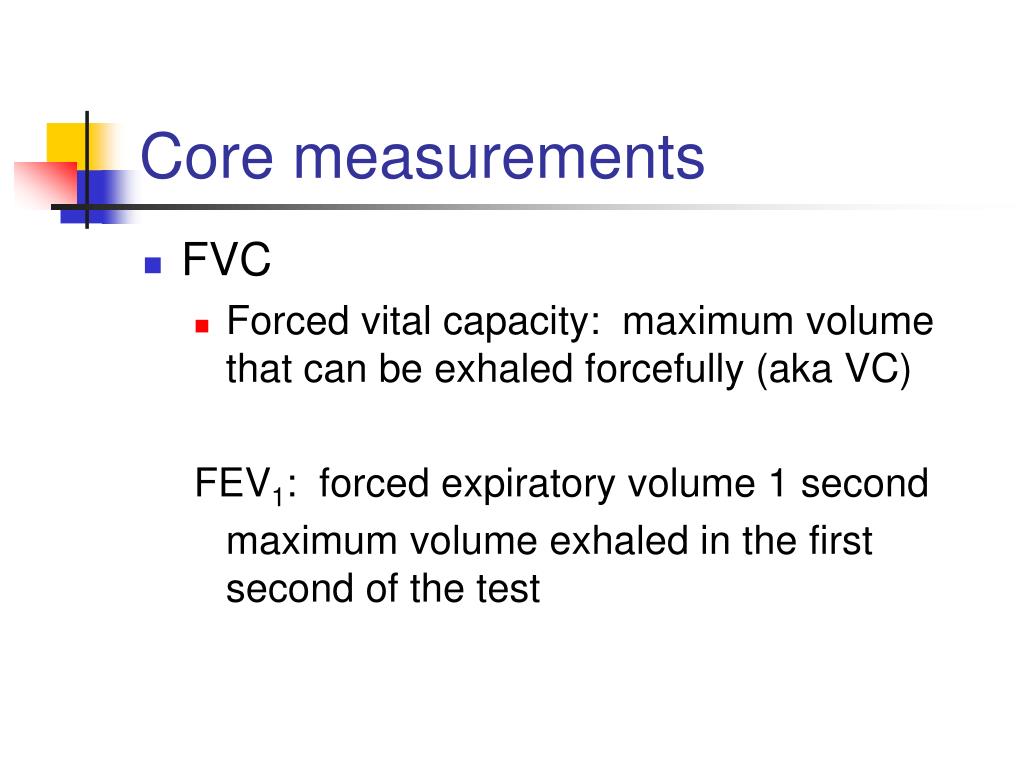

  7. Core measurements • FVC • Forced vital capacity: maximum volume that can be exhaled forcefully (aka VC) FEV1: forced expiratory volume 1 second maximum volume exhaled in the first second of the test

  8. Core measurements • Peak expiratory flow rate (PEFR): • Maximum flow rate during a FVC maneuver; varies with sex, age, height, etc. • FEF25-75% : forced expiratory flow, 25-75%-the average flow rate dudring the mid portion of the test

  9. Flow-volume loop

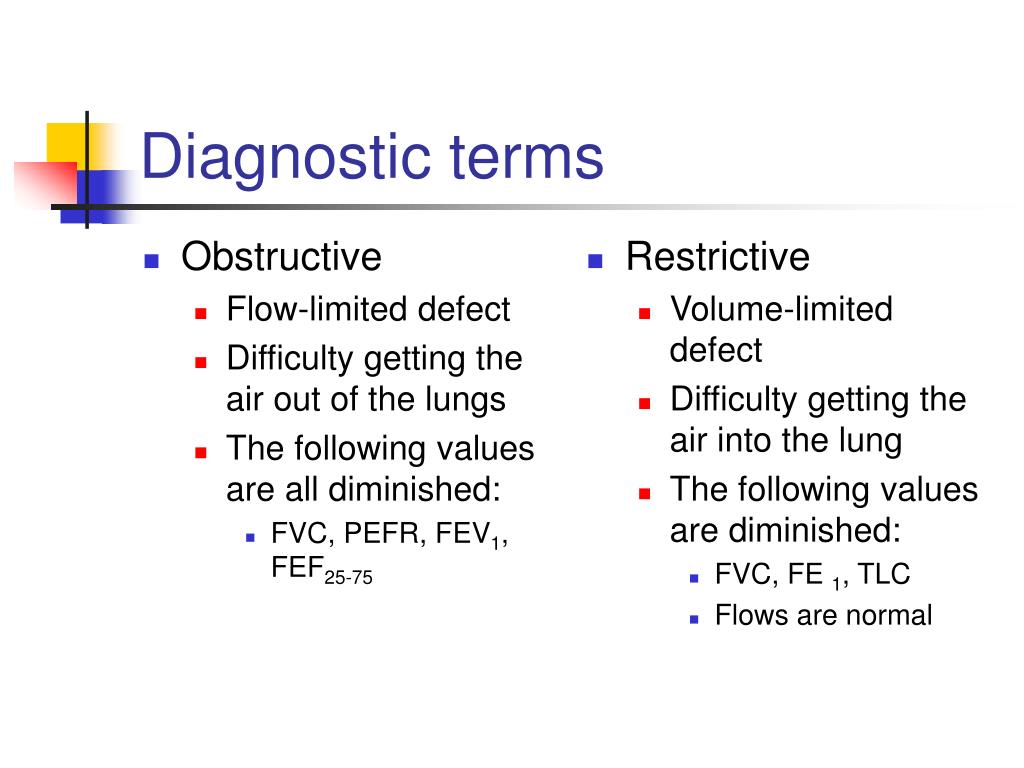

  10. Obstructive Flow-limited defect Difficulty getting the air out of the lungs The following values are all diminished: FVC, PEFR, FEV1, FEF25-75 Restrictive Volume-limited defect Difficulty getting the air into the lung The following values are diminished: FVC, FE 1, TLC Flows are normal Diagnostic terms

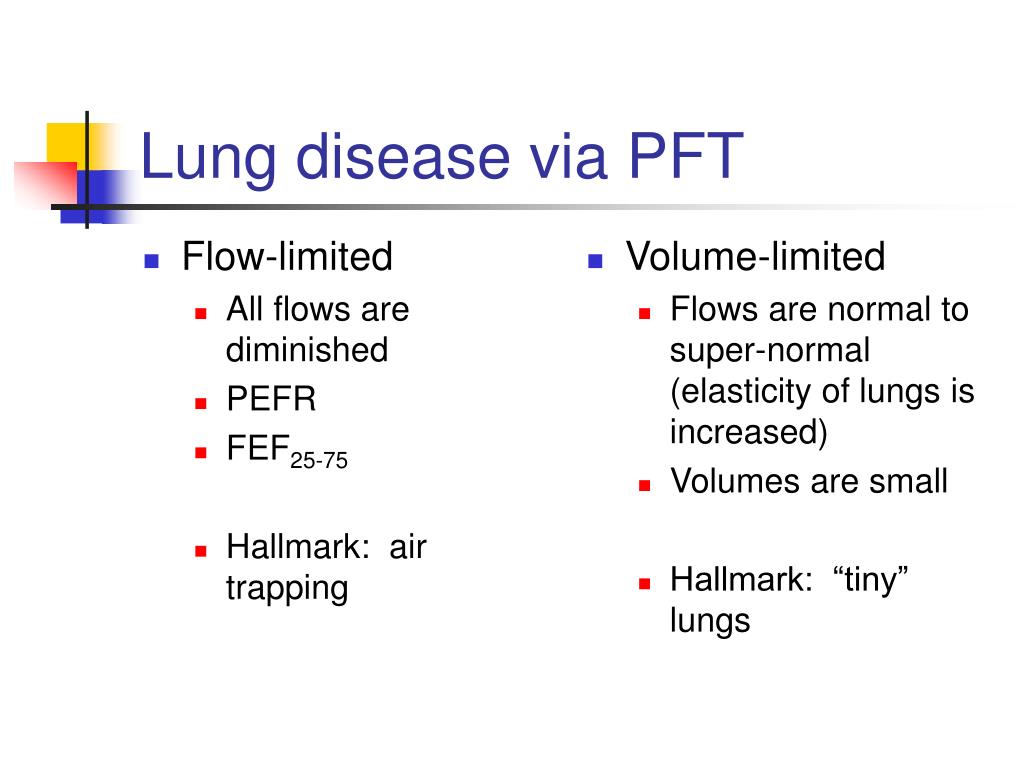

  11. Flow-limited All flows are diminished PEFR FEF25-75 Hallmark: air trapping Volume-limited Flows are normal to super-normal (elasticity of lungs is increased) Volumes are small Hallmark: “tiny” lungs Lung disease via PFT

  12. Key values • FEV1--gold standard • All research in lung function reports this value • FEF25-75% -another standard • Reflects, anatomically, the small to medium size airways (bronchi)
