  1. FpML Versioning An AWG Discusion Document

  2. Namespace URIs & Versions • An XML parser locates the schema for a document based on its namespace URI • To be backwards or forwards compatible the namespace used to reference the schema MUST be the same across several versions • Otherwise you MUST edit the instance to change the namespace before reprocessing • You can not use resolution to map several namespaces to the same schema • The parser detects that the namespace used within the schema is different from the one being referenced • Neither can you resolve to a chameleon schema with no target namespace

  3. Versioning in FpML To Date • Based on major.minor numbering • Major increments to indicate a breaking change • Minor increments with each non-breaking change • Instance documents can only be processed against the specific schema they reference • Must be edited to use another • Numbering rules have not be rigorously implemented • 4.1 EQD model incompatible with 4.0 • 4.3 CD model ‘technically’ incompatible with 4.2

  4. Technical vs. Marketing Numbering • Standards committee prefers to minimise major number changes • Makes it ‘seem’ that differences between all releases are minor – historically not true • Must read the release notes to discover the details of the changes • Goes against FpML rules of operation

  5. Why Change? • To implement document backwards compatibility • Compatible schemas must share a common namespace • Most FpML releases are ‘structurally’ backwards compatible BUT documents must be altered before processing • Change would eliminate need for document alterations • Can reduce the maintain required to update implementations

  6. Build Numbers • Can be considered as an additional part of the version number • e.g. Major.Minor.Build • Useful to implementers using working drafts • No changes to build numbers are considered

  7. Options

  8. Option 1: Continue Ad-hoc Numbering • Continue with current system for 5 and later • Pros: • More control over version numbering • Cons: • Not possible to implement backwards compatibility • Versions give no indication of technical difference since last release

  9. Option 2: Rigorous Two Part Numbering • Implement version rigorously to FpML operating rules • Current FpML 4.3 should be 6.1! • Pros: • Version numbers reflect technical difference and ease of implementation • Allows backwards compatibility through namespace URI containing only major number • Cons: • Major version numbers would increment more frequently

  10. Option 3: Two Versions • Each schema given two identifiers • A marketing name used in publications • e.g. FpML 5-A • A technical major.minor number in the schema • Pros: • Marketing identifier changes less frequently than technical version • Cons: • Not easy to determine compatibility from marketing name • Not easy to map between marketing and technical numbering • Namespace based on marketing name would not support backwards compatibility

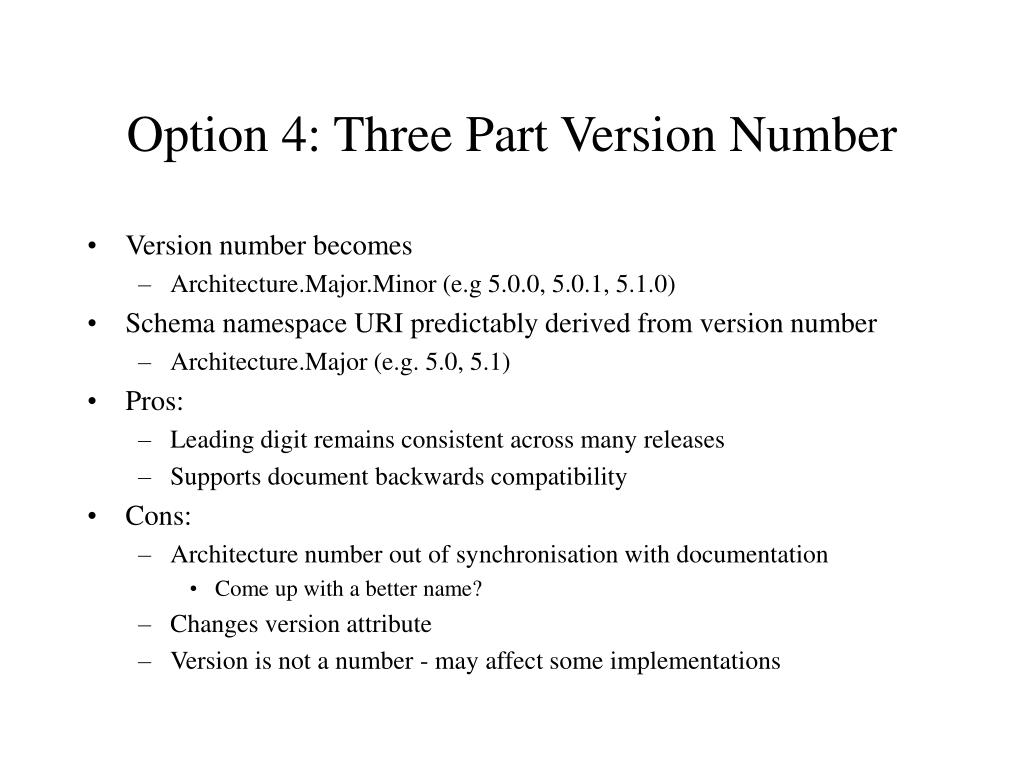

  11. Option 4: Three Part Version Number • Version number becomes • Architecture.Major.Minor (e.g 5.0.0, 5.0.1, 5.1.0) • Schema namespace URI predictably derived from version number • Architecture.Major (e.g. 5.0, 5.1) • Pros: • Leading digit remains consistent across many releases • Supports document backwards compatibility • Cons: • Architecture number out of synchronisation with documentation • Come up with a better name? • Changes version attribute • Version is not a number - may affect some implementations

  12. Option 5: Three Separate Values • The version ‘number’ in Option 4 is not a syntactically valid number • Has two decimal points • Could use three different attributes • Derive namespace from Architecture and Major numbers

  13. Option 6: Backwards Compatibility Attribute • Define additional attributes to define minimum compatible version number • [AJ] How does this help define a series of compatible namespace URLs?

  14. Observations • Implementers need to see how similar or different releases are • Current scheme ‘disguises’ the amount of change • Backwards compatibility can only be done if version numbers are technically defined • Breaking changes MUST change the URI

  15. Other Thoughts • Should we have a standard root element attribute that defines schema status? • status=“wd” or “tr” or “rec”

  16. Recommendation • What?
