Practical Protein Sequence Alignment With Algebraic Dynamic Programming Lyle Kopnicky PacSoft Research Group Tim Sheard, Adviser

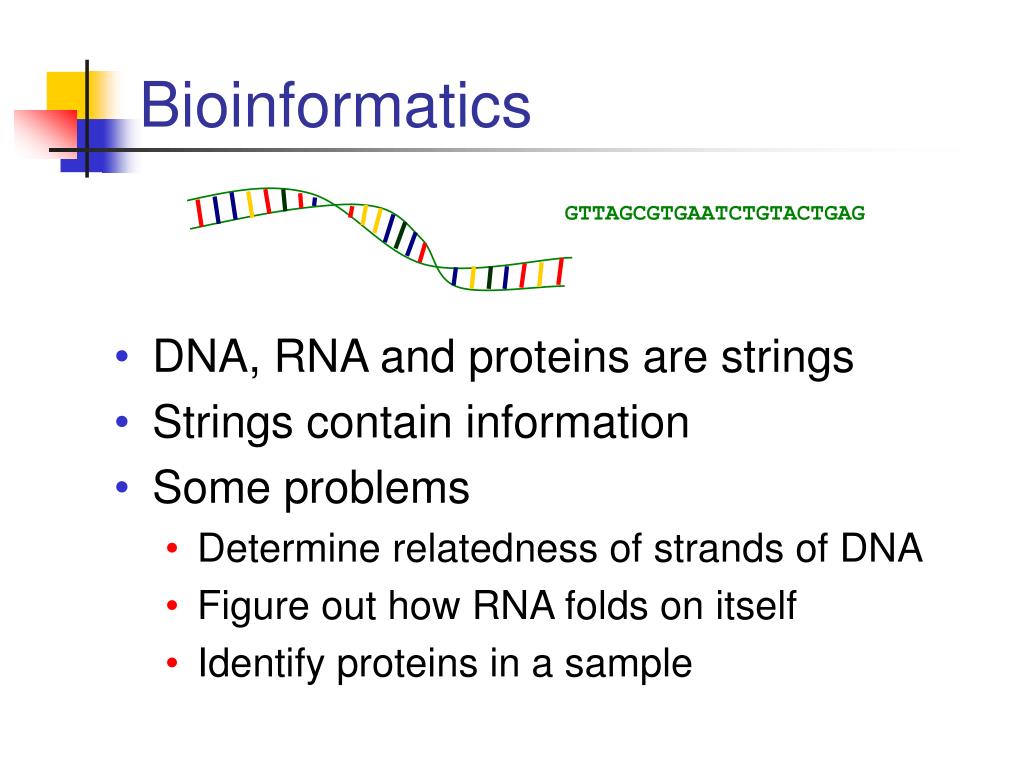

Bioinformatics • DNA, RNA and proteins are strings • Strings contain information • Some problems • Determine relatedness of strands of DNA • Figure out how RNA folds on itself • Identify proteins in a sample GTTAGCGTGAATCTGTACTGAG

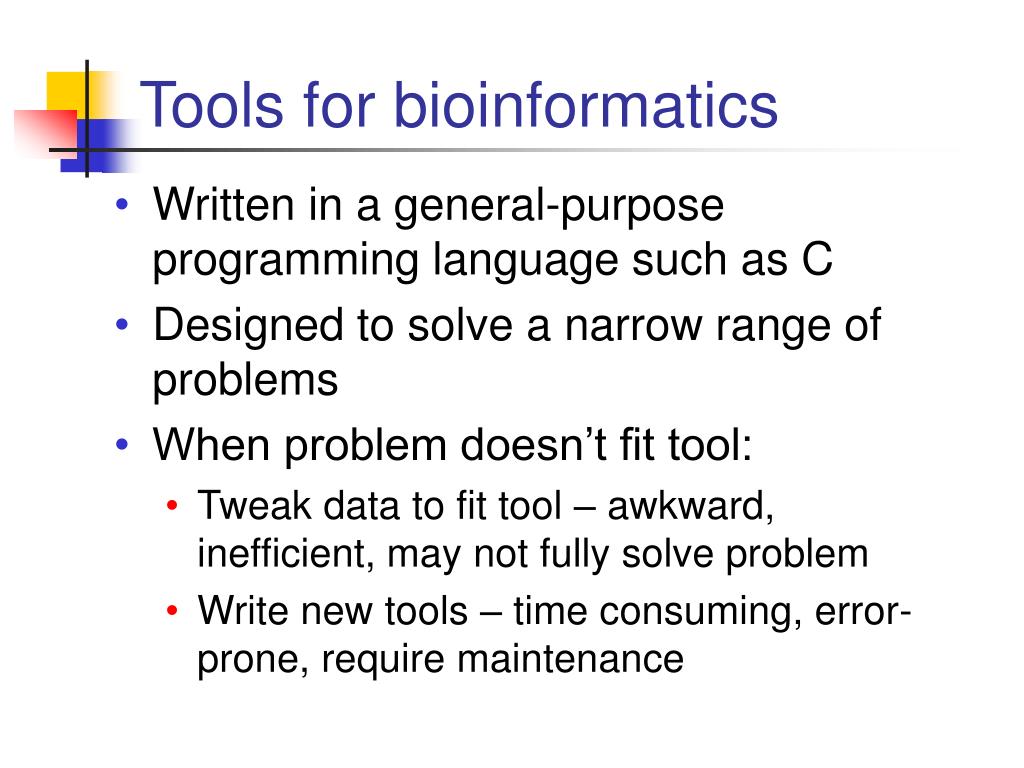

Tools for bioinformatics • Written in a general-purpose programming language such as C • Designed to solve a narrow range of problems • When problem doesn’t fit tool: • Tweak data to fit tool – awkward, inefficient, may not fully solve problem • Write new tools – time consuming, error-prone, require maintenance

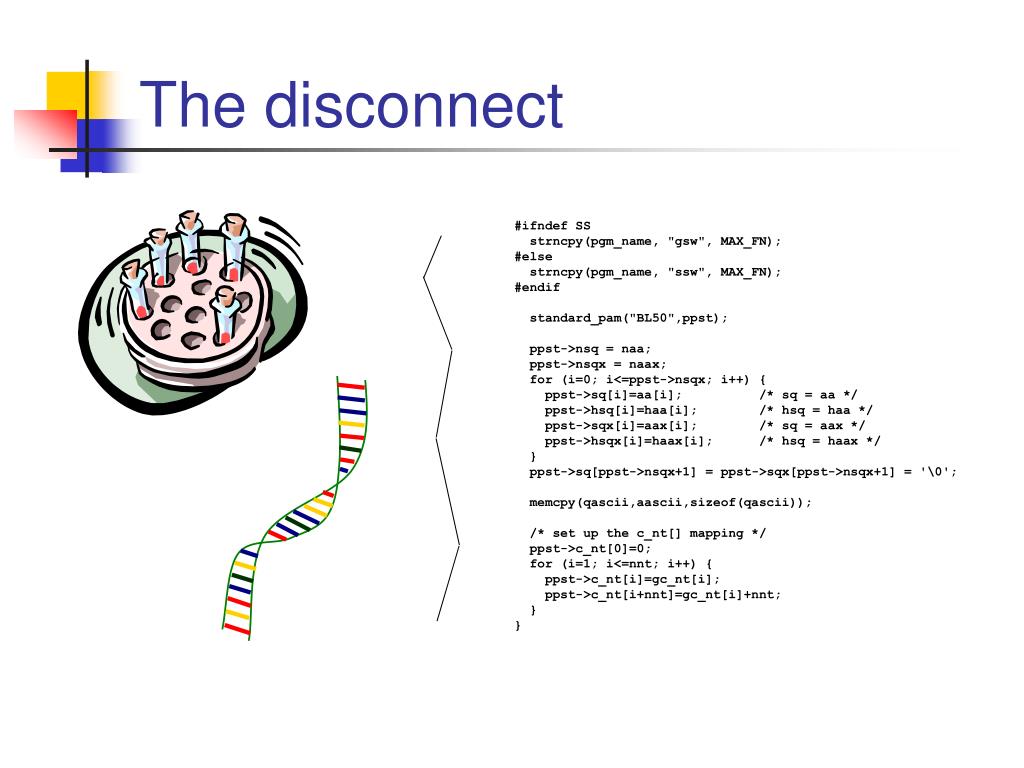

The disconnect #ifndef SS strncpy(pgm_name, "gsw", MAX_FN);#else strncpy(pgm_name, "ssw", MAX_FN);#endif standard_pam("BL50",ppst); ppst->nsq = naa; ppst->nsqx = naax; for (i=0; i<=ppst->nsqx; i++) { ppst->sq[i]=aa[i]; /* sq = aa */ ppst->hsq[i]=haa[i]; /* hsq = haa */ ppst->sqx[i]=aax[i]; /* sq = aax */ ppst->hsqx[i]=haax[i]; /* hsq = haax */ } ppst->sq[ppst->nsqx+1] = ppst->sqx[ppst->nsqx+1] = '\0'; memcpy(qascii,aascii,sizeof(qascii)); /* set up the c_nt[] mapping */ ppst->c_nt[0]=0; for (i=1; i<=nnt; i++) { ppst->c_nt[i]=gc_nt[i]; ppst->c_nt[i+nnt]=gc_nt[i]+nnt; }}

The disconnect • General purpose languages are easily available, efficient, BUT • Biologists think: amino acids, matching, classification • General-purpose languages provide characters, procedures, objects • Domain experts may not be expert programmers • A lot of design, development and maintenance time

Bioinformatics Domain Domain Tool Tool Domain Tool Domain Domains and tools General-purpose languages Physics Architecture Finance Mathematics Chemistry

Libraries

Domain-specific languages • Represent a problem in the way domain experts think of it • Examples: Excel, HTML, Matlab • General enough to capture a domain, specific enough to reduce design time • Small change in requirements = small change in program • Easy to answer “what-if” questions • Can be implemented efficiently using known techniques

Collaboration with OHSU lab • Dr. Srinivasa Nagalla’s laboratory • Goals • Gain domain knowledge • Discover goals of biologists • Potential users of DSL • Began with protein identification problem

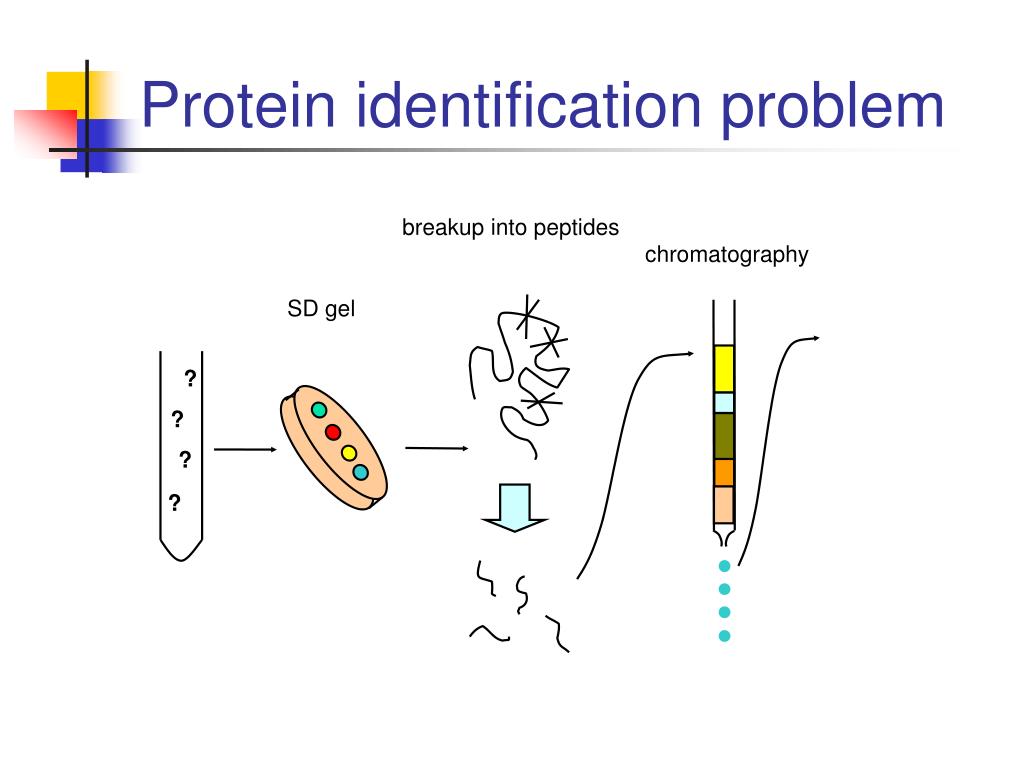

Protein identification problem breakup into peptides chromatography SD gel ? ? ? ?

Protein identification problem tandem mass spectrometry de novo sequencing database search AVAQFPRR AVAQFPRR AVAQFPRR AVAQFPRR AVAQFPRR ? AVAQF QFPRR [Po]QFPVGR A[AV]QFPVGR [Po]QFPRR [241.10]QFPVGR A[AV]QFPRR AVA …TRSSRAGLQFPVGRVHRLLR… PRR A R [241.10]QFPVGR

Database search • Not an exact match • Mutations – substitutions, insertions, deletions • Modifications – amino acids altered by another molecule • De novo sequencer outputs a list of ambiguous queries, e.g. [229.07]HhNyG[PS][198.1]QHADD[ep]VD[Rz]R unidentified mass unordered pair

Sequence alignment • Find the best match between query string and target (database) string • Each match is also called an alignment • Alignments are scored Target string WTABRRFCWGYPD KWGGSCASPNE F WT PDPYK Query string

Alignment tools • Smith-Waterman dynamic programming algorithm most common • O((n+m)2), where n and m are length of strings • Run on every query-target pair, and data sets are large • Requires precise query string • FASTA, BLAST address speed problem • First look for runs of exact matches • Align on localized area

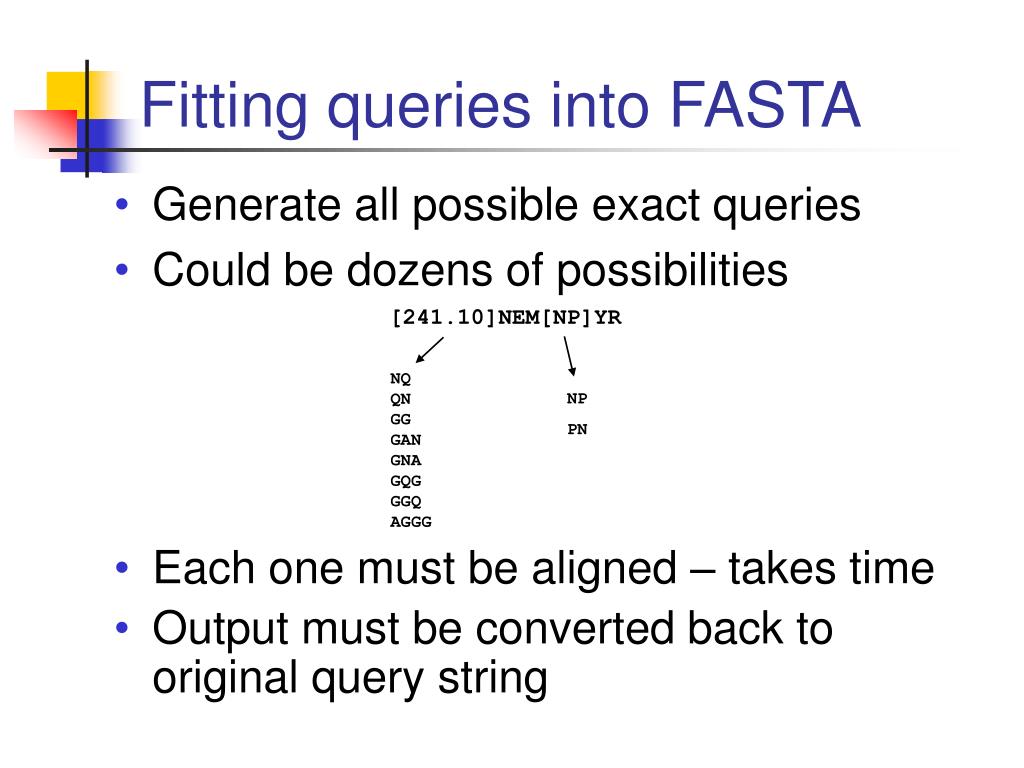

Fitting queries into FASTA • Generate all possible exact queries • Could be dozens of possibilities [241.10]NEM[NP]YR NQQNGGGANGNAGQGGGQAGGG NP PN • Each one must be aligned – takes time • Output must be converted back to original query string

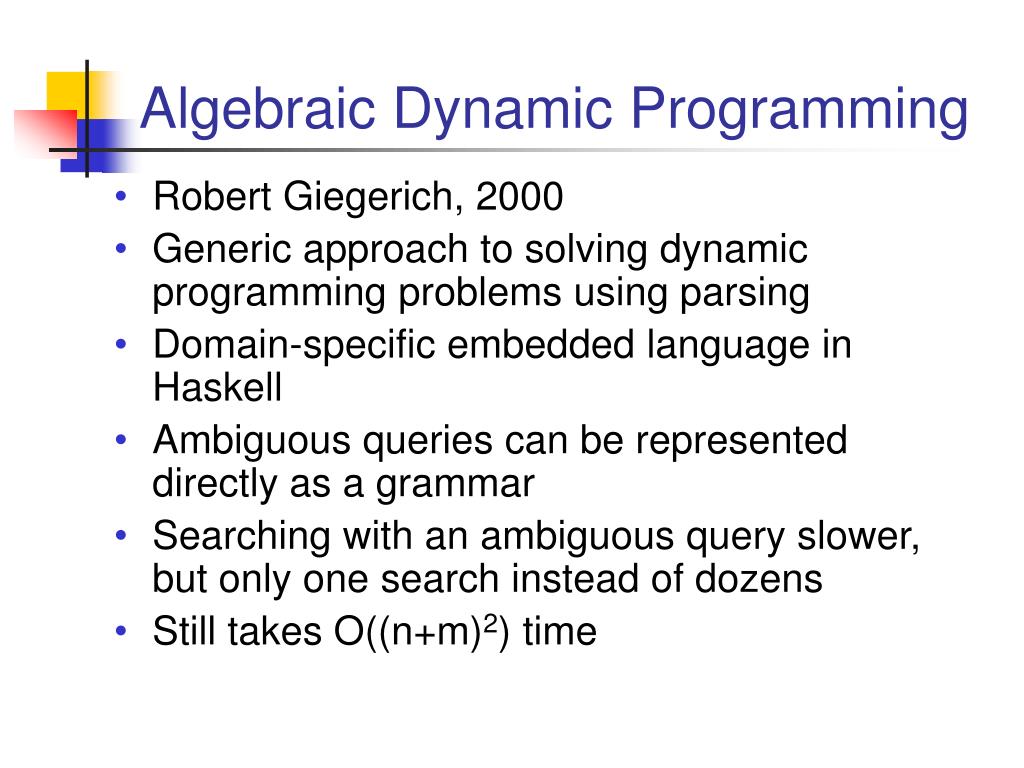

Algebraic Dynamic Programming • Robert Giegerich, 2000 • Generic approach to solving dynamic programming problems using parsing • Domain-specific embedded language in Haskell • Ambiguous queries can be represented directly as a grammar • Searching with an ambiguous query slower, but only one search instead of dozens • Still takes O((n+m)2) time

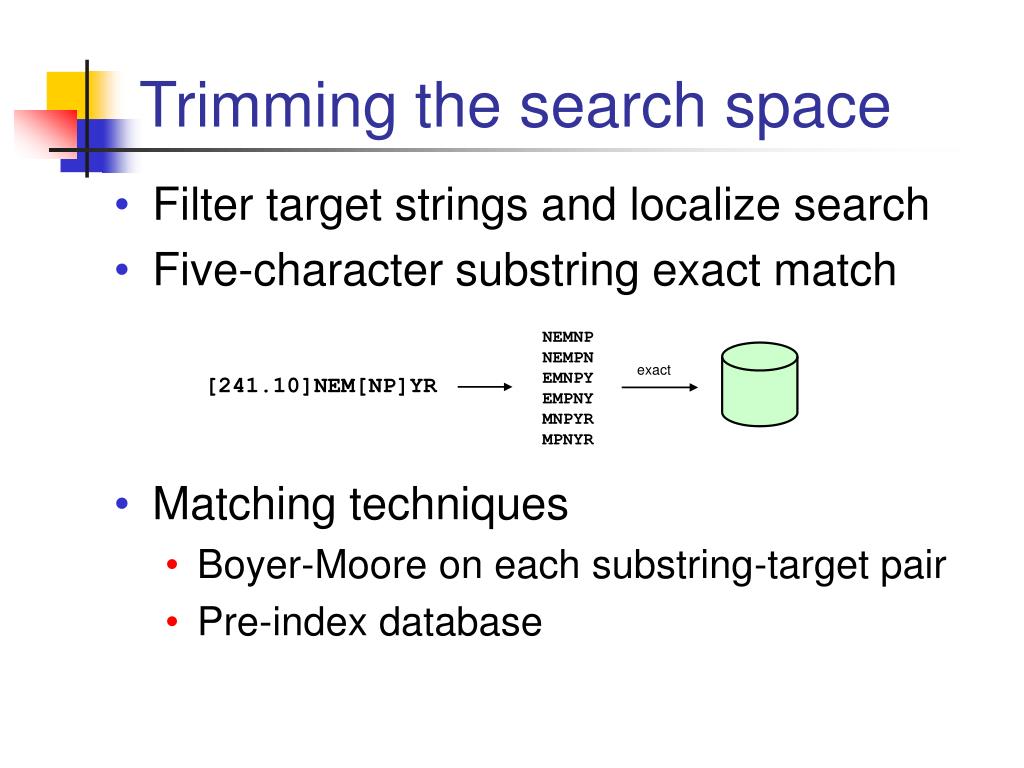

Trimming the search space • Filter target strings and localize search • Five-character substring exact match NEMNPNEMPNEMNPYEMPNYMNPYRMPNYR exact [241.10]NEM[NP]YR • Matching techniques • Boyer-Moore on each substring-target pair • Pre-index database

Boyer-Moore • Finds an exact occurrence of one string inside another • Doesn’t check every position – knows when to skip ahead • Can run in sublinear time SYNSNTLNNDIMLIKLKSAASLN xSAASL SYNSNTLNNDIMLIKLKSAASLN x SAASL

Pre-indexing the database • Build a tree in which to look up substrings, find positions in database • Substring tree: A substring at each node • Suffix tree: Path along labeled edges describes substring substring tree suffix tree DTA, 3 TADTA 1 ATD ADTA 3 ADT, 2 TAD, 2 2

Sample output Query string:[229.07]HhNyG[PS][198.1]QHADD[EP]VD[Rz]R:{21}Target string:>MK14_HUMAN (Q16539) Mitogen-activated protein kinase 14MSQERPTFYRQELNKTIWEVPERYQNLSPVGSGAYGSVCAAFDTKTGLRVAVKKLSRPFQSIIHAKRTYRELRLLKHMKHENVIGLLDVFTPARSLEEFNDVYLVTHLMGADLNNIVKCQKLTDDHVQFLIYQILRGLKYIHSADIIHRDLKPSNLAVNEDCELKILDFGLARHTDDEMTGYVATRWYRAPEIMLNWMHYNQTVDIWSVGCIMAELLTGRTLFPGTDHIDQLKLILRLVGTPGAELLKKISSESARNYIQSLTQMPKMNFANVFIGANPLAVDLLEKMLVLDSDKRITAAQALAHAYFAQYHDPDDEPVADPYDQSFESRDLLIDEWKSLTYDEVISFVPPPLDQEEMES:{360}Target range: 290-326LDSDKRITAAQALAHA YFAQYHDPDDEPVADPYDQSF :|XvvvXX:|^|X^||//|^|XXX -HhNyGPS-Q HA DDEPV DRzR Score: 31Time: 0.045 secs

Time and space usage

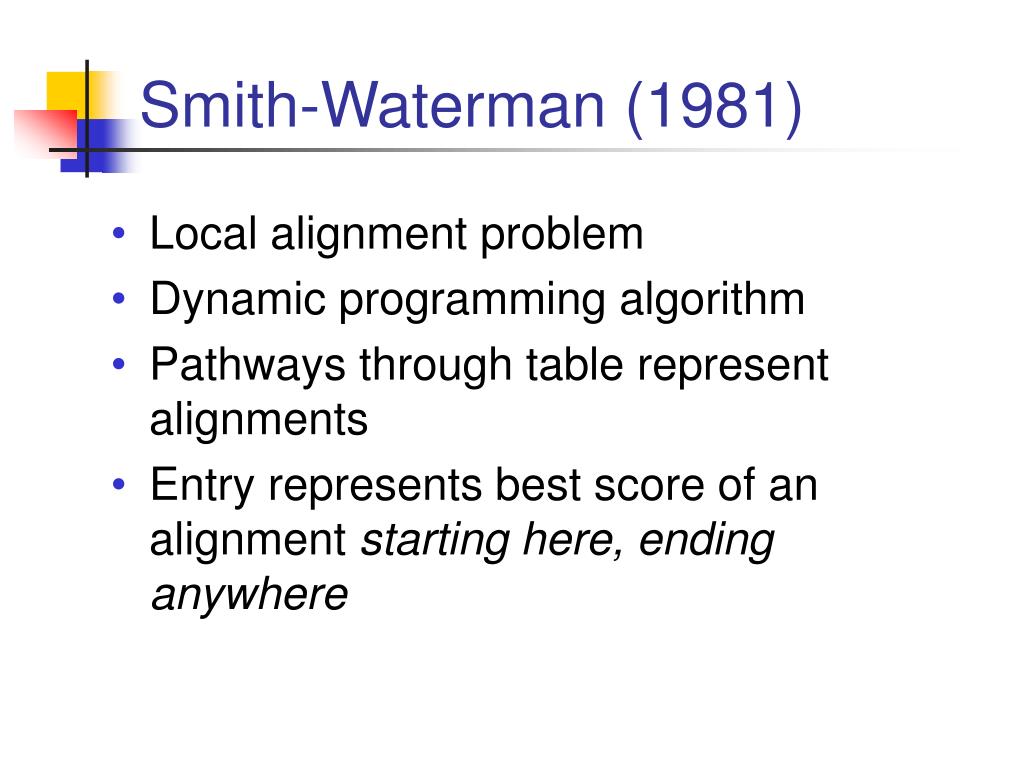

Smith-Waterman (1981) • Local alignment problem • Dynamic programming algorithm • Pathways through table represent alignments • Entry represents best score of an alignment starting here, ending anywhere

S.-W. alignment scoring start/end = 0 WTABRRFCWTYPDG WKGGSCASPNE GE F WT PDPYDAW QAPT gap: -w x length match/substitution: s(a1,a2)

Smith-Waterman Phase 1 Insertion, deletion or substitution

Smith-Waterman Phase 2 Trace back maximal pathways

Today’s problems one-to-many transpositions W NAC ANNA endpoint scoring dual representations FGAK +5 AGNCF... 85 116 39 85 100... Trying to fit new data into old tools… We need a way to model new problems quickly

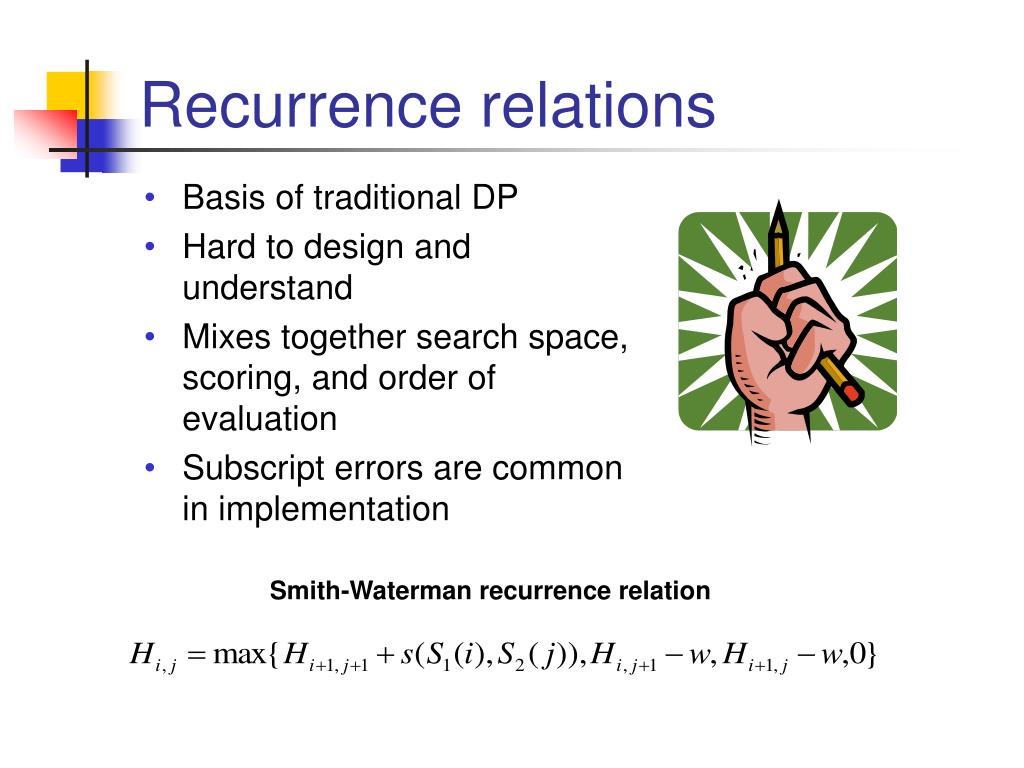

Recurrence relations • Basis of traditional DP • Hard to design and understand • Mixes together search space, scoring, and order of evaluation • Subscript errors are common in implementation Smith-Waterman recurrence relation

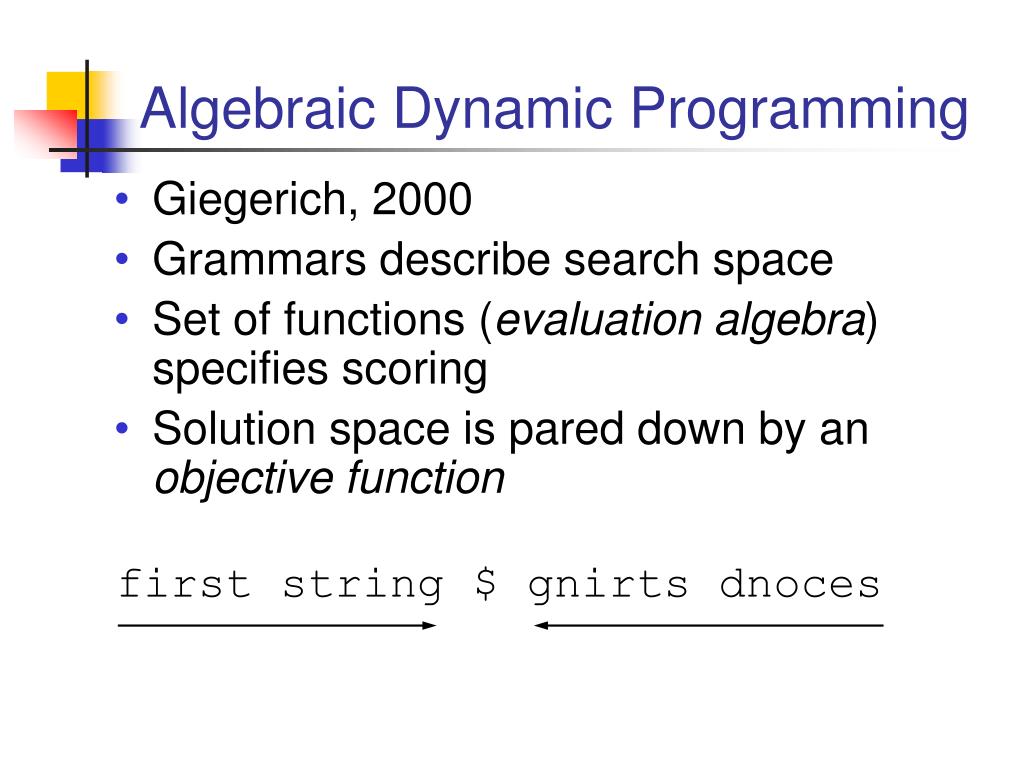

Algebraic Dynamic Programming • Giegerich, 2000 • Grammars describe search space • Set of functions (evaluation algebra) specifies scoring • Solution space is pared down by an objective function first string $ gnirts dnoces

Grammar & eval. algebra localign = start <<< string ~~~ internal ~~~ string ... h internal = subst <<< aa ~~~ internal ~~~ aa ||| delete <<< aa ~~~ internal ||| insert <<< internal ~~~ aa ||| end <<< string ~~~ ’$’ ~~~ string ... h subst(a1,score,a2) = score + s(a1,a2)insert(score,a) = score – wdelete(a,score) = score – wend(str1,$,str2) = 0h[score1,...,scorek] = max[score1,...,scorek]

Traditional DP vs. ADP

Design of a DSL • Implement sample applications • Use a flexible, higher-order language • Abstract out common themes • Data structures • Operations • Decide how to handle errors • Run-time errors • Type system • Speed up implementation by generating C • From embedded language, like PAN • Using standalone compiler

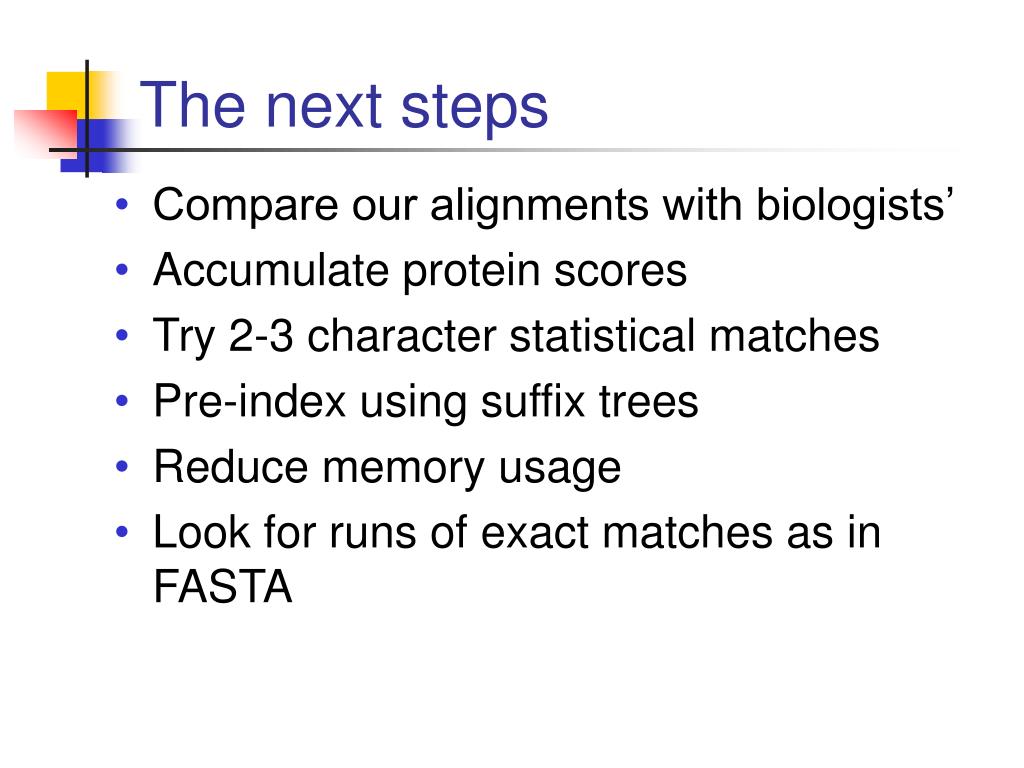

The next steps • Compare our alignments with biologists’ • Accumulate protein scores • Try 2-3 character statistical matches • Pre-index using suffix trees • Reduce memory usage • Look for runs of exact matches as in FASTA

Our contributions • Built a working relationship with bio lab to understand domain • Demonstrated feasibility of aligning large data sets in Haskell • Constructed a framework for experimenting with representations for alignments, and heuristics for filtering target strings, localizing searches
