Joseph Wu Senior Applications Engineer Texas Instruments – Tucson Precision Temperature Measurement with the ADS1248 2009 European FAE Summit, Munich
Presentation Overview • An Overview of Temperature Elements • The ADS1248 and ADCPro • Precision Measurements with the ADS1248 2009 European FAE Summit, Munich
What sort of temperature elements can we measure with the ADS1248? 2009 European FAE Summit, Munich

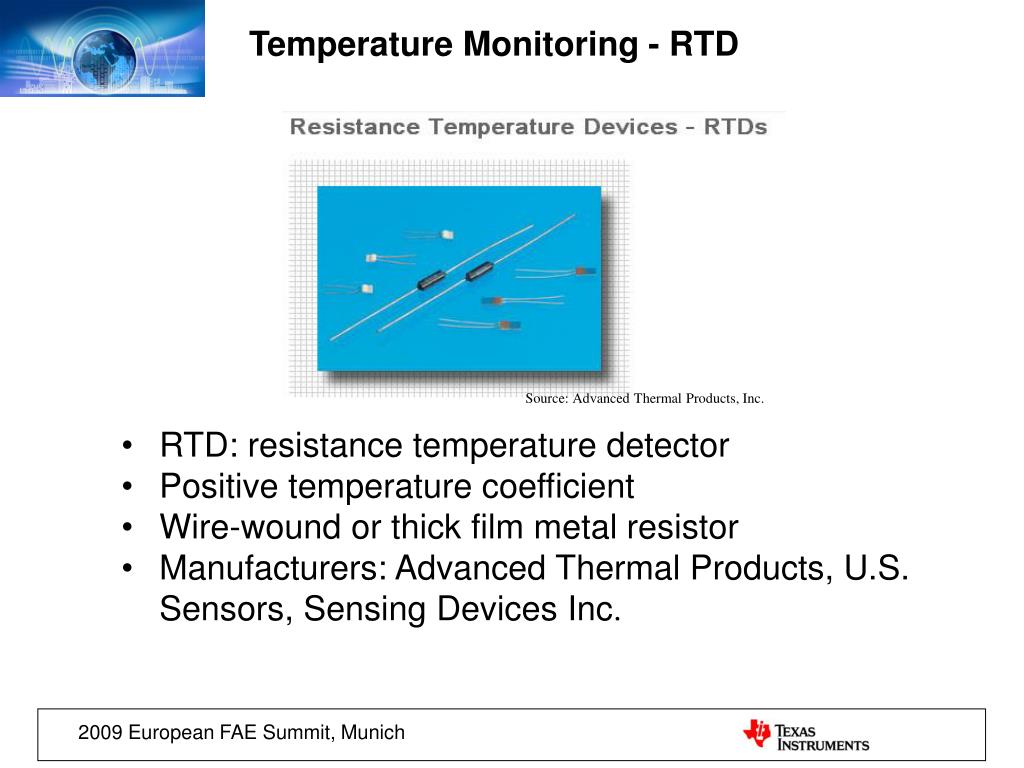

Temperature Monitoring - RTD Source: Advanced Thermal Products, Inc. • RTD: resistance temperature detector • Positive temperature coefficient • Wire-wound or thick film metal resistor • Manufacturers: Advanced Thermal Products, U.S. Sensors, Sensing Devices Inc. 2009 European FAE Summit, Munich
Temperature Monitoring - RTD C C A A A PRTD PRTD PRTD B B B D a.) Two-wire lead configuration b.) Three-wire lead configuration c.) Four-wire lead configuration 2009 European FAE Summit, Munich
Temperature Monitoring - RTD • Advantages: • Most Accurate • High linearity over limited temperature range (-40oC to +85oC) • Wide usable temperature range 2009 European FAE Summit, Munich

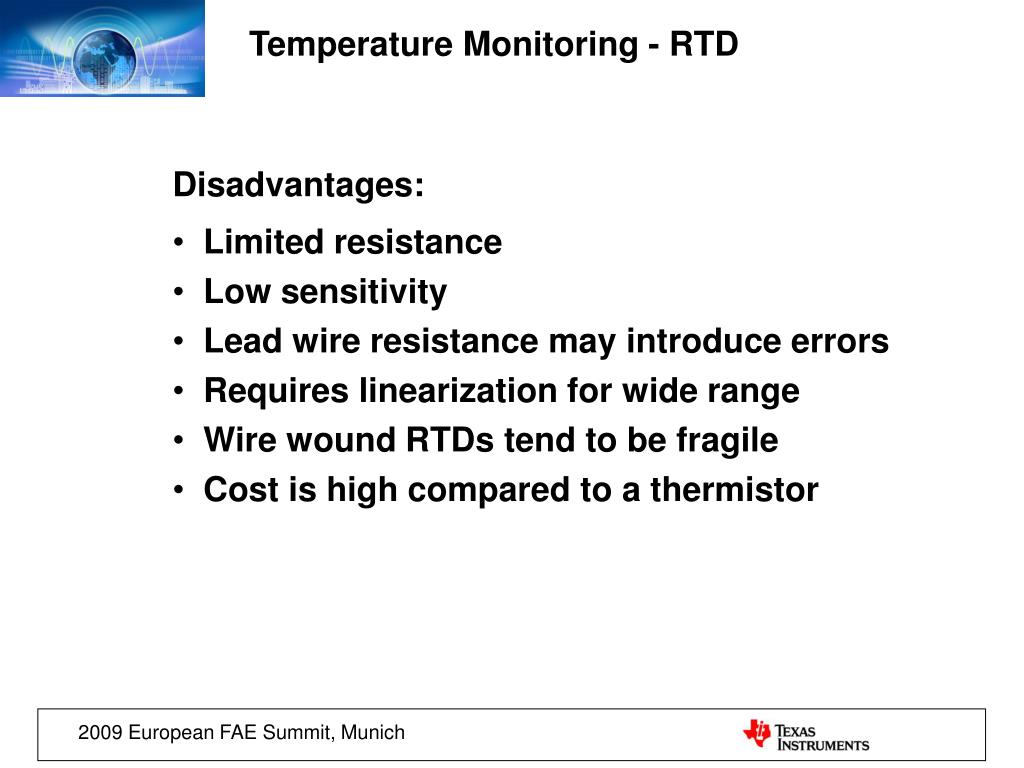

Temperature Monitoring - RTD • Disadvantages: • Limited resistance • Low sensitivity • Lead wire resistance may introduce errors • Requires linearization for wide range • Wire wound RTDs tend to be fragile • Cost is high compared to a thermistor 2009 European FAE Summit, Munich
Temperature Monitoring - Thermocouple Source: Datapaq • Thermocouple: temperature element based on two dissimilar metals • The junction of two dissimilar metals creates an open circuit voltage that is proportional to temperature • Direct measurement is difficult because each junction will have it’s own voltage drop 2009 European FAE Summit, Munich
Temperature Monitoring - Thermocouple Source: Agilent • Reference (Cold) Junction Compensation • Voltage is proportional to Temperature • V = (V1 – V2) ~= α(tJ1 – tJ2) • If we specify TJ1 in degrees Celsius: TJ1(C) + 273.15 = tJ1(K) • V becomes: V = V1 – V2 = α[(TJ1 + 273.15) – (TJ2 + 273.15)] = α(TJ1– TJ2 ) = (TJ1 – 0) V = αTJ1 2009 European FAE Summit, Munich
Temperature Monitoring - Thermocouple • Advantages: • Self-powered • Simple and durable in construction • Inexpensive • Wide variety of physical forms • Wide temperature range (-200oC to +2000oC) 2009 European FAE Summit, Munich
Temperature Monitoring - Thermocouple • Disadvantages: • Thermocouple voltage can be non-linear with temperature • Low measurement voltages • Reference is required • Least stable and sensitive • Requires a known junction temperature 2009 European FAE Summit, Munich
Temperature Monitoring - Thermistor • Thermistor: Thermally sensitive resistor • Sintered metal oxide or passive semiconductor materials • Suppliers – Selco, YSI, Alpha Sensors, Betatherm 2009 European FAE Summit, Munich
Temperature Monitoring - Thermistor • Advantages: • Low cost • Rugged construction • Available in wide range of resistances • Available with negative (NTC) and positive (PTC) temperature coefficients. • Highly sensitive 2009 European FAE Summit, Munich
Temperature Monitoring - Thermistor • Disadvantages: • Limited temperature range: -100oC to 200oC • Highly non-linear response • Linearization nearly always required • Least accurate • Self-heating 2009 European FAE Summit, Munich
What can we do with the ADS1248 and its EVM? 2009 European FAE Summit, Munich
ADS1248 Block Diagram 2009 European FAE Summit, Munich
ADS1248EVM-PDK 2009 European FAE Summit, Munich
ADS1248EVM Schematic 2009 European FAE Summit, Munich
ADS1248EVM Layout 2009 European FAE Summit, Munich
ADCPro with the ADS1248 Plug-in 2009 European FAE Summit, Munich
ADS1248 Plug-In 2009 European FAE Summit, Munich
ADS1248 Plug-In 2009 European FAE Summit, Munich
ADS1248 Plug-In 2009 European FAE Summit, Munich
ADS1248 Plug-In 2009 European FAE Summit, Munich
ADS1248 Plug-In 2009 European FAE Summit, Munich
ADS1248 Plug-In 2009 European FAE Summit, Munich
ADS1248 Plug-In 2009 European FAE Summit, Munich
What type of systems can be put together with the ADS1248? 2009 European FAE Summit, Munich
2-Wire RTD Measurement 2009 European FAE Summit, Munich
Advantages: Simple Ratiometric – IDAC current drift is cancelled Noise in the IDAC is reflected in both the reference and the RTD 2-Wire RTD Measurement • Disadvantages: • Least Accurate • Line resistance affects the measurement • The filter must be removed on the EVM. 2009 European FAE Summit, Munich
Plug-in: PGA Gain = 1, Data Rate = 20 Block Size = 128 AINP = AIN0 < IDAC0 AINN = AIN1 Reference Select = VREF0 Internal Reference = On IDAC mag = 1000uA IDAC0 = AIN, IDAC1 = Off VREF = 1V ≈ (1000uA x 1k) 2-Wire RTD Measurement Setup • Setup: • 2-Wire measurement sensitive to series resistance • R4 and R5 removed on EVM • Board: • RTD: Black, Green: AIN0 • RTD: White, Red: AIN1 • Reference Resistor: AIN1 to GND, 1k • Jumper: GND to REF- • Wire: AIN1 to REF+ 2009 European FAE Summit, Munich

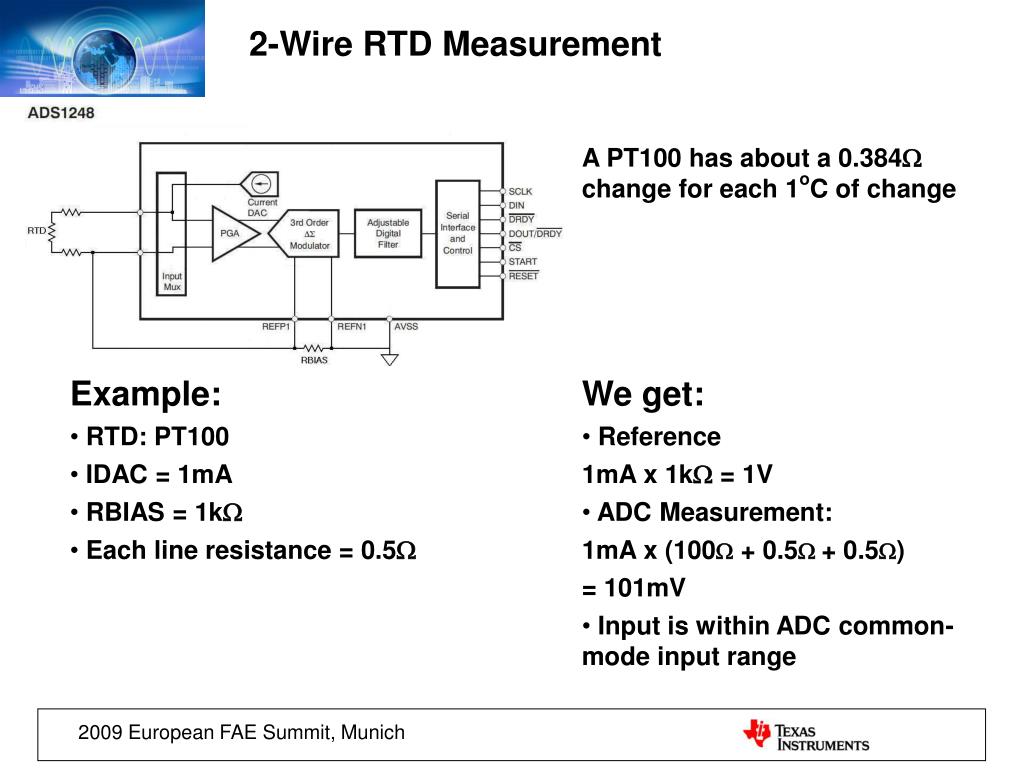

Example: RTD: PT100 IDAC = 1mA RBIAS = 1k Each line resistance = 0.5 2-Wire RTD Measurement A PT100 has about a 0.384 change for each 1oC of change • We get: • Reference 1mA x 1k = 1V • ADC Measurement: 1mA x (100 + 0.5+ 0.5) = 101mV • Input is within ADC common- mode input range 2009 European FAE Summit, Munich
3-Wire RTD Measurement 2009 European FAE Summit, Munich
Advantages: Simple Input line resistances cancel Sensor can be farther away Ratiometric – IDAC current drift is cancelled 3-Wire RTD Measurement • Disadvantages: • IDAC current and drift need to match 2009 European FAE Summit, Munich
Plug-in: PGA Gain = 1, Data Rate = 20 Block Size = 128 AINP = AIN2 < IDAC0 AINN = AIN3 < IDAC1 Reference Select = VREF0 Internal Reference = On IDAC mag = 1000uA IDAC0 = AIN, IDAC VREF = 1V ≈ (1000uA x 1kW) 3-Wire RTD Measurement Setup • Setup: • 3-Wire measurement far less sensitive to series resistance • Measurement illustrated with 47 of series resistance • Change reference resistor to 499 • Board: • RTD: Black, Green: AIN2 • RTD: White: AIN3 • RTD: Red: AIN5 • Reference Resistor: AIN5 to GND, 499 • Jumper: GND to REF- • Wire: AIN5 to REF+ 2009 European FAE Summit, Munich

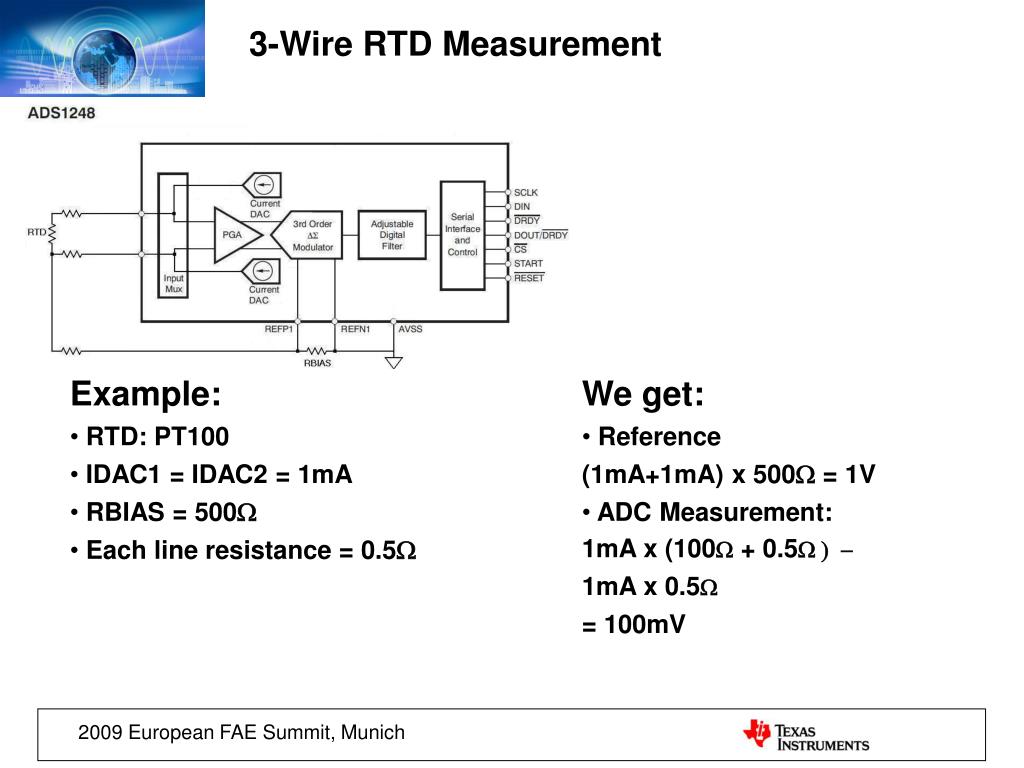

Example: RTD: PT100 IDAC1 = IDAC2 = 1mA RBIAS = 500 Each line resistance = 0.5 3-Wire RTD Measurement • We get: • Reference (1mA+1mA) x 500 = 1V • ADC Measurement: 1mA x (100 + 0.5 1mA x 0.5 = 100mV 2009 European FAE Summit, Munich
However: If the IDAC currents or line resistances do not match, there can be errors in cancellation. ADS1248 IDAC currents are matched to 0.03% typ. With 1mA IDACs, the mismatch is 0.3A In previous example, error is 0.3A x 0.5 = .15uV The error in line resistance mismatch can be higher in comparison! 3-Wire RTD Measurement A PT100 has about a 0.384 change for each 1oC of change 0.384 x 1mA = 384uV 2009 European FAE Summit, Munich
3-Wire RTD Measurement with Hardware Compensation 2009 European FAE Summit, Munich

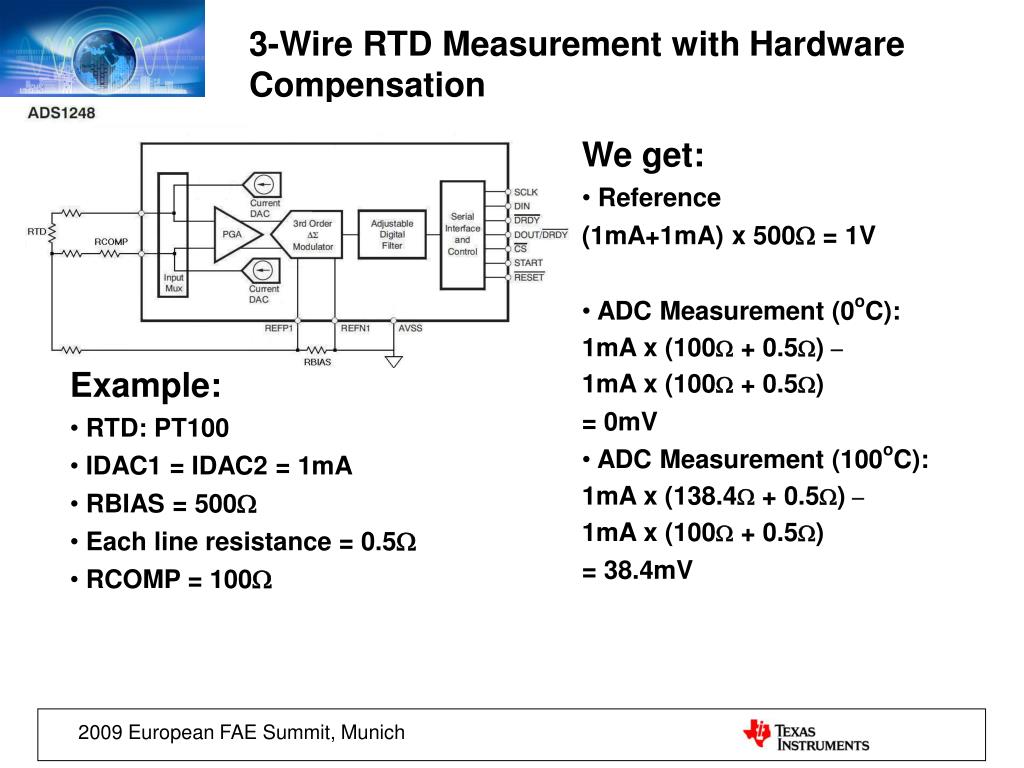

3-Wire RTD Measurement with Hardware Compensation Same Benefits and Problems as the typical 3-wire measurement • Advantages: • Centers the measurement so that the center temperature is at 0V • Easier to use a larger PGA gain • Disadvantages: • IDAC current mismatch is gained up by RCOMP as well as the line resistance 2009 European FAE Summit, Munich
Plug-in: PGA Gain = 128, Data Rate = 20 Block Size = 128 AINP = AIN2 < IDAC0 AINN = AIN4 < IDAC1 Reference Select = VREF0 Internal Reference = On IDAC mag = 1000uA IDAC0 = AIN, IDAC VREF = 1V ≈ (1000uA x 1kW) 3-Wire RTD Measurement with Hardware Compensation Setup • Setup: • 110 resistor added as hardware compensation • Centers the measurement around 0V so that more gain can be used. • Board: • RTD: Black, Green: AIN2 • RTD: White: AIN3 • RTD: Red: AIN5 • 100 resistor AIN3 to AIN4 • Reference Resistor: AIN5 to GND, 499 • Jumper: GND to REF- • Wire: AIN5 to REF+ 2009 European FAE Summit, Munich
Example: RTD: PT100 IDAC1 = IDAC2 = 1mA RBIAS = 500 Each line resistance = 0.5 RCOMP = 100 3-Wire RTD Measurement with Hardware Compensation • We get: • Reference (1mA+1mA) x 500 = 1V • ADC Measurement (0oC): 1mA x (100 + 0.5) 1mA x (100 + 0.5) = 0mV • ADC Measurement (100oC): 1mA x (138.4 + 0.5) 1mA x (100 + 0.5) = 38.4mV 2009 European FAE Summit, Munich
4-Wire RTD Measurement 2009 European FAE Summit, Munich
4-Wire RTD Measurement • Advantages: • Most accurate, line resistances are no longer a problem • Sensor can be far away • Ratiometric measurement • No IDAC drift component • Disadvantages: • Need to use external IDAC pins • Only two IDAC pins available 2009 European FAE Summit, Munich
Plug-in: PGA Gain = 1, Data Rate = 20 Block Size = 128 AINP = AIN3, AINN = AIN4 Reference Select = VREF0 Internal Reference = On IDAC mag = 1000uA IDAC0 = AIN, IDAC1 = Off VREF = 1V ≈ (1000uA x 1kW) 4-Wire RTD Measurement Setup • Setup: • Return to G=1 • 1k reference resistor • Most accurate measurement • Board: • RTD Black: AIN2 • RTD Green: AIN3 • RTD White: AIN4 • RTD Red: AIN5 • Reference Resistor: AIN5 to GND, 1k • Jumper: GND to REF- • Wire: AIN5 to REF+ 2009 European FAE Summit, Munich

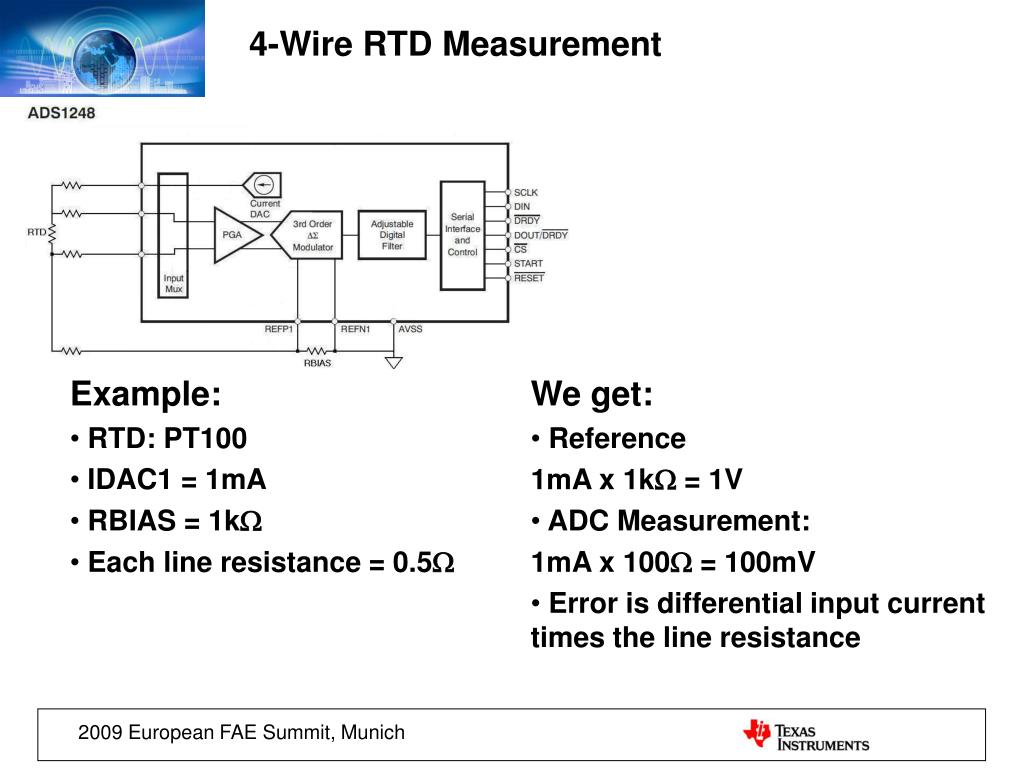

Example: RTD: PT100 IDAC1 = 1mA RBIAS = 1k Each line resistance = 0.5 4-Wire RTD Measurement • We get: • Reference 1mA x 1k = 1V • ADC Measurement: 1mA x 100 = 100mV • Error is differential input current times the line resistance 2009 European FAE Summit, Munich
Thermocouple Measurement with 3-Wire RTD as Cold Junction Compensation 2009 European FAE Summit, Munich
Thermocouple Measurement with 3-Wire RTD as Cold Junction Compensation • Advantages: • Thermocouple needs no excitation source • RTD used for cold junction compensation. • Disadvantages: • Complex • Requires multiple resources of the ADS1248 • Internal reference used in measuring thermocouple 2009 European FAE Summit, Munich
Plug-in: Thermocouple PGA Gain = 1, Data Rate = 20 Block Size = 128 AINN = AIN0 < VBIAS, AINP = AIN1 Reference Select = Internal, VREF = 2.5V Three-wire RTD AINP = AIN2 < IDAC0, AINN = AIN2 < IDAC0 Reference Select = VREF0 Internal Reference = On IDAC mag = 1000uA, IDAC0, IDAC1 = AIN VREF = 1V ≈ (2000uA x 499) Thermocouple Measurement with 3-Wire RTD as Cold Junction Compensation Setup • Setup: • Two measurements • Thermocouple uses VBIAS, but no IDAC current. • Three-wire RTD setup as before • Board: • Thermocouple: AIN0 to AIN1 • RTD Black, Green: AIN2 • RTD White: AIN3 • RTD Red: AIN5 • Reference Resistor: AIN5 to GND, 499 • Jumper: GND to REF- • Wire: AIN5 to REF+ 2009 European FAE Summit, Munich
Thermocouple Measurement with 3-Wire RTD as Cold Junction Compensation • Example: • Thermocouple: K-type • RTD: PT100 with 3-wire measurement • We get: • The thermocouple is DC biased with VBIAS • Measured using internal reference. • The cold junction uses an 3-wire RTD 2009 European FAE Summit, Munich
Thermistor with Shunt Resistor Measurement Thermistor has a nominal 10k response at 25oC 2009 European FAE Summit, Munich
