  1. Turbocharging the DBMS Buffer Pool using an SSD Jaeyoung Do, Donghui Zhang, Jignesh M. Patel, David J. DeWitt, Jeffrey F. Naughton, Alan Halverson

  2. Memory Hierarchy For over three decades… Now: a disruptive change… Cache • SSD wisdom: • Store hot data. • Store data with random-I/O access. DRAM Fast random I/Os; but expensive. ?? Disk HDD SSD

  3. Take Home Message • Use an SSD to extend the Buffer Pool. • Implemented in Microsoft SQL Server 2008R2. • Evaluated with TPC-C, E, and H. • Up to 9X speedup.

  4. Prior Art • [Holloway09] A. L. Holloway. Chapter 4: Extending the Buffer Pool with a Solid State Disk. In Adapting Database Storage for New Hardware, UW-Madison Ph.D. thesis, 2009. • [KV09] Koltsidas and Viglas. The Case for Flash-Aware Multi-Level Caching. University of Edinburgh Technical Report, 2009. • [KVSZ10] B. M. Khessib, K. Vaid, S. Sankar, and C. Zhang. Using Solid State Drives as a Mid-Tier Cache in Enterprise Database OLTP Applications.TPCTC’10. • [CMB+10] M. Canim, G. A. Mihaila, B. Bhattacharjee, K. A. Ross, and C. A. Lang. SSDBufferpool Extensions for Database Systems. In VLDB’10. State-of-the-art: Temperature-Aware Caching (TAC)

  5. Research Issues • Page flow • SSD admission policy • SSD replacement policy • Implication on checkpoint

  6. Implemented Designs • Temperature-Aware Caching (TAC) • Dual-Write (DW) • Lazy-Cleaning (LC)

  7. Page Flow TAC writes a clean page to the SSD right after reading from the disk. Buffer pool Buffer pool Buffer pool C C C C C C C Disk SSD BP Disk SSD BP Disk SSD BP BP Operations: read  evict  read  modify  evict

  8. Page Flow DW/LC writes a clean page to the SSD upon eviction from BP. Buffer pool Buffer pool Buffer pool C C C C C C C C C Disk SSD BP Disk SSD BP Disk SSD BP BP Operations: read  evict  read  modify  evict

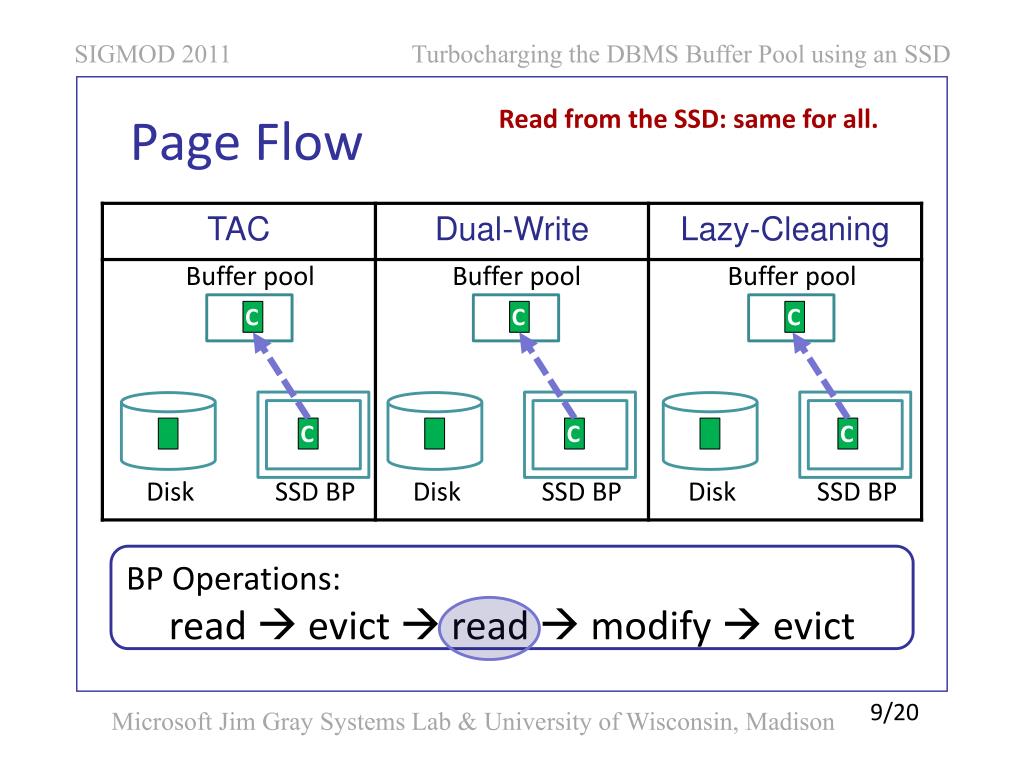

  9. Page Flow Read from the SSD: same for all. Buffer pool Buffer pool Buffer pool C C C C C C C C C Disk SSD BP Disk SSD BP Disk SSD BP BP Operations: read  evict  read  modify  evict

  10. Page Flow Upon dirtying a page, TAC does not reclaim the SSD frame. Buffer pool Buffer pool Buffer pool D D D C C C I I C C C I C C C Disk SSD BP Disk SSD BP Disk SSD BP BP Operations: read  evict  read  modify  evict

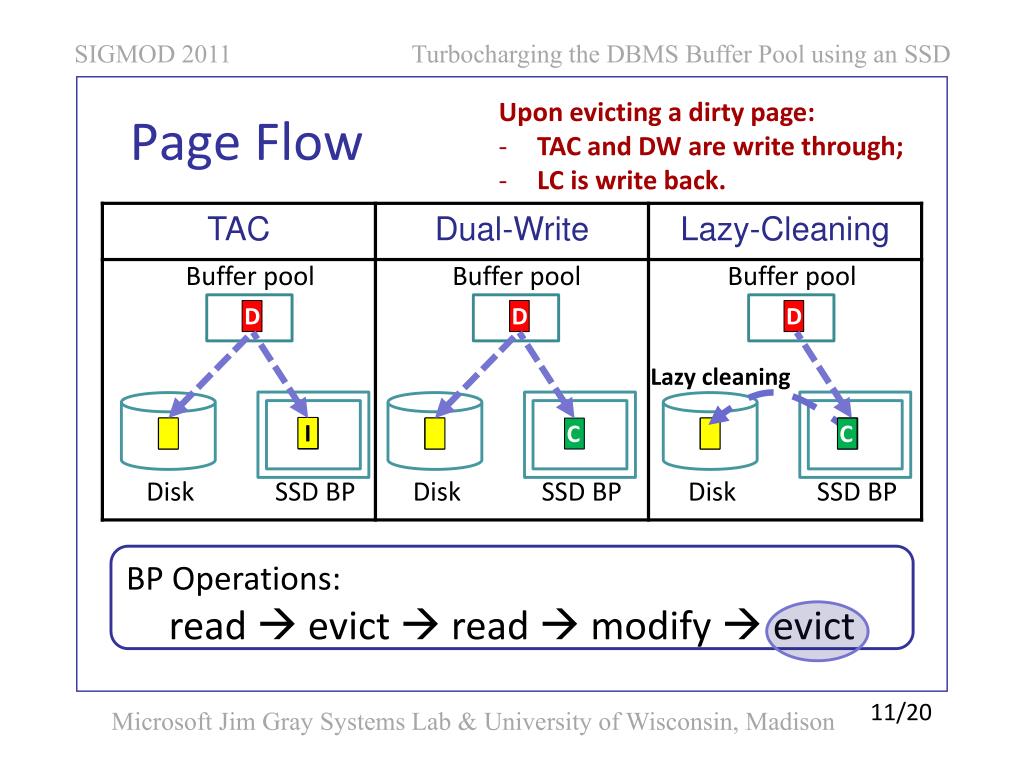

  11. Page Flow • Upon evicting a dirty page: • TAC and DW are write through; • LC is write back. Buffer pool Buffer pool Buffer pool D D D Lazy cleaning I I D C C C Disk SSD BP Disk SSD BP Disk SSD BP BP Operations: read  evict  read  modify  evict

  12. SSD Admission/Replacement Policies • TAC • Admission: if warmer than the coldest SSD page. • Replacement: the coldest page. • DW/LC • Admission: if loaded from disk using a random I/O. • Replacement: LRU2.

  13. Implication on Checkpoint • TAC/DW • No change, because every page in the SSD is clean. • LC • Needs change, to handle the dirty pages in the SSD.

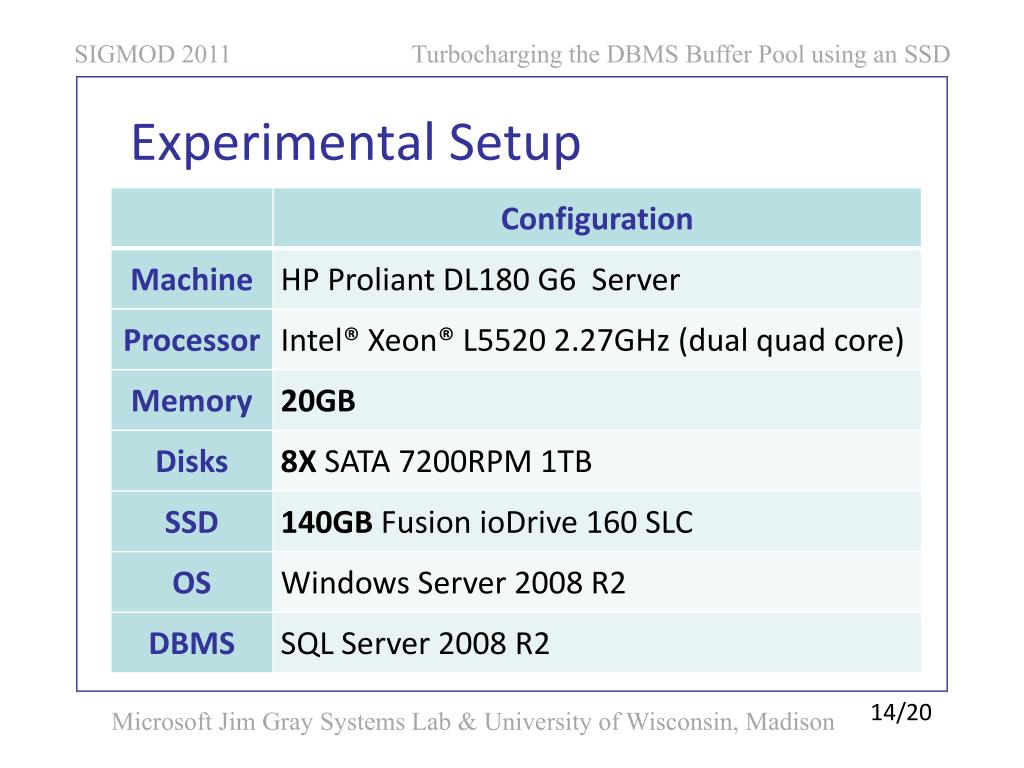

  14. Experimental Setup

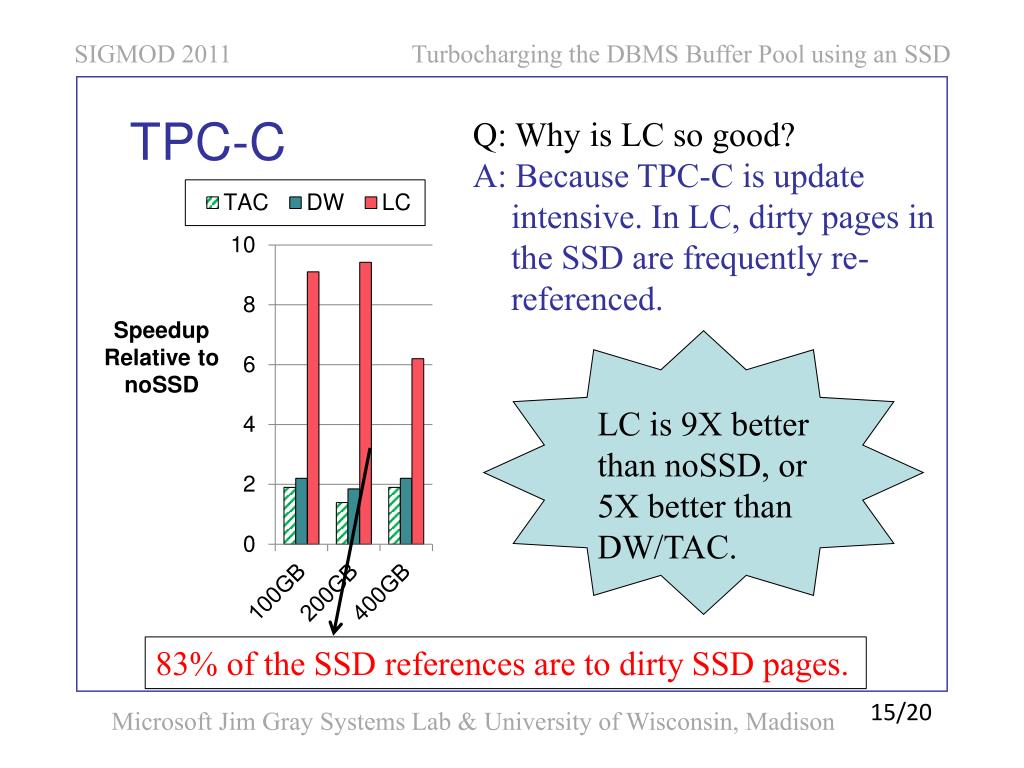

  15. TPC-C Q: Why is LC so good? A: Because TPC-C is update intensive. In LC, dirty pages in the SSD are frequently re-referenced. Speedup Relative to noSSD LC is 9X better than noSSD, or 5X better than DW/TAC. 83% of the SSD references are to dirty SSD pages.

  16. TPC-E Q: Why do the three designs have similar speedups? A: Because TPC-E is read intensive. Speedup Relative to noSSD Q: Why does the highest speedup occur for 200GB database? A: For 400GB, a smaller fraction of data is cached in the SSD; For 100GB, a larger fraction of data is cached in the memory BP.

  17. TPC-H Q: Why are the speedups smaller than in C or E? A: Because most I/Os aresequential. For random I/Os: Fusion is 10X faster; For sequential I/Os: 8x disks are 1.4X faster. Speedup Relative to noSSD

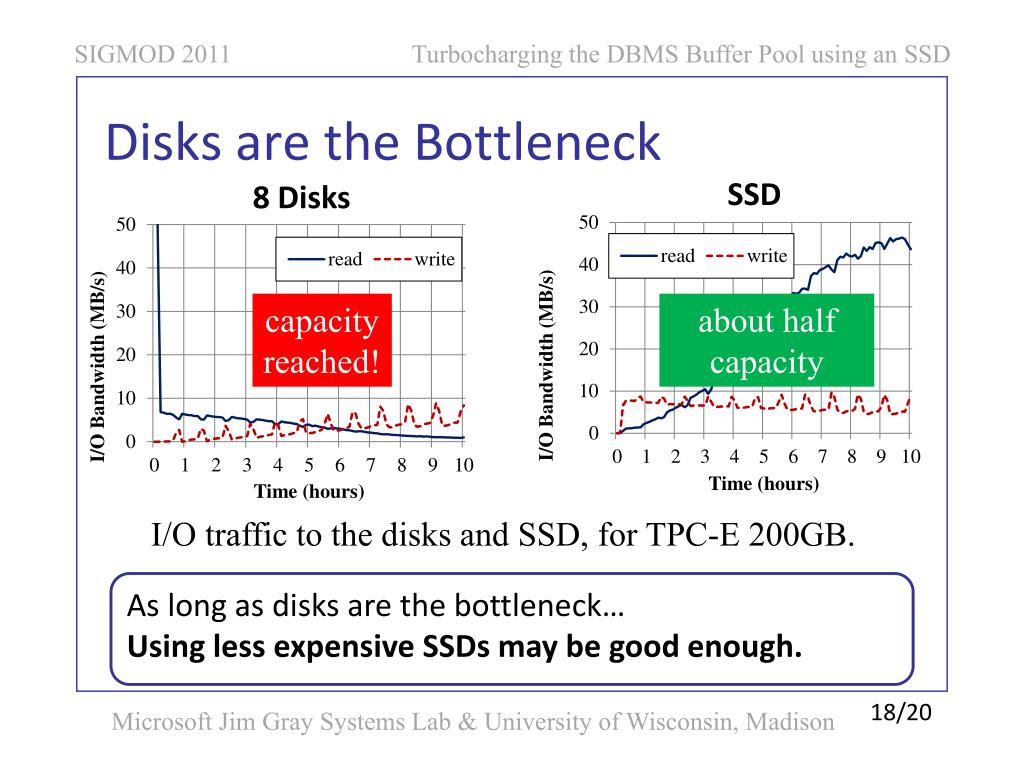

  18. Disks are the Bottleneck SSD 8 Disks capacity reached! about half capacity I/O traffic to the disks and SSD, for TPC-E 200GB. As long as disks are the bottleneck… Using less expensive SSDs may be good enough.

  19. Long Ramp-up Time TPC-E (200GB) Q: Why does rampup take 10 hours? A: Because the SSD is being filled slowly, gated by the random read speed of the disks. If restarts are frequent… Restart from the SSD may reduce rampup time.

  20. Conclusions • SSD buffer pool extension is a good idea. • We observed a 9X speedup (OLTP) and a 3X speedup (DSS). • The choice of design depends on the update frequency. • For update-intensive (TPC-C) workloads: LCwins. • For read-intensive (TPC-E or H) workloads: DW/LC/TAC have similar performance. • Mid-range SSDs may be good enough. • With 8 disks, only half of FusionIO’s bandwidth is used. • Caution: rampup time may be long. • If restarts are frequent, the DBMS should restart from the SSD.

  21. Backup Slides

  22. Architectural Change Buffer Manager BP Buffer Manager BP SSD Manager I/O Manager I/O Manager Disk Disk SSD BP

  23. Data Structures

  24. Further Issues • Aggressive filling • SSDthrottle control • Multi-page I/O request • Asynchronous I/O handling • SSD partitioning • Gather write
