Combinatorial Nano-Calorimetry on Ti-Ni-Zr

Combinatorial Nano-Calorimetry on Ti-Ni-Zr. David A. Weitz, Harvard University, DMR 0820484.

jewell
Télécharger la présentation

Combinatorial Nano-Calorimetry on Ti-Ni-Zr

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

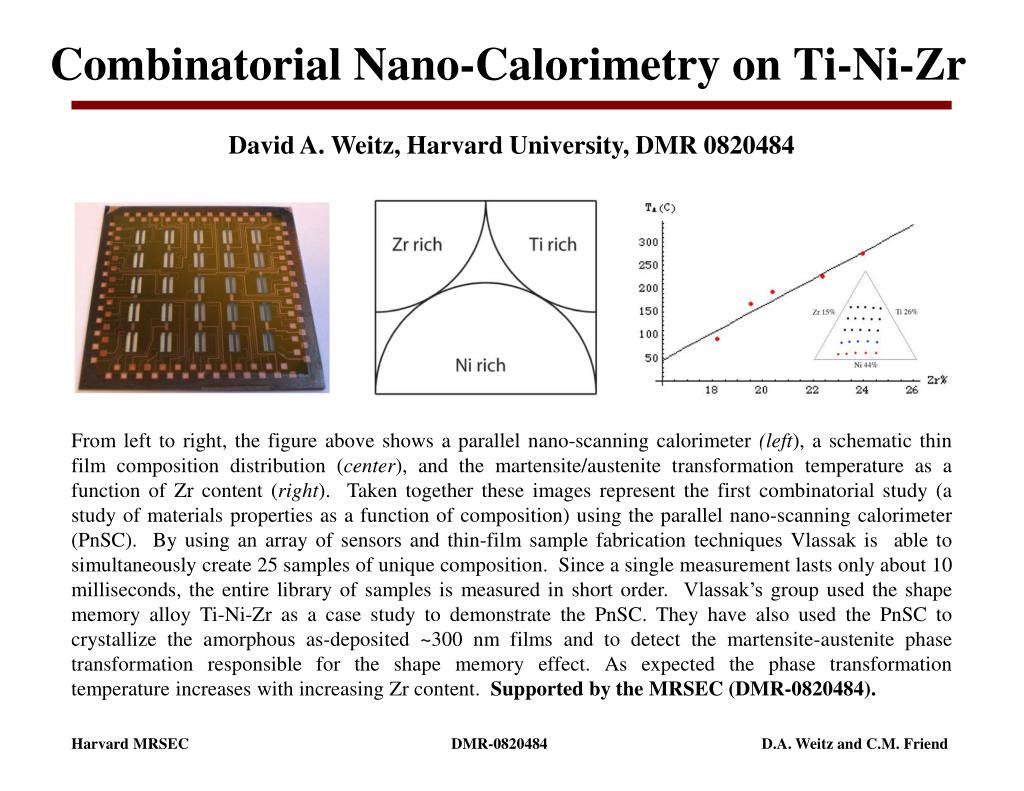

  1. Combinatorial Nano-Calorimetry on Ti-Ni-Zr David A. Weitz, Harvard University, DMR 0820484 From left to right, the figure above shows a parallel nano-scanning calorimeter (left), a schematic thin film composition distribution (center), and the martensite/austenite transformation temperature as a function of Zr content (right). Taken together these images represent the first combinatorial study (a study of materials properties as a function of composition) using the parallel nano-scanning calorimeter (PnSC). By using an array of sensors and thin-film sample fabrication techniques Vlassak is able to simultaneously create 25 samples of unique composition. Since a single measurement lasts only about 10 milliseconds, the entire library of samples is measured in short order. Vlassak’s group used the shape memory alloy Ti-Ni-Zr as a case study to demonstrate the PnSC. They have also used the PnSC to crystallize the amorphous as-deposited ~300 nm films and to detect the martensite-austenite phase transformation responsible for the shape memory effect. As expected the phase transformation temperature increases with increasing Zr content. Supported by the MRSEC (DMR-0820484). Harvard MRSEC DMR-0820484 D.A. Weitz and C.M. Friend
