  1. AHM 2005Automatic Deployment and Interoperability of Grid Services G.Kecskemeti, Yonatan Zetuny, G.Terstyanszky, T.Kiss, P.Kacsuk, S. Winter Centre for Parallel Computing Cavendish School of Computer Science University of Westminster y.zetuny@wmin.ac.uk www.cpc.wmin.ac.uk

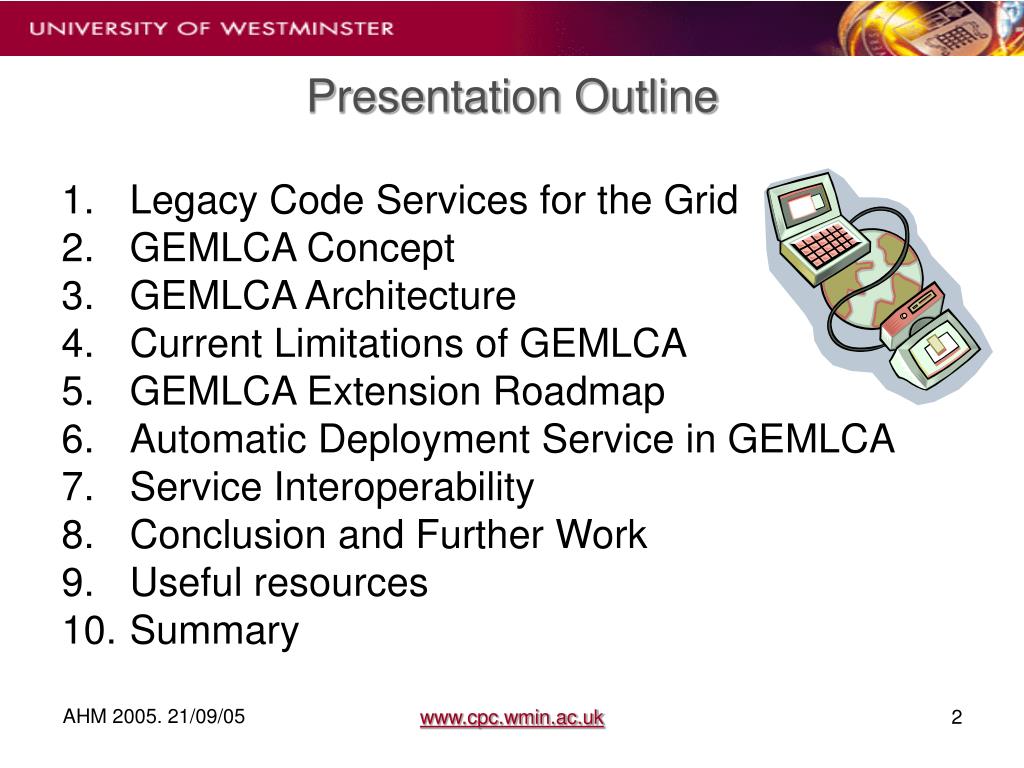

  2. Presentation Outline • Legacy Code Services for the Grid • GEMLCA Concept • GEMLCA Architecture • Current Limitations of GEMLCA • GEMLCA Extension Roadmap • Automatic Deployment Service in GEMLCA • Service Interoperability • Conclusion and Further Work • Useful resources • Summary www.cpc.wmin.ac.uk

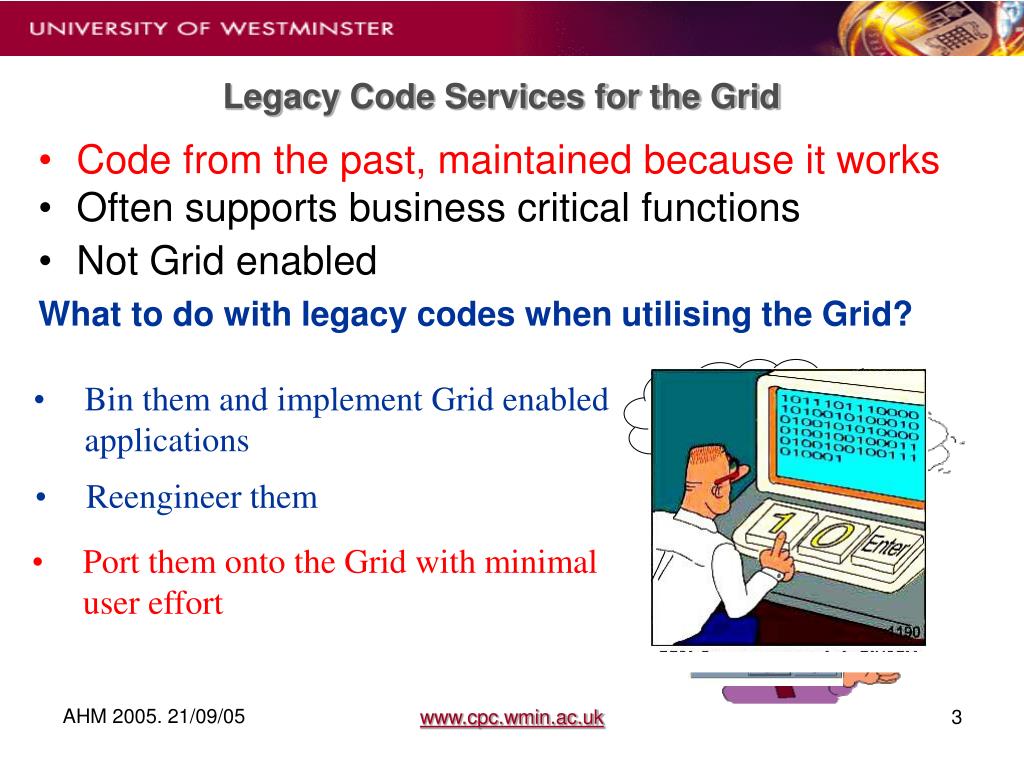

  3. Legacy Code Services for the Grid • Code from the past, maintained because it works • Often supports business critical functions • Not Grid enabled What to do with legacy codes when utilising the Grid? • Bin them and implement Grid enabled applications • Reengineer them • Port them onto the Grid with minimal user effort www.cpc.wmin.ac.uk

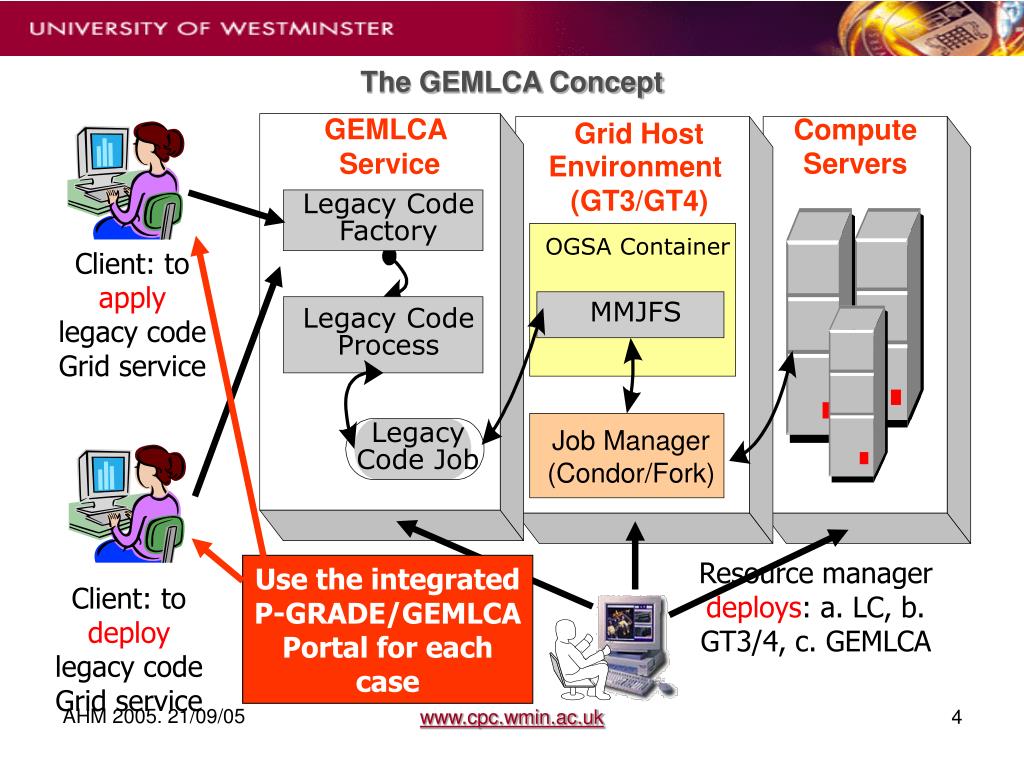

  4. The GEMLCA Concept Grid Host Compute GEMLCA Service Environment (GT3/GT4) Servers Client: to apply legacy code Grid service Legacy Code Factory OGSA Container MMJFS Legacy Code Process Legacy Job Manager Code Job (Condor/Fork) Resource manager deploys: a. LC, b. GT3/4, c. GEMLCA Use the integrated P-GRADE/GEMLCA Portal for each case Client: to deploy legacy code Grid service www.cpc.wmin.ac.uk

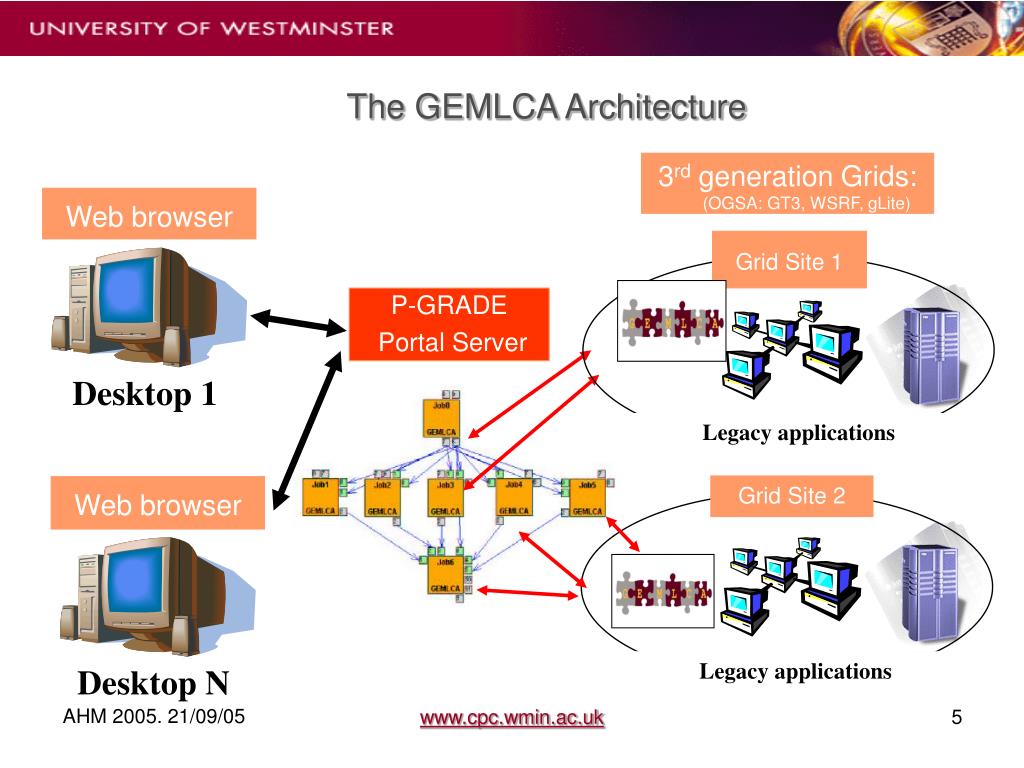

  5. 3rd generation Grids: (OGSA: GT3, WSRF, gLite) Web browser Grid Site 1 Desktop 1 Legacy applications Grid Site 2 Web browser Legacy applications Desktop N The GEMLCA Architecture P-GRADE Portal Server www.cpc.wmin.ac.uk

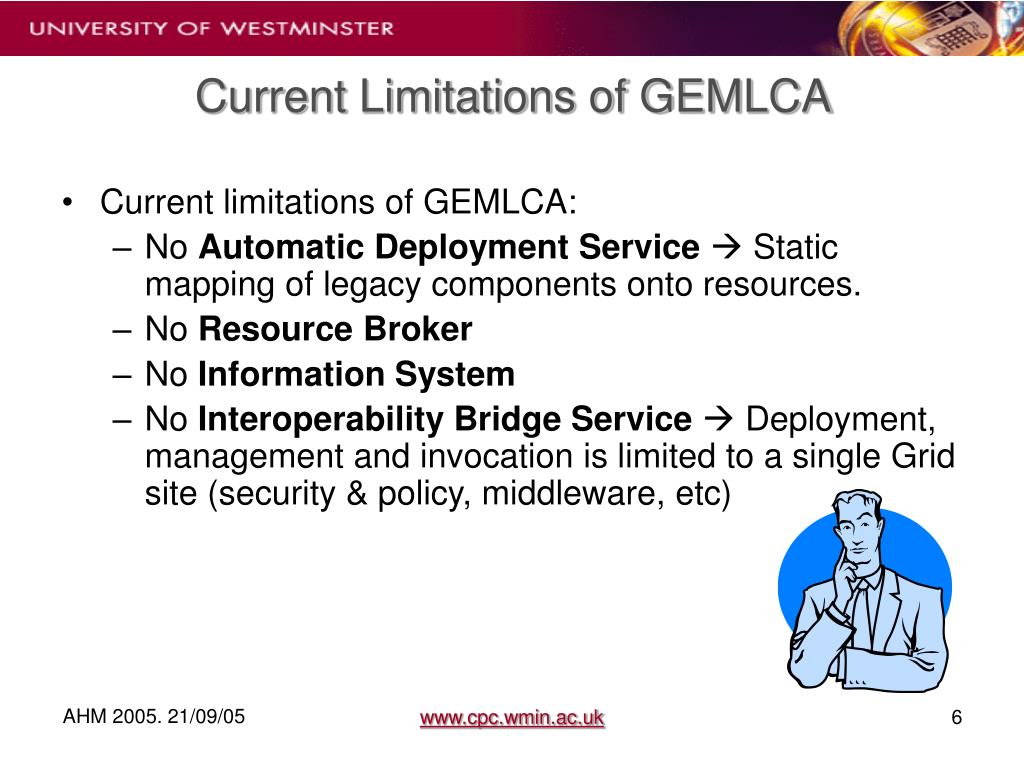

  6. Current Limitations of GEMLCA • Current limitations of GEMLCA: • No Automatic Deployment Service Static mapping of legacy components onto resources. • No Resource Broker • No Information System • No Interoperability Bridge Service Deployment, management and invocation is limited to a single Grid site (security & policy, middleware, etc) www.cpc.wmin.ac.uk

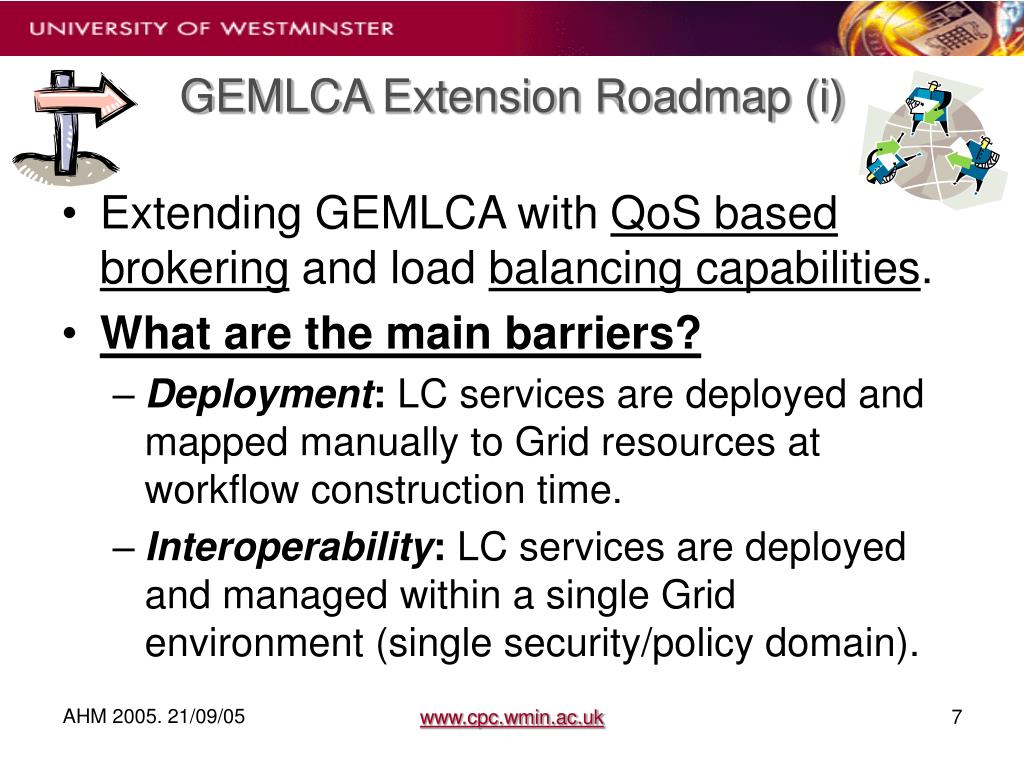

  7. GEMLCA Extension Roadmap (i) • Extending GEMLCA with QoS based brokering and load balancing capabilities. • What are the main barriers? • Deployment: LC services are deployed and mapped manually to Grid resources at workflow construction time. • Interoperability: LC services are deployed and managed within a single Grid environment (single security/policy domain). www.cpc.wmin.ac.uk

  8. GEMLCA with Brokering, Information System and Automatic Deployment Support The GEMLCA Extension Roadmap (ii) Interoperability Bridge www.cpc.wmin.ac.uk

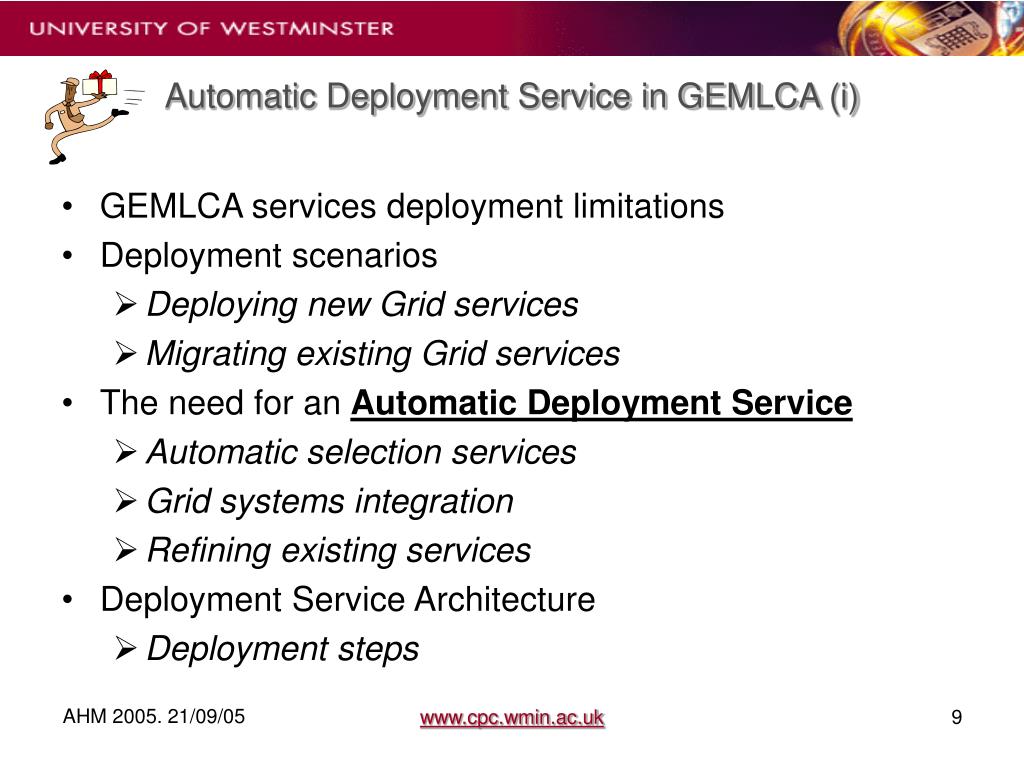

  9. Automatic Deployment Service in GEMLCA (i) • GEMLCA services deployment limitations • Deployment scenarios • Deploying new Grid services • Migrating existing Grid services • The need for an Automatic Deployment Service • Automatic selection services • Grid systems integration • Refining existing services • Deployment Service Architecture • Deployment steps www.cpc.wmin.ac.uk

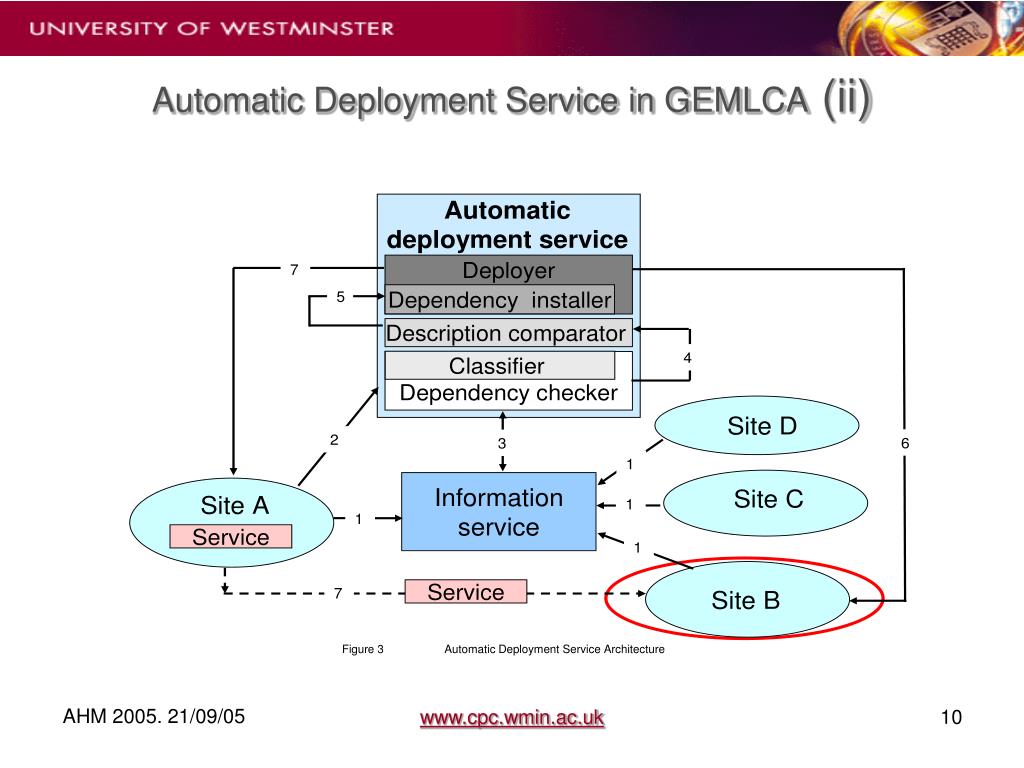

  10. Figure 3 Automatic Deployment Service Architecture Automatic Deployment Service in GEMLCA (ii) www.cpc.wmin.ac.uk

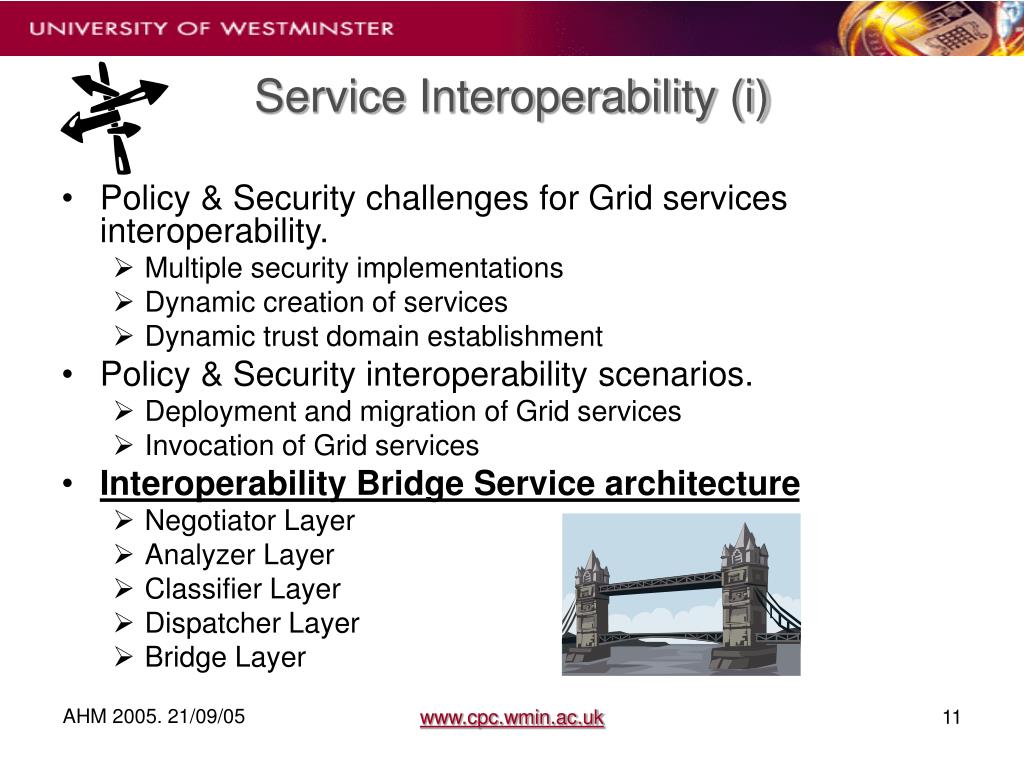

  11. Service Interoperability (i) • Policy & Security challenges for Grid services interoperability. • Multiple security implementations • Dynamic creation of services • Dynamic trust domain establishment • Policy & Security interoperability scenarios. • Deployment and migration of Grid services • Invocation of Grid services • Interoperability Bridge Service architecture • Negotiator Layer • Analyzer Layer • Classifier Layer • Dispatcher Layer • Bridge Layer www.cpc.wmin.ac.uk

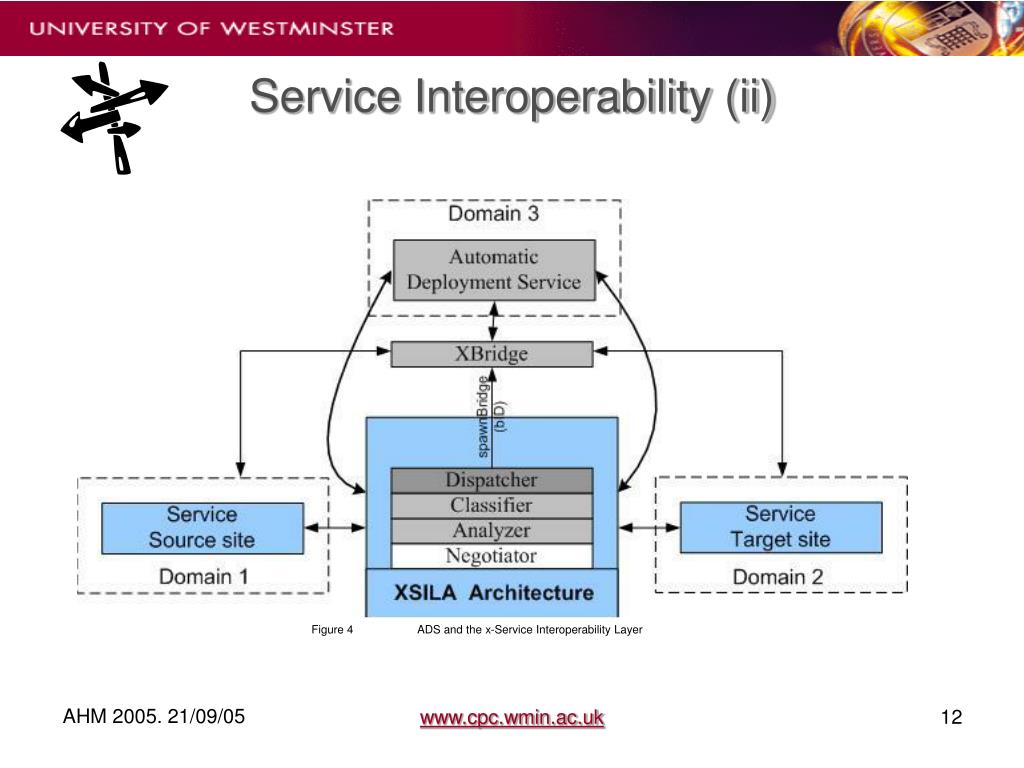

  12. Figure 4 ADS and the x-Service Interoperability Layer Service Interoperability (ii) www.cpc.wmin.ac.uk

  13. Conclusion and Further Work • The industrial need for converting LC applications into Grid services with a minimal user effort. • GEMLCA – The answer for deploying legacy applications on the Grid. • Making GEMLCA a more comprehensive solution for Grid users by developing/extending the following features: • Information system support • Brokering • Load balancing • Automatic deployment and migration of services in a single/multi domain environments. • Implementing of these architectures and integration with GEMLCA is currently in progress. www.cpc.wmin.ac.uk

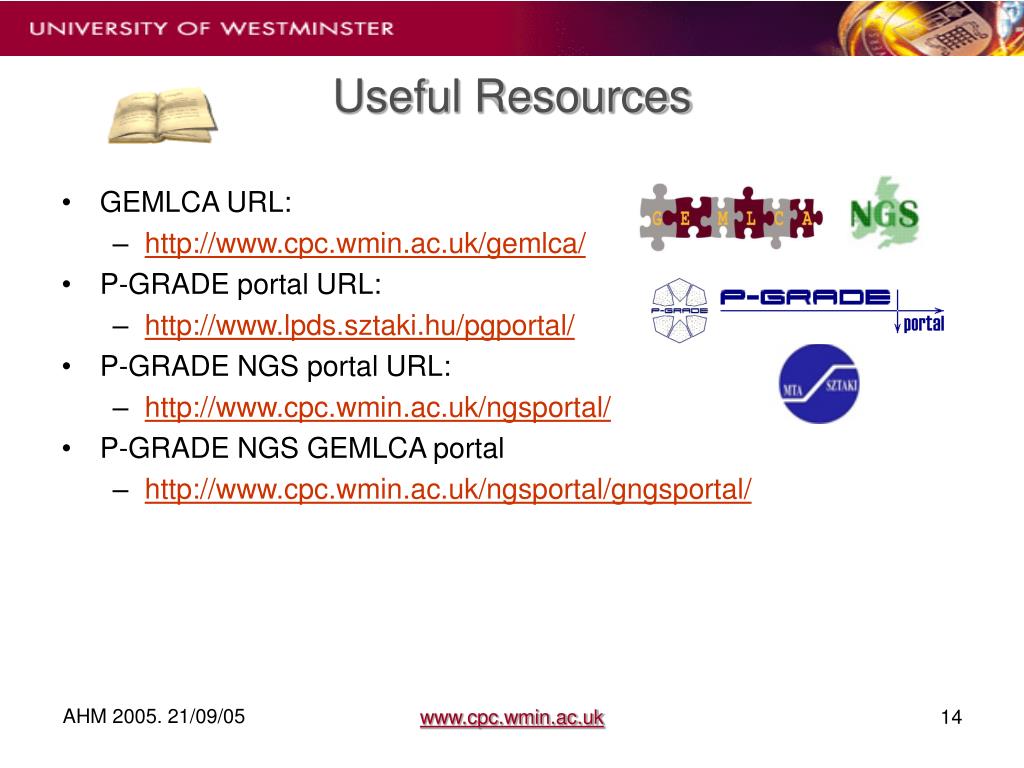

  14. Useful Resources • GEMLCA URL: • http://www.cpc.wmin.ac.uk/gemlca/ • P-GRADE portal URL: • http://www.lpds.sztaki.hu/pgportal/ • P-GRADE NGS portal URL: • http://www.cpc.wmin.ac.uk/ngsportal/ • P-GRADE NGS GEMLCA portal • http://www.cpc.wmin.ac.uk/ngsportal/gngsportal/ www.cpc.wmin.ac.uk

  15. - Summary –Automatic Deployment and Interoperability of Grid Services • Questions? • Comments? • Suggestions? Contact us: The GEMLCA Team Email: gemlca-discuss@wmin.ac.uk URL: http://www.cpc.wmin.ac.uk/gemlca/ Thank you! www.cpc.wmin.ac.uk
