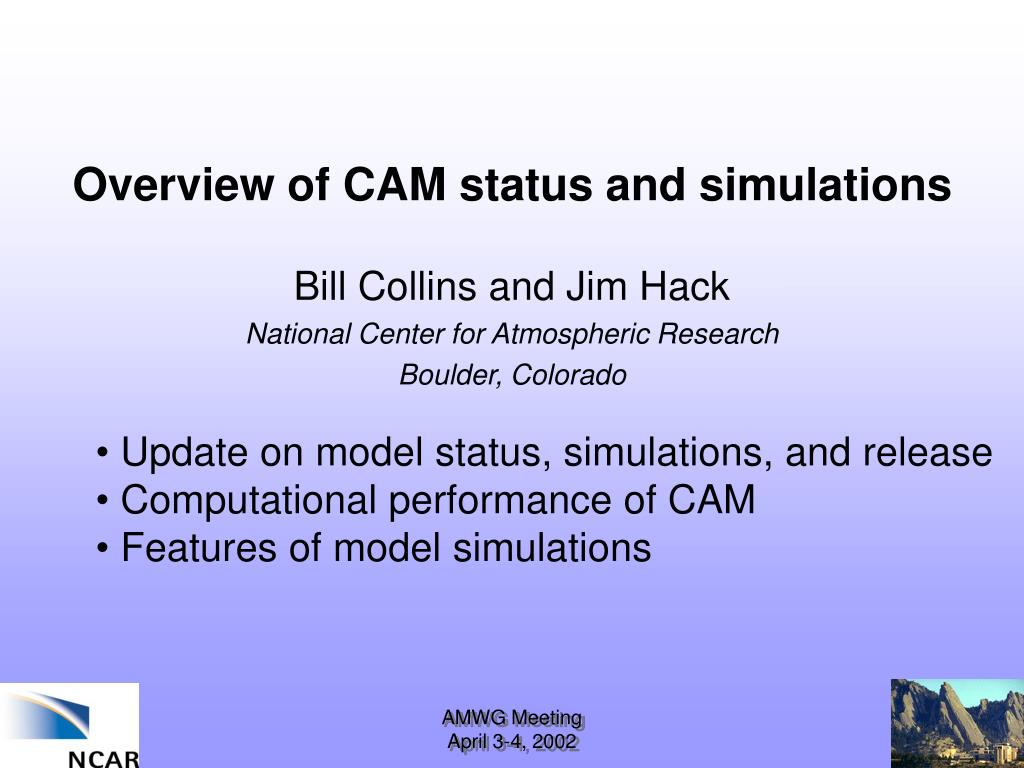

  1. Overview of CAM status and simulations Bill Collins and Jim Hack National Center for Atmospheric Research Boulder, Colorado • Update on model status, simulations, and release • Computational performance of CAM • Features of model simulations AMWG Meeting April 3-4, 2002

  2. Topics • Overview of status and analysis of CAM • Discussion of new diagnostic efforts • Discussion of new physics parameterizations • Update on extensions to model • Overviews of work on isentropic coordinates by other modeling groups • Open discussion • Objectives for summer workshop AMWG Meeting April 3-4, 2002

  3. Agenda AMWG Meeting April 3-4, 2002

  4. Developments since June 2001 Workshop Conducted first coupled simulations Implementation/restructuring • implementation of new CAM design: • parameterization interface • creation of constituents module • addition of new ESMF time-manager • continued work on splitting dynamics and physics • incorporated “chunking” data structures (2D decomposition) • other ongoing implementation changes • shared constants, file naming conventions, etc. AMWG Meeting April 3-4, 2002

  5. Developments since June 2001 Workshop Major modifications/improvements: Fractional surface specification implemented and validated • works properly for all three dynamical cores • introduces minor simulation changes CSIM ice thermodynamics implemented and validated • specified and prognostic snow cover implemented and evaluated • slightly colder ice temperatures • reasonable seasonal cycle in snow cover AMWG Meeting April 3-4, 2002

  6. Developments since June 2001 Workshop Numerous “minor” modifications/improvements: • Minghua Zhang prognostic cloud-water closure modification • vertical diffusion on dry static energy • update static energy instead of T between parameterizations • modifications required for coupled simulations • changes to cloud drop number concentration over sea ice • changes to methodology for determining rain vs. snow • other changes required for middle-atmosphere configuration • creation of final boundary datasets • SST and sea ice concentration AMWG Meeting April 3-4, 2002

  7. Upcoming Papers on CAM • General overview • New sea-ice formulation • Finite volume dynamical core • Parameterization for statiform fractional cloudiness • New H2O longwave and cloud overlap • Hydrometeor evaporation mechanism • New global SST climatology • Fractional ice and land • Coupling of parameterizations with dynamical core • Heating and kinetic energy dissipation • Tracer transport AMWG Meeting April 3-4, 2002

  8. Release of CAM to Community • CAM 2.0 and CCSM 2.0 will be released May 17 (’02) • Contents of release: • Model component source code; build and run scripts • Three dynamical cores: Eulerian, semi-Lagrange, and Finite Volume • Web-based documentation • User’s Guide (how to run the model) • Reference Guide (details of the code structure) • Scientific Guide (description of physics and dynamics) • Initial and boundary data sets • New SST and sea-ice concentration data • Model data sets: • AMIP-2 and climatological SST uncoupled integrations(Eulerian dynamics) AMWG Meeting April 3-4, 2002

  9. Computational Performance • Supported platforms: • Compaq • IBM-SP • Linux: Portland group and Lahey compilers • SGI • Sun • Performance: • 1 month per 32 wall-clock minutes on 32 IBM Power3 Pes • Equivalent to ~4 years per wall-clock day on same setup • Reduced grip speed-up: 25-30% (Eul. & SLD uncoupled only) AMWG Meeting April 3-4, 2002

  10. TOA Energy ComponentsFractional Land/Sea Ice vs “Integer” Representation AMWG Meeting April 3-4, 2002

  11. Surface Energy ComponentsFractional Land/Sea Ice vs “Integer” Representation AMWG Meeting April 3-4, 2002

  12. Surface Energy FluxesFractional Land/Sea Ice vs “Integer” Representation Latent Heat Flux Precipitation Rate AMWG Meeting April 3-4, 2002

  13. Surface TemperatureCSIM Thermodynamic Ice vs “Old” Ice Thermodynamics AMWG Meeting April 3-4, 2002

  14. Surface TemperatureCSIM Thermodynamic Ice vs “Old” Ice Thermodynamics AMWG Meeting April 3-4, 2002

  15. New Blended SST-Sea Ice Concentration Data Completed in collaboration with CVWG • blending technique developed by Jim Hurrell • blends HadISST 1949-1980 with Reynolds 1979-2001 • screening technique to ensure reasonable SST-sea ice relationship • PCMDI procedures for ensuring correctness of time interpolation • extensive quality control procedures Fifty-three year dataset (1949-2001) • can easily be extended as new SST data are created by NCEP • currently have completed 21 year control experiment (1979-2000) AMWG Meeting April 3-4, 2002

  16. Southern Oscillation Index AMWG Meeting April 3-4, 2002

  17. Southern Oscillation Index AMWG Meeting April 3-4, 2002

  18. Sea Ice, Snow Height, and Precipitation RateFractional Land/Sea Ice, CSIM Thermodynamics, New SST AMWG Meeting April 3-4, 2002

  19. General Simulation Properties/Framework Scientifically defensible & extendible framework • spectral Eulerian dynamics (reduced-grid capable) • T42 truncation • 26 levels • prognostic cloud water • generalized cloud overlap (plus requisite changes to LW & SW) • updated long wave water vapor absorption formulation • modified deep convection parameterization AMWG Meeting April 3-4, 2002

  20. General Simulation Properties/Framework Improvements in several important simulation features • precipitable water • precipitation distribution • eastern ocean solar energy budget • elements of eastern Pacific surface wind stress Degradations in simulation features • colder troposphere, particularly the tropical tropopause • tendency for more zonal double-ITCZ structure • warm surface temperature bias? AMWG Meeting April 3-4, 2002

  21. Temperature (coupled framework) AMWG Meeting April 3-4, 2002

  22. Surface Temperature (coupled framework) AMWG Meeting April 3-4, 2002

  23. Precipitable Water (coupled framework) AMWG Meeting April 3-4, 2002

  24. Precipitable Water (coupled framework) AMWG Meeting April 3-4, 2002

  25. Precipitation Rate (coupled framework) AMWG Meeting April 3-4, 2002

  26. Surface Stress (coupled framework) AMWG Meeting April 3-4, 2002

  27. Net Longwave Surface Fluxes (coupled) AMWG Meeting April 3-4, 2002

  28. Net Surface Energy Flux (coupled) AMWG Meeting April 3-4, 2002

  29. Surface Temperature (against obs) AMWG Meeting April 3-4, 2002

  30. Eastern Pacific Surface Stress AMWG Meeting April 3-4, 2002

  31. E. Pacific Surface Stress: Resolution Dependence? AMWG Meeting April 3-4, 2002

  32. Future Work Begin ensemble of ~50 year long control simulations • conducted in coordination with Climate Variability Working Group • will serve as the basis for documenting simulation characteristics Accelerate exploration of alternative dynamical frameworks • T31 paleo configuration (update for fractional surface formulation) • T85 configurations (Eulerian and semi-Lagrangian for now) • continued evaluation of simulations with finite-volume dynamical core Begin systematic investigation of specific simulation biases • AMWG should identify short list of prioritized projects • eastern ocean upwelling, double ITCZ, cold tropopause temps, ... • climate sensitivity, variability (e.g., MJO), ... • form teams to develop comprehensive scientific plan of attack • experimental strategy • diagnostic strategy AMWG Meeting April 3-4, 2002

  33. Future Work • AMWG research infrastructure • needs to be able to support research activities on multiple fronts • boundary layer • dynamical cores • stratiform clouds • middle atmosphere (e.g., WACM) • radiation parameterization alternatives • cumulus parameterization alternatives • AMWG diagnostic infrastructure • needs to continue to grow in scope and complexity • evaluate model behavior across wide range of time scales • include dominant modes of climate variability in standard analysis • continued involvement of other CCSM working groups AMWG Meeting April 3-4, 2002
