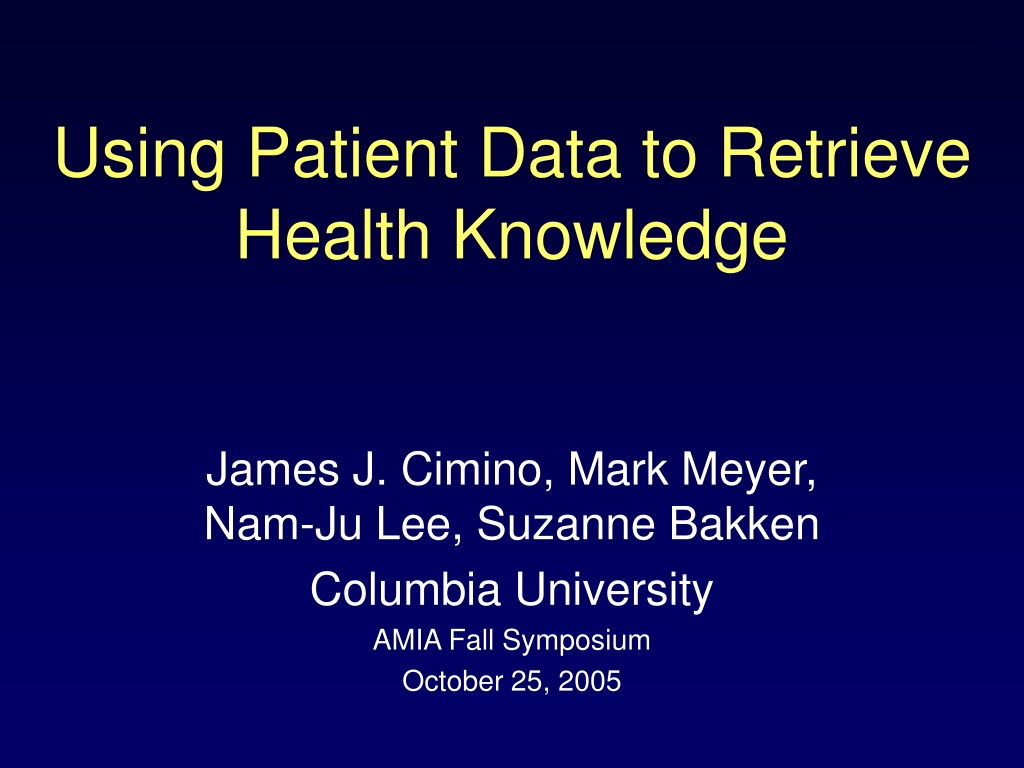

  1. Using Patient Data to Retrieve Health Knowledge James J. Cimino, Mark Meyer, Nam-Ju Lee, Suzanne Bakken Columbia University AMIA Fall Symposium October 25, 2005

  2. Automated Retrieval with Clinical Data 4 5 2 Automated Translation Get Information From EMR Resource Terminology 6 1 MRSA Querying Understand Information Needs 3 7 Resource Selection Presentation

  3. What’s Hardest about Infobuttons? • It’s not knowing the questions • It’s not integrating clinical info systems • It’s not linking to resources • It’s translating source data to target terms

  4. Automated Retrieval with Clinical Data 4 5 2 Automated Translation Get Information From EMR Resource Terminology 6 1 MRSA Querying Understand Information Needs 3 7 Resource Selection Presentation

  5. What’s Hardest about Infobuttons? • It’s not knowing the questions • It’s not integrating clinical info systems • It’s not linking to resources • It’s translating source data to target terms

  6. Types of Source Terminologies • Uncoded (narrative): • Radiology reports (?) "…infiltrate is seen in the left upper lobe." • Coded • Lab tests (6,133) AMIKACIN, PEAK LEVEL • Sensitivity tests (476) AMI 6 MCG/ML • Microbiology results (2,173) ESCHERECHIA COLI • Medications (15,311) UD AMIKACIN 1 GM VIAL

  7. Types of Target Terminologies • Narrative search: • PubMed • RxList • Up to Date • Micromedex • Lab Tests Online • OneLook • National Guideline Clearinghouse • Coded resource: • Lexicomp • CPMC Lab Manual • Coded search • PubMed

  8. The Experiments • Identify sources of patient data • Get random sample of terms for each source

  9. Term Samples • 100 terms from radiology reports using MedLEE • 100 Medication ingredients • 100 Lab test analytes • 100 Microbiology results • 94 Sensitivity test reagents

  10. The Experiments • Identify sources of patient data • Get random sample of terms for each source • Translate terms if needed (multiple methods) • Perform automated retrieval with terms

  11. Searches Performed Narrative Concept Concept Resource Resource Search Un- Coded C o d e d

  12. Mapping Methods • Microbiology results to MeSH: • Semi-automated • Lab tests to MeSH analytes: • Automated, using UMLS • Medications to Lexicomp: • Natural language processing • Lab tests to CPMC Lab Manual: • Manual matching

  13. Results: Multiple Documents Retrieval success is represented as percent of terms that successfully retrieved any results; numbers in parentheses indicate average numbers of results (citations, documents, topics, definitions, etc., depending on the target resource) for those searches that retrieved at least one result.

  14. Uncoded versus Coded Searches • 1,028/2,173 (47.3%) of microbiology tests terms mapped to MeSH • 940/1041 (90.3%) of lab analytes mapped to LOINC • 485/940 (51.6%) LOINC analytes mapped to MeSH

  15. Results: Single Document Retrieval success is represented as percent of terms that successfully retrieved any results; numbers in parentheses indicate average numbers of results (citations, documents, topics, definitions, etc., depending on the target resource) for those searches that retrieved at least one result.

  16. Results: Page of Links Results for Rx List and Micromedex are difficult to quantify, because they provided heterogeneous lists of links; rather than provide link counts, we assessed the true positive and false negative rates, shown in brackets.

  17. Micromedex versus RXList 194 Terms 9 missed by both RxList: 163 Micromedex: 180 158 Terms found by both 5 found by RxList but missed by Micromedex 22 found by Micromedex but missed by RxList

  18. See For Yourself! www.dbmi.columbia.edu/cimino/2005amia-data.html

  19. Discussion • 7 sources, 894 terms, 11 resources, 1,592 searches • Automated retrieval is technically possible • Found something 73-100% of the time • 12/16 experiments “succeeded” 94-100% • Translation often unsuccessful • Automated indexing works • Usefulness of translation to MeSH is marginal • Good quality when retrieving pages of links (Micromedex and RxList) • Good quality when with concept-indexed resources • Recall/precision of document retrievals unknown • Need to define the question • Additional evaluation needed

  20. Next Steps • Creation of terminology management and indexing suite • Formal analysis of qualities of answers

  21. Acknowledgments This work is supported in part by NLM grants R01LM07593 and R01LM07659 and NLM Training Grants LM07079-11 and P20NR007799.
