  1. Elements of a Good Concrete Pipe Specification David JP Matocha Technical Resource ManagerHanson Pipe & Precast

  2. A buried pipeline is a Structural System This structural system must consider both the Properties of the Pipe and the Properties of the Soil…

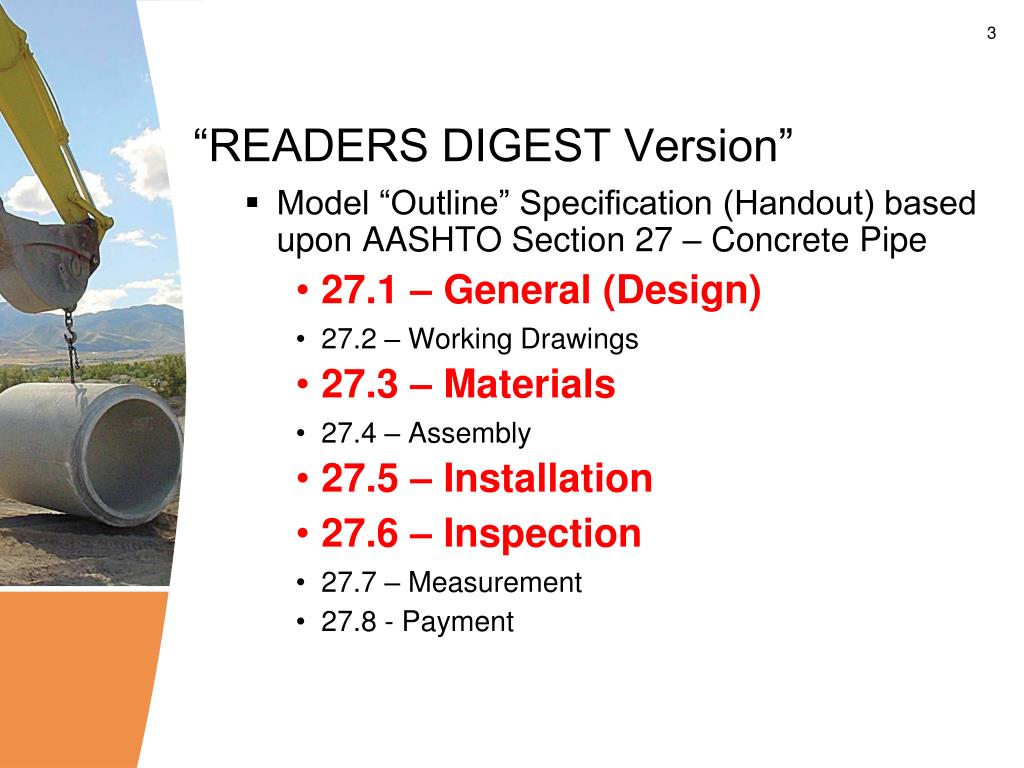

  3. “READERS DIGEST Version” • Model “Outline” Specification (Handout) based upon AASHTO Section 27 – Concrete Pipe • 27.1 – General (Design) • 27.2 – Working Drawings • 27.3 – Materials • 27.4 – Assembly • 27.5 – Installation • 27.6 – Inspection • 27.7 – Measurement • 27.8 - Payment

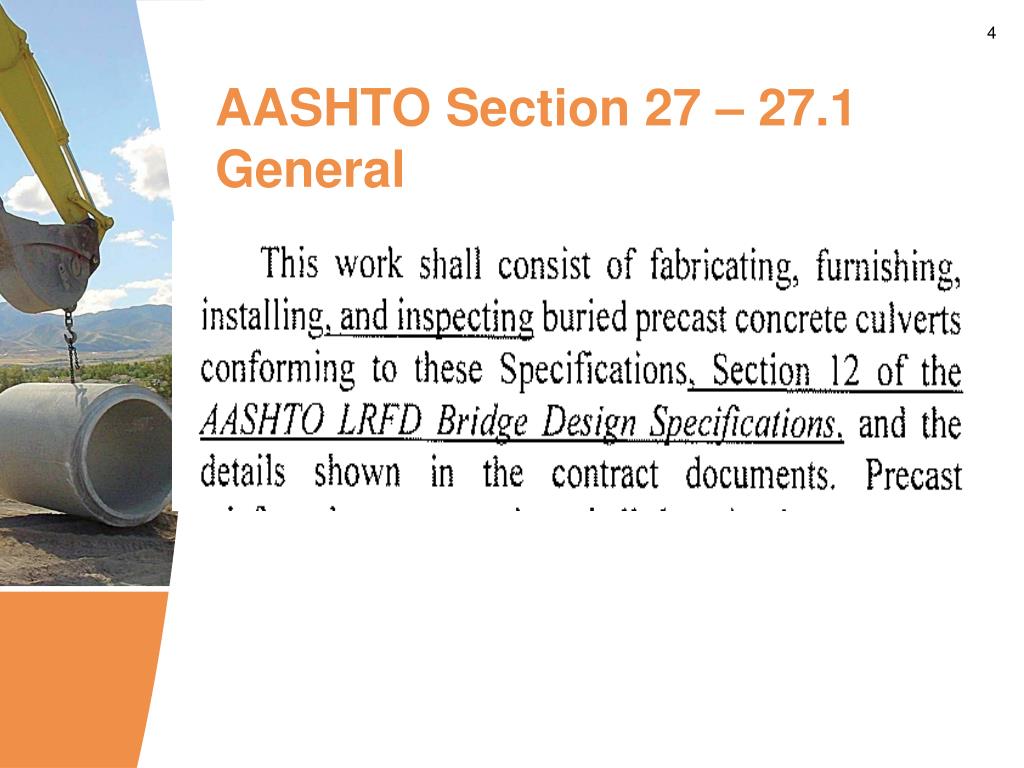

  4. AASHTO Section 27 – 27.1 General

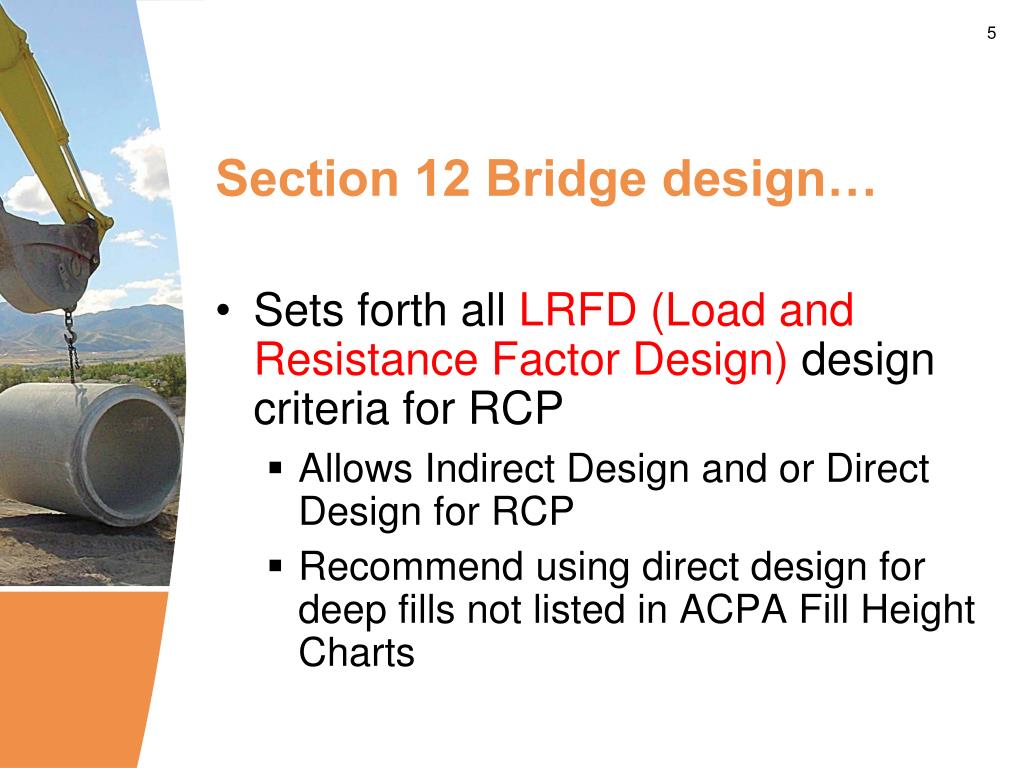

  5. Section 12 Bridge design… • Sets forth all LRFD (Load and Resistance Factor Design) design criteria for RCP • Allows Indirect Design and or Direct Design for RCP • Recommend using direct design for deep fills not listed in ACPA Fill Height Charts

  6. Indirect Design • Calculate LRFD live load, dead load, fluid load • Takes soil/installation contribution into consideration • Calculate load on pipe in lbs/ dia (ft) / length(ft) • Determines strength class of pipe required (ASTM C-76) • Steel areas and concrete compressive strength set forth in AASHTO M 170/ASTM C-76

  7. Tools for Structural Pipe Design

  8. AASHTO Section 27 – 27.3 MATERIALS • Pipe Manufacturing Materials • Joint Materials

  9. 27.3 Pipe Manufacturing Material Specifications

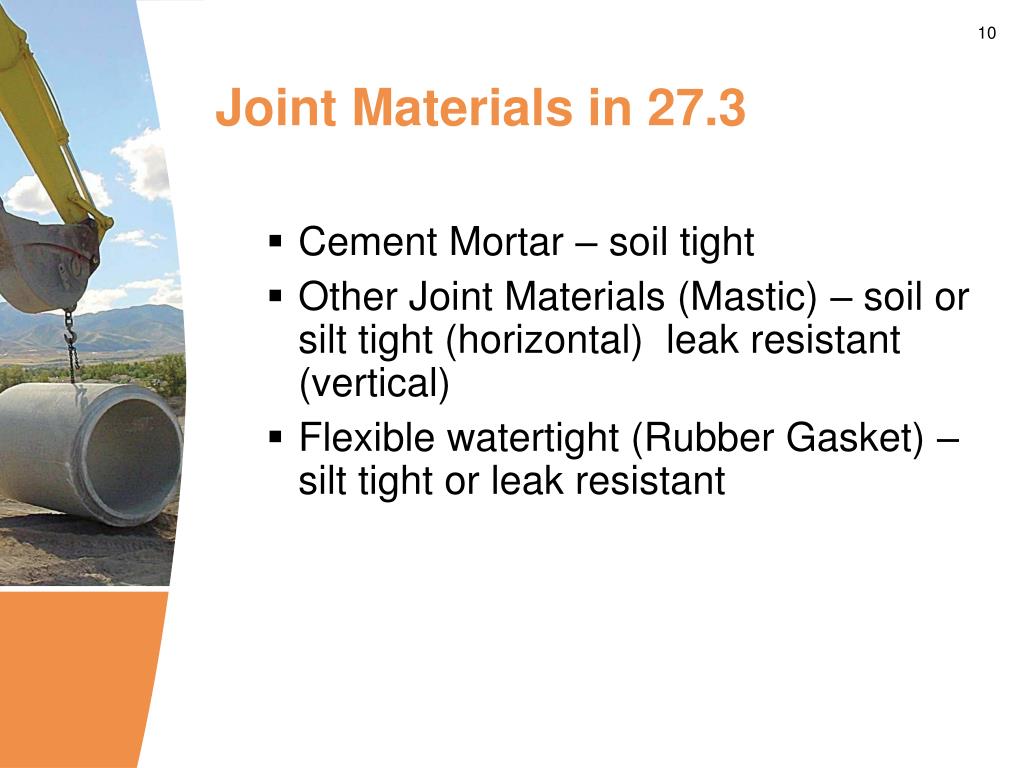

  10. Joint Materials in 27.3 • Cement Mortar – soil tight • Other Joint Materials (Mastic) – soil or silt tight (horizontal) leak resistant (vertical) • Flexible watertight (Rubber Gasket) – silt tight or leak resistant

  11. ***AASHTO PP 63-09*** Pipe Joint Performance Parameters AASHTO Joint Selection Criteria = performance parameters divided into a hierarchy with 4 main sub-groups: • Special Design (Water Tight) • Leak Resistant • Silt Tight • Soil Tight

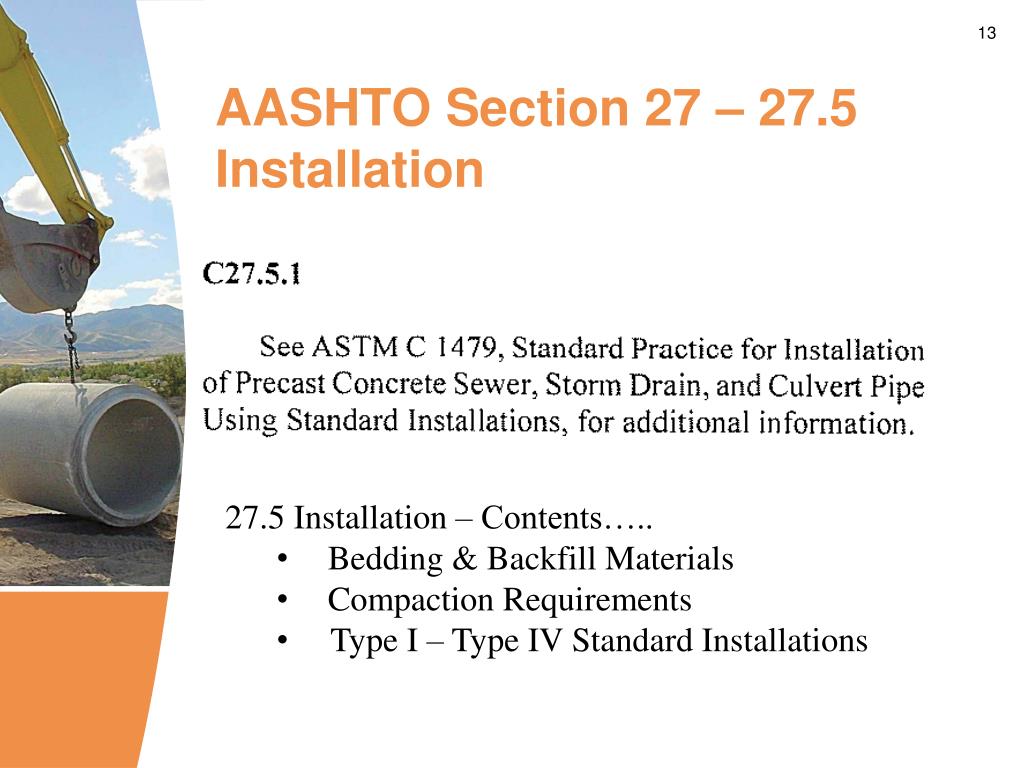

  12. AASHTO Section 27 – 27.5Installation • 27.5 Installation – Contents….. • Bedding & Backfill Materials • Compaction Requirements • Type I – Type IV Standard Installations

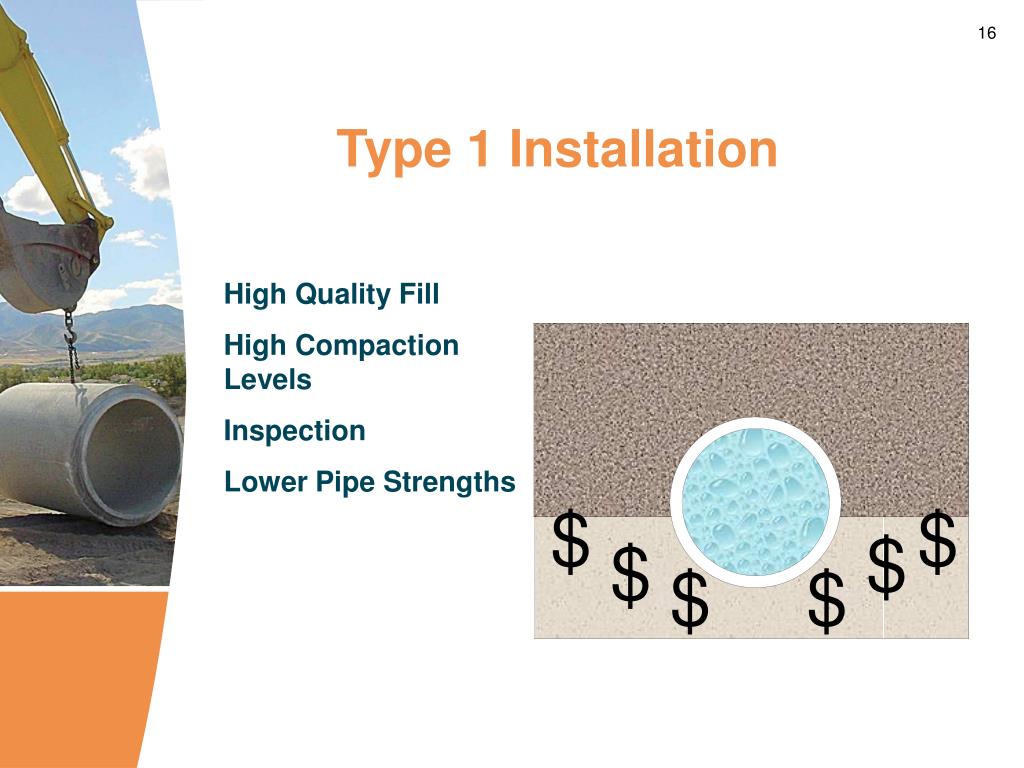

  13. $ $ $ $ $ $ Type 1 Installation High Quality Fill High Compaction Levels Inspection Lower Pipe Strengths

  14. Type 1 Installation

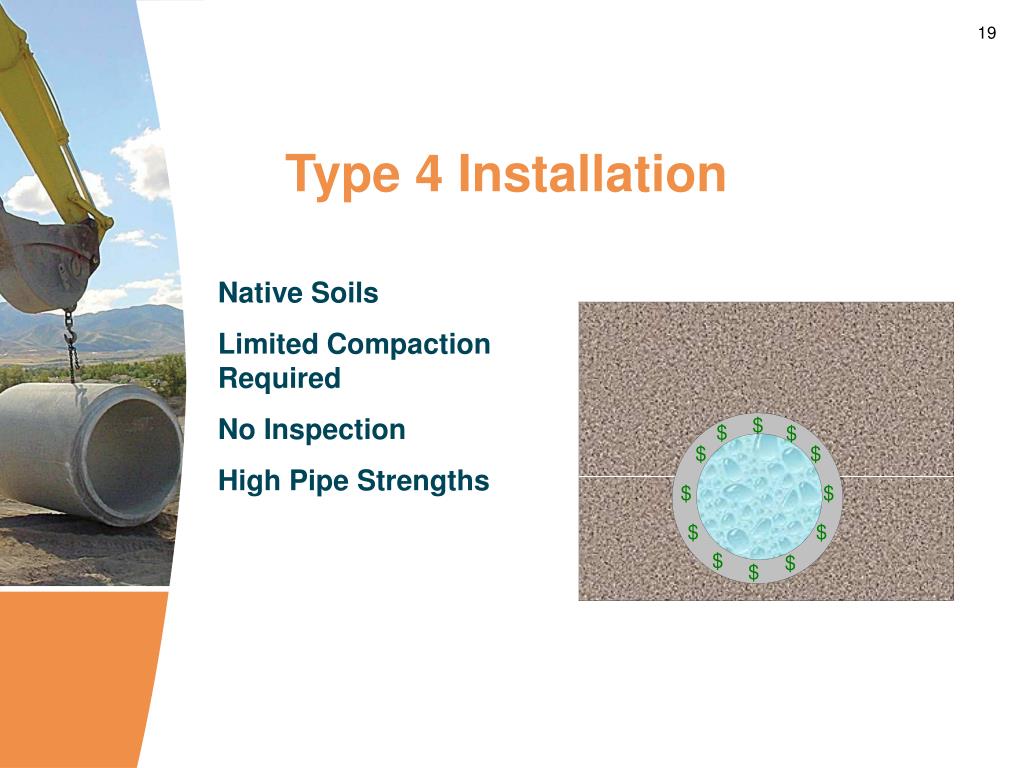

  15. $ $ $ $ $ $ $ $ $ $ $ $ Type 4 Installation Native Soils Limited Compaction Required No Inspection High Pipe Strengths

  16. Type 4 Installation

  17. AASHTO Section 27 – 27.6Field Inspection • 27.6 Inspection – Contents….. • Misalignment • Cracks • Spalls & Slabing
