  1. Bioinformatics for your classroom No programming skills needed Familiarity with personal computer and internet browser Customizable and free NCBI BLAST Seth Bordenstein Discover the Microbes Within! March 12, 2006

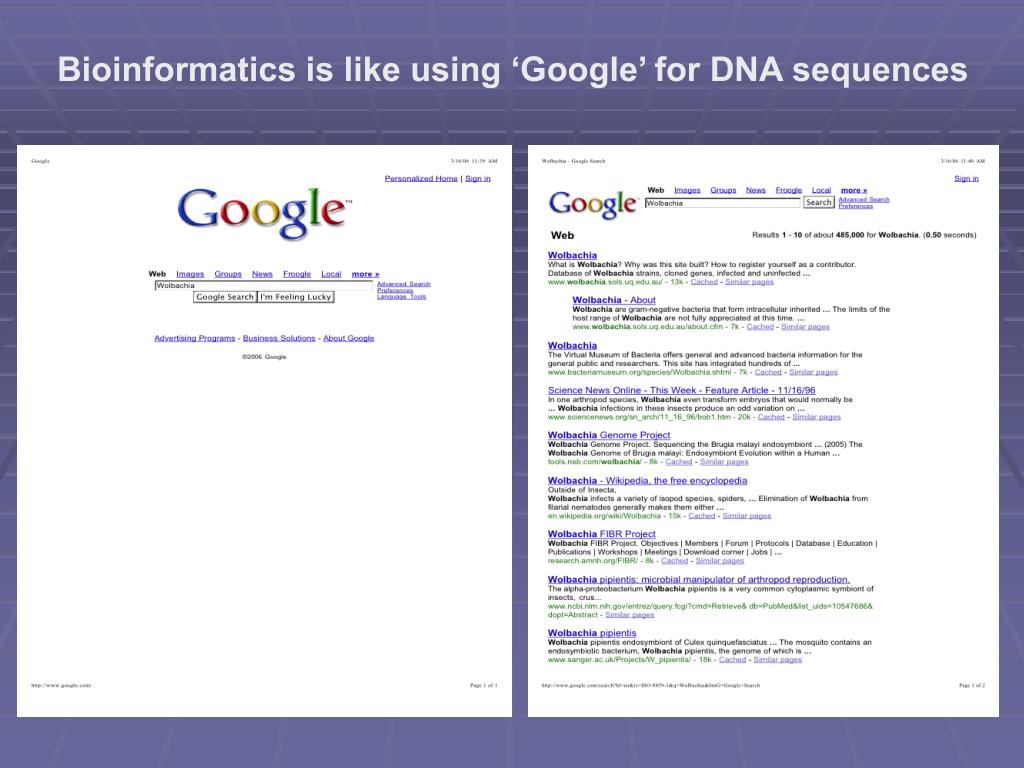

  2. Bioinformatics is like using ‘Google’ for DNA sequences

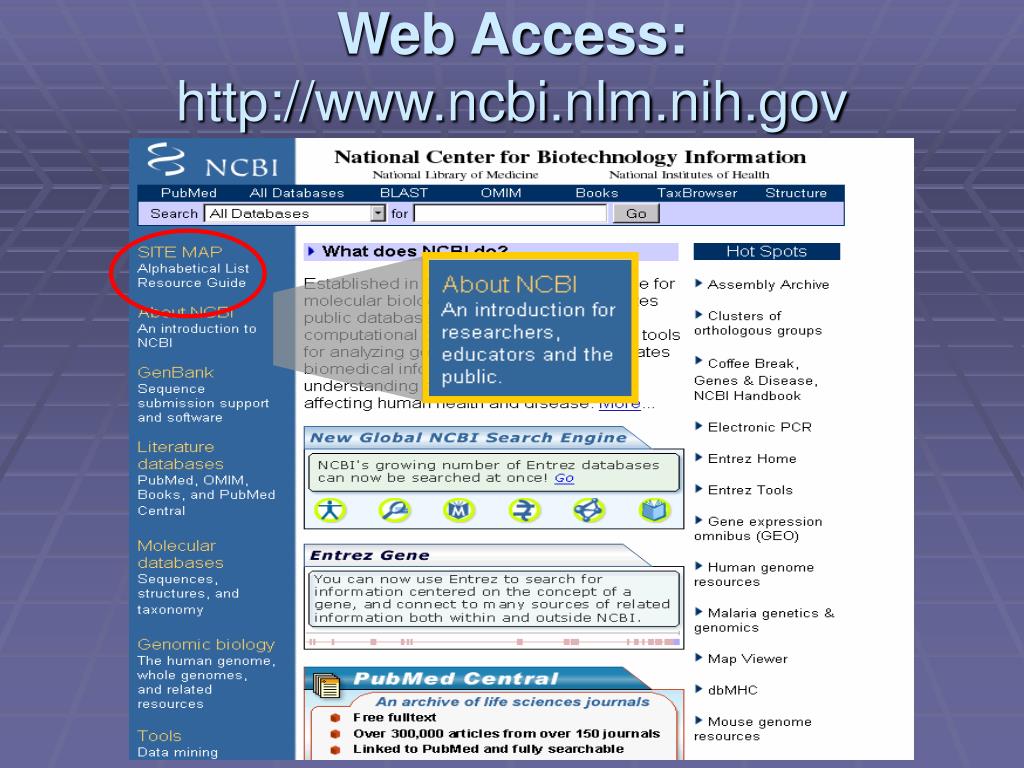

  3. Web Access:http://www.ncbi.nlm.nih.gov

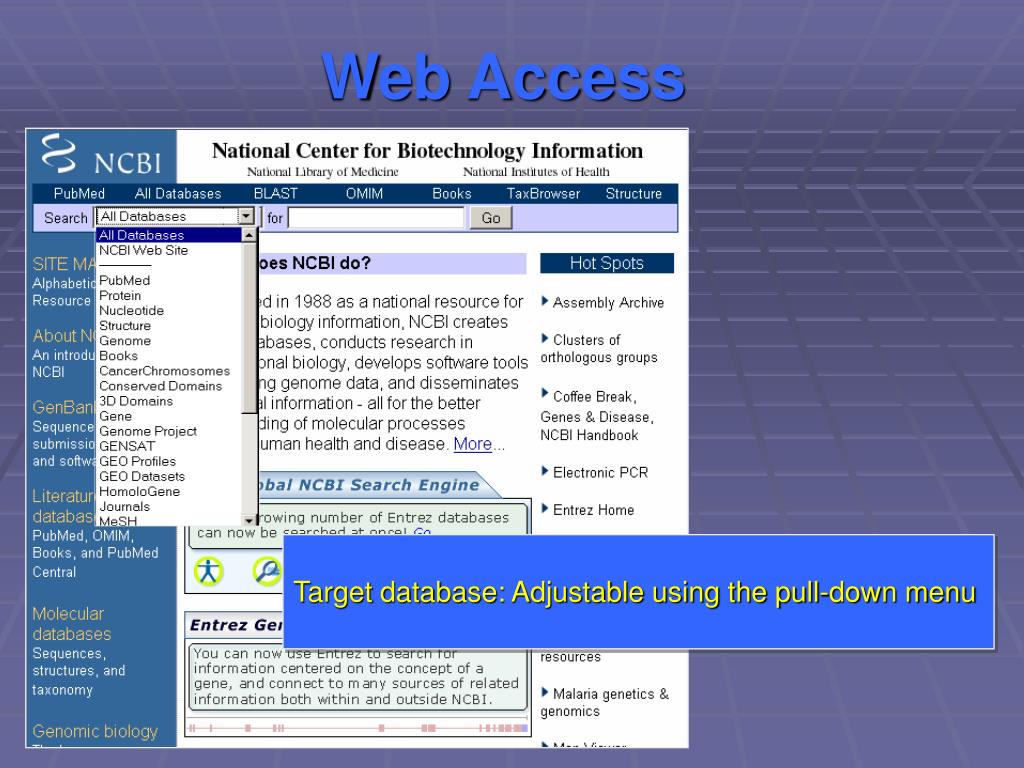

  4. Web Access Target database: Adjustable using the pull-down menu

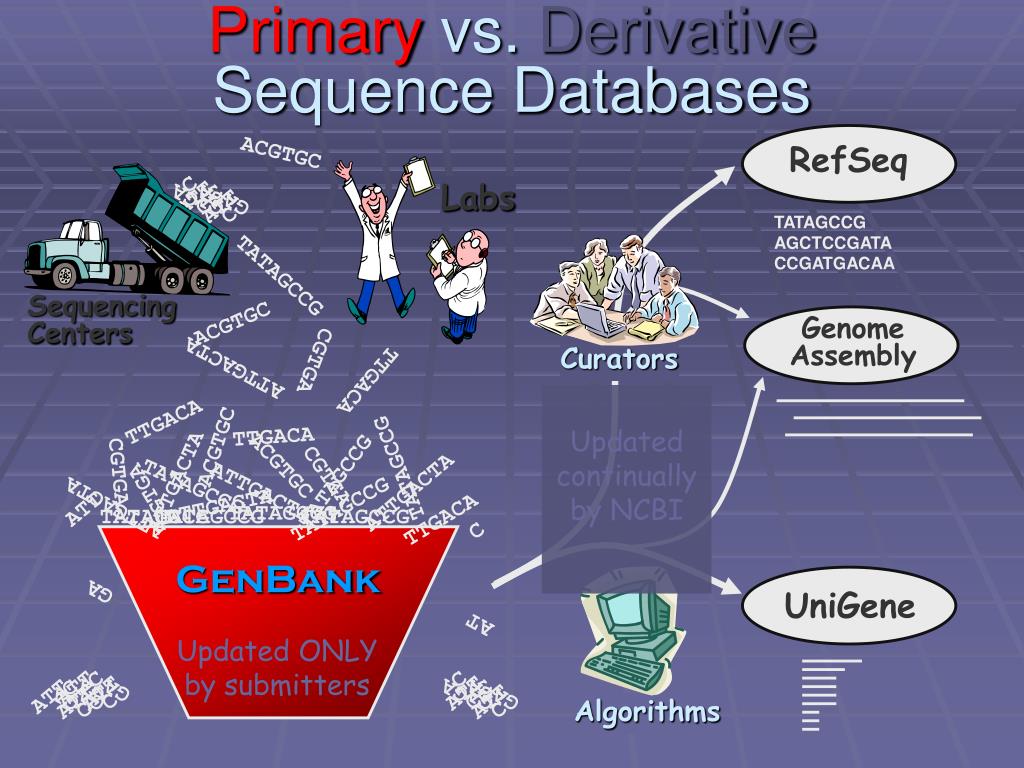

  5. ACGTGC C C GA GA ATT GA GA C ATT C TATAGCCG AGCTCCGATA CCGATGACAA RefSeq TATAGCCG ACGTGC Curators CGTGA ATTGACTA TTGACA Genome Assembly TTGACA TTGACA ACGTGC ACGTGC TATAGCCG CGTGA CGTGA TATAGCCG ATTGACTA TATAGCCG ATTGACTA ATTGACTA CGTGA ATTGACTA ATTGACTA ATT TATAGCCG TATAGCCG TATAGCCG TATAGCCG TATAGCCG TTGACA C GenBank UniGene GA AT C C C C ATT GA GA GA GA ATT ATT ATT Algorithms GA GA GA GA C C ATT ATT C C Primary vs. DerivativeSequence Databases Labs Sequencing Centers Updated continually by NCBI Updated ONLY by submitters

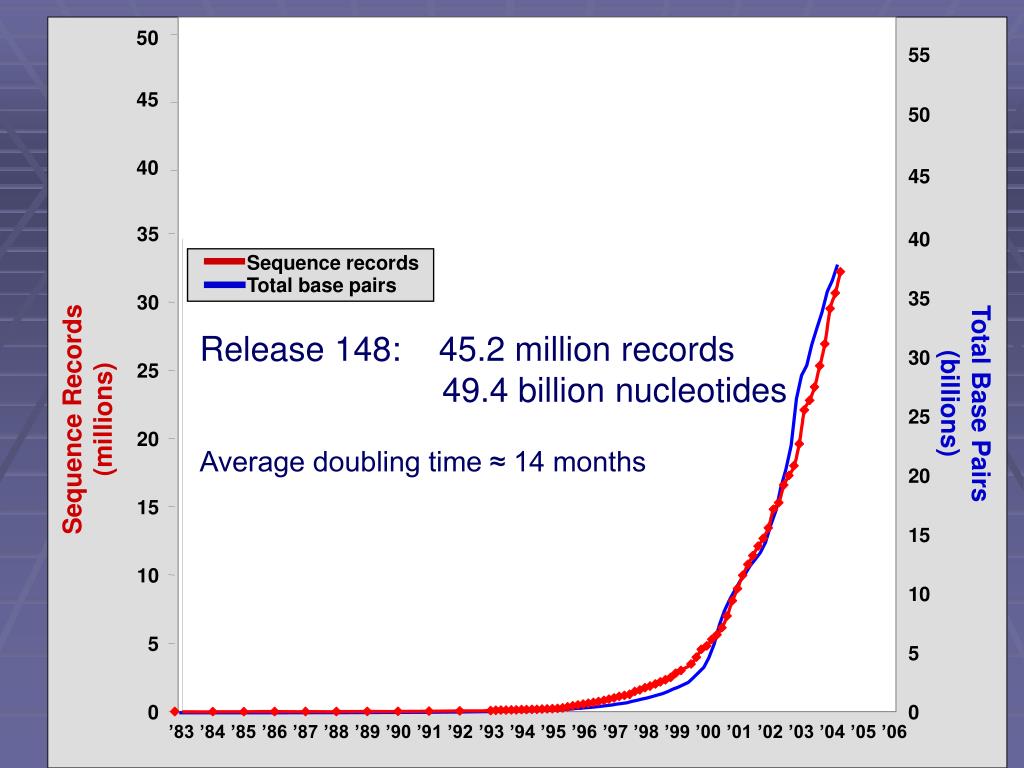

  6. Sequence records • Total base pairs 50 55 45 50 40 45 35 40 35 30 Release 148: 45.2 million records 49.4 billion nucleotides Average doubling time ≈ 14 months 30 25 Total Base Pairs (billions) Sequence Records (millions) 25 20 20 15 15 10 10 5 5 0 0 ’83 ’84 ’85 ’86 ’87 ’88 ’89 ’90 ’91 ’92 ’93 ’94 ’95 ’96 ’97 ’98 ’99 ’00 ’01 ’02 ’03 ’04 ’05 ’06

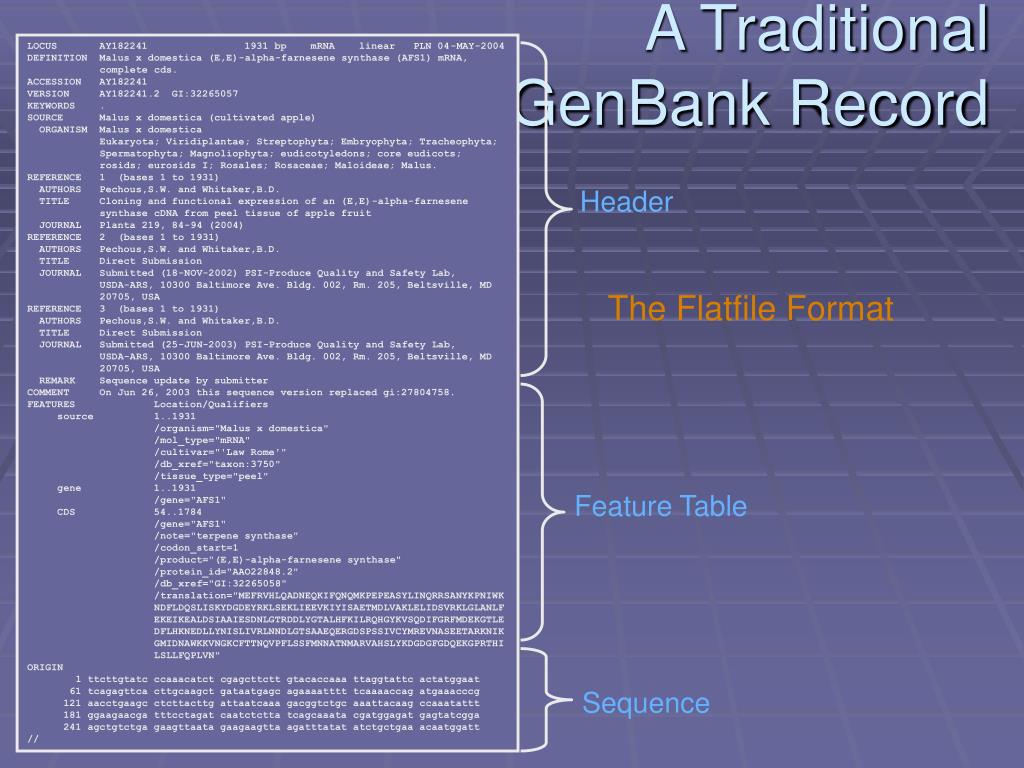

  7. Header Feature Table Sequence A TraditionalGenBank Record LOCUS AY182241 1931 bp mRNA linear PLN 04-MAY-2004 DEFINITION Malus x domestica (E,E)-alpha-farnesene synthase (AFS1) mRNA, complete cds. ACCESSION AY182241 VERSION AY182241.2 GI:32265057 KEYWORDS . SOURCE Malus x domestica (cultivated apple) ORGANISM Malus x domestica Eukaryota; Viridiplantae; Streptophyta; Embryophyta; Tracheophyta; Spermatophyta; Magnoliophyta; eudicotyledons; core eudicots; rosids; eurosids I; Rosales; Rosaceae; Maloideae; Malus. REFERENCE 1 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Cloning and functional expression of an (E,E)-alpha-farnesene synthase cDNA from peel tissue of apple fruit JOURNAL Planta 219, 84-94 (2004) REFERENCE 2 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Direct Submission JOURNAL Submitted (18-NOV-2002) PSI-Produce Quality and Safety Lab, USDA-ARS, 10300 Baltimore Ave. Bldg. 002, Rm. 205, Beltsville, MD 20705, USA REFERENCE 3 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Direct Submission JOURNAL Submitted (25-JUN-2003) PSI-Produce Quality and Safety Lab, USDA-ARS, 10300 Baltimore Ave. Bldg. 002, Rm. 205, Beltsville, MD 20705, USA REMARK Sequence update by submitter COMMENT On Jun 26, 2003 this sequence version replaced gi:27804758. FEATURES Location/Qualifiers source 1..1931 /organism="Malus x domestica" /mol_type="mRNA" /cultivar="'Law Rome'" /db_xref="taxon:3750" /tissue_type="peel" gene 1..1931 /gene="AFS1" CDS 54..1784 /gene="AFS1" /note="terpene synthase" /codon_start=1 /product="(E,E)-alpha-farnesene synthase" /protein_id="AAO22848.2" /db_xref="GI:32265058" /translation="MEFRVHLQADNEQKIFQNQMKPEPEASYLINQRRSANYKPNIWK NDFLDQSLISKYDGDEYRKLSEKLIEEVKIYISAETMDLVAKLELIDSVRKLGLANLF EKEIKEALDSIAAIESDNLGTRDDLYGTALHFKILRQHGYKVSQDIFGRFMDEKGTLE DFLHKNEDLLYNISLIVRLNNDLGTSAAEQERGDSPSSIVCYMREVNASEETARKNIK GMIDNAWKKVNGKCFTTNQVPFLSSFMNNATNMARVAHSLYKDGDGFGDQEKGPRTHI LSLLFQPLVN" ORIGIN 1 ttcttgtatc ccaaacatct cgagcttctt gtacaccaaa ttaggtattc actatggaat 61 tcagagttca cttgcaagct gataatgagc agaaaatttt tcaaaaccag atgaaacccg 121 aacctgaagc ctcttacttg attaatcaaa gacggtctgc aaattacaag ccaaatattt 181 ggaagaacga tttcctagat caatctctta tcagcaaata cgatggagat gagtatcgga 241 agctgtctga gaagttaata gaagaagtta agatttatat atctgctgaa acaatggatt // The Flatfile Format

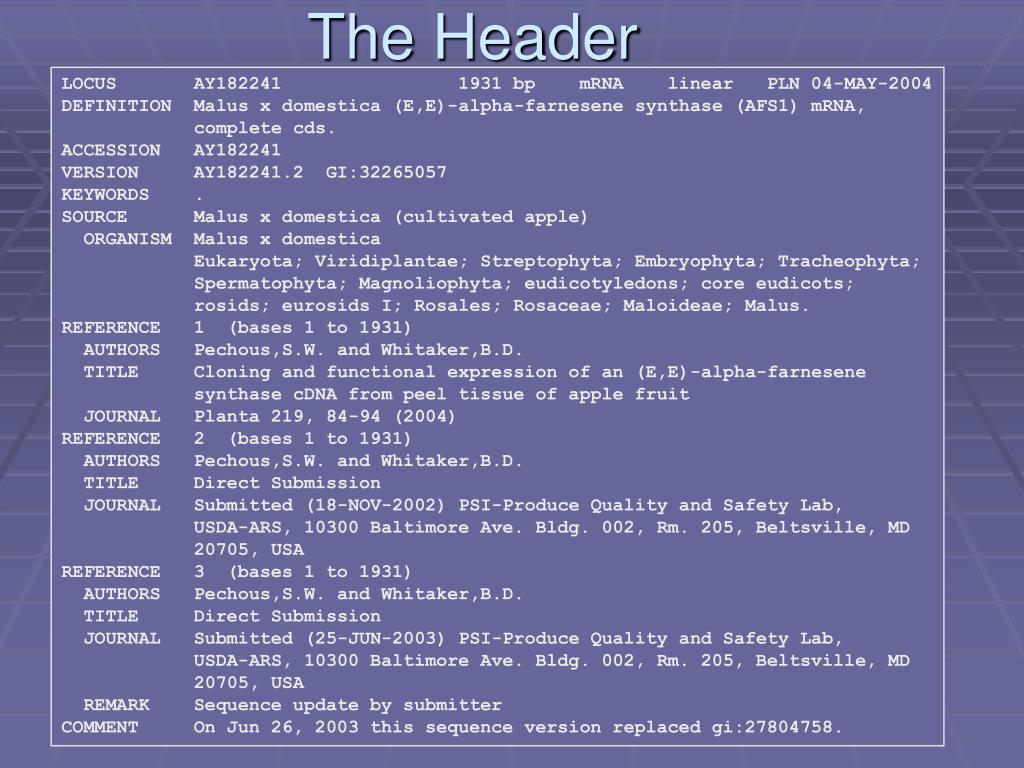

  8. The Header LOCUS AY182241 1931 bp mRNA linear PLN 04-MAY-2004 DEFINITION Malus x domestica (E,E)-alpha-farnesene synthase (AFS1) mRNA, complete cds. ACCESSION AY182241 VERSION AY182241.2 GI:32265057 KEYWORDS . SOURCE Malus x domestica (cultivated apple) ORGANISM Malus x domestica Eukaryota; Viridiplantae; Streptophyta; Embryophyta; Tracheophyta; Spermatophyta; Magnoliophyta; eudicotyledons; core eudicots; rosids; eurosids I; Rosales; Rosaceae; Maloideae; Malus. REFERENCE 1 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Cloning and functional expression of an (E,E)-alpha-farnesene synthase cDNA from peel tissue of apple fruit JOURNAL Planta 219, 84-94 (2004) REFERENCE 2 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Direct Submission JOURNAL Submitted (18-NOV-2002) PSI-Produce Quality and Safety Lab, USDA-ARS, 10300 Baltimore Ave. Bldg. 002, Rm. 205, Beltsville, MD 20705, USA REFERENCE 3 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Direct Submission JOURNAL Submitted (25-JUN-2003) PSI-Produce Quality and Safety Lab, USDA-ARS, 10300 Baltimore Ave. Bldg. 002, Rm. 205, Beltsville, MD 20705, USA REMARK Sequence update by submitter COMMENT On Jun 26, 2003 this sequence version replaced gi:27804758.

  9. Length Division Molecule type Locus name Modification Date Header: Locus Line LOCUS AY182241 1931 bp mRNA linear PLN 04-MAY-2004 DEFINITION Malus x domestica (E,E)-alpha-farnesene synthase (AFS1) mRNA, complete cds. ACCESSION AY182241 VERSION AY182241.2 GI:32265057 KEYWORDS . SOURCE Malus x domestica (cultivated apple) ORGANISM Malus x domestica Eukaryota; Viridiplantae; Streptophyta; Embryophyta; Tracheophyta; Spermatophyta; Magnoliophyta; eudicotyledons; core eudicots; rosids; eurosids I; Rosales; Rosaceae; Maloideae; Malus. REFERENCE 1 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Cloning and functional expression of an (E,E)-alpha-farnesene synthase cDNA from peel tissue of apple fruit JOURNAL Planta 219, 84-94 (2004) REFERENCE 2 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Direct Submission JOURNAL Submitted (18-NOV-2002) PSI-Produce Quality and Safety Lab, USDA-ARS, 10300 Baltimore Ave. Bldg. 002, Rm. 205, Beltsville, MD 20705, USA REFERENCE 3 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Direct Submission JOURNAL Submitted (25-JUN-2003) PSI-Produce Quality and Safety Lab, USDA-ARS, 10300 Baltimore Ave. Bldg. 002, Rm. 205, Beltsville, MD 20705, USA REMARK Sequence update by submitter COMMENT On Jun 26, 2003 this sequence version replaced gi:27804758. LOCUS AY182241 1931 bp mRNA linear PLN 04-MAY-2004

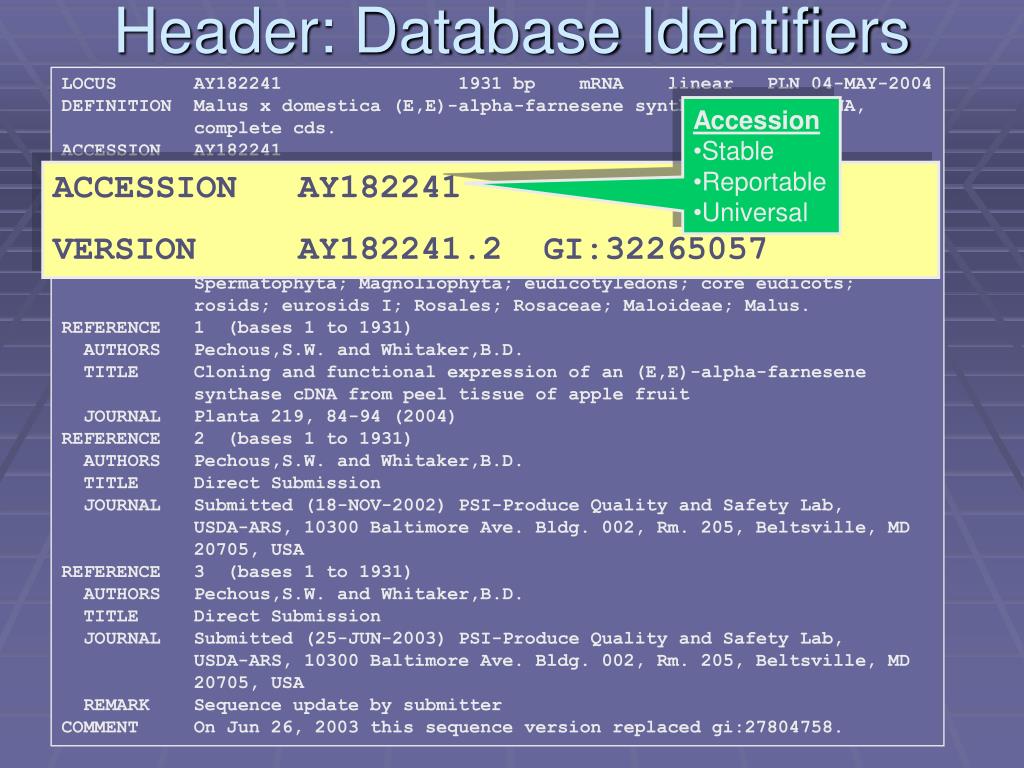

  10. Header: Database Identifiers LOCUS AY182241 1931 bp mRNA linear PLN 04-MAY-2004 DEFINITION Malus x domestica (E,E)-alpha-farnesene synthase (AFS1) mRNA, complete cds. ACCESSION AY182241 VERSION AY182241.2 GI:32265057 KEYWORDS . SOURCE Malus x domestica (cultivated apple) ORGANISM Malus x domestica Eukaryota; Viridiplantae; Streptophyta; Embryophyta; Tracheophyta; Spermatophyta; Magnoliophyta; eudicotyledons; core eudicots; rosids; eurosids I; Rosales; Rosaceae; Maloideae; Malus. REFERENCE 1 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Cloning and functional expression of an (E,E)-alpha-farnesene synthase cDNA from peel tissue of apple fruit JOURNAL Planta 219, 84-94 (2004) REFERENCE 2 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Direct Submission JOURNAL Submitted (18-NOV-2002) PSI-Produce Quality and Safety Lab, USDA-ARS, 10300 Baltimore Ave. Bldg. 002, Rm. 205, Beltsville, MD 20705, USA REFERENCE 3 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Direct Submission JOURNAL Submitted (25-JUN-2003) PSI-Produce Quality and Safety Lab, USDA-ARS, 10300 Baltimore Ave. Bldg. 002, Rm. 205, Beltsville, MD 20705, USA REMARK Sequence update by submitter COMMENT On Jun 26, 2003 this sequence version replaced gi:27804758. • Accession • Stable • Reportable • Universal ACCESSION AY182241 VERSION AY182241.2 GI:32265057

  11. Header: Organism LOCUS AY182241 1931 bp mRNA linear PLN 04-MAY-2004 DEFINITION Malus x domestica (E,E)-alpha-farnesene synthase (AFS1) mRNA, complete cds. ACCESSION AY182241 VERSION AY182241.2 GI:32265057 KEYWORDS . SOURCE Malus x domestica (cultivated apple) ORGANISM Malus x domestica Eukaryota; Viridiplantae; Streptophyta; Embryophyta; Tracheophyta; Spermatophyta; Magnoliophyta; eudicotyledons; core eudicots; rosids; eurosids I; Rosales; Rosaceae; Maloideae; Malus. REFERENCE 1 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Cloning and functional expression of an (E,E)-alpha-farnesene synthase cDNA from peel tissue of apple fruit JOURNAL Planta 219, 84-94 (2004) REFERENCE 2 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Direct Submission JOURNAL Submitted (18-NOV-2002) PSI-Produce Quality and Safety Lab, USDA-ARS, 10300 Baltimore Ave. Bldg. 002, Rm. 205, Beltsville, MD 20705, USA REFERENCE 3 (bases 1 to 1931) AUTHORS Pechous,S.W. and Whitaker,B.D. TITLE Direct Submission JOURNAL Submitted (25-JUN-2003) PSI-Produce Quality and Safety Lab, USDA-ARS, 10300 Baltimore Ave. Bldg. 002, Rm. 205, Beltsville, MD 20705, USA REMARK Sequence update by submitter COMMENT On Jun 26, 2003 this sequence version replaced gi:27804758. SOURCE Malus x domestica (cultivated apple) ORGANISM Malus x domestica Eukaryota; Viridiplantae; Streptophyta; Embryophyta; Tracheophyta; Spermatophyta; Magnoliophyta; eudicotyledons; core eudicots; rosids; eurosids I; Rosales; Rosaceae; Maloideae; Malus. NCBI-controlled taxonomy

  12. The Feature Table FEATURES Location/Qualifiers source 1..1931 /organism="Malus x domestica" /mol_type="mRNA" /cultivar="'Law Rome'" /db_xref="taxon:3750" /tissue_type="peel" gene 1..1931 /gene="AFS1" CDS 54..1784 /gene="AFS1" /note="terpene synthase" /codon_start=1 /product="(E,E)-alpha-farnesene synthase" /protein_id="AAO22848.2" /db_xref="GI:32265058" /translation="MEFRVHLQADNEQKIFQNQMKPEPEASYLINQRRSANYKPNIWK NDFLDQSLISKYDGDEYRKLSEKLIEEVKIYISAETMDLVAKLELIDSVRKLGLANLF EKEIKEALDSIAAIESDNLGTRDDLYGTALHFKILRQHGYKVSQDIFGRFMDEKGTLE NHHFAHLKGMLELFEASNLGFEGEDILDEAKASLTLALRDSGHICYPDSNLSRDVVHS LELPSHRRVQWFDVKWQINAYEKDICRVNATLLELAKLNFNVVQAQLQKNLREASRWW ANLGIADNLKFARDRLVECFACAVGVAFEPEHSSFRICLTKVINLVLIIDDVYDIYGS EEELKHFTNAVDRWDSRETEQLPECMKMCFQVLYNTTCEIAREIEEENGWNQVLPQLT KVWADFCKALLVEAEWYNKSHIPTLEEYLRNGCISSSVSVLLVHSFFSITHEGTKEMA DFLHKNEDLLYNISLIVRLNNDLGTSAAEQERGDSPSSIVCYMREVNASEETARKNIK GMIDNAWKKVNGKCFTTNQVPFLSSFMNNATNMARVAHSLYKDGDGFGDQEKGPRTHI LSLLFQPLVN" start (atg) stop (tag) Coding sequence

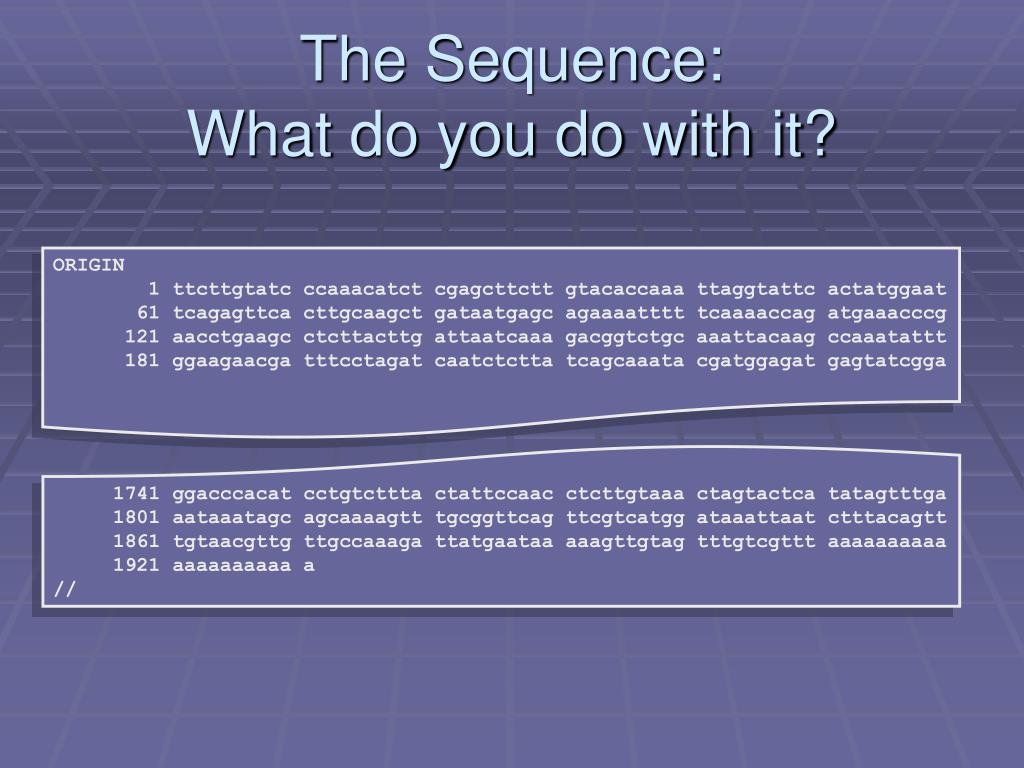

  13. The Sequence: What do you do with it? ORIGIN 1 ttcttgtatc ccaaacatct cgagcttctt gtacaccaaa ttaggtattc actatggaat 61 tcagagttca cttgcaagct gataatgagc agaaaatttt tcaaaaccag atgaaacccg 121 aacctgaagc ctcttacttg attaatcaaa gacggtctgc aaattacaag ccaaatattt 181 ggaagaacga tttcctagat caatctctta tcagcaaata cgatggagat gagtatcgga 1741 ggacccacat cctgtcttta ctattccaac ctcttgtaaa ctagtactca tatagtttga 1801 aataaatagc agcaaaagtt tgcggttcag ttcgtcatgg ataaattaat ctttacagtt 1861 tgtaacgttg ttgccaaaga ttatgaataa aaagttgtag tttgtcgttt aaaaaaaaaa 1921 aaaaaaaaaa a //

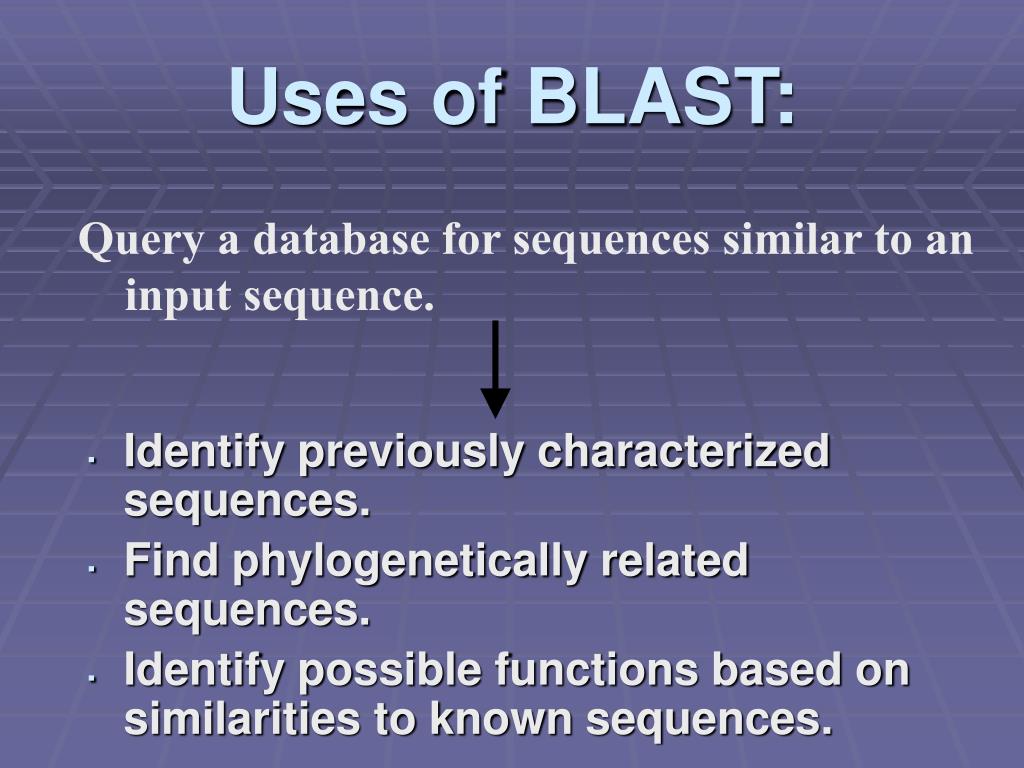

  14. Uses of BLAST: • Identify previously characterized sequences. • Find phylogenetically related sequences. • Identify possible functions based on similarities to known sequences. Query a database for sequences similar to an input sequence.

  15. The different versions of BLAST

  16. Advantages of using an online exercise for Bioinformatics: • The real experience; Interactive for self-inquiry • Continuously updateable with suggestions • Links education with technology • Uses the computer - a friendly tool to students • Free and no supply costs if you have computers • You can start this tutorial on Monday! Let’s Begin Our Bioinformatic Exercise! http://serc.carleton.edu/microbelife/k12/bioinformatics/module1.html
