  1. Partition Into Triangleson Bounded Degree Graphs Johan M. M. van Rooij Marcel E. van KootenNiekerk Hans L. Bodlaender

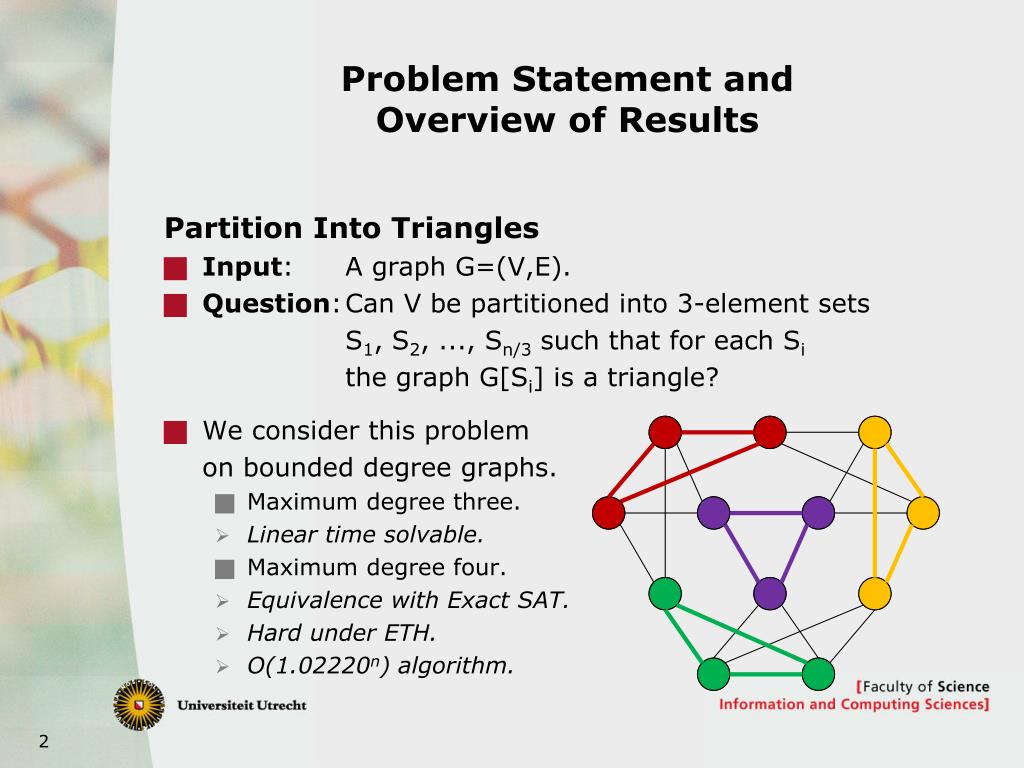

  2. Problem Statement andOverview of Results Partition Into Triangles • Input: A graph G=(V,E). • Question: Can V be partitioned into 3-element sets S1, S2, ..., Sn/3 such that for each Si the graph G[Si] is a triangle? • We consider this problem on bounded degree graphs. • Maximum degree three. • Linear time solvable. • Maximum degree four. • Equivalence with Exact SAT. • Hard under ETH. • O(1.02220n) algorithm.

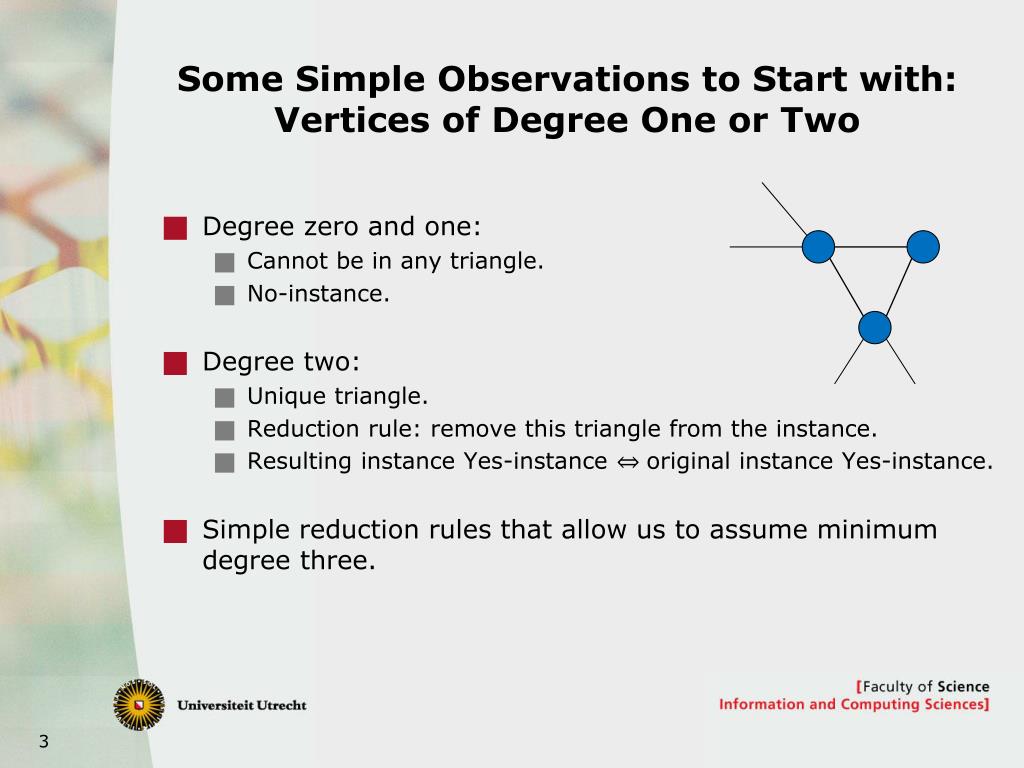

  3. Some Simple Observations to Start with:Vertices of Degree One or Two • Degree zero and one: • Cannot be in any triangle. • No-instance. • Degree two: • Unique triangle. • Reduction rule: remove this triangle from the instance. • Resulting instance Yes-instance ⇔original instance Yes-instance. • Simple reduction rules that allow us to assume minimum degree three.

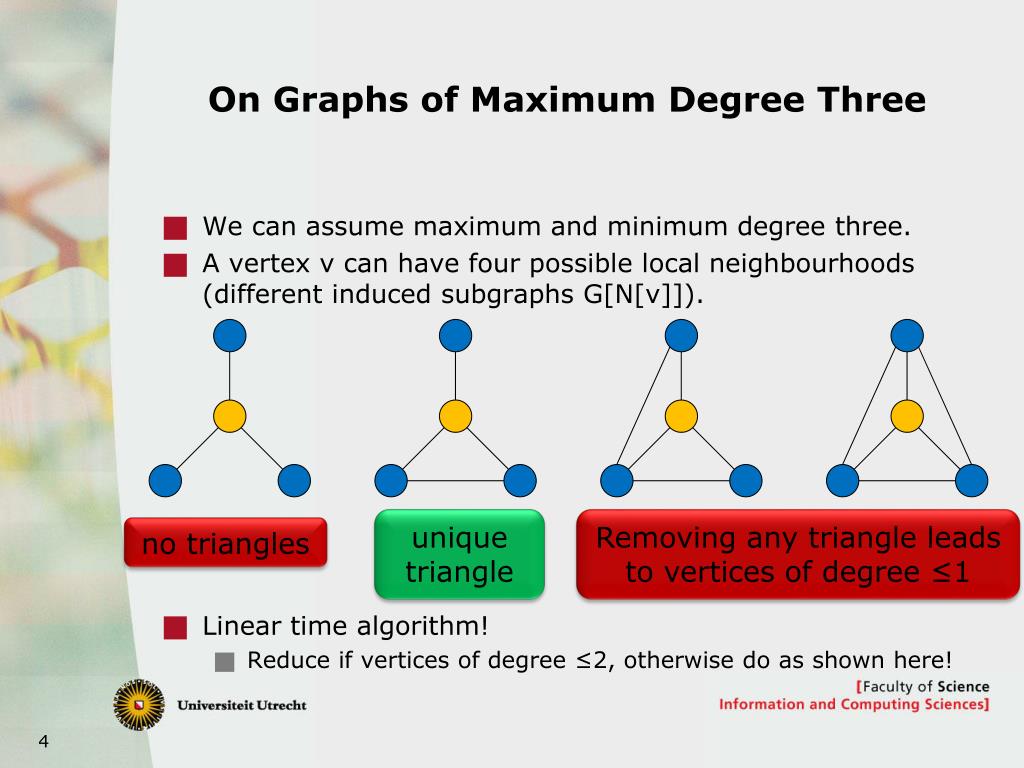

  4. On Graphs of Maximum Degree Three • We can assume maximum and minimum degree three. • A vertex v can have four possible local neighbourhoods (different induced subgraphs G[N[v]]). • Linear time algorithm! • Reduce if vertices of degree ≤2, otherwise do as shown here! unique triangle Removing any triangle leads to vertices of degree ≤1 no triangles

  5. On Graphs of Maximum Degree Four: Overview • If any vertex has degree at most three. • Reduction rules. • 11 possible local neighbourhoods for a vertex of degree four. • Direct reduction rules for 8 of them. • One can only form connected components in which every vertex has the same local neighbourhood - additional reduction rule. • Two remaining: they form ‘clouds’ and ‘fans’. • Equivalent to Exact 3-Satisfiability: • A cloud is a variable. • A fan is a clause. • Corollaries: • NP-Complete. • No subexponential-time algorithms under ETH. • Very fast exponential time algorithms.

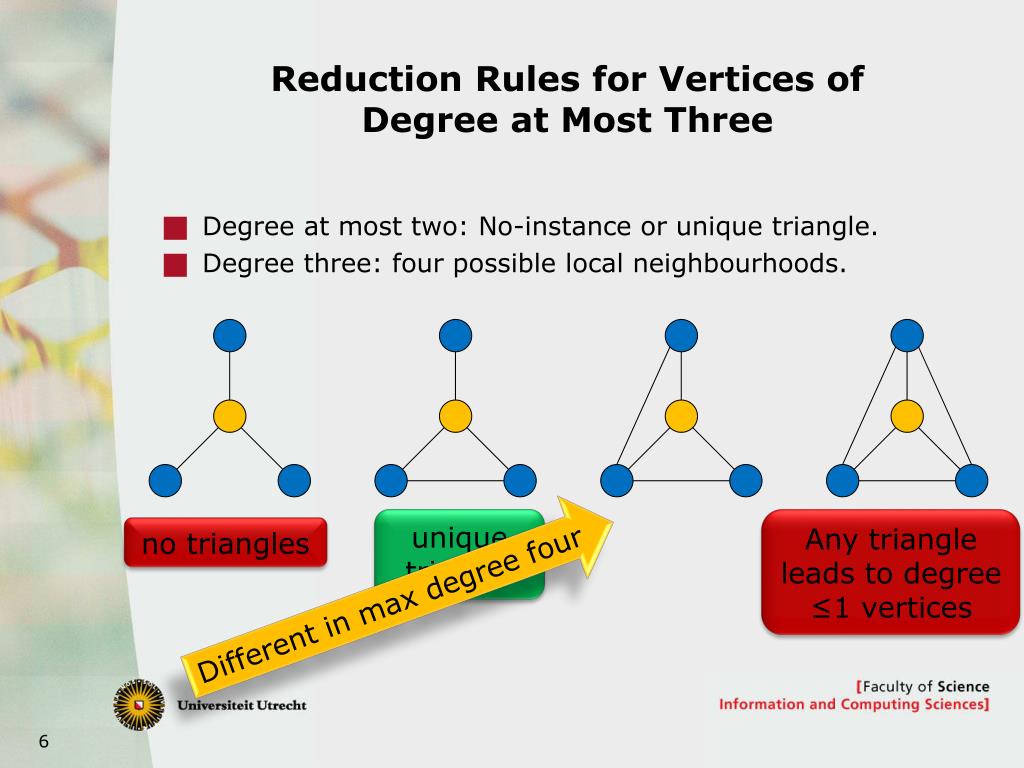

  6. Reduction Rules for Vertices ofDegree at Most Three • Degree at most two: No-instance or unique triangle. • Degree three: four possible local neighbourhoods. unique triangle Any triangle leads todegree ≤1 vertices no triangles Different in max degree four

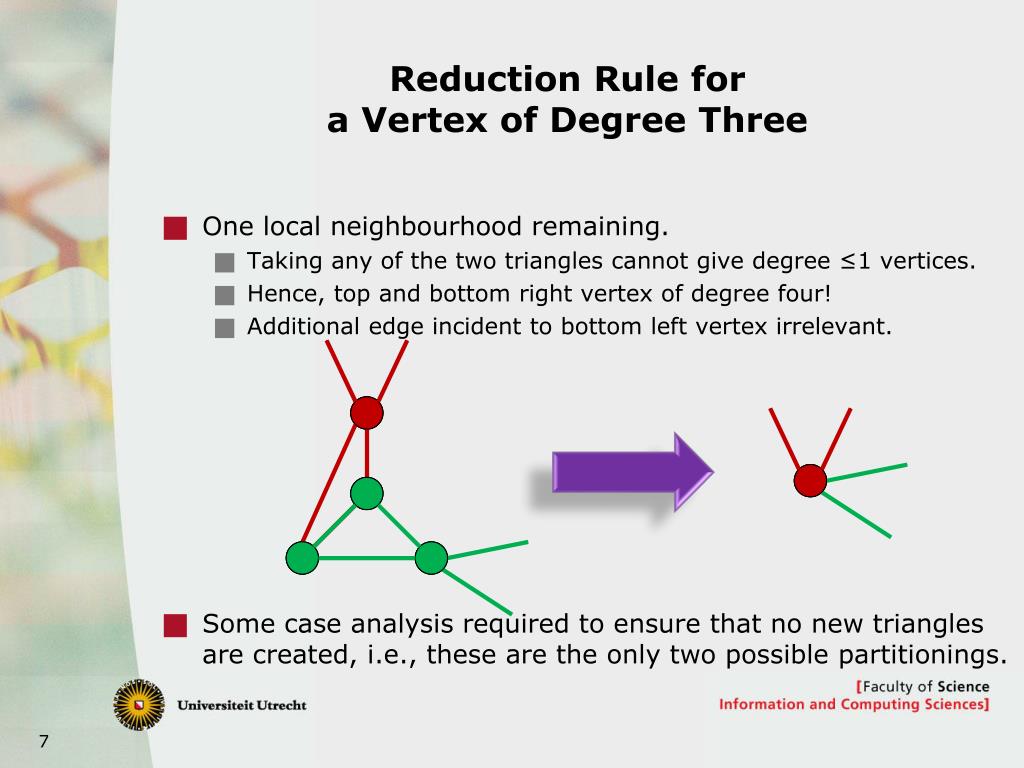

  7. Reduction Rule fora Vertex of Degree Three • One local neighbourhood remaining. • Taking any of the two triangles cannot give degree ≤1 vertices. • Hence, top and bottom right vertex of degree four! • Additional edge incident to bottom left vertex irrelevant. • Some case analysis required to ensure that no new triangles are created, i.e., these are the only two possible partitionings.

  8. On Graphs of Maximum Degree Four:An Overview • If any vertex has degree at most three. • Reduction rules. • 11 possible local neighbourhoods for a vertex of degree four. • Direct reduction rules for 8 of them. • One can only form connected components in which every vertex has the same local neighbourhood - additional reduction rule. • Two remaining: they form ‘clouds’ and ‘fans’. • Equivalent to Exact 3-Satisfiability: • A cloud is a variable. • A fan is a clause. • Corollaries: • NP-Complete. • No subexponential-time algorithms under ETH. • Very fast exponential time algorithms.

  9. Eleven Possible Local Neighbourhoods Eleven possible local neighbourhoods for a vertex of degree four. contain edges that are not in a triangle: remove and reduce (degree ≤ three rules) similar edge! next slide! Any triangle leads todegree ≤1 vertices

  10. Two Specific Local Neighbourhoods • Consider therededge. • Any triangle containing this edge leads to vertices of degree ≤ 1. • Remove and use the reduction rule for the resulting degree ≤ 3 vertex. • Consider therededge. • It can be in one or two triangles: with the yellow vertex or (possibly) the green vertex. • If in a triangle with the yellow vertex: other two vertices need a common neighbour. • All four symmetric edges: endpoints or opposite vertices need common neighbour. • By maximum degree four: there must be an edge that cannot be in a triangle. • Remove and use the reduction rule.

  11. Eleven Possible Local Neighbourhoods Eleven possible local neighbourhoods for a vertex of degree four. contain edges that are not in a triangle: remove and reduce (degree ≤ three rules) next slide! similar edge! also contain edges that cannot be in a solution Any triangle leads todegree ≤1 vertices

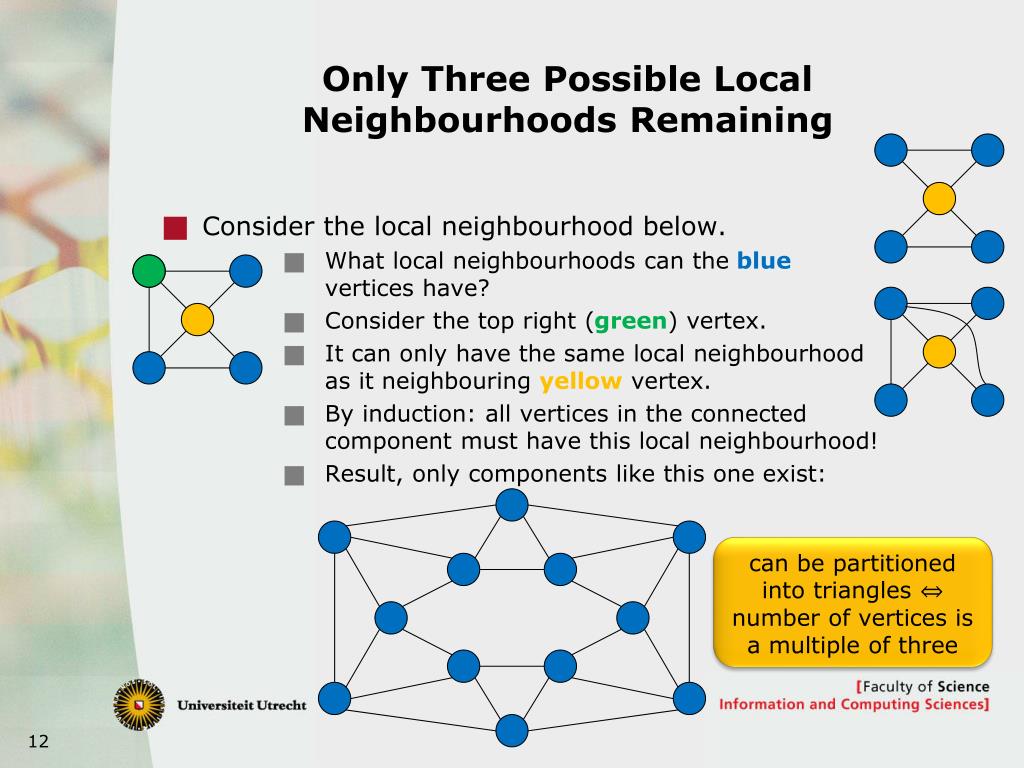

  12. Only Three Possible Local Neighbourhoods Remaining • Consider the local neighbourhood below. • What local neighbourhoods can the blue vertices have? • Consider the top right (green) vertex. • It can only have the same local neighbourhood as it neighbouring yellow vertex. • By induction: all vertices in the connected component must have this local neighbourhood! • Result, only components like this one exist: can be partitioned into triangles ⇔ number of vertices is a multiple of three

  13. Eleven Possible Local Neighbourhoods Eleven possible local neighbourhoods for a vertex of degree four. contain edges that are not in a triangle: remove and reduce (degree ≤ three rules) these are the only two local neighbourhoods that we cannot reduce done! similar edge! also contain edges that cannot be in a solution Any triangle leads todegree ≤1 vertices

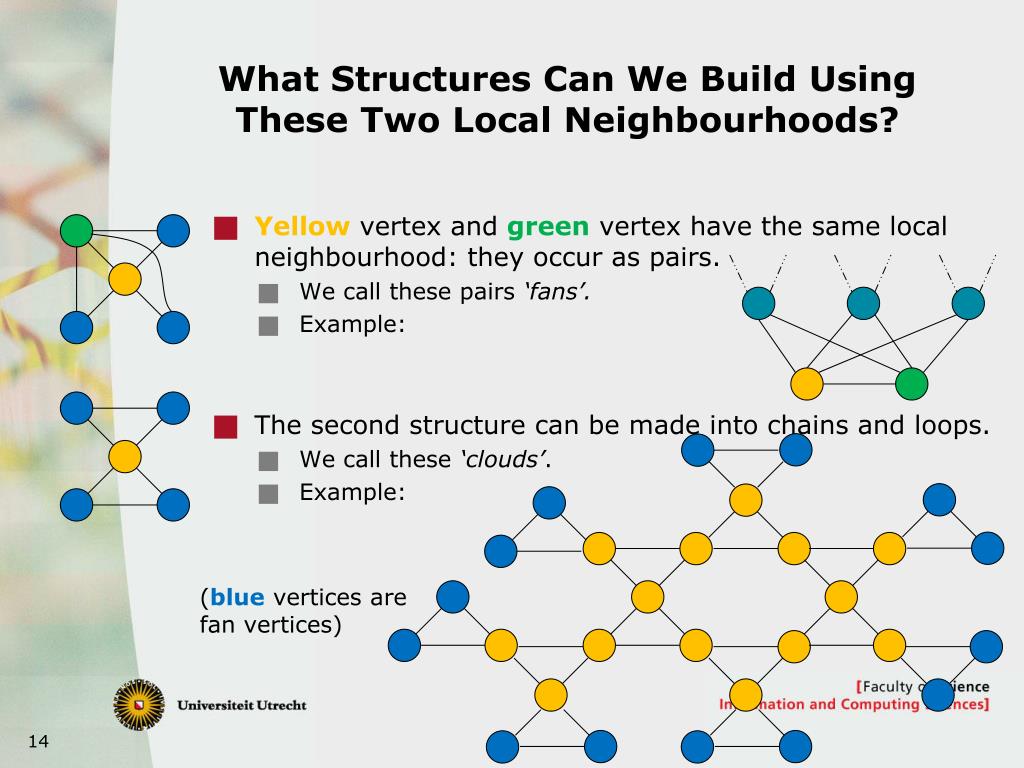

  14. What Structures Can We Build Using These Two Local Neighbourhoods? • Yellow vertex and green vertex have the same local neighbourhood: they occur as pairs. • We call these pairs ‘fans’. • Example: • The second structure can be made into chains and loops. • We call these ‘clouds’. • Example: • (blue vertices are • fan vertices)

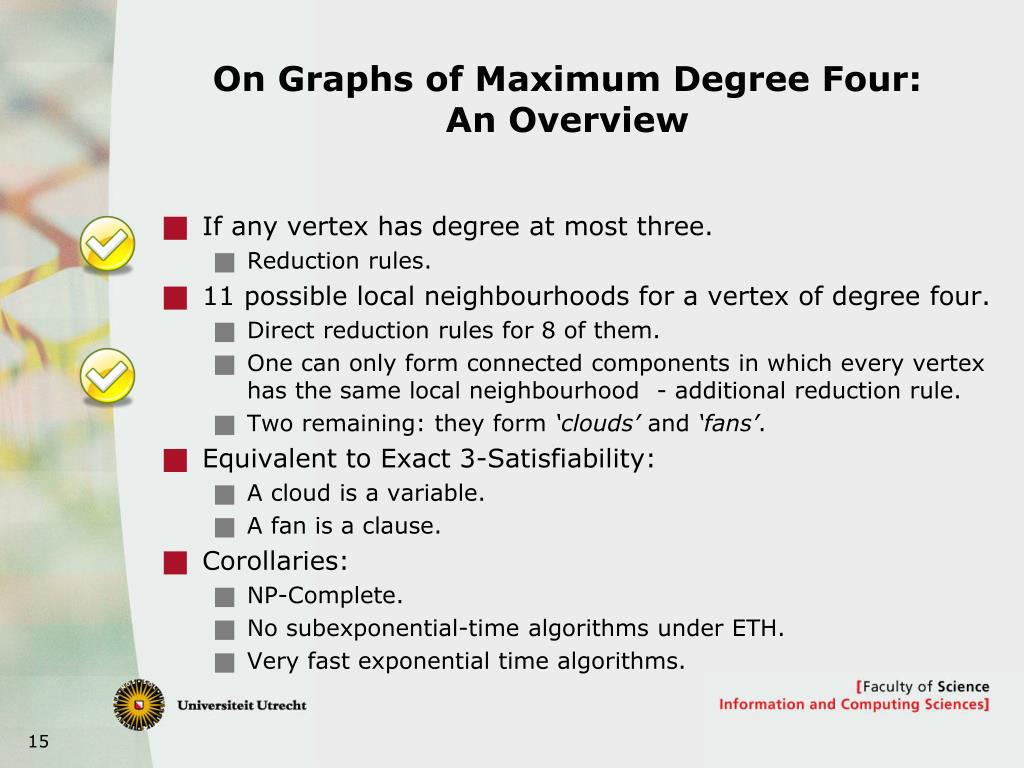

  15. On Graphs of Maximum Degree Four:An Overview • If any vertex has degree at most three. • Reduction rules. • 11 possible local neighbourhoods for a vertex of degree four. • Direct reduction rules for 8 of them. • One can only form connected components in which every vertex has the same local neighbourhood - additional reduction rule. • Two remaining: they form ‘clouds’ and ‘fans’. • Equivalent to Exact 3-Satisfiability: • A cloud is a variable. • A fan is a clause. • Corollaries: • NP-Complete. • No subexponential-time algorithms under ETH. • Very fast exponential time algorithms.

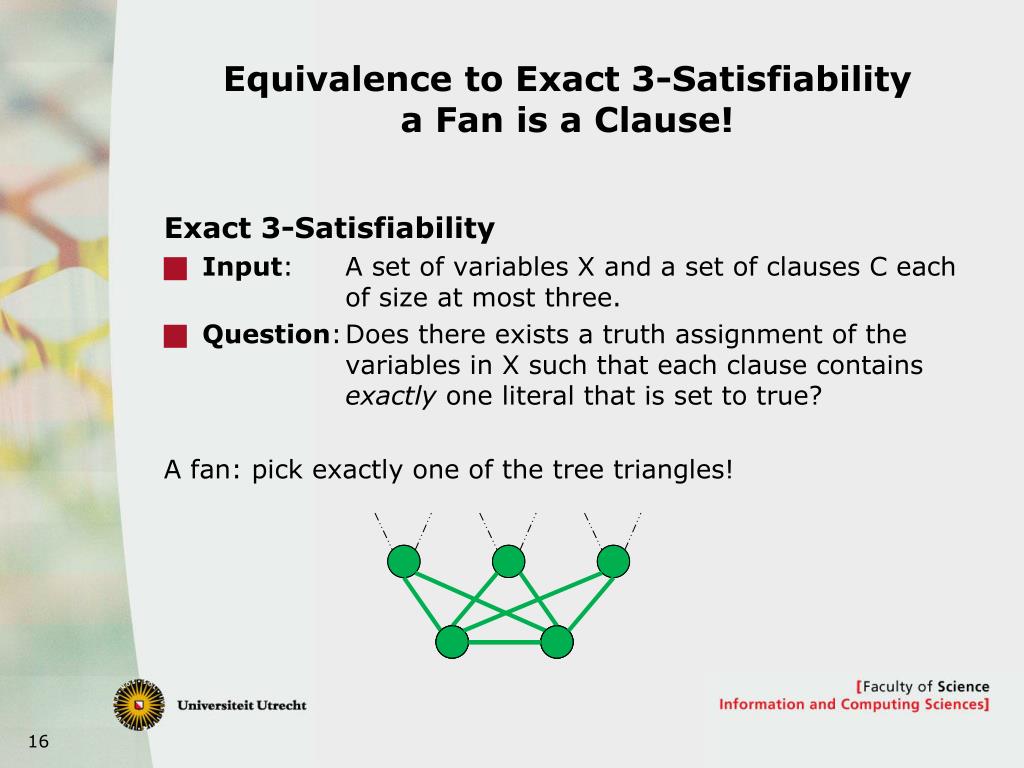

  16. Equivalence to Exact 3-Satisfiabilitya Fan is a Clause! Exact 3-Satisfiability • Input: A set of variables X and a set of clauses C each of size at most three. • Question: Does there exists a truth assignment of the variables in X such that each clause contains exactly one literal that is set to true? A fan: pick exactly one of the tree triangles!

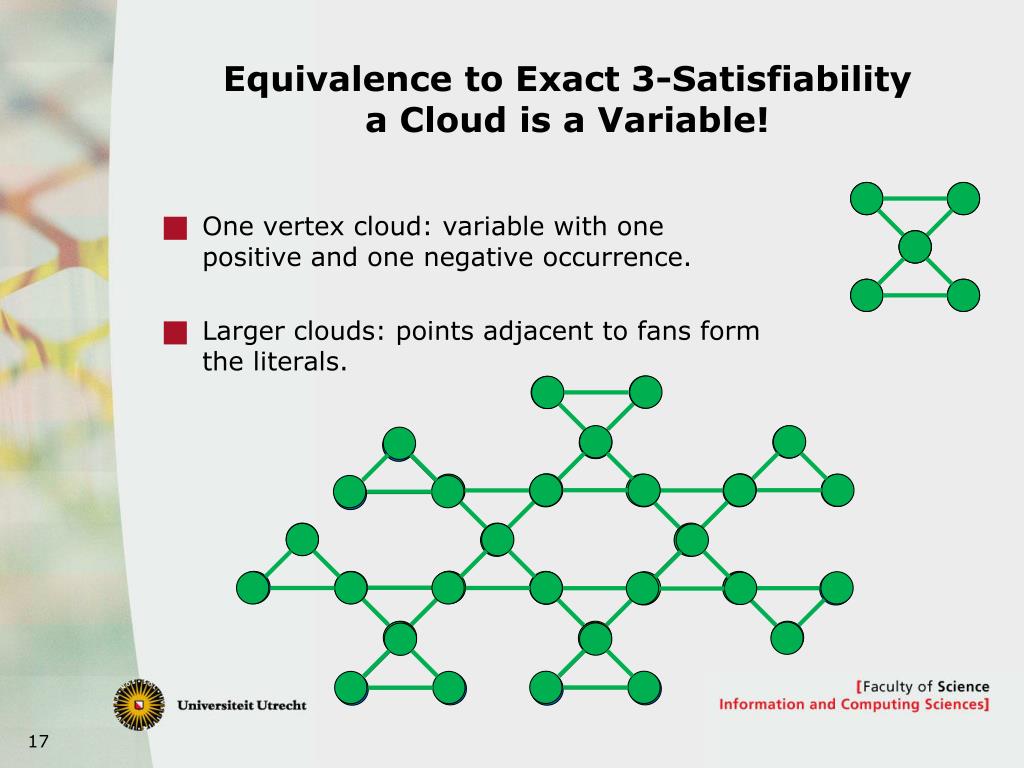

  17. Equivalence to Exact 3-Satisfiabilitya Cloud is a Variable! • One vertex cloud: variable with one positive and one negative occurrence. • Larger clouds: points adjacent to fans form the literals.

  18. Partition Into Triangles Interpreted as an Exact 3-Satisfiability Formula! • Consider the following graph: • Cloud vertices are yellow. • Fan vertices are blue. • We name the clouds w, x, y, z. • Each fan is a clause! • Formula: (w, z, ¬x) ⋀ (x, z, ¬y) ⋀ (y, z, ¬w) • Satisfying assignment: • True: w, x, y. • False: z. (x, z, ¬y) x (w, z, ¬x) z z w z y (y, z, ¬w)

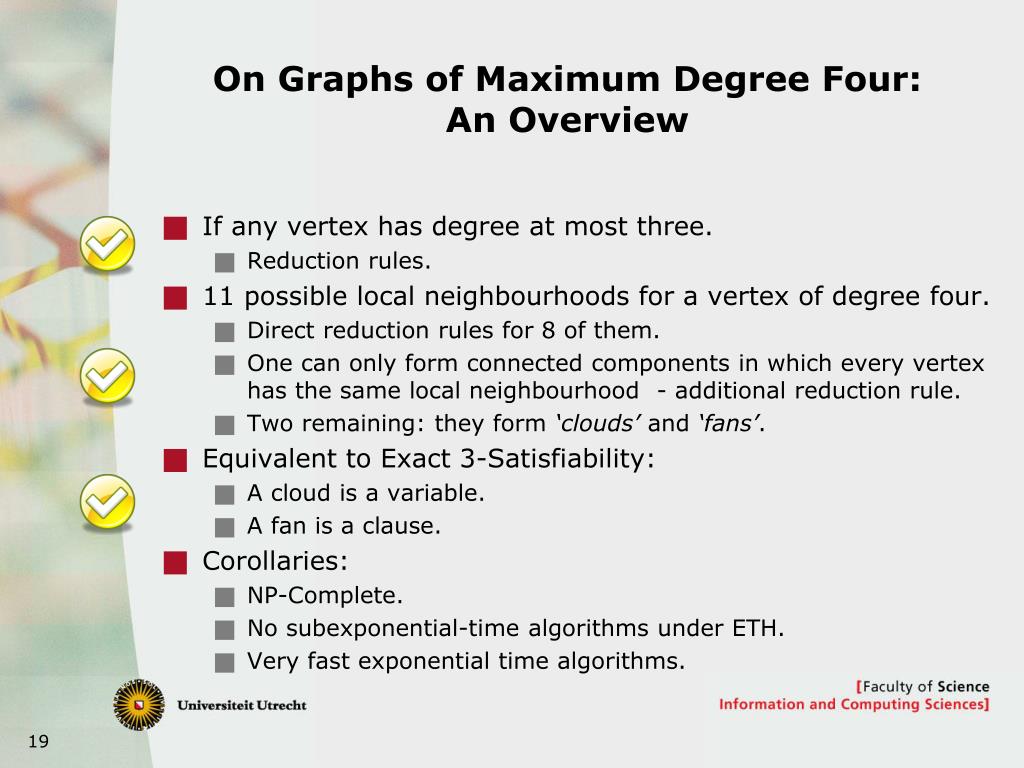

  19. On Graphs of Maximum Degree Four:An Overview • If any vertex has degree at most three. • Reduction rules. • 11 possible local neighbourhoods for a vertex of degree four. • Direct reduction rules for 8 of them. • One can only form connected components in which every vertex has the same local neighbourhood - additional reduction rule. • Two remaining: they form ‘clouds’ and ‘fans’. • Equivalent to Exact 3-Satisfiability: • A cloud is a variable. • A fan is a clause. • Corollaries: • NP-Complete. • No subexponential-time algorithms under ETH. • Very fast exponential time algorithms.

  20. NP-Completeness • Property of Exact 3-SAT instances obtained in this way: • For any variable: #positive literals = #negative literals (mod 3). • Any such variable can be represented by a cloud. • Every clause is represented by 2 vertices (fan). • Any cloud that represents a variable that occurs x times is represented by 2x-3 vertices. • The problem is NP-complete. • Exact 3-SAT is NP-complete. • Given an instance of Exact 3-SAT, we copy each clause 3 times. • #positive literals = #negative literals (mod 3), for any variable. • Hence, we can construct an equivalent Partition Into Triangles instance on graphs of maximum degree four. • New instance has size linear in the number of clauses.

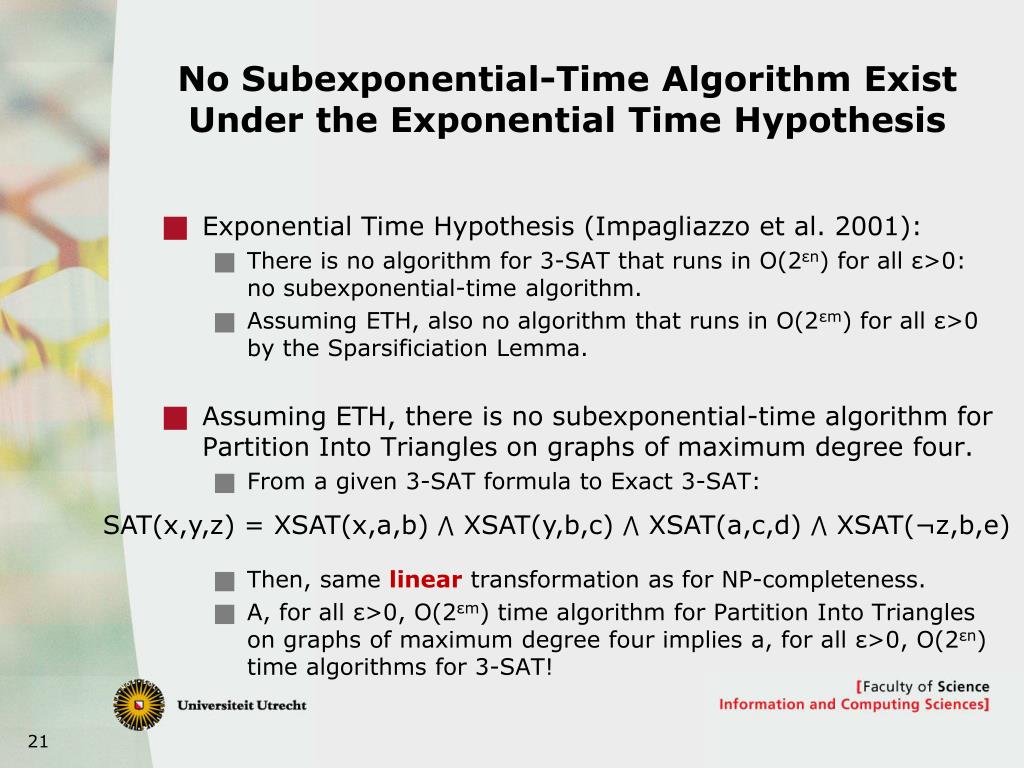

  21. No Subexponential-Time Algorithm Exist Under the Exponential Time Hypothesis • Exponential Time Hypothesis (Impagliazzo et al. 2001): • There is no algorithm for 3-SAT that runs in O(2εn) for all ε>0: no subexponential-time algorithm. • Assuming ETH, also no algorithm that runs in O(2εm) for all ε>0 by the Sparsificiation Lemma. • Assuming ETH, there is no subexponential-time algorithm for Partition Into Triangles on graphs of maximum degree four. • From a given 3-SAT formula to Exact 3-SAT: • Then, same linear transformation as for NP-completeness. • A, for all ε>0, O(2εm) time algorithm for Partition Into Triangles on graphs of maximum degree four implies a, for all ε>0, O(2εn) time algorithms for 3-SAT! SAT(x,y,z) = XSAT(x,a,b) ⋀ XSAT(y,b,c) ⋀ XSAT(a,c,d) ⋀ XSAT(¬z,b,e)

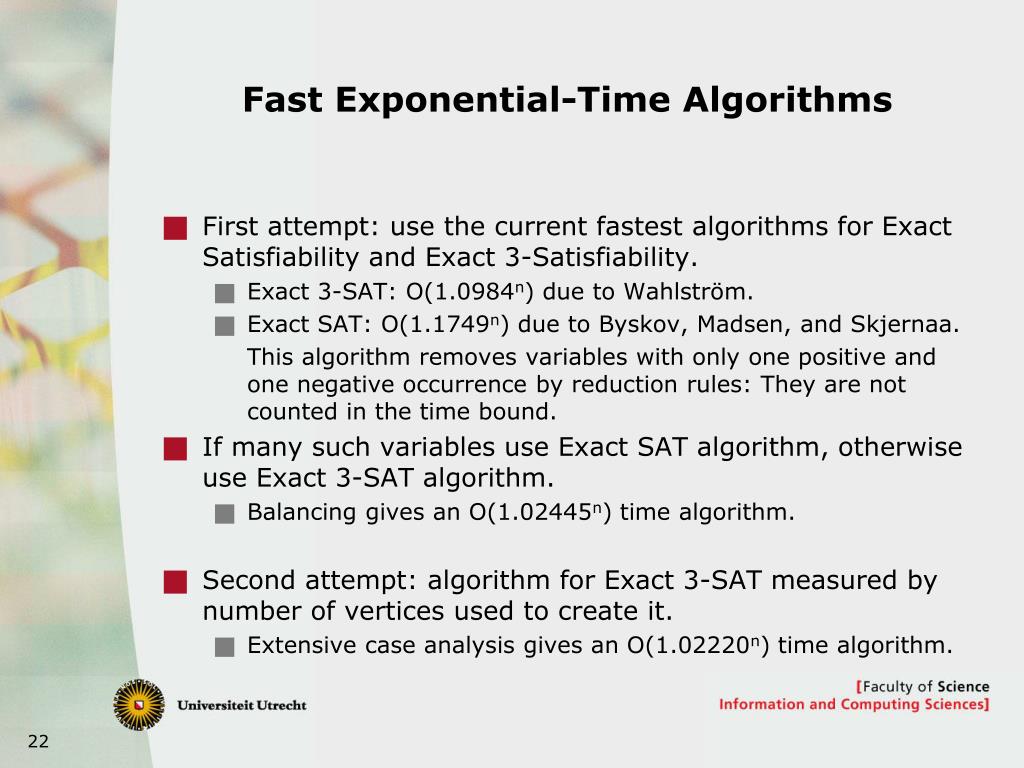

  22. Fast Exponential-Time Algorithms • First attempt: use the current fastest algorithms for Exact Satisfiability and Exact 3-Satisfiability. • Exact 3-SAT: O(1.0984n) due to Wahlström. • Exact SAT: O(1.1749n) due to Byskov, Madsen, and Skjernaa. This algorithm removes variables with only one positive and one negative occurrence by reduction rules: They are not counted in the time bound. • If many such variables use Exact SAT algorithm, otherwise use Exact 3-SAT algorithm. • Balancing gives an O(1.02445n) time algorithm. • Second attempt: algorithm for Exact 3-SAT measured by number of vertices used to create it. • Extensive case analysis gives an O(1.02220n) time algorithm.

  23. On Graphs of Maximum Degree Four:An Overview • If any vertex has degree at most three. • Reduction rules. • 11 possible local neighbourhoods for a vertex of degree four. • Direct reduction rules for 8 of them. • One can only form connected components in which every vertex has the same local neighbourhood - additional reduction rule. • Two remaining: they form ‘clouds’ and ‘fans’. • Equivalent to Exact 3-Satisfiability: • A cloud is a variable. • A fan is a clause. • Corollaries: • NP-Complete. • No subexponential-time algorithms under ETH. • Very fast exponential time algorithms.

  24. Conclusion • Partition Into Triangles on graphs of maximum degree 3: • is linear time solvable. • Partition Into Triangles on graphs of maximum degree 4: • is closely related to Exact 3-Satisfiability • is NP-complete. • admits no subexponential-time algorithm under the ETH. • is solvable in O(1.02220n) time. • Open problem: • Can you find a problem that admits no subexponential-time algorithm and that is solvable faster than in O(1.02220n) time? • No constructions such as Independent Set in graphs where 99% of the vertices have maximum degree two allowed! • (These instances can be reduced directly) Questions?
