  1. ENVI 485 02/20/07 • STEAMS AND FLOODING (cont.) • MASS WASTING

  2. Smaller floods are more affected by urbanization than larger floods

  3. Mean annual flood: RI = 2.23

  4. Regulation of the Floodplain • Flood hazard mapping • Floodway & floodway fringe district • Area of the floodplain covered by a 100 year flood • Issues associated with calculating • O.k. for some uses • Many communities don’t have the maps • Flood Insurance Act (1968); Flood Disaster Protection Act • Federally subsidized insurance programs • Flood insurance required for federally insured mortgages • Communities must enforse floodplain zone regulations to qualify • Unintended consequences of these laws?

  5. Floodplain without and with levees

  6. 07_28b Placing riprap to defend the bank

  7. Concrete channel in LA

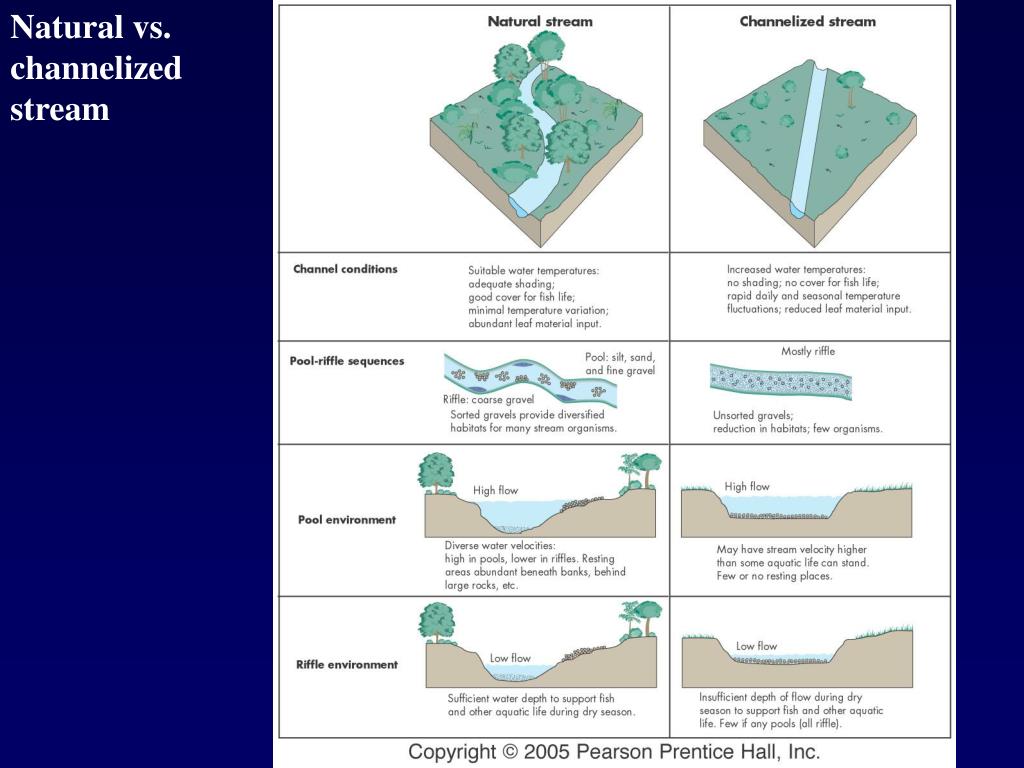

  8. Natural vs. channelized stream

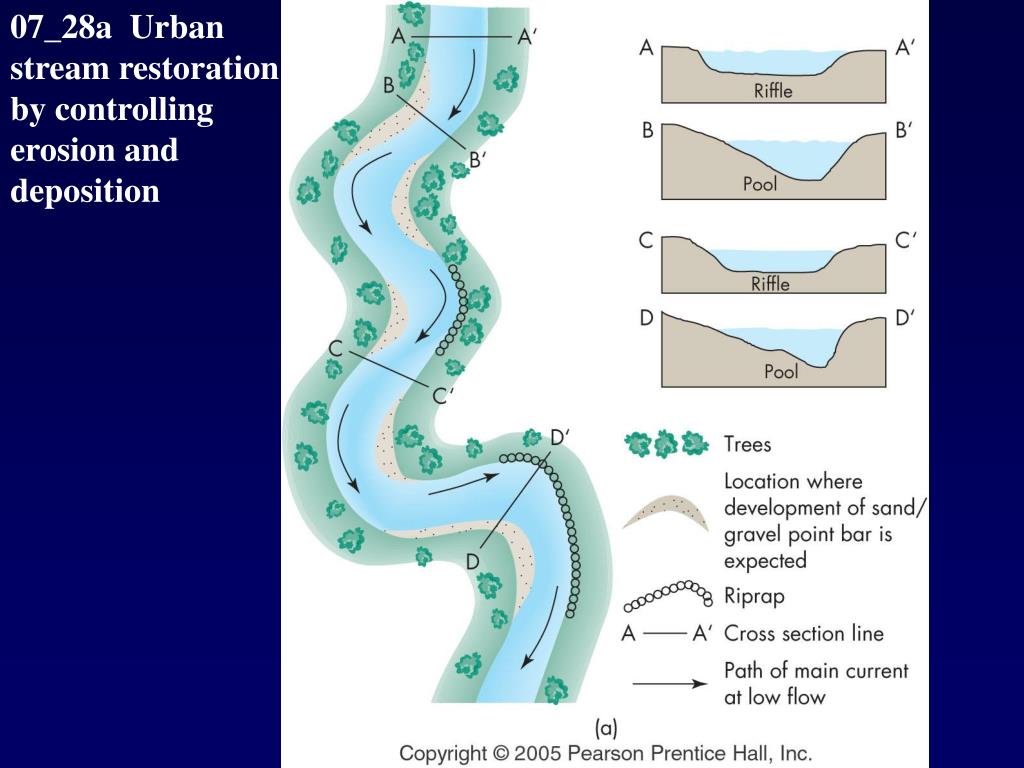

  9. 07_28a Urban stream restoration by controlling erosion and deposition

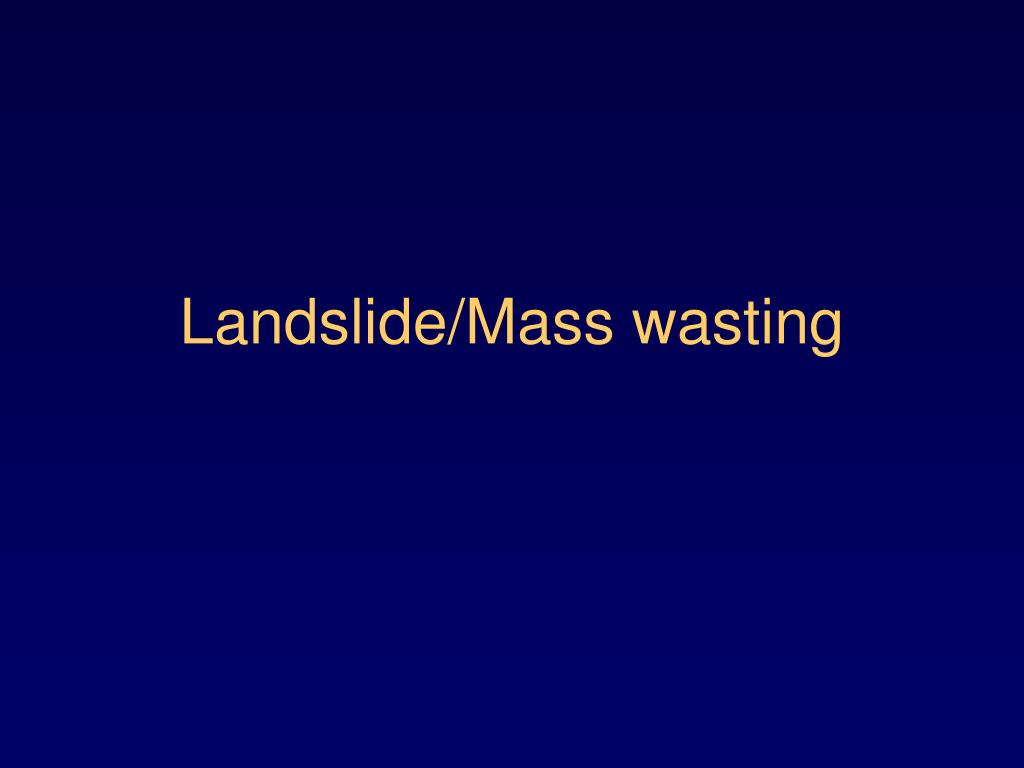

  10. Landslide/Mass wasting

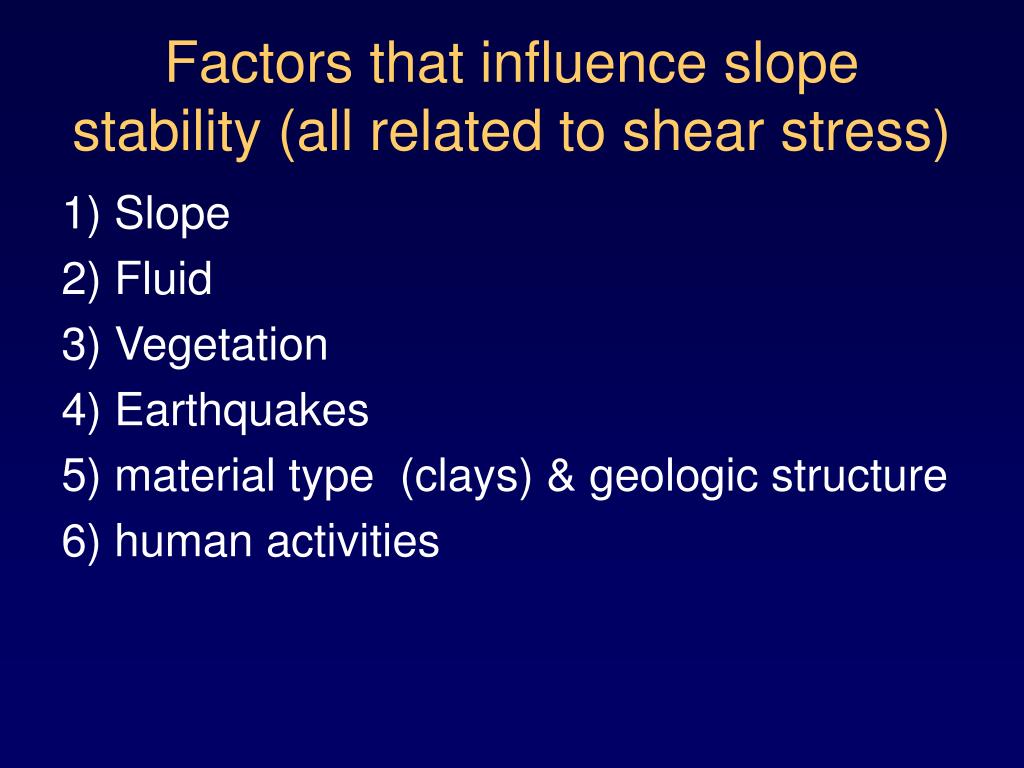

  11. Factors that influence slope stability (all related to shear stress) 1) Slope 2) Fluid 3) Vegetation 4) Earthquakes 5) material type (clays) & geologic structure 6) human activities

  12. General classification of landslides 1) Slides • rock and/or sediment slides along Earth's surface 2) Falls/Topples • rocks or soils fall or bounce through the air 3) Flows • sediment flows across Earth's surface • Slow flow is “creep” • Fast flow is an avalanche 4) Complex (combination of the above)

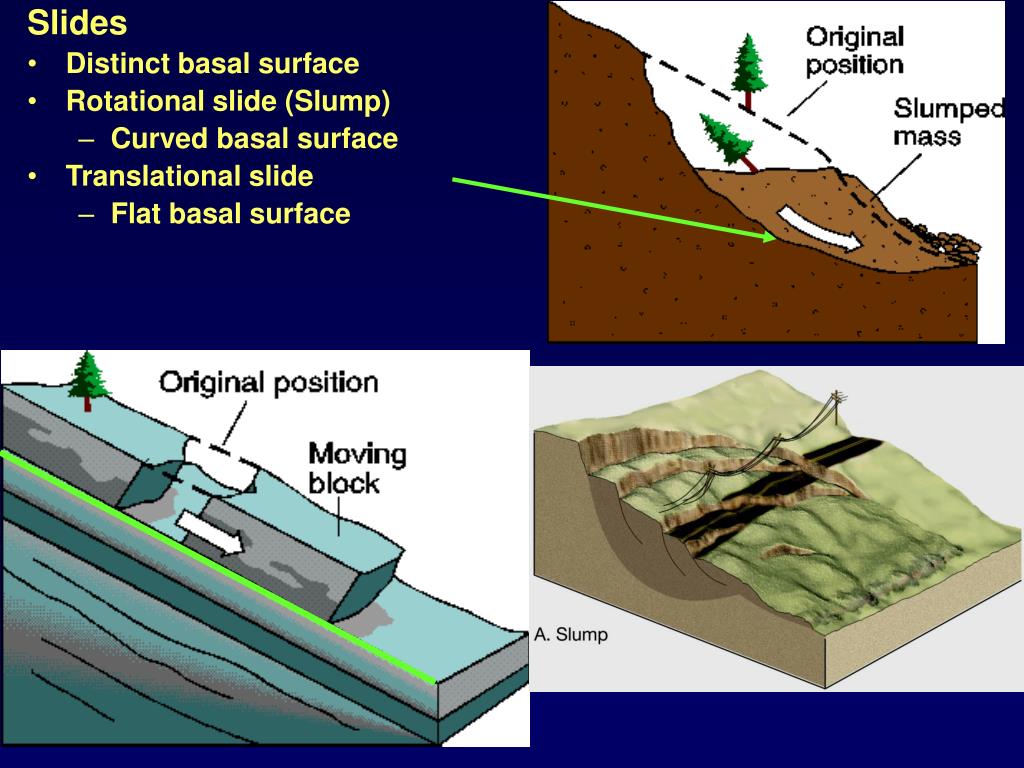

  13. Slides • Distinct basal surface • Rotational slide (Slump) • Curved basal surface • Translational slide • Flat basal surface

  14. Mass movements occur when the downward pull of gravity overcomes the forces (usually frictional) resisting it.

  15. Capay Formation Capistrano Formation Catalina Schist Chico-Martinez Formation Clarmont Shale Contra Costa Group Coyote Formation Fernando Formation Franciscan Formation La Habra Formatino Ladd Formation (Holz shale member) Meganos Formation Mehrten Formation Merced Formation Modelo Formation **Monterey Formation Moreno formation Orinda Formation **Otay Formation Pelona Schist Pico Formation Placerita Series Puente Formation Purisima Formation San Pedro Formation Santa Monica Slate Sespe Formation Siesta Formation Topanga Formation Trabuco Formation Valley Springs Formation Vaqueros Formation Problematic Formations in California

  16. Slope Stability Analysis • Requires an accurate characterization of: • 1. Surface topography, • 2. Subsurface stratigraphy, • 3. Subsurface water levels and possible subsurface flow patterns, • 4. Shear strength of materials through which the failure surface may pass, and • 5. Unit weight of the materials overlying potential failure planes.

  17. Don’t Forget Earthquakes! • A seismic slope stability analysis requires consideration of each of the above factors for static stability, as well as characterization of: • 1. Design-basis earthquake ground motions at the site, and • 2. Earthquake shaking effects on the strength and stress-deformation behavior of the soil, including pore pressure generation and rate effects (which can decrease or increase the shear strengths relative to the static case).

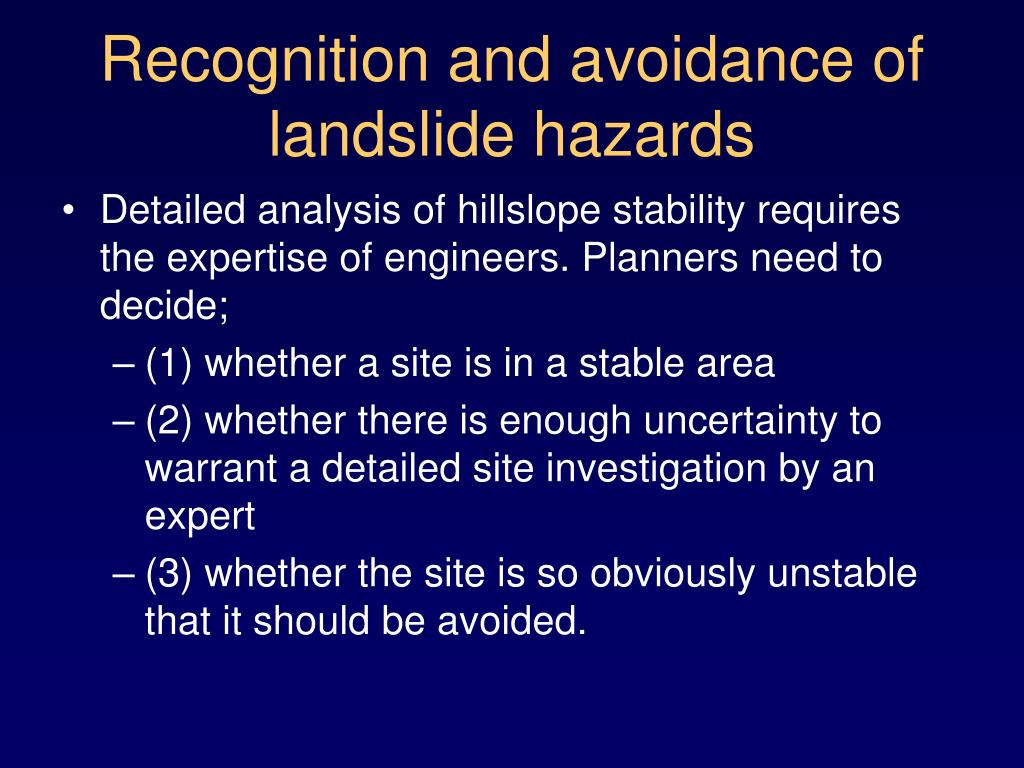

  18. Recognition and avoidance of landslide hazards • Detailed analysis of hillslope stability requires the expertise of engineers. Planners need to decide; • (1) whether a site is in a stable area • (2) whether there is enough uncertainty to warrant a detailed site investigation by an expert • (3) whether the site is so obviously unstable that it should be avoided.

  19. California Landslide Laws and Regulations • The State of California requires analysis of the stability of slopes for certain projects. • The authority to require analysis of slope stability is provided by the Seismic Hazards Mapping Act of 1990 (Chapter 7.8, Sections 2690 et. seq., California Public Resources Code). • The Act protects public safety from the effects of strong ground shaking, liquefaction, landslides, or other ground failure caused by earthquakes. The Act is a companion and complement to the Alquist-Priolo Earthquake Fault Zoning Act. • Chapters 18 and 33 (formerly 70) of the Uniform/California Building Code provide the authority for local Building Departments to require geotechnical reports for various projects.

  20. Techniques for evaluating landslide hazards • (1) Past hillslope failures • Direct evidence in airphoto, indirect evidence of altered vegetation, subtle topographic features, deposits formed by hillslope failures. • (2) Conditions that are conductive to hillslope failures • Steep slope gradients, mechanically weak geological material, poor permeability, high water table, seepage in the vicinity of steep slope. • (3) De-stabilizing effects of planned development Undercutting, overloading, changing hydrologic conditions.

  21. Planning • Avoid building on steep slopes • Avoid building in hazardous areas • Restrict or eliminate human activities in these zones • Make wise use of hazards maps

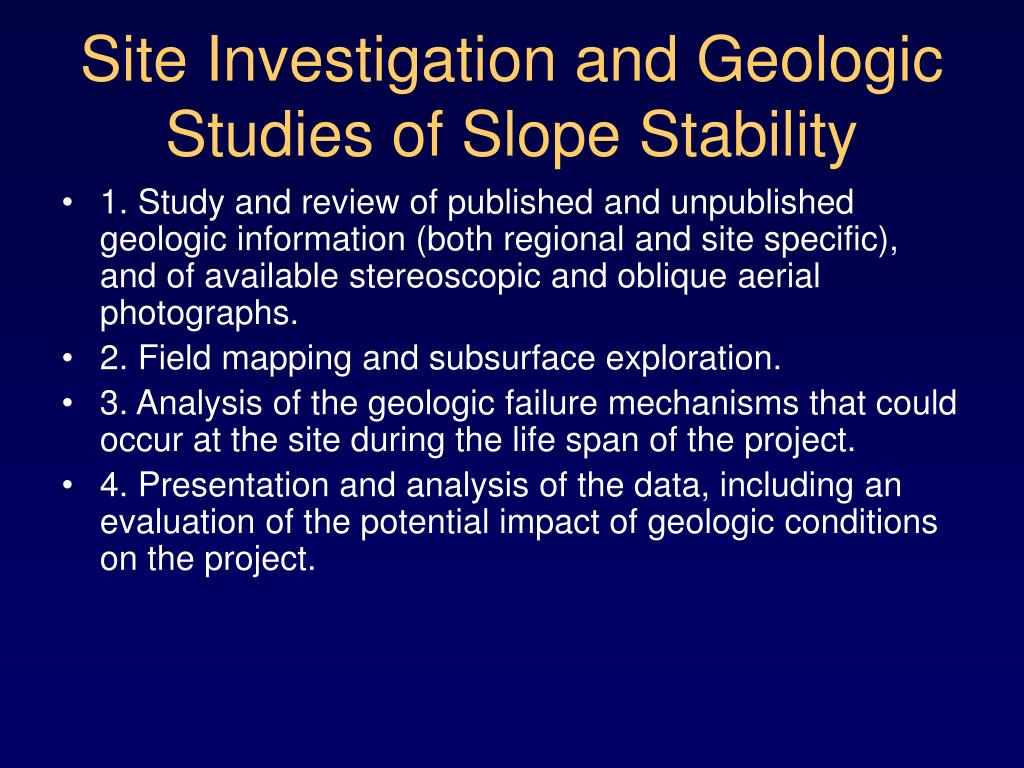

  22. Site Investigation and Geologic Studies of Slope Stability • 1. Study and review of published and unpublished geologic information (both regional and site specific), and of available stereoscopic and oblique aerial photographs. • 2. Field mapping and subsurface exploration. • 3. Analysis of the geologic failure mechanisms that could occur at the site during the life span of the project. • 4. Presentation and analysis of the data, including an evaluation of the potential impact of geologic conditions on the project.

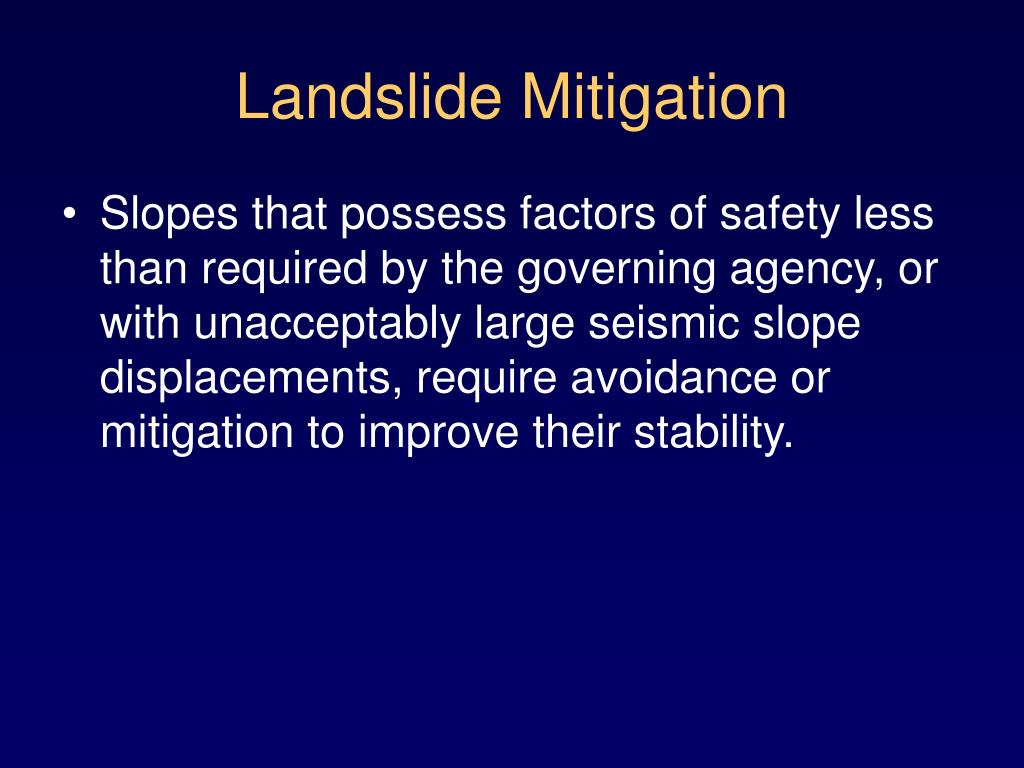

  23. Landslide Mitigation • Slopes that possess factors of safety less than required by the governing agency, or with unacceptably large seismic slope displacements, require avoidance or mitigation to improve their stability.

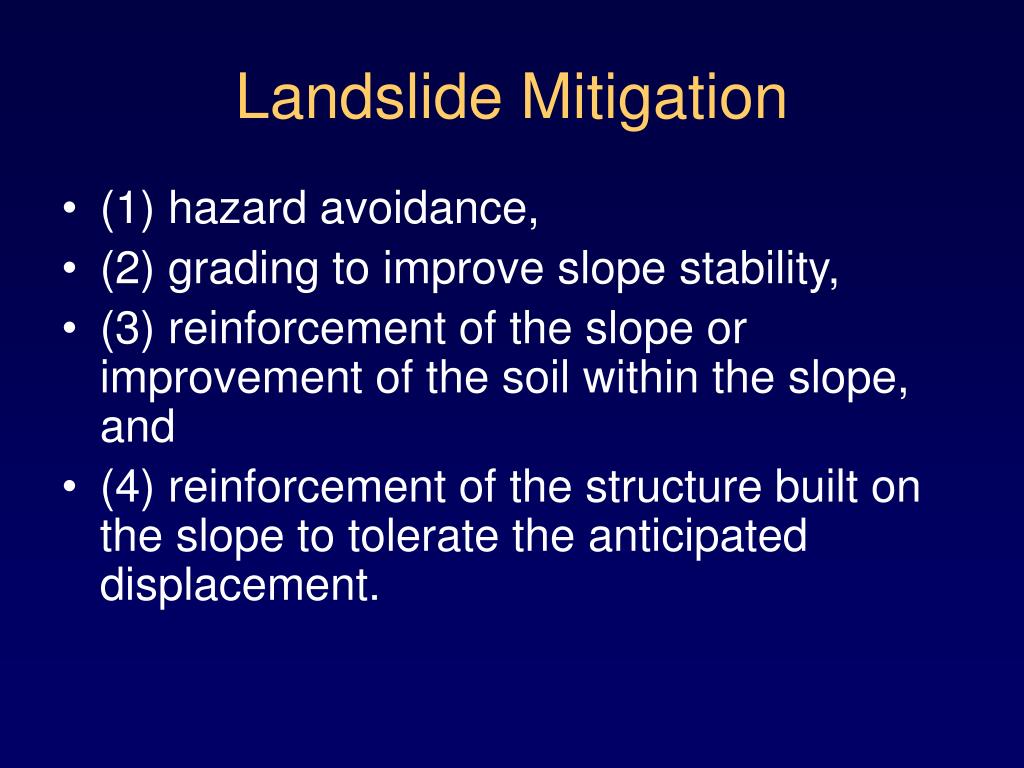

  24. Landslide Mitigation • (1) hazard avoidance, • (2) grading to improve slope stability, • (3) reinforcement of the slope or improvement of the soil within the slope, and • (4) reinforcement of the structure built on the slope to tolerate the anticipated displacement.

  25. Avoidance • The simplest method of mitigation may be to avoid construction on or adjacent to a potentially unstable slope. • The setback distance is based on the slope configuration, probable mode of slope failure, factor of safety, and potential consequences of failure. • The required setback cannot generally be accurately calculated, therefore a large degree of engineering/geologic judgment is required.

  26. Grading • Grading can often be performed to entirely or partially remove potentially unstable soil • The available grading methods range from: • Reconfiguration of the slope surface to a stable gradient (flattening) • Removal and recompaction of a soil that is preferentially weak in an unfavorable direction and its replacement with a more homogeneous soil with a higher strength.

  27. Engineered Stabilization • A grading solution to a slope stability problem is not always feasible due to physical constraints such as property-line location, location of existing structures, the presence of steep slopes, and/or the presence of very low-strength soil. • In such cases, it may be feasible to mechanically stabilize the slide mass or to improve the soil with admixture stabilization.

  28. Mechanical Stabilization • Retaining walls • Deep foundations (i.e., piles or drilled shafts) • Soil reinforcement with geosynthetics, tieback anchors, and soil nails. • Common admixture stabilization measures include cement and lime treatment as well as Geofibers.

  29. concrete

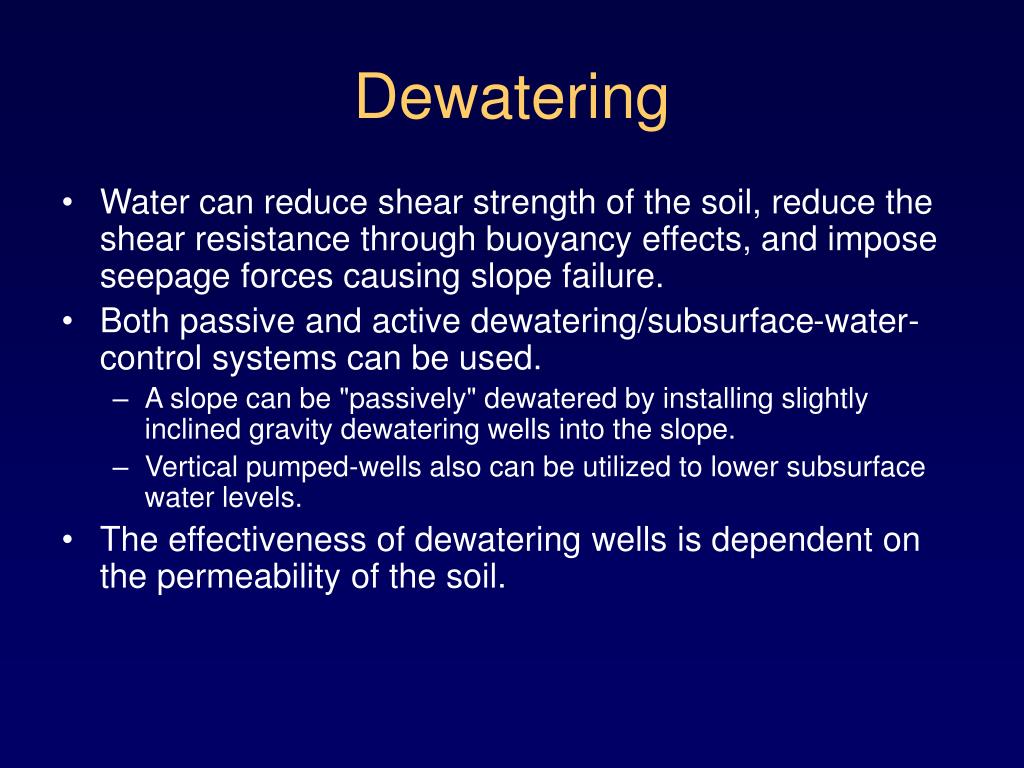

  30. Dewatering • Water can reduce shear strength of the soil, reduce the shear resistance through buoyancy effects, and impose seepage forces causing slope failure. • Both passive and active dewatering/subsurface-water-control systems can be used. • A slope can be "passively" dewatered by installing slightly inclined gravity dewatering wells into the slope. • Vertical pumped-wells also can be utilized to lower subsurface water levels. • The effectiveness of dewatering wells is dependent on the permeability of the soil.

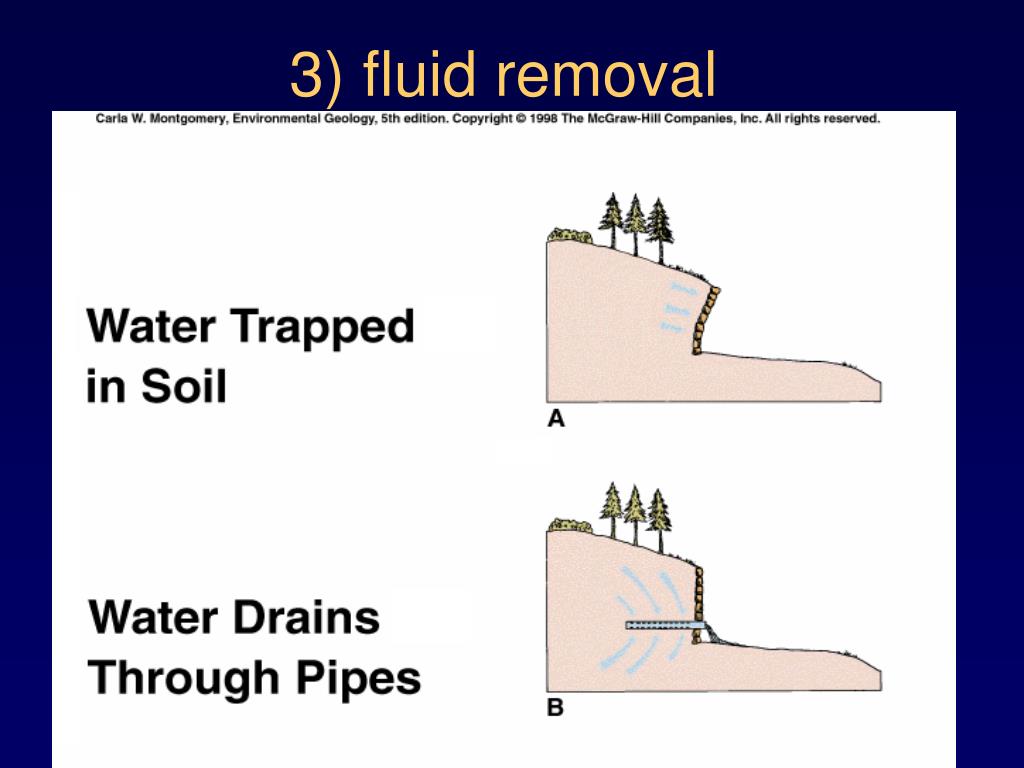

  31. 3) fluid removal

  32. 3) fluid removal

  33. Containment • Loose materials, such as colluvium, slopewash, slide debris, and broken rock, can be collected by a containment structure capable of holding the volume of material that is expected to fail. • The containment structure type, size, and configuration will depend on the anticipated volume to be retained. • Debris basins, graded berms, graded ditches, debris walls, and slough walls can be used. In some cases, debris fences may be permitted, although those structures often fail upon high-velocity impact.

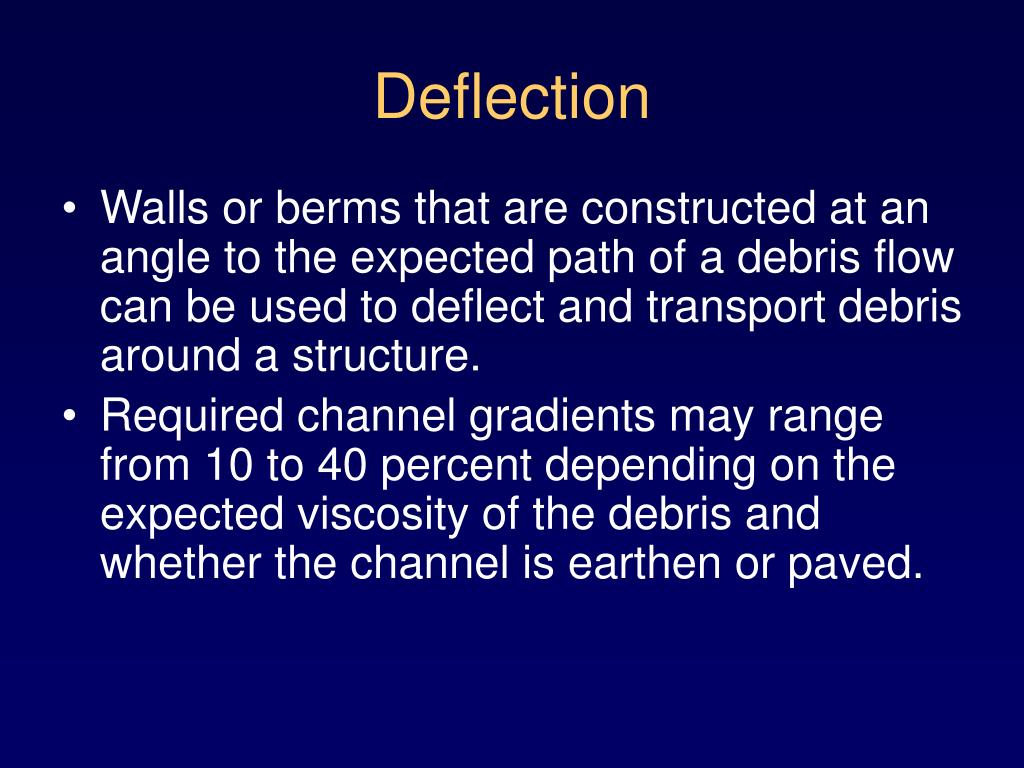

  34. Deflection • Walls or berms that are constructed at an angle to the expected path of a debris flow can be used to deflect and transport debris around a structure. • Required channel gradients may range from 10 to 40 percent depending on the expected viscosity of the debris and whether the channel is earthen or paved.

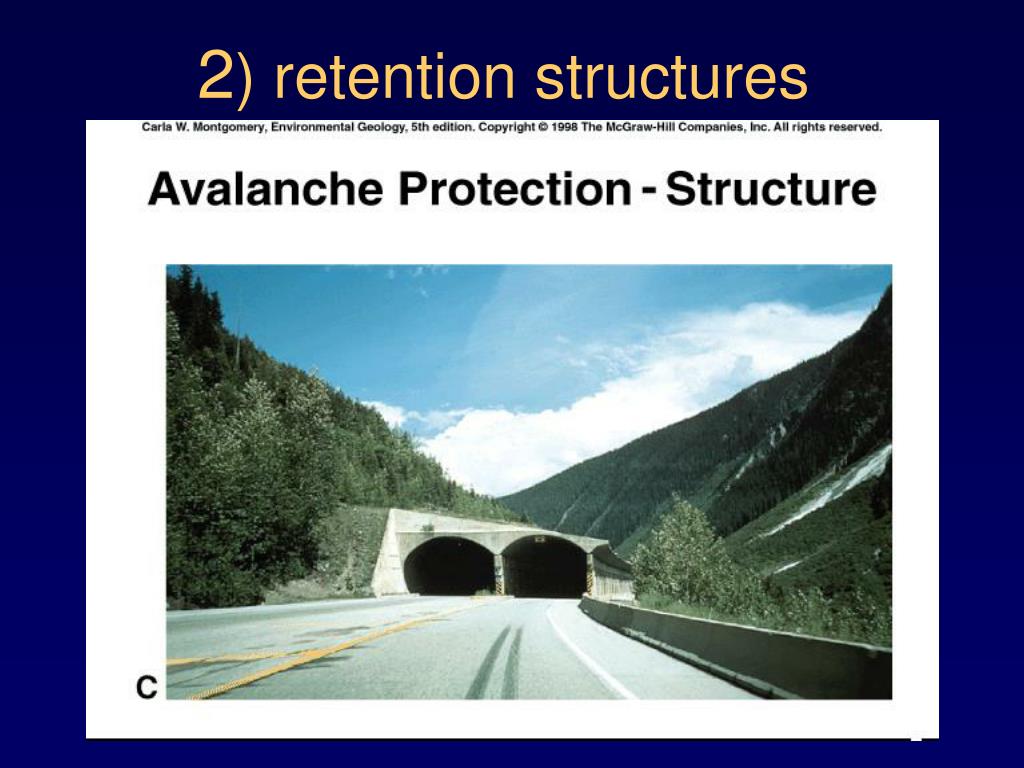

  35. 2) retention structures

  36. Diversion walls, Taiwan

  37. Close-up of previous slide; note tires for cushioning

  38. Flumes for diverting debris flows, Lamosano, Italy

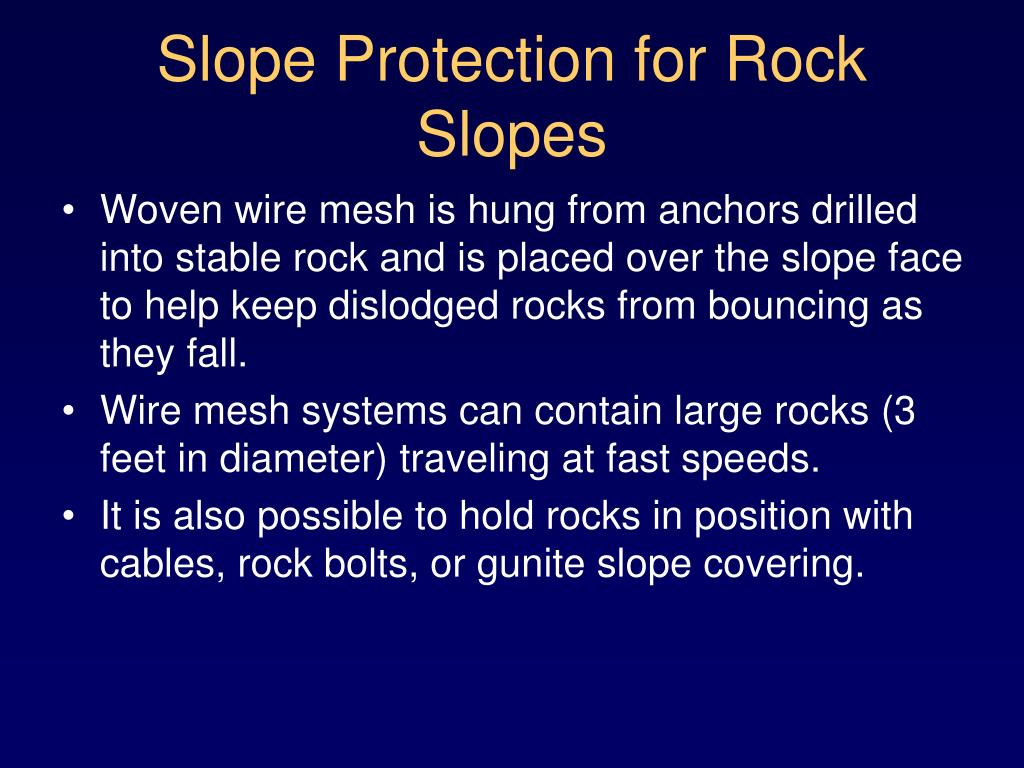

  39. Slope Protection for Rock Slopes • Woven wire mesh is hung from anchors drilled into stable rock and is placed over the slope face to help keep dislodged rocks from bouncing as they fall. • Wire mesh systems can contain large rocks (3 feet in diameter) traveling at fast speeds. • It is also possible to hold rocks in position with cables, rock bolts, or gunite slope covering.

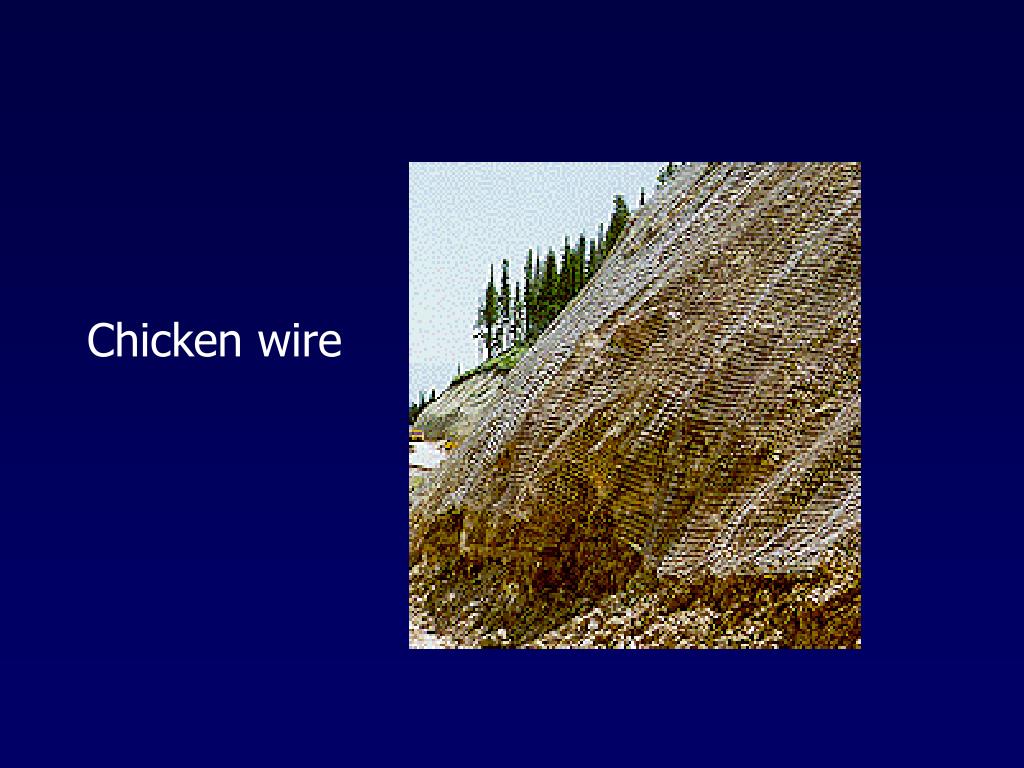

  40. Chicken wire

  41. Resistant Structures • Examples of structural systems that can resist damage include mat foundations and very stiff, widely spaced piles. • Mat foundations are designed to resist or minimize deflection or distortion of the structure resting on the mat as a result of permanent displacement of the underlying ground. The mat foundation itself may move or settle differentially, but the mat is sufficiently stiff to reduce bending in the structure to a tolerable level.

  42. Resistant Structures • Another instance where a building can be designed to resist damage to earth movement involves structures built over landslides experiencing plastic flow. • Flows that do not move as a rigid block can be penetrated with a series of widely spaced stiff piles. • These piles are designed to resist loading imposed by moving material.

  43. Summary - Reduction of landslide hazards 1) slope reduction • Reduce the slope angle • Supporting material at base of slope • Reduce the load by removing rock or soil 2) retaining structures 3) fluid removal 4) vegetation 5) Others (soil hardening, piles, rock bolts)
