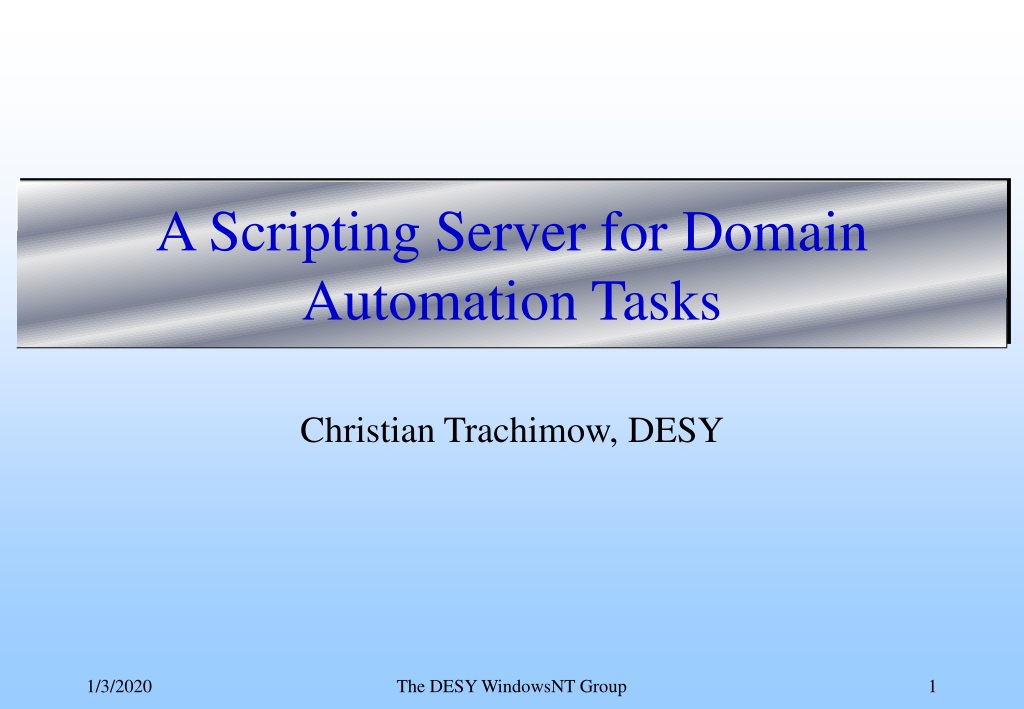

A Scripting Server for Domain Automation Tasks

1. A Scripting Server for Domain Automation Tasks Christian Trachimow, DESY The DESY WindowsNT Group

2. Domain administration tasks • User management • delegated to group administrators and „user service“ • set passwords, create, move, delete, archive,... • Group management • define composition • System management • query computers for special properties • license management • different group are taking part of this processes • But: most jobs can be done only with domain admin privileges • Need a server, that holds scripts, controls security and executes scripts The DESY WindowsNT Group

3. Requirements for a Scripting Server • Scripts should be stored on the Scripting Server • Scripts can be triggered by remote machines • Secure connections with remote machines (Encryption) • Scripts must be run with DA privileges (Impersonation) • Identify which users submits the execution request (Authentication ) • Define which groups are allowed to launch the script (Security control) • Easy way of launching scripts • Logging all operations (Event log) The DESY WindowsNT Group

4. Why Transaction Server ? • Only used as DCOM repository • Impersonation: can be defined for a package (collection of objects) • Encryption: DCOM network security: „packet privacy„ • Authentication is done by DCOM: NTLM • Easy way of invoking scripts (DCOM) •  Implement a COM object on MTS • Read config file • identify calling user and check if user is allowed .. • Execute script and return standard output The DESY WindowsNT Group

5. 1 2 Basic Idea Store all script on the tranaction server (MTS) moveuser.pl setpasswd.vbs movehome.pl Edit config file: xml format The DESY WindowsNT Group

6. 3 Basic Idea (cont.) Define Roles on Transaction Server User Support: desynt\usg desynt\Domain Admins Domain Operators: desynt\Domain Admins desynt\operators User Support Domain Operators The DESY WindowsNT Group

7. Set obj = CreateObject(„DSH.ExecuteSync“) obj.InvokeScript(„Passwd“, „user1 newpassword“) User Support Domain Operators execute script Basic Idea (cont.) COM object Client / Web Server Tranaction Server The DESY WindowsNT Group

8. User Support Domain Operators Implementation Load config file by MS XML provider COM object on MTS: Impersonation „GetOriginalCallerID“ from ISecurityContext DCOM: Network: „packet privacy“ Authentication: NTLM COM object COM object Client / Web Server IObjectContext interface provides „IsCallerInRole“ method Execute script redirect standard output to pipe Log activity Tranaction Server The DESY WindowsNT Group

9. Example • store script on MTS • define role on MTS • configure config file Alias name Script location Role • ActiveX control makes changes in configuration file • write client script / Web interface (ASP) Example: write script / configure server / write client script / call script The DESY WindowsNT Group

10. Conditional execution • Problem: allow execution only if some conditions are valid • Group administrators are only allowed to set the password of their users, not of all users • Group adminis can remove their computers from the domain • Could be done within the script • Execute „Passwd“, „user1 newpassword“ only if calling user is allowed to manage „user1“ • Condition table defines relationship between calling user and managed object • Defines which management groups are permitted to manage which kind of users, computers or groups The DESY WindowsNT Group

11. Management definition table • Check if „Calling User“ is in management group and the argument is in a group which is managed The DESY WindowsNT Group

12. Set obj = CreateObject(„DSH.ExecuteSync“) obj.InvokeScript(„Passwd“, „user1 newpassword“) Who is calling ? COM object The DESY WindowsNT Group

13. Config File Extension • Types of arguments: • COMPUTERS • USERS • GROUPS The DESY WindowsNT Group

14. Summary • Script can be stored and executed on the „Scripting Server“ (within Domain Administrator rights) • Define by „role“ who is permitted to launch the scripts • Conditional execution: a table defines relationship between calling user and managed object • Configuration settings can be managed by ActiveX component • Example: configure condition The DESY WindowsNT Group

15. Asynchronous Execution • Some scripts take a long time to finish • Move homedirectory, archive user data • Web server has timeout interval for ASP pages • The user cannot see, if script was executed successfully Asynchronous execution • submitting a script execution request, method returns an ID • Check status of the execution by ID • In queue / currently executed / finished • Notification after execution has finished The DESY WindowsNT Group

16. Implementation: MSMQ(Message Queue Server) execution request currently executed finished transaction server Set obj = CreateObject(„DSH.ExecuteAync“) obj.InvokeScript(„Passwd“, „user1 newpassword“,„user@desy.de“, „some text for the body“) The DESY WindowsNT Group

17. Event Driven Execution • Query computer for special properties • Problem: script fails if computer is not online • Hold script in queue and launch script only if event occurs • Events: „computer is online“, „time is reached“, ... • Other requirements: • retry execution on error • define a time range until execution request will be dropped • notification by email The DESY WindowsNT Group

18. Implementation: MSMQ check event: „computer is online“ execution request currently executed finished transaction server The DESY WindowsNT Group

19. Example • Web based domain management The DESY WindowsNT Group
