  1. And Franchise Colleges Modelling for Web Development - 2 • Name : MANSHA NAWAZ • room : G 0/32 • email : m.nawaz@tees.ac.uk

  2. Learning Objectives • Outline a range of UML stereotypes available for the modelling of web applications • Using a set of UML models illustrate the modelling of web applications based on the architecture patterns: • Thin Web Client • Thick Web Client • Web Delivery • Demonstrate the use of UML extensions in web application models

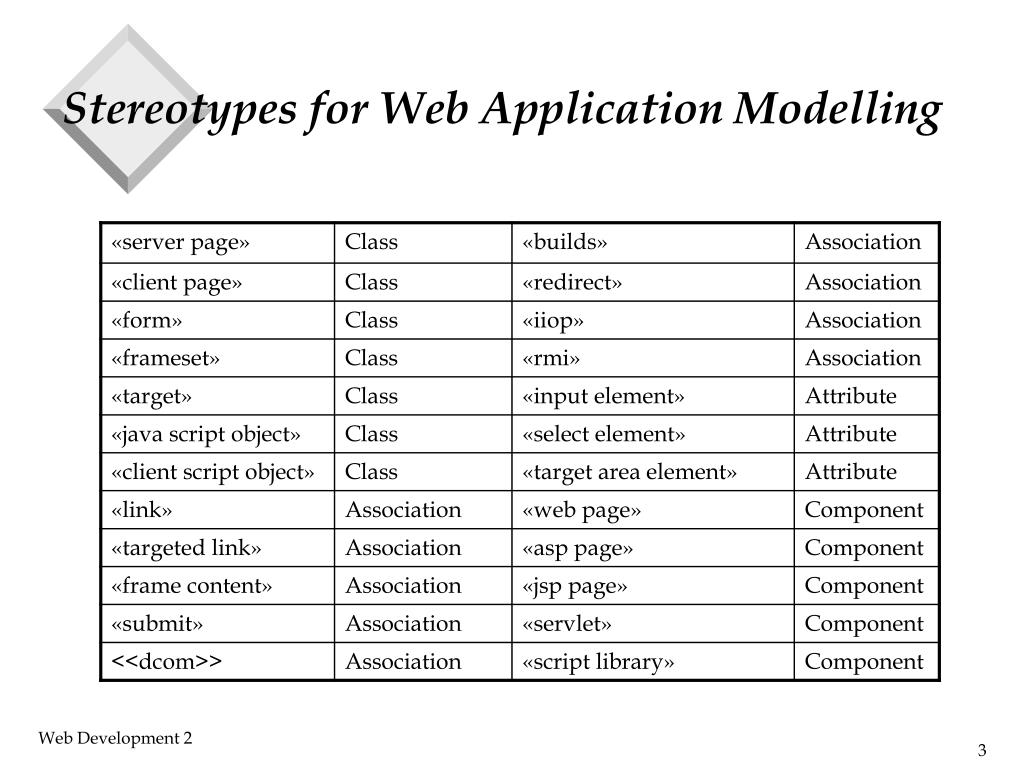

  3. Stereotypes for Web Application Modelling

  4. Reminder - Web Application Architecture Patterns • Thin Web Client: • Little control of client’s configuration • Standard web browser • All business logic executed on the server • Thick Web Client: • Significant business logic executed on the client using dynamic HTML, Java applets etc. • HTTP used for communication with server • Web Delivery: • May support distributed objects where web browser acts as a delivery and container device for the objects • Uses additional protocols such as RMI, IIOP and DCOM

  5. Thin Web Client Design • Thin web client actors only interact with client pages & server pages only interact with server resources • Need to incorporate client & server pages in sequence diagrams • Boundary objects from analysis model become client pages • Transform controller objects become server pages

  6. Sequence Diagram for Thin Web Client Conallen, J. (2000)

  7. Thin Web Client Design • Server-side objects can be overloaded • Executing business logic • Building user interface to send to client • Can alleviate this by separating business logic processing from interface building • Conceptual web pages and business objects

  8. Separating Server Page Responsibilities

  9. Logical-view classes related to checking-out a shopping cart

  10. Forms & Frames • <<Form>> objects are aggregates of client pages • Standard input elements submitted for processing by server page • Stereotypes & tagged values can add information • Frames <<framesets>> allow browser windows to be subdivided into panes each containing its own webpage • Each pane is a target that other client pages can request web pages for

  11. Shipping address collection form Conallen, J. (2000)

  12. Thick Web Client Design • Client-side scripting allows processing on client • e.g. recalculation of shopping cart after quantity changes • Functionality can also be provided by ActiveX controls, Java applets & JavaBeans components – client pages can invoke operations on them • Server objects interact with server-side resources to provide functionality

  13. Alternative ways to express Scripts in a Client Page

  14. Class Diagram with Client Page that uses ActiveX components Conallen, J. (2000)

  15. Sequence diagram involving client-side components

  16. Web Delivery Design • Distributed objects can provide real flexibility • RMI/IIOP or DCOM provides additional communication protocols • Direct communication between client & server objects improves efficiency • Frequently business logic is initially modelled without deployment to simplify developer understanding • Deployment view of architecture covers these issues

  17. Class diagram with Distributed Objects

  18. Web Delivery Deign – Sequence Diagram (without deployment shown) Online Sporting Event System – Conallen (2000)

  19. Web Delivery Deign – Class Diagram (deployment shown)

  20. Summary • Outlined a range of UML stereotypes available for the modelling of web applications • Using a set of UML models illustrated the modelling of web applications based on the architecture patterns: • Thin Web Client • Thick Web Client • Web Delivery • Demonstrated the use of UML extensions in web application models

  21. References • Conallen, J. (2000) Building Web Applications with UML Addison Wesley • Conallen, J. (1999) Modelling Web Application Architectures with UML Communications of the ACM volume 42, number 10 • Ceri, S., Fraternali, P. & Matera, M. (2002) Conceptual modelling of data-intensive Web applications IEEE Internet Computing volume 6, number 4
