  1. System Administration HW2Shell Script xclin

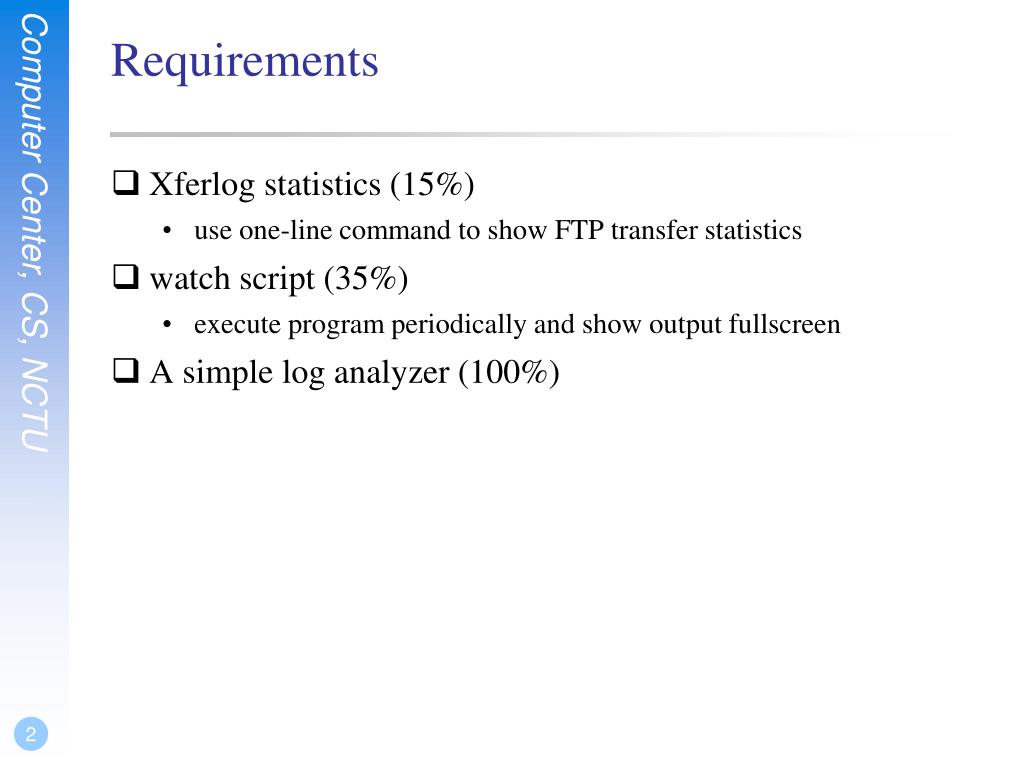

  2. Requirements • Xferlog statistics (15%) • use one-line command to show FTP transfer statistics • watch script (35%) • execute program periodically and show output fullscreen • A simple log analyzer (100%)

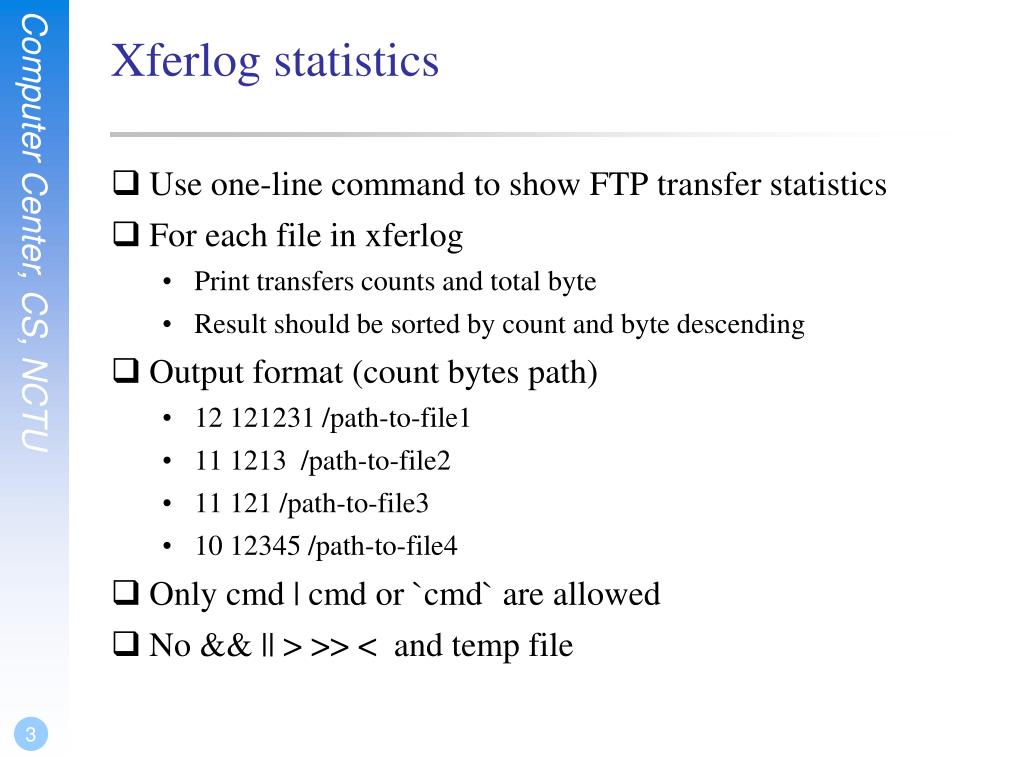

  3. Xferlog statistics • Use one-line command to show FTP transfer statistics • For each file in xferlog • Print transfers counts and total byte • Result should be sorted by count and byte descending • Output format (count bytes path) • 12 121231 /path-to-file1 • 11 1213 /path-to-file2 • 11 121 /path-to-file3 • 10 12345 /path-to-file4 • Only cmd | cmd or `cmd` are allowed • No && || > >> < and temp file

  4. Watch • Execute a program periodically, showing output fullscreen • Easy to monitor some information • “systat –ifstat” shows network interface statistics • When copy a file, there is no built-in command to show progress Use “watch ls” to find out how may byte has copied • Watch is a built-in command in Linux but FreeBSD’s watch command has another functionality

  5. Watch script • Write a script to execute program periodically • Syntax watch.sh [ -i interval ] cmd | -f file-to-cmd-list • Basic function ………………………10% • Portinstall stat script …………………5% • customized monitoring script ………..5% • Anti-blank …………………………..10% • Cut off out-of-screen data ……………5% • No temp files are allowed

  6. Watch portinstall • Portinstall can gather port dependency and show install progress in proctitle • Write a script to monitor portinstall and run by watch.sh –f cmd-file

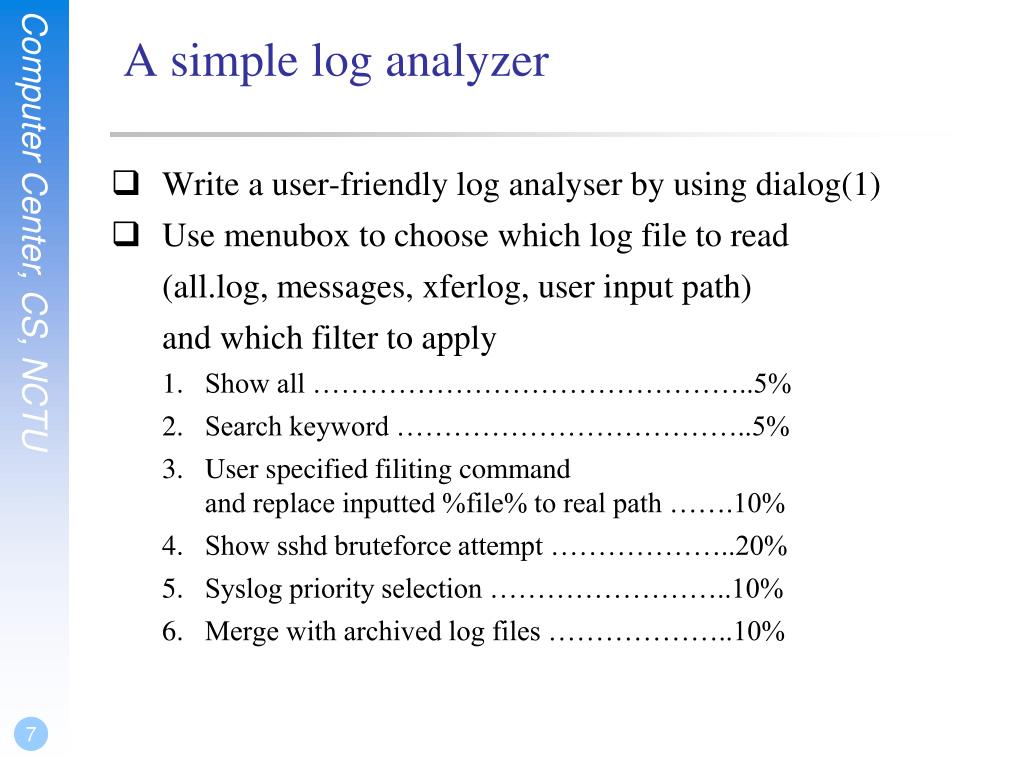

  7. A simple log analyzer • Write a user-friendly log analyser by using dialog(1) • Use menubox to choose which log file to read (all.log, messages, xferlog, user input path) and which filter to apply • Show all ………………………………………..5% • Search keyword ………………………………..5% • User specified filiting command and replace inputted %file% to real path …….10% • Show sshd bruteforce attempt ………………..20% • Syslog priority selection ……………………..10% • Merge with archived log files ………………..10%

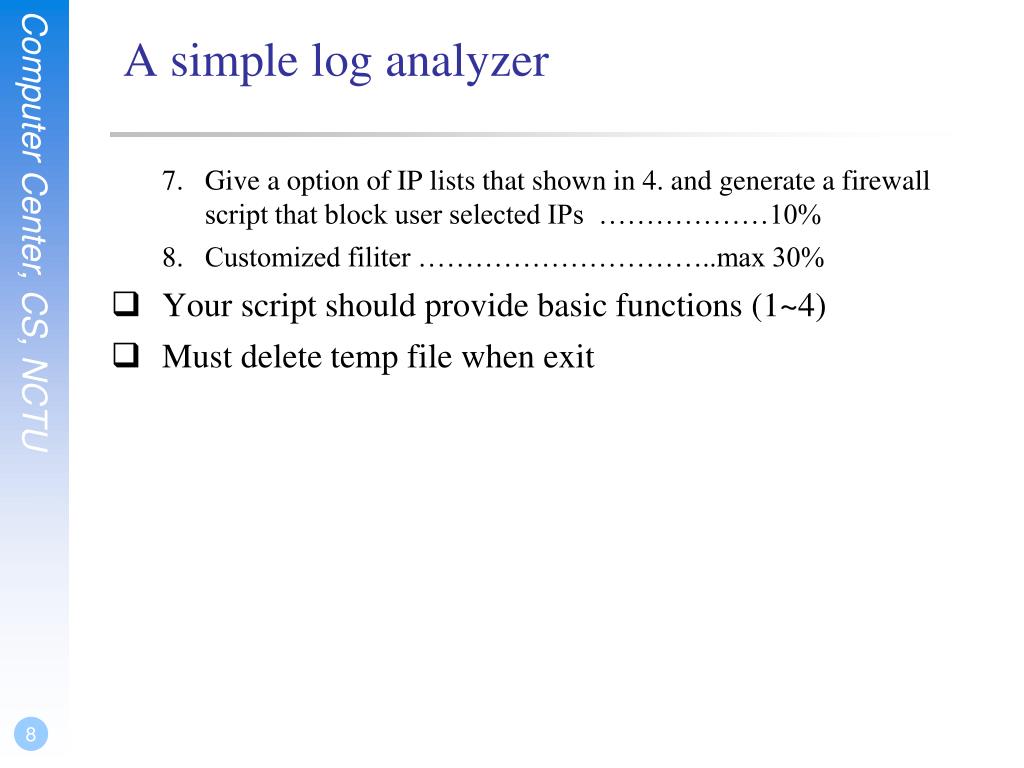

  8. A simple log analyzer • Give a option of IP lists that shown in 4. and generate a firewall script that block user selected IPs ………………10% • Customized filiter …………………………..max 30% • Your script should provide basic functions (1~4) • Must delete temp file when exit

  9. SSH bruteforce • Oct 15 12:33:24 NASA sshd[93293]: error: PAM: authentication error for root from 124.107.32.54 • Oct 15 12:33:52 NASA sshd[93296]: error: PAM: authentication error for root from 220.165.9.232 • Oct 15 12:34:43 NASA sshd[93299]: error: PAM: authentication error for root from 76.70.31.196 • Oct 15 12:35:22 NASA sshd[93304]: error: PAM: authentication error for root from 114.143.242.51 • Oct 15 12:36:08 NASA sshd[93307]: error: PAM: authentication error for root from 82.160.33.5 • Oct 15 12:37:04 NASA sshd[93310]: error: PAM: authentication error for root from 85.185.74.218 • Oct 15 12:37:59 NASA sshd[93313]: error: PAM: authentication error for root from 74.239.115.130 • Oct 15 12:39:50 NASA sshd[93316]: error: PAM: authentication error for root from 65.33.2.11 • Oct 15 12:40:44 NASA sshd[93321]: error: PAM: authentication error for root from 84.74.21.119 • Oct 15 12:41:58 NASA sshd[93326]: error: PAM: authentication error for root from 207.250.220.196 • Oct 15 12:42:46 NASA sshd[93329]: error: PAM: authentication error for root from 125.244.82.2 • Oct 20 01:50:46 NASA sshd[5991]: Invalid user raimundo from 61.152.201.74 • Oct 20 01:50:54 NASA sshd[5993]: Invalid user joan from 61.152.201.74 • Oct 20 01:51:03 NASA sshd[5995]: Invalid user johan from 61.152.201.74 • Oct 20 01:51:11 NASA sshd[5997]: Invalid user sebastian from 61.152.201.74 • Oct 20 01:51:19 NASA sshd[5999]: Invalid user agata from 61.152.201.74 • Oct 20 01:51:26 NASA sshd[6001]: Invalid user administrator from 61.152.201.74 • Oct 20 01:51:43 NASA sshd[6006]: Invalid user alexandre from 61.152.201.74

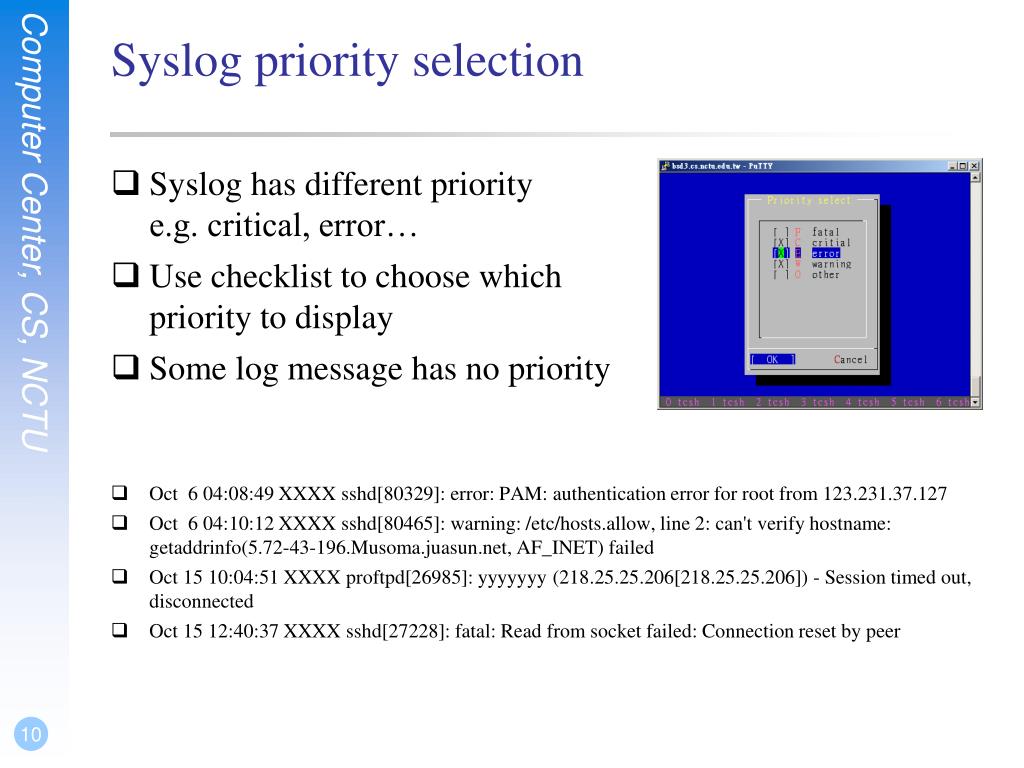

  10. Syslog priority selection • Syslog has different priority e.g. critical, error… • Use checklist to choose which priority to display • Some log message has no priority • Oct 6 04:08:49 XXXX sshd[80329]: error: PAM: authentication error for root from 123.231.37.127 • Oct 6 04:10:12 XXXX sshd[80465]: warning: /etc/hosts.allow, line 2: can't verify hostname: getaddrinfo(5.72-43-196.Musoma.juasun.net, AF_INET) failed • Oct 15 10:04:51 XXXX proftpd[26985]: yyyyyyy (218.25.25.206[218.25.25.206]) - Session timed out, disconnected • Oct 15 12:40:37 XXXX sshd[27228]: fatal: Read from socket failed: Connection reset by peer

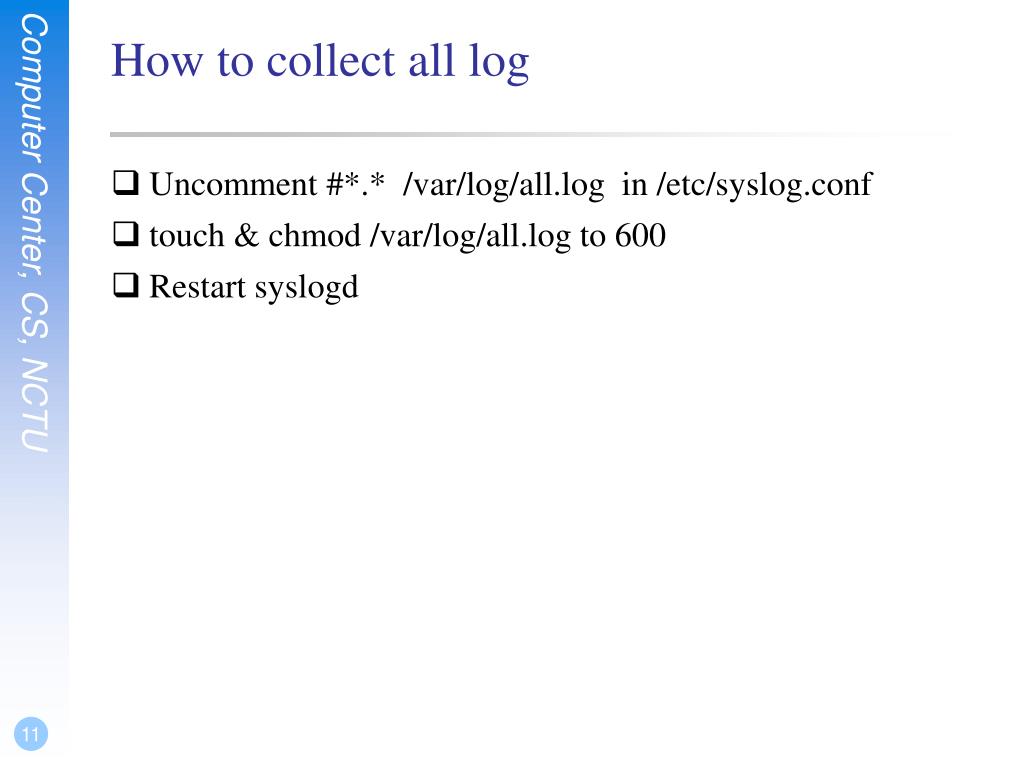

  11. How to collect all log • Uncomment #*.* /var/log/all.log in /etc/syslog.conf • touch & chmod /var/log/all.log to 600 • Restart syslogd

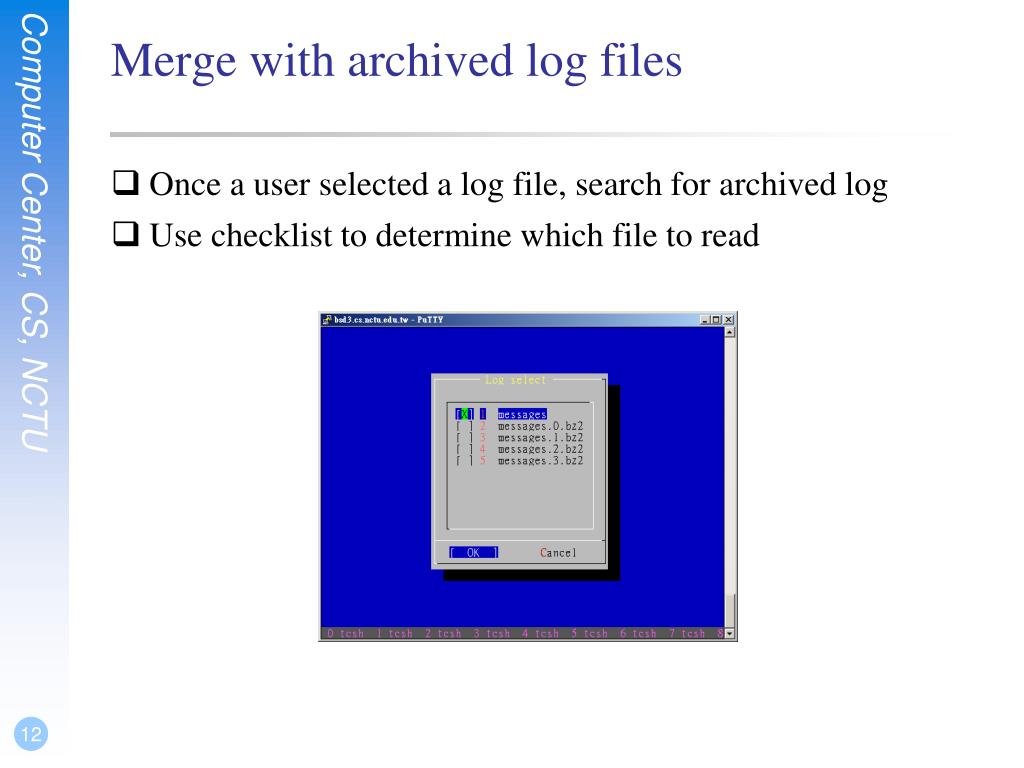

  12. Merge with archived log files • Once a user selected a log file, search for archived log • Use checklist to determine which file to read

  13. How to hand-in • Due 2009-11-10 18:30:00 • Demo & How: TBD

  14. Penalty • 1 week 80% • 2 week 70% • 3 week 60% • …….
