  1. Geography-informed Energy Conservation for Ad Hoc Routing Ya Xu, John Heidemann, Deborah Estrin ISI & UCLA Presented by: Cristian Borcea

  2. Motivation • reduce the energy consumption in ad hoc wireless networks • increase the network lifetime

  3. Solution • identifies equivalent nodes for routing • based on location information • turns off unnecessary nodes

  4. Assumptions • dense node deployment • many nodes can hear each other • each node knows its location • GPS ... but better other methods

  5. Energy Model • listen:receive:transmit energy consumption • 1:1.05:1.4 or 1:1.2:1.7 • recall from last week • listen:receive:transmit times are 1:3:40 • duty cycle > 22% ==> more than 50% of energy spent in listening • energy dissipation in idle state cannot be ignored

  6. Effects of turning radio off in the idle state

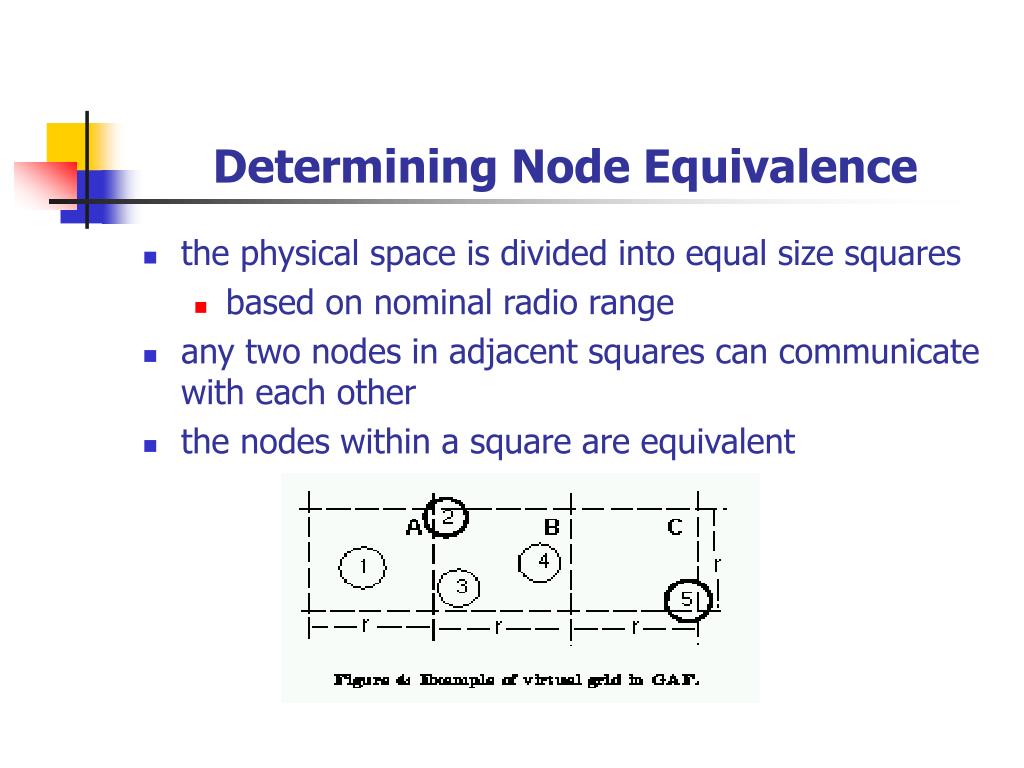

  7. Determining Node Equivalence • the physical space is divided into equal size squares • based on nominal radio range • any two nodes in adjacent squares can communicate with each other • the nodes within a square are equivalent

  8. Geographical Adaptive Fidelity ( GAF ) Routing • nodes in the same grid coordinate each other • who will sleep and for how long • runs over any ad hoc routing protocol • load balancing energy usage • all nodes remain up for us long as possible

  9. GAF state transitions

  10. Node Ranking • node(active) > node(discovery) • enat1>enat2 ==> node(enat1)> node(enat2) • enat = estimated node active time • node ids break the ties

  11. Adapting to Mobility • each node estimates the time when it expects the leave the grid: engt • includes this estimation in the discovery message • other nodes sleep for min(enat, engt) • GAF-ma ( mobility adaptation ), GAF-b ( basic scheme )

  12. Simulation • ns2 + cmu's extension for 802.11 • AODV vs GAF/AODV • DSR vs GAF/DSR • 50 transit nodes ( "routers" ) • 10 traffic nodes ( sources & sinks ) • Traffic: CBR • Nominal radio range: 250

  13. Energy model - values used in simulation • WaveLAN (pre-802.11, 1995) 2Mb/s • listen:receive:transmit 1:1.2:1.6W • 0.025 when sleeping • 802.11 wireless LAN • 0.75:1.5:1.9W • 802.11 cards • 0.83:1:1.4W

  14. Network Lifetime

  15. GAF energy savings • mean energy consumption per node (E0-Et)/(n*t) • E0 initial total energy for n nodes • Et total energy after time t • results: GAF+AODV is 40% better than AODV • for both GAF-b, GAF-ma

  16. GAF-b vs GAF-ma

  17. Data Delivery Ratio

  18. Average Delay

  19. Network lifetime: GAF vs AODV

  20. Network Lifetime vs Node Density

  21. Conclusions • GAF increases the network lifetime • does not decrease the performance substantially
