  1. Hybrid systems performance: a case study. Luis Mª Arribas CIEMAT Spain lm.arribas@ciemat.es European Wind Energy Conference May 2007 Milan European Wind Energy Conference

  2. Layout of the presentation • Introduction • The proposed hybrid system performance assessment procedure. • Case study: description of the system • Particularities of wind generation: analysis of components. • Analysis of the system. • Conclusion European Wind Energy Conference European Wind Energy Conference May 2007 Milan

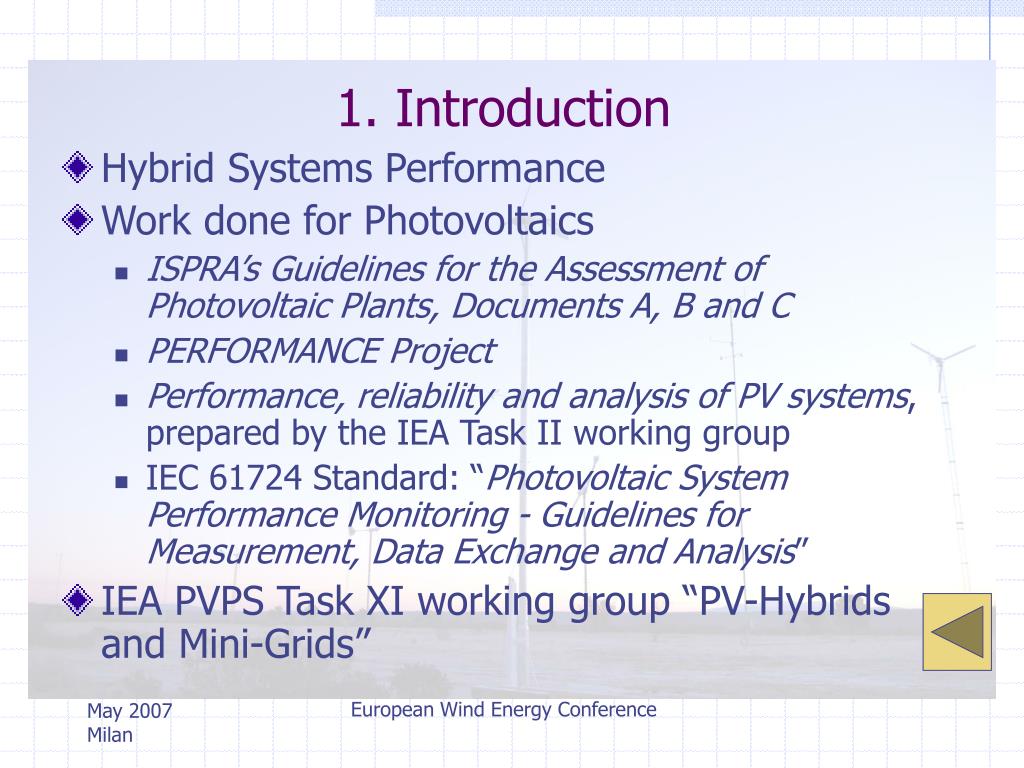

  3. 1. Introduction • Hybrid Systems Performance • Work done for Photovoltaics • ISPRA’s Guidelines for the Assessment of Photovoltaic Plants, Documents A, B and C • PERFORMANCE Project • Performance, reliability and analysis of PV systems, prepared by the IEA Task II working group • IEC 61724 Standard: “Photovoltaic System Performance Monitoring - Guidelines for Measurement, Data Exchange and Analysis” • IEA PVPS Task XI working group “PV-Hybrids and Mini-Grids” European Wind Energy Conference

  4. 2. Proposed Procedure • Use IEC 61724 Standard as a starting point • Parameters for PV generation • Include wind turbines in the scope of the Standard • Parameters for Wind generation in a hybrid Wind-PV scheme. European Wind Energy Conference

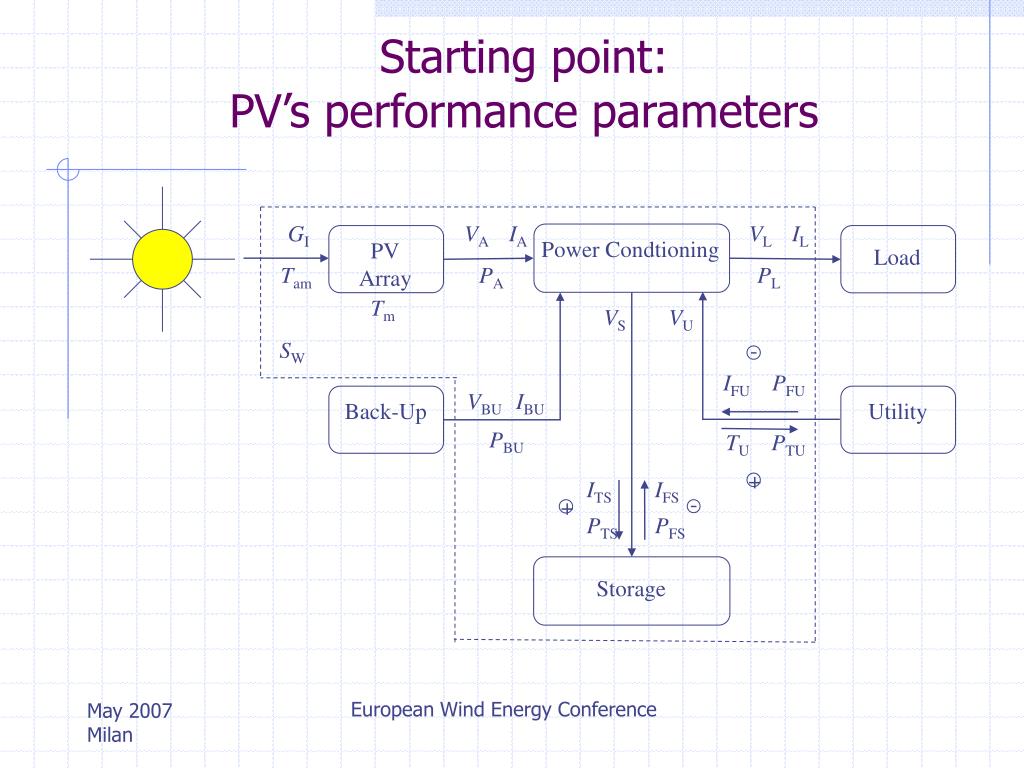

  5. GI VA IA VL IL Power Condtioning Back-Up Utility PV Array Load Tam PA PL Tm VS VU SW VBU IFU IBU PFU PBU TU PTU ITS PTS IFS PFS Storage - - + + Starting point: PV’s performance parameters European Wind Energy Conference

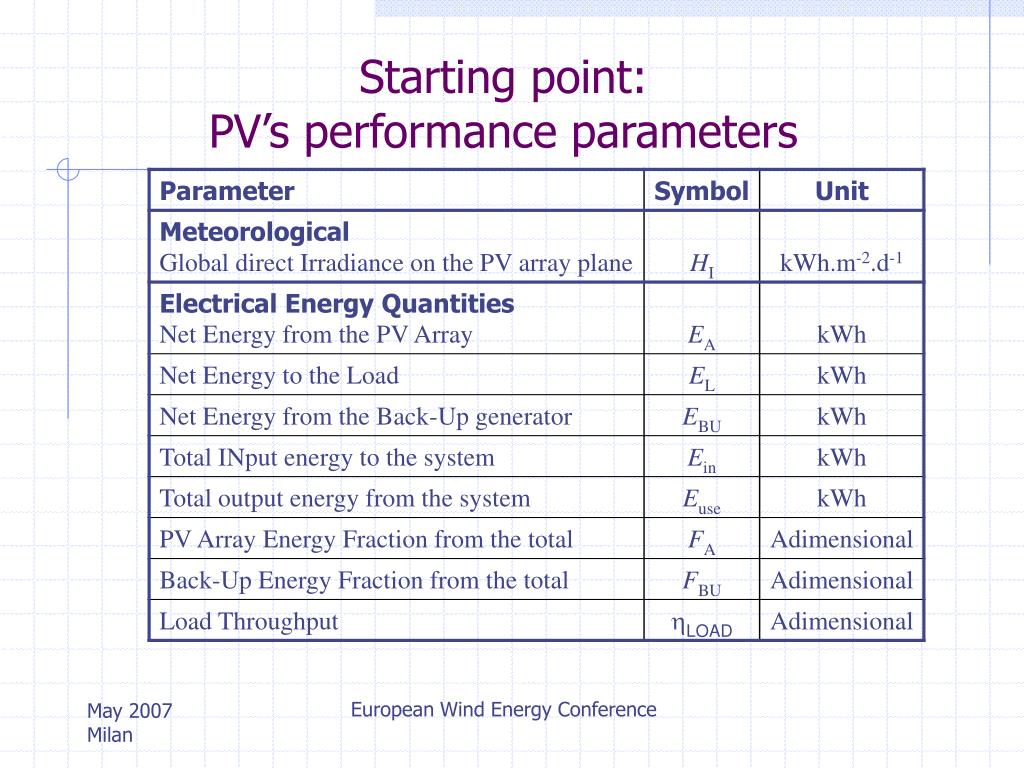

  6. Starting point: PV’s performance parameters European Wind Energy Conference

  7. Starting point: PV’s performance parameters Balance of the System performance Average production ratios Normalized losses System performance indices European Wind Energy Conference

  8. DW VWT,AC IWT,AC PWT,AC FWT Power Condtioning Back-Up Wind Turbine Utility PV Array Load PA Hum VBU IFU IBU PFU GI VA IA VL IL Tam PA PL Tm VS VU SW Storage PBU TU PTU - - ITS PTS IFS PFS + + New Parameters added to the PV ones European Wind Energy Conference

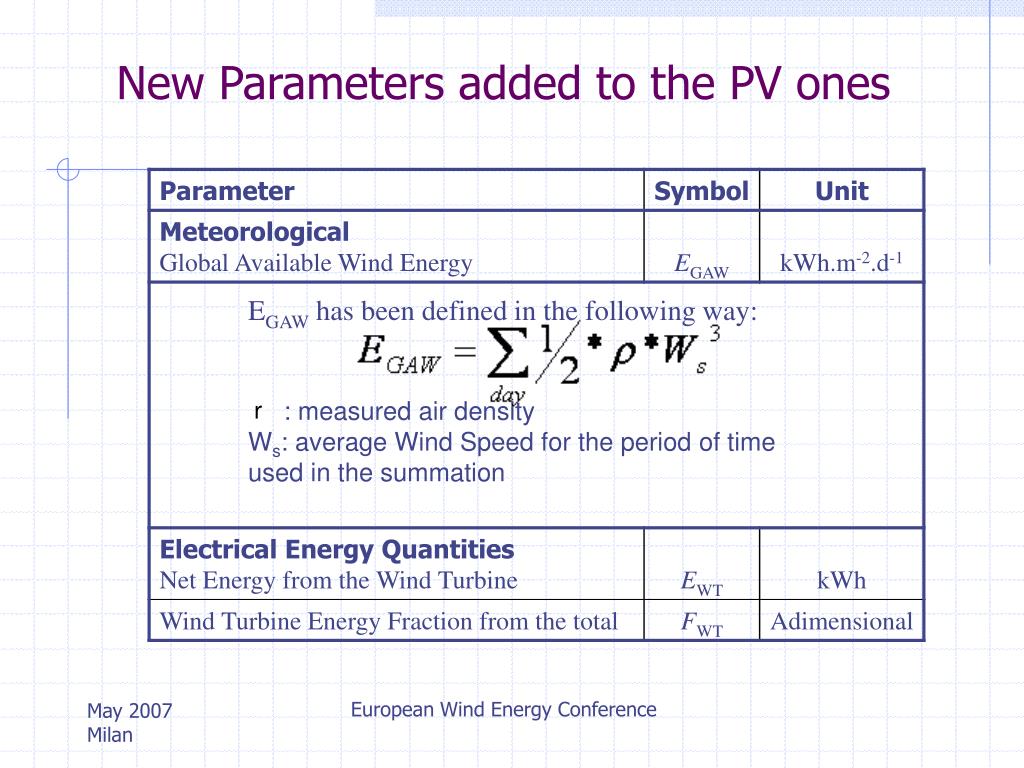

  9. New Parameters added to the PV ones EGAW has been defined in the following way: : measured air density Ws: average Wind Speed for the period of time used in the summation European Wind Energy Conference

  10. EGAW/PW,ref Global Available Wind Energy Reference Wind Power New Parameters added to the PV onesAverage production ratios European Wind Energy Conference

  11. Reference Wind Power • There is no common Wind Power Reference for all wind turbines and, so, • Wind Power Reference depends upon the specific wind turbine European Wind Energy Conference

  12. New Parameters added to the PV onesNormalized losses European Wind Energy Conference

  13. AWT = Wind Turbine rotor area (m2) New Parameters added to the PV onesSystem performance indices European Wind Energy Conference

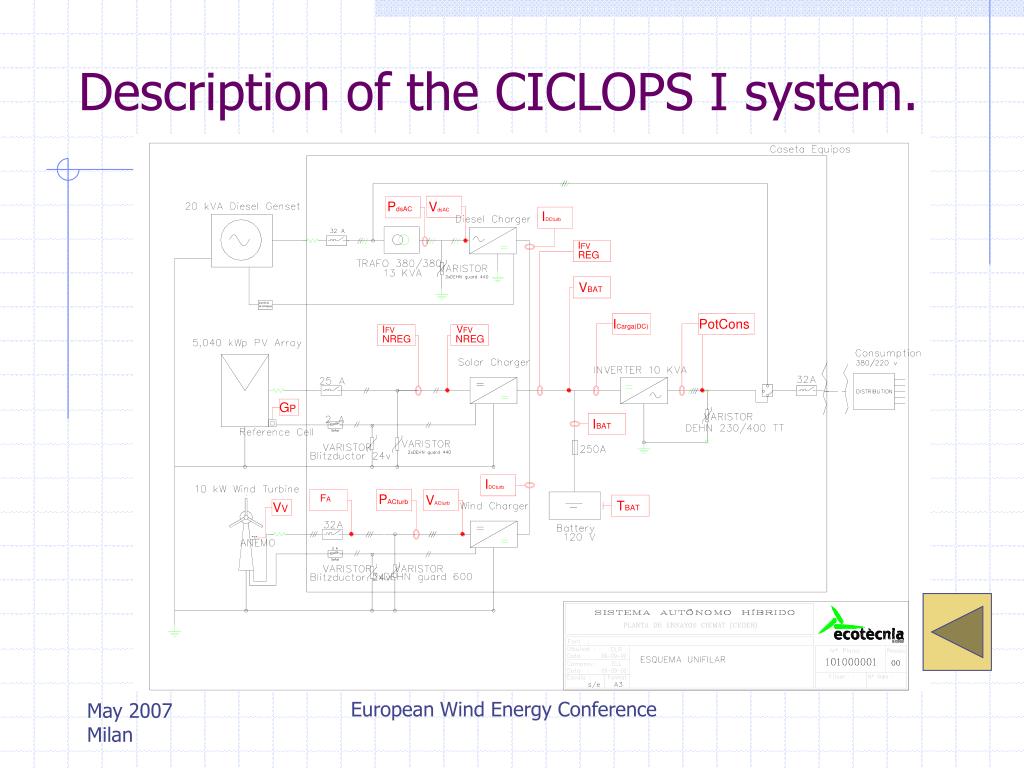

  14. Description of the CICLOPS I system. 7.5 kW SWT 5 kWp PV array 20 kVA Genset 595 C10 Battery Storage 120 V DC bus voltage European Wind Energy Conference

  15. Description of the CICLOPS I system. European Wind Energy Conference

  16. Quasi-dynamic regulation of Wind charge converter, trying to maintain the high battery voltage set-point 4. Particularities of wind generation: analysis of components • Sampling rate European Wind Energy Conference

  17. 4. Particularities of wind generation: analysis of components • Pre-averaging interval European Wind Energy Conference

  18. 5. Analysis of the system • Meteorological European Wind Energy Conference

  19. 5. Analysis of the system • Electrical Energy Quantities • PV • Wind European Wind Energy Conference

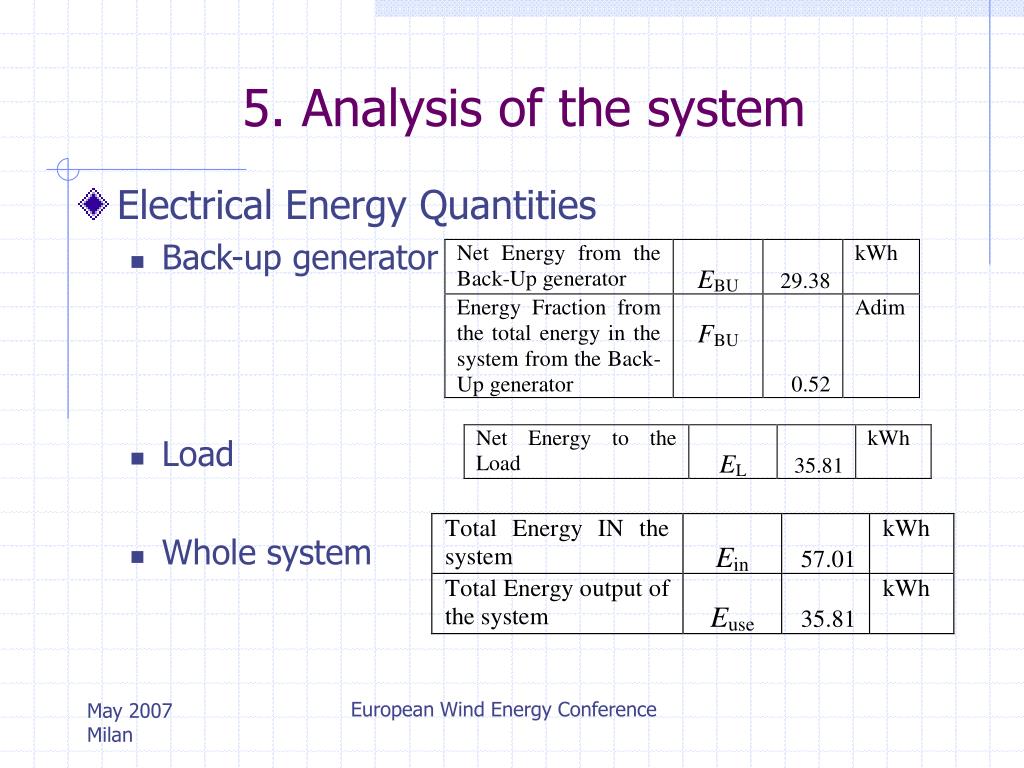

  20. 5. Analysis of the system • Electrical Energy Quantities • Back-up generator • Load • Whole system European Wind Energy Conference

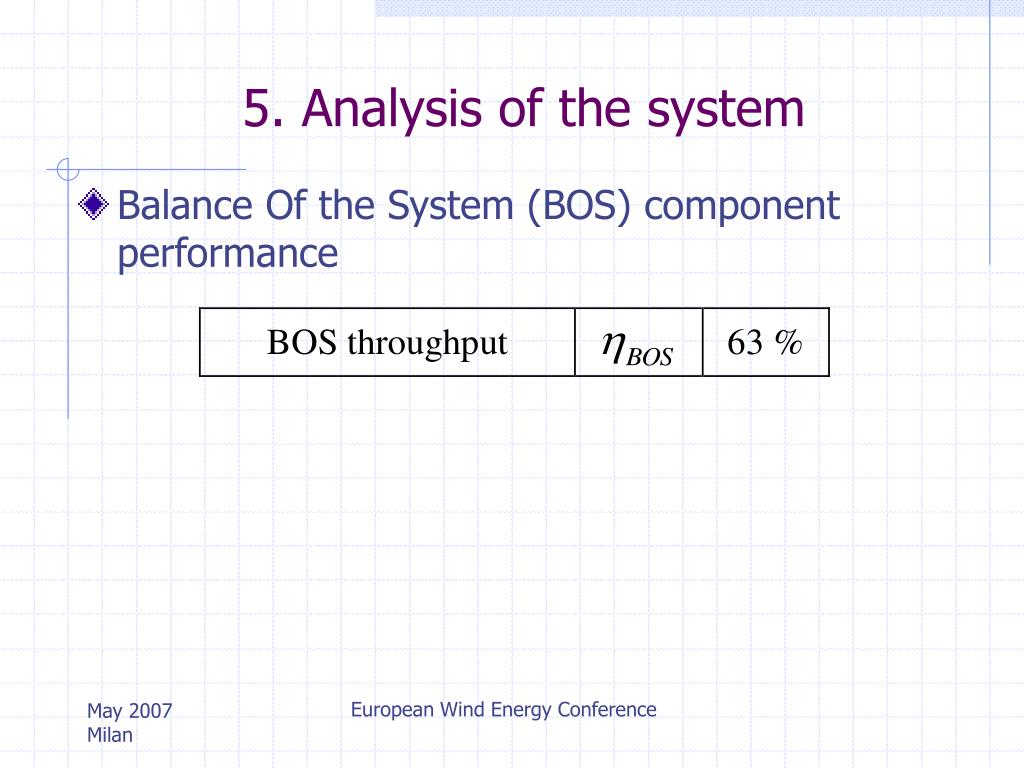

  21. 5. Analysis of the system • Balance Of the System (BOS) component performance European Wind Energy Conference

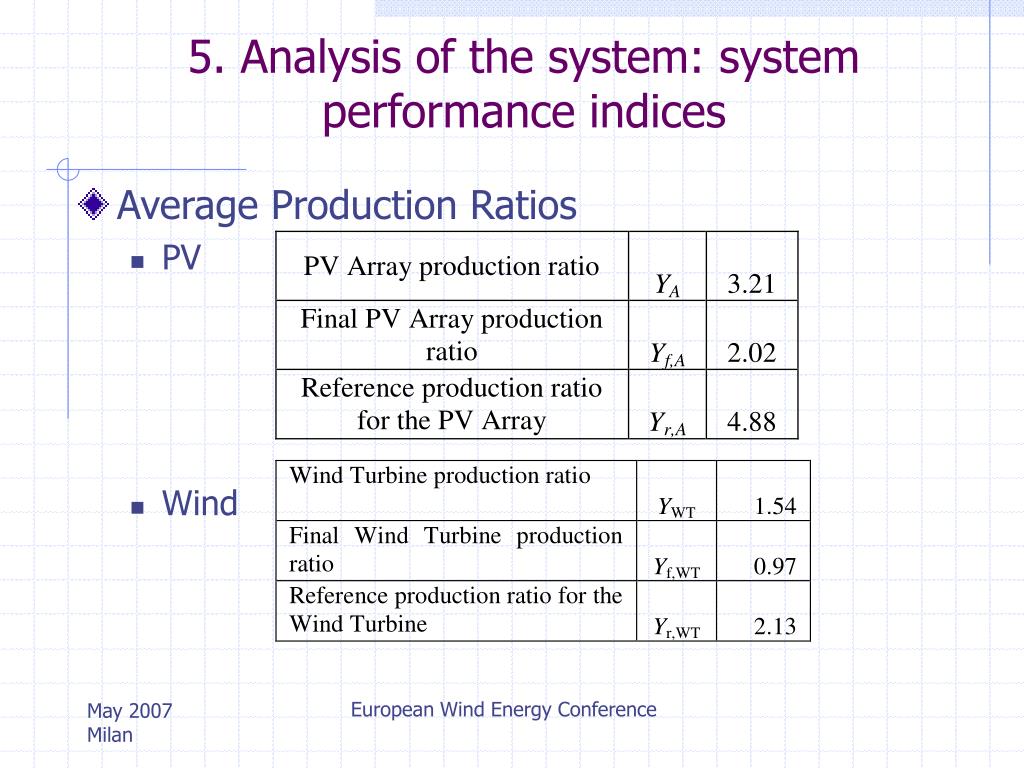

  22. 5. Analysis of the system: system performance indices • Average Production Ratios • PV • Wind European Wind Energy Conference

  23. 5. Analysis of the system: system performance indices • Normalized losses • PV • Wind European Wind Energy Conference

  24. 5. Analysis of the system: system performance indices • System Throughput indices • PV • Wind European Wind Energy Conference

  25. Conclusion • A Hybrid System Performance Assessment procedure has been introduced • Some particularities of wind generation arise • At least for demonstration projects, monitoring for: • long-term assessment, • characterization of components, • analysis of the system, • gain more understanding on hybrid systems. • This is a step ahead in the assessment of PV-Wind Hybrid systems, but there is still much more work to be done European Wind Energy Conference
