Insertion in a B+ Tree

Explore the intricacies of inserting and deleting keys in B+ trees, including handling overflows and underflows. This guide delves into the processes for inserting elements, managing splits, and creating new tree levels, as well as safely deleting keys while maintaining tree balance. Key topics include the effects of insertion at various levels, the challenges of overflow and underflow, and strategies for redistributing or merging nodes. Perfect for students and professionals seeking a deeper understanding of B+ tree algorithms and their implementations.

jontae
Télécharger la présentation

Insertion in a B+ Tree

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

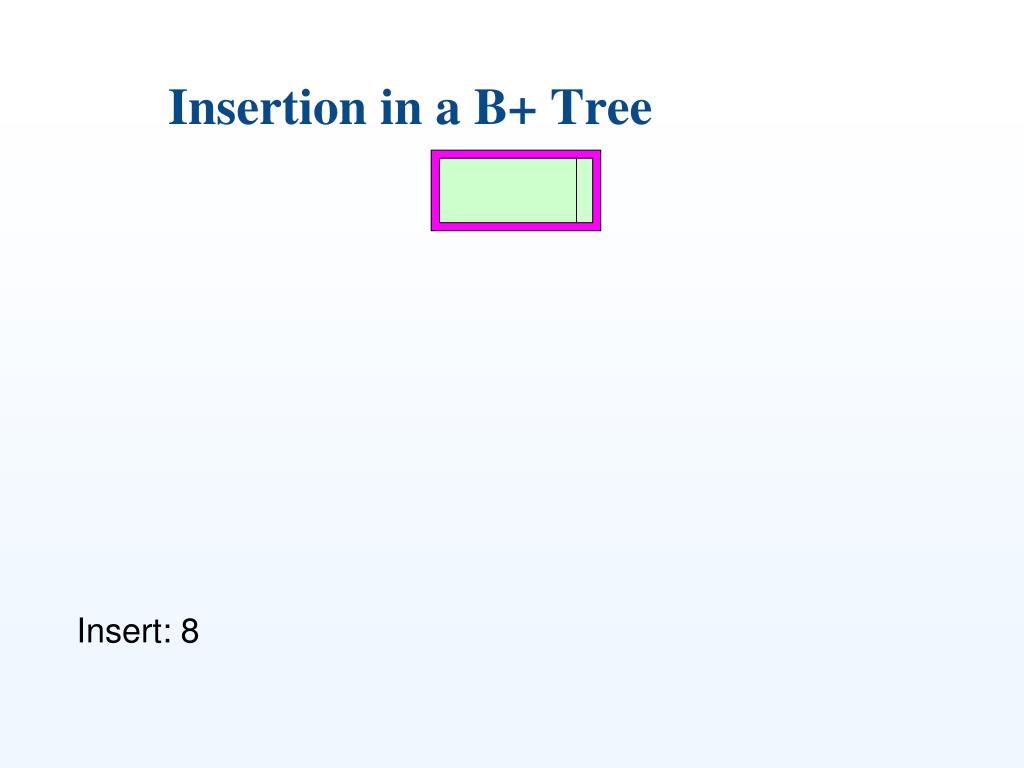

  1. Insertion in a B+ Tree Insert: 8

  2. 8 Insertion in a B+ Tree Insert: 5

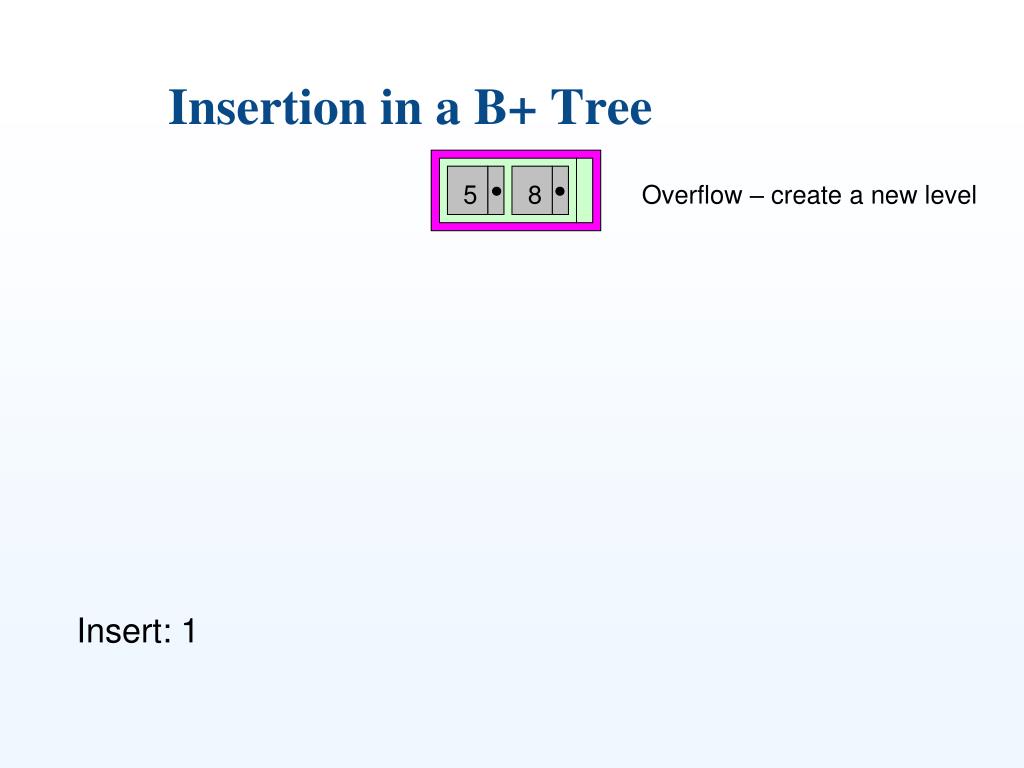

  3. 5 8 Insertion in a B+ Tree Overflow – create a new level Insert: 1

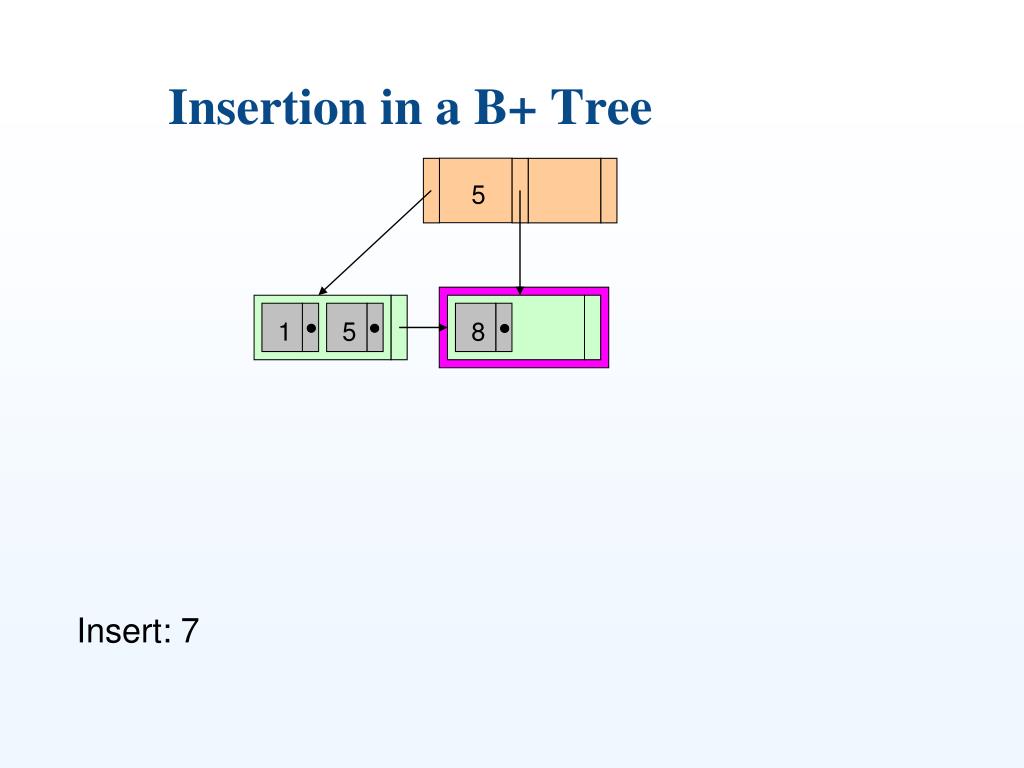

  4. 5 1 5 8 Insertion in a B+ Tree Insert: 7

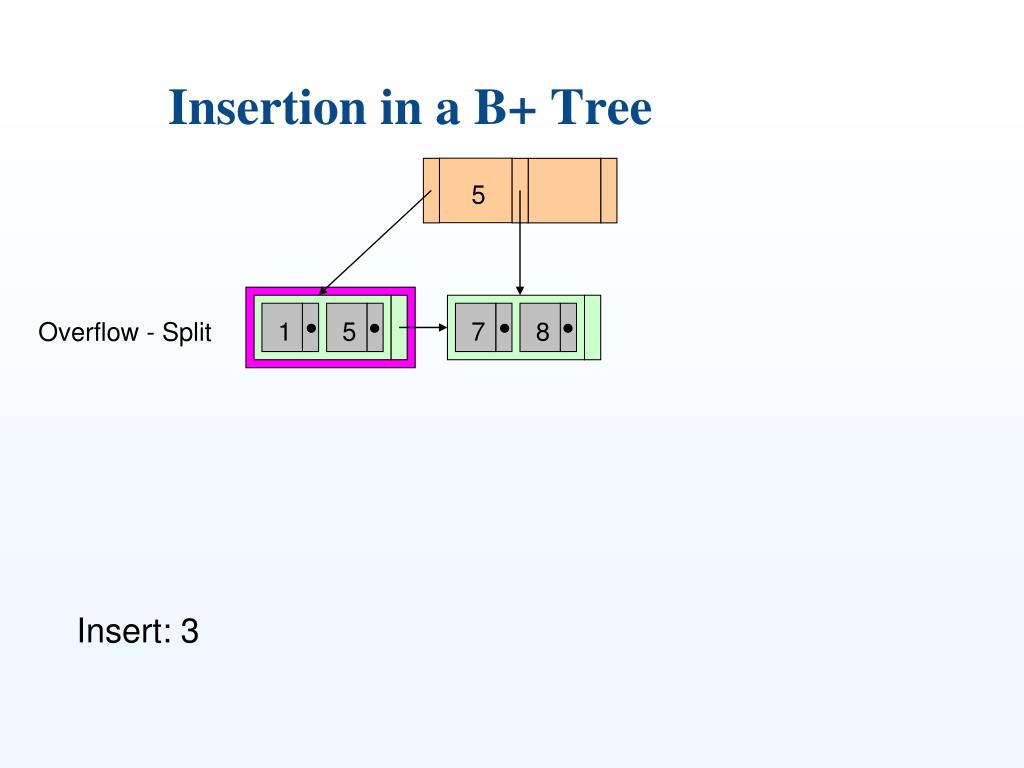

  5. 5 1 5 7 8 Insertion in a B+ Tree Overflow - Split Insert: 3

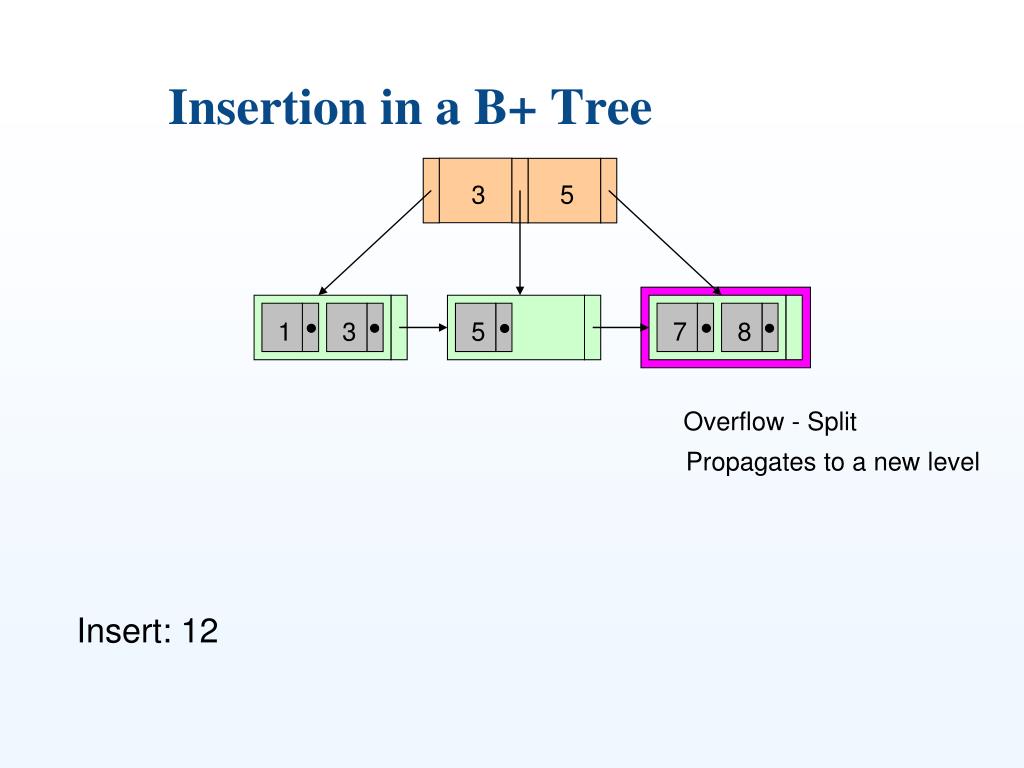

  6. 3 5 1 3 5 7 8 Insertion in a B+ Tree Overflow - Split Propagates to a new level Insert: 12

  7. 5 8 3 12 1 3 5 7 8 Insertion in a B+ Tree Insert: 9

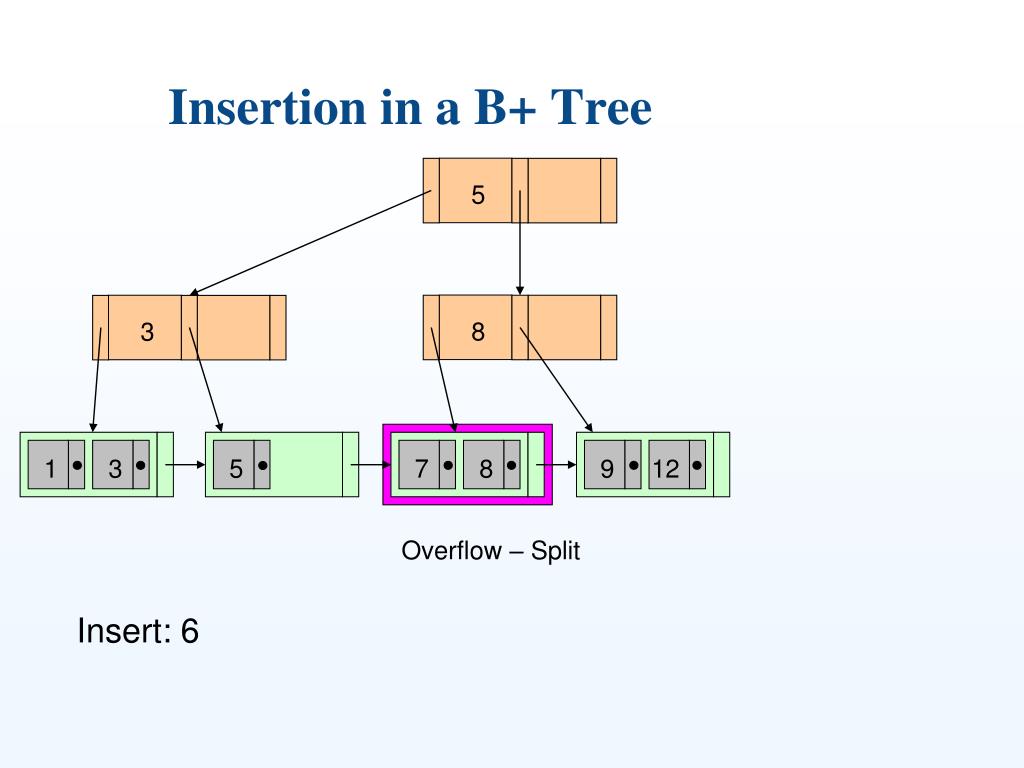

  8. 5 8 3 1 3 5 7 8 9 12 Insertion in a B+ Tree Overflow – Split Insert: 6

  9. 5 3 7 8 1 3 5 6 7 8 9 12 Insertion in a B+ Tree Resulting B+-tree

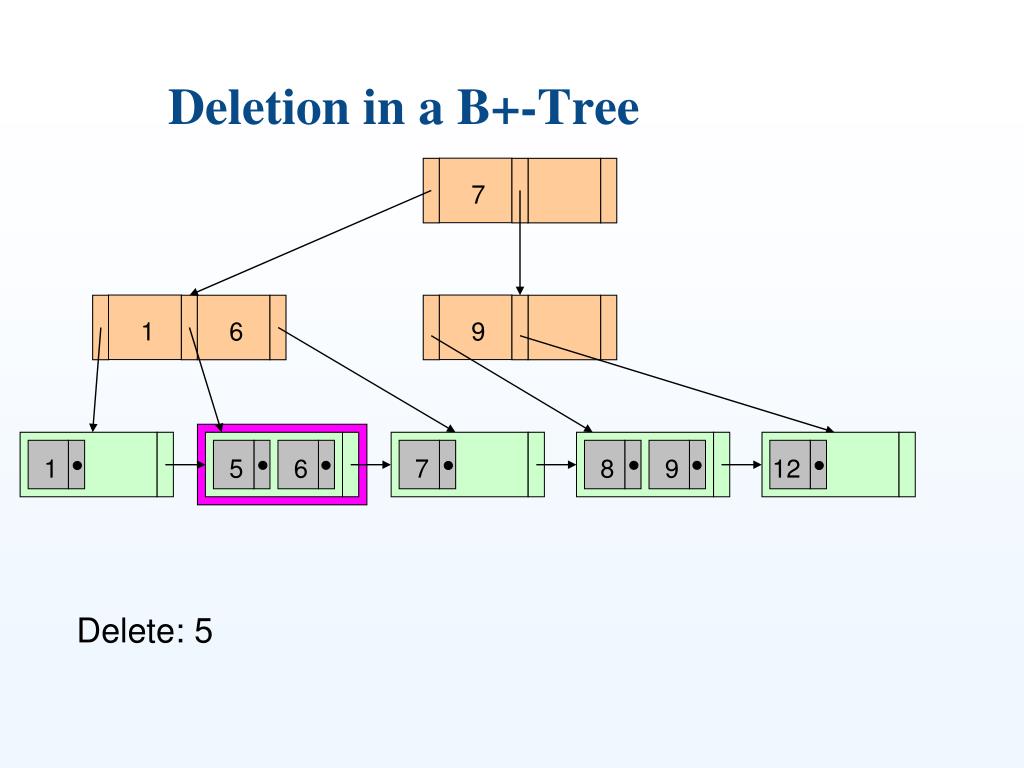

  10. 9 7 1 6 12 1 5 6 7 8 9 Deletion in a B+-Tree Delete: 5

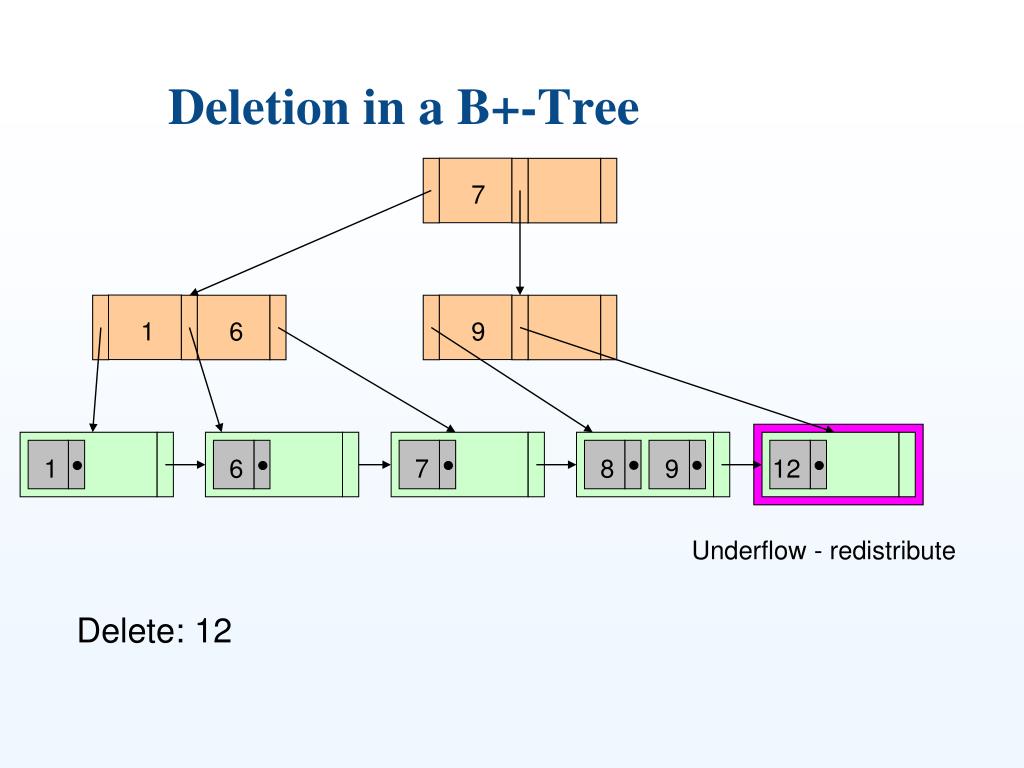

  11. 9 7 1 6 12 1 7 8 9 6 Deletion in a B+-Tree Underflow - redistribute Delete: 12

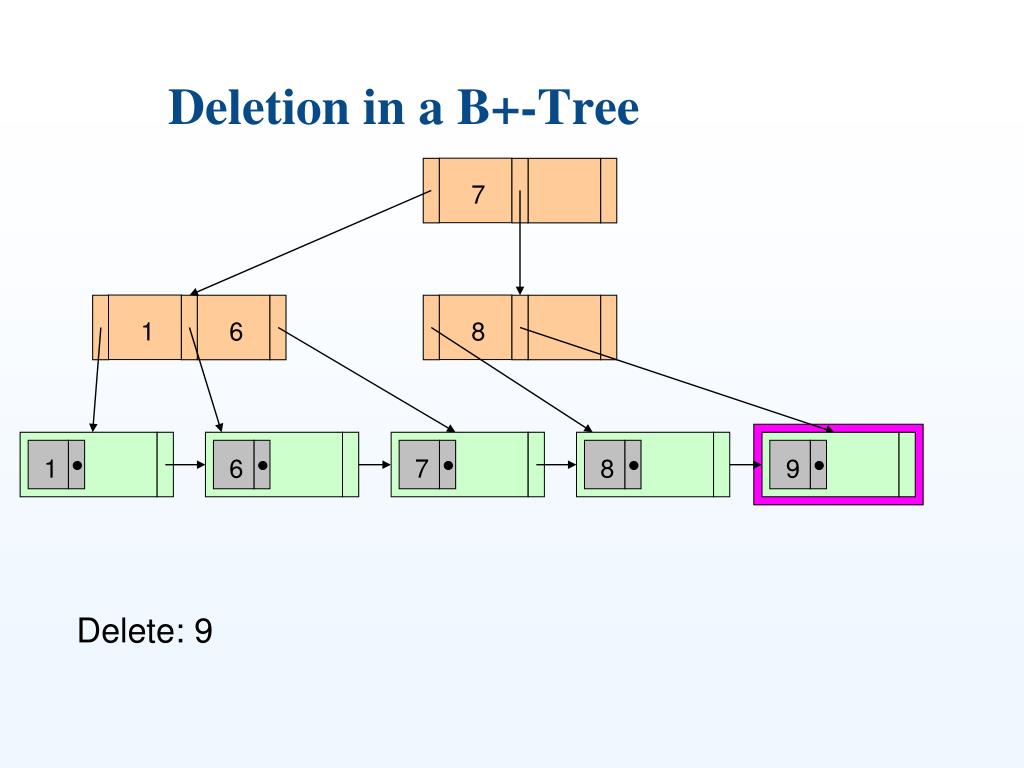

  12. 8 7 1 6 1 7 6 9 8 Deletion in a B+-Tree Delete: 9

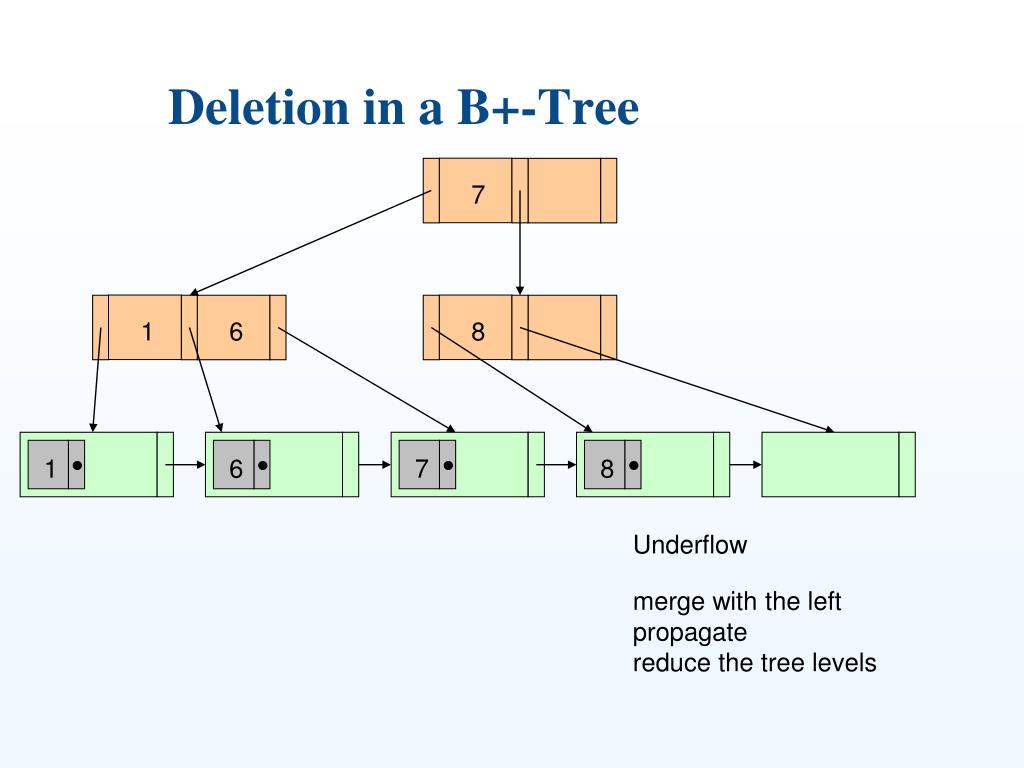

  13. 8 7 1 6 1 7 6 8 Deletion in a B+-Tree Underflow merge with the left propagate reduce the tree levels

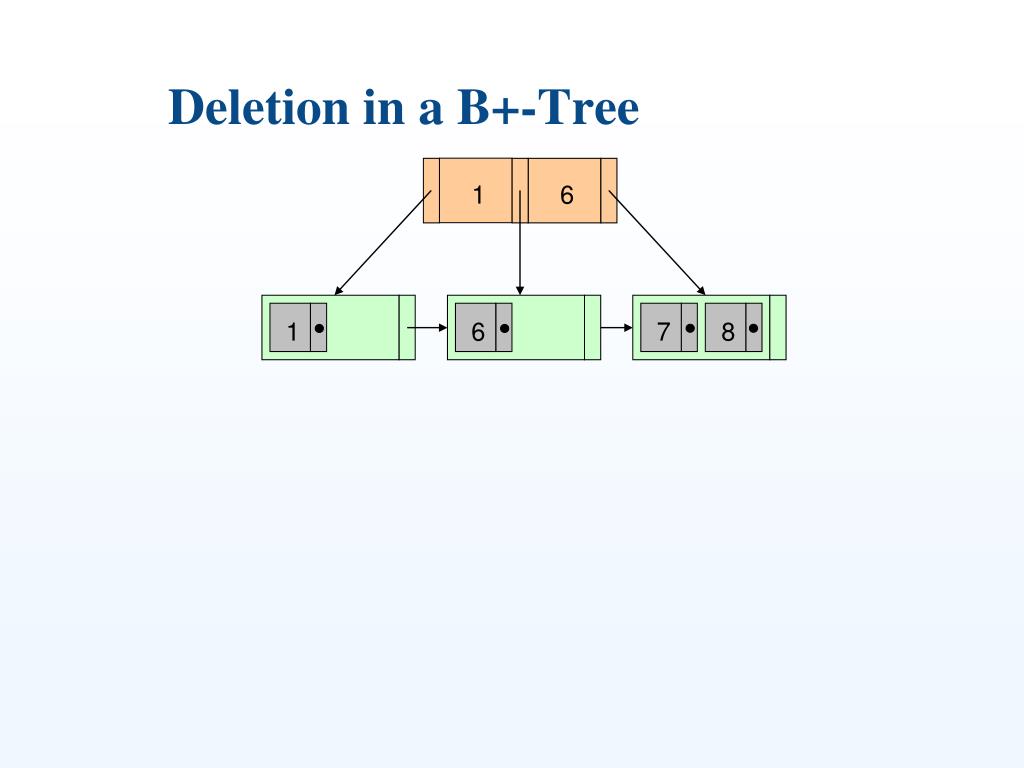

  14. 1 6 1 6 7 8 Deletion in a B+-Tree
