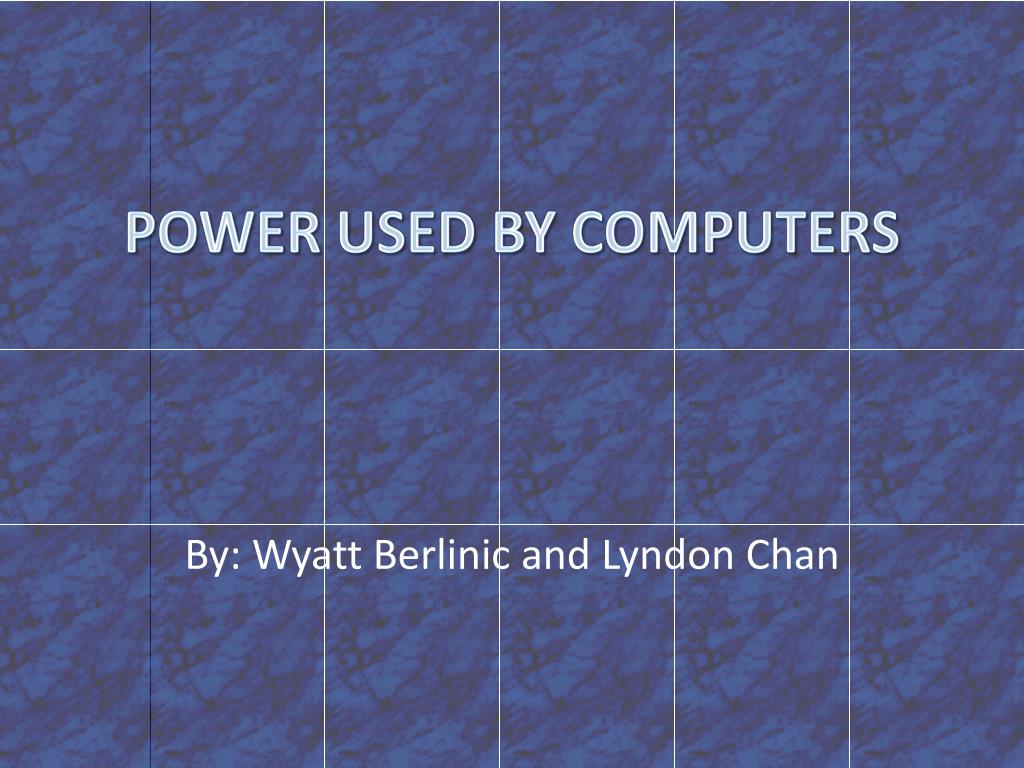

Power UsEd By Computers By: Wyatt Berlinic and Lyndon Chan
Outline • Possible interpretations • Global • Home • University • Engineering • Our interpretation • Focus on computers in the engineering building • Extrapolate this data to the rest of the campus. • Chose this interpretation because we could make the measurements and do actual calculations.
What we did • We purchased a blue planet EM100 energy meter from Canadian Tire • We then sampled different computers around the Engineering Building for power consumption
Assumptions • Computers with the same CPU and GPU consumed the same amount of power • The computers are not used 70% of the time • Power consumption would not increase by much when in use • The cost of electricity is 10.61 cents/kWh

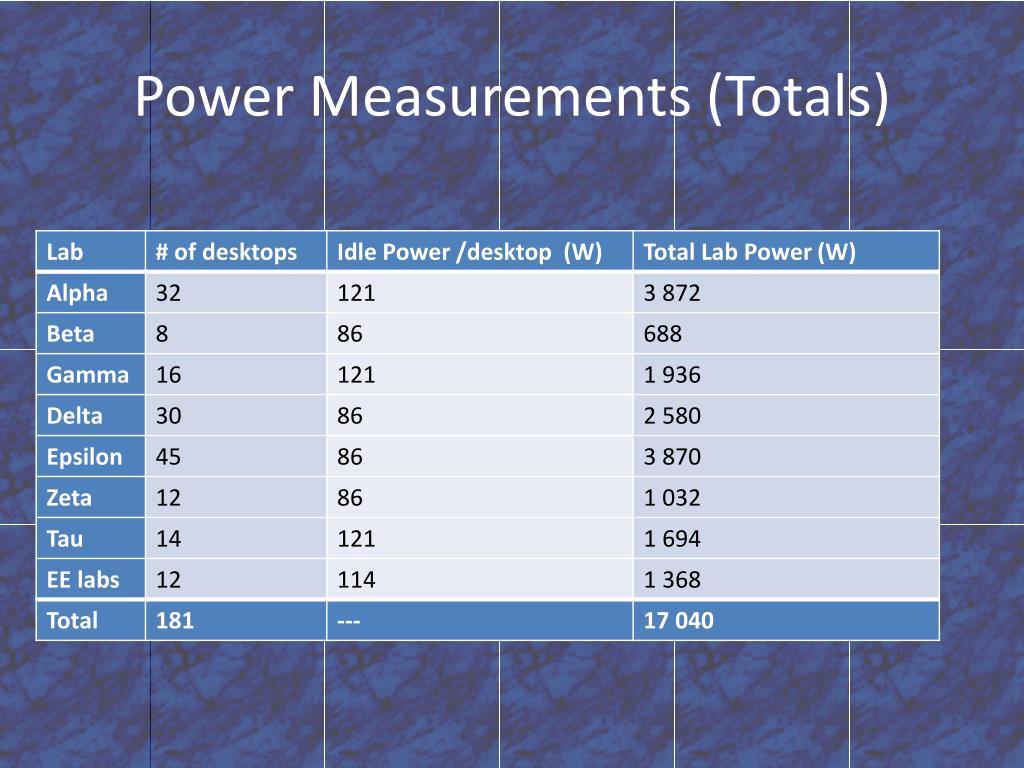

Power Measurements (Computers) Xi lab could not be measured, as it is running on the servers
Power Measurements (Monitors) • Each monitor uses about 35W of power when the computer is in use and when a screen saver is on. • The monitors use almost no power when asleep. We measured 0W. • We have counted 231 monitors in the Engineering labs, giving us a total of ~8 kW
Comparison of Results • A typical household uses an average power of 1kW 1 • The computers here use as much power as nine households, and 17 households with monitors • The total energy wasted in a year is equal to 119 100W light bulbs running all year round

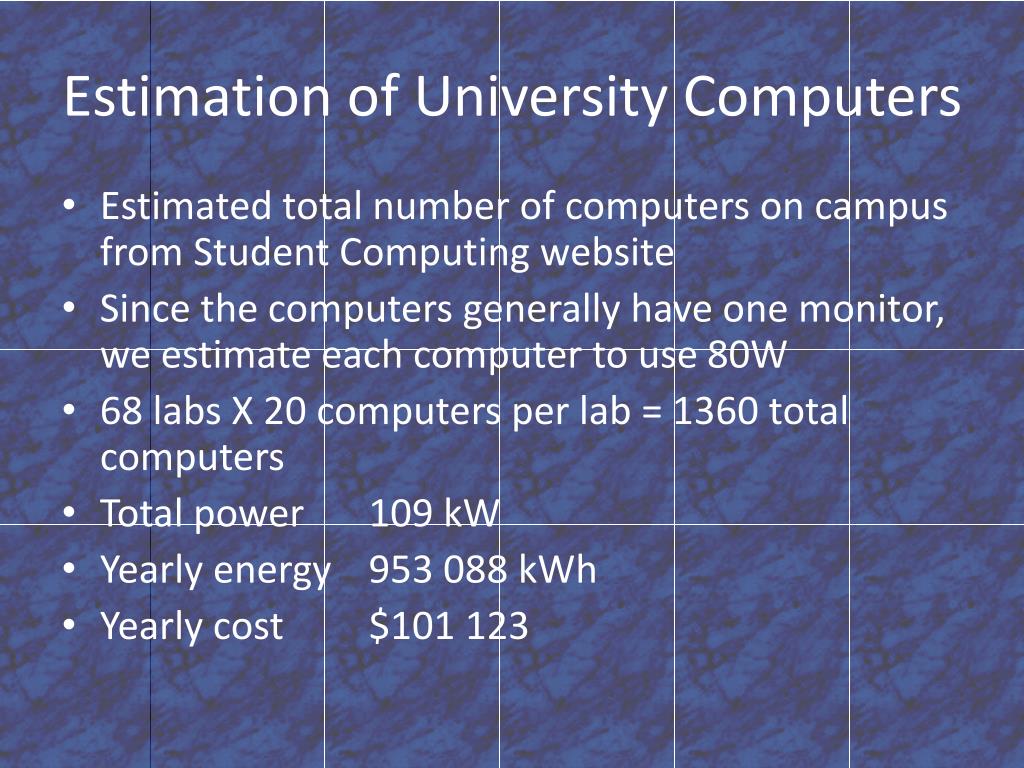

Estimation of University Computers • Estimated total number of computers on campus from Student Computing website • Since the computers generally have one monitor, we estimate each computer to use 80W • 68 labs X 20 computers per lab = 1360 total computers • Total power 109 kW • Yearly energy 953 088 kWh • Yearly cost $101 123

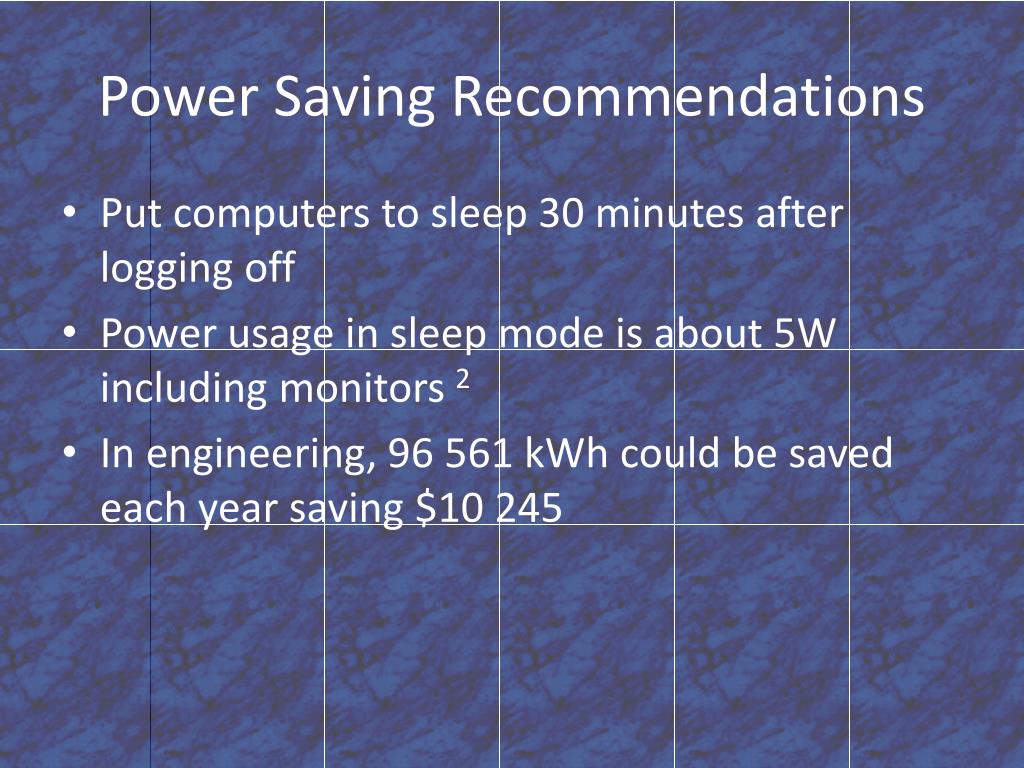

Power Saving Recommendations • Put computers to sleep 30 minutes after logging off • Power usage in sleep mode is about 5W including monitors 2 • In engineering, 96 561 kWh could be saved each year saving $10 245
Conclusions • A large portion of the university’s power is wasted by leaving computers on all the time • This wasted power can be mostly saved by sleeping computers when idle • Remote desktop is important, so software could be added to wake sleeping computers
References [1] K. J. Cassidy (2005). What’s a Watt [Online]. Available: www.solartanic.com/index_022.htm [2] M. Bluejay (2011). How much electricity do computers use? [Online]. Available: michaelbluejay.com/electricity/computers.html
